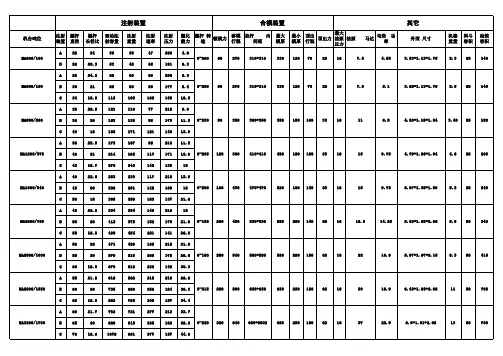

海天注塑机86T至1000T各机型参数

海天注塑机86T至1000T各机型参数机械手相对安装计算方法：机械手LM-(注塑机宽度的一半)*2不同型号机械手计算：（机械手LM-注塑机一半）+（机械手LM-注塑机一半）HTF86/TJHTF120J/TJ注射装置INJECTION UNIT A B C螺杆直径Screw Diameter mm 36 40 45 螺杆长径比Screw L/D Ratio L/D 23.3 20 18.7 理论容量Shot Size(Theoretical) cm3173 214 270 注射重量Injection Weight(PS) g 157 195 246 注射压力Injection Pressure Mpa 197 160 126 螺杆转速Screw Speed rpm 0～195合模装置CLAMPING UNIT合模力Clamp Tonnage KN 1200移模行程Toggle Stroke mm 350拉杆内距Space Between Tie Bars mm 410x410最大模厚Max.Mold Height mm 430最小模厚Min.Mold Height mm 150顶出行程Ejector Stroke mm 120顶出力Ejector Tonnage KN 33顶出杆根数Ejector Number Piece 5 其它OTHERS最大油泵压力Max.Pump Pressure MPa 16油泵马达Pump Motor Power kw 11电热功率Heater Power kw 9.75HTF160J/TJ注射装置INJECTION UNIT A B C螺杆直径Screw Diameter mm 40 45 48 螺杆长径比Screw L/D Ratio L/D 22.5 20 18.8 理论容量Shot Size(Theoretical) cm3253 320 364 注射重量Injection Weight(PS) g 230 291 331 注射压力Injection Pressure Mpa 202 159 140 螺杆转速Screw Speed rpm 0～175合模装置CLAMPING UNIT合模力Clamp Tonnage KN 1600移模行程Toggle Stroke mm 420拉杆内距Space Between Tie Bars mm 455x455最大模厚Max.Mold Height mm 500最小模厚Min.Mold Height mm 180顶出行程Ejector Stroke mm 140顶出力Ejector Tonnage KN 33顶出杆根数Ejector Number Piece 5 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 15电热功率Heater Power kw 9.75HTF200J/TJ注射装置INJECTION UNIT A B C螺杆直径Screw Diameter mm 45 50 55 螺杆长径比Screw L/D Ratio L/D 22.2 20 18.2 理论容量Shot Size(Theoretical) cm3334 412 499 注射重量Injection Weight(PS) g 304 375 454 注射压力Injection Pressure Mpa 210 170 141 螺杆转速Screw Speed rpm 0～165合模装置CLAMPING UNIT合模力Clamp Tonnage KN 2000移模行程Toggle Stroke mm 470拉杆内距Space Between Tie Bars mm 510x510最大模厚Max.Mold Height mm 510最小模厚Min.Mold Height mm 200顶出行程Ejector Stroke mm 130顶出力Ejector Tonnage KN 62顶出杆根数Ejector Number Piece 9 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 18.5电热功率Heater Power kw 14.25这个图跟我看过的宝源机的顶棍孔差不多。

HTF250J/TJ注射装置INJECTION UNIT A B C螺杆直径Screw Diameter mm 50 55 60 螺杆长径比Screw L/D Ratio L/D 22 20 18.3 理论容量Shot Size(Theoretical) cm3442 535 636 注射重量Injection Weight(PS) g 402 487 579 注射压力Injection Pressure Mpa 205 169 142 螺杆转速Screw Speed rpm 0～180合模装置CLAMPING UNIT合模力Clamp Tonnage KN 2500移模行程Toggle Stroke mm 540拉杆内距Space Between Tie Bars mm 570x570最大模厚Max.Mold Height mm 570最小模厚Min.Mold Height mm 220顶出行程Ejector Stroke mm 130顶出力Ejector Tonnage KN 62顶出杆根数Ejector Number Piece 9 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 22电热功率Heater Power kw 16.65HTF300J/TJ注射装置INJECTION UNIT A B C螺杆直径Screw Diameter mm 60 65 70 螺杆长径比Screw L/D Ratio L/D 21.7 20 18.6 理论容量Shot Size(Theoretical) cm3727 853 989 注射重量Injection Weight(PS) g 662 776 900 注射压力Injection Pressure Mpa 213 182 157 螺杆转速Screw Speed rpm 0～185合模装置CLAMPING UNIT合模力Clamp Tonnage KN 3000移模行程Toggle Stroke mm 600拉杆内距Space Between Tie Bars mm 660x660最大模厚Max.Mold Height mm 660最小模厚Min.Mold Height mm 250顶出行程Ejector Stroke mm 160顶出力Ejector Tonnage KN 62顶出杆根数Ejector Number Piece 13 其它OTHERS最大油泵压力Max.Pump Pressure MPa 16油泵马达Pump Motor Power kw 30电热功率Heater Power kw 19.65HTF360J/TJ注射装置INJECTION UNIT A B C螺杆直径Screw Diameter mm 65 70 75 螺杆长径比Screw L/D Ratio L/D 21.5 20 18.7 理论容量Shot Size(Theoretical) cm31068 1239 1423 注射重量Injection Weight(PS) g 972 1127 1295 注射压力Injection Pressure Mpa 208 180 156 螺杆转速Screw Speed rpm 0～185合模装置CLAMPING UNIT合模力Clamp Tonnage KN 3600移模行程Toggle Stroke mm 660拉杆内距Space Between Tie Bars mm 710x710最大模厚Max.Mold Height mm 710最小模厚Min.Mold Height mm 250顶出行程Ejector Stroke mm 160顶出力Ejector Tonnage KN 110顶出杆根数Ejector Number Piece 13 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 37电热功率Heater Power kw 24.85HTF450J/TJ注射装置INJECTION UNIT A B C螺杆直径Screw Diameter mm 70 80 84 螺杆长径比Screw L/D Ratio L/D 22.9 20 19 理论容量Shot Size(Theoretical) cm31424 1860 2050 注射重量Injection Weight(PS) g 1296 1693 1866 注射压力Injection Pressure Mpa 204 156 141 螺杆转速Screw Speed rpm 0～155合模装置CLAMPING UNIT合模力Clamp Tonnage KN 4500移模行程Toggle Stroke mm 740拉杆内距Space Between Tie Bars mm 780x780最大模厚Max.Mold Height mm 780最小模厚Min.Mold Height mm 330顶出行程Ejector Stroke mm 200顶出力Ejector Tonnage KN 110顶出杆根数Ejector Number Piece 13其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 45电热功率Heater Power kw 29.45HTF530J/TJ注射装置INJECTION UNIT A B C D螺杆直径Screw Diameter mm 80 84 90 100 螺杆长径比Screw L/D Ratio L/D 22 21 19.6 17.6 理论容量Shot Size(Theoretical) cm32212 2438 2799 3456 注射重量Injection Weight(PS) g 2012 2218 2547 3145 注射压力Injection Pressure Mpa 180 163 142 115 螺杆转速Screw Speed rpm 0～130合模装置CLAMPING UNIT合模力Clamp Tonnage KN 5300移模行程Toggle Stroke mm 825拉杆内距Space Between Tie Bars mm 830x800最大模厚Max.Mold Height mm 850最小模厚Min.Mold Height mm 350顶出行程Ejector Stroke mm 200顶出力Ejector Tonnage KN 158顶出杆根数Ejector Number Piece 17 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 55电热功率Heater Power kw 40.25HTF650J/TJ注射装置INJECTION UNIT A B C D螺杆直径Screw Diameter mm 80 90 100 110 螺杆长径比Screw L/D Ratio L/D 24.8 22 19.8 18 理论容量Shot Size(Theoretical) cm32036 2576 3181 3849 注射重量Injection Weight(PS) g 1853 2344 2895 3503 注射压力Injection Pressure Mpa 224 177 143 118 螺杆转速Screw Speed rpm 0～120合模装置CLAMPING UNIT合模力Clamp Tonnage KN 6500移模行程Toggle Stroke mm 900拉杆内距Space Between Tie Bars mm 895x895最大模厚Max.Mold Height mm 900最小模厚Min.Mold Height mm 400顶出行程Ejector Stroke mm 260顶出力Ejector Tonnage KN 175顶出杆根数Ejector Number Piece 17 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 22+37电热功率Heater Power kw 49.25HTF780J/TJ注射装置INJECTION UNIT A B C D螺杆直径Screw Diameter mm 90 100 110 120 螺杆长径比Screw L/D Ratio L/D 24.4 22 20 18.3 理论容量Shot Size(Theoretical) cm32799 3456 4181 4976 注射重量Injection Weight(PS) g 2547 3145 3805 4528 注射压力Injection Pressure Mpa 228 184 152 128 螺杆转速Screw Speed rpm 0～104合模装置CLAMPING UNIT合模力Clamp Tonnage KN 7800移模行程Toggle Stroke mm 980拉杆内距Space Between Tie Bars mm 980x980最大模厚Max.Mold Height mm 980最小模厚Min.Mold Height mm 400顶出行程Ejector Stroke mm 260顶出力Ejector Tonnage KN 186顶出杆根数Ejector Number Piece 21 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 37+37电热功率Heater Power kw 61.15HTF900J/TJ注射装置INJECTION UNIT A B C D螺杆直径Screw Diameter mm 90 100 110 120 螺杆长径比Screw L/D Ratio L/D 24.4 22 20 18.3 理论容量Shot Size(Theoretical) cm32799 3456 4181 4976 注射重量Injection Weight(PS) g 2547 3145 3805 4528 注射压力Injection Pressure Mpa 228 184 152 128 螺杆转速Screw Speed rpm 0～114合模装置CLAMPING UNIT合模力Clamp Tonnage KN 9000移模行程Toggle Stroke mm 1020拉杆内距Space Between Tie Bars mm 1060x1000最大模厚Max.Mold Height mm 1020最小模厚Min.Mold Height mm 450顶出行程Ejector Stroke mm 260顶出力Ejector Tonnage KN 186顶出杆根数Ejector Number Piece 21 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 37+45电热功率Heater Power kw 61.15HTF1000J/TJ注射装置INJECTION UNIT A B C D螺杆直径Screw Diameter mm 100 110 120 130 螺杆长径比Screw L/D Ratio L/D 24.4 22 20.2 18.6 理论容量Shot Size(Theoretical) cm33770 4562 5429 6371 注射重量Injection Weight(PS) g 3431 4145 4940 5798 注射压力Injection Pressure Mpa 211 174 146 125 螺杆转速Screw Speed rpm 0～101合模装置CLAMPING UNIT合模力Clamp Tonnage KN 10000移模行程Toggle Stroke mm 1100拉杆内距Space Between Tie Bars mm 1090x1090最大模厚Max.Mold Height mm 1100最小模厚Min.Mold Height mm 500顶出行程Ejector Stroke mm 320顶出力Ejector Tonnage KN 215顶出杆根数Ejector Number Piece 21 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 37+55电热功率Heater Power kw 68.75。
