阀门英语大全阀门英汉翻译

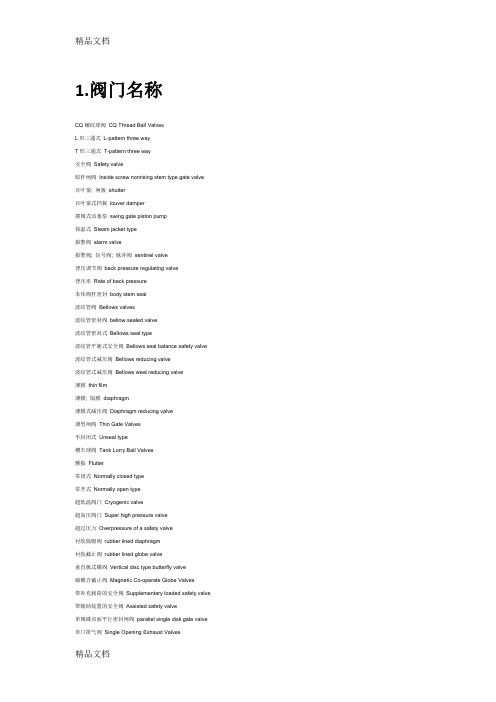

阀门英汉翻译CQ螺纹球阀 CQ Thread Ball ValvesL形三通式 L-pattern three wayT形三通式 T-pattern three way安全阀 Safety valve暗杆闸阀 Inside screw nonrising stem type gate valve 百叶窗; 闸板 shutter百叶窗式挡板 louver damper摆阀式活塞泵 swing gate piston pump保温式 Steam jacket type报警阀 alarm valve报警阀; 信号阀; 脉冲阀 sentinel valve背压调节阀 back pressure regulating valve背压率 Rate of back pressure本体阀杆密封 body stem seal波纹管阀 Bellows valves波纹管密封阀 bellow sealed valve波纹管密封式 Bellows seal type波纹管平衡式安全阀 Bellows seal balance safety valve波纹管式减压阀 Bellows reducing valve波纹管式减压阀 Bellows weal reducing valve薄膜 thin film薄膜; 隔膜 diaphragm薄膜式减压阀 Diaphragm reducing valve薄型闸阀 Thin Gate Valves不封闭式 Unseal type槽车球阀 Tank Lorry Ball Valves颤振 Flutter常闭式 Normally closed type常开式 Normally open type超低温阀门 Cryogenic valve超高压阀门 Super high pressure valve超过压力 Overpressure of a safety valve衬胶隔膜阀 rubber lined diaphragm衬胶截止阀 rubber lined globe valve垂直板式蝶阀 Vertical disc type butterfly valve磁耦合截止阀 Magnetic Co-operate Globe Valves带补充载荷的安全阀 Supplementary loaded safety valve带辅助装置的安全阀 Assisted safety valve单阀碟双面平行密封闸阀 parallel single disk gate valve单口排气阀 Single Opening Exhaust Valves单向阀 Non-return Valve单闸板 Single gate disc单闸板平板闸阀 Single Disc Flat Gate Valves弹簧薄膜式减压阀 Spring diaphragm reducing valve弹簧式安全阀 Direct spring loaded safety valve弹簧座 Spring plate弹性闸板 Flexible gate disc当量计算排量 Equivalent calculated capacity挡板 damper导阀 Pilot valve导向套 Valve guide disc guide低温阀门 Sub-zero valve低压阀门 Low pressure valve底阀 bottom valve底阀 Foot valve电磁动装置 Eletro magnetic actuator电磁阀 magnetic valve电磁阀 solenoid valve电磁－液动装置 Eletro magnetichydraulic actuator电动阀 mortor operated valve电动阀 motorized valve电动截止阀 Electric Actuated Stop Valves电动平行式双闸板闸板 Electric Double Disk Parallel Gate Valves电动楔式闸阀 Electric Actuated Wedge Gate Valves电动装置 Electric actuator电－液动装置 Eletro hydraulic actuator电液伺服阀 electro-hydraulic servovalve调节弹簧 Regulation spring调节阀 adjusting valve调节阀 control valve调节阀 regulating valve调节螺套 Adjusting bolt Adjusting screw调节圈 Adjusting ring蝶板 Disc蝶阀；瓣阀 butterfly valve蝶阀；瓣阀；拍门；铰链阀 flap valve蝶式缓冲止回阀 Butterfly Type Non-slam Check蝶式止回阀 Butterfly swing check valve定比减压阀 Proprutioning pressure reducing valve定差减压阀 Fixed differential reducing valve定值减压阀 Fixed pressure reducing valve动态特性 Dynamic characteristics对焊连接阀 Buttwelding valves对夹蝶板阀 Wafer plate valves对夹式衬胶蝶阀 Wafer Type Butterfly Valves with Rubber Itning 对夹式阀门 Clamp valves对夹式止回阀 Wafer Check Valves额定排量 Certified capacity额定排量系数 Derated coefficient of discharge 二通阀 Two-way valves阀 valve阀板 valve deck plate阀板 valve plate阀板式活塞泵 valve deck plate type piston pump 阀板式活塞泵 valve plate type piston pump阀瓣 Disc阀操纵杆 valve operating rod阀痤槽 valve seat recess阀挡 valve grid阀挡 valve positioner阀挡 valve stop阀导杆 valve tail rod阀导向器 valve guide阀盖 bonnet阀盖衬套 bonnet bush阀盖垫片 bonnet gasket阀杆 stem阀杆 valve rod阀杆 valve spindle阀杆端部尺寸 Dimmension of valve stem end阀杆环 stem ring阀杆螺母 Yoke bushing Yoke nut阀杆填料 stem packing阀杆头部尺寸 Dimension of valve stem head阀簧 valve spring阀簧压板 valve spring plate阀控水锤泵 valve-controlled hydraulic ram阀框架 valve yoke阀门 Valve阀门传动装置 valve bandle set阀门和管件 Valves and Fittings阀门盘根 valve packing阀门手柄 valve handle阀盘 disc阀盘 valve disc阀片 Disc阀球 valve ball阀驱动臂 valve driving arm阀驱动臂 valve motion arm阀式活塞 valve type piston阀式活塞 valve type bucket阀室式活塞泵 valve box type piston pump阀室式活塞泵（美） valve pot type piston pump阀抬起装置 valve lifting device阀体 body阀体 valve body阀箱 valve box阀箱 valve cage阀箱 valve chest阀箱；阀限位器 valve guard阀箱盖 cover for valve box阀箱盖 valve box cover阀箱式活塞泵（美） turret type piston pump阀形活塞泵 valve type piston pump阀座 Seat ring阀座 valve carrier阀座 valve seat(body seat)阀座；阀盘 valve seat阀座环 seat ring阀座密封嵌条 sealing strip for valve seat法兰 flange法兰堵头 blind flange法兰端 flange end法兰接头 flange joint法兰连接紧固件（双头螺栓和螺帽） flange bolting法兰密封面，法兰面 flange facing法兰面加工 flange facing finish法兰球阀 Flange Ball Valves翻板阀 Flap反冲盘 Disc holder反向作用式减压阀 Reverse acting reducing valve反向作用式减压阀 Reverse acting reducing valve放空阀 emptying valve放气阀 air vent valve;vent valve放气阀；排气阀 air evacuation valve放泄阀 escape valve分置阀室式活塞泵 separate valve box type piston pump 分置阀室式活塞泵（美） side pot type piston pump封闭式 Seal type浮动式球阀 Float ball valve浮球 Ball float浮球阀 Float Valve浮球式疏水阀 Ball float steam trap浮球式疏水阀 Free Float Type Steam Trap浮桶 Bucket float浮桶式疏水阀 Open bucket steam trap辅助（副）阀 Auxiliary valves负荷率 Rate of load condensate附加背压力 Superimposed back pressure复位弹簧 Returnning spring杠杆式 Lever type杠杆式安全阀 Lever and weight loaded safety valve杠杆式减压阀 Lever reducing valve高温阀门 High temperature valve高压阀门 High pressure valve格兰密封 gland隔离阀 isolating valve隔膜 Diaphragm隔膜阀 diaphragm valve隔膜式控制阀 diaphragm operated comtrol valve工作背压 Operating back pressure工作温度 Operating temperature工作温度 Working temperature工作压差 Operting differential pressure工作压力 Operating pressure工作压力 Working pressure公称通径 Nominal diameter公称压力 Nominal pressure固定式球阀 Fixed ball valve关闭压力 Lockup pressure关阀过冷度 Subcooled temperature of close valve关阀温度 Closing valve temperature管道安全阀 Piping Safety Valves过冷度 Subcoold temperature过流阀(或节流阀) Restrictor Valves喉径 Throat diameter滑阀 slide valve滑阀式回转活塞泵 rotary piston pump with slide gate滑阀型转子泵 eccentric rotary pump with sliding sleeve 环形阀 annular valve环形阀 double beat valve换向阀 selector valve换向阀 shuttle valve回转滑阀活塞泵 piston pump with rotary gate回座压力 Re-seating pressure of a safety valve活塞昵减压阀 Piston reducing valve活塞式阀 piston valve活塞式阀；柱塞式阀 plunger valve活塞式减压阀 Piston reducing valve减速阀 Deceleration valves减压比 Pressure reducing ratio减压阀 pressure reducing valve浆液阀 Parallel Slide Valves角阀 Angle Valve角阀 isolation valve angle configuration角式 Angie type角式节流阀 Angle Throttle Valves角式截止阀 Angle Stop valves铰链阀；片状阀 flapper valve节流阀 throttle valve节流阀 choke valve节流阀；节流 throttle结构长度 Face-to-face dimension ;End-to-end dimension; Face-to-centre dimension结构形式 Type of construction截止阀 Globe valve截止阀 Shut-off Valve截止阀；关断阀 shut-off valve截止式隔膜阀 Globe diaphragm valve紧急切断阀 Emergeny Cut-off Valves进气阀 air intake valve进水阀；进口阀门 inlet valve静态特性 Static characteristics静态特性偏差 Static characteristics derivation开阀过冷度 Subcooled temperature of open valve开阀温度 Opening valve temperature开启高度 Lift壳体试验 Shell test壳体试验压力 Seal test pressure空气阀门 Air valves快速排污阀 Quick Draining Valves类型 Type冷凝结水排量 Cold condensate capacity冷态试验差压力 Cold differential test pressure理论排量 Theoretical flowing capacity连接槽尺寸 Dimension of connecting channel连接尺寸 Conncetion cimension连接形式 Type of connection帘面积 Curtain area流道面积 Flow area流道直径 Flow diameter流量孔板 flow orifice plate流量控制阀 flow control valve流量特性 Flow characteristics流量特性偏差 Flow characteristics derivation漏汽量 Steam loss脉冲式疏水阀 Impulse steam trap密封面 Sealing face密封试验 Seal test密封试验压力 Seal test pressure明杆平行式双闸板闸板 Double Disk Parallel Gate Valves明杆闸阀 Outside screw stem rising through handwheel type gate valve膜片 Diaphragm内压自封 Pressure seat逆止阀；止回阀 check valve逆止阀；止回阀 non-return valve逆止阀;止回阀;单向阀 check valve排放背压力 Brilt-up back pressure排放压力 Relieving pressure排灰阀 Ash valves排量系数 Coefficient of discharge排气阀 air release valve排气阀 Exhaust valves排气阀 Vent Valve排水阀 Drainage valves排水温度 Temperature at discharging condensate排污阀 blowdown valve排污箱(阀) Waste Valves排渣闸阀 Scum Gate Valves盘阀 moushroom valve盘状阀 plate valve旁路阀 by pass valve配汽活塞阀缸套 piston valve line喷射阀 injection valve喷射阀 sprayer valve喷水阀 spray water valve频跳 Chatter平衡阀 Balance valves平衡式 Balance type平行式闸阀 Parallel gate valve Parallel slide valve启闭件 Disc启闭压差 Blowdown of a safety valve起始升程 Commencement of lift气动装置 Pneumatic actuator气阀摇臂 valve arm气－液动装置 Pneumatic-hydraulic actuator潜水电泵(排污泵) Submerged Motor Pumps切断阀;截止阀 block valve;shut-off valve;stop valve 切断式止回阀 stop check valve切换阀;多向阀 changeover valve球、球芯 Ball球阀 Ball valve球阀 globe valve球体 Ball全启式安全阀 Fall lift safety valve热凝结水排量 Hot condensate capacity入口隔离门 suction isolating valve塞子 Plug三通阀 three-way isolating valve三通阀 three-way valve三通式 Three way type上密封 Back seat上密封试验 Back seal test渗漏量 Leckage升降立式止回阀 Vertical lift check valve升降式止回阀 Lift check valve适用介质 Suitable medium适用温度 Suitable temperature手摇油泵(阀) Manual Oil Pumps Valves疏水阀 drain valve双金属片式疏水阀 Bimetal elements steam trap双口排气球 Double Opening Exhaust Valves双联弹簧式安全阀 Duplex safety valve双闸板 Double gate disc双闸板平板闸阀 Double Disc Flat Gate Valves水封闸阀 Water Seal Gate Valves水力喷射器(真空泵) Vacuum Pumps伺服阀 servovalve填料 Packing填料垫 Packing seat填料函 Stuffing填料式旋塞阀 Gland packing plug valve填料箱 Stuffing box填料压盖 Gland通气阀 breather valve通气阀；呼吸器 breather通用阀门 General valve吐出阀；排出阀 discharge valve吐出阀限位器 delivery valve guard微启式安全阀 Low lift safety valve微阻缓闭止回阀 Tiny Drag Slow Shut Check Valves吻合度 Percent of contact area蜗轮传动蝶阀 Butterfly Valves with Gear Actuator蜗轮传动装置 Wormgear actuator屋脊式隔膜阀 Weir diaphragm valve无阀泵 valveless pump无阀隔膜泵 valveless diaphragm pump无阀振动泵 valveless vibration pump无负荷漏汽量 No-load steam loss无负荷漏汽率 Rate of no-load steam loss吸（抽）气阀 Aspirating valves吸入阀 suction valve吸入阀限位器 suction valve guard先导式安全阀 Pilot operated safety valve先导式液压阀 Pilot-operated reducing valve相对静偏差 Relative static characteristics derivation 相对流量特性偏差 Relative flow characteristics derivation相对压力特性偏差 Relative pressure characteristics derivation 销轴 Hinge pin楔式闸阀 Wedge gate valve斜板式蝶阀 Indined disc butterfly valve泄料（放空，排污）阀 Blowdown valves泄压阀 Decompression valves泄压阀 pressure release valve泄压阀；安全阀 relief valve卸荷式减压阀 Balanced reducing valve型号 Type Model旋启多瓣式止回阀 Multi-disc swing foot valve旋启式止回阀 Swing check valve旋启双瓣式底阀 Double disc swing foot valve旋塞阀 Cock旋塞阀 plug valve压力（増压）阀 Pressure valve压力调节阀；压力控制阀 pressure controlled valve压力特性 Pressure characteristics压力特性偏差 Pressure characteristics derivation压力增长系数 Pressure increasing ratio摇杆 Arm液动装置 Hydraulic actuator液化气管件 LPG Pipe Fitting液下泵 Under Water Pumps液压执行器 hydraulic actuator仪表针形截止阀 Meter Needle Type Globe Valves溢流阀 overflow valve翼形阀；锥形阀 wing valve油封式旋塞阀 Lubricated plug valve有阀翼板 double acting wing有阀翼板 wing with valve有负荷漏汽量 Load steam loss有负荷漏汽率 Rate of load steam loss圆板阀；圆盘阀 disc valve圆盘式疏水阀 Shemostatic team trap圆柱齿轮传动装置 Cylindrical gear actuator圆锥齿轮传动装置 Conical gear actuator闸板 Wedge disc闸板式隔膜阀 Wedge diaphragm valve闸阀 gate valve闸阀 sluice valve针形阀 Pintle valve ; Needle valve 真空破坏阀 vacuum breaker valve蒸汽疏水阀 Automatic steam trap Trap整定压力 Set pressure正向作用式减压阀 Direct acting reducing valve 支架 Yoke直接载荷式安全阀 Direct loaded safety valve 直接作用式减压阀 Direct-acting reducing valve 直流式 Y-globe type直流式截止阀 Oblique Stop Valve直通单向阀 inline check valve直通单向阀 straightway check valve直通阀 Throughway Valve止回阀 Check Valve止回阀；回流阀 reflux valve制动阀 Brake valves中压阀门 Middle pressure valve钟形浮子式疏水阀 Inverted bucket steam trap 钟形罩 Inverted bucket轴套 Axis Guide主阀 Main valve主要外形尺寸 Prime out-form dimensions主要性能参数 Specifeca tion speeification 注液漏斗阀 Priming Tundish Valve柱塞阀 Plunger valve柱塞截止阀 Plunger Globe Valve柱塞型摆动阀 rocking plunger valve撞击手轮 Impact handwheel锥形阀；翼形阀 conical valve自动循环阀 Automatic Recirculation Valve组合阀 Combination valves最大过冷度 Maximum subcoold temperature最大流量 Maximum flow rate最大压差 Maximum differential pressure最低工作压力 Minimum operating pressure最高背压率 Maximum rate of back pressure最高工作背压 Maximum operating back pressure最高工作温度 Maximum operating temperature最高工作压力 Maximum operating pressure最高排水温度 Maximum temperature at discharging 最高允许温度 Maximum allwable temperature最高允许压力 Maximum allowable pressure最小过冷度 Minimum subcooled temperature最小压差 Minimum differntial pressure。

Eaton RFN LCR 开关系列产品简介说明书

Eaton RFN LCR switch familyProduct brochureThe most advanced load control switches on the market Eaton’s RFN LCR switch family (LCR-6200, LCR-6600, LCR-6700) utilizes the radio frequency (RF) mesh network communications to combine the speed and reliability of Eaton RF Mesh Network capabilities with advanced load control functionality using robust group addressing andTrueCycle ® smart load control algorithms. A single message can be broadcast over the RF Mesh Network to control one or more LCR switches resulting in fast and efficient communications for targeted load control during a demand response event.Eaton’s LCR switches are the most advanced load control switches on the market—providing power quality protection for improved grid reliability and advancedload control functionality using robust group addressing and TrueCycle® smart load control algorithms to maximize demand reduction yield and automate measurement and verification data collection.Eaton’s RFN LCR switches have enhanced capabilities when combined with Eaton’s RF Mesh Network communications module. The RF Mesh Network communications module allows for a wide range of two-way data to be collected and broadcast commands to be disbursed to quickly initiate a control event. It also offers flexibility to build out a mesh network starting with the utility’s most critical devices.The LCR-6200RFN switch is designed specifically for quick and clean installon HVAC systems. The solution is also used to control strip heat.The single 5 amp relay is used to cycle the HVAC control circuit to reducethe AC demand while maintaining customer comfort.The LCR-6600RFNswitch is designedfor versatility.It can be delivered withmultiple 5 amp and 30 amprelays so that it can controlmultiple loads with a singleLCR switch. Each relay canbe addressed and controlledindividually, or they can beoperated simultaneously ifthe application requires.The LCR-6700RFNswitch is designedfor easy retrofitinto select legacyload managementswitches.It can be ordered withrelay configurations thatmatch the legacy switchit is replacing. It allowsthe investment in theinstall wiring to bemaintained, while makingthe hardware upgradequick and error-proof.2Installation andcontrol flexibility• The LCR switches were designed incollaboration with installation contractorsto minimize implementation costsand time• The LCR-6200 switch utilizes a small boxfootprint supporting a single 5A relay forHVAC only applications• The LCR-6700 and LCR-6600 switchesallow for up to 3 loads to be controlledfrom a single unit• The LCR-6700 switch control board iscapable of retrofitting into legacy 3rd partyenclosures for an easy upgrade path• LCR-6600 277/480VAC and 24VAC inputvoltages for custom applications. TheLCR-6600 277/480VAC is commonlyutilized for Irrigation Control applicationsOptimize participation• Optimized air conditioner cycling withsmart control and learning capabilities.Maximize demand reduction whilemaintaining customer comfortReliable network• RF Mesh Network can be installed as anindependent demand response systemwithout (or prior to) installation of anAMI metering system• Expands and strengthens existing RFmesh AMI infrastructure• Eaton RF Mesh Network offers broadcastcommunications for rapid, on-demand,system-wide control for demandresponse eventsImproved operations• Daily automated or on-demand datacollection provides vital appliance runtimeand event information for performingmeasurement and verification (M&V)studies• Automatic daily operability testing in theform of the daily Broadcast VerificationReport• Remote/local programmability• Over-the-air universal firmware upgradesupport• Power quality protection through supportof Cold Load Pickup and Voltage andFrequency ResponseYukon™ advanced demandresponse management• Utilizes the well-established Yukon™demand response and inventorymanagement modules• The reporting capabilities of Yukon allowa user to compile response data from aspecified group of switches into valuableinformation• Asset Availability Report and LoadEstimation Module provide insight intothe amount of load reduction a utilitycan expect from the system as they gothrough resource planningSmart cyclingEaton’s proprietary TrueCycle technologyallows smart air conditioner cycling controlfor homes with non-standard or oversizedair conditioning units maximizing yield whilemaintaining customer comfort.TrueCycle technology adjusts to the home’shourly runtime profile, balancing demandreduction and customer comfort on ahome-by-home, hour-by-hour basis.RF Mesh NetworkcommunicationsThe speed and reliability of Eaton’sRF Mesh Network allows for two-waycommunications and a large amount ofdata collection from every device.Each LCR switch acts as an independentdevice in the mesh network and can bedeployed with or without AMI meters. ALCR switch will pass network traffic throughand act as an additional path for other meshnetwork nodes to utilize and strengthenthe mesh. The broadcast capability of themesh network allows for rapid, on-demand,system-wide control for targeted loadcontrol events and emergency situations.Eaton’s RF Mesh Network solution is100% self-forming, self-managing, andself-healing, providing lower implementationand maintenance costs, resulting in alower total cost of ownership. Broadcastavailability report provides the utility withpeace of mind that the system will operatewhen it dispatches a demand responseevent. The report also helps utilitiesminimize their maintenance costs bytargeting LCR switches specifically inneed of maintenance. Advanced feature setThe RFN LCR switches with RF Mesh Network communications offers:3EATON RFN LCR switch family brochure30A at 240 VAC resistive, Form BPower quality protectionEaton’s RFN LCR switches can automatically shed the connected load if the supply frequency or voltage drops below configurable thresholds.Cold load pickup can be enabled or disabled for the connected load to minimize feeder in-rush following power outages.System and appliance protection The condition of the device is continually monitored. If an abnormality is detected, the microprocessor resets itself and the connected load is returned to its normal state.LED indicatorsIn the viewing window, green and yellow LEDs display diagnostics information. Red LEDs indicate the load is under control or a possible circuit fault. A blue LED indicator is also visible through the top of the LCR switch to show the RFN status. A solid light indicates an active connection to the RF Mesh Network.LocalcommunicationsA user can locally access a device to check the operating status, or troubleshoot using Eaton Network Scout™ application.Network Scout is a field tool designed to help the tech investigate the RFN mesh communication system.Remote addition or removal of customer participants Commands to enable or disable the device functions can be sent to individual devices. Deactivation can be sent with either a ‘temporary’ or ‘permanent’ setting. This feature improves customer service by reducing customer complaints and minimizing on-site service calls.Measurement and verificationThe data log of the RFN LCR switches can collect hourly appliance runtime and relayshed time. This information read automatically or on-demand over-the-air.Over-the-airconfiguration and firmware upgradesOver-the-air (OTA) programming or addressing, plus individual control or control override communication can update securely. Devices can be configured individually, in dedicated groups, or globally. OTA firmware upgrades are also supported for the RFN LCR switches.For more informations, visit/smartgridFollow us on social media to get thelatest product and support information.Eaton is a registered trademark. All other trademarks are property of their respective owners.Eaton1000 Eaton Boulevard Cleveland, OH 44122United States EatonElectrical Automation Solutions Division 3033 Campus Drive, Suite 350N Minneapolis, MN 55441United States/SmartGrid© 2018 EatonAll Rights Reserved Printed in USAPublication No. BR911001EN / GG April 2018。

常用电气设备文字符号及中英文对照

常⽤电⽓设备⽂字符号及中英⽂对照常⽤的电⽓设备⽂字符号⽂字符号中⽂含义英⽂含义A 装置，设备Device,equipmentA 放⼤器amplifierAPD 备⽤电源⾃动投⼊装置Auto-put-into device of standby supply ARD ⾃动重合闸装置Auto-reclosing device C 电容、电容器Electric capacity,capacitorF 避雷器arresterFU 熔断器fuseG 发电机，电源generator,sourceGN 绿⾊指⽰灯Green indicator lampHL 指⽰灯，信号灯Indicator lamp,pilot lampK 继电器，接触器Relay,contactorKA 电流继电器Current relayKAR 重合闸继电器Auto-reclosing relayKG ⽓体（⽡斯）继电器Gas relayKH 热（温度）继电器Heat(temperature) relayKM 中间继电器Medium relay(auxiliary relay)KM 接触器ContatorKO 合闸接触器Switch-on contatorKS 信号继电器Signal relayKT 时间继电器Timing relay,time-delay relayKV 电压继电器V oltage relayL 电感，电感器，电抗器inductance,inductor,reactorM 电动机Electric motorN 中性线Neutral wirePA 电流表AmmeterPE 保护线Protective wirePEN 保护中性线Protective neutral wirePJ 电能表，电度表Electric energy meterPV 电压表V oltmeterQ 电⼒开关SwitchQF 断路器Circuit-breakerQK ⼑开关Knife-swicthQI 负荷开关Load-switchQA 隔离开关DisconnectorR 电阻，电阻器Resistance,risistorRD 红⾊指⽰灯Red indicator lampS 电⼒系统Electric power systemS 起辉器Glow staterSA 控制开关(主令开关) Control switchSA 选择开关Selector switchSB 按钮Push-buttonT 变压器TransformerTA 电流互感器current transformatorTAN 零电流互感器Neutral-current transformerTM 电⼒变压器Power transformerTV 电压互感器V oltage(potential) transformerU 变流器，整流器Converter,rectifierV 电⼦管，晶体管Electronic tube,transisorVD ⼆级管DiodeVT 晶体（三极）管TransistorW,WB 母线Busbar(wire)WAS 事故⾳响信号⼩母线Accident sound singal small busbar WC 控制（操作）回路电源⼩母线Control circuit source small-busbar WF 闪光信号⼩母线Flash-light signal small-busbarWFS 预报信号⼩母线Forecast signal small busbarWH ⽩⾊指⽰灯White indicator lampWL 灯光信号⼩母线Forecast signal small busbarWL 线路（导线）Line(wire)WO 合闸回路电源⼩母线Switch-on circuit source small-busbar WS 信号回路电源⼩母线Signal circuit source small-busbar WV 电压⼩母线V oltage small-busbarX 端⼦板Terminal stripXB 连接⽚LinkYA 电磁铁ElectromagentYO 合闸线圈Switch-on coilYR 跳闸线圈（脱扣器）Switch-off coil(release)YV 抢夺线圈（扔砖脱扣器）No-voltage coil(no-voltage release)。

阀门专用英语词汇（2）_机械英语词汇

复位弹簧 returnning spring杠杆式 lever type杠杆式安全阀 lever and weight loaded safety valve杠杆式减压阀 lever reducing valve高温阀门 high temperature valve高压阀门 high pressure valve格兰密封 gland隔离阀 isolating valve隔膜 diaphragm隔膜阀 diaphragm valve隔膜式控制阀 diaphragm operated comtrol valve工作背压 operating back pressure工作温度 operating temperature工作温度 working temperature工作压差 operting differential pressure工作压力 operating pressure工作压力 working pressure公称通径 nominal diameter公称压力 nominal pressure固定式球阀 fixed ball valve关闭压力 lockup pressure关阀过冷度 subcooled temperature of close valve关阀温度 closing valve temperature管道安全阀 piping safety valves过冷度 subcoold temperature过流阀(或节流阀) restrictor valves喉径 throat diameter滑阀 slide valve滑阀式回转活塞泵 rotary piston pump with slide gate 滑阀型转子泵 eccentric rotary pump with sliding sleeve环形阀 annular valve环形阀 double beat valve换向阀 selector valve换向阀 shuttle valve回转滑阀活塞泵 piston pump with rotary gate回座压力 re-seating pressure of a safety valve活塞暱减压阀 piston reducing valve活塞式阀 piston valve活塞式阀；柱塞式阀 plunger valve活塞式减压阀 piston reducing valve减速阀 deceleration valves减压比 pressure reducing ratio减压阀 pressure reducing valve浆液阀 parallel slide valves角阀 angle valve角阀 isolation valve angle configuration角式 angie type角式节流阀 angle throttle valves角式截止阀 angle stop valves铰链阀；片状阀 flapper valve节流阀 throttle valve节流阀 choke valve节流阀；节流 throttle结构长度face-to-face dimension ;end-to-end dimension; face-to-centre dimension结构形式 type of construction截止阀 globe valve截止阀 shut-off valve截止阀；关断阀 shut-off valve截止式隔膜阀 globe diaphragm valve紧急切断阀 emergeny cut-off valves进气阀 air intake valve进水阀；进口阀门 inlet valve静态特性 static characteristics静态特性偏差 static characteristics derivation开阀过冷度 subcooled temperature of open valve 开阀温度 opening valve temperature开启高度 lift壳体试验 shell test壳体试验压力 seal test pressure空气阀门 air valves快速排污阀 quick draining valves类型 type冷凝结水排量 cold condensate capacity冷态试验差压力 cold differential test pressure理论排量 theoretical flowing capacity连接槽尺寸 dimension of connecting channel连接尺寸 conncetion cimension连接形式 type of connection帘面积 curtain area流道面积 flow area流道直径 flow diameter流量孔板 flow orifice plate流量控制阀 flow control valve流量特性 flow characteristics流量特性偏差 flow characteristics derivation漏汽量 steam loss脉冲式疏水阀 impulse steam trap密封面 sealing face密封试验 seal test密封试验压力 seal test pressure明杆平行式双闸板闸板 double disk parallel gate valves明杆闸阀 outside screw stem rising through handwheel type gate valve膜片 diaphragm内压自封 pressure seat逆止阀；止回阀 check valve逆止阀；止回阀 non-return valve逆止阀;止回阀;单向阀 check valve排放背压力 brilt-up back pressure排放压力 relieving pressure排灰阀 ash valves排量系数 coefficient of discharge排气阀 air release valve排气阀 exhaust valves排气阀 vent valve排水阀 drainage valves排水温度 temperature at discharging condensate排污阀 blowdown valve排污箱(阀) waste valves排渣闸阀 scum gate valves盘阀 moushroom valve盘状阀 plate valve旁路阀 by pass valve配汽活塞阀缸套 piston valve line喷射阀 injection valve喷射阀 sprayer valve喷水阀 spray water valve频跳 chatter平衡阀 balance valves平衡式 balance type平行式闸阀 parallel gate valve parallel slide valve 启闭件 disc启闭压差 blowdown of a safety valve起始升程 commencement of lift气动装置 pneumatic actuator气阀摇臂 valve arm气－液动装置 pneumatic-hydraulic actuator潜水电泵(排污泵) submerged motor pumps切断阀;截止阀 block valve;shut-off valve;stop valve 切断式止回阀 stop check valve切换阀;多向阀 changeover valve球、球芯 ball球阀 ball valve球阀 globe valve球体 ball全启式安全阀 fall lift safety valve热凝结水排量 hot condensate capacity入口隔离门 suction isolating valve塞子 plug三通阀 three-way isolating valve三通阀 three-way valve三通式 three way type上密封 back seat上密封试验 back seal test渗漏量 leckage升降立式止回阀 vertical lift check valve升降式止回阀 lift check valve适用介质 suitable medium适用温度 suitable temperature手摇油泵(阀) manual oil pumps valves疏水阀 drain valve双金属片式疏水阀 bimetal elements steam trap 双口排气球 double opening exhaust valves双联弹簧式安全阀 duplex safety valve双闸板 double gate disc双闸板平板闸阀 double disc flat gate valves水封闸阀 water seal gate valves水力喷射器(真空泵) vacuum pumps伺服阀 servovalve填料 packing填料垫 packing seat填料函 stuffing填料式旋塞阀 gland packing plug valve填料箱 stuffing box填料压盖 gland通气阀 breather valve通气阀；呼吸器 breather通用阀门 general valve吐出阀；排出阀 discharge valve吐出阀限位器 delivery valve guard微启式安全阀 low lift safety valve微阻缓闭止回阀 tiny drag slow shut check valves 吻合度 percent of contact area蜗轮传动蝶阀 butterfly valves with gear actuator 蜗轮传动装置 wormgear actuator屋脊式隔膜阀 weir diaphragm valve无阀泵 valveless pump无阀隔膜泵 valveless diaphragm pump。

各种开关英文词汇培训讲学

各种开关英文词汇AC static switch 交流静态开关AC switch交流转换开关auxil iary heater switch 辅助加热器开关auxiliary switch 辅助开关auxiliary switchgear 厂用配电装置band switch波段选择器；波段转换开关band switching 波段变换band-switching 频段转换bank switching 存储库开关bank-and-wiper switch 触排和接帚开关；触排及弧刷转接器；双动选择器barometric pressure switch 气压继电器barometric switch 气压开关barrel switch筒形开关；鼓形开关basic switching term 基本转换项bat-handle switch 铰链式开关；棒球柄开关；手柄开关battery charging switch 充电转换开关battery reverse switch 电池转向电闸battery switch 电池转换开关battery-conserving switch 节电开关Baud rate switch 波特速率选择开关beam switch 束开关beam switching 波束转换；射束变向；射束转换法beam switching frequency 射束开关频率beam switching tube 射束开关管；射束转换管；射线开关管beam switchyard 束流分配装置beam-switching tube 电子注开关管bearing-sense switch 定向转换开关bilateral diode switch 双向二极管开关bilateral switching 双通开关；双向转换billet switch坯料分配器bin home switch 分页格位开关binary-coded switch 二进制码开关bit switch按位开关block switch分组开关block switching 字组交换block-switch technology 分组交换技术blow out switch 放气开关body switchover （双向犁的）犁体翻转机构brach-on switch setting 按预置开关转移brake lamp switch 杀V车灯开关brake switch 制动开关braking signal switch 制动信号开关branch switchboard 分路配电盘branch type switch board 分立型配电盘branching switchboard 并联复式交换机brand switch 品牌转换brand switching 转换牌子;商标转换brand-switching model 牌子改用模型breakdown switch 故障开关breakpoint switch 断点开关bubble flow-steering switch 磁泡流导向开关bubble transfer switch 磁泡转移开关bucket brigade switch 组桶式开关buffer interface switch 缓冲器接口开关bull switch照明控制开关bus bar disconnecting switch 分段母线隔离开关bus tie switch 母线联络开关busbar sectional izing switch 母线分段开关button switch按钮开关by-pass switch 旁路开关cabinet switch 开关箱cabinet water-proof switch 柜式防水开关cabinet-type switch 柜式开关cage switch control 锁定转换控制call assignment switch 呼叫分配器call switch呼叫开关cam switch凸轮操纵开关；凸轮开关cam-operated switch 凸轮开关camera switching 摄像机切换camera video switching system 摄像机视频信号切换装置canopy switch 天棚开关；顶盖开关capacitive approach switch 电容式接近开关car switching equipment 空重车交换装置car-switch control车厢开关控制；笼内开关控制carbon break switch 碳触点开关carbon switch contact 炭质开关接点carriage-type switchgear 车架式开关装置ceiling pull switch 顶棚拉线开关ceiling switch拉线开关；顶棚拉线开关；天棚拉线开关cell switch电池转换开关cellular switch board 分区开关板cellular switchboard 分格式配电盘central switching 中心转接centralizing switch 集中开关centrifugal switch 离心开关；离心式开关centrifugal switching 离心切换chain billet switch 链式坯料分配器chain-pull switch 拉线开关challenge switch 振铃电键；呼叫开关change-tune switch 变换调谐开关changeover switch 转换开关;转接开关changeover switch controller 转换开关控制器changing switch 转接开关channel switch 波道开关channel switcher 频道转换电路；频道转换开关channel-switching equipment 波道倒换机charges switch 充电开关chopper switch 刀形开关circuit changing switch 电路转换开关circuit switch 电路开关；电路转接circuit switched network 线路开关网circuit switching 线路交换；线路转接；电路转接circuit-changing switch 换路开关cistern with cover and switch handle 带盖及开关拉手水箱clapper switch 铃锤式开关clear key switch 清机键盘开关;公用控制转换设备clear switch 清除开关clip-spring switch 弹簧开关clock switch时间开关closing switch 闸刀开关cluster switch 组开关coaxial switch 同轴开关cocked switch 待动开关code switch代码开关；码开关；码条式接线器code switch automatic telephone system 码条式自动电话交换机colour switching 颜色变换；彩色图像开关combination switch 复合开关combined line switchboard 结合寻线机台；混合接续制开关台combined switch 组合开关command switch 命令开关common battery switchboard 共电式交换机common control switching arrangement (CCSA) 公共控制开关装置；公用控制交换网communication switching 通信转接communication switching unit 通信转接部件commutator switch 换向开关；换向器开关；按序切换开关compiler switch 编译程序开关complementary logic switch 互补逻辑开关compressor toggle switch 压气机扳钮开关condition switch 情况选择开关conference telephone switch system 会议电话汇接机console switch 控制台开关；操作开关construction of switch 开关结构contact switch接触开关；触簧开关contactor switching starter 接触器开关起动器context switch上下文开关；上下文转换；关联转换context switching 关联转换；上下文开关程序；上下文转换cont⑹Iimit switch 控制极限开关；极限控制开关control switch 总开关;主令开关cont⑹switching point (CSP) 控制交换中心；控制开关点；控制切换点cord switch 拉线开关cord-pull switch 拉线开关cordless switchboard 无塞绳交换台core switch circuit 磁芯开关电路；磁心开关电路core-switching circuit 磁心换向电路counter switch 计数开关coupled switch 联动开关cradle switch 活动开关crane switch 起重机开关cross-switch 十字开关crossbar switch 纵横开关；纵横式交换器crowbar switch 撬杆开关crystal marker switch 晶体指示开关crystal switch 晶体开关cubicle switch 组合开关；室内开关；室内用配电箱cubicle switchboard 开关柜cubicle switchgear 组合开关装置cumulative switching off 累积断开current limit switch 限流开关current mode switch 电流型开关current selected switch 电流选择开关current switch 电流开关current-controlled switch 电流控制开关cut-off switch切断开关；断流开关；断路接触器cut-out switch断路开关；断路器cutter switch截煤机起动器data message switching system 数据通路交换系统data sampling switch 数据采样开关data switch数据转接data switching 数据交换dead front switchboard 面板无接线的配电盘dead front type switchboard 固定面板式配电盘dead-end switch 终端开关；空端开关debug switch 调试开关decade switch 十进位开关deck switch同轴开关defeat switch消除开关delay-action switch 延迟动作开关derailing switch 开关器access switch 进入开关dial switch拨号式开关；拨码盘式开关；盘式开关diaphragm switch 薄片开关Dicke switch迪克开关desk switchboard 台式配电板；台式配电盘digit switching 数字交换digital switch 数字开关digital switching 直接数字交换dim switch 减光开关diode-switch 二极管开关dipping switch 减光器开关；近光开关direct switching starter 直接开关启动器direct-on-line switching 直接合闸；直接起动direction control switch 换向开关direction switch 方向开关;升降开关disable switch 禁止开关disabled motor switch 电动机故障断路器disabled switch 禁用开关discharge switch 放电换接器disconnecting switch 断路开关；阻断开关；隔离开关disconnecting switch reverser 隔离反向器discrepancy switch 差速开关distant switching-in 远距离合闸distributed message switching system 分布式报文交换系统distributed packet switching 分布式包交换distributing switch 电流分配器distribution switching metwork 分配接续网络distributor switching 转换分销商diverter switch 转换开关domain-switching process 磁畴开关过程domain-wall switching 畴壁翻转door interlock switch 门锁开关door switch 门动开关；门开关double control switch 双控开关double switch 两路开关double switch call 双转换呼叫double-bank switch 双触排开关double-break switch 双断开关double-coincidence switch 双重合开关;二重符合开关double-point switch 双刀开关double-pole double throw switch 双刀双掷开关(dpdt switch)双极双投开关(dpdt switch)双极双投开关(dpst switch)双极单投开关(dpst switch)双极单投开关double-pole switch 双刀开关；双极开关double-slip switch 双动转辙器double-throw disconnecting switch 双投隔离开关double-throw switch 双投开关；双掷开关draw-out metal-clad switchgear 拉出式铠装开关装置draw-out switchboard 扌由出式开关板drum switch 鼓形开关dual pressure control switch 高压控制开关dual-emitter switch 双射极开关dust-proof switchgear 防尘式开关装置earthing switch 接地转换开关effective switching field 有效开关场electric dial switch 电动拨号开关electric switch 电开关;电器开关electric switch board 电掣板electric switch circuit controller转辙电路控制器electric switch heater 道岔电热器electric switch lock 电锁electric switch machine 电动转辙机electric switch mechanism 电动转辙机electric switch oil 电键油electric switching locomotive 调度电力机车electric trailable switch machine 可拉式电动转辙机electrical switching 电气开关electro-optic switch 电光开关electro-optical switch 电光开关electrolytic switch 电解开关electromagnetic solenoid switch 电磁螺线管开关electromagnetic switch 电磁开关electromechanical selector switch 机电选择机键electron switch 电子开关electronic AC switch 交流电子开关electronic automatic switch 电子自动开关electronic data-switching center 电子数据交换中心electronic sampling switch 电子取样开关;电子转换器electronic switch 电子开关electronic switch board 电子交换台electronic switching 电子交换设备；电子开关作用electronic switching center 电子交换中心electronic switching system 电子交换装置electronic switching system (ESS) 电子交换系统；电子转换系统；电子转接系统electronic switching tube 电子开关管electrooptical switch 电光开关electrooptical switching 电光开关electropneumatic switch 电动气动开关electropneumatic switch apparatus 电动气动转辙机electropneumatic switch circuit controller 电动气动转辙电路控制器electropneumatic switch machine 电动气动转辙机；电动气动转辙机器electropneumatic switch operating apparatus 电动气动转辙机electropneumatic transfer switch 电动气动转换开关electrosurgical switch-ing knife 电动转换手术刀elevation stowing switch 仰角限制器emergency brake switch 紧急刹车开关；紧急闸开关emergency stop switch 紧急停车开关emergency switch 紧急保险开关；紧急开关；应急开关emergency switchboard 应急配电盘emergency switching-off 应急切断;事故切断emergency terminal switch 终端安全开关emergency trip switch 紧急脱钩开关enclosed knife switch 铁壳开关；封闭式闸刀开关；金属盒开关enclosed switch 封闭式低压开关；封闭型开关enclosed switch board 圭寸闭式配电盘end cell switch 末端电池转换开关engage switch 啮合器engaged switch 接通开关engine high temperature alarm switch 发动机高温告警开关engine overspeed switch 发动机超速开关engine start switch 发动机起动开关equalizer switch 均衡开关；均衡开关；均压开关；均压开关equipment control switch 设备控制开关European switching network 欧洲交换网络exhaust by-pass valve control wire switch 排气旁通阀控制线转环exit switch actuator 出纸口开关致动器expenditure-switching policies 支出转移政策experimental electronic switchboard 实验电子交换机experimental packet switching service (EPSS) 实验包交换业务;包交换实验网络exploding film Q-switching 爆炸膜Q 开关explosion-proof switch 防爆式开关fast switch over 快速转接fast-switching arrangement 快速开关装置feed-through switch 穿线开关feeder switch 馈路开关feeler switch 测试键feet switch地脚开关ferreed switch 铁簧开关field break-up switch 励磁分段开关field breaking switch 肖U磁开关field switch场开关；励磁开关field-breaking switch 消磁开关field-discharge switch 消磁开关field-effect controlled switch 场效应控制开关field-splitting switch 分场开关filament switch 灯丝开关film optical switch 薄膜光开关film Q-switching 薄膜Q 开关filter-coupler-switch-modulator 滤波耦合开关调制器finite switching time 限定开关时间first line switch 第一预选器fixed trip switch 手动跳闸开关fixedtype metal-clad switchgear 固定型铠装开关装置flag switch旗形开关flame-proof switch 防爆开关flat switchboard 平面交换机float operated explosion-proof mercury switch 浮子操动防爆水银开关float operated switch 浮子控制开关float switch浮动开关；浮控开关；浮球开关float-controlled switch 浮子控制开关floor pattern magneto telephone switchboard 磁石落地式电话交换机floor switch平台开关；层位开头floor type switchboard 固定式交换机flow control switch 流量调节开关flow switch流量开关；气流换向器fluidic switch 射流开关flush snap-switch 埋装式活动开关flush switch嵌入开关；埋入式开关；埋装开关flush-switch平装开关foot switch脚踏拍子开关foot switch selector 脚踏拍子开关选择钮forward switching loss 正向开关损耗four-channel switch 四路转换开关four-layer switch 四层开关four-point switch 四接点开关four-way switch 四路开关;四通开关four-wire cross bar switching system 四线纵横交换制four-wire switching 四线制交换four-wire switching centre 四线制交换中心frame-type switch-board 骨架式配电盘frequency switching 频率开关front connected switch 前面接线开关front porch switching 前肩切换；前沿切换fuel cutoff switch 燃料停供开关fuel ga(u)ge control switch 油表操纵开关fuel-pressure switch 燃油压力开关full electronic switching 全电子式交换full electronic switching system 全电子电话交换机系统；全电子式交换制full time message switching 全部时间消息交换fully automatic reperforator switching 全自动复凿孔机交换制fully automatic switching 全自动交换fully automatic switching network 全自动交换网fully automatic switching system 全自动交换系统function switch 操作开关；函数开关functional switch 功能开关；逻辑开关fuse disconnecting switch 熔丝隔离开关fuse switch熔丝开关fuse-switch unit 带保险丝的开关fused switch保险开关fusible disconnecting switch 熔线式隔离开关；带保险丝的断路器;保险丝断路器fusible switch 熔丝开关fusible switch power panel 熔丝开关动力箱fuzzy switching function 模糊开关函数G switch惯性开关gain switch 增益开关gain-selector switch 增益选择开关gang switch 同轴开关gang(ed) switch 联动开关ganged switch 双联开关gapping switch 桥接开关gas gauge switch 汽油表开关gas-diode switch 充气二极管开关gasoline gauge switch 汽油油量表开关gate controlled switch 门控开关；键控开关gate out switch 出口开关gate switch 门开关gate-controlled switch (GCS) 闸控开关gating switch 选通开关gear engaging switch 合齿开关geared limit switch 齿轮传动的限制开关general switched telephone network 通用电话网glass switch 玻璃开关global switch整体开关glow switch辉光放电开关；引燃开关glow-switch starter 辉光点燃器；辉光启动器governor switch 调速器开关graph of a fuzzy switching function 模糊开关函数的图graph of fuzzy-switching functions 模糊开关函数图gravity sensing switch 重力传感开关group line switch 区组预选器;分组预选器group switch 组开关group switchboard 组交换台halt switch停机开关hand switch 手动开关hand switch box 手动搬道机hand-operated switch 手动开关handwheel switch 手轮开关hard-switch modulator 刚性开关调制器head switch 读头开关headlight switch 头灯开关headlight switch knob 头灯开关钮heat switch 热开关heater air flow pressure switch 加温气流压力开关heater switch 加热器开关hermetically sealed switchbox 密封式开关箱high frequency rotating switch 高频旋转开关high level switch 高液位开关high power switching device 大功率转换设备high speed air switch 高速空气开关high speed optical switch 高速光学开关high speed-optical switch 高速开关high temperature limit switch 咼温限制开关high tension switch cabinet 高压开关柜high tension switchboard 高压开关板high voltage load disconnecting switch 高压负荷切断开关high voltage load switch 高压负荷开关high voltage switch 高压开关high voltage switch cabinet 高压开关柜high voltage switchboard 高压开关板high-current switch 大电流开关high-frequency change over switch 高频转换开关high-low-range switch 高低量程转换开关high-speed diverter switch 高速分流器开关high-speed switch 快速开关high-tension oil switch 高压油开关high-tension switch 高压开关high-tension switch cabinet 高压开关柜high-tension switch gear 高压开关设备;高压开关装置high-vacuum switching tube 高真空开关管high-voltage ceramic vacuum switch tube 高压陶瓷真空开关管high-voltage load switch 高压负荷切断开关high-voltage switch cabinet 高压柜high-voltage switch gear 高压开关设备high-voltage switchboard 高压板highway switching 多路交换hoist back-out switch 吊车退回开关hoist slack-brake switch 吊车制动器过松开关hold reset switch 复位保持开关hold switch transistor 保持开关晶体管home office switch 防电击开关homing type line switch 归位式导线机hook switch钩键；挂钩开关；叉簧horizontal break switch 水平断路开关horizontal draw-out metalclad switchgear 水平扌由出的铠装开关装置horn switch 喇叭开关horn switch button 喇叭按钮开关horn-break switch 角形开关；灭弧角开关；锥形开关horn-gap switch 角隙开关hospital switch故障转换开关；自动转换开关hot override switch 热断开关hot-wire vacuum switch 热线式真空开关hump switching 驼峰调车法hunting switch 混合选择器hydraulic pressure switch 水压开关IF switching 中频转换ignition switch 点火开关illuminated switch 发光开关image switching 图像切换immersible switchgear 潜水开关装置impact crash switch 撞击应急开关impact ionization switch 碰撞电离开关impact switch 碰撞式开关impulse switch脉冲开关；冲击式断路器inching switch 微动开关incoming selector switch 入局选择开关independent switch 独立开关indicator switch 指示器开关indoor combined load switch 户内式组合负荷开关indoor high-voltage isolating switch 户内高压隔离开关indoor single-pole isolating switch 户内单极隔离开关inductance approach switch 电感式接近开关inductance switch 电感转换开关inductive switch 感应开关inertia of transistor switching circuit 晶体管开关器的惰性inertia switch 延时开关inertial switch 惯性开关initial program load mode switch 初始程序装入方式开关instant-on switch 瞬动开关instantaneous switch 瞬时开关instantaneous switching 瞬时转换instrument switch 仪表开关integrated optical switch 集成光学开关intercommunication plug switchboard 内部通信插塞式交换机intercommunication switch 内部通话开关interconnection switch 联络开关interface switch 接口开关interlock switch 联锁开关interlocked switch 联锁开关interlocking switch group 联锁组合开关intermediate switch 中间开关intermediate switching station ( 输电线的)中间开关站internal Q-switch 内腔Q 开关internalswitch 内部开关interrupt push switch 中断按钮开关intervention switch 应急开关；应争保险开关iron cover switch 铁壳开关iron(-)clad switch 铁壳开关iron(-)clad switch gear 铁壳开关装置isolated phase switchgear 分离相位开关设备isolating switch 隔离开关；切断开关jack switch插塞开关jet switching 射流转换key switch电键开关；钥匙开关；琴键开关；键开关key-lifting switch 扳键开关keylock switch 钥匙锁定开关kick down switch 低速档开关kick-down switch 加速系统自动开关kick-down switch plunger 加速系统自动开关柱塞kickdown switch fixed terminal 加速系统自动开关接线柱killer switch断路器开关knife of switch 开关闸刀knife switch 闸刀；闸刀开关knife-edge switch 刀形开关knifeblade switch 刀形开关laminated brush switch 叠层刷型开关laminated-brush switch 刷形开关；叠片开关；叠片刷触点开关lamp holder switch 灯头开关lamp switch灯开关；电灯开关landing-switch 层位开头laser Q-switching mechanism 激光Q 开关机制laser-triggered switch 激光触发开关lead limit switch引先限位开关；行程限位开关level switch电平开关；钳拉电平转换；箝位电平开关lever switch杠杆操纵开关；杠杆开关lift slack-cable-switch 电梯行索松断保护开关light activated silicon switch 光激硅开关light activated switch 光激开关light active switch 光敏开关light active switch 光敏开关light switch照明开关；电灯开关light switch toggle 照明开关肘节light-coupled semi-conductor switch 光耦合半导体开关light-operated switch 光控开关light-sensitive flag switch 光电旗形开关lighting switch bushing 灯开关衬套lighting switch handle 照明开关手柄lighting switch operating spider 灯开关操作十字架lighting switchgear 照明开关装置lightning switch 避雷开关limit switch限位开关；限制开关；极限开关；终端开关limit switches guarding progressive die 限位开关保护的连接模line disconnecting switch 线路隔离开关line switch寻线机；预选器line switching线路交换；线路开关；传输线路开关line switching concentrator 线交换集中器；线路交换集中器line switching technique 线路转换技术line-by-line switch 逐行倒相开关line-by-line switching circuit 逐行切换电路line-finder switch 寻线器开关line-switch board 预选器架line-switching type 线路交换型line-terminal switchboard 线路末端交换台linear order of gene switch 基因直线排歹》linear selection switch 线选开关linear switch线性开关linear switching 线性开关；断路linked switch 联动开关；连接开关liquid level switch 液位开关live front switchboard 盘面接线式配电盘load limit switch 负荷极限开关load selector switch 负荷选择开关；负载选择开关load sharing magnetic switch 均分负载磁开关；均分负载磁开关load sharing switch 负载分配开关load switch负荷开关；负载开关load-break switch 负载断连开关load-sharing matrix switch负荷分配矩阵开关lobe switch瓣变换开关；波瓣变换开关；波瓣转换开关lobe switching波瓣转换；射束转换法lobe switching method 波瓣晃动法；波瓣转换法lobe-switch oscillator 波瓣转换开关振荡器local battery switchboard 磁石式电话交换机local battery telephone switchboard 磁石式电话交换机local switch局部开关；局部开关；局部转换；局部转换local switch board 市内交换机local-distant switch 本地远区转换开关lockedcover switch 锁盖开关locking switch 锁盖开关lockout switch 联锁开关logic switching circuit 逻辑开关电路long haul toll transit switch 长途电话转换开关loud-break switch 高压大电流开关loudness control switch 响度控制开关low tension switch 低压开关low tension switchboard 低压开关板low voltage switch 低压开关low voltage switch board 低压开关板low-duty-cycle switch 瞬时转换开关；短时工作开关low-impedance switching tube 低阻抗开关管low-tension switch 低压开关low-tension switchgear 低压开关装置low-voltage switch gear 低压开关luminosity-changing switch 变光开关machine switchgear 机器开头设备machine switching 自动交换machine switching system 自动交换机magne-switch 磁力开关magnet reed switch 磁性舌簧开关magnet switch 电磁开关magnetic beam-switching tube 磁旋管magnetic blow-out switch 灭磁开关magnetic combinational switch 磁组合开关magnetic mercury switch 磁性水银开关magnetic star delta switch 磁力星形三角开关magnetic starting switch 磁力起动开关magnetic switch 磁开关；磁力开关magnetic switch controller 磁开关控制器magnetic switching system 磁力开关系统magnetic tape switching unit 磁带转接部件magnetic-core access switch 磁心数据存取开关magnetic-core switch 磁心开关magnetic-core switching time 磁心开关时间magnetic-matrix switch 磁模开关；磁膜开关；磁性矩阵开关；磁阵开关magneto switch 磁电机开关magneto switchboard 磁石式交换机magneto telephone switchboard 磁石电话交换机magnetron beam switching tube 磁控电子束开关管;磁控注型开关管main circuit switch 主电路开关main current terminal switch 主电流终端开关main limit switch 主限制开关main storage switch 主存储器转换机构main supply switch 总开关main switch 总开关main switch (MS) 主开关main switchboard 主配电盘；总开关盘；总控制板main switching compound 主配电装置mains switch 电源开关maintenance switching 维修轮换make-before-break switch 先合后断开关manual address switch 手动地址开关manual common battery switchboard 人工共电式交换台manual multiple type switchboard 人工复式交换台manual rotary switch 手动旋转开关manual safety switch (MSS) 手控安全开关manual selector switch 手控选择开关manual starter switch 手控起动开关manual starting switch 手动起动开关manual storage switch ( 信号)手控存储开关manual switch 手控开关manual switch storage 手动开关存储器manual switchboard 人工交换机manual switchgroup 手动组合开关manual switching 人工切换manual telegraph switching equipment 手工电报交换机;人工电报交换机manual telephone switch board 人工电话交换机manual-automatic switch 手动自动开关manual-switch storage 手控开关存储器manually operated switch 手扳道岔;手动开关marble switchboard 大理石配电盘marine low voltage switch 船用低压开关mast switch 杆上开关master control switch 主控开关master power switch 主功率开关master switch 主开关；主控开关；总开关master switcher 主转换开关；校准用转换开关master switching 主控切换master switching centre 主转换中心matrix switch矩阵开关；矩阵开关mechanical optical switch 机械光开关mechanical Q-switch 机械Q 开关medium-voltage switchgear 中压开关装置mercoid switch 水银开关mercury switch 水银开关mercury switch interlock 水银开关联锁装置mercury-contact switch 水银接点开关mercury-wetted reed switch 水银池簧片开关message switch 报文交换；报文转接message switching 报文交换；报文转接；信息转接message switching center 报文交换中心message switching computer 信息转接计算机message switching processor 报文交换处理器message switching system 报文交换系统；信息交换系统message-switching 报文交接message-switching center 信息转接中心message-switching network 信息转接网络message-switching system 信息转接系统message-switching technique 信息交换技术meter scale switch 量程开关meter switch仪表开关；仪表转换开关micro-active switch 微动开关micro-switch 微动电门differential pressureswitch 差压开关microsecond switch 微秒开关microwave switching tubes 微波开关管mimic-disconnecting switch 模拟断路开关；模拟断路器miniature switch 微型开关minor switch小型开关；小型选择器；小选择器microgap switch 微间隙开关mode selector switch 工件状态选择开关mode switch波模转换开关；模转换器；方式开关mode switching 波型转换开关modulation-type switched transponder 调制变换转发器momentary contact switch 瞬时接触开关monocord switch board 单塞绳交换机monolever switch 单手柄十字形开关monopole double throw switch 单刀双掷开关monopole single throw switch 单刀单掷开关motor cut-out switch 电动机停机开关motor driven switch 电机驱动开关motor off switch 电动机切断开关motor on-off switch 马达启停开关motor switch 电动机开关；电动开关motor switch oil电气开关油；马达开关油motor-circuit switch 电动机馈线开关motor-driven switch 电动机驱动开关motor-driven switch-group 机动组合开关motor-operated switch 电动断路器;电动开关motorcycle petrol switch 摩托车汽油开关mouldcase fused knife switch 模型箱闸刀开关movable switch 活动开关multi contact switch 多触点开关multi-break switch or circuit-breaker 多重开关multi-input switch 多输入开关multi-speed drum switch 多速鼓轮开关multi-valued switching theory 多值开关理论multiaperture reluctance switch 多孔磁阻开关multibreak switch 多断点开关multicircuit switch 多路转换开关multigang switch 多联开关multiple contact switch 多触点开关；多接点开关multiple switchboard 复接式人工交换机multiple-break switch 多断式开关multiple-contact switch 多触点开关；选择器开关multiple-pole switch 多级开关multiple-switch 复联开关multiple-switch controller 多开关控制器multiple-switch starter 复式电门起动器；复式开关起动器multiple-switch-board 复式交换机multiple-way switch 多路开关multiplex switch多次转换开关；多路传输转换开关multiplexer switch 多路复用器开关multiplexer switch circuit 多路转换器开关电路multipoint switch 多接点开关multipole switch 多刀开关；多端开关；多极开关multiposition switch 多触点开关multithrow switch 多掷开关multivalued switching theory 多值开关论multiwafered switch 多片开关multiway switch 多路开关；多路转换开关mutilple output switching function 多输出开关函数N-valued switching theory 多值开关理论neutral switch 中性线开关night-alarm switch 夜间信号开关No 1 Electronic Switching System (ESS1) 电子交换机系统1no-fuse switch 无保险丝开关no-load switch 空载断路器no-load switching off 无载切断no-load switching-in 无载合闸node switching 节点转接noise cancel switch 噪声消除开关noise switching 噪声倒换non-automatic switching 非自动转换non-binary switching theory 多值开关理论non-blocking switch 非圭寸锁转接设备non-homing switch 不归位机键non-homing type line switch 不归位寻线机non-homing type rotary switch 不归零位non-homing-type rotary switch 不归位旋转机键non-multiple switchboard 单式交换机non-Q-switched laser 非Q 开关激光器non-saturated switching circuit 非饱和式开关器mirror image switch 镜像开关;镜像开关noninsulated switch 非绝缘开关noninterlocked switch 非联锁道岔nonmultiple switchboard 简式交换机nonshorting contact switch 无短路接触开关；不短接接触开关nonstop switch 不停开关normally closed push button switch 常闭按钮开关normally open push button switch 常开按钮开关number switch 数字开关；号控机numerical switch 数字开关;号控机nut switch螺帽型开关oil interrupter switch 断油开关oil pressure shut-off switch 油压开关oil pressure switch 油压开关oil pressure switch screw 油压开关螺丝oil switch油开关oil switch trip 油开关脱扣oil-blast switch油灭弧开关oil-break switch 油断路器;油开关oil-immersed switch 油浸开关oil-pressure shut-off switch 油压遮断器on-off switch双位开关；双控开关one touch switcher 单触转换开关；单触自动转换开关one-cell switching 单元选通one-pole knife switch 单极闸刀开关one-pole switch 单极开关one-shot switch单触发开关；冲息开关one-way phase switcher 单向相位转换开关one-way phase-switcher 单向移相器one-way switch 单路开关operating switch 工作开关operation control switch 操作控制开关optical focus switch 光聚焦开关；光学聚焦转换开关optical switch 光学开关optical waveguide switch 光波导开关optimal switch surface 最佳开关面optimum switching function 最佳开关函数optimum switching line 最佳开关线路option switch 选择开关optoelectronic multiplex switch 光电转换开关optoelectronic switch 光电子开关out switch输出开关outdoor single pole isolating switch 户夕卜单极隔离开关outdoor type switch gear 室夕卜开关装置outgoing secondary line switch 出中继第二级寻线机outgoing trunk switch 出中继键overload limit switch 超载限制开关overload switch 过载开关override switch 超越控制开关overtravel-limit switch 行程开关；终端开关ovonic memory switch (OMS) 双向记忆开关non-switched network 无交换网络ovonic threshold switch (OTS) 双向阈值开关packet switch 包交换；信息包交换packet switch (PS) 报文分组转接packet switched data transmission service 包交换数据传输服务packet switching 包交换；报文分组交换；分组交换；分组接转packet switching center 包交换中心packet switching exchange (PSE) 包交换packet switching network 报文分组交换网络；分组交换网络；分封式交换网络packet switching processor 分组交换处理机packet switching protocol 包交换协议packet switching service (PSS) 包交换业务packet switching unit (PSU) 包交换部件packet type switch 组合式开关packet-switched data network 包交换数据网络paddle level switch 扳钮开关panel switch 面板开关panel type automatic switch board 面板型自动交换机panel type switchboard 面板式开关板parallel inverter switch 并联变换开关parallel serial switch 并串联转换开关parallel switching relaying system 并联开关继电系统parallel-series switch 串并联转换开关paralleling switch 并联开关parametric switch 参数转换part-electronic switching system 半电子交换系统partial switching 部分翻转passband limiting switch 带宽限制开关passive Q-switch 被动Q 开关passive switch 被动开关；被动式开关pathless switch 无通路开关。
