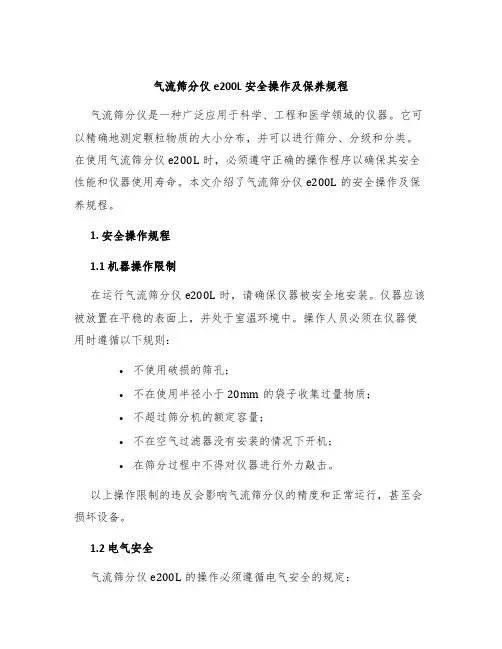

气流筛分仪e200L安全操作及保养规程气流筛分仪是一种广泛应用于科学、工程和医学领域的仪器。
它可以精确地测定颗粒物质的大小分布，并可以进行筛分、分级和分类。
在使用气流筛分仪e200L时，必须遵守正确的操作程序以确保其安全性能和仪器使用寿命。
本文介绍了气流筛分仪e200L的安全操作及保养规程。
1. 安全操作规程1.1 机器操作限制在运行气流筛分仪e200L时，请确保仪器被安全地安装。
仪器应该被放置在平稳的表面上，并处于室温环境中。
操作人员必须在仪器使用时遵循以下规则：•不使用破损的筛孔；•不在使用半径小于20mm的袋子收集过量物质；•不超过筛分机的额定容量；•不在空气过滤器没有安装的情况下开机；•在筛分过程中不得对仪器进行外力敲击。
以上操作限制的违反会影响气流筛分仪的精度和正常运行，甚至会损坏设备。
1.2 电气安全气流筛分仪e200L的操作必须遵循电气安全的规定：•当拔出电源插头时，请不要拉拽电线。
正确的拆卸步骤是推动插头并在松动时轻轻拔出；•仪器的电源线不能与过热设备并排放置；•在无人值守时请不要让气流筛分仪e200L处于电源通电状态；•请勿在湿润或潮湿环境下使用电源线插头。
操作人员必须遵循这些规则以保持电气安全。
1.3 机械安全在操作气流筛分仪e200L时，也必须遵守机械安全的规定：•不要在激烈的振动或抖动环境下使用仪器；•避免在高风速条件下使用仪器；•避免在高温或低温环境下使用仪器；•使用气流筛分仪e200L前，请确保其所有部件都牢固地安装好。
2. 保养规程为确保气流筛分仪e200L的长期可靠运行，以下是保养规程的重要内容：2.1 筛网维护•对于常规筛孔，两个或更多孔可以同时处理。
筛网在卸下并进行维护时，冷却时间必须为24小时。
一旦出现任何破损，请尽快更换。
•在使用过程中，当筛网内有阻塞时，首先应该停止气流筛分仪e200L的运行，检查所用样本是否合适、筛网是否正确安装以及是否存在过多的物料。
布朗家电产品用户手册说明书
t e r y o u rn e w d e v i c eo nM y B o s c h no w a n dg e t f r e e b en e f i t s:b o sc h-h o me.c o m/w e l c o m e HobPKE6..CA.,PKF6..CA..[en]User manual and installation instructions2Ø = cmPKE6..CA.PKF6..CA..Safety en3Further information and explanations are available online:Table of contentsINFORMATION FOR USE 1Safety................................................................... 32Preventing material damage .............................. 43Environmental protection and saving en-ergy...................................................................... 54Familiarising yourself with your appliance....... 65Basic operation................................................... 76Cleaning and servicing....................................... 77Disposal............................................................... 88Customer Service (89)INSTALLATION INSTRUCTIONS (8)9.1Safe installation (8)1 SafetyObserve the following safety instructions.1.1 General information¡Read this instruction manual carefully.¡Keep the instructions, the appliance and the product information safe for future refer-ence or for the next owner.¡Do not connect the appliance if it has been damaged in transit.1.2 Intended useOnly a licensed professional may connect ap-pliances without plugs. Damage caused by in-correct connection is not covered under the warranty.Only use this appliance:¡To prepare meals and drinks.¡Under supervision. Never leave the appli-ance unattended when cooking for short periods.¡in private households and in enclosed spaces in a domestic environment.¡up to an altitude of max. 2000 m above sea level.Do not use the appliance:¡With an external timer or a separate remote control. This does not apply if operation with appliances included in EN 50615 is switched off.1.3 Restriction on user groupThis appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inad-equate experience and/or knowledge,provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.Do not let children play with the appliance.Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised.Keep children under the age of 8 years away from the appliance and power cable.1.4 Safe useWARNING ‒ Risk of fire!Leaving fat or oil cooking on an unattended hob can be dangerous and may lead to fires.▶Never leave hot oil or fat unattended.▶Never attempt to extinguish a fire using wa-ter; instead, switch off the appliance and then cover with a lid or a fire blanket.The cooking surface becomes very hot.▶Never place flammable objects on thecooking surface or in its immediate vicinity.▶Never place objects on the cooking sur-face.The appliance will become hot.▶Do not keep combustible objects or aero-sol cans in drawers directly underneath the hob.Hob covers can cause accidents, for example due to overheating, catching fire or materials shattering.▶Do not use hob covers.en Preventing material damage4Food may catch fire.▶The cooking process must be monitored. A short process must be monitored continu-ously.WARNING ‒ Risk of burns!The appliance and its parts that can betouched become hot during use, particularly the hob surround, if fitted.▶Caution should be exercised here in order to avoid touching heating elements.▶Young children under 8 years of age must be kept away from the appliance.Hob protective grilles may cause accidents.▶Never use hob protective grilles.The appliance becomes hot during operation.▶Allow the appliance to cool down beforecleaning.WARNING ‒ Risk of electric shock!Improper repairs are dangerous.▶Repairs to the appliance should only be carried out by trained specialist staff.▶Only use genuine spare parts when repair-ing the appliance.▶If the power cord or the appliance power cable of this appliance is damaged, it must be replaced with a special power cord or special appliance power cable, which is available from the manufacturer or its Cus-tomer Service.A damaged appliance is dangerous.▶Never operate a damaged appliance.▶If the surface is cracked, you must switch off the appliance in order to prevent a pos-sible electrical shock. To do this, switch off the appliance via the fuse in the fuse box.▶Set the hotplate control to zero.▶Call customer service.▶Repairs to the appliance must only be car-ried out by trained and qualified personnel.An ingress of moisture can cause an electric shock.▶Do not use steam- or high-pressure clean-ers to clean the appliance.The insulation on cables of electrical appli-ances may melt if it touches hot parts of the appliance.▶Never bring electrical appliance cables intocontact with hot parts of the appliance.WARNING ‒ Risk of injury!Saucepans may suddenly jump due to liquid between the saucepan base and the hotplate.▶Always keep hotplates and saucepanbases dry.WARNING ‒ Risk of suffocation!Children may put packaging material over their heads or wrap themselves up in it and suffocate.▶Keep packaging material away from chil-dren.▶Do not let children play with packaging ma-terial.Children may breathe in or swallow small parts, causing them to suffocate.▶Keep small parts away from children.▶Do not let children play with small parts.2 Preventing material damageATTENTION!Rough pot and pan bases will scratch the ceramic.▶Check your cookware.Boiling pans dry may damage cookware or the appli-ance.▶Never place empty pans on a heated hotplate or al-low to boil dry.Incorrectly positioned cookware can cause the appli-ance to overheat.▶Never place hot pots or pans on the controls or the hob surround.Damage can occur if hard or pointed objects fall onto the hob.▶Do not let hard or pointed objects fall onto the hob.Non heat-resistant materials will melt on heated hot-plates.▶Do not use oven protective foil.▶Do not use aluminium foil or plastic containers.2.1 Overview of the most common damageHere you can find the most common types of damage and tips on how to avoid them.Damage Cause MeasureStains Food boilingoverRemove boiled-over food immediately with a glass scraper.Damage Cause MeasureStains Unsuitablecleaning productsOnly use cleaningproducts that are suitable for glass ceramic.Environmental protection and saving energy en5Damage CauseMeasureScratch es Salt, sugar or sand Do not use the hob as a work surface or storage space.Scratch esRough pot or pan bases Check your cookware.Discol-ourationUnsuitable cleaning productsOnly use cleaningproducts that are suitable for glass ceramic.Damage CauseMeasureDiscol-ouration Pan abrasion,e.g. aluminium Lift pots and pans to move on the hob.BlistersSugar or food with a high sugar content Remove boiled-over food immediately with a glass scraper.3 Environmental protection and saving energy3.1 Disposing of packagingThe packaging materials are environmentally compat-ible and can be recycled.▶Sort the individual components by type and dispose of them separately.3.2 Saving energyIf you follow these instructions, your appliance will use less energy.Select the cooking zone to match the size of your pan. Centre the cookware on the hob.Use cookware whose base diameter is the same dia-meter as the hotplate.Tip: Cookware manufacturers often give the upper diameter of the saucepan. It is often larger than the base diameter.¡Unsuitable cookware or incompletely covered cook-ing zones consume a lot of energy.Cover saucepans with suitable lids.¡Cooking without a lid consumes considerably more energy.Lift lids as infrequently as possible.¡When you lift the lid, a lot of energy e a glass lid.¡You can see into the pan through a glass lid without having to lift it.Use pots and pans with flat bases.¡Uneven bases increase energy e cookware that is suitable for the quantity of food.¡Large items of cookware containing little food need more energy to heat up.Cook with only a little water.¡The more water that is contained in the cookware,the more energy is required to heat it up.Turn down to a lower power level early on.¡If you use an ongoing power level that is too high,you will waste energy.Take advantage of the hob's residual heat. With longer cooking times switch off the hotplate 5-10 minutes before the end of cooking.¡Unused residual heat increases energy consump-tion.Product Information according (EU) 66/2014 can be found on the attached appliance pass and online on the product page for your appliance.en Familiarising yourself with your appliance64 Familiarising yourself with your applianceThe instruction manual is the same for various different hobs. You can find the hob dimensions in the overview of models. → Page 24.1 Control panelYou can use the control panel to configure all functions of your appliance and to obtain information about theoperating status.Hotplate controlsThe hotplate controls are permanently fixed in place.They must not be removed. Forcibly removing the hot-plate controls leads to them being destroyed.4.2 HotplatesYou can find an overview of the different activations of the hotplates here.Switching off: Turn the hot-plate switch to 0 and reset.Never turn the hotplateswitch past the symbol to 0.Notes¡Dark areas in the glow pattern of the hotplate are part of the technical design. They do not affect the functionality of the hotplate.¡The hotplate regulates the temperature by switching the heat on and off. The heat may also switch on and off when at the highest setting.–This protects easily damaged components from overheating.–The appliance is protected against electrical overload.4.3 Hotplate display and residual heat indicatorThe hob has a hotplate display and a residual heat in-dicator. The display lights up when a hotplate is warm.Display MeaningHotplate display Lights up during operation, shortly after switching on.Residual heat indic-atorLit up after cooking when the hotplate is still warm.Note: You can keep small dishes warm or melt cooking chocolate.Basic operation en75 Basic operation5.1 Switching the hob on or offYou can switch the hob on and off with the hotplate switch.5.2 Setting the hotplatesYou can use the hotplate control to adjust the heat out-put of the hotplate.Heat setting 1Lowest setting 9Highest settingThe symbol in the display panel indicates the hotplate which the display refers to, e.g. for the right rear hot-plate.5.3 Recommended cooking settingsYou can find an overview of different foods with appro-priate power levels here.The cooking time varies depending on the type, weight,thickness and quality of the food. The ongoing power level depends on the cookware used.Cooking tips¡To bring food to the boil, use heat setting 9.¡Stir thick liquids occasionally.¡Food that needs to be seared quickly or that initially loses a lot of liquid during frying should be fried in small portions.¡Tips for saving energy when cooking. → Page 5Melting FoodOngoing cooking setting Ongoing cooking time inminutesButter, gelatine1-Heating or keeping warmStew, e.g. lentil stew 1-Milk 11–2-1Prepare the dish without the lid.Poaching or simmeringDumplings 1, 23–420–30Fish 1, 2310–15White sauce, e.g. béchamel 13–61Bring the water to the boil with the lid on.2Continue to cook the dish without a lid.Boiling, steaming or stewingRice with double the volume of water315–30Unpeeled boiled potatoes 3–425–30Boiled potatoes 3–415–25Pasta, noodles 1, 256–10Stew, soup 3–415–60Vegetables, fresh or frozen 3–410–20Food in a pressure cooker 3–4-1Bring the water to the boil with the lid on.2Continue to cook the dish without a lid.Braising Roulades 3–450–60Pot roast 3–460–100Goulash3–450–60Frying with little oilFry food without a lid.Escalope, plain or breaded 6–76–10Chops, plain or breaded 16–78–12Steak, 3 cm thick7–88–12Fish or fish fillet, plain or breaded 4–58–201Turn the dish several times.Fish or fish fillet, breaded and frozen, e.g. fish fingers 6–78–12Stir fry, frozen 6–76–10Pancakes5–6one by one1Turn the dish several times.6 Cleaning and servicingTo keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.6.1 Cleaning productsYou can obtain suitable cleaning products and glass scrapers from customer service, the online shop or a retailer.ATTENTION!Unsuitable cleaning products may damage the sur-faces of the appliance.▶Never use unsuitable cleaning products.Unsuitable cleaning products ¡Undiluted detergent¡Detergent intended for dishwashersen Disposal8¡Abrasive cleaners¡Aggressive cleaning products such as oven spray or stain remover ¡Abrasive sponges¡High-pressure or steam jet cleaners6.2 Cleaning the glass ceramicClean the hob after every use to stop cooking residues from getting burnt on.Note: Note the information on unsuitable cleaning products. → Page 7Requirement: The hob has cooled down.1.Remove heavy soiling using a glass scraper.2.Clean the hob with a cleaning product for glass ceramic.Follow the cleaning instructions on the product packaging.Tip: You can achieve good cleaning results using a special sponge for glass ceramic.7 Disposal7.1 Disposing of old applianceValuable raw materials can be reused by recycling.▶Dispose of the appliance in an environmentally friendly manner.Information about current disposal methods are available from your specialist dealer or local author-ity.ment - WEEE).The guideline determines the frame-work for the return and recycling of used appliances as applicable throughout the EU.8 Customer ServiceFunction-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.8.1 Product number (E-Nr.) and production number (FD)You can find the product number (E-Nr.) and the pro-duction number (FD) on the appliance's rating plate.The rating plate can be found:¡on the appliance certificate.¡on the lower section of the hob.Make a note of your appliance's details and the Cus-tomer Service telephone number to find them again quickly.9 Installation instructionsObserve this information when installing the appliance.Follow these safety instructions when in-stalling the appliance.¡Electrical connection must only be carried out by licensed specialist staff. Incorrect connection will invalidate the warranty.¡The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard in accordance with these installation instructions. The in-staller shall be liable for any damage result-ing from incorrect installation.Installation instructions en99.2 Built-underDo not install refrigerators, dishwashers, non-ventilated ovens or washing machines underneath the appliance.¡If you fit an oven below the appliance, the worktop must be at least 20 mm thick, in certain cases even thicker. Observe the information in the oven installa-tion instructions.¡Make sure that projecting parts such as the mains housing or the mains cable do not collide, e.g. with a drawer.9.3 Intermediate floorIf the underside of the hob can be touched, an interme-diate floor must be fitted.¡Ask your specialist retailer for an intermediate floor as an accessory.¡If you use your own intermediate floor, the minimum distance to the mains connection of the appliance must be 10 mm.9.4 Preparing the unitsThe worktop must be level, horizontal and stable.¡The fitted units, including wall finishing strips, must be heat-resistant to at least 90 °C.¡Niche cladding within 50 mm of the back wall must not be combustible (e.g. tiles, stone).¡Seal the cut surfaces to make them heat-resistant.This prevents the worktop from swelling as a resultof moisture.9.5 Electrical connectionTo protect the appliance, do not remove it from the polystyrene trays until you press the appliance into the cut-out. Never lay the appliance down flat on its side.¡Check the household wiring before connecting the appliance.¡The appliance fulfils the requirements of protection class I and must only be operated in conjunction with an earth conductor.¡In the permanent electrical installation, a partition must be provided in the phases in accordance with the installation regulations.¡If appears on the appliance's display, it has not been connected correctly. Disconnect the appli-ance from the mains and check the connection.Connecting with a 3-wire cableEnsure that there is sufficient fuse protection for the household wiring.Observe the colour coding of the power cable.¡The protective conductor is green/yellow .¡The neutral conductor is blue.¡The phase (external conductor) is brown.¡If required, the cable must be replaced with a multi-phase power cable. When replacing the cable, ob-serve the following paragraph.Connecting without a pre-installed cableOnly connect the hob in accordance with the connec-tion diagram.¡If required, install the enclosed copper bridges.¡The power cable must correspond to type H05 VV-F or a higher rating.¡Use the current load to determine which wire cross-section you require. A cross-section of < 1.5 mm² is not permitted.Connecting with a pre-installed 5-wire power cableThe power cable must only be replaced by trained cus-tomer service personnel.9.6 Installing the hobDo not trap the power cable and do not route it over sharp edges.¡If the oven is a built-under type, route the cable along the rear corners of the oven to the mains socket.en Installation instructions¡The hob can also be installed in an existing cut-out that has a depth of 500 mm.¡It must protrude by the same distance at the front and the rear.9.7 Removing the hob1.Disconnect the appliance from the power supply.2.Push out the hob from below.10Thank you for buying aBosch Home Appliance!Register your new device on MyBosch now and profit directly from:•Expert tips & tricks for your appliance•Warranty extension options•Discounts for accessories & spare-parts•Digital manual and all appliance data at hand•Easy access to Bosch Home Appliances ServiceFree and easy registration – also on mobile phones:/welcomeLooking for help?You'll find it here.Expert advice for your Bosch home appliances, help with problemsor a repair from Bosch experts.Find out everything about the many ways Bosch can support you: /serviceContact data of all countries are listed in the attached service directory.。
xx贝尔新风系统说明书

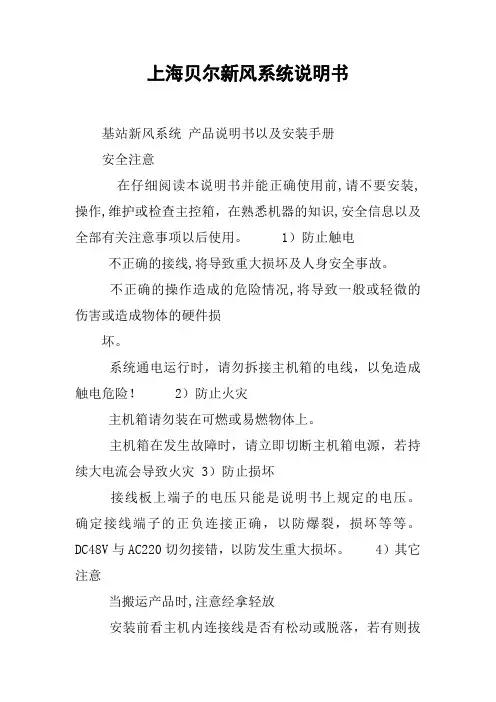

上海贝尔新风系统说明书基站新风系统产品说明书以及安装手册安全注意在仔细阅读本说明书并能正确使用前,请不要安装,操作,维护或检查主控箱，在熟悉机器的知识,安全信息以及全部有关注意事项以后使用。
1）防止触电不正确的接线,将导致重大损坏及人身安全事故。
不正确的操作造成的危险情况,将导致一般或轻微的伤害或造成物体的硬件损坏。
系统通电运行时，请勿拆接主机箱的电线，以免造成触电危险！ 2）防止火灾主机箱请勿装在可燃或易燃物体上。
主机箱在发生故障时，请立即切断主机箱电源，若持续大电流会导致火灾 3）防止损坏接线板上端子的电压只能是说明书上规定的电压。
确定接线端子的正负连接正确，以防爆裂，损坏等等。
DC48V与AC220切勿接错，以防发生重大损坏。
4）其它注意当搬运产品时,注意经拿轻放安装前看主机内连接线是否有松动或脱落，若有则拔下插紧。
确认安装位置和物体能经得起主控箱和风机的重量防止螺丝、电缆碎片或其它导电物体或油类等可燃性物体进入主控箱。
目录一、产品特点 (4)二、主要性能参数 ................................................ .................................. 4 三、接口板接线 ................................................ ...................................... 4 四、系统参数设置 ................................................ .................................. 5 五、面板操作 ................................................ .......................................... 6 六．系统设备清单 ................................................ .................................. 9 七、系统安装说明 ................................................ .. (10)一、产品特点1）三遥功能遥测：基站内、外部温度、湿度。
新风到家-新风控制系统说明书(服务版)V1.2.0
智能新风控制系统使用说明书产品概览智能新风控制系统是新风到家推出的一套新风解决方案，通过监测控制器（空气监测仪）与新风机的联动，实时监测室内PM2.5、CO2浓度，输出信号直接控制新风机的启动及转速。
新风机通过监测结果智能运行，有效的改善室内空气污染，提高空气质量，加速室内空气的流通、污染空气的排出，加入室外新鲜空气的注入，实现既节能环保又能保持室内良好空气品质。
室外PM2.5开关键风速键模式键需连网：控制器连接WiFi 新风机与控制器关联新风机控制器主要功能说明内循环开启条件当室内CO2小于800当室内CO2大于1500当室内CO2小于650当室内CO2小于600当室内CO2大于1000当室内CO2大于800外循环开启条件模式名称经济舒适豪华点击“开关键”一次风阀打开，再点击一次风阀关闭手动摸下，点击“风速键”选择风速：风速1 风速2 风速3 风机停自动模式下，开启外循环以CO2阈值为唯一标准，设置步骤如下： 自动模式下，空气品质为差时，风速根据PM2.5/CO2的预设参数自动切换为高速风 阈值设置操作步骤如下：a 点击设置键进入设置界面b 进入设置页面，选择阈值设置c 在阈值设置界面中选择PM2.5和CO2阈值设置进入，对调节参数进行设置，注：自动模式由PM2.5和CO2的调节值共同参与控制风速a 点击设置键进入设置界面b 进入设置页面，选择背光设置c 在背光设置界面点击“定时熄屏/亮屏设置”，点击界面中的数字修改熄屏/亮屏时间a 根据阈值设置步骤进入阈值设置页面b 进入阈值设置页面，选择内循环模式设置c 对内循环模式（经济、舒适、豪华）进行选择，三个模式对应以下参数： 点击“模式键”选择模式：自动/手动系统默认定时熄屏时间为21:00 定时亮屏时间为07:00 根据以下步骤进行设置：控制器配置网络步骤一 使用微信扫描控制器底部的二维码绑定设备设备二维码提示：配置前请确保控制器电量充足（建议连接USB电源使用），并将手机连接WiFi步骤二 微信端点击“进入公众号”按钮，进入公众号步骤三 从公众号底部菜单“我的设备”进入设备详情，此时设备为未联网状态,根据界面提示，点击“配置网络”按钮步骤四 界面中出现配网弹窗提示，按照提示内容对控制器进行相应的操作步骤五 在进入的配置页面中输入WiFi密码（手机连接的WiFi），输入完后点击“连接”提示：配置成功后，微信界面自动返回设备详情页，数据正常显示，控制器室外数据正常显示；若60秒内配置失败，此时需再次长按控制器WiFi按钮进入配网模式为设备配网。
新风系统智能控制器使用说明书
新风系统智能控制器使用说明书一．概述新风系统智能控制器适用于对家庭及公共场合新风系统风机的智能控制，控制器分别设有手动及自动风量调节（三档）功能，时间及室内温度显示，滤网使用时间提醒。
自动控制功能可以设定每周7天，每天4时段运行状态，每个时段可以根据需要设定新风系统启闭或风量。
新风系统智能控制器根据具体情况灵活控制新风系统风机运转速度，实现既节能环保又能保持室内良好空气品质。
二．显示及按键符号 内容1当前星期状态2本地时间24小时制显示3自动运行模式状态显示4设置选择5风量切换6开关（设置状态时：确认）7数字减少或向后选择设置参数8数字增加或向前选择设置参数9自动运行模式：正在运行时段10手动运行模式状态显示11风量显示12环境温度显示三．技术参数输入电源 功率消耗 时段数量 输出方式 外形尺寸A C220V1w每天4时段，每周最多28时段 继电器 ≤1A86m m×86m m×14m m四．操作设置说明1.手动运行模式控制器接通电源后，液晶屏显示温度、时间、星期状态，约五秒后按开关键，液晶屏出现风量图标及手动运行模式图标，风量默认为中。
按风量切换键，可依次在高、中、低风量间进行切换，对应的风量图标的风量显示条分别为3条、2条、1条。
2.自动运行模式同时按下▽及△键，控制器进入自动运行模式，液晶屏显示自动运行模式图标。
自动运行时段设定：自动运行模式下连按两次按设置选择键，液晶屏自动运行模式图标A U T O闪烁，进入时段设定。
这时星期状态图标闪烁，按▽或△选择你要设定星期状体，按开关键确认。
星期状态确认后，自动进入这一天第1时段设定，这时液晶屏运行时段标显示1，时间的小时数字闪烁，按▽或△选择你要设定的时间，按开关键确认；小时确认后，自动进入分钟设定，这时时间的分钟数字闪烁，按▽或△选择你要设定的分钟，按开关键确认；时间设定确认后，自动进入风量设定，这时风量图标闪烁，按▽或△选择你要设定的风量（风量图标中无风量条表示关闭），按开关键确认，第一时段设定完毕，并自动进入第二时段设置。
新风—布朗
新风——BLLC布朗新风系统新风系统是由风机、进风口、排风口及各种管道和接头组成。
安装在吊顶内的风机通过管道与一系列的排风口相连，风机启动，室内受污染的空气经排风口及风机排往室外，使室内形成负压，室外新鲜空气便经安装在窗框上方（窗框与墙体之间）的进风口进入室内，从而使室内人员可呼吸到高品质的新鲜空气。
要点1.独立排风管形式——节省了竖井风道占用的室内空间，户间相互影响小。
2.顶部不设排风机，公用竖向排风道形式——易发生回流和泄流现象。
3.顶部设排风机，公用竖向排风道形式1）每户都在厨房或卫生间设置排风机，排风机出口接公用竖向排风道；2）每户都不设置排风机，厨房和卫生间排风出口接公用竖向排风道。
优势1）不用开窗也能享受大自然的新鲜空气；2）避免“空调病”；3）避免室内家具、衣物发霉；4）清除室内装饰后长期缓释的有害气体，利于人体健康；5）调节室内湿度，节省取暖费用；6）有效排除室内各种细菌、病毒。
背景在北欧斯堪的那维亚地区在讲究质量和能源节约的国家里，中央新风系统（VMC）存在至今已有50年历史了。
70年代西班牙90%以上的新建住宅中装用VMC系统。
1989年美国ASHRAE制定了“室内空气品质通风规范”。
在德国，住宅通风系统已经与建筑物溶为一体，成为不可缺少的重要组成部分。
2000年，欧盟统一了住宅通风标准。
在中国2002年1月1日室内空气污染控制规范诞生。
非典、禽流感、肺结核等疾病的发生，使全世界对室内空气质量给予了高度的关注。
类型1.单向流负压新风系统2.双向流新风系统3.全热交换新风系统4.地送风系统布朗 BLLC ，来自于全球500强企业——IMG 集团，北美最大的节能系统制造集团及控股机构。
具有百年专业研发及制造历史，同时其尖端的室内空气技术为美国军方及航空机构服务。
全球IQA （室内空气品质）行业的领导者。
旗下主要品牌：B/L 、BLLC 、TITON 。
B&L博仕莱BLL 布朗 TITON 泰顿关于BLLC 布朗1932年，亨利·布朗先生研制并生产了一种安静高效的厨房通风设备,命名为摩特德,这一举措成就了今天的BLLC ，是世界最大的室内空气质量（IAQ ）系统产品制造商， 其中最为突出的是Guardian Plus 系列IAQ 产品：在2002年全球建筑展览会上，荣获“住宅技术创新奖”，同时，荣获美国ADEX “产品设计优秀奖”。
布朗司诺L中文版使用说明书-Bron
2016‐08‐15I. 司诺L灯头图示2016‐08‐152016‐08‐15II, 开始1. 打开灯头保护盖 (取走灯管前的保护海绵, 另确定灯管正确固定在插座上)3. 安装电池至灯头上。
2. 按一下电池后方的 “on/check” 按钮测试电池的电量。
4. 启动开关按钮 (在底部)2016‐08‐15III. 操作按钮按钮 /标示功能旋转按钮 (1)启动或关闭灯头（备用模式）。
按下”旋转按钮”维持3秒钟可启动或关闭灯头至备用模式。
轻按”旋转按钮”可进入菜单选项介面。
有关详细说明请参照第五章。
进入菜单模式后” 旋转按钮” 底部的蓝色指示灯会闪烁。
在操作模式下：转动”旋转按钮”：可调整灯头的输出功率。
反时钟方向转动可调减输出功率。
顺时钟方向转动可增加输出功率。
慢速转动可按1/10的功率调节，而快速转动可按1级光功率调节。
数字显示屏 (2) 显示输出功率或菜单的选取。
Mod / Eco 造型灯及省电模式开关 (3) 轻按启动或关闭造型灯。
长按按钮可改选为正常或省电模式。
Test (4)测试键当”旋动按钮”底部的蓝色灯亮着，表示灯头已充电及准备就绪。
可按测试键引发灯头作测试。
长按按钮可把灯头的设定回到默认设定Speed (5) 高速模式提升回电速度及闪速。
详细内容请参照第7章。
WiFi (6)启动或关闭wifi 接连功能。
st/ch (8) 无线引闪频道设定可选取布朗RFS 无线引发的频道。
lamp (9) 灯头地址设定可选取布朗RFS 频道的灯头地址。
2016‐08‐15seq (10)连续频闪设定可设定连续频闪的次数。
beep (11) 声音提示启动或关闭准备就緖的声音提示功能。
sync (12) 同步引闪 可选择启动或关闭哪一项同步引闪模式。
（无线引发及光敏感应同步）同歩线插口/ USB插口 (13/14) 同步线插入口供同步引闪用 / USB 插囗供固体升级用开关按钮 (15)启动或关闭灯头电源。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
布朗新风BME200L控制面板使用说明书
1、确保主机以及BME200L已经正确安装，将电源插头连接到电源插座，此时电源指示红灯亮起。
2、将无线控制器安装到方便操作的地方。
3、轻轻按控制器上面的开关按钮，主机启动，运行指示绿灯亮起，再按一次主机关闭。
4、当感应到厨房内一氧化碳浓度超过安全设定值时，报警黄灯闪烁，蜂鸣器发出警报声，主机自动开启运行，待空气中一氧化碳浓度下降后自动停止运行。
注意事项：
1、厨房空气处理器使用时应与油烟机同时开启。
2、当设备发出燃气泄漏警报时，要及时关闭燃气。
3、无线控制器无需在墙面布线，使操作不再有局限，其仅适配7号电池。
4、厨房空气处理器是现代家居的好帮手它术仅保障了厨房的安全，还保障了家人的健康，轻轻松松告别厨房空气质量不过关。
