JVC GY-HM750E高清摄像机
JVC GY-HM100E USER GUIDE
Optional AccessoriesPrinted in JapanDISTRIBUTED BYSimulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.GY-HD700GY-HD100Memory Camera Recorder GY-HM100E HD Memory Card CamcorderUnprecedented Mobility[General]Power requirement: DC 11 V (using AC adapter)/DC 7.2 V (using battery)Power consumption: 7.8 W (when LCD screen backlight is set to [STANDARD])Dimensions: 272 mm (W) x 179 mm (H) x 135 mm (D)Mass: Approx. 1.4 kg (including battery BN-VF823, SDHC card and microphone)Temperature:Operating: 0˚C to 40˚C Storage: -20˚C to 50˚C Humidity:Operating: 35 % to 80 % RHImage pickup device: 3-chip 1/4" Progressive CCDColour separation prism: F1.8, 3-colour separation prism Sync system: Internal sync (built-in SSG)Filter diameter:When the hood is detached: 46 mm (screw pitch: 0.75 mm)Compatible with filter, tele-converter and wide-converter When the hood is attached: 72 mm (screw pitch: 0.75 mm)Compatible with filter onlyLens: Fujinon F1.8 to 2.8, 10x, f=3.7-37 mm (35 mm conversion: 39 to 390 mm)ND filter: OFF , +1/10NDGain: 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, Lolux, AGCMinimum illumination: 5lx (typical) (1920x1080 mode, F1.8, +18dB, with 16-frame accumulation)Electronic shutter: 1/3.75 to 1/10000, EEI Viewfinder: 0.44" LCD, 235,000 pixels, 16:9LCD monitor: 2.8" LCD, 206,000 pixels, 16:9Supported media: SDHC (Class 6)Slots: x 2Recording time: Approx. 25 minutes (8 GB SDHC card, 35 Mbps, VBR mode)[Video/Audio]Recording file format: QuickTime ™ File Format for Final Cut Pro ™/MP4 File FormatRecording format:Video: MPEG-2 long GOPHQ mode: VBR, 35 Mbps (Max) MPEG-2 MP@HL SP mode: CBR, 25 Mbps (1440x1080i)/19 Mbps (1280 x 720p24/25/30): MPEG-2 MP@H-1419 Mbps (1280 x 720p50/60): MPEG-2 MP@HL Audio: LPCM 2ch, 48 kHz/16bit Video frame rate: PAL settings:HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i (MOV only), 1280 x 720/50p, 25pSP mode: 1440 x 1080/50i, 1280 x 720/50p, 25p NTSC settings:HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i (MOV only), 1280 x 720/59.94p, 29.97p, 23.98pSP mode: 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p [Still Picture]Still picture recording format: JPEGRecording size: 4 modes (1920 x 1080/1440 x 1080/1024 x 768/640 x 480)Recording quality: 2 modes (Fine, Standard)[Connectors]AV output: Video analogue composite output (576i or 480i: Downconverted, 4:3/16:9): 1.0 V (p-p), 75-ohms, Audio Stereo, analogue output 300 mV , 1 k-ohms (Special cable)Component output: Y , Pb, Pr component output (576i or 480i: Downconverted/720p/1080i)Y: 1.0 V (p-p), 75-ohmsPb, Pr: 0.7 V (p-p), 75-ohms (Special cable)HDMI ™output: HDMI ™(576i/p or 480i/p: Downconverted/720p/1080i) (V .1.3, x.v. Colour compliant)USB: Mini USB-B type, USB 2.0Headphone: 3.5 mm mini-jack (stereo)Microphone: 3.5 mm mini-jack (stereo)Audio input:[MIC]: -60 dBs, 3 k-ohms, XLR (balanced), +48 V output (phantom power supply)[LINE]: +4 dBs, 10 k-ohms, XLR (balanced)[Accessories Provided]Battery pack (BN-VF823) x 1, AC adapter (AP-V21) x 1,Battery charger (AA-VF8) x 1, Microphone x 1, Wireless remote control unit x 1, Component cable x 1, A/V cable x 1, USB cable x 1Specifications GY-HM100EGL-V0746U0.7x Wide converter AA-VF8UBattery chargerGL-V1846U1.8x Tele converter MV-P615USuper direction microphoneMZ-V8UStereo microphoneBN-VF823U BatteryJQA-0288Final Cut Pro™ is not supplied.Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Apple, Apple logo, Macintosh, QuickTime, and Final Cut Pro are trademarks of Apple Inc. registered in the United States and other countries. The SD and SDHC logos are trademarks of the SD Card Association. Product and company names mentioned here are trademarks or registered trademarks of their respective owners.Hachioji Business Center of Victor Company of Japan, Ltd.has received ISO9001 Certifications.■ SDHC Class 6 recording time (approx.)MOV/MP4SPHQ 720p/1080i 12 min.25 min.50 min.1 hr. 40 min.1080i 17 min.35 min.1 hr. 10 min.2 hr. 20 min.720p22 min.45 min.1 hr. 30 min.3 hr.4GB 8GB 16GB 32GBTrue PortabilityThe GY-HM100E is truly an engineeringmarvel. Weighing only 1.4compact camcorder can be heldFinal Cut Pro™3CCDManual Versatility, Automatic FlexibilityShooter-Friendly Controlsmajor role in the design of theGY-HM100E. The camera’shandgrip makes the cameravery comfortable to hold for anyoperator, even on long shoots.2.8-inchGY-HM100E Editing WorkflowDimensionsMOV File WorkflowDirect file access to Apple’sFinal Cut Pro™SDHC SDHC Memory Card ReaderSDHC Memory Card ReaderRecorded MOV filesUSB 2.0MP4 File WorkflowIngest MP4 clips to majorNLE systemsRecorded MP4 filesProHD Clip ManagerFile ingestAvidAdobe CanopusImportingSDHC USB 2.0ProHD SoftwareJVC ProHD Clip ManagerThe ProHD Clip Manager, for both Mac and Windows, makes it easy to manage MP4 clips on the GY-HM100E’s memory cards from your PC. With a few clicks of the mouse you can copy, move or delete clips, preview clip content, as well as view and edit clip metadata. You can also manage folders to keep things organised, check the remaining space left on a card, and set the index frame of a clip to use as its thumbnail.ProHD Log and Transfer Plug-inThe ProHD Log and Transfer Plug-in is a software for Apple’s Final Cut Pro ™ that lets you drop MP4 files recorded on the GY-HM100E into the clip bin of Final Cut Pro ™. With the plug-in installed, you can view thumbnails of the MP4 files on a memory card from the Log and Transfer screen of Final Cut Pro ™. Simply drag and drop the thumbnails into the bin to automatically convert the clips to QuickTime ™ format, ready for use.Log and transfer screenMain screen for Windows ®Viewer windowInformation windowIngestLoggingBrowser PreviewUnit: mm013511410010215417918620027236613830(hood)(without battery)(with battery)Drag and dropIR remote control sensor。
杰尼奥 GY-HM750U 高清 标清双内存卡摄像机说明书
HD SDNative File RecordingHD/SD ShootingMP4MOVQuickTime™MP4MOVQuickTime™Record footage directly in ready-to-edit QuickTime™ MOV files,the native file format of Apple’s Final Cut Pro™, or in MP4 format(XDCAM EX™ workflow-compatible) for direct editing in othermajor NLE systems, including Avid Media Composer, AdobePremiere and Canopus Edius Pro. Native file recording means notranscoding or file-wrapping is necessary,resulting in more efficient workflows and no lossof image quality.In the transition period from SD to HD production,camcorders must be able to meet the requirements ofboth without compromising image quality or features.The GY-HM750U meets this challenge by providing a true SDshooting mode in standard DV 25 Mbps format, recording to eitherMOV or AVI file format for direct editing within NLE systems.HD RecSD RecHDSD SDHCSxS(SxS forMP4 only)AVIDVPhoto courtesy of KUSI-TVPhoto courtesy of KBMT -TVPhoto courtesy of WKRC-TVPhoto courtesy of American Collegeof CardiologyExceptional Image QualityEncoding video at higher bit-rates means just one thing: higher image quality. The 35 Mbps data rate used by the GY-HM750U is high enough to support full 1920 x 1080 encoding, and results in stunningly detailed, broadcast-standard HD images.A custom 1080p Dynamic Digital Signal Processor (DDSP) is the engine that encodes the high bit-rate video signal into an MPEG2 stream and acts as a file compiler for QuickTime™ and MP4 files.35Mbps1080p Dynamic Digital Signal Processor (DDSP)JVC’s new 1080p Dynamic Digital Signal Processor is the engine that drives the GY-HM750U. This highly efficient MPEG2 encoder processes video signals at up to 35 Mbps for full 1920 x 1080 progressive or interlace video.4.3-inch LCD MonitorThe large 16:9 aspect ratio LCD monitor and GUI bring ease of use to a new level for a professional camcorder.Dual SDHC Card Slots with Simultaneous and Relay RecordingThe GY-HM750U gives users the flexibility of dual SDHC memory card slots for either simultaneous recording to dual memory cards for an instant backup or duplicate copy, or seamless relay recording between two cards for continuous shooting. For even greater flexibility, the optional SxS media recorder makes possible simultaneous recording to both SxS and SDHC media.3CCDR35Mbps Linear PCMRecording Advanced MPEG2 High Bit Rate Encoding1080p Dynamic Digital Signal Processor (DDSP)At the heart of the GY-HM750U is a custom JVC-developed Dynamic Digital Signal Processor. Processing is performed on the full progressive 1920 x 1080 signal, regardless of the camcorder’s settings, ensuringthe highest picture quality in any shooting mode. All major HD resolutions are supported, including 1920 x 1080, 1440 x 1080 and 1280 x 720.Uncompressed Audio Recording withFull Manual ControlThe GY-HM750U captures audio with the sameuncompromising quality as video. Two-channel16-bit/48 kHz uncompressed linear PCM can berecorded via the detachable shotgun microphone, or via a pair of balanced XLR connectors. Versatile input switching and independent channel assignment allow both mic and line-level sources (such as wireless receivers) to be connected, and phantom power is available on each XLR connector independently. Audio recording levels can be controlled automatically or manually, with an audio level meter in the viewfinder and LCD monitor for easy monitoring.JVC Proprietary 35Mbps MPEG2 Encoder (HD)Drawing from its experience in developing transmission signal encoders used by major television stations, JVC developed a proprietary codec capable of providing highly efficient compression up to 35 Mbps — highenough to support full 1920 x 1080 encoding — capable of creating high resolution images with minimal artifacts. The XDCAM EX™ MPEG2 long GOP (Group of Pictures) codec is a widely used broadcast-standard compression system and is supported by all popular editing systems and broadcast servers.The GY-HM750U supports all major HD signal formats including 1920 x 1080, 1440 x 1080 and 1280 x 720.Canon 14x HD LensThe JVC GY-HM750U has a standard bayonet lens mount giving users the flexibility of selecting different lenses for differentrequirements. The standard package includes a high-quality 14x HD lens from Canon, suitablefor a wide range of general-purpose applications, with a focal length range of f=4.4–61.6mm (32–448mm at 35mm equivalent).HD/SDRec * The GY-HM750U supports all major HD signal formats including 1920 x 1080, 1440 x 1080 and 1280 x 720 as well as SD signal in DV codec.Standard Definition Recording Capability Responding to the needs of the industry,the GY-HM750U, in addition to its capability asan HD recorder, offers Standard Definition recording for maximum flexibility. Recording in SD providesa time-saving alternative to down-conversion of HD material for SDbroadcasts, which is still an industry standard in many countries worldwide. This feature offers a fundamental advantage for professionals with time-sensitive SD workflows.HQ mode (35Mbps)SP mode (25Mbps)DV mode (25Mbps)SP mode (19Mbps)60i/50i 30p/25p/24p 1920 x 10801440 x 10801280 x 720720 x 48060i/50i 60i/50i60p/50p 30p/25p/24p60p/50p 30p/25p/24p60icordingSDHCSxSSDHCProHD SoftwareJVC ProHD Clip ManagerThe ProHD Clip Manager for both Mac and Windows makes it easy to manage MP4 clips on the GY-HM750U’s memory cards from your computer. With a few clicks of the mouse you can copy, move or delete clips, preview clip content, as well as view and edit clip metadata. A thumbnail view of all the clips in the current foldershows the content of each clip at a glance. Use the viewer to watch the whole clip, or change the clip's index frame used for the thumbnail. You can also manage folders to keep your clipsorganized, and check the remaining free space on a card. The latest version of ProHD Clip Manager offers an even greater level of NLE compatibility by enabling MP4 files to be converted to m2t widely supported by NLEs.ProHD Log and Transfer Plug-inThe ProHD Log and Transfer Plug-in is a plug-in for Apple’s Final Cut Pro™ that lets you drop MP4 files recorded on the GY-HM750U into the clip bin.With the plug-in installed, you can view thumbnails of the MP4 files on a memory card from the Log and Transfer screen of Final Cut Pro™. Simply drag and drop the thumbnails into the bin to automatically convert the clips to QuickTime™, ready for use.Dual SDHC Card Slots for Simultaneous or Seamless Relay RecordingDual SDHC card slots make the GY-HM750U a truly versatile camcorder. Using standard, inexpensive and widely available Class-6 orClass-10 SDHC cards, footage can be recorded either to both cards simultaneously, or from one card to the other in relay.Simultaneous recording means you can easily create backup or duplicate files as you shoot without the need for any external equipment — either for a client copy or simply for peace of mind. In relay recording mode you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards. Hot swappable media also means it is possible to start editing footage from one card while still shooting to the other. The dual card slots also offer the flexibility of scene-by-scene card selection.SxS Double Media Hybrid Recording (Optional)The optional SxS media recorder allows simultaneous shooting to SDHC and SxS media. This hybrid recording system provides a reliable backup solution.SDHC media offers the best combination of price, availability,capacity, reliability and transfer speed. With no moving parts and no pins or other extrusions, SDHC cards are both durable and reliable, and compare favorably with tape on a cost-per-minute basis.Main screen for Windows ®Viewer windowInformation window Log and transfer screenIngestLoggingBrowserPreviewCard 1ChangeChangeCard 2Card 3Card 4Slot ASlot BSlot ASlot BSlot A Slot B* Playback compatibility not guaranteed on all products due to variation of supported recording mode.MP4XDCAM EX™M2TProHD ClipManager Simultaneous RecordingRelay RecordingComponent outComposite out SDI outIEEE1394 outVersatility and Quality of OutputSDI and IEEE1394 OutputIn addition to SD composite and HD/SD component video output, the GY-HM750U is equipped with SDI and IEEE1394 outputs.The SDI output is via a BNC connector and can be switched between HD and downconverted SD with embedded uncompressed audio. The IEEE1394 output is via a 4-pin connector and can also be switched between HD and SD by menu. The audio output is HDV compliant in HD mode and DV compliant in SD mode.Remote Camera Control ConnectorThe GY-HM750U is equipped with a standard JVC 6-pin TTL interface for an optional remote camera controller (RM-LP25U or RM-LP55U). These units provide extensive control options, including paint, iris, gamma level, knee, gain, shutter, and black level.Optional ASI AdapterJVC’s proprietary 68-pin interface allows direct docking ofthe optional ASI (Asynchronous Serial Interface) Adapter which provides a low-latency ASI output of the camcorder’s MPEG2 data stream.Variable Frame Rate Recording (Over Crank, Under Crank)When recording in the 720p 35 Mbps mode, the camera can be set to record at a frame rate different than the playback rate.This capability makes it possible to record slow or fast motion when the recording is played back at 24p, 25p or 30p.DimensionsUnit: inches (mm)GY-HM750U with optional KA-AS790G9-1/8 (231)6-9/16 (166)8-5/16 (210)12 (304)(for IDX BATTERY)11-1/2 (291) (for ANTON BATTERY)3-9/16 (90)1-5/8 (40)(VF MOVE)3-3/4 (95)9-9/16 (242.3)8-7/8 (225)3-1/4(82.3)3-1/4(82.3)4-5/16(108.5)5-1/4(133)2-1/4(56)(V F M O V E )8-1/4 (209)(S.PAD MOVE)1-3/16(30)1-13/16(44.6)2-3/8(59.8)Focus manual controlHZ-FM13 (for Fujinon lens)HZ-FM15 (for Canon lens)(except KT17ex4.3BIRSE)Zoom servo controlHZ-ZS13B(except HTs18x4.2BRM/BERMand KT17ex4.3BIRSE)Microphone Shoulder beltHeadphonex 2HD-SDI cableBNCSwitcher, VCR etcMonitorMonitorComponentcable BNCComposite cableBNC pinAudio cableRCA pin1/3" zoom lensTh13x3.5BRM (Fujinon)Th17x5BMD (Fujinon)XT20sx4.7BRM (Fujinon)XT17sx4.5BRM (Fujinon)HTs18x4.2BRM/BERM (Fujinon) KT20x5BKRS (Canon)KT17ex4.3BIRSE (Canon)1/2" zoom lens 1/3" zoom lensKT14x4.4KRSJ (Canon)(provided for GY-HM750U)Accessory mountSxS memorycard recorderKA-MR100GBattery Dionic 90(Anton Bauer)BatterymountJVC-PV(IDX)BatteryEndura E-10S(IDX)Remote control unitRM-LP25/55AC adaptorVL-2 PLUS, IA-60a (IDX)Titan70 (Anton Bauer)Batterycharger(IDX)Battery charger(Anton Bauer)ASI adapterKA-AS790GGY-HM750CHU2/3" zoom lensTripod baseKA-551UTripodUSB cableSDHC cardreaderSDHC memorycardMountconverter(1/2" 1/3")ACM-12Mountconverter(2/3" 1/3")ACM-17System ConfigurationKT20x5BKRS1/3" high quality zoom lens(Canon)(Canon)(Fujinon)(Fujinon)(Fujinon)RM-LP25U RM-LP55U(Fujinon)Th13x3.5BRM1/3" wide zoom lens Endura E-10S (Battery)IDX V-mount batteryKA-MR100GSxS memory card recorder KA-AS790G ASI adapter VL-2PLUS (Charger)IDX V-mount battery charger/ AC adapterDionic 90 (Battery)Anton Bauer batteryTandem 70 (Charger)Anton Bauer battery charger/ AC adapterHZ-ZS13BUManual zoom controlCannot be used for HTs18x4.2BRM e Fujinon ZMM-6: Module unit/CZH-14:Grip/CFC-12-990: Cable/MCA-7: Mounting clampKA-551UTripod base V-mount adapter RM-LP25U (Desk mount)RM-LP55U (Handheld)Remote control unit6-pin DINHZ-FM13U (Fujinon)HZ-FM15U (Canon)Manual focus controlHTs18x4.2BRMHTs18x4.2BERM (2x extender) 1/3" high quality zoom lens HZ-CA13U16mm film lens adapterACM-172/3" Bayonet mount converterACM-121/2" Bayonet mount converter Optional AccessoriesKT17ex4.3BIRSE1/3" high quality zoom lens with 2x extender XT17sx4.5BRM XT20sx4.7BRM 1/3" zoom lensSR-HD1500USBlu-ray disk recorderDT -V24G1Z/V20L3GZ/V17G1Z/V9L3DY LCD HDTV monitor DT -R24L4DU/DT -R17L4DULCD HDTV monitorTh17x5BRMD1/3" MD zoom lens JVC-PVIDX V-mount plate。
JVC GY-HC900 CONNECTED CAM 高清摄像机说明书
The Ultimate Live-Over-IP2/3-inch 3CMOS Sensors with High Sensitivity of F12 (60Hz)/F13 (50Hz)New Image Processing Engine50Mbps 4:2:2 10-bit Recording (H.264) and Standard MPEG-2 (35Mbps) Recording Industry-Standard B4 Lens Mount Professional OLED Viewfinder HDR via HLG/J-Log 1Magnesium Alloy Body and IPX2 Equivalent Splash-ProofVarious Codecs and File FormatsMode (Bit rate)Resolution File formatMPEG-4 AVC/H.264XHQ(50Mbps 4:2:210-bit)1920 x 1080MOV1280 x 720XHQ (50Mbps)1920 x 1080UHQ (35Mbps)1920 x 10801280 x 720HQ (8Mbps)720 x 480 (U model)720 x 576 (E model)Web HQ (3Mbps)960 x 540Web LP (1.2Mbps)480 x 270MPEG-2 Long GOP HQ (35Mbps)1920 x 1080MOV/MXF1440 x 10801280 x 720SP (25Mbps)1440 x 1080High-Speed RecMPEG-4 AVC/H.264XHQ (50Mbps)1920 x 1080MOV UHQ (35Mbps)J-Log 1 and Rec709+Knee Gamma HLG & J-Log 1 Color Gamut3Connected to the Field. Delivering to the World.ENG STUDIOProduct photo shown with optional equipment.Live-over-IP FeaturesLive Streaming up to 20Mbps with Low LatencyThe GY-HC900 is capable of streaming LIVE HD/SD and proxy video/audio files via network up to 20Mbps with Return over IP for ENGThe GY-HC900 can receive return video/IFB from the station while streaming live to air via IP thanks to a newplatform. This allows reporters and camera operators toAuto FTPReturn VideoIFBBR-DE900 DecodersBR-800 Streaming ServerLive Streaming FTPReturn Video / IFBRemote Control / MetadataConnection in the FieldBR-DE900 DecodersBR-800 Streaming ServerVPN RouterWireless LANFS-900BS1 – 3-camera base stationFS-900BS2 – 2-camera base stationFS-900CAMStudio ViewfinderGY-HC900Hosting BR-800 in the Cloud for Live Feeds and Playout SharingFiber Remote Studio SystemGPS — Asset Tracking and Remote ControlDecoderDecoderConnected to Excitement. Share it with the World.LIVE EVENTPRODUCTIONProduct photo shown with optional equipment.67Complete Video-over-IP Solution for Remote ProductionStreaming Peer-to-Peer to Decoder or CDNsStreaming to Zixi, ProHD Broadcaster orBroadcaster on Cloud. Advanced QoS technologyfor reliable communication with Forward ErrorCorrection (FEC), Auto Repeat Request (ARQ),BR-DE900 DecoderVPN RouterWireless LAN1.2.4.• TC Out • TC In • Video Out • Genlock 3.System ConfigurationCHE/CHECGY-HC900CHU: Anton Bauer Unit: mm (inch)910OptionsTandem 70Anton BauerBattery Charger/AC AdapterMCSH050D2PD2PXX (16m/52.5ft)MCSH082D2PD2PXX (25m/82ft)MCSH164D2PD2PXX (50m/164ft)MCSH246D2PD2PXX (75m/246ft)MCSH328D2PD2PXX (100m/328ft)MCSH410D2PD2PXX (125m/410ft)MCSH492D2PD2PXX (150m/492ft)MCSH574D2PD2PXX (175m/574ft)MCSH656D2PD2PXX (200m/656ft)Fiber Cables (Hybrid Cable/Optical CON)MCSH050SIPSIRXX (16m/52.5ft)MCSH082SIPSIRXX (25m/82ft)MCSH164SIPSIRXX (50m/164ft)MCSH246SIPSIRXX (75m/246ft)MCSH328SIPSIRXX (100m/328ft)MCSH410SIPSIRXX (125m/410ft )MCSH492SIPSIRXX (150m/492ft)MCSH574SIPSIRXX (175m/574ft)MCSH656SIPSIRXX (200m/656ft)Fiber Cables (Hybrid Cable/SMPTE304M)KJ20x8.2BKRSD(Canon)2/3” Zoom LensHZ-AS1Manual Zoom ControlRM-LP25URemote Control UnitRM-LP20GRemote Control UnitKA-551UTripod Base V-mount AdapterDionic XTAnton Bauer BatteryIA70APower SupplyDUO-C98IDX BatterySMX-100AzdenStereo Shotgun MicRM-LP100Remote Camera Controller via LANHZ-FR15GManual Focus ControlBR-800BroadcasterPB-CELL200Portable Wireless Bridge Cellular UplinkSFE-CAMDockable Wireless Bridge Cellular UplinkBR-DE900DecoderKA-SLCC100GProHD Bridge Command CenterFS-900Multidyne Fiber Optic SystemProduct and company names mentioned here are trademarks or registered trademarks of their respective owners. "AVCHD Progressive" and "AVCHD Progressive" logo are trademarks of Panasonic Corporation and Sony Corporation. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Dolby is a trademark of Dolby Laboratories. Zixi and the Zixi logo are trademarks of Zixi LLC. The SD, SDHC and SDXC are trademarks of the SD Card Association.Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.Copyright © 2019, JVCKENWOOD Corporation. All Rights Reserved.DISTRIBUTED BYKCS-8461"JVC" is the trademark or registered trademark of JVCKENWOOD Corporation.。
JVC 摄像机 GZ-VX755 GZ-VX775 详细用户使用指南说明书
摄像机LYT2463-051A详细用户使用指南GZ-VX755/GZ-VX775目录表入门指南 (5)充电 (5)录制 (5)播放 (5)拍摄提示 (5)节假日/圣诞节 (6)婚礼 (7)旅行 (8)游乐园 (10)使用Wi-FiWi-Fi功能 (11)工作环境 (12)使用Wi-Fi的注意事项 (12)通过直接连接来监控图像（直接监测） (13)记录位置信息 (15)通过家中的接入点来监控图像（外部监测） (16)通过互联网来监控图像（外部监测） (18)识别到面部或动作时通过电子邮件发送静像（检测/邮件设置） 21通过电子邮件记录和发送视频（视频邮件收件人） (23)更改设置 (24)设置密码（外部监测设置） (26)设置此摄像机的UPnP（外部监测设置） (26)获取动态DNS（DDNS）帐户 (27)在此摄像机上设置动态DNS（DDNS）（外部监测设置） (27)设置发件人的电子邮件地址 (28)设置收件人的电子邮件地址 (31)设置此摄像机的识别方式（检测/邮件设置） (32)设置此摄像机的识别间隔时间（检测/邮件设置） (33)在此摄像机上设置自行录制（检测/邮件设置） (33)注册连接的接入点（“接入点”） (34)设置密码（直接监测） (38)设置执行群主（直接监测） (39)查看此摄像机的MAC地址 (40)用密码保护网络设置 (40)初始化网络设施 (41)使用智能电话应用程序 (42)屏幕上的显示说明 (42)传输视频 (43)传输静像 (44)更改设置 (46)通过网络浏览器使用Wi-Fi功能 (48)屏幕上的显示说明 (48)通过网络浏览器进行摄像机设置 (50)故障排除 (56)Wi-Fi规格 (59)入门核对附件 (61)连接核心过滤器 (63)电池充电 (64)握带调整 (65)使用手带 (65)插入SD卡 (66)可以使用的SD卡类型 (66)使用触屏 (67)液晶监视器上的按键名称和功能 (68)时钟设定 (69)重设时钟 (70)更改显示语言 (71)握住本机 (71)安装三脚架 (71)在海外使用本机 (72)在海外给电池充电 (72)旅行期间按当地时间设置时钟 (72)设置夏时制 (73)备选附件 ................................................................................ 73录制在自动模式下拍摄视频 (74)变焦 (76)在视频录制过程中捕捉静像 (76)在自动模式下拍摄静像 (77)变焦 (79)手动录制 (80)根据场景（被摄体）进行拍摄 (81)手动调整聚焦 (82)调整亮度 (83)设置快门速度 (84)设置光圈 (85)设置白平衡 (86)设置背光补偿 (87)拍摄特写镜头 (88)带效果录制 (89)带动画效果录制 (90)带脸部饰物录制 (92)带装饰标记录制 (92)带个人字迹录制 (93)清楚地捕捉被摄体（触摸优先AE/AF） (95)自动捕捉笑脸（笑脸拍摄） (96)自动捕捉宠物（宠物拍摄） (97)显示选定脸部的放大视图期间进行录制（脸部子窗口） (98)登记人脸个人认证信息 (100)设置笑脸%/名称显示 (102)编辑登记的脸部信息 (103)减轻相机振动 (104)慢动作（高速）录制 (105)间隔录制（延时录制） (106)通过感应动作自动录制（自动录制） (107)拍摄集体照（自拍定时器） (108)带日期和时间录制视频 (110)查看剩余录制时间 (111)播放播放视频 (113)查看录制日期和其他信息 (115)快速查看视频内容（摘录播放） (115)播放管理信息不完整的视频 (116)播放静像 (117)幻灯片播放 (118)按日期搜索特定的视频/静像 (119)连接电视机并在电视机上观看 (119)经由HDMI迷你接口连接 (120)经由AV接口连接 (121)播放播放列表 (121)播放在本机上创建的DVD或蓝光光盘 (122)在蓝光或DVD播放机上摘录播放 (122)编辑删除不需要的文件 (123)删除当前播放的文件 (123)删除选定的文件 (123)保护文件 (124)保护/取消保护当前显示的文件 (124)保护/取消保护选定文件 (125)在播放过程中，在视频中捕捉静像 (126)结合以无缝记录录制的视频 (126)捕捉视频中的需要部分（修剪） (127)捕捉要上传到YouTube的视频 (128)从录好的视频中创建播放列表 (130)用所选文件创建播放列表 (130)按日期创建播放列表 (131)编辑播放列表 (132)删除播放列表 (133)复制用DVD刻录机刻录光盘 (134)2准备DVD刻录机（CU-VD3） (135)准备DVD刻录机（CU-VD50） (135)创建光盘 (136)用DVD刻录机播放 (140)用BD刻录机（外置蓝光驱动器）刻录光盘 (141)准备一台BD刻录机（外置蓝光驱动器） (141)创建光盘 (142)用BD刻录机（外置蓝光驱动器）播放 (146)通过连接蓝光录像机刻录光盘 (147)连接DVD录像机，将文件复录到光盘上 (147)连接VCR，将文件复录到VHS磁带上 (148)使用USB外部硬盘驱动器 (148)准备USB外部硬盘驱动器 (149)复制所有文件 (149)播放USB外部硬盘驱动器中的文件 (150)删除USB外部硬盘驱动器中的文件夹 (151)格式化USB外部硬盘驱动器 (151)从USB外部硬盘驱动器导入文件 (152)把文件复制至SD卡 (153)把文件移动至SD卡 (154)复制到 Windows PC (155)核对系统要求（指引） (155)安装随附软件 (156)备份所有文件 (157)组织文件 (158)把视频录制到光盘上 (159)在不用随附软件的情况下备份文件 (160)文件和文件夹列表 (162)复制到Macintosh电脑 (163)菜单设定操作菜单 (164)操作捷径菜单 (164)操作主菜单 (165)操作共用菜单 (165)录制菜单（视频） (166)信息 (169)场景选择 (169)FOCUS (169)调节亮度 (169)快门速度 (169)光圈优先 (169)白平衡 (169)背光补偿 (169)近拍 (169)触摸优先AE/AF (169)光源 (169)增亮 (170)风声消除 (170)动画效果 (171)饰面效果 (171)戳记 (171)手写效果 (171)高速录制 (171)慢速录制 (171)自动录制 (171)无线保真 (171)日期/时间记录 (171)脸部子窗口 (171)快门模式 (171)笑脸拍摄 (172)笑脸%/ 名称显示 (172)面部登记 (172)宠物摄影 (172)视频质量 (172)变焦 (173)无缝录制 (174)x.v.Color (174)变焦麦克风 (175)录制菜单（静像） (176)场景选择 (178)FOCUS (178)调节亮度 (178)快门速度 (178)光圈优先 (178)白平衡 (178)背光补偿 (178)近拍 (178)触摸优先AE/AF (178)光源 (178)自拍 (179)增亮 (179)自动录制 (179)快门模式 (180)连拍速度 (180)笑脸拍摄 (181)笑脸%/ 名称显示 (181)面部登记 (181)宠物摄影 (181)图像大小 (181)播放菜单（视频） (182)文件信息 (184)搜索日期 (184)显示时间/日期 (184)摘要播放 (185)播放列表 (185)编辑播放列表 (185)保护/取消 (185)复制 (185)移动 (185)修剪 (185)上传设置 (185)播放其他文件 (185)无缝录制控制 (185)K2 TECHNOLOGY (185)播放菜单（静像） (186)文件信息 (186)搜索日期 (186)幻灯片放映效果 (187)保护/取消 (187)复制 (187)移动 (187)共用菜单 (188)时钟设定 (190)日期显示样式 (190)LANGUAGE (190)监视器亮度 (190)视频记录媒体 (191)图像记录媒体 (191)操作声音 (192)静音模式 (192)自动关机 (193)快速重启 (193)演示模式 (194)触屏调节 (194)在电视机上显示 (195)视频输出 (196)HDMI输出 (196)HDMI控制 (197)出厂前预设值 (197)更新 (197)电脑软件更新 (197)格式化内存 (198)格式化SD卡 (198)删除内存 (199)开放源许可 (199)零部件名称正面 (200)背面 (200)底部 (201)内部 (201)3液晶监视器 (202)液晶显示器上的显示常见录制显示 (203)视频录制 (203)静像录制 (204)视频播放 (204)静像播放 (205)故障排除本机不能正常工作时 (205)电池 (206)录制 (206)卡 (207)播放 (207)编辑/复制 (208)电脑 (208)画面/图像 (209)其他问题 (209)错误字样？ (210)维护规格4充电0参阅详细用户使用指南显示中的操作说明。
JVC GY-HM700 GY-HM100 使用指南
HD Memory Card CamcorderGY-HM700/GY-HM100 A Guide to the Most EfficientWorkflow with ProHDSDHCSmoothIntegrationNative FileWorkflowRecords to Standard Class 6SDHC CardsReady-to-Edit QuickTime ™ MOVand XDCAM EX ™ MP4FormatsThe professional video industry is moving toward a tapeless, flash memory-based workflow. JVC ProHD leads the way using SDHC recording media, offering advantages in terms of media cost and reliability, and Native File Recording to realize a faster, simpler and more efficient workflow. What’s more, ProHD integrates seamlessly into your existing systems and production infrastructure.Uses Broadcast-Standard MPEG-2 Long GOP , 35/25/19 Mbps CodecWhy Choose ProHD Memory Camcorders?ProHD Native File Recording WorkflowNon-Proprietary, Affordable & Reliable Recording MediaNative File RecordingNo File Re-Wrapping,No Re-Encoding,No Waiting!SmoothIntegration into Existing Facility's System and DevicesDistribution andStorageBlu-rayFile ServerNetworkMP4MOV QuickTimeFinal Cut Pro ™Avid Adobe CanopusEditingNon-Proprietary, Affordable & Reliable Recording MediaAmong the many types of flash media on the market today, SDHC stand out as the de facto standard. And while sales of professional video tape have remained largely static over the last few years, sales of flash media* have skyrocketed – with the result that SDHC cards are widely and readily available all over the world.* Includes sales for all uses.The combination of ProHD and SDHC recording media confer significant advantages in terms of cost savings, shooting flexibility and reliability. The provision of twin card slots on the GY-HM700/HM100 models allows operators to recordseamlessly over multiple cards.Widely Used, Available AnywhereAs the use of SDHC media has become more widespread over the last few years, its cost per gigabyte has fallen dramatically, to a point where it is now a consumable item and comparable to professional video tape in terms of cost per hour of video. And while prices for specialized media cards for professional video use have also fallen, they remain far more expensive than SDHC media per gigabyte, added to which, older codecs generally use higher bit-rates and thus require more storage space.Economical & Cost EfficientSDHC media has already proved itself as a robust and reliable format that meets the demands of the professional user. Even when compared to expensive proprietary flash media, SDHC can hold its own in terms of data storage life, operating temperature and humidity, and number of read/write/erase cycles. Clips can be protected from accidental deletion or deleted if no longer needed. Damaged clips (due to improper eject, etc.) may be repaired with the "restore file" function.Professional video tape/flash media sales trendPrice trend of SDHC card (¥/GB)Media reliabilityPrice comparisonSDHC card is proven as reliable media for professional use.Robust & ReliableRecording media you can trustConsumablePriceProfessional video tape 0200400600(M units)200620052007Flash media2005200040006000800010000(JPY)200620072008Capacity Price Capacity Price 8GBx2$7064GB $2,50016GBx2$20060 min.120 min.64GBx2$5,000SDHC(1080i/SP mode)P2(1080i/DVCPRO HD)SDHCMore than 20,000 times10 years Typical data storage year Typical insert/eject number 100,000 cycles -25°C to 85°C Storage temperatureTypical read/write/erase cycle8 to 95%15Gs (Maximum amplitude of vibration)Typical anti vibration gravity Storage humidity2000G 15kV(ESD)Typical anti static electricity durabilityTypical anti shock gravity1,000,000 hoursMTBFIncreasing sales of flash mediaMedia costs based on survey of published prices as of Jun, 2009.Native File RecordingNo File Re-Wrapping, No Re-Encoding and No WaitingSmooth Integration into ExistingFacility's System and DevicesProHD memory card camcorders are designed to integrate seamlessly into the majority of existing post-productionGY-HM100U/HM100EJQA-0288。
jvc

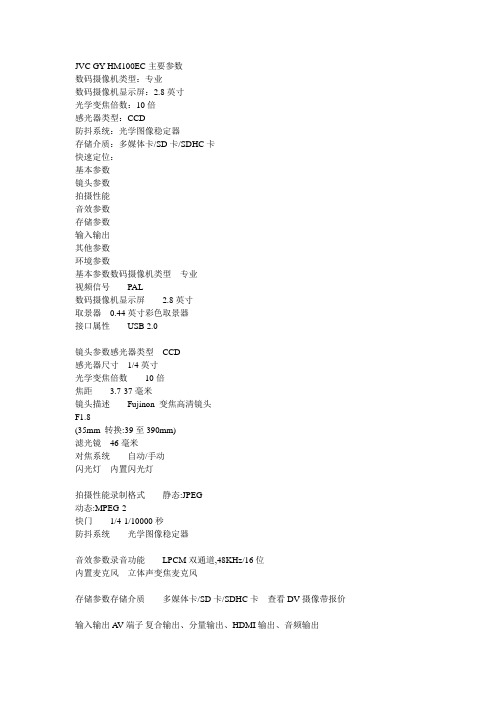

JVC GY-HM100EC主要参数数码摄像机类型：专业数码摄像机显示屏：2.8英寸光学变焦倍数：10倍感光器类型：CCD防抖系统：光学图像稳定器存储介质：多媒体卡/SD卡/SDHC卡快速定位：基本参数镜头参数拍摄性能音效参数存储参数输入输出其他参数环境参数基本参数数码摄像机类型专业视频信号PAL数码摄像机显示屏 2.8英寸取景器0.44英寸彩色取景器接口属性USB 2.0镜头参数感光器类型CCD感光器尺寸1/4英寸光学变焦倍数10倍焦距 3.7-37毫米镜头描述Fujinon 变焦高清镜头F1.8(35mm 转换:39至390mm)滤光镜46毫米对焦系统自动/手动闪光灯内置闪光灯拍摄性能录制格式静态:JPEG动态:MPEG-2快门1/4-1/10000秒防抖系统光学图像稳定器音效参数录音功能LPCM双通道,48KHz/16位内置麦克风立体声变焦麦克风存储参数存储介质多媒体卡/SD卡/SDHC卡查看DV摄像带报价输入输出A V端子复合输出、分量输出、HDMI输出、音频输出USB接口USB2.0其他参数随机附件电池组交流适配器电池充电器麦克风无线遥控器分量线A/V线附带软件无电池/电源内置锂电功耗7.2W(带有寻像器和液晶显示器)颜色黑色尺寸365×138×178mm查看相机包报价重量1400g环境参数工作温度0-40℃工作湿度30-80%存储温度-20-60℃存储湿度小于85%JVC GY-HM700E主要参数数码摄像机类型：专业数码摄像机显示屏：4.3英寸光学变焦倍数：14倍感光器类型：CCD夜摄功能：无防抖系统：无存储容量：无存储介质：双SD/SDHC卡快速定位：基本参数镜头参数拍摄性能音效参数存储参数输入输出其他参数环境参数基本参数数码摄像机类型专业视频信号PAL彩色，CCIR标准数码摄像机显示屏 4.3英寸取景器0.45英寸彩色(41万像素)接口属性IEEE 1394、USB 2.0镜头参数感光器类型CCD感光器尺寸1/3英寸光学变焦倍数14倍镜头描述f=4.4-61.6mm (35mm 相当于相机:32-448mm)滤光镜82毫米对焦系统自动/手动闪光灯内置闪光灯拍摄性能录制格式静态图像：JPEG；动态短片：MPEG2最低照度0.5夜摄功能无快门1/4秒-1/10000秒防抖系统无音效参数录音功能LPCM 2ch, 48kHz, 16-bit内置麦克风立体声变焦麦克风存储参数存储介质双SD/SDHC卡查看DV摄像带报价存储容量无输入输出A V端子视频输出、音频输入、音频输出其他参数遥控随机附件交流电源适配器，电源线，电池，音频/视频电缆，USB电缆，背带，CD-ROM 光盘等附带软件无电池/电源专用锂电池颜色黑色重量3600g环境参数工作温度0-40℃工作湿度30-80%存储温度-20-60℃存储湿度小于85%JVC GY-DV5101EC主要参数数码摄像机类型：专业感光器像素：47万感光器类型：CCD防抖系统：光学图像稳定器存储介质：标准DV/Mini磁带快速定位：基本参数镜头参数拍摄性能音效参数存储参数输入输出其他参数环境参数基本参数数码摄像机类型专业视频信号PAL有效像素数44万像素取景器彩色取景器接口属性IEEE 1394镜头参数感光器类型CCD感光器尺寸1/2英寸感光器像素47万镜头描述F1.4, 3路分光棱镜对焦系统自动/手动闪光灯内置闪光灯拍摄性能录制格式动态:MPEG-2录像带速度18.831mm/秒最低照度0.2Lx(F1.4,LOLUX打开)防抖系统光学图像稳定器音效参数录音功能16bit/48kHz PCM 2通道或12bit/32kHz PCM 4通道内置麦克风立体声变焦麦克风存储参数存储介质标准DV/Mini磁带查看DV摄像带报价输入输出A V端子视频输出、Y/C输出、音频输入其他参数随机附件话筒、三脚架托板附带软件无电池/电源DC 10.5V-17V功耗约200W(记录模式下)颜色黑色尺寸364×249×121mm查看相机包报价重量5500g环境参数工作温度0-40℃工作湿度30-80%存储温度-20-60℃存储湿度小于85%JVC GY-HD251E主要参数数码摄像机类型：专业感光器像素：111万感光器类型：CCD存储介质：MiniDV磁带、SD卡快速定位：基本参数镜头参数拍摄性能音效参数存储参数输入输出其他参数环境参数基本参数数码摄像机类型专业视频信号PAL取景器彩色取景器接口属性IEEE 1394、USB 2.0镜头参数感光器类型CCD感光器尺寸1/3英寸感光器像素111万镜头描述F1.4,三色分离棱镜对焦系统自动/手动闪光灯内置闪光灯拍摄性能录制格式静态:JPEG动态:MPEG-2音效参数录音功能HDV:MPEG1 音频II层DV:2声道48 kHz PCM 或12-bit, 4声道32 kHz PCM内置麦克风立体声变焦麦克风存储参数存储介质MiniDV磁带、SD卡查看DV摄像带报价输入输出A V端子 HD/SD SDI输出、HD-SDI、SD-SDI、模拟复合输出、模拟分量输出、音频输入USB接口USB2.0其他参数随机附件寻像器镜头(Th16x5.5BRM)话筒SD存储卡附带软件无电池/电源直流12V功耗约24 W (记录模式下)颜色黑色尺寸414×242.3×224mm查看相机包报价重量3800g环境参数工作温度0-40℃工作湿度30-80%存储温度-20-60℃存储湿度小于85%JVC GY-HD201EC主要参数数码摄像机类型：专业感光器像素：111万感光器类型：CCD存储介质：MiniDV磁带、SD卡快速定位：基本参数镜头参数拍摄性能音效参数存储参数输入输出其他参数环境参数基本参数数码摄像机类型专业视频信号PAL取景器彩色取景器接口属性IEEE 1394、USB 2.0镜头参数感光器类型CCD感光器尺寸1/3英寸感光器像素111万镜头描述F1.4,三色分离棱镜对焦系统自动/手动闪光灯内置闪光灯拍摄性能录制格式静态:JPEG动态:MPEG-2录像带速度18.831毫米/秒快进/倒带时间63分钟(使用M-DV63PROHD磁带)音效参数录音功能HDV:MPEG1 音频II层DV:16比特(锁定音频)，2声道48 kHz PCM 或12-bit，4声道32 kHz PCM 内置麦克风立体声变焦麦克风存储参数存储介质MiniDV磁带、SD卡查看DV摄像带报价输入输出A V端子模拟复合输出、模拟分量输出、音频输入其他参数随机附件寻像器镜头(Th16x5.5BRM)话筒SD存储卡V型三角架适配器(KA-V100)附带软件无电池/电源直流12V功耗约23 W (记录模式下)颜色黑色尺寸414×242.3×224mm查看相机包报价重量3800g环境参数工作温度0-40℃工作湿度30-80%存储温度-20-60℃存储湿度小于85%JVC GY-HD111EC主要参数数码摄像机类型：专业数码摄像机显示屏：3.5英寸感光器像素：111万感光器类型：CCD防抖系统：光学图像稳定器存储介质：MiniDV磁带快速定位：基本参数镜头参数拍摄性能音效参数存储参数输入输出其他参数环境参数基本参数数码摄像机类型专业视频信号PAL数码摄像机显示屏 3.5英寸取景器彩色取景器接口属性IEEE 1394镜头参数感光器类型CCD感光器尺寸1/3英寸感光器像素111万镜头描述F1.4, 3色分离棱镜对焦系统自动/手动闪光灯内置闪光灯拍摄性能录制格式静态:JPEG动态:MPEG-2防抖系统光学图像稳定器音效参数录音功能HDV:2声道MPEG1音频II层DV:16比特(影音同步), 2声道48KHz PCM或4声道12比特, 32KHz PCM 内置麦克风立体声变焦麦克风存储参数存储介质MiniDV磁带查看DV摄像带报价输入输出A V端子模拟复合输出、模拟分量输出、音频输出其他参数随机附件电池(BN-V428)交流适配器/电池充电器(AA－P30)交流电缆直流电缆音频电缆镜头(Th15×5.5BRM)话筒SD存储卡(16MB)附带软件无电池/电源专业锂电池BN-V428功耗约17W(记录模式下)颜色黑色尺寸315×235×232mm查看相机包报价重量3100g环境参数工作温度0-40℃工作湿度30-80%存储温度-20-60℃。
JVC GY-HD250 高清手持摄像机说明书
interlaced video. In addition, today’s flat panel television displays and fixed matrix projectors, such as D-ILA, DLP and LCD, are all native progressive scanning systems. This means that JVC’s progressive HDV recordings can be displayed 4.JVC’s dual recording systemThe optional JVC Hard Disk Recorder DR-HD100 creates a dual recording system of tape and hard disk. This system isThe GY-HD250, fittedwith Mini 35 filmadapter from P & STechnik, becomes anideal digital film cameraWith 720/60p capture and recording capabilities,the GY-HD250 delivers full-resolution HD images,ensuring the high resolution and smooth motion critical to news and sports field production. Equally proficient in the studio, the GY-HD250 can easily be KA-HD250, a specially designed studio adapter incorporating an industry-standard 26-pin multi-core connection. Other valuable features of this component and HD-SDI output, a wide selection of HD lenses, enhanced cinema gamma, external time code synchronization and professional connectors on a rugged die cast chassis.From live field recording to high-end studio production, the GY-HD250 is the cost-effective solution to today’s demand for high-quality imaging.imaging for ENG and sports acquisition, plus a 26-pin connector for studio use.GY-HD250 fitted to the optional Studio Adapter KA-HD250and with optional LCD monito.focusing. To make focusing even easier,Out-of-focus image In-focus imageThe edge of the in-focus subject isshown in color, telling the operator thatTh16x5.5BRMU(Fujinon)GY-HD250U/HD251E)GY-HD250CHMonitorComponent cable BNCComposite cable Audio Cable HD-SDI cable LCD monitorCamera Cable Hard Disk Recorder IEEE1394 cableShoulder BeltComposite cable 235478GY-HD250 fitted to the optional Studio Adapter KA-HD250 and with optional LCD monitor INTERCOM 6PROMPTER OUTⅥ HZ-ZS13BUⅥ HZ-ZS100U (Handle zoom)Manual zoom control Manual focus control Ⅵ HZ-FM13U (Fujinon)Ⅵ HZ-FM15U (Canon)Ⅵ HZ-FM500(for Th16x5.5BRMU)Ⅵ ACM-121/2" Bayonet mount converterⅥ WCV-82SCfor use with the Th16x5BRMU Wide converterFilm lens adapter Mini 35from P&S Technik9●Options and related equipmentCAMCORDER OPTIONSⅥ ACM-172/3" Bayonet mount converterⅥ BR-HD50U Ⅵ MV-P615U Microphone ProHD recorder Studio adapter Ⅵ KA-HD250UProHD TAPESMONITORSⅥ DT-V100CG Ⅵ DT -V1710CGHARD DISK DRIVESⅥ DR-HD100-40ⅥDR-HD100-80Ⅵ M-DV63PROHDProHD tapes (miniDV size)Ⅵ M-DV12CLMiniDV cleaning tapeCamera control unitⅥ RM-P210U10" HDTV monitor17" HDTV monitorRemote control unit Ⅵ RM-LP55U ⅥRM-LP57U DIMENSIONSUnit: inches (mm)11-3/4 (297) for ANTON BATT.12-1/4 (310) for IDX BATT.8-5/16 (211)S. PAD MOVE1(25)9-5/16 (235)8-13/16 (224)3-1/4 (82.3)3-1/4 (82.3)9-9/16 (242.3)8-7/8 (225)2 (50)2-3/16 (55)V F M O V E5-1/8 (129)4-3/8 (110)2-3/8 (59)7-7/8 (200) X16 LENS10-1/4 (260) X13 LENS4-1/8 (104)1-5/8 (40)3-1/2 (88)VF MOVEⅥ V-R70P-HDA7" LCD monitor(Fujinon)Ⅵ Th13x3.5BRMU 1/3" Wide zoom lensⅥ Th17x5BMD Ⅵ KT20x5BKRS (Fujinon)Ⅵ HTs18x4.2BRM1/3" High quality zoom lens1/3" High quality zoom lens1/3" MD Zoom lensⅥ Th17x5BRM 1/3" Zoom lens(Fujinon)(Fujinon)(Canon)Ⅵ Dionic 90 (Battery)Ⅵ Titan70 (Adapter)Anton Bauer batteryⅥ VL-2PLUS (Charger)Ⅵ Endura E-7S (Battery)IDX V-mount battery Battery bracket is required.(Marshall)Ⅵ DT-V20L1D/V20LI Ⅵ DT-V24L1D/V24LI20"/24" LCD HDTV monitorⅢHachioji Business Center of Victor Company of Japan, Ltd. has received ISO14001 and ISO9001 Certifications under the global standard for environmental management.JQA-0288E.& O.E. Design and specifications subject to change without notice.Tapes recorded in HDV1080i format cannot be played back by GY-HD250 and BR-HD50.。
与狮同行
与狮同行在此之前，非洲对我来说一直是一个无论心理还是地理上，都很遥远的概念。
但是不久以前的一次聚会，让这个遥远的非洲近在眼前了。
在重庆长江边上的一个咖啡厅里，我见到了一个叫星巴的奇怪名字的人，通过这次谈话我了解到了他的职业――野生动物保护，确切地说是狮子、猎豹等大型猫科动物的保护，他是目前第一个在国外从事野生动物保护的中国人。
他邀请我参加他的野保项目的纪录片的拍摄，并详细讲解了非洲大型野生动物目前的状况，以及现在迫切需要解决的问题。
这就是中国首个野生动物保护题材纪录片《与狮同行》的缘起。
坦率地讲，不到15分钟的时间，我就被他点燃了，很快就决定在我歇影赋闲开咖啡馆三年后，重新回到了纪录片这个艰难的职业漩涡里，但是这个看是轻率的决定，几乎彻底改变了我的纪录片的方向。
商定了出发日期，接下来就是器材问题，现在已经是不折不扣的高清数码时代，没有办法，关键时候我又想起了《数码影像时代》的吕尚伟先生。
在2006年我拍摄德国世界杯的时候，吕先生就经过多方协调，帮我调用了一台当时最新的HDV机器――JVC 110E，使我在德国世界杯期间如鱼得水。
经过一番交流，吕老师又像几年前那样，爽快地伸出了援手，不过这回已经是纯高清机器――JVC GY-HM750E了。
在北京第一次看见吕老师手中的机器，就感觉非常亲切，这款机器“身材”修长，在不失稳重的前提下，显现出了非常顺手的流线型机身。
唯一和前述机器不同的是，这回不用操心磁带的问题了，完全采用了存储卡式，这种进步为我以后的拍摄带来了极大的便利。
在这款机器上，不但有A和B两个卡槽，可以无接缝地保证记录的不间断，机身后面携带的专业锂电池，在充满电的情况下，可以基本保证一天的拍摄，左边的显示屏也明显比前述机型有了很大的改进，便于在拍摄的时候构图，以及及时进行回放。
满怀信心在中关村电子市场选购了一张32G的SDHC存储卡后，又另选了一块2000GB的大硬盘作为储存硬盘，为了保险起见，在走之前还特意到JVC公司，请专家临阵磨枪地培训了番，然后踌躇满志又心里打鼓地半硬着头皮登上了前往肯尼亚的航班。
引领4K未来发展 JVC召开新品发布会
引领4K未来发展 JVC召开新品发布会
李秋花
【期刊名称】《信息技术与标准化》
【年(卷),期】2015(0)4
【摘要】近日,JVC（中国）投资有限公司推出了三款重磅4K手持式摄像机新品：GY-LS300搭载了超级35 mm胶片级全新CMOS芯片,并可更换多种镜头;GY-
HM200是一款具备全功能4K超高清画质的摄像机,并能实现高清视频流传输;GY-HM170是一款既能实现4K超高清画质,且经济实惠、兼具专业特色的便携式摄像机。
【总页数】1页(P69-69)
【关键词】JVC;主力产品;等效焦距;最大光圈;音频输入;有效像素;卡槽;家用型;视频拍摄;李秋
【作者】李秋花
【作者单位】
【正文语种】中文
【中图分类】TN948.41
【相关文献】
1.引领设备标准开创视光未来宁波明星科技发展有限公司举行LE+新品发布会 [J], 刘雁
2.打造完善的4K产品线——Blackmagic Design NAB新品发布会在京召开 [J],
《影视制作》编辑部
3.专业引领未来 JVC中国春季发布会现场实录 [J], ;
4.引领4K普及化发展奥图码4K投影机新品说明会隆重举行 [J], ;
5.引领仿真行业潮流驱动企业创新发展——ANSYS18．0新品发布会在京盛大召开 [J], 许莹
因版权原因，仅展示原文概要，查看原文内容请购买。
JVC GY-HM700 说明书
*When recording in 19Mbps mode
Separate flip open covers protect card slots from dust, moisture and open separately for each card. If a cover is opened while the card is being recorded on, a warning message is displayed on the VF/LCD.
Native File Recording
The GY-HM700 incorporates JVC's Native File Recording technology that stores video in the ready-to-edit file format used by Apple's Final Cut Pro™ non-linear editing system. The ".mov" files created in the camera can be easily dragged onto the NLE timeline without conversion or rewrapping, saving time while keeping the recorded material first generation. There is no need to use an intermediate codec.
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
HD-SDI：符合SMPTE292M
SD-SDI：符合SMPTE259M
配置附件
话筒×1
滤光片直径
82mm
支持的介质
SDHC(Class 6)
插槽
×2
视频/音频
录制文件格式
QuickTime™文件格式用于FinalCut Pro™/MP4文件格式(w/KA-MR100)
记录格式
视频
MPEG2长GOP
HQ模式
VBR,35Mbps(最高)MP3G-2 MP@HL
SP模式
CBR,25Mbps(1440×1080i)/
19 Mbps(1280×720p24/25/30)
MPEG-2 MP@H-14
19 Mbps(1280×720p50/60)
MPEG-2 MP@HL
音频
LPCM双通道，48KHz/16位
视频帧频
PAL模式：
HQ模式
1920×1080/50i,25p,1440×1080/50i（仅限MOV）、1280×720/50p,25p
JVC GY-HM750E高清摄像机
3片1/3英寸具备三重偏移技术逐行扫描CCD；高标清兼容；ntsc/pal兼容；高清录制时支持MP4格式，支持QuickTime格式MOV文件；标清录制时支持DV格式的AVI文件录制；支持双卡槽SDHC卡录制，支持双卡槽同时录制备份功能；标配佳能14倍高清镜头，可更换镜头，焦距4.4-61.6mm。4.3英寸彩色液晶屏，800*480（WVGA，410000像素）；
耳机
3.5mm微型插孔（立体声）×2
遥控器
DIN 6芯
IEEE1394输出
4芯
USB
Mini USB-B型，USB2.0，miniB，仅限从属功能（大容量存储类别）
插座
模拟符合输出（576i或者480i：降频，4:3/16:9）：1.0V（p-p）,BNC(不平衡)
分量输出（720p/1080i）：Y：1.0V（p-p）,75ΩPb,Pr：0.7V(p-p),75Ω,BNC×3(不平衡)
可变帧频（HQ 720p模式）：
NTSC设置
10/12/15/20/24/30/40/48/60 fps
PAL设置
10/12.5/20/25/40/50 fps
音频输入
MIC
-60dBu,3KΩ,XLR(平衡)，+48V输出（虚拟电源）
LINE
+4dBu,10KΩ,XLR(平衡)
音频输出：-8±1dBu(在音频信号处理输出为-20dB时)，1KΩ，RCA×2（不平衡）
液晶显示屏
4.3”液晶显示屏，800×480（WVGA,410,000像素）
镜头
Fujin390mm)
寻像器
0.45”LCOS，122万像素（852×480×3）
镜头
Canon F1.6,14x，f=4.4-61.6mm(35mm转换：32至448mm)
SP模式
1440×1080/50i,1280×720/50p,25p
NTSC模式：
HQ模式
1920×1080/59.94i,29.97p,23.98p，1440×1080/59.94i（仅限MOV）、1280×720/59.94p,29.97p,23.98p
SP模式
1440×1080/59.94i,1280×720/59.94p,29.97p,23.98p
技术参数：
总规格
电源
DC 12V(11V至17V)
功耗
大约24W（录制期间[在使用摄录一体机+标准镜头+液晶显示器时]）
重量
大约3.6 kg
温度
工作环境
0°C至40°C
保存环境
-20°至60°C
湿度
工作环境
30％至80％RH
成像设备
3芯片1/3”逐行扫描CCD
彩色分光棱镜
F1.4,3色分光棱镜
同步系统
内同步（内置SSG）
镜头接口
1/3”卡口系统
ND滤光片
OFF,+1/4ND,+1/16ND
增益
0dB,3dB,6dB,9dB,12dB,15dB,18dB,ALC
电子快门
1/6至1/10000，EEI
最低照明亮度
1.25lx(典型值)（1920×1080模式，F1.4，+18dB,提供8帧积聚技术）
