ME60 配置IP地址
Quidway ME60配置指南-IP业务目录目录2 配置IP地址.................................................................................................................................2-12.1 简介..............................................................................................................................................................2-22.1.1 IP地址分类.........................................................................................................................................2-22.1.2 IP地址特点.........................................................................................................................................2-32.1.3 IP地址规划.........................................................................................................................................2-42.1.4 分配IP地址.......................................................................................................................................2-52.1.5 借用IP地址.......................................................................................................................................2-62.1.6 广域网接口IP地址与链路层协议地址的映射...............................................................................2-62.1.7 参考信息............................................................................................................................................2-62.2 配置接口IP地址........................................................................................................................................2-62.2.1 建立配置任务.....................................................................................................................................2-62.2.2 配置接口的主IP地址.......................................................................................................................2-72.2.3 配置接口的从IP地址.......................................................................................................................2-82.2.4 检查配置结果.....................................................................................................................................2-82.3 配置接口通过协商获得IP地址................................................................................................................2-82.4 配置接口借用IP地址................................................................................................................................2-92.4.1 建立配置任务.....................................................................................................................................2-92.4.2 配置被借用接口的主IP地址.........................................................................................................2-102.4.3 配置接口借用其他接口的IP地址.................................................................................................2-102.4.4 检查配置结果...................................................................................................................................2-102.5 配置举例....................................................................................................................................................2-112.5.1 配置接口主从IP地址示例.............................................................................................................2-112.5.2 配置接口借用IP地址示例.............................................................................................................2-13插图目录图2-1 五类IP地址...........................................................................................................................................2-2图2-2 IP地址子网划分.....................................................................................................................................2-4图2-3 主机名、IP地址和物理地址之间的关系............................................................................................2-5图2-4 为ME60接口配置主从IP地址.........................................................................................................2-11图2-5 借用IP地址示例的组网图.................................................................................................................2-13配置指南-IP业务表格目录表格目录表2-1 IP地址分类及范围.................................................................................................................................2-3配置指南-IP业务 2 配置IP地址2 配置IP地址关于本章本章描述内容如下表所示。
标题内容2.1 简介 IP地址的概念和使用2.2 配置接口IP地址举例说明接口的IP地址配置举例：配置接口主从IP地址示例2.3 配置接口通过协商获得IP地址配置客户端的接口，使之可通过协商从服务器端获得IP地址2.4 配置接口借用IP地址配置某个接口借用其他接口的IP地址举例：配置接口借用IP地址示例2.5 配置举例举例说明IP地址的配置2 配置IP 地址Quidway ME60配置指南-IP 业务2.1 简介本节介绍配置IP 地址需要了解的知识，具体内容包括：z IP 地址分类 z IP 地址特点 z IP 地址规划 z 分配IP 地址 z 借用IP 地址z 广域网接口IP 地址与链路层协议地址的映射 z参考信息2.1.1 IP 地址分类在IP 网络上，需要为网络上的主机分配IP 地址。
华为ME60设备 DHCP 中继方式配置举例
配置思路
DHCPv4 服务器的配置思路如下： 1. 配置要实现 DHCPv4 中继功能的接口 GE2/0/0 2. 在接口 GE1/0/0 配置该接口所代理的 DHCPv4 服务器地址并使能接口的 DHCPv4 中继 功能 3. 配置 DHCPv4 服务器 ME60B 到 ME60A 的接口 GE1/0/0 的路由 4. 配置 ME60B 的接口 GE1/0/0 下的客户端从地址池中获取 IP 地址 5. 在 ME60B 上配置网络侧的地址池
Pool-Name
:1
Pool-No
:1
Pool-constant-index :-
Position
: Server
Status
: Unlocked
Gateway
: 10.100.1.1
Mask
: 255.255.0.0
Vpn instance : --
-----------------------------------------------------------------------
3. 验证配置结果
在 DHCPv4 服务器上使用 display ip pool 命令用来查看 DHCPv4 地址池的树状结构信 息，其中包括配置的 DNS 服务、地址租用期限、Option 参数等信息。
[ME60B] display ip pool
-----------------------------------------------------------------------
# 配置接口 GE1/0/0 下的 IP 地址。
[ME60B] interface GigabitEthernet 1/0/0 [ME60B-GigabitEthernet1/0/0] ip address 202.40.1.2 255.255.0.0 [ME60B-GigabitEthernet1/0/0] undo shutdown [ME60B-GigabitEthernet1/0/0] quit
ME60配置手册

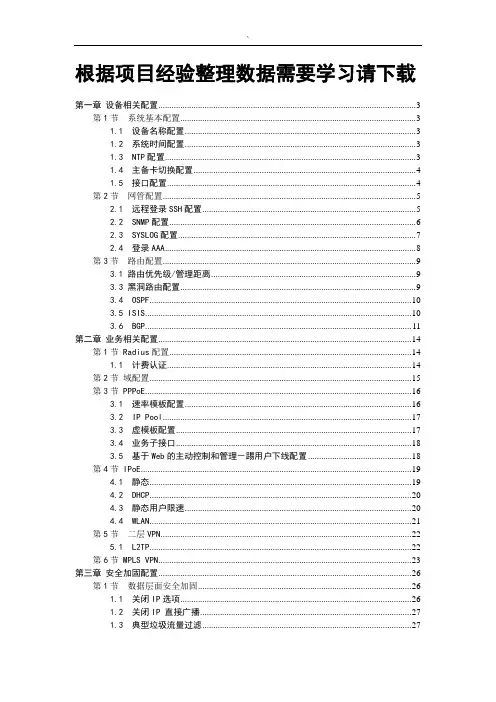

根据项目经验整理数据需要学习请下载第一章设备相关配置 (3)第1节系统基本配置 (3)1.1 设备名称配置 (3)1.2 系统时间配置 (3)1.3 NTP配置 (3)1.4 主备卡切换配置 (4)1.5 接口配置 (4)第2节网管配置 (5)2.1 远程登录SSH配置 (5)2.2 SNMP配置 (6)2.3 SYSLOG配置 (7)2.4 登录AAA (8)第3节路由配置 (9)3.1 路由优先级/管理距离 (9)3.3 黑洞路由配置 (9)3.4 OSPF (10)3.5 ISIS (10)3.6 BGP (11)第二章业务相关配置 (14)第1节 Radius配置 (14)1.1 计费认证 (14)第2节域配置 (15)第3节 PPPoE (16)3.1 速率模板配置 (16)3.2 IP Pool (17)3.3 虚模板配置 (17)3.4 业务子接口 (18)3.5 基于Web的主动控制和管理－踢用户下线配置 (18)第4节 IPoE (19)4.1 静态 (19)4.2 DHCP (20)4.3 静态用户限速 (20)4.4 WLAN (21)第5节二层VPN (22)5.1 L2TP (22)第6节 MPLS VPN (23)第三章安全加固配置 (26)第1节数据层面安全加固 (26)1.1 关闭IP选项 (26)1.2 关闭IP 直接广播 (27)1.3 典型垃圾流量过滤 (27)第2节控制层面安全加固 (29)2.1 IGP 安全防护 (29)2.2 关闭控制平面未使用的服务 (29)2.3 控制引擎防护 (30)第3节管理层面安全加固 (30)3.1 禁用未使用的管理平面服务 (30)第四章 QOS (30)第1节QOS标记、队列规划 (30)第2节队列调度、带宽预留和拥塞避免 (32)第一章设备相关配置第1节系统基本配置1.1 设备名称配置■配置内容：配置设备名称；■规范要求：端口命名按附录1：设备和端口命名规范要求配置；1.2 系统时间配置■配置内容：设置BRAS 的系统日期及时间；■规范要求：采用标准北京时间（时区为东八区）；■配置示例：1.3 NTP配置■配置内容：配置NTP服务器；■规范要求：1、采用NTP Version 3版本且启用MD5认证；2、采用loopback0地址作为时间同步的源地址；3、以本城域网CR1作为主用NTP Server，以CR2作为备用NTP Server；4、NTP服务器时钟为格林威治0时区，要求在设备上以此为基准调整为北京时区东8区。
ME60配置指导
配置流程
配置地址池
用来给用户分配IP地址 设定用户是采用radius认证还是 不认证 设定用户是采用radius计费还是 不计费 设置所采用的radius服务器的参 数 设定用户所使用的域，以及域 下的参数 使能用户接口的BAS功能并进 行设置
配置认证方案
配置计费方案
配置RADIUS
配置域
接口BAS配置
[ME60-aaa-domain-default0]user-group huawei [ME60-aaa-domain-default0]web-server url 192.168.1.251
