德国电缆型号说明
德国电缆型号说明
德国电缆型号说明
缩写字母是由下列字母加在开始字母“N”的后面组成，并且按照电缆结构的顺序从导电线芯开始。
铜导电线芯以及内导电层，外导电层和成缆线芯统包层都不需列出。
N：标准型
导体A：铝导电线芯
绝缘Y：聚氯乙烯
2Y：聚乙烯
2X：交联聚乙烯
屏蔽S：铜屏蔽
SE：三芯电缆的每根绝缘线芯外面的铜屏蔽
外护套Y：聚氯乙烯
2Y：聚乙烯
F: 半导电阻水带
L: 铝塑复合带
J：电缆有一根黄绿标志的绝缘线芯。
NA2XSY 1×150 RM/25 12/20kV
单芯电缆，其标称截面为150mm2，多股绞合的圆形铝导电线芯，交联聚乙烯绝缘，铜屏蔽标称截面为25mm2，聚氯乙烯外护套。
电线电缆国标与美标等类型对应表
各国线规对照表|美标线规和国标线规对照表|国际电工线规IEC|线规标称
AWG，美国线规
AWM1007聚氯乙烯绝缘电线
相当于我国AV，RV型电线.
使用特性：电线长期的允许工作温度80C 额定电压: 300V
20C时的绝缘电阻〉10mohm/km
规格AWG26 标称截面：0。
128导线结构：7/0.16 绝缘标称厚度：0.45mm导体电阻《148。
94ohm/km最大外径1。
6mm参考重量3.2kg/km
规格AWG24标称截面：0。
205结构：11/0.16mm1/0。
52mm绝缘标称厚度：0。
45mm导体电阻〈。
93。
25ohm/km最大外径1。
7mm参考重量4.2kg/km
规格AWG22标称截面:0。
324导线结构17/0.16 13/0。
18 1/0。
65 绝缘称厚度：0。
45mm导体电阻55ohm/km 最大外径1。
9mm参考重量5。
7kg/km
规格AWG20标称截面：0.519导线结构：20/0。
16 绝缘标称厚度：0.45mm导体电阻34.6ohm/km最大外径2。
1mm参考重量7。
8kg/km。

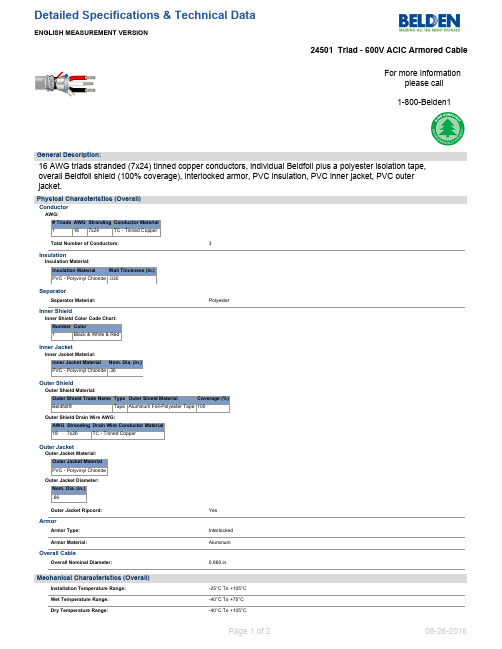

Belden 1-800-Belden1 16 AWG 三线螺纹铜电缆说明书
Put Ups and ColWeight
Color
Notes
Item Desc
Revision Number: 1 Revision Date: 05-14-2007
© 2016 Belden, Inc All Rights Reserved.
Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden's standard terms and conditions of sale. Belden believes this product to be in compliance with EU RoHS (Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the compliance date may be in stock at Belden facilities and in our Distributor’s inventory. The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden’s knowledge, information, and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
欧规电源线(以德国VDE为例)
欧规电源线简介一、电源线印字解释。
<VDE>40021527H03VV-F2*0.75mm²YONG RUI CCC AO14256 NO:2003010105057076ZHONG SHAN YONG RUI ELECTRIC WIRE CO.,LTD.60227IEC 52(RVV)300/300V2*0.75mm²GB/T5023.5-2008/IEC60227-5:2003LF解释：1、.40021527：VDE认证编号（VDE指德国电器标准）。
2、H03VV-F：H代表欧洲协调系统；03代表额定电压300/300V；第一个V代表PVC绝缘；第二个V代表PVC外被；F代表软线细线。
3、CCC AO142562003010105057076:代表浙江兰溪利丰电线电缆公司3C认证编码。
4、ZHONG SHAN YONG RUI ELECTRIC WIRE CO.,LTD:中山永锐电线有限公司。
5、60227IEC52(RVV):轻型聚氯乙烯护套软线6、2*0.75mm²：导体数目为2，导体横截面积为0.750.75mm²，线径/股数一般有0.2/24和0.15/42两种规格。
7、执行标准GB/T5023.5-2008/IEC60227-5:2003LF（利丰）8、标准芯线颜色：棕/蓝/黄绿9、产品使用范围：各种LED户内、外灯饰（埋地灯、潜水灯、草坪灯、舞台灯、洗墙灯、泳池灯、射灯、灭蚊灯、防水电源等）及各家用电器:压力锅、光波炉、电炒锅、电熨斗、微波炉、烤箱、潜水泵、多士炉和各类电动工具中。
10、产品的主要特性：防晒、防水、防油、耐温、耐寒、抗UV、抗老化、阻燃；11、认证:VDE,出口国家欧洲地带国家.12、产品使用简介：1.最高工作温度：90℃； 2.最低环境温度：固定敷设-40℃；二、扩展：1、欧规印字主要有以下几个国家：+++：瑞士电器标准KEMA-KEUR：荷兰电器标准OVE：奥地利电器标准S：瑞典电器标准N：挪威电器标准D：丹麦电器标准FI：芬兰电器标准CHBBC：比利时电器标准VDE：德国电器标准2、在上例中H03VV-F处，有的电源线上面的是H05VVH2-F/H05RR-F/HO5RN-F等，其中05---额定电压值：03=300/300V；05=300/500V；07=450/750VR---基本绝缘材料：V=PVC（聚氯乙烯）R=RUBBER（乙丙橡胶）N---附加绝缘材料：N=POLYCHLOROPRENE RUBBER（氯丁橡胶），S=SI RUBBER（硅橡胶）F---导线结构：F=软线细线，H=软线极细线。
德国导线标准 DIN 72551-1996
1.适用范围：适用于道路车辆用薄壁绝缘(R)单芯无屏蔽低压电缆(FL)规定了该电缆的尺寸、材料和标志。
引用标准DIN 40500-5 电工用铜—镀锡铜线—供货技术条件DIN 40500-4 电工用铜—软铜线—交货技术条件、2. 电线型号、名称及产品表示方法：2.1 电线型号：FLRY 单芯无屏蔽薄壁PVC绝缘低压电缆2.2 代号说明：FL----------------------------低压电线R------------------------------薄壁2.2.1 按材料分Y------------------------------聚氯乙烯绝缘2.2.2 按导体结构分：A型导体结构(见表1)正规绞合导体结构，奇数单线数日，其中一根单线排列在导体截面中央B型导体结构(见表2)非正规绞合导体结构2.2.3产品表示方法：无屏蔽低压电缆(FL)，薄壁绝缘(R)，绝缘材料PVC(Y)，导体标称截面1.5mm2（1.5），A型导体结构(A)、裸单线，三色标志(底色和第一、第二标志色：黑(BK)、白(WH)和黄(YE)电缆表示为：FLRY-1.5-A-BKWHYE无屏蔽低压电缆(FL)，薄壁绝缘(R)，绝缘材料PVC(Y)，导体标称截面1.5mm2(1.5)，A型导体结构(A)，镀锡导体(sn)，三色标志，底色和第一、第二标志色：黑(BK)、白(WH)和黄(YE)：FLRY-1.5sn-A-BKWHYE如需要或顾客有要求时可在前面加上标准编号：DIN 725513．技术要求：3.1 导体：3.1.1 导电线芯应由符合DIN 40500-4 要求的软铜单线或DIN 40500-5 E-Cu 58 F21要求的镀锡软铜单线绞合而成。
铜单线表面应光洁，无油污，无腐蚀现象。
铜单线的最大直径不得超过表2和表3的规定。
3.1.2导体结构、导体电阻应符合表2～表3的规定。
3.2 绝缘：3.2.1绝缘应紧密挤包在导体上，且应容易剥离而不损伤导体，绝缘表面应平整，色泽均匀，绝缘层不允许有打结、裂缝、气泡或含有杂质。
世界各国电源线规格及参数说明
世界各国电源线规格及参数说明欧洲标准电源线标准:DIN VDE0281型号:H03VVH2-F H03VV-FH05VVH2-F H05VV-F额定电压:H03 300/300VH05 300/500V 应用:H03型适用小功率家用电器、电动工具及动力照明等。
H05型适用大功率家用电器电动工具及照明等H03VVH2-F & H03VV-F芯数面积(mm⊃2;)结构(No/mm)绝缘厚度(mm)护套厚度(mm)完成外径(mm)20.528/0.150.50.53.3X5.420.528/0.155.420.7542/0.15 3.4X5.620.7542/0.155.630.528/0.155.630.7542/0.156.1H05VVH2-F & H05VV-F芯数面积(mm⊃2;)结构(No/mm)绝缘厚度(mm)护套厚度(mm)完成外径(mm)20.7542/0.150.60.86.520.7542/0.154.1X6.521.032/0.2 6.721.032/0.24.3X6.921.548/0.20.87.730.7542/0.150.66.8 31.032/0.27.331.548/0.150.80.98.4中国标准电源线标准:GB5023.3-1997型号:227 IEC52,227 IEC53额定电压:227 IEC52 300/300 V227 IEC 53 300 V/500V应用:02型适用各种家用电器、仪器仪表连接等08型适用各种家用电器高温下连接227 IEC 52(RVV)芯数面积(mm⊃2;)结构(No/mm)绝缘厚度(mm)护套厚度(mm)完成外径(mm)20.528/0.150.50.65.320.528/0.153.26×5.320.7542/0.155.720.7542/0.153.4×5.830.528/0.155.630.7542/0.156.05227 IEC 53(RVV)芯数面积(mm⊃2;)结构(No/mm)绝缘厚度(mm)护套厚度(mm)完成外径(mm)20.7542/0.150.60.86.520.7542/0.150.64.1×6.521.032/0.20.66.921.548/0.20.77.730.7542/0.150.66. 931.032/0.20.67.431.548/0.20.70.98.5 日本标准电源线VFF标准:JIS C 3306型号:VFF额定电压:300V使用温度:75°C应用:适用于各种家用电器、电动工具和动力照明。
德国nkt高压电缆附件产品介绍 中文
• 通过IEC 60840标准型式试验 • 通过GB11017型式试验
固定环
弹簧锁紧装置
尾管
Ver. 2/oktober 2010 18
2012-8-31
干式可插拔GIS终端的安装
• 独立连接的优势
– 分别安装
• 环氧树脂套管 (母模) 可在设备厂家安装
• 插拔终端(公模) 由附件安装队伍安装
9 现场 9 电缆工作场所（如果电缆
t2 (mm) 270 320 475 640
Ver. 2/oktober 2010 30
变压器套管通过跳线和户外终端连接
Name dd.mm.2006
通过插拔式变压器终端连接
Name dd.mm.2006
两种连接方式比较
变压器套管通过跳线和
电缆户外终端连接
敞开式。 空间比较 需要更多的绝缘间距
导体截面范围：240 ~ 1200 sqmm 电缆绝缘外径范围：Ø 34 ~ 74 mm
470 757
GIS 终端 KSEV 72 … KSEV 145 干式, 符合IEC 62271-209标准
顶部出线杆 导体连接触头 环氧套管 应力锥 固定环 屏蔽线接地 尾管 密封圈 电缆护套固定装置
VVE014-07 22.12.2009 16
断开跳线，可分别对变压 通过试验电缆、测试桶等工
器、电缆及附件进行试验 具也可以对变压器、电缆及
。
附件进行试验。
Name dd.mm.2006
接地箱
• 接地箱
– 可安装在户内及户外的门 型架上
– 水平安装在户外混凝土槽 内
– 带三个限压器（装有氧化 锌护套）
– 所有金属工件均为不锈钢 材料制成
