CAMDS_V2.填报指南
2 CAMDS操作方法及使用技巧
材料号为WB01A，材料代号/标识引用标准：EN1982-2008。其下 面有八种基本物质，如下表：
序号 1 2 3 4 5 6 7 8 中文名称 铝 锌 镍 铁 铜 硅 钒 铅 CAS号 7429-90-5 7440-66-6 7440-02-0 7439-89-6 7440-50-8 7440-21-3 7440-62-2 7439-92-1 含量 0.025-0.065 0.6-1.5 0.03-0.088 0.25-0.54 剩余 0.016-0.045 1.1-1.69 0.79-1.1
中 国 汽 车 材 料 数 据 系 统
China Automotive Material Data System
24
CAMDS基础数据
非金属示例材料 非金属材料库
目前系统中非金属示例材料90余种 查询方法类似标准材料 用户不能直接引用，若直接使用系统会提示错误 仅供参考，与实际生产可能存在一定差异
第1章
第2章 第3 章 第4 章 第5 章 第6 章
第7章
CAMDS简介 CAMDS入门 创建MDS/组件单元 内部/发送/提交/发布MDS 已发送的/已接收的 查找MDS/组件单元 其他
中 国 汽 车 材 料 数 据 系 统
China Automotive Material Data System
守则无异议后，再点击【阅读并同意】。
《CAMDS用户使用守则》具有法律效力。
中 国 汽 车 材 料 数 据 系 统
China Automotive Material Data System
13
2.1 登录（4）
汽车CAMDS提交步骤快速指南
汽车CAMDS提交步骤快速指南1. 登录汽车CAMDS平台在首页，点击“登录”按钮，进入登录页面。
输入您的用户名和密码，点击“登录”按钮，即可进入汽车CAMDS平台。
2. 创建事故报告登录成功后，在汽车CAMDS平台上，点击“创建报告”按钮，进入事故报告创建页面。
在创建报告页面，您需要填写以下信息：- 报告类型：选择“车辆事故报告”- 报告日期：选择事故发生的日期- 车辆信息：填写车辆牌照号码、车辆类型、车辆所属等信息- 事故地点：填写事故发生的地点（详细地址）- 事故描述：简要描述事故发生的经过填写完成后，点击“保存”按钮，保存报告信息。
3. 上传相关文件在事故报告创建页面，您需要上传以下相关文件：- 事故现场照片：上传事故发生时的现场照片，最多可上传5张- 事故双方驾驶证复印件：上传事故双方驾驶证的复印件- 事故双方行驶证复印件：上传事故双方行驶证的复印件- 保险公司联系方式：如有保险公司介入，请填写保险公司联系方式上传完成后，点击“提交”按钮，提交事故报告。
4. 审核与反馈提交事故报告后，汽车CAMDS平台会对报告进行审核。
审核通过后，您将收到审核通过的反馈。
如有需要，平台工作人员可能会与您联系，了解事故详情。
5. 查询与打印报告您可以在汽车CAMDS平台上查询已提交的事故报告。
点击“我的报告”按钮，进入报告查询页面。
在报告查询页面，您可以查看、编辑和打印已提交的事故报告。
如需打印报告，请点击“打印”按钮，即可打印事故报告。
6. 注意事项为确保事故报告的顺利提交，请您在填写报告信息时，务必真实、准确、完整地提供相关信息。
如有疑问，请随时与汽车CAMDS平台工作人员联系，我们将为您提供协助。
结语通过以上步骤，您已成功掌握了汽车CAMDS事故报告的提交方法。
请您在实际操作中，严格按照指南要求，确保事故报告的顺利提交。
感谢您的使用！{content}。
CAMDS数据填报指南V2.0(英文版)
（All rights reserved）CAMDS Application Guidance V2.0CATARC CAMDS Management Center 2011/12CONTENTSForeword CAMDS 01 General Provisions CAMDS 02 Guidance for Creating MDS of Metallic Coatings and Conversion Coatings for Automobile CAMDS 03 Guidance for Creating Non-metallic Coatings MDS CAMDS 04 Guidance for Creating Plastics MDS CAMDS 05 Guidance for Creating MDS of Rubber and Thermoplastic Elastomer CAMDS 06 Guidance for Creating Fiber Products MDS CAMDS 07 Guidance for Creating Leather MDS CAMDS 08 Guidance for Creating Adhesives and Sealants MDS CAMDS 09 Guidance for Creating Lubricants MDS CAMDS 10 Guidance for Creating Electronic Components MDS CAMDS 11 Guidance for Creating MDS for Components in Automobile Lighting System CAMDS 12 Guidance for Creating MDS for Automobile Glass Components CAMDS 13 Guidance for Creating MDS of Components in Heat Exchange System CAMDS 14 Guidance for Creating MDS for Components in Automobile Steering System CAMDS 15 Guidance for Creating Oil Filter MDS CAMDS 16 Guidance of Modification to MDSCAMDS Application Guidance FOREWORDChina Automotive Material Data System (CAMDS) is a material data application and management platform specially developed to implement management and control of prohibited/restricted substance of automotive products and to enhance recycling rate of automotive products. Component suppliers at all levels in the supply chain of automotive products can accomplish application of product material data and information through this system and support complete vehicle manufacturers to successfully pass the certification of related laws and regulations home and abroad. To help CAMDS suppliers of automotive component at all levels to better report and update product materials data and information, enhance standardization and coherence of recorded data so as to guarantee product material data and information communicate accurately and efficiently along the supply chain, CAMDS Management Center has formulated China Automotive Material Data System Application Guidance (CAMDS Application Guidance). As a technical instruction document to record product material data and information, this guidance has provided users with instructive principles and requirements to establish various material data sheets (MDS) in CAMDS system. This guidance has 16 documents (for details, see the Content) including the approaches to establish MDS of regular automotive materials and components. To establish metal material MDS should refer to the Document namely CAMDS 01-General Provisions for implementation while to establish MDS for other material or component can refer to related documents. If you are responsible for inputting CAMDS data and application, please read part or all content of this document based on the products while using this system. If you have any questions in the process, you can log on the official website of CAMDS () for help. This content is not mandatory requirement, if the requirement is not in line with your clients’ requirement of material data sheet or your product information has unique features, please coordinate with you client. China Automotive Material Data System Management Center Dec. 15, 2011 Copyright NoticeThe copyright of this material belongs to CAMDS Management Center. No organization or individual is allowed to copy, print, disseminate or sell relevant content without approval. Whoever violates will be held legally liable.CAMDS Application GuidanceCAMDS 01 General Provisions1 ScopeThis document represents the general requirements for creating MDS in CAMDS, including a basic composition of data structure, components, semi-components, materials, basic substances in CAMDS, refines relations of different levels in MDS and a basic principle as how to fill in component content. This document is in line with an establishment of all sorts of MDS in this system. As for materials or components without particular documents to be filled in, like metal materials, assembly and the like, they could mainly be implemented in reference to this document. 2 ReferencesClauses in the document all are referred directly or indirectly to articles in the following documents. As for referred documents with dates, the amendment (excluding corrigenda) or the expurgated edition should not be applicable to the Guidance. As for the referred documents without dates, the newest edition can be applied to the Guidance. GB/T 1844 GB/T 5576 GB/T 22027 GB/T 19515 GB/T 26988 GB/T 26989 QC/T 797 ISO 1043 ISO 1629 ISO 11469 ISO 18064 ISO 22628 GADSL 3 Definition 3.1 Structure Data sheet adopts a tree structure, which develops in accordance to different levels for the product. This tree would starts from components, semi-components or materials even to the basic substance. Components could include other components, semi-components and material as the child nodes. Semi-components could only include other semi-components and materials as the child nodes. Materials could only include other materials or basic substances as the child nodes. Components could be positioned as the same level as materials or semi-components and materials can be at the same level, but semi-components and1Plastics - Symbols and abbreviated terms Rubbers and latices-Nomenclature Thermoplastic elastomers - Nomenclature and abbreviated terms Road vehicles Recyclability and recoverability Calculation method Marks for recoverability of automobile parts Automobile recovery – Terminology Material identification & marking of automotive plastic,rubber & thermoplastic elastomer parts Plastics - Symbols and abbreviated terms Rubber and latices - Nomenclature Plastics - Generic identification and marking of plastics products Thermoplastic elastomers - Nomenclature and abbreviated terms Road vehicles - Recyclability and recoverability - Calculation method Global Automotive Declarable Substance ListCAMDS Application Guidance components can not. Please refer to 4 Exemplification for details. 3.2 Component 3.2.1 Signs 3.2.2 Description 3.2.2.1 Component Component serves for combining all parts in order to satisfy a certain function. One kind of material, one semi-component or one subcomponent at least requires to be filled in Component MDS. Generally speaking, an establishment of part MDS should accords to a feasible structure of products. Synonym: part, assembly part 3.2.2.2 Subcomponent Subcomponent refers to components under those, which are leveled at the first stage. They accord to the same requirements as for components. Signs of subcomponent are identical with those of components. 3.2.3 Mass deviation Mass deviation refers to a deviation between the whole weights of all materials measured in components and the totality of mass of components leveled at the lower. The mass deviation allowed is required by different factories. The deviation is suggested less than 5%. 3.3 Semi-component 3.3.1 Signs 3.3.2 Description Compared with subcomponent, semi-component is just a semi-finished product, like steel plate, electric wire and leather and others components, which need to be made in other processes (clipping, stamping and the like) to form finished products. Their mass cannot be identified before these processes. Therefore, the mass of semi-components needs not to be filled in CAMDS. Synonym: roughcast (for instance textile, bull rod, rods and bars, profiles, plates and so on) In MDS of semi-components must include one kind of material or another semi-component at least. Semi-component can consist of several materials, like metal plate with cladding (substrate material, cladding, passivation layer) or electric wire (copper core and insulating layer). 3.3.3 Mass percent In CAMDS, the semi-components, with their real value of mass, should be filled in the column of components. The mass percent between mass of semi-component and that of materials, which are included2CAMDS Application Guidance in semi-components, can be fixed value, a range like “X%～Y%” or “residual” (the percent of different child nodes from the same parent node). However, the totality of all percent from the same node should equal to 100%. Note： Given percents of all child nodes represent as “fixed value”, the sum of them should be 100%; otherwise, the system would prompt “error”. Given a percent of one child node is filled as “residual”, the sum of percents of other child nodes should be less than 100%; otherwise, the system would prompt “error”. Given there is no “residual” to be chosen for any child node, the min sum of all child nodes can not over 100% and the max sum of them can not less than 100%; otherwise, the system would prompt “error”. Providing the type of mass percent is “range”, it should satisfy a requirement in Table 1 (CAMDS requires that all components should not be omitted by adopting “range” mentioned in this Guidance.) Table 1: Range of mass percent in child node of semi-component Mass percent：X%～Y% 0＜X≤100 Maximum: M=Y%－X% M≤20%For example, a certain material used in a semi-component has been used 20% of it. Range of mass percent as X%～Y% shows that mass of the material used in this semi-component can be represented as 10%～ 28%. Note: given the range of percent of child node of semi-component excesses an allowed range, the system would prompt “error”. 3.4 Material 3.4.1 Signs 3.4.2 Description Material consists of basic substances. The percent of all basic substances should be 100%. In particular, material could be made up of other materials. Note: Given the percents of all child nodes are filled in “fixed value”, the sum of all values should be 100%; otherwise, the system would prompt “error”. Given the percent of one child node is “residual”, the sum of other nodes should be less than 100%; otherwise, the system prompt “error”. Given there is no “residual” to be chosen, the min sum of all nodes should not over 100% and the max sum3CAMDS Application Guidance of them can not less than 100%; otherwise, the system would prompt “error”. Standard materials (like metal materials, PCB materials and the like) published by Committee of CAMDS can be quoted into MDS directly. If chemical components in materials have been defined in GB, EN, JIS, ASTM and other public standards, but they have not issued by Committee of CAMDS, please connect to managing center of CAMDS to add these standard materials or to create a MDS by yourself. 3.4.3 Material DetailsThe Required Information in Creating Material MDS ID/Version When creating new material, it will be generated by the System, which is used to identify this material.4CAMDS Application Guidance Supplier It is generated by the System automatically. Material Name Mandatory item. The name of the material must be able to identify the material accurately, and the material name shall not be brand name. If there are open standard, material name must be in the same as the one in the open standard. For example: For the metal material (using material trademark); ¾ Steel-should be consistent with the standard of GB, ISO, JIS, etc. such as 45; ¾ Aluminum-should be consistent with the standard of GB, ISO, JIS, etc. such as ZL104; ¾ Copper alloy-should be consistent with the standard of GB, ISO, etc. such as H62. For plastic material (using the abbreviation code)---ISO 1043 or GB/T 1844 (see CAMDS 04), such as PE-LD; For the rubber material---ISO 1629 or GB/T 5576 (see CAMDS 05), such as ACM; For the thermoplastic elastomer material---ISO 18064 or GB/T 22027 (see CAMDS 05), such as TPA-ES. If there is no name in the open standard, the description should be in accordance with the following methods: The adhesive layer (such as used for cementing compound), such as hemmed adhesives, spot welding sealant, etc; Degreasant (such as used for leather), such as fatty alcohol class of non-ionic surface active agent; Laminated composite materials (such as used for textile laminated sheet), such as seat fabric; Primer/Finishing coat (such as used for paint), such as polyester resin finish coat.Name (Foreign) Optional item. It could be in the same with the material name. Material Number Optional item. It is the internal material code that the supplier used to differentiate their products. Trade Name Optional item. It is often used in plastics, cementing compound, paint and so on. Material Classification Mandatory item. All materials shall be filled into their correct classification. Material Number Optional item. Metal material from class 1 to 4 could be reported.5CAMDS Application Guidance Material code Optional item. For plastics (QC/T 797, the code should be in accordance with ISO 11469, see CAMDS 04), the thermoplastic elastomer (QC/T 797, the code should be in accordance with ISO 18064, see CAMDS 05), rubber (QC/T 797, the code should be in accordance with ISO 1629, see CAMDS 05), which could be reported. Norms/Standards Optional item. It is the standard number that the material cited. Test Report Number Optional item. It could be the test report of banned material, the functioning report of the material or the number of other reports. Recyclability Rate and Recoverability Rate Optional item. Referring to GB/T 19515/ISO 22628. Remarks Optional item. It is used to supplement the material. Simplified Check Rules Simplifying the checking items. Creation Date It is generated by the System automatically. Check Date It is generated by the System automatically. Release date It is generated by the System automatically. 3.4.4 Range of mass percentage When the sub-nodes of a material fall into other material, the range of their mass percentage should meet the requirements of Table 2. Table 2 The range of mass percentage of sub-nodes of materials Mass percentage：X%～Y% 0＜X≤100 Maximum: M=Y%－X% M≤20%For example: the usage of one material is amount to 20% in the components, if the range of mass percentage of X%～Y% is selected to indicate its mass in the components, it could be stated as 10%～30%.6CAMDS Application Guidance Note: if the range of mass percentage exceeds the allowed range, the system will prompt “warning”. 3.5 Basic substance 3.5.1 Signs 3.5.2 Description The basic substance is the components of the material, which must be selected from the CAMDS system. If the weight percentage of the basic substance is less than 0.1%, it needn’t to be added into MDS, but it must be reported if it is prohibited or needed to be declared. The basic substance must be filled into MDS in its form that existed in the material, for example, the basic substance of polymeric material is not permitted to be filled into MDS by splitting into basic elements (C, H, N, O, etc.). The sum of the basic substance in material datasheet must be 100% (if the range is selected, the sum of its minimum number should not beyond 100%, and the sum of its maximum number should not smaller than 100 %.). If the basic substance being used could not be searched in CAMDS, one can apply to the secretariat of the CAMDS Management Committee for appending. The requirement and relevant information of the basic substance should be provided and appended after being approved. Note: the lowest level of a MDS must be basic substance, otherwise, the system would prompt “error”. 3.5.3 Range of mass percentage of basic substance The range of mass percentage of basic substance should meet the requirements of Table 3. Table 3: the range of mass percentage of basic substances Mass percentage：X%～Y% 0≤X≤7.5 7.5＜X≤20 20＜X≤100 Maximum: M=Y%－X% M≤3% M≤5% M≤10%For example: the usage of one basic substance is amount to 18% in material, if the range of mass percentage of X%～Y% is selected to indicate its mass in material, it could be stated as 15%～20%. The following conditions are out of the limitation of Table 3: ¾ ¾ ¾ The basic substance content being defined in the open standard; The basic substance is defined in a large range in the technical requirement, but must be stated in the notes; All documents that published by CAMDS Management Committee.Note: if the basic substance contained in the self-created material exceeds the prescribed range, the system would display “warning”.73.5.4Basic substance typeThe basic substance could be divided into 2 types:1)The basic substance that could be used to describe material accurately, such as iron, EPDM, etc.2)Wildcard materialWhen the components of the confidential substance are unknown or unwilling to disclose to other users, the “wildcard material” could be used. The “wildcard material” is not permitted to be banned material or material that needs to be reported, and could not be marked as confidential.The CAS number of the “wildcard material” in CAMDS is system, and can be divided into three kinds:①＞additives, need not to be reported＜; flame retardant, additives, impact modifiers, pigments, wildcardetc. used in base materialwildcard②＞component, need not to be reported＜; organic components, inorganic components, plasticizers, etc.③＞impurities, need not to be reported＜; impurities or residue, etc.wildcardThe basic substance has two special applications in CAMDS system:1)Declaring substanceThe substance needs to be declared or banned according to GADSL could not be marked as confidential, and its application should be specified according to requirements.2)Confidential substanceThe mass of confidential substance could not exceed 10% of the same material, and it is not permitted to be the substance that needs to be declared or banned. The confidential substance is only open to trustful users, who is the OEM user or other user that specified by the administrator of MDS initial company. The company that created the datasheet owns its ownership.Under the same material, the sum of the confidential material and the wildcard material should not exceed 10% of the total weight of material (if the range is selected to indicate their contents, the sum of the maximum number of the range should not exceed 10% of the total weight).Note: if the confidential substance and the wildcard substance under the same material exceed 10% of the total weight of the material, the system will prompt “error”.4Exemplification5Edition and Effective DateThe document is the second edition of CAMDS 01 General Provisions; The document comes into effect since December 15, 2011.CAMDS 02 Guidance for Creating MDS of Metallic Coatings and Conversion Coatings for Automobile1ScopeThis document represents the general requirements for creating MDS of metallic coatings and conversion coatings for automobile in CAMDS. Electroplated coatings, hot-dip galvanized coatings, chemical coatings, thermal spray coatings, vacuum coatings, conversion coatings (such as passivation coating, oxide coating, phosphate coating and coloring film) should follow the requirements stipulated in this document.2ReferencesClauses in the document all are referred directly or indirectly to articles in the following documents. As for referred documents with dates, the amendment (excluding corrigenda) or the expurgated edition should not be applicable to the Guidance. As for the referred documents without dates, the newest edition can be applied to the Guidance.GB 9800 Chromate conversion coatings on electroplated zinc and cadmium coatingsGB/T 9792 Conversion coatings on metallic materials - Determination of coating mass perunit area-Gravimetric methodsGB/T 5267 Fasteners - Electroplated coatingsQC/T 625 Metallic coatings and conversion coatings for automobileISO 4042 Electroplated coatings3Definition3.1Basic materialBasic material refers to the materials excluding coatings and conversion coatings. They can be found in the drawings/design or the delivery documents.Many kinds of basic material such as iron and steel, aluminum alloy and magnesium alloy have already been entered into CAMDS. These materials can be directly quoted in CAMDS.3.2Conversion coatingsConversion coatings include oxide coatings, phosphate coating and coloring films, the MDS of which the suppliers can create on their own. There are two kinds of chromate passivation coatings:1)Hexavalent chromium passivation coatings2)Trivalent chromium passivation coatingsEvery kind of conversion coating is of the same level as basic material when entered into CAMDS.3.3Metallic coatingsIn order to user-friendly, standard materials of many kinds of coatings (such as Ep-Zn、Ep-Fe/Cu、+ZE75/75 (electrolytic zinc)) has been entered into CAMDS. These coatings can be directly quoted or created in the system.Every metallic coating is of the same level as basic material when entered into CAMDS.3.4Blocking agentBlocking agent, as a kind of material, is created in CAMDS by suppliers.4Mass calculation of basic substance, conversion coatings and metallic coatings4.1Mass calculation of basic material1)Calculate through density, surface area and thickness.2)Calculate through weight.4.2Mass calculation of conversion coatingsCalculate through density, surface area and thickness.4.3Mass calculation of metallic coatings1)Calculate through density, surface area and thickness.2)Calculate through weight.5Exemplification5.1MDS of bolt with trivalent chromium passivation coatings and zinc coatings (Fe/Ep·Zn8)Demonstration of mass calculation of metallic coatings and passivation coatingsElectroplated zinc bolt. Materials: 20Cr；Surface treatment: electroplated zinc (the thickness of coatings is 8μm); passivation treatment: trivalent chromium passivation.1)Bolt weightCalculate through the drawings or weigh the bolt without surface treatment.2)Total area of boltsA=A1×length of threaded part +A2×length of stem end+A3=48.31×20+31.42×0+905.8=18.72 cm2 (Calculation of surface area can refer to the annex of GB/T 5267.1, nameley, the surface area of bolts, screws and nuts.)3)Weight of zinc coatingsSurface area × density × thickness=18.72 cm2×7.1 g/cm3×0.0008 cm=106.33 mg(Notes: Thickness is determined by the electroplated zinc technique of suppliers.)4)Weight of passivation coatingsMass of passivation coating per unit area × surface area=0.9 g/m2×18.72 cm2=1.68 mg(Note: Mass of passivation coating per unit area can refer to GB 9800.)The document is the second edition of CAMDS 02 Guidance for Creating MDS of Metallic Coatings and Conversion Coatings for Automobile.The document comes into effect since December 15, 2011.CAMDS 03 Guidance for Creating Non-metallic Coatings MDS 1ScopeThis document represents the general requirements for creating non-metallic coatings MDS in CAMDS. Lacquer, varnish coatings should follow the requirements stipulated in this document. This document illustrates by taking the lacquer coatings for example.Lacquer coatings are generally composed of different coatings, such as phosphate coating, electophoretic coating, prime coating, floating coating and varnish. Every coating must be described alone.MDS in CAMDS only requires the product composition after its baking. If the lacquers don’t contain solvents after the baking, then the solvents don’t need to be declared.2ReferencesClauses in the document all are referred directly or indirectly to articles in the following documents. As for referred documents with dates, the amendment (excluding corrigenda) or the expurgated edition should not be applicable to the Guidance. As for the referred documents without dates, the newest edition can be applied to the Guidance.QC/T 484 Lacquer coating for automobile3Definition3.1Single coatingSingle coating is generally composed of simple resin curing system or resin-rich system (such as PAA cyanamid), fillers, pigments and additives.3.2Multiple coatingsMultiple coatings include two or more than two kinds of coatings. Every coating must be declared alone.4ExemplificationCreate MDS for door outer panel with multiple coatings, as shown in the picture below:5Edition and Effective DateThe document is the second edition of CAMDS 03 Guidance for Creating Non-metallic Coatings MDS. The document comes into effect since December 15, 2011.CAMDS 04 Guidance for Creating Plastics MDS1ScopeThis document represents the general requirements for creating plastics MDS in CAMDS and gives an overview of thermoplastics and thermosetting plastics. Plastic materials such as PB, PP, PVC and PU used in dashboards, trim panels, seats and bumpers for automobiles should follow the requirements stipulated in this document.2ReferencesClauses in the document all are referred directly or indirectly to articles in the following documents. As for referred documents with dates, the amendment (excluding corrigenda) or the expurgated edition should not be applicable to the Guidance. As for the referred documents without dates, the newest edition can be applied to the Guidance.GB/T 1844 Plastics Signs and AbbreviationQC/T 797 Identification and marking of plastic components of automobiles, rubbercomponents and thermoplastic elastomerISO 11469 Plastics - Generic identification and marking of plastic productsISO 1043 Plastics Signs and Abbreviation3Definition3.3PlasticsAccording to the physical and chemical properties of resins (thermal behavior and whether it has the processability of repeated molding), plastics can be divided into thermoplastics and thermosetting plastics. Thermoplastics can be divided into unfilled or filled thermoplastics. If the material contains the amount of fillers or pigments (such as carbon black) which is below 7.5%, it is regarded as unfilled thermoplastics. If the material contains the amount of fillers or pigments (such as carbon black) which is at or above 7.5%, it is regarded as filled thermoplastics. For example, enhanced thermoplastics, in which the amount of fiber accounts for 10%, is filled thermoplastics.Plastics are composed of the following basic substances: basic polymer (synthetic resin), additives (such as stabilizer, plasticizer, age resister, flame retardant, preservatives), fillers and coloring agent.The components of plastic materials should exist in the components at its final state and not include the basic substances from the intermediate reaction such as monomer and vulcanizing agent, unless there are some leftovers from the intermediate reaction.Basic polymer and functional additives in plastics can be chosen from the basic substance column in CAMDS. The code of basic polymer and functional additives can be seen in ISO 1043 or GB/T 1844 (ISO1043-1 or GB/T 1844.1 basic polymer、ISO 1043-2or GB/T 1844.2 fillers、ISO 1043-3 or GB/T 1844.3 plasticizer、ISO 1043 or GB/T 1844.4 flame retardant).Plastics MDS can directly list MDS of the basic substances and secondary materials (such as master batches) which it contains or uses.Directly list the plastics containing basic substances as shown in the picture below:Plastics using secondary materials as shown in the picture below:Basic polymer should be the component of basic substances or secondary materials.Basic polymers can be entered only when materials exist in the final components. It is not allowed to be divided into basic elements such as C, H, N, O when entered into MDS.4Exemplification4.1Creation of thermoplastics MDS details。

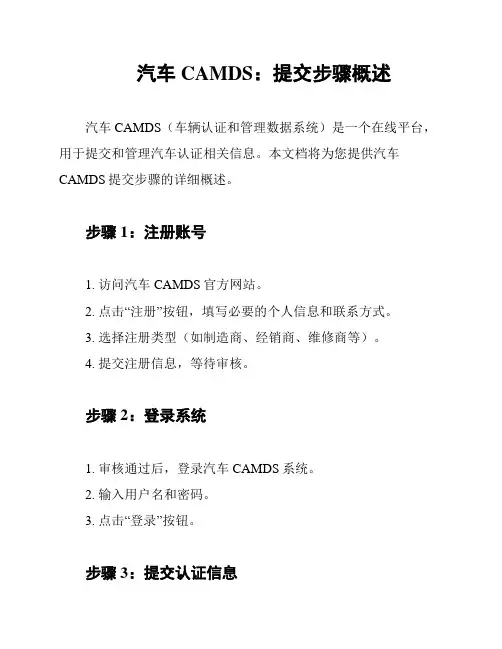

汽车CAMDS：提交步骤概述
汽车CAMDS：提交步骤概述汽车CAMDS（车辆认证和管理数据系统）是一个在线平台，用于提交和管理汽车认证相关信息。
本文档将为您提供汽车CAMDS提交步骤的详细概述。
步骤1：注册账号1. 访问汽车CAMDS官方网站。
2. 点击“注册”按钮，填写必要的个人信息和联系方式。
3. 选择注册类型（如制造商、经销商、维修商等）。
4. 提交注册信息，等待审核。
步骤2：登录系统1. 审核通过后，登录汽车CAMDS系统。
2. 输入用户名和密码。
3. 点击“登录”按钮。
步骤3：提交认证信息1. 在左侧菜单栏选择“认证信息提交”。
2. 填写车辆基本信息，如车型、车系、生产日期等。
3. 提交相关文件，如技术参数、安全配置表等。
4. 点击“提交”按钮。
步骤4：查看审核状态1. 在左侧菜单栏选择“审核状态查询”。
2. 输入查询条件，如车辆型号、提交日期等。
3. 查看审核结果。
步骤5：修改和完善信息1. 若审核不通过，根据审核意见修改相关信息。
2. 在“认证信息提交”页面修改相关内容。
3. 重新提交。
步骤6：数据管理和分析1. 在左侧菜单栏选择“数据管理”。
2. 查看已提交的数据，进行分类、筛选和导出。
3. 利用数据分析功能，了解市场趋势、销售情况等。
步骤7：系统设置1. 在左侧菜单栏选择“系统设置”。
2. 修改个人信息、密码等。
3. 管理权限和角色。
步骤8：帮助与支持1. 在左侧菜单栏选择“帮助与支持”。
2. 查看常见问题、操作指南等。
3. 联系客服，获取技术支持。
通过以上步骤，您可以在汽车CAMDS平台上顺利完成认证信息的提交和管理。
如有疑问，请随时联系客服或查阅帮助文档。
祝您使用愉快！。
CAMDS填报指南
CAMDS填报指南第1章 CAMDS注册1.1 注册汽车行业零部件产品供应链示意如下图所示。
图中，一级供应商是整车生产企业的上游企业，二级供应商又是一级供应商的上游企业。
依次类推。
1第1章 CAMDS注册半开放式注册。
申请加入CAMDS的整车企业，经CAMDS管理委员会批准后，由中汽中心负责为其在CAMDS中注册，并创建一个企业管理员账号。
整车企业的企业管理员负责为其一级供应商注册，一级供应商的企业管理员再为二级供应商注册，依此类推，直至完成整个零部件产销供应链的用户注册工作。
同时，每个企业的企业管理员还可以为本企业的其它用户注册CAMDS账号。
1.1 注册2第1章 CAMDS注册1.1 注册只有企业管理员有权限为他人注册。
企业管理员可以为如下用户注册：供应商 ? 本企业的其他用户3第2章 CAMDS入门2.2 登录4第2章 CAMDS入门2.2 登录5第2章 CAMDS入门2.2 登录6第2章 CAMDS入门2.2 登录 n 系统主界面7第3章创建MDS/组件单元3.1 创建8第3章创建MDS/组件单元3.2 创建MDSn MDS概念Material Data Sheet，材料数据表单。
CAMDS中传递产品信息的载体。
n MDS类型类型材料半成品件零部件图标描述材料描述了半成品件或零部件是由什么制成的，而且必须由一种或者一种以上的基本物质组成。
半成品件是半成品，如钢圈、钢管、皮革等，需要经过进一步加工（切割、冲压），才能成为零部件。
在被加工成零部件之前，没有固定的质量值。
零部件可以是一整车，或是一完整的装配件（如发动机汽缸等），或是装配件之内的次级配件（如汽缸盖或摇臂等）。
9第3章创建MDS/组件单元3.2 创建MDS n MDS结构 ? 树型结构 ? 零部件的子节点可以是其它零部件、半成品件或材料。
? 半成品件的子节点只能是其它半成品件或者材料。
? 材料只能包含其它材料和基本物质。
n 图标的中心加上黑点 ? 从外部引用的、独立的MDS/组件单元。

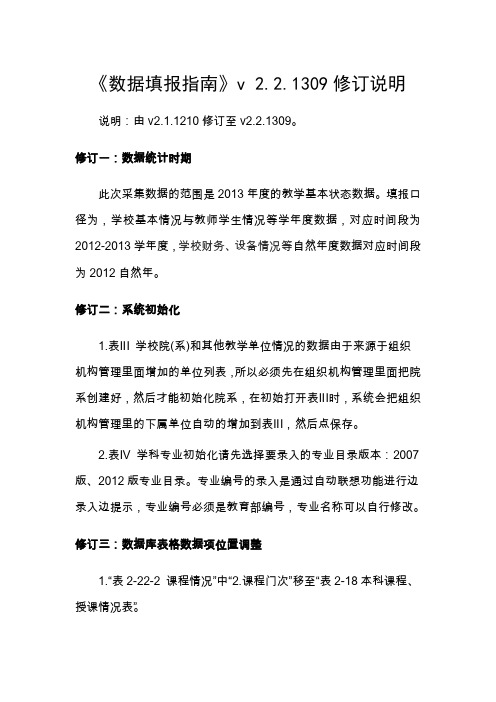

《数据填报指南》v2.2.1309修订说明
《数据填报指南》v 2.2.1309修订说明说明：由v2.1.1210修订至v2.2.1309。
修订一：数据统计时期此次采集数据的范围是2013年度的教学基本状态数据。
填报口径为，学校基本情况与教师学生情况等学年度数据，对应时间段为2012-2013学年度，学校财务、设备情况等自然年度数据对应时间段为2012自然年。
修订二：系统初始化1.表Ⅲ学校院(系)和其他教学单位情况的数据由于来源于组织机构管理里面增加的单位列表，所以必须先在组织机构管理里面把院系创建好，然后才能初始化院系，在初始打开表Ⅲ时，系统会把组织机构管理里的下属单位自动的增加到表Ⅲ，然后点保存。
2.表Ⅳ学科专业初始化请先选择要录入的专业目录版本：2007版、2012版专业目录。
专业编号的录入是通过自动联想功能进行边录入边提示，专业编号必须是教育部编号，专业名称可以自行修改。
修订三：数据库表格数据项位置调整1.“表2-22-2 课程情况”中“2.课程门次”移至“表2-18本科课程、授课情况表”。
修改前：表2-18 本科课程、授课情况表表2-22-2 课程情况修改后：表2-18 本科课程、授课情况表表2-22-2 课程情况2.“表6-5普通本科分专业学生数”中第3-5项“应届毕业生数、应届生中未按时毕业数”和“授予学位数”移至表6-11-2“院系应届本科毕业生就业情况”。
修改前：表6-5 普通本科分专业学生数表6-11-2 院（系）应届本科毕业生就业情况修改后：表6-5 普通本科分专业学生数院（系）名称：单位：人表6-11-2 院（系）应届本科毕业生就业情况修订四：根据前面的数据项修改，对内涵解释做相应修改，尤其是对院系专业初始化时，如何填报专业、专业方向等增加详细说明。
评估中心信息处二〇一三年九月。
nidec mobility corporation 汽车零部件供应商 camds 数据填报手册说明
面向供应商NIDEC MOBILITY CORPORATIONQuality Planning Department,Quality Management Division,目录1. 前言 (1)2. CAMDS(China Automotive Material Data System)概述 (2)2.1. CAMDS简介 (2)3. CAMDS数据的填报 (2)3.1. 要求事項 (2)3.2. CAMDS数据结构 (3)3.2.1 有效的数据结构 (3)3.2.2 无效的数据结构 (4)3.2.3 简单BOM（FBOM）的报告方式 (5)3.3. 材料的作成 (6)3.3.1 材料分类的选择 (6)3.3.2 材料 (8)3.3.3 基本物质 (10)3.4. 半成品件 (11)3.4.1 添加子节点数据 (12)3.5. 零部件 (14)3.5.1 添加子节点数据 (15)3.5.2 聚合物材质标识 (17)3.5.3 物质应用代码 (18)4. 填报接收人信息 (22)4.1. 发送MDS (23)5. CAMDS的运作方法 (25)5.1. 创建/更新MDS (25)5.2. MDS填报流程 (25)5.3. 数据表被拒绝时 (26)5.4. 包含支给部品的MDS填报流程 (26)5.5. 包含支给材料的MDS填报 (26)6. CAMDS咨询窗口 (27)6.1. CAMDS全面 (27)6.2. 本公司的数据填报 (27)1.前言本手册规定了NIDEC MOBILITY CORPORATION及其集团公司1(以下简称本公司)针对供应商及其制造商提供的部品、材料的CAMDS数据填报时的相关要求。
请依据本手册填报发送给本公司的CAMDS数据。
本手册中的未尽事项，请参照CAMDS管理中心(CATRC)编制的《CAMDS使用手册》2、或《CAMDS填报指南》3等教程。
注**********************************************************************************************12 CAMDS管理中心编制发行的CAMDS运用手册。
CAMDS平台上汽车提交步骤
CAMDS平台上汽车提交步骤
1. 登录CAMDS平台
- 打开浏览器，输入CAMDS平台网址。
- 输入用户名和密码进行登录。
2. 创建新的汽车提交
- 在平台首页，点击"新建汽车提交"按钮。
- 填写汽车信息，包括车辆型号、制造商、生产日期等。
- 上传相关文件，如车辆照片、技术规格说明书等。
3. 检查并确认提交信息
- 仔细检查填写的汽车信息和上传的文件，确保准确无误。
- 确认提交信息并保存。
4. 提交汽车申请
- 点击"提交申请"按钮，将汽车提交给CAMDS平台。
- 确认提交后，系统将自动处理提交的信息。
5. 跟踪汽车审核进度
- 在平台首页，点击"我的申请"按钮。
- 查看汽车审核进度，包括待审核、审核中、审核通过或审核不通过等状态。
6. 处理审核结果
- 若审核通过，平台将自动发布汽车信息。
- 若审核不通过，查看审核意见并根据指示修改相关信息后重新提交申请。
7. 关闭汽车提交
- 在平台首页，点击"我的申请"按钮。
- 找到已审核通过的汽车提交，点击"关闭"按钮。
- 关闭后，该汽车信息将不再显示在平台上。
以上为CAMDS平台上汽车提交的基本步骤，根据实际情况可能会有细微差异。
为了提交汽车信息，请遵循平台的要求和指引，并在必要时与平台管理员联系。
中国汽车材料数据系统( CAMDS)数据填报指南
中国汽车材料数据系统（CAMDS ）数据填报指南1 CAMDS 16 材料数据表变更指南1 范围本文件指出了在CAMDS 中需要修改、更新和重新提交材料数据表的各种情况。
2 引用文件以下文件中的条款通过直接或间接引用而成为本文件的条款。
凡是注日期的引用文件，其随后所有的修改单（不包括勘误的内容）或修订版均不适用于本指南。
凡是不注日期的引用文件，其最新版本适用于本指南。
GADSL 全球汽车申报物质清单3 MDS 数据更新原则3.1 对于整数版本的或已经发送给客户但未被拒绝的材料数据表不能修改其明细。
如确实需要对MDS 明细进行修改，则必须进行复制操作，对得到的新的MDS 进行处理。
3.2 当GADSL 发生变化，某物质由“无需申报”而变为“需申报D ”或“被禁止P ”时，该物质将无法再被设置为“保密物质”或以“通配符物质”代替。
之前引用该物质的MDS 不会变化，需要用户自行进行修改。
3.3 对于标准材料，如果相关标准发生变更或修订，CAMDS 管理委员会将会按照新标准发布新的标准材料，则之前引用旧标准材料的MDS 不会自动更新，需要用户按照产品实际情况自行对该MDS 进行变更。
3.4 对于禁用物质应用选项，如果相关标准法规变更或修订，则系统中的用户可选应用选项也将做对应修改和变更。
用户之前选择过该应用选项的MDS 也不会自动更新，需要用户根据产品实际情况和法规要求自行对涉及到应用选项的MDS 进行变更。
4 ID、版本号变更原则4.1 新建材料数据表时，系统自动生成新的ID 号；修改材料数据表时其ID 号和版本号均不发生变化。
4.2 MDS 版本由小数变成整数时，会在系统中已存在的最高整数版本基础上增加1。
如复制新版本后，存在多条不同版本号的MDS （1.01、2.01、3.01、1、2、3），其最大整数版本号为3，则无论将版本号为1.01、2.01、3.01其中任意一条MDS 变更为整数版本时，都将会变更为4。
中国汽车材料数据系统（CAMDS
（内部资料，严禁外传）“中国汽车材料数据系统（CAMDS）” 填报指南V2.0 中国汽车技术研究中心CAMDS 管理中心2011/12 目录前言CAMDS 01 总则CAMDS 02 汽车用涂镀层和表面转化膜填报指南CAMDS 03 非金属涂层填报指南CAMDS 04 塑料填报指南CAMDS 05 橡胶和热塑性弹性体材料填报指南CAMDS 06 纤维制品填报指南CAMDS 07 皮革填报指南CAMDS 08 汽车密封及胶粘剂产品填报指南CAMDS 09 润滑油填报指南CAMDS 10 电子电器元件填报指南CAMDS 11 汽车照明系统零部件填报指南CAMDS 12 汽车玻璃零部件填报指南CAMDS 13 热系统零部件填报指南CAMDS 14 汽车转向系统零部件填报指南CAMDS 15 机油滤清器填报指南CAMDS 16 变更管理指南中国汽车材料数据系统（CAMDS）填报指南前言中国汽车材料数据系统（CAMDS）是为实施汽车产品禁限用物质管控，提高汽车产品回收利用率而专门开发的材料数据申报与管理平台。
汽车产品供应链上的各级零部件供应商可通过本系统完成产品材料数据信息的申报工作，支持各整车生产企业顺利通过国内外相关法规的认证。
为帮助使用CAMDS 的各级汽车零部件供应商更好地进行产品材料数据信息的填报和更新，提高录入数据的规范性和统一性，以确保产品材料数据信息准确高效地沿着供应链传递，CAMDS 管理中心制定了《中国汽车材料数据系统（CAMDS）填报指南》）（简称“CAMDS 填报指南”。
该指南作为填报产品材料数据信息的技术指导文件，给出了用户在CAMDS 系统中创建各类材料数据表（Material Data Sheet MDS）时的一些建议性的原则及要求。
该指南共有16 个文件（详见目录）构成，涵盖了常见汽车材料及部件的MDS 创建方法。
金属材料MDS 创建方法请重点参照文件“CAMDS 01 总则”执行，其余材料或部件MDS 创建方法可参照对应文件执行。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
该文件内容并非必须遵守的强制性要求，若文中规定与您客户对材料数据表的要求 不一致或您的产品信息有其他特殊情况，请与您的客户协商处理。
半成品部件和子部件不同，它是一个半成产品，例如钢板、电线和皮革制品等需要经过其他工 艺过程处理（剪裁、冲压等）才能成为成品的部件，在处理前其质量无法确定，因此在 CAMDS 中 创建半成品件时不用填写质量。
同义词：毛坯件（如纺织品、盘条、棒材、型材、板材等）。 半成品部件的 MDS 必须至少包含一种材料或另一个半成品部件。半成品部件可包含多种材料， 例如有镀层的金属板（基体材料、镀层、钝化层）或者电线（铜芯线、绝缘层）。 3.3.3 质量百分比 在 CAMDS 中，将半成品部件填入零部件下，必须填写其真实质量值。而在半成品部件下的半 成品部件与材料的质量百分比可以是固定值、范围“X%～Y%”或“剩余”（由同一父节点下不同子 节点百分比得出）三种类型，但同一节点的百分比之和必须等于 100%。 注： 当子节点比例形式全部以“固定”填写时，固定值之和必须等于 100%，否则，系统提示“错误”。 当子节点比例形式有一个选择为“剩余的”时，其他各子节点之和必须小于 100%，否则，系统 提示“错误”。 当子节点比例形式没有“剩余的”时，各子节点最小值之和不能大于 100%，最大值之和不能小 于 100%，否则，系统提示“错误”。 若质量百分比类型选择“范围”，应满足表 1 要求（材料数据表中要求填写所有组分，不得利用 CAMDS 填报指南中的此类范围漏报组分）。
符号按照 ISO 18064，见 CAMDS 05）、橡胶（QC/T 797，符号按照 ISO 1629，见 CAMDS 05）可填 报。 材料引用标准
选填项。材料引用的标准号。
4
中国汽车材料数据系统（CAMDS）数据填报指南 检测报告编号
选填项。可以是禁用物质检测报告、材料性能报告或其它报告的编号。 可再利用率和可回收利用率
基本物质是材料的组成部分，必须从CAMDS系统中选取。如果基本物质占材料重量的百分比低 于0.1%，不需要将其加入MDS中，但相关基本物质如果是被禁止或需申报的则必须填报。基本物质 必须以存在于材料中的形态录入MDS，例如聚合物材料的基本物质不允许拆分为基本元素（C、H、 N、O等）录入MDS。材料数据表中基本物质总和必须是100%（如选用范围则范围的最小值之和不 能大于100%，最大值之和不能小于100%）。若使用的基本物质在CAMDS中搜索不到，可向CAMDS 管理委员会秘书处申请添加，需要提供需求及基本物质相关信息，经审核通过后添加。
所有的修改（不包括勘误的内容）或修订版均不适用于本指南。凡是不注日期的引用文件，其最新
版本适用于本指南。
GB/T 1844
塑料 符号和缩略语
GB/T 5576
橡胶与胶乳 命名法
GB/T 22027
热塑性弹性体 命名和缩略语
GB/T 19515
道路车辆 可再利用性和可回收利用性计算方法
GB/T 26988
中国汽车材料数据系统（CAMDS）填报指南
前言
中国汽车材料数据系统（CAMDS）是为实施汽车产品禁限用物质管控，提高汽车 产品回收利用率而专门开发的材料数据申报与管理平台。汽车产品供应链上的各级零部 件供应商可通过本系统完成产品材料数据信息的申报工作，支持各整车生产企业顺利通 过国内外相关法规的认证。
同义词：部件、装配件。 3.2.2.2 子部件
处于第一层级零部件以下的零部件通常称为子部件，遵循零部件同样的要求。子部件的符号和 零部件相同。 3.2.3 质量偏差
质量偏差是指零部件测量所得材料总重与下一级零部件计算质量之和的偏差。质量允许偏差由 各主机厂自行要求，推荐偏差不大于 5%。 3.3 半成品部件 3.3.1 符号 3.3.2 描述
中国汽车材料数据系统管理中心 2011-12-15
版权声明
本资料版权属中国汽车材料数据系统管理中心所有。未经许可，任何单位及个人不得复制、 印刷、传播、销售其相关内容！违者将追究法律责任！
中国汽车材料数据系统（CAMDS）数据填报指南
CAMDS 01 总则
1 范围
本文件规定了在中国汽车材料数据系统（CAMDS）中创建材料数据表（MDS）的总体要求，
注：一个 MDS 的最底层必须是基本物质，否则，系统提示“错误”。 3.5.3 基本物质质量百分比变化范围
基本物质质量百分比范围应满足表 3 要求。
5
中国汽车材料数据系统（CAMDS）数据填报指南 表 3：材料中基本物质质量百分比范围
选填项。参考 GB/T 19515/ISO 22628。 备注
选填项。此项用于对材料进行补充说明。 简化校验规则
对校验项目进行简化。 创建日期
由系统自动生成。 检验日期
由系统自动生成。 发布日期
由系统自动生成。 3.4.4 质量百分比变化范围
当材料的子节点为其他材料时，子节点质量百分比范围应满足表 2 要求。 表 2：材料子节点质量百分比范围
2
中国汽车材料数据系统（CAMDS）数据填报指南 3.4 材料 3.4.1 符号 3.4.2 描述
材料由基本物质组成，所有基本物质使用比例总和必须是 100%。特殊情况下，材料可以由其它 材料组成。
注： 当子节点比例形式全部以“固定”填写时，固定值之和必须等于 100%，否则，系统提示“错误”。 当子节点比例形式有一个选择为“剩余的”时，其他各子节点之和必须小于 100%，否则，系统 提示“错误”。 当子节点比例形式没有“剩余的”时，各子节点最小值之和不能大于 100%，最大值之和不能小 于 100%，否则，系统提示“错误”。 CAMDS 管理委员会公布的标准材料（如：金属材料、PCB 材料等）可以直接引用到 MDS 中。 如果材料的化学组成在 GB、EN、JIS、ASTM 等公开标准中定义过，而 CAMDS 管理委员会未曾公 布，请联系 CAMDS 管理中心添加这些标准材料或者自行创建 MDS。 3.4.3 创建材料明细
外文材料名称 选填项。可以与材料名称相同。
材料号 选填项。是供应商用来区分他们不同产品的内部材料代码。
商品名 选填项。通常用于塑料、胶粘剂、油漆等。
材料分类 必填项。所有材料必须填写正确的分类。
材料代号 选填项。1-4 类金属材料可填报。
材料标识 选填项。对于塑料（QC/T 797，符号按照 ISO 11469，见 CAMDS 04）、热塑性弹性体（QC/T 797，
汽车部件可回收利用性标识
GB/T 26989
汽车回收利用 术语
QC/T 797
汽车塑料件、橡胶件和热塑性弹性体件的材料标识和标记
ISO 1043
塑料 符号及缩写
ISO 1629
橡胶术语
ISO 11469
塑料 通用标识和塑料产品标记
ISO 18064
热塑性弹性体 术语及缩写
ISO 22628
道路车辆 可再利用性和可回收利用性计算方法
给出了 CAMDS 中数据结构、零部件、半成品、材料、基本物质的基本描述，明确了 MDS 层级关
系及成分含量信息填写的原则。本文件适用于系统中所有类型 MDS 的创建。对于无专用填报文件的
材料或部件，如金属材料、总成部件等，可重点参考本文件执行。
2 引用文件
以下文件中的条款通过直接或间接引用而成为本文件的条款。凡是注日期的引用文件，其随后
（内部资料，严禁外传）
“中国汽车材料数据系统（CAMDS）” 填报指南 V2.0
中国汽车技术研究中心 CAMDS 管理中心 2011/12
目录
前言 CAMDS 01 总则 CAMDS 02 汽车用涂镀层和表面转化膜填报指南 CAMDS 03 非金属涂层填报指南 CAMDS 04 塑料填报指南 CAMDS 05 橡胶和热塑性弹性体材料填报指南 CAMDS 06 纤维制品填报指南 CAMDS 07 皮革填报指南 CAMDS 08 汽车密封及胶粘剂产品填报指南 CAMDS 09 润滑油填报指南 CAMDS 10 电子电器元件填报指南 CAMDS 11 汽车照明系统零部件填报指南 CAMDS 12 汽车玻璃零部件填报指南 CAMDS 13 热系统零部件填报指南 CAMDS 14 汽车转向系统零部件填报指南 CAMDS 15 机油滤清器填报指南 CAMDS 16 变更管理指南
质量百分比：X%～Y% 最大限度 M=Y%－X%
0＜X≤100
M≤20%
例如：某材料在零件中用量为 20%，选择 X%～Y%的质量百分比变化范围表示其在零件中质量， 可以表示为 10%～30%。
注：材料子节点的比例范围超过允许范围，系统显示“警告”。 3.5 基本物质 3.5.1 符号 3.5.2 描述
GADSL 3 定义
全球汽车申报物质清单
3.1 结构形式
数据表采用树形结构，对目标产品按层级展开，可从零部件、半成品部件或材料层级展开直至
基本物质一级。零部件可以包含其他零部件、半成品部件及材料作为其子节点，半成品部件只能包
含其他半成品部件及材料作为其子节点，而材料只能包含其他材料或基本物质作为其子节点。零部
3
中国汽车材料数据系统（CAMDS）数据填报指南 创建材料 MDS 需要的信息：
ID/版本 当新材料被创建时将由系统生成，用于识别这种材料。
创建企业 由系统自动生成。
材料名称 必填项。材料名称必须能够准确定义材料，材料名称不能是商品名。 若存在公开标准，材料名称必须与公开标准中的名称相同。如： 对于金属材料（使用材料牌号）； ¾ 钢铁—与 GB、ISO、JIS 等标准相符，如：45； ¾ 铝合金—与 GB、ISO、JIS 等标准相符，如：ZL104； ¾ 铜合金—与 GB、ISO 等标准相符，如：H62。 对于塑料（使用缩写代号）—ISO 1043 或 GB/T 1844 见（CAMDS 04），如：PE-LD； 对于橡胶—ISO 1629 或 GB/T 5576（见 CAMDS 05），如：ACM； 对于热塑性弹性体材料—ISO 18064 或 GB/T 22027（见 CAMDS 05），如：TPA-ES。 若在公开的标准中没有命名则按照下述方法描述： 粘合层（如用于胶粘剂），如：折边胶、点焊密封胶等； 脱脂剂（如用于皮革），如：脂肪醇类的非离子表面活性剂； 层压复合材料（如用于纺织品的层压薄片），如：座椅面料； 底漆/面漆（如用于油漆），如：聚酯树脂面漆。
