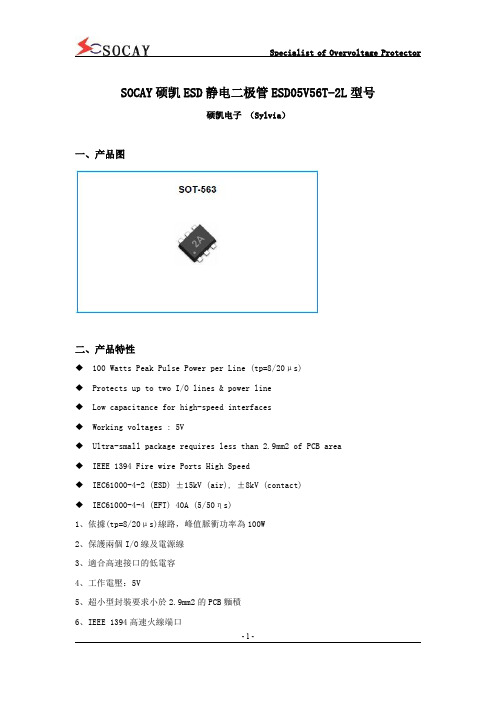

SOCAY 硕凯 ESD 静电二极管 ESD05V56T-2L 型号
硕凯电子 （Sylvia）
一、产品图
二、产品特性
100 Watts Peak Pulse Power per Line (tp=8/20μs) Protects up to two I/O lines & power line Low capacitance for high-speed interfaces Working voltages : 5V Ultra-small package requires less than 2.9mm2 of PCB area IEEE 1394 Fire wire Ports High Speed IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ηs)
1、依據(tp=8/20μs)線路，峰值脈衝功率為 100W 2、保護兩個 I/O 線及電源線 3、適合高速接口的低電容 4、工作電壓：5V 5、超小型封裝要求小於 2.9mm2 的 PCB 麵積 6、IEEE 1394 高速火線端口
-1-
Specialist of Overvoltage Protector 7、IEC61000-4-2(ESD)±15kV(空氣),±8kV(接觸) 8、IEC61000-4-4(EFT)40A(5/50ηs)
三、ቤተ መጻሕፍቲ ባይዱ品应用
1、高速 USB 2.0 2、10/100/1000 以太網端口 3、高清多媒體接口（HDMI） 4、數字視頻接口（DVI） 5、顯示器和平板顯示器 6、視頻圖形卡
TVS,ESD管特性参数及选型
TVS、ESD管特性参数及选型TVS、ESD管特性参数及选型TVS二极管是专门设计用于吸收ESD能量并且保护系统免遭 ESD损害的固态元件。
如果应用得当，TVS二极管将限制跨在被保护器件上的电压刚好高过额定工作电压，但是却远低于破坏阈值电压。
T VS 相关参数处理瞬时脉冲对器件损害的最好办法是将瞬时电流从敏感器件引开。
TVS 二极管在线路板上与被保护线路并联，当瞬时电压超过电路正常工作电压后，TVS 二极管便发生雪崩，提供给瞬时电流一个超低电阻通路，其结果是瞬时电流通过二极管被引开，避开被保护器件，并且在电压恢复正常值之前使被保护回路一直保持截止电压。
当瞬时脉冲结束以后，TVS 二极管自动回复高阻状态，整个回路进入正常电压。
许多器件在承受多次冲击后，其参数及性能会发生退化，而只要工作在限定范围内，二极管将不会发生损坏或退化。
在选择TVS 二极管时，必须注意以下几个参数的选择：1. 最小击穿电压 VBR（M INIM UM BRE AKDOWN VOLT AGE）和击穿电流IR：VBR是TVS最小的击穿电压，在 25℃时，低于这个电压TVS是不会发生雪崩的。
当TVS流过规定的1mA 电流(IR)时，加于TVS 两极的电压为其最小击穿电压VBR。
按TVS的VBR与标准值的离散程度，可把 VBR分为5%和10%两种。
对于5%的VBR来说，VWM=0.85VBR；对于10%的VBR来说，VWM=0.81VBR。
为了满足IEC61000-4-2 国际标准，TVS二极管必须达到可以处理最小8kV(接触放电)和 15kV(空气放电)的ESD冲击，有的半导体生产厂商在自己的产品上使用了更高的抗冲击标准。
对于某些有特殊要求的便携设备应用，设计者可以按需要挑选器件。
2. 最大反向漏电流ID和额定反向关断电压VWM（RAT E D ST AND-OFF VOLT AGE）：VWM这是二极管在正常状态时可承受的电压，此电压应大于或等于被保护电路的正常工作电压，否则二极管会不断截止回路电压；但它又需要尽量与被保护回路的正常工作电压接近，这样才不会在 TVS 工作以前使整个回路面对过压威胁。
ESD9C5.0ST5G中文资料
© Semiconductor Components Industries, LLC, 2007 April, 2007 − Rev. 01Publication Order Number:ESD9C3.3S/DESD9C3.3ST5G SERIESESD Protection DiodesIn Ultra Small SOD−923 PackageThe ESD9C3.3ST5G Series is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.Specification Features:•Small Body Outline Dimensions:0.039″ x 0.024″ (1.0 mm x 0.60 mm)•Low Body Height: 0.016″ (0.40 mm) Max•Stand−off V oltage: 3.3 V, 5 V•Low Leakage•Response Time < 1 ns•ESD Rating of Class 3 (> 16 kV) per Human Body Model •IEC61000−4−2 Level 4 ESD Protection•These are Pb−Free DevicesMechanical Characteristics:CASE:V oid-free, transfer-molded, thermosetting plasticEpoxy Meets UL 94 V−0LEAD FINISH: 100% Matte Sn (Tin)MOUNTING POSITION:AnyQUALIFIED MAX REFLOW TEMPERATURE: 260°CDevice Meets MSL 1 RequirementsMAXIMUM RATINGSRating Symbol Value UnitTotal Power Dissipation on FR−5 Board (Note 1) @ T A = 25°C PD150mWJunction and Storage TemperatureRangeT J, T stg−55 to +150°CLead Solder Temperature − Maximum (10 Second Duration)T L260°CStresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.1.FR−5 = 1.0 x 0.75 x 0.62 in.Device Package Shipping†ORDERING INFORMATIONESD9CxxST5G SOD−923(Pb−Free)8000/Tape & ReelSee specific marking information in the device marking column of the table on page 2 of this data sheet.DEVICE MARKING INFORMATION†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our T ape and Reel Packaging Specifications Brochure, BRD8011/D.2ELECTRICAL CHARACTERISTICS(T A = 25°C unless otherwise noted)Symbol ParameterI PP Maximum Reverse Peak Pulse Current V C Clamping Voltage @ I PP V RWMWorking Peak Reverse VoltageI R Maximum Reverse Leakage Current @ V RWM V BR Breakdown Voltage @ I T I T Test Current I F Forward Current V F Forward Voltage @ I F P pk Peak Power DissipationCMax. Capacitance @V R = 0 and f = 1 MHzELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted, V F = 1.1 V Max. @ I F = 10 mA)DeviceDevice MarkingV RWM (V)I R (m A) @ V RWMV BR (V) @ I T (Note 2)I T C (pF)(Note 3) C (pF)(Note 3)Max Max Min mA Typ Max ESD9C3.3ST5G R 3.3 1.0 5.0 1.012.813ESD9C5.0ST5GP5.00.511.01.06.06.22.V BR is measured with a pulse test current I T at an ambient temperature of 25°C.3.Capacitance at f = 1 MHz, V R = 0 V, T A = 25°C.PACKAGE DIMENSIONSSOD−923CASE 514AB−01ISSUE B0.400.90DIMENSIONS: MILLIMETERS*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.SOLDERING FOOTPRINT*NOTES:1.DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.2.CONTROLLING DIMENSION: MILLIMETERS.3.MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH THICKNESS. MINIMUM LEADTHICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL.DIM MIN NOM MAX MILLIMETERS A 0.340.370.40b 0.150.200.25c 0.070.120.17D 0.750.800.85E 0.550.600.650.95 1.00 1.05L0.050.100.15H E 0.0130.0150.0160.0060.0080.0100.0030.0050.0070.0300.0310.0330.0220.0240.0260.0370.0390.0410.0020.0040.006MINNOM MAX INCHES cA2XON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.PUBLICATION ORDERING INFORMATION。
ESD9B3.3ST5G
ESD9B3.3ST5GTransient Voltage SuppressorsMicro−Packaged Diodes for ESD ProtectionThe ESD9B Series is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space comes at a premium.Specification Features•Low Capacitance 15 pF•Low Clamping V oltage•Small Body Outline Dimensions: 0.039″x 0.024″ (1.0mm x 0.60mm)•Low Body Height: 0.016″ (0.4 mm)•Stand−off V oltage: 3.3 V•Low Leakage•Response Time is < 1 ns•IEC61000−4−2 Level 4 ESD Protection•This is a Pb−Free DeviceMechanical CharacteristicsCASE:V oid-free, transfer-molded, thermosetting plasticEpoxy Meets UL 94 V−0LEAD FINISH: 100% Matte Sn (Tin)MOUNTING POSITION:AnyQUALIFIED MAX REFLOW TEMPERATURE: 260°CDevice Meets MSL 1 RequirementsMAXIMUM RATINGSRating Symbol Value UnitIEC 61000−4−2 (ESD)ContactAir ±8.0±15kVTotal Power Dissipation on FR−5 Board (Note 1) @ T A= 25°CThermal Resistance, Junction−to−AmbientPDR q JA300400mW°C/WJunction and Storage Temperature Range T J, T stg−55 to +150°C Lead Solder Temperature −Maximum(10 Second Duration)T L260°CStresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.1.FR−5 = 1.0 x 0.75 x 0.62 in.Device Package Shipping†ORDERING INFORMATION†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our T ape and Reel Packaging Specifications Brochure, BRD8011/D.ESD9B3.3ST5G SOD−923(Pb−Free)8000/T ape & ReelSOD−923CASE 514ABMARKING DIAGRAMX= Specific Device CodeM Date CodeX MELECTRICAL CHARACTERISTICS(T A = 25°C unless otherwise noted)Symbol ParameterI PP Maximum Reverse Peak Pulse Current V C Clamping Voltage @ I PP V RWM Working Peak Reverse VoltageI R Maximum Reverse Leakage Current @ V RWM V BR Breakdown Voltage @ I T I T Test CurrentCCapacitance @ V R = 0 V and f = 1.0 MHzELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted)Device Device Marking V RWM (V)I R (m A)@ V RWM V BR(V) @ I T(Note 2)I T C (pF)V CV C (V) @ I PP = 1 A Max Max Min Max mA Typ Per IEC61000−4−2(Note 3)Max Per 8 x 20 m s(Note 4)ESD9B3.3ST5G2*3.31.05.07.01.015Figures 1 and 2See Below10.5*Rotated 270°.2.V BR is measured with a pulse test current I T at an ambient temperature of 25°C.3.For test procedure see Figures 3 and 4 and Application Note AND8307/D.4.Surge current waveforms per Figure5.Figure 1. ESD Clamping Voltage Screenshot Positive 8 kV Contact per IEC61000−4−2Figure 2. ESD Clamping Voltage Screenshot Negative 8 kV Contact per IEC61000−4−2IEC 61000−4−2 Spec.Level Test Voltage (kV)First Peak Current (A)Current at 30 ns (A)Current at 60 ns (A)127.5422415843622.51264830168IEC61000−4−2 WaveformFigure 3. IEC61000−4−2 SpecFigure 4. Diagram of ESD Test SetupThe following is taken from Application NoteAND8308/D − Interpretation of Datasheet Parameters for ESD Devices.ESD Voltage ClampingFor sensitive circuit elements it is important to limit the voltage that an IC will be exposed to during an ESD event to as low a voltage as possible. The ESD clamping voltage is the voltage drop across the ESD protection diode during an ESD event per the IEC61000−4−2 waveform. Since the IEC61000−4−2 was written as a pass/fail spec for largersystems such as cell phones or laptop computers it is not clearly defined in the spec how to specify a clamping voltage at the device level. ON Semiconductor has developed a way to examine the entire voltage waveform across the ESD protection diode over the time domain of an ESD pulse in the form of an oscilloscope screenshot, which can be found on the datasheets for all ESD protection diodes. For more information on how ON Semiconductor creates these screenshots and how to interpret them please refer to AND8307/D.Figure 5. 8 X 20 ms Pulse Waveform1009080706050403020100t, TIME (m s)% O F P E A K P U L S E C U R R E N TPACKAGE DIMENSIONSSOD −923CASE 514AB −01ISSUE BNOTES:1.DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.2.CONTROLLING DIMENSION: MILLIMETERS.3.MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH THICKNESS. MINIMUM LEADTHICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL.DIM MIN NOM MAX MILLIMETERS A 0.340.370.40b 0.150.200.25c 0.070.120.17D 0.750.800.85E 0.550.600.650.95 1.00 1.05L0.050.100.15H E 0.0130.0150.0160.0060.0080.0100.0030.0050.0070.0300.0310.0330.0220.0240.0260.0370.0390.0410.0020.0040.006MINNOM MAX INCHES cA2X0.08 (0.0032)X Y0.400.90DIMENSIONS: MILLIMETERS*For additional information on our Pb −Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.SOLDERING FOOTPRINT*ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.PUBLICATION ORDERING INFORMATION。
esd 标准
ns
•The CDM discharge is 100x faster than HBM or MM •The peak current can be 40x that of an HBM pulse
20
ESD/Latch-Up
ESD的一般要求
Kimpsion
訊程實業股份有限公司 KIMPSION CORPORATION
100pF, 1500Ω 100pF, 1500Ω
Td=130nS~170nS Td=130nS~170nS
(A)
Tr=2~10nS Tr=2~10nS
(B)
4
ESD/Latch-Up
HBM
Ir Peak Ringing <15% <15% <15% <15% <15% <15% <15%
訊程實業股份有限公司 KIMPSION CORPORATION
7
ESD/Latch-Up
Kimpsion
訊程實業股份有限公司 KIMPSION CORPORATION
機器模型(MM-Machine Model)
*ESDA STM5.2-1999
美國靜電協會
*JEDEC EIA/JESD22-A115
電子工業協會 （即將被凍結）
*AEC-Q100-003-REV-E
訊程實業股份有限公司 KIMPSION CORPORATION
器件充電模型之發生
1.上升時間極短 <400pS 2.電流峰值極大 5~20A/500V 3.維持時間極短 0.5~1.0nS 4.一般保護線路 來不及動作
1.器件因感應或磨擦而帶電荷 2.器件上之電荷藉由管腳對外放電
14
二极管参数
二极管参数ESJA53-08,ESJA53-10,ESJA53-12,ESJA53-13,ESJA53-14 ESJA53-15,ESJA53-16,ESJA53-17,ESJA53-18,ESJA53-20 CL系列微波炉专用高压二极管CL01-12,CL04-12,CL03-15HVP 系列微波炉二极管HVP5,HVP8,HVP10,HVP12,HVP14HVP15,HVP16,HVP18,HVP201036,1036X2,2036,2036X25036,5036X2,5446高压二极管R2000F,R3000,R4000,R5000,R6000,R80005-10mA 系列高压二极管2CL69,2CL70,2CL71,2CL72,2CL73,2CL742CL75,2CL76,2CL77,2CL78,2CL101,2CL1022CL70A,2CL71A,2CL72A,2CL73A2CL高频系列高压整流二极管2CLG30KV/0.1A，2CLG40KV/0.1A，2CLG50KV/0.1A2CLG30KV/0.2A，2CLG40KV/0.2A，2CLG50KV/0.2A2CLG30KV/0.5A，2CLG40KV/0.5A，2CLG50KV/0.5A20-50mA 系列高压二极管JB99T,JB99,HVRT300,HVRL300,HVRT250HVRL250,HVRT200,HVRL200,HVRT150HVRL150,HVRT120,HVRT100,HVRT080CL工频系列高压整流二极管CL01-09,CL01-12,CL01-15,CL03-15CL08-10,CL04-12,CL04-15CL高频系列整流高压二极管CL-08F，CL-10F，CL-12F，CL-15FCL-20F，CL03-12F，CL03-15F0.1-1.0A小硅堆系列高压二极管2CLZ30kV,2CLZ50kV,2CLZ70kV,2CLG5kV2CLG7.5kV,2CLG10kV,2CLG15kV大电流雪崩系列高压二极管BR2,BR4,BR2F,BR5F,BR10FHVRW1,HVRW2,HVRW3,HVRW4表面贴装系列高压二极管SP5L,SP5LG,SP5S,SP5SG小功率高压二极管R1200，R1500，R1800，R2000，R2500R3000，R4000，R5000，R6000，R8000R1200F，R1500F，R1800F，R2500F，R3000FR4000F，R5000F，R6000F，R8000FRX20Y，RX20T型被釉RX20Y，RX20T型被漆普通低频高压硅堆2CL20KV,2CL30KV,2CL40KV,2CL50KV,2CL80KV2CL100KV,2CL120KV,2CL150KV,2CL180KV2CL200KV,2CL250KV,2CL300KV,2CL350KV,2CL400KV (50MA)(20MA)(100MA)(200MA)(300MA)(500MA) 普通低频高压硅堆2CL5KV,2CL10KV,2CL20KV,2CL30KV2CL40KV，2CL50KV,2CL60KV,2CL80KV2CL90KV，2CL100KV，2CL120KV，2CL150KV2CL180KV,2CL200KV,2CL250KV2CL300KV(1.0A)(1.50A)(2.0A)(3.0A)(5.0A)半桥高压硅堆(20MA)QL20KV,QL30KV,QL40KV,QL50KV,QL80KVQL100KV,QL120KV,QL150KV,QL180KV,QL200KV特种高压硅堆桥3QL50KV/3.0A，3QL100KV/3.0A3QL40KV/10.0A，3QL40KV/20.0A0.1A-10A系列高压三相整流桥3QL100KV/0.1A，3QL30KV/0.2A3QL20KV/0.5A，3QL30KV/0.5A3QL30KV/1.0A，3QL20KV/5.0A2CL30KV-300KV/0.1A-5.0A系列高频高压整流硅堆(10-50K HZ) 2CLG30KV，2CLG50KV，2CLG60KV2CLG80KV，2CLG80KV，2CLG100KV2CLG150KV，2CLG200KV，2CLG200KV2CLG250KV，2CLG300KVHVP系列2X2CL15KV-20KV/1.0A-2.0A高压硅堆2X2CL15KV，2X2CL15KV，2X2CL15KV2X2CL20KV，2X2CL20KV，2X2CL20KVMZ模块型高压整流组件MV5KV/1.0A，MV15KV/1.0AMV5KV/3.0A，MV15KV/3.0A2CLZ50KV-180KV/0.1A-1.0A型高压整流组件2CLZ100KV，2CLZ150KV，2CLZ180KV2CLZ150KV，2CLZ120KV，2CLZ150KV2CLZ30KV，2CLZ50KV负离子与臭氧用倍压模块MV11-500V10mA-102,MV05-1KV10mA-102 MV09-3KV10mA-102,MV05-5KV10mA-102 MV05-5KV10mA-472,MV11-220V5mA-102静电喷涂与植绒机用倍压模块MV07-10KV10mA-102,MV07-20KV10mA-102 MV11-5KV10mA-680,MV11-10KV10mA-102 MV11-10KV100mA-472 高压电源模块MV06-5KV/10MA，MV06-5KV/20MAMV06-9KV/40MA，MV06-9KV/100MAMV10-10KV/1MA，MV10-20KV/5MA一般整流二极管IN4001,IN4002,IN4003,IN4004,IN4005 IN4006,IN4007,IN5391,IN5392,IN5393IN5394,IN5395,IN5396,IN5397,IN5398IN5399,RL201,RL202,RL203,RL204RL205,RL206,RL207,RL251,RL252RL253,RL254,RL255,RL256,RL257RL258,RL259,IN5400,IN5401,IN5402IN5403,IN5404,IN5405,IN5406IN5408,IN5501,IN5502,IN5503IN5504,IN5505,IN5506,IN55076A05,6A1,6A2,6A3,6A4,6A6,6A86A10,10A05,10A1,10A2,10A3,10A410A6,10A8,10A10,10A12,10A151N4001,1N4002,1N4003,1N4004,1N4005 1N4006,1N4007,1N5391,1N5392,1N53931N5394,1N5395,1N5396,1N5397,1N53981N5399,RL201,RL202,RL203,RL204RL205,RL206,RL207,RL251,RL252RL253,RL254,RL255,RL256,RL257RL258,RL259,1N5400,1N5401,1N54021N5403,1N5404,1N5405,1N54061N5408,1N5501,1N5502,1N55031N5504,1N5505,1N5506,1N5507快恢复整流二极管FR101,FR102,FR103,FR104,FR105FR106,FR107,IN4933,IN4934,IN4935IN4936,IN4937,FR151,FR152,FR153FR154,FR155,FR156,FR157,FR201FR202,FR203,FR204,FR205,FR206FR207,FR301,FR302,FR303 ,FR304 FR305,FR306,FR307,FR308,FR309FR601,FR602,FR603,FR604,FR605FR606,FR607,FR608,FR609,FR1001FR1002,FR1003,FR1004,FR1005FR1006,FR1007,FS1A,FS1B,FS1DFS1G,FS1J,FS1K,FS1M,FS2A,FS2B FS2D,FS2G,FS2J,FS2K,FS2M 高效整流二极管HER101,HER102,HER103,HER104HER105,HER106,HER107,HER108HER151,HER152,HER153,HER154HER155,HER156,HER157,HER158HER201,HER202,HER203,HER204HER205,HER206,HER207,HER208HER301,HER302,HER303,HER304HER305,HER306,HER307,HER308HER601,HER602,HER603,HER604HER605,HER606,HER607,HER608UF4001,UF4002,UF4003,UF4004UF4005,UF4006,UF4007,UF1501UF1502,UF1503,UF1504,UF1505UF1506,UF1507,UF5400,UF5401UF5402,UF5404,UF5405,UF5406UF5407,UF5408超高速整流二极管SF11,SF12,SF13,SF14,SF15,SF16SF17,SF18,SF19,SF21,SF22,SF23 SF24,SF25,SF26,SF27,SF28,SF29SF31,SF32,SF33,SF34,SF35,SF36 SF37,SF38,SF39,SF51,SF52,SF53 SF54,SF55,SF56,SF57,SF58,SF59 SF61肖特基二极管IN5817,IN5818,IN5819,SR120,SR130SR140,SR150,SR160,SR230,SR240SR250,SR260,SR320,SR330,SR340SR350,SR360,SR380,SR3100,IN5820IN5821,IN5822,SR510,SR520,SR530SR540,SR550,SR560,SR580,SR510011DQ04,11DQ06,11DQ08,11DQ1021DQ04,21DQ05,21DQ06,21DQ0721DQ08,21DQ09,21DQ10,31DQ0431DQ05,31DQ06,31DQ08,31DQ10双向触发二极管DB3,DC34,DB4,DB6桥式整流器(4.0A)KBL400，KBL401，KBL402，KBL404 KBL406，KBL408，KBL410，KBL412桥式整流器(6.0A)KBL600，KBL601，KBL602KBL603，KBL604，KBL604KBL606，KBL608，KBL610KBL612桥式整流器(8.0A)KBPC8005，KBPC801，KBPC802 KBPC804，KBPC806，KBPC808 KBPC8010，KBPC8012桥式整流器(10.0A)KBPC10005，KBPC1001，KBPC1002 KBPC1004，KBPC1006，KBPC1008 KBPC1010，KBPC1012桥式整流器(15.0A)KBPC15005，KBPC1501，KBPC1502 KBPC1503，KBPC1504KBPC1506 KBPC1508，KBPC1510，KBPC1512 桥式整流器(25.0A)KBPC25005，KBPC2501，KBPC2502 KBPC2504，KBPC2506，KBPC2508 KBPC2510，KBPC2512桥式整流器(35.0A)KBPC35005，KBPC3501，KBPC3502KBPC3504，KBPC3505，KBPC3506KBPC3508，KBPC3510，KBPC3512桥式整流器(50.0A)KBPC50005，KBPC5001，KBPC5002KBPC5004，KBPC5006，KBPC5008KBPC5010，KBPC50120.5W贴片稳压二极管ZMM55C2V4,ZMM55C2V7,ZMM55C3V0,ZMM55C3V3ZMM55C3V6,ZMM55C3V9,ZMM55C4V3,ZMM55C4V7ZMM55C5V1,ZMM55C5V6,ZMM55C6V2,ZMM55C6V8ZMM55C7V5,ZMM55C8V2,ZMM55C9V1,ZMM55C10ZMM55C11,ZMM55C12,ZMM55C13,ZMM55C15ZMM55C16,ZMM55C18,ZMM55C20,ZMM55C22ZMM55C24,ZMM55C27,ZMM55C30,ZMM55C33ZMM55C36,ZMM55C39,ZMM55C43,ZMM55C47ZMM55C51,ZMM55C56,ZMM55C62,ZMM55C68 ZMM55C750.5W直插稳压二极管IN5221B,IN5222B,IN5223B,IN5224BIN5225BIN5226B,IN5227B,IN5228B,IN5229B,IN5230BIN5231B,IN5232B,IN5233B,IN5234B,IN5235BIN5236B,IN5237B,IN5238B,IN5239B,IN5240BIN5241B,IN5242B,IN5243B,IN5244B,IN5245BIN5246B,IN5247B,IN5248B,IN5249B,IN5250BIN5251B,IN5252B,IN5253BIN5254B,IN5255BIN5256B,IN5257B,IN5258B,IN5259B,IN5260BIN5261B,IN5262B,IN5263B,IN5264B,IN5265BIN5266B,IN5267B,IN5268B,IN5269B,IN5270BIN5271B,IN5272B,IN5273B,IN5274B,IN5275BIN5276B,IN5277B,IN5278B,IN5279B1.0W稳压二极管IZ6.2A,IZ6.8A,IZ7.5A,IZ8.2A,IZ9.1AIZ10A,IZ11A,IZ12A,IZ13A,IZ15A,IZ16AIZ18A,IZ20A,IZ22A,IZ24A,IZ27A,IZ30AIZ33A,IZ36A,Z39A,IZ43A,IZ47A,IZ51AIZ68A,IZ75A,IZ82A,IZ100A,IZ110AIZ150A,IZ180A,IZ330A,IZ390A1W稳压二极管IN4728,IN4729,IN4730,IN4731IN4732,IN4733,IN4734,IN4735IN4736,IN4737,IN4738,IN4739IN4740,IN4741,IN4742,IN4743IN4744,IN4745,IN4746,IN4747IN4748,IN4749,IN4750,IN4751IN4752,IN4753,,IN4754,IN4755IN4756,IN4757,IN4758,IN4759IN4760,IN4761,IN4762,IN4763IN4764,IN4765,IN4766,IN4767IN4768,IN4769,IN4770,IN47711.5W稳压二极管BZY97C3.9V,BZY97C4.3V,BZY97C4.7V,BZY97C5.1V BZY97C5.6V,BZY97C6.2V,BZY97C6.8V,BZY97C7.5V BZY97C8.2V,BZY97C9.1V,BZY97C10V,BZY97C11V BZY97C12V,BZY97C13V,BZY97C15V,BZY97C16VBZY97C18V,BZY97C20V,BZY97C22V,BZY97C24V BZY97C27V,BZY97C30V,BZY97C33V,BZY97C36V BZY97C39V,BZY97C43V,BZY97C47V,BZY97C51V BZY97C56V,BZY97C62V,BZY97C68V,BZY97C75V BZY97C82V,BZY97C91V,BZY97C100V,BZY97C110V BZY97C120V,BZY97C130V,BZY97C150V,BZY97C160V BZY97C180V,BZY97C200V1.5W稳压二极管IN5921,IN5922,IN5923,IN5924,IN5925IN5926,IN5927,IN5928,IN5929,IN5930IN5931,IN5932,IN5933,IN5934,IN5935IN5936,IN5937,IN5938,IN5939,IN5940IN5941,IN5942,IN5943,IN5944,IN5945IN5946,IN5947,IN5948,IN5949,IN5950IN5951,IN59562W稳压二极管ZY6.8,ZY7.5,ZY8.2,ZY9.1,ZY10,ZY11ZY12,ZY13,ZY14,ZY15,ZY16,ZY17ZY18,ZY19,ZY20,ZY21,ZY22,ZY23ZY24,ZY27,ZY30,ZY33,ZY36,ZY39ZY43,ZY47,ZY51,ZY56,ZY62,ZY68ZY75,ZY82,ZY91,ZY100,ZY110ZY120,ZY130,ZY140,ZY150,ZY160ZY170,ZY180,ZY190,ZY2002W稳压二极管2EZ3.6D5,2EZ3.9D5,2EZ4.3D5,2EZ4.7D52EZ5.1D5,2EZ5.6D5,2EZ6.2D5,2EZ6.8D52EZ7.5D5,2EZ8.2D5,2EZ9.1D5,2EZ10D52EZ11D5,2EZ12D5,2EZ13D5,2EZ14D52EZ15D5,2EZ16D5,2EZ17D5,2EZ18D52EZ19D5,2EZ20D5,2EZ22D5,2EZ24D52EZ27D5,2EZ30D5,2EZ33D5,2EZ36D52EZ39D5,2EZ43D5,2EZ47D5,2EZ51D52EZ56D5,2EZ62D5,2EZ68D5,2EZ75D52EZ82D5,2EZ91D5,2EZ100D5,2EZ110D52EZ120D5,2EZ130D5,2EZ140D5,2EZ150D52EZ160D5,2EZ170D5,2EZ180D5,2EZ190D5 2EZ200D52.5W稳压二极管IN5016,IN5017,IN5018,IN5019,IN5020IN5021,IN5022,IN5023,IN5024,IN5025IN5026,IN5027,IN5028,IN5029,IN5030IN5031,IN5032,IN5033,IN5034,IN5035IN5036,IN5037,IN5038,IN5039,IN5040IN5041,IN5042,IN5043,IN5044,IN5045IN5046,IN5047,IN5048,IN5049,IN5050 IN50513.0W稳压二极管3EZ3.9D5,3EZ4.3D5,3EZ4.7D5,3EZ5.1D53EZ5.6D5,3EZ6.2D5,3EZ6.8D5,3EZ7.5D53EZ8.2D5,3EZ9.1D5,3EZ10D5,3EZ11D53EZ12D5,3EZ13D5,3EZ14D5,3EZ15D53EZ16D5,3EZ17D5,3EZ18D5,3EZ19D53EZ20D5,3EZ22D5,3EZ24D5,3EZ27D53EZ28D5,3EZ30D5,3EZ33D5,3EZ36D53EZ43D5,3EZ47D5,3EZ51D5,3EZ56D53EZ62D5,3EZ68D5,3EZ75D5,3EZ82D53EZ100D5,3EZ110D5,3EZ120D5,3EZ130D53EZ140D5,3EZ150D5,3EZ160D5,3EZ170D53EZ180D5,3EZ190D5,3EZ200D55W稳压二极管IN5333B,IN5334B,IN5335B,IN5336BIN5337B,IN5338B,IN5339B,IN5340BIN5341B,IN5342B,IN5343B,IN5344BIN5345B,IN5346B,IN5347B,IN5348BIN5349B,IN5350B,IN5351B,IN5352BIN5353B,IN5354B,IN5355B,IN5356BIN5357B,IN5358B,IN5359B,IN5360BIN5361B,IN5362B,IN5363B,IN5364BIN5365B,IN5366B,IN5367B,IN5368BIN5368B,IN5369B,IN5370B,IN5371BIN5372B,IN5373B,IN5374B,IN5375BIN5376B,IN5377B,IN5378B,IN5379BIN5380B,IN5381B,IN5382B,IN5383BIN5384B,IN5385B,IN5386B,IN5387BIN5388BSA5.0A,SA6.0A,SA6.5A,SA7.0A,SA7.5ASA8.0A,SA8.5A,SA9.0A,SA10A,SA11ASA12A,SA13A,SA15A,SA16A,SA18ASA20A,SA22A,SA24A,SA26A,SA28ASA30A.SA33A.SA36AP6KE6.8A,P6KE7.5A,P6KE8.2A,P6KE9.1AP6KE10A.P6KE11A.P6KE12A,P6KE13AP6KE15A,P6KE16A,P6KE18A,P6KE20AP6KE22A,P6KE24A,P6KE27A,P6KE30AP6KE33A,P6KE36A,P6KE39A,P6KE43AP6KE47A,P6KE51A,P6KE56A,P6KE62AP6KE68A,P6KE75A,P6KE82A,P6KE91AP6KE100A,P6KE110A,P6KE120A,P6KE130A P6KE150A,P6KE160A,P6KE170A,P6KE180AP6KE200A,P6KE220A,P6KE250A,P6KE270AP6KE300A,P6KE330A,P6KE350A,P6KE400AP4KE6.8A,P4KE7.5A,P4KE8.2A,P4KE9.1AP4KE10A,P4KE11A,P4KE12A,P4KE13AP4KE15A,P4KE16A,P4KE18A,P4KE20AP4KE22A,P4KE24A,P4KE27A,P4KE30AP4KE33A,P4KE36A,P4KE39A ,P4KE43AP4KE47A,P4KE51A,P4KE56A,P4KE75AP4KE82A,P4KE91A,P4KE100A,P4KE110AP4KE120A,P4KE130A,P4KE140A,P4KE150AP4KE160A,P4KE180A,P4KE200A,P4KE220AP4KE250A,P4KE270A,P4KE300A1.5KE6.8A,1.5KE7.5A,1.5KE8.2A,1.5KE9.1A1.5KE10A,1.5KE12A,1.5KE13A,1.5KE15A1.5KE16A,1.5KE18A,1.5KE20A,1.5KE22A1.5KE24A,1.5KE27A,1.5KE30A,1.5KE33A1.5KE36A,1.5KE39A,1.5KE43A,1.5KE47A1.5KE51A,1.5KE56A,1.5KE75A,1.5KE82A1.5KE91A,1.5KE100A,1.5KE110A,1.5KE120A1.5KE130A,1.5KE150A,1.5KE160A,1.5KE170A1.5KE180A,1.5KE200A,1.5KE220A,1.5KE250A1.5KE270A,1.5KE300A,1.5KE330A,1.5KE350A1.5KE400A,1.5KE440A5KP6.8A,5KP7.0A,5KP7.5A,5KP8.0A,5KP9.1A5KP10A,5KP11A,5KP12A,5KP13A,5KP15A,5KP18A5KP20A,5KP22A,5KP24A,5KP27A,5KP30A,5KP33A5KP36A,5KP39A,5KP43A,5KP47A,5KP51A,5KP56A5KP75A,5KP82A,5KP91A,5KP100A,5KP110A,5KP120A5KP130A,5KP150A,5KP160A,5KP170A,5KP180A,5KP200A 5KP220A,5KP250A,TED485,TED485A,RS485TVS二极管(贴片)SMAJ5.0A,SMAJ5.0CA,SMAJ6.0ASMAJ6.0CA,SMAJ6.5A,SMAJ6.5CASMAJ7.0A,SMAJ7.0CA,SMAJ7.5ASMAJ7.5CA,SMAJ8.0A,SMAJ8.0CASMAJ8.5A,SMAJ8.5CA,SMAJ9.0ASMAJ9.0CA,SMAJ10A,SMAJ10CASMAJ11A,SMAJ11CA,SMAJ12ASMAJ12CA,SMAJ13A,SMAJ13CASMAJ14A,SMAJ14CA,SMAJ15ASMAJ15CA,SMAJ16A,SMAJ16CASMAJ17A,SMAJ17CASMAJ18ASMAJ18CA,SMAJ20A,SMAJ20CASMAJ22A,SMAJ22CA,SMAJ24ASMAJ24CA,SMAJ26A,SMAJ26CASMAJ27A,SMAJ27CA,SMAJ28ASMAJ28CA,SMAJ30A,SMAJ30CASMAJ33A,SMAJ33CA,SMAJ36ASMAJ36CA,SMAJ40A,SMAJ40CASMAJ43A,SMAJ43CA,SMAJ45ASMAJ45CA,MAJ48A,SMAJ48CASMAJ51A,SMAJ51CA,SMAJ54ASMAJ54CA,SMAJ58CA,SMAJ60ASMAJ60CA,SMAJ64A,SMAJ64CASMAJ70A,SMAJ70CA,SMAJ75A SMAJ75CA,SMAJ78A,SMAJ78CA SMAJ85A,SMAJ85CA,SMAJ90A SMAJ90CA,SMAJ100A,SMAJ100CA SMAJ110A,SMAJ110CA,SMAJ120A SMAJ120CA,SMAJ130A,SMAJ130CA SMAJ150A,SMAJ150CA,SMAJ160A SMAJ160CA,SMAJ170A,SMAJ170CATVS(贴片600W)SMBJ5.0A,SMBJ5.0CA,SMBJ6.0ASMBJ6.0CA,SMBJ6.5A,SMBJ6.5CASMBJ7.0A,SMBJ7.0CA,SMBJ7.5ASMBJ7.5CA,SMBJ8.0A,SMBJ8.0CASMBJ8.5A,SMBJ8.5CA,SMBJ9.0A SMBJ10A,SMBJ10CA,SMBJ11A SMBJ11CA,SMBJ12A,SMBJ12CA SMBJ13A,SMBJ13CA,SMBJ14A SMBJ14CA,SMBJ15A,SMBJ15CA SMBJ16A,SMBJ16CA,SMBJ17A SMBJ17CA,SMBJ18A,SMBJ18CA SMBJ20A,SMBJ20CA,SMBJ22A SMBJ22CA,SMBJ24A,SMBJ24CA SMBJ26A,SMBJ26CA,SMBJ28A SMBJ28CA,SMBJ30A,SMBJ30CA SMBJ33A,SMBJ33CA,SMBJ36A SMBJ36CA,SMBJ40A,SMBJ40CA SMBJ43A,SMBJ43CA,SMBJ45A SMBJ45CA,SMBJ48A,SMBJ48CA SMBJ51A,SMBJ51CA,SMBJ54A SMBJ54CA,SMBJ58A,SMBJ58CA SMBJ60A,SMBJ60CA,SMBJ64A SMBJ64CA,SMBJ70A,SMBJ70CA SMBJ75A,SMBJ75CA,SMBJ78A SMBJ78CA,SMBJ85A,SMBJ85CA SMBJ90A,SMBJ90CA,SMBJ100A SMBJ100CA,SMBJ110A,SMBJ110CASMBJ120A,SMBJ120CA,SMBJ130ASMBJ130CA,SMBJ150A,SMBJ150CASMBJ160A,SMBJ160CA,SMBJ170ASMBJ170CA,SMBJ180A,SMBJ180CA SMBJ200A,SMBJ200CA TVS(1500W贴片)SMCJ5.0A,SMCJ5.0CA,SMCJ6.0ASMCJ6.0CA,SMCJ6.5A,SMCJ6.5CASMCJ7.0A,SMCJ7.0CASMCJ7.5ASMCJ7.5CA,SMCJ8.0A,SMCJ8.0CASMCJ8.5A,SMCJ8.5CA,SMCJ9.0ASMCJ9.0CA,SMCJ10A,SMCJ10CASMCJ11A,SMCJ11CA,SMCJ12ASMCJ12CA,SMCJ13A,SMCJ13CASMCJ14A,SMCJ14CA,SMCJ15ASMCJ15CA,SMCJ16A,SMCJ16CASMCJ17A,SMCJ17CA,SMCJ18ASMCJ18CA,SMCJ20A,SMCJ20CASMCJ22A,SMCJ22CA,SMCJ24ASMCJ24CA,SMCJ26,SMCJ26CASMCJ28A,SMCJ28CA,SMCJ30ASMCJ30CA,SMCJ33A,SMCJ33CASMCJ36A,SMCJ36CA,SMCJ40ASMCJ40CA,SMCJ43A,SMCJ43CASMCJ45A,SMCJ45CA,SMCJ48ASMCJ48CA,SMCJ51A,SMCJ51CASMCJ54A,SMCJ54CA,SMCJ58ASMCJ58CA,SMCJ60A,SMCJ60CASMCJ64A,SMCJ64CA,SMCJ70ASMCJ70CA,SMCJ75A,SMCJ75CASMCJ78A,SMCJ78CA,SMCJ85ASMCJ85CA,SMCJ90A,SMCJ90CASMCJ100A,SMCJ100CA,SMCJ110A SMCJ110CA，SMCJ120A，SMCJ120CA SMCJ130A，SMCJ130CA，SMCJ150A SMCJ150CA，SMCJ160ASMCJ160CA SMCJ170A，SMCJ170CA美国Raychem瑞侃PPTC自恢复保险丝RGE300，RGE400，RGE500，RGE600 RGE700，RGE900，RGE1100，RGE1200 RGE1400，RXE010，RXE017，RXE020 RXE025，RXE030，RXE040，RXE050 RXE065，RXE090，RXE110，RXE135 RXE160，RXE185，RXE250，RXE300 RXE375，RUE090，RUE110，RUE135 RUE160，RUE185，RUE250，RUE300 RUE400，RUE400，RUE500，RUE600RUE700，RUE800，RUE900，TVB230-050，TVB330-050，TVB280-050TR250-080U，TC250-120，TC250-120UTR250-120UT-B-0.5，TC250-110UTR250-120T，TC250-145，TR250-145UTR250-145，TR250-145-RA-B-0.5TC250-180，TR250-180U，TR600-150TR600-150-RA-B-0.5，TR600-150-RB-B-0.5 TR600-TS250-130，TS250-130RATS250-130-RB，TS250-130-RA-0.5BBR350，URSB075，URSB090，URSB110URSB120，URSB135，URSB160，URSB185 URSB250，SMD050，SMD075，SMD100SMD100-2018，SMD125，SMD150SMD200，SMD200-2018，SMD250SMD260，LTP070，LTP070S，LTP100LTP180，LTP180S，LTP190，LTP190R-ULTP260，LTP300，LTP310，LTP340LR4-190，LR4-190S，LR4-260，LR4-260SLR4-380，LR4-450，LR4-550，LR4-550LR4-600，LR4-600，LR4-730，VTR170VTR210G，VTR210S，VTR210L，microSMD005，microSMD035，microSMD050 microSMD075，microSMD110，microSMD150 microSMD014，microSMD020，microSMD050 microSMD075，microSMD110，microSMD125 microSMD150，microSMD200，microSMD260 miniSMDM075/24，miniSMDM110，miniSMDM160 miniSMDM200，miniSMDM260nanoSMDM050 nanoSMDM075，nanoSMDM100，nanoSMDM1JX010J，X017，JX020，JX025，JX030JX040，JX050，JX065，JX075，JX090JX110，JX135，JX160，JX185，JX250JX300，JX375，JU090，JU110，JU135JU160，JU185，JU250，JU300，JU400JU500，JU600，JU700，JU800，JU900JG300，JG400，JG500，JG600，JG700JG800，JG900，JG1000，JG1100，JG1200 JG1400，JV120，JV175，JV200，JV350JV420，JV170，JV190，JV260，JV380JV450，JV550，JV600，JV730，JV070LJV100L，JV180L，JV190L，JV260LJV300L，JV340L，JV170V，JV175VJV200V，JV210V，JV240V，JV170RJV175R，JV230R，RXE010，RXE017RXE020，RXE025，RXE030，RXE040RXE050，RXE065，RXE075，RXE090RXE110，RXE135，RXE160，RXE185RXE250，RXE300，RXE375，RUE090RUE110，RUE135，RUE160，RUE185RUE250，RUE300，RUE400，RUE500RUE600，RUE700，RUE800，RUE900RGE300，RGE400，RGE500，RGE600RGE700，RGE800，RGE900，RGE1000RGE1100，RGE1200，RGE1400，SRP120SRP175，SRP200，SRP350，SRP420LR4－170，LR4－190，LR4－260LR4－380，LR4－450，LR4－550LR4－600，LR4－730，LTP070MF－R185，MF－R250－0－10MF－R300，MF－R400，MF－R500MF－R600，MF－R700，MF－R800MF－R900，MF－RG300，MF－RG400MF－RG500，MF－RG600，MF－RG700MF－RG800，MF－RG900，MF－RG1000MF－RG1100，MF－RG1200，MF－RG1400MF－S120，MF－S175，MF－S200，MF－S350 MF－S420，MF－LR170，MF－LR190，MF－LR260，MF－LR380，MF－LR450MF－LR550，MF－LR600，MF－LR730MF－LS070HVM12HVM14HVM15。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
Transient Voltage Suppressors for ESD Protection
General Description
The LESD8D3.3CT5G is desi gned to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD
protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium.
Applications
z Cellular phones z Portable devices z Digital cameras z Power supplies
Features
z Small Body Outline Dimensions z Low Body Height z Peak Power up to 150 Watts @ 8 x 20 μs Pulse
z Low Leakage current z Response Time is Typically < 1 ns z ESD Rating of Class 3 (> 16 kV) per Human Body Model
Absolute Ratings (T amb =25°C )
Symbol
Parameter
Value
Units
P
PP Peak Pulse Power (t
p = 8/20s)μ
150 W T L Maximum lead temperature for soldering during 10s 260 °C
T stg Storage Temperature Range -55 to +155 °C T op Operating Temperature Range
-40 to +125
°C
T j
Maximum junction temperature 150 °C
IEC61000-4-2
(ESD) air discharge ±15
KV contact discharge ±8 IEC61000-4-4
(EFT) 40 A
ESD Voltage Per Human Body Model
16
KV
G SOD882
1
2
1
2
S-LESD8D3.3CT5G
LESD8D3.3CT5G
z S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable.
Electrical Parameter
Symbol Parameter
I PP
Maximum Reverse Peak Pulse
Current
V C Clamping Voltage @ I PP V RWM
Working Peak Reverse Voltage
I R
Maximum Reverse Leakage Current
@ V RWM
I T Test Current
V BR
Breakdown Voltage @ I T
Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA
V RWM (V) I R (uA) @ V RWM V BR (V)@ I T (Note 1) I T
V C (V) @ I PP =5 A*
V C (V) @ Max I PP *
I PP (A)*
P PK (W)*
C (pF)Device
Max Max Min mA
Typ
Max Max Max
Typ
3.3
1 5.0
1.0
8.4 14.111.2 15825
*Surge current waveform per Figure 1.
1. V BR is measured with a pulse test current I T at an ambient temperature of 25℃．
Fig1. Pulse Waveform Fig2.Power Derating Curve
LESD8D3.3CT5G
SOD882
DIMENSION OUTLINE:
Unit:mm。
