Catalytic hydrodenitrogenation of indole over molybdenum nitride and

合集下载

catalytic performance of novel hierachically porous material beta-MCM-48 for diesel hydrodesulfuriza

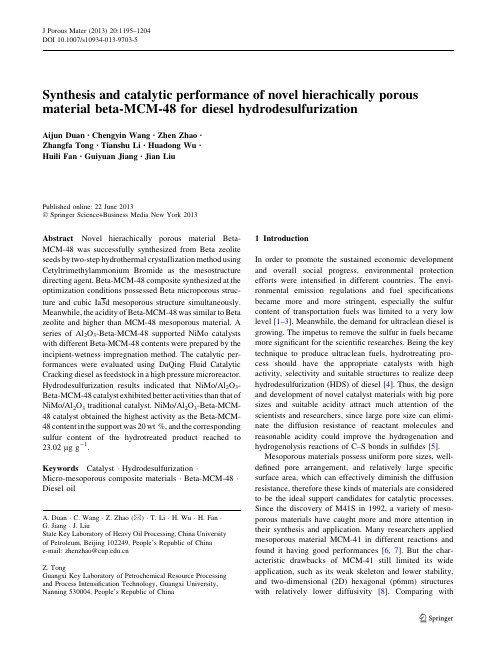

Synthesis and catalytic performance of novel hierachically porous material beta-MCM-48for diesel hydrodesulfurizationAijun Duan •Chengyin Wang •Zhen Zhao •Zhangfa Tong •Tianshu Li •Huadong Wu •Huili Fan •Guiyuan Jiang •Jian LiuPublished online:22June 2013ÓSpringer Science+Business Media New York 2013Abstract Novel hierachically porous material Beta-MCM-48was successfully synthesized from Beta zeolite seeds by two-step hydrothermal crystallization method using Cetyltrimethylammonium Bromide as the mesostructure directing agent.Beta-MCM-48composite synthesized at the optimization conditions possessed Beta microporous struc-ture and cubic Ia3d mesoporous structure simultaneously.Meanwhile,the acidity of Beta-MCM-48was similar to Beta zeolite and higher than MCM-48mesoporous material.A series of Al 2O 3-Beta-MCM-48supported NiMo catalysts with different Beta-MCM-48contents were prepared by the incipient-wetness impregnation method.The catalytic per-formances were evaluated using DaQing Fluid Catalytic Cracking diesel as feedstock in a high pressure microreactor.Hydrodesulfurization results indicated that NiMo/Al 2O 3-Beta-MCM-48catalyst exhibited better activities than that of NiMo/Al 2O 3traditional catalyst.NiMo/Al 2O 3-Beta-MCM-48catalyst obtained the highest activity as the Beta-MCM-48content in the support was 20wt %,and the corresponding sulfur content of the hydrotreated product reached to 23.02l g g -1.Keywords Catalyst ÁHydrodesulfurization ÁMicro-mesoporous composite materials ÁBeta-MCM-48ÁDiesel oil1IntroductionIn order to promote the sustained economic development and overall social progress,environmental protection efforts were intensiﬁed in different countries.The envi-ronmental emission regulations and fuel speciﬁcations became more and more stringent,especially the sulfur content of transportation fuels was limited to a very low level [1–3].Meanwhile,the demand for ultraclean diesel is growing.The impetus to remove the sulfur in fuels became more signiﬁcant for the scientiﬁc researches.Being the key technique to produce ultraclean fuels,hydrotreating pro-cess should have the appropriate catalysts with high activity,selectivity and suitable structures to realize deep hydrodesulfurization (HDS)of diesel [4].Thus,the design and development of novel catalyst materials with big pore sizes and suitable acidity attract much attention of the scientists and researchers,since large pore size can elimi-nate the diffusion resistance of reactant molecules and reasonable acidity could improve the hydrogenation and hydrogenolysis reactions of C–S bonds in sulﬁdes [5].Mesoporous materials possess uniform pore sizes,well-deﬁned pore arrangement,and relatively large speciﬁc surface area,which can effectively diminish the diffusion resistance,therefore these kinds of materials are considered to be the ideal support candidates for catalytic processes.Since the discovery of M41S in 1992,a variety of meso-porous materials have caught more and more attention in their synthesis and application.Many researchers applied mesoporous material MCM-41in different reactions and found it having good performances [6,7].But the char-acteristic drawbacks of MCM-41still limited its wide application,such as its weak skeleton and lower stability,and two-dimensional (2D)hexagonal (p6mm)structures with relatively lower diffusivity [8].Comparing withA.Duan ÁC.Wang ÁZ.Zhao (&)ÁT.Li ÁH.Wu ÁH.Fan ÁG.Jiang ÁJ.LiuState Key Laboratory of Heavy Oil Processing,China University of Petroleum,Beijing 102249,People’s Republic of China e-mail:zhenzhao@Z.TongGuangxi Key Laboratory of Petrochemical Resource Processing and Process Intensiﬁcation Technology,Guangxi University,Nanning 530004,People’s Republic of ChinaJ Porous Mater (2013)20:1195–1204DOI 10.1007/s10934-013-9703-5MCM-41,mesoporous material MCM-48exhibits three-dimensional(3D)cubic Ia3d mesostructure which facili-tates the diffusion of large sulfur-bearing molecules throughout the pore channels without pore blockage[9,10]. Thus the suitable properties make MCM-48a potential use for hydrotreating catalysts[11].Although mesoporous materials with larger pore diam-eters will be beneﬁcial to overcome the diffusion con-straints of large reactant molecules,their acidity and hydrothermal stability are still very low compared with the conventional supports,which are related to their amor-phous frameworks and limit their wide use in the catalytic processes.Many measures have been considered to improve the acidity and stability of mesoporous materials, and the synthesis of micro-mesoporous composite materi-als[12–14]is one of the efﬁcient ways to adjust their physico-chemical properties since the incorporation of microporous zeolite into the conﬁguration of micro-meso-porous materials will signiﬁcantly contribute to modify the surface properties and interphase strength of the compos-ites.Many types of micro-mesoporous materials were synthesized by different methods involving the one-step and two-step hydrothermal crystallization methods with single or double template agents,postsynthesis treatments, and nonaqueous synthesis[15–17].Ooi and his coworkers[18]synthesized Beta-MCM-41 composite material by two-step crystallization method,and the composite material showed a good catalytic performance in palm oil cracking reaction.Xiao and his groups[19] synthesized mesoporous MAS-3and MAS-8aluminosili-cates using Cetyltrimethylammonium Bromide(CTAB)as template from L zeolite precursor,and the results showed that the walls of these two materials contained the structural units of L zeolite.Pinnavaia et al.[20–22]prepared the hexagonal Al-MSU-S mesoporous materials from the zeo-lite seeds of Y,Beta and ZSM-5via self-assembly method. Mazaj[23]prepared an aluminium-free Ti-Beta-SBA-15 composite through the post-synthesis incipient wet deposi-tion of Ti-Beta nanoparticles solution on the SBA-15matrix.Lima and his cooperators[24]synthesized a micro-mesoporous Beta-TUD-1composite material via seeding method,which was an effective catalyst for conversion of xylose into furfural.In this paper,a novel Beta-MCM-48hierachically por-ous composite was successfully synthesized from Beta zeolite seeds by two-step hydrothermal crystallization method using CTAB as the mesostructure directing agent. Al2O3-Beta-MCM-48supported NiMo bimetallic catalysts were also prepared.The catalytic performances were studied by using DaQing Fluid Catalytic Cracking(FCC) diesel.The physicochemical properties of materials and catalysts were characterized by various techniques.2Material and method2.1MaterialsCetyltrimethylammonium bromide(99%,CTAB)and tetraethyl orthosilicate(99%,TEOS)were purchased from Sigma-Aldrich.Tetraethylammonium hydroxide solution (25%,TEAOH)were purchased from Hangzhou Yanshan Chemical Reagent Co.Ltd,NaOH(AR grade),and Na-AlO2(AR grade)were purchased from Sinopharm Chemi-cal Reagent Co.Ltd,People’s Republic of China.All reagents were used as received without further puriﬁcation.2.2Preparation of composite materials2.2.1Synthesis of beta nanocluster solutionTypical synthesis procedure of Beta nanocluster solution was as follows:0.19g of NaOH,0.23g of NaAlO2,and21.43g of TEOS were added into25.95g of TEAOH aqueous solu-tion(25%),and the mixture molar ratio of Al2O3/SiO2/ Na2O/TEAOH/H2O was 1.0/100/1.4/15/360,then the mixture was kept stirring for4h at room temperature before being transferred into an autoclave to age for12h at 140°C to obtain zeolite Beta nanocluster solution.2.2.2Synthesis of MCM-48MCM-48was synthesized by using CTAB as structure directing agent according to the literature[25].A typical synthesis procedure was as follows: 1.90g NaOH and 12.754g CTAB was dissolved in101g of H2O,the mixture was then kept stirring for1h.Finally,21.43g TEOS (containing6g SiO2)was added dropwise and kept stir-ring,the molar ratio of mixture was SiO2/CTAB/NaOH/ H2O=1/0.35/0.476/56;the mixture was stirred at room temperature for6h and then was transferred into an auto-clave for additional reaction at100°C for72h.The product of MCM-48was collected byﬁltration,dried at100°C,and calcined at550°C in air for6h to remove the template.2.2.3Synthesis of beta-MCM-48compositesFor syntheses of the Beta-MCM-48composites(denoted as BM48),0.89g NaOH and4.89g CTAB was dissolved in adequate H2O,the mixture was then kept stirring for1h until CTAB was dissolved thoroughly.Finally,36g zeolite nanocluster(equivalent to the SiO2containing of6g)was added and kept stirring,then acetic acid was used to adjust pH value of the mixture solution until reached to11. The molar ratios of mixture were Al2O3/SiO2/CTAB/H2O=1/100/13/11300.The mixture was stirred at room temperature for6h and then transferred into an autoclave for additional hydrothermal treatment at110°C for48h. The product of BM48was obtained by means ofﬁltration, dried at110°C,and calcined at550°C in air for6h to remove the templates.2.2.4Preparation of H-BM48The protonated form of BM48was ion-exchanged two times with1.0M NH4Cl at80°C for1h before being dried and calcined at550°C in air for4h.2.3Preparation of supportsThe corresponding supports were obtained by mechanical mixing of BM48and Al2O3.The supports were denoted as Al2O3-BM48-x%,where x represents different mass fractions of BM48in composite supports.2.4Preparation of NiMo supported catalystsThe Al2O3-BM48and Al2O3supported NiMo catalysts were prepared by two-step incipient-wetness impregnation method with aqueous solutions of ammonium heptamo-lybdate and nickel nitrate.After each impregnation step,the prepared catalyst precursors were dispersed in an ultra sonic bath for30min to assist the dispersion of active metals on the surface of composite supports.The prepared samples were dried at 110°C for12h,and calcined at550°C for4h.The supported catalysts were obtained with the constant amounts of Mo(MoO310wt%)and Ni(NiO3.5wt%).2.5Characterization of supports and catalystsNitrogen adsorption and desorption measurements were performed at liquid nitrogen temperature of-196°C on a Micromeritics ASAP2020system.The samples were outgassed under vacuum at350°C for4h prior to mea-surement.Total surface area was calculated according to the BET method.Meso-and micropore volumes were determined by the BJH and t-plot methods(desorption).Powder X-ray diffraction(XRD)patterns were recorded on an XRD-6000powder diffractometer under40kV and 30mA in the2h interval of5°–50°with a step size of0.02°and scan rate of1°min-1using Cu K a radiation.Transmission electron microscopy(TEM)was per-formed on a Philips Tecnai G2F20equipment with an accelerating voltage of300kV.A few mg of the powdered samples was suspended in2ml ethanol,and the suspension was treated in a sonicator for1h.Then,the suspension needed to be settled for15min,before a drop was taken and dispersed on a300mesh copper grid coated with holey carbonﬁlm.FT-IR spectra were obtained in the wave number range from1,750–400cm-1via an FTS-3000spectrophotometer. The measured wafer was prepared with the weight ratio of sample to KBr for1/100.The nature of acid sites of the materials was tested by pyridine-adsorbed Fourier transformed infrared spectros-copy(Py-FTIR)experiments using a MAGNAIR560FTIR instrument(Nicolet Co.,America)with a resolution of 1cm-1,The samples were dehydrated at500°C for5h under a vacuum of1.33910-3Pa,followed by adsorp-tion of puriﬁed pyridine vapor at room temperature for 20min.The system was then degassed and evacuated at different temperatures,and the IR spectra were recorded.H2-TPR was tested on a self-assembly instrument with a TCD detector.For the TPR experiments,the samples were pretreated in situ at550°C for1h and then cooled down to room temperature under Ar stream.The reduction step was performed with an H2/Ar mixture(10v%Ar)at a constant ﬂow rate of40mL min-1with a heating rate of 10°C min-1from room temperature to1,000°C.27Al MAS NMR spectra were recorded with a Bruker Avanced III500MHz spectrometer.The27Al spectra were obtained at130.327MHz with a0.9l s pulse width,6l s delay time and12kHz spinning speed.3Experimental procedureThe HDS performances of FCC diesel were evaluated in a ﬁxed-bed inconel reactor with2g catalysts.All the cata-lysts were presulﬁded by2wt%CS2-cyclohexane and H2 mixture for4h at the temperature of320°C and the pressure of4MPa.After catalyst presulfurization,the catalyst was evaluated under the traditionally commercial conditions with temperature of350°C,the pressure of 5.0MPa,H2/oil ratio of600mL mL-1and LHSV of 1.0h-1.Then the catalytic HDS performance of different catalysts could be evaluated for their desulfurization efﬁ-ciencies of diesel.The typical properties of diesel were listed in Table1.The total sulfur contents in the feed and products were measured by using a LC-4coulometric sulfur analyzer system.The catalytic activity was estimated by HDS efﬁ-ciency,which is deﬁned as follows:HDS%efﬁ-ciency=[(S f-S p)/S f]9100%;where S f and S p are the sulfur concentrations in feed and product respectively.4Results and discussion4.1The effect of synthesis conditions for structureof materials4.1.1The effect of H2O/SiO2The amount of water used in the initial synthesis system can signiﬁcantly affect the silica framework,and H2O/SiO2 ratio was an important factor on the material structure[26, 27].In this paper,the effect of H2O content was investi-gated with molar gel composition of Al2O3/SiO2/CTAB/ H2O=1/100/13/7300-13300.XRD proﬁles of the as-synthesized samples are depicted in Fig.1a.It’s observed that when H2O/SiO2ratio was73,the synthesized material was not well-ordered;as the H2O/SiO2ratio increased to 93,MCM-41formed;further increased of H2O/SiO2ratio to113,well-ordered cubic MCM-48structure was found, indicating that the formation of long-range order of cubic Ia3d structure of MCM-48was motivated by higher H2O/ SiO2.While H2O/SiO2ratio exceeded133,the ordering degree decreased.This may be related to that if the H2O/ SiO2ratio was low,high SiO2concentration could lead to a rapid polymerization of the silicate species,and the incomplete hydrolysis resulted in linear chain formation with residual organic groups[26].This would weaken the electrostatic interaction between silicon-aluminum aggre-gate and micelles which was the necessary impetus to the assembly of mesoporous material according to the poly-merization-assembly-arranging speculation[28],so the ordering degree would decrease.Oppositely,at higher molar ratio of H2O/SiO2,the hydrolysis proceeded faster, while the polymerization and condensation of the silicate species took place too slow,which could also decrease the ordering degree of mesoporous material.4.1.2The effect of CTAB/SiO2The inﬂuence of CTAB concentration was investigated with molar gel composition of Al2O3/SiO2/CTAB/H2O=1/100/ x/11300,where x=6,13,20and27.XRD proﬁles of the ﬁnal samples are shown in Fig.1b.It was observed that when the CTAB concentration was low,XRD pattern showed the typical peaks of the hexagonal MCM-41struc-ture;by increasing the CTAB/SiO2ratio from0.13to0.20,XRD patterns showed the characteristic peaks assigned to the reﬂections of the cubic structure between3and5°indicating the formation of well-ordered cubic MCM-48. When the CTAB concentration further increased to0.27,the structure of lamellar phase was observed.The phase transitions from hexagonal to cubic and lamellar mesophases as the increase of CTAB/SiO2ratio may be attributed to that the system couldn’t form enough micelles to direct mesoporous structure effectively at low CTAB con-centration.On this occasion,parts of negative ions could convert into amorphous aluminosilicates,which resulted in the decrease of ordering degree.Oppositely,high contents of CTAB produced more CTA?cations,furthermore,based on the charge density matching principle,the correspondingly charge density of inorganic negative anions increased,leading to a higher accumulation of surfactants,which inhibited the efﬁcient assembly and regular array of silicon-aluminum aggregate to form mesoporous conﬁgurations[29,30].4.1.3Inﬂuence of pH of the gelThe inﬂuence of pH value was investigated with molar gel composition of Al2O3/SiO2/CTAB/H2O=1/100/13/11300. Corresponding XRD proﬁles were depicted in Fig.1c.It can be observed that when pH value was10,well-ordered cubic MCM-48formed;if pH values of the system were too high or too low both do harm to the formation of MCM-48. Meanwhile,the polymerization/depolymerization equilib-rium of the silicate species maintained well at the pH value of10.However,as pH increased,silicon-aluminum aggre-gate would exist in the form of monomer with high charge density,in which the depolymerization effect was weak, resulting in the decrease of ordering degree.When pH became lower,the excessive depolymerization effect led to the decrease of charge density of silicon-aluminum aggre-gate.This could restrain the necessary electrostatic interac-tion between silicon-aluminum aggregate and micelles in process of assembling mesoporous material,which was also disadvantageous to the ordering degree of materials[31,32].4.1.4Inﬂuence of SiO2/Al2O3of beta precursorThe inﬂuence of SiO2/Al2O3was investigated with molar gel composition of Al2O3/SiO2/CTAB/H2O=x/100/13/ 11300.XRD proﬁles of theﬁnal samples are depicted inTable1The typical properties of diesel feedstockProperties Density@20°C(g cm-3)S(l g g-1)N(l g g-1)Distillation/°CIBP30%50%70%FBPData0.87981,290920158212238279374Fig.1d.It can be observed that as the SiO2/Al2O3of beta precursor increased,the crystallinity of mesoporous material increased,when the SiO2/Al2O3=100,the crystallinity was the highest.Oppositively,the intensity of Beta diffraction peak became lower with the increase of SiO2/Al2O3ratio.Brieﬂy,high SiO2/Al2O3ratio favored for the assembly of mesopore structure,but was unfavorable to the synthesis of microspore Beta zeolite [33].This might be explained by that,as SiO2/Al2O3 decreased,the hydrolytic action of aluminum became increased,so the pH value of system decreased and lower pH value could result in the inhibition of the necessary electrostatic interaction between silicon-aluminum aggregate and micells,which was bad to form an order material.Based on the above discussion,BM48microporous-mesoporous material could be synthesized at the optimal conditions of Al2O3/SiO2/CTAB/H2O=1/100/13/11300; pH=10;crystallized at110°C for3d.The optimized sample of BM48was characterized by many techniques to obtain the typical physico-chemical property,involving its structure and acid distribution.Furthermore,BM48was used as the catalyst additive to prepare NiMo bimetallic supported hydrotreating catalyst and the corresponding HDS performance was evaluated in a microreactor.4.2Characterizations of materials4.2.1XRD analysis of materialsFigure2is XRD of the synthesized samples.As shown in Fig.2a,the XRD patterns in the range of small angles of the MCM-48sample displayed a distinct diffraction sharp peak indexed as(211);simultaneously,a peak indexed as (220)and a series of overlapping peaks indexed as(321) (400),(420)and(332)also appeared.It clearly indicated that MCM-48had a well-ordered mesoporous structure which belonged to the bicontinuous cubic space group of Ia3d[29].According to the location of(211),the unit cell parameter a0of MCM-48was7.78nm.The diffraction peaks of BM48sample in Fig.2agreed well with those of MCM-48sample,indicating that it also had a typical cubic mesoporous structure.The peak intensities of BM48were relatively lower than those of MCM-48,which might be ascribed to that zeolite nanoclusters with bigger crystal sizes were more difﬁcult to be assembled by the meso-structure directing agent[34].The large angle X-ray diffraction patterns of samples are shown in Fig.2b.It’s observed that both BM48and Beta zeolite showed very intensive diffraction peaks at7.6°and 22.4°indexed as the characteristic peaks of zeolite Beta[35],which meant that BM48material had the microporous structure of Beta zeolite.The peak intensities of BM48were comparatively weaker since the crystallization time of Beta nanocluster emulsion was shorter than that of Beta zeolite. However,the pure MCM-48exhibited no sharp peak in the high angle diffraction pattern.Brieﬂy,it’s concluded that BM48was a hierachically porous composite containing MCM-48and Beta zeolite structures all in one.4.2.2N2adsorption analysis of materialsFigure3a shows N2adsorption–desorption isotherms of different materials.Obviously,the isotherm of zeolite Beta belonged to the typical type I,while both of MCM-48and BM48showed the type IV isotherm and H1-type hysteresis loop,indicating that they both had mesoporous structure [36].The hysteresis loop of BM48was lower,but more sharper than that of MCM-48,indicating BM48a very narrow range of pore size distribution(PSD).Figure3b shows PSD curve of materials,the pore size distribution of materials showed a binary pore pattern,while the existence of the pore size value of2.4nm which was ascribed to mesoporous pore of particles and the pore size value of3.8nm was attributed to the pore between particles, it’s obvious that MCM-48and BM48both showed these two types pores in PSD,indicating that the structure of BM48 held the characteristics of mesoporous MCM-48.On the contrary,Beta showed the characteristics of microporous zeolite and no ordered mesopore structure was found in its PSD.However,in comparison with pure mesoporous material of MCM-48,BM48micro-mesoporous material showed a narrow PSD and the mean pore size was2.3nm, which was a little smaller than that of MCM-48.Table2shows the textural and structural properties of materials calculated form adsorption isotherm.As shown in Table2,both BM48and MCM-48exhibited high surface areas,even higher than that of Beta.Due to the contribution of Beta zeolite,BM48had relatively higher V mic/V mes than MCM-48.Moreover,compared with MCM-48,BM48had a wider pore diameter and thicker pore wall,which might be derived from the assembling of the zeolite primary unit into the mesoporous framework of MCM-48[8].4.2.3FT-IR spectra result of materialsFigure4shows the FT-IR spectra of materials.As is shown, in the spectrum of MCM-48,the bands centered at*460, 810and1,030cm-1,which belonged to the vibrations of Si–O–Si[37],were observed.The framework vibration spectrum of BM48was similar to that of MCM-48,indicatingthat BM48had similar skeletal structure as MCM-48.However,other two distinct bands at 520and 570cm -1,which could be assigned to the six-and ﬁve-member rings presented in the structure of zeolite Beta [35],were observed in the FT-IR spectra of BM48and Beta.But the intensities of bands in BM48were much lower than those of MCM-48,which agreed with the results of XRD and TEM analysis.This result indicated that there was some Beta zeolite precursors assembled in the BM48material.4.2.4TEM characterizations of materialsTEM images of materials are shown in Fig.5.It can be seen that MCM-48showed well ordered cubic 3D meso-porous channels [26].According to the scale of image,the pore of 2–3nm was clearly visible,in coincident with the results of N 2adsorption and XRD analysis.Similar to the channels of MCM-48,BM48possessed a typical Ia3d cubic structure.The average sizes of beta in BM48were about 5nm.The wall thickness of BM48was much lessthan 5nm,thus these Beta micro-crystal particles couldn’t be introduced into the wall conﬁguration of BM48but existed as single nanoparticles.Therefore,it could also be deduced that only Beta precursor units existed in the wall framework of BM48.4.2.527Al MAS NMR measurementFigure 6was the 27Al MAS NMR spectra of materials.As is shown,the spectrum of MCM-48only contained a peak at *54ppm,which was generally ascribed to aluminum species in tetrahedral surroundings (AlO 4structural unit)situated in the framework [27].However,the spectra of zeolite Beta and BM48displayed two sharp peaks at *54and 0ppm.The signal at 0ppm was assigned to the octahedrally coordinated non-framework aluminum species (AlO 6structural unit).It’s observed that the distribution of chemical shift of tetrahedral aluminum in Al-MCM-48was broad,indicating that the Al coordination surrounding was composite,and the signal at 0ppm was very weak,dem-onstrating that only tetrahedral aluminum species existed in Al-MCM-48.The distributions of chemical shift of tetra-hedral aluminum in BM48and Beta were concentrated,and the intensities of peak were very strong.Meanwhile,both spectra of BM48and Beta showed weak signal at 0ppm.In brief,the aluminum coordination surrounding of BM48was similar to that of Beta,therefore,it is possible to deduce that some Al species in zeolite Beta nanocrystals were ﬁxed into BM48framework.4.2.6Pyridine-FTIR of materialTable 3lists the acid strength distributions and the acid quantity of the samples was calculated from the results of pyridine-adsorbed IR spectra degassed at 200and 350°C.The peaks at 1,446and 1,577cm -1were attributed to pyridine adsorbed on L acid sites,and the peak atTable 2Textural properties of different materials Samples S BET (m 2g -1)a V t (cm 3g -1)b V mes (cm 3g -1)c V mic (cm 3g -1)d V mic /V mes a 0(nm)e d BJH (nm)f b w (nm)g MCM-48928.70.740.760.340.457.3 2.5 1.3BM48907.50.660.580.450.788.5 2.2 1.6Beta 5020.34–0.22–––Al 2O 3206.80.48a Surface area was calculated by the BET method with a relative pressure (P/P 0)range of 0.05–0.30in the adsorption isothermb The total pore volume was obtained at a relative pressure (P/P 0)of 0.98c Mesopore volumed Micropore volumee XRD unit cell parameter (a 0)f d BJH is the mesopore diametergb w is the wall thickness,the thickness of the mesoporous materials were evaluated using the formula t =[1-(V p q )/(1?V p q )](a 0/x 0),where V p is the pore volume,q is the density of the pore wall (2.2g/cm 3),a 0is the unit cell parameter,and x 0is a constant (3.0919)1,546cm -1was assigned to pyridine adsorbed onto B acidsites,while the peak at 1,490cm -1was ascribed to pyri-dine adsorbed onto both B and L acid sites.The results showed that BM48possessed much larger amounts of total acidity,especially higher amounts of medium and strong acid sites than MCM-48,and the acidity level was similar to that of Beta.4.3Catalytic activityHDS performances of NiMo series catalysts for FCC diesel are shown in Fig.7.Obviously,the addition of BM48tothe catalyst support could improve the hydrotreating per-formances under the same traditional conditions,and the evaluation results proved that the catalyst of NiMo/Al 2O 3-BM48–20%with 20wt%BM48in the support exhibited the highest HDS conversion,which could reach 98.1%,Meanwhile,all the relative catalytic activities of catalysts were much better than that of traditional NiMo/Al 2O 3supported catalyst(96.7%).The highest catalytic activities of NiMo/Al 2O 3-BM48-20%catalyst might be attributed to the following reasons:(1)the proper introduction of BM48could increase the speciﬁc surface area and total pore volume of the catalysts,which were beneﬁcial to the higher dispersion of active metals.However,the average pore diameters decreased with the BM48amount increased,drastic shrinkage of pore diameter was harmful to the diffusion of large molecules such as the steric hindered alkyl-substituted DBTs [38].Therefore,the introductionofFig.5TEM images of MCM-48and BM48Table 3Amounts of Bro¨nsted and Lewis acid sites determined by pyridine-FTIR of the catalysts Samples200°C/l mol g -1350°C/l mol g -1LB L ?B L B L ?B BM48231.0100331.0226.2100.0226.2MCM-48186.90186.975.0075.0Beta252.3145.1397.4247.6128.5376.1Degassed temperatures at 200and 350°C represented the amounts of total and strong acid sites respectivelyNote :L and B stands for Lewis and Bro¨nsted acid。
