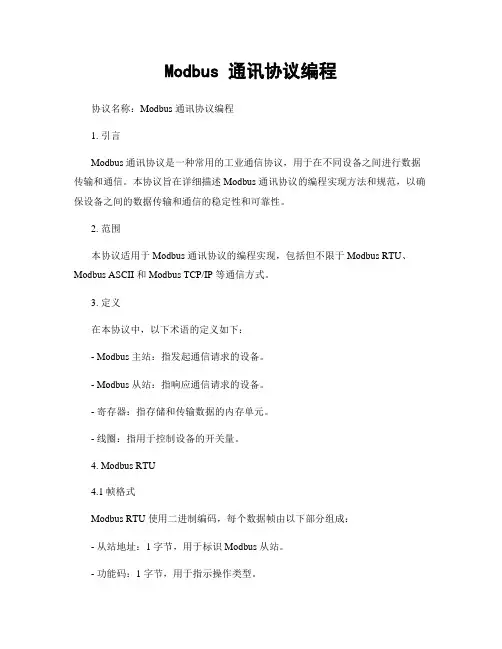

Modbus 通讯协议编程

Modbus 通讯协议编程协议名称：Modbus 通讯协议编程1. 引言Modbus 通讯协议是一种常用的工业通信协议，用于在不同设备之间进行数据传输和通信。

本协议旨在详细描述 Modbus 通讯协议的编程实现方法和规范，以确保设备之间的数据传输和通信的稳定性和可靠性。

2. 范围本协议适用于 Modbus 通讯协议的编程实现，包括但不限于 Modbus RTU、Modbus ASCII 和 Modbus TCP/IP 等通信方式。

3. 定义在本协议中，以下术语的定义如下：- Modbus 主站：指发起通信请求的设备。

- Modbus 从站：指响应通信请求的设备。

- 寄存器：指存储和传输数据的内存单元。

- 线圈：指用于控制设备的开关量。

4. Modbus RTU4.1 帧格式Modbus RTU 使用二进制编码，每个数据帧由以下部分组成：- 从站地址：1 字节，用于标识 Modbus 从站。

- 功能码：1 字节，用于指示操作类型。

- 数据：n 字节，根据功能码的不同而变化。

- CRC 校验：2 字节，用于校验数据的完整性。

4.2 功能码Modbus RTU 支持以下功能码：- 读取线圈状态（功能码 01）：用于读取线圈的状态。

- 读取输入状态（功能码 02）：用于读取输入状态。

- 读取保持寄存器（功能码 03）：用于读取保持寄存器的值。

- 读取输入寄存器（功能码 04）：用于读取输入寄存器的值。

- 强制单线圈（功能码 05）：用于设置线圈的状态。

- 写单个保持寄存器（功能码 06）：用于设置保持寄存器的值。

- 写多个线圈（功能码 15）：用于设置多个线圈的状态。

- 写多个保持寄存器（功能码 16）：用于设置多个保持寄存器的值。

5. Modbus ASCII5.1 帧格式Modbus ASCII 使用 ASCII 编码，每个数据帧由以下部分组成：- 起始符号（冒号）：1 字节。

- 从站地址：2 字节，用于标识 Modbus 从站。

Modbus 通讯协议编程

Modbus 通讯协议编程协议名称：Modbus 通讯协议编程一、引言Modbus 通讯协议是一种用于工业自动化领域的通信协议，常用于连接不同设备之间的数据交换。

本协议旨在规范Modbus通讯协议的编程实现，确保各种设备之间的数据传输准确、可靠和高效。

二、协议版本本协议基于Modbus通讯协议的最新版本进行编程实现，目前版本为Modbus协议v2.0。

三、通讯方式1. Modbus RTUModbus RTU是一种串行通讯方式，使用二进制编码进行数据传输。

通讯速率可根据实际需求进行配置，常见的包括9600bps、19200bps、38400bps等。

2. Modbus ASCIIModbus ASCII是一种基于ASCII码的串行通讯方式，使用可见字符进行数据传输。

通讯速率可根据实际需求进行配置，常见的包括9600bps、19200bps、38400bps等。

3. Modbus TCP/IPModbus TCP/IP是一种基于以太网的通讯方式，使用TCP/IP协议进行数据传输。

通讯速率可根据实际需求进行配置，常见的包括10Mbps、100Mbps、1000Mbps等。

四、数据格式1. Modbus RTU 数据格式Modbus RTU 数据帧由起始符、地址、功能码、数据、CRC校验码组成。

具体格式如下：起始符：1个字节，固定为0xFF。

地址：1个字节，表示设备地址。

功能码：1个字节，表示读取或者写入数据的功能。

数据：根据功能码的不同，数据长度可变。

CRC校验码：2个字节，用于检验数据帧的完整性。

2. Modbus ASCII 数据格式Modbus ASCII 数据帧由起始符、地址、功能码、数据、LRC校验码组成。

具体格式如下：起始符：1个字符，固定为冒号（:）。

地址：2个字符，表示设备地址。

功能码：2个字符，表示读取或者写入数据的功能。

数据：根据功能码的不同，数据长度可变。

LRC校验码：2个字符，用于检验数据帧的完整性。

基于MODBUS协议的串行通讯例程(VB)

基于MODBUS协议的串行通讯例程（VB）'可通过MODBUS协议获取：主电压、电流、运行状态、DIP开关设置、硬接线状态、统计数据等；'并可通过MODBUS协议控制：启动、急停、软停、双重参数调节、慢速正/反转、节能等；'本例程为通过通讯获取软启动器当前运行状态'编制：董斌 dbboss@Private Const Read_Coil_Status = &H1Private Const Read_Input_Status = &H2Private Const Read_Holding_Registers = &H3Private Const Read_Input_Registers = &H4Private Const Force_Single_Coil = &H5Private Const Single_Registers = &H6Private Const Diagnostics = &H8Private Const Force_Multiple_Coil = &HFPrivate Const Force_Multiple_Register = &H10Public Function CRC16(data() As Byte) As tCRCDim CRC16Hi As ByteDim CRC16Lo As ByteDim Result As tCRCCRC16Hi = &HFFCRC16Lo = &HFFDim i As IntegerDim iIndex As LongFor i = 0 To UBound(data)iIndex = CRC16Lo Xor data(i)CRC16Lo = CRC16Hi Xor GetCRCLo(iIndex) '低位处理CRC16Hi = GetCRCHi(iIndex) '高位处理Next iWith Result.bytLow = CRC16Lo 'CRC低位.bytHigh = CRC16Hi 'CRC高位End WithCRC16 = ResultEnd Function'CRC低位字节值表Private Function GetCRCLo(Ind As Long) As ByteGetCRCLo = Choose(Ind + 1, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80, &H41, &H1, &HC0, &H80, &H41, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80 , &H41, &H0, &HC1, &H81, &H40, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80 , &H41, &H1, &HC0, &H80, &H41, &H0, &HC1, &H81, &H40, &H0, &HC1, &H81 , &H40, &H1, &HC0, &H80, &H41, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80 , &H41, &H1, &HC0, &H80, &H41, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80 , &H41, &H0, &HC1, &H81, &H40, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80 , &H41, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80, &H41, &H1, &HC0, &H80 , &H41, &H0, &HC1, &H81, &H40, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80 , &H41, &H1, &HC0, &H80, &H41, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80 , &H41, &H0, &HC1, &H81, &H40, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80 , &H41, &H1, &HC0, _&H80, &H41, &H0, &HC1, &H81, &H40, &H0, &HC1, &H81, &H40, &H1, &H C0, &H80, &H41, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80, &H41, &H1, &H C0, &H80, &H41, &H0, &HC1, &H81, &H40, &H0, &HC1, &H81, &H40, &H1, &H C0, &H80, &H41, &H1, &HC0, &H80, &H41, &H0, &HC1, &H81, &H40, &H1, &H C0, &H80, &H41, &H0, &HC1, &H81, &H40, &H0, &HC1, &H81, &H40, &H1, &H C0, &H80, &H41, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80, &H41, &H1, &H C0, &H80, &H41, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80, &H41, &H0, &H C1, &H81, &H40, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80, &H41, &H1, &H C0, &H80, &H41, &H0, &HC1, &H81, &H40, &H0, &HC1, &H81, &H40, &H1, &H C0, &H80, &H41, &H0, &HC1, &H81, &H40, &H1, &HC0, &H80, &H41, &H1, &H C0, &H80, &H41, &H0, &HC1, &H81, &H40)End Function'CRC高位字节值表Private Function GetCRCHi(Ind As Long) As ByteGetCRCHi = Choose(Ind + 1, &H0, &HC0, &HC1, &H1, &HC3, &H3, &H2, &HC2, &HC6, &H6, &H7, &HC7, &H5, &HC5, &HC4, &H4, &HCC, &HC, &HD, &HC D, &HF, &HCF, &HCE, &HE, &HA, &HCA, &HCB, &HB, &HC9, &H9, &H8, &HC8, &HD8, &H18, &H19, &HD9, &H1B, &HDB, &HDA, &H1A, &H1E, &HDE, &HDF, &H1 F, &HDD, &H1D, &H1C, &HDC, &H14, &HD4, &HD5, &H15, &HD7, &H17, &H16, &HD6, &HD2, &H12, &H13, &HD3, &H11, &HD1, &HD0, &H10, &HF0, &H30, &H3 1, &HF1, &H33, &HF3, &HF2, &H32, &H36, &HF6, &HF7, &H37, &HF5, &H35, &H34, &HF4, &H3C, &HFC, &HFD, &H3D, &HFF, &H3F, &H3E, &HFE, &HFA, &H3 A, &H3B, &HFB, &H39, &HF9, &HF8, &H38, &H28, &HE8, &HE9, &H29, &HEB, &H2B, &H2A, &HEA, &HEE, &H2E, &H2F, &HEF, &H2D, &HED, &HEC, &H2C, &HE 4, &H24, &H25, &HE5, &H27, &HE7, &HE6, &H26, &H22, &HE2, &HE3, &H23, &HE1, &H21, &H20, &HE0, &HA0, &H60, _&H61, &HA1, &H63, &HA3, &HA2, &H62, &H66, &HA6, &HA7, &H67, &HA5, &H65, &H64, &HA4, &H6C, &HAC, &HAD, &H6D, &HAF, &H6F, &H6E, &HAE, &H AA, &H6A, &H6B, &HAB, &H69, &HA9, &HA8, &H68, &H78, &HB8, &HB9, &H79, &HBB, &H7B, &H7A, &HBA, &HBE, &H7E, &H7F, &HBF, &H7D, &HBD, &HBC, &H 7C, &HB4, &H74, &H75, &HB5, &H77, &HB7, &HB6, &H76, &H72, &HB2, &HB3, &H73, &HB1, &H71, &H70, &HB0, &H50, &H90, &H91, &H51, &H93, &H53, &H52, &H92, &H96, &H56, &H57, &H97, &H55, &H95, &H94, &H54, &H9C, &H5C, &H5D, &H9D, &H5F, &H9F, &H9E, &H5E, &H5A, &H9A, &H9B, &H5B, &H99, &H 59, &H58, &H98, &H88, &H48, &H49, &H89, &H4B, &H8B, &H8A, &H4A, &H4E, &H8E, &H8F, &H4F, &H8D, &H4D, &H4C, &H8C, &H44, &H84, &H85, &H45, &H 87, &H47, &H46, &H86, &H82, &H42, &H43, &H83, &H41, &H81, &H80, &H40) End FunctionPublic Function Get_Logic_Status(objRS485_Comm As MSComm, nSerialLink As Byte, _tTimeOut As Double) As tLogic_Status'取软启动器逻辑状态Dim CRC As tCRC, blnTimeOut As BooleanDim outByte() As Byte, T As Double, inByte() As Long, i As Long, r As IntegerDim inChr As String, wStatus As Long, Result As tLogic_StatusReDim outByte(0 To 5) As ByteoutByte(0) = nSerialLink '从设备号outByte(1) = Read_Input_Registers '功能调用号outByte(2) = &H0 '数据所在开始地址(高字节)outByte(3) = &H0 '数据所在开始地址(低字节)outByte(4) = &H0 '读取数据个数（高字节）outByte(5) = &H1 '读取数据个数（低字节）CRC = CRC16(outByte()) '计算CRCReDim Preserve outByte(0 To 7) As ByteWith CRCoutByte(6) = .bytLowoutByte(7) = .bytHighEnd WithobjRS485_Comm.InBufferCount = 0 '清通讯口输入缓存区objRS485_Comm.Output = outByte '输出DoDoEventsLoop Until objRS485_Comm.OutBufferCount = 0 '输出直至完毕T = TimerDoIf Timer - T > tTimeOut Then '超时？blnTimeOut = TrueEnd IfLoop Until (objRS485_Comm.InBufferCount >= 7) Or blnTimeOut '超时或接收数据长度〉7时结束接收If objRS485_Comm.InBufferCount > 0 Then '处理接收数据objRS485_Comm.InputLen = 1i = 0DoinChr = objRS485_Comm.InputReDim Preserve inByte(0 To i) As LonginByte(i) = AscB(inChr)i = i + 1Loop Until objRS485_Comm.InBufferCount = 0wStatus = CLng(inByte(3) * 256) + inByte(4)With Result.blnInsulation = wStatus And &H40& '绝缘报警.blnMotorRunningSlowSpeedReverse = wStatus And &H80& '慢速反转.blnMotorRunningSlowSpeedForward = wStatus And &H100& '慢速正转.blnMotorRunningEnergySaveON = wStatus And &H200& '节能.blnDualAdjON = wStatus And &H400& '双重参数调节.blnMotorRunning = wStatus And &H800& '电机运行.blnMotorStartProcess = wStatus And &H1000& '电机起动过程中.blnMotorSoftStopProcess = wStatus And &H2000& ’电机软停过程中.blnMotorStopped = wStatus And &H4000& ‘电机停止.blnTripped = wStatus And &H8000& ‘跳闸End WithGet_Logic_Status = ResultEnd IfobjRS485_Comm.InBufferCount = 0End Function‘本程序在Windows9x/2k/xp vb6.0 下调试通过。

VB控件Mscomm控件与PLC进行RS485(Modbus)通讯源码

'<<算法>>
Dim CRC_2() As Byte
Dim v As Integer
ReDim CRC_2(K)
For v = 0 To K
CRC_2(v) = Val("&H" & Text1(v).Text)
Next
'==================================================================================================
'
'Next
'Label35.Caption = Str(Val(Asc(Mid(tmp, 6, 1))) / 10)
'
'
' tmp = Mid$(tmp, 6, 4)
'
'
' Dim strHex As String
' Dim Hex2Dec As Long
' Dim strTmp As String
'a = 0
'tmp = 0
'
'
'
' Do While Len(tmp) < 8
'
' tmp = tmp + MSComm1.Input
' testNO.Caption = testNO.Caption + " " + Str(Hex(Asc(tmp)))
' a = a + 1
' If a >= 3000 Then

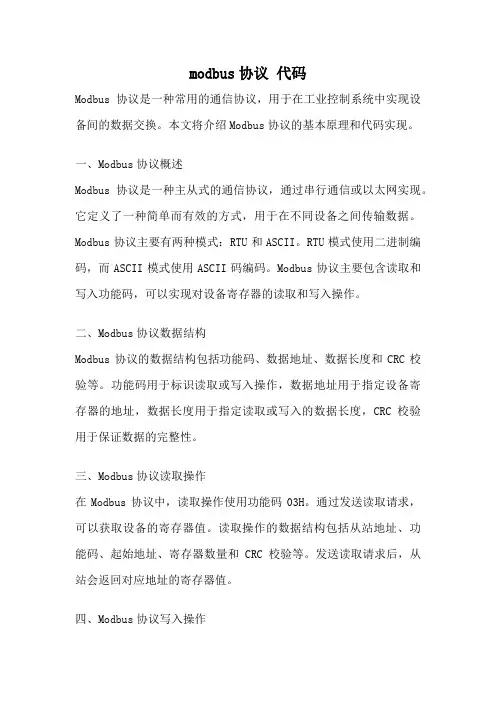

modbus协议代码

modbus协议代码Modbus协议是一种常用的通信协议，用于在工业控制系统中实现设备间的数据交换。

本文将介绍Modbus协议的基本原理和代码实现。

一、Modbus协议概述Modbus协议是一种主从式的通信协议，通过串行通信或以太网实现。

它定义了一种简单而有效的方式，用于在不同设备之间传输数据。

Modbus协议主要有两种模式：RTU和ASCII。

RTU模式使用二进制编码，而ASCII模式使用ASCII码编码。

Modbus协议主要包含读取和写入功能码，可以实现对设备寄存器的读取和写入操作。

二、Modbus协议数据结构Modbus协议的数据结构包括功能码、数据地址、数据长度和CRC校验等。

功能码用于标识读取或写入操作，数据地址用于指定设备寄存器的地址，数据长度用于指定读取或写入的数据长度，CRC校验用于保证数据的完整性。

三、Modbus协议读取操作在Modbus协议中，读取操作使用功能码03H。

通过发送读取请求，可以获取设备的寄存器值。

读取操作的数据结构包括从站地址、功能码、起始地址、寄存器数量和CRC校验等。

发送读取请求后，从站会返回对应地址的寄存器值。

四、Modbus协议写入操作在Modbus协议中，写入操作使用功能码06H或10H。

通过发送写入请求，可以向设备的寄存器写入数据。

写入操作的数据结构包括从站地址、功能码、数据地址、写入数据和CRC校验等。

发送写入请求后，从站会将数据写入对应地址的寄存器。

五、Modbus协议代码实现以下是使用Python语言实现Modbus协议读取操作的代码示例：```pythonimport serialimport struct# 创建串口对象ser = serial.Serial('COM1', 9600, timeout=0.5)# 读取寄存器的函数def read_registers(slave_addr, reg_addr, reg_num):# 构造读取请求request = struct.pack('>BBHH', slave_addr, 0x03, reg_addr, reg_num)# 发送请求并接收响应ser.write(request)response = ser.read(5 + 2 * reg_num)# 解析响应数据values = struct.unpack('>' + 'H' * reg_num, response[3:-2])return values# 读取从站地址为1，起始地址为0，寄存器数量为5的寄存器值values = read_registers(1, 0, 5)print(values)```以上代码示例中，首先创建了一个串口对象并打开COM1端口。

MODBUS vb实现

Private Sub btnSend_Click(Index As Integer)Select Case IndexCase 0 '03命令测试' MsgBox (cmbSlId(0).Text)Label9.Caption = CommandQuery03(cmbSlId(0).Text, Val(cmbRegAdd(0).Text) - 1, cmbDataType(0).Text)lblSlaveStatus(0).Caption = "读从机，等待！"Case 1 '16命令测试If Not IsNumeric(txtWriteData.Text) ThenMsgBox ("请输入数据！")txtSend(1).Text = ""txtSend(1).SetFocusExit SubEnd IftxtSend(1).Text = CommandQuery16(cmbSlId(1).Text, Val(cmbRegAdd(1).Text), cmbDataType(1).Text, txtWriteData.Text)lblSlaveStatus(1).Caption = "写从机,等待响应"txtReceive(1).Text = ""Case 2 '08命令测试If Not IsNumeric(txtDignoseAsk.Text) ThenMsgBox ("请输入数据！")txtSend(2).Text = ""txtDignoseAsk.Text = ""txtDignoseAsk.SetFocusExit SubEnd IftxtSend(2).Text = CommandQuery08(cmbSlId(2).Text, cmbDataType(2).Text, txtDignoseAsk.Text)lblSlaveStatus(2).Caption = "诊断从机,等待响应"txtReceive(2).Text = ""txtDignoseBack.Text = ""Case ElseEnd SelectEnd SubPrivate Sub Command1_Click()On Error Resume NextSetPortWith MSComm1If .PortOpen = True Then.PortOpen = FalseCommand1.Caption = "打开串口"Shape1.FillColor = &HFF&Label11.Caption = "串口已关闭"Label6.Caption = "串口状态：关闭"ElseCommand1.Caption = "关闭串口".PortOpen = TrueLabel6.Caption = "串口状态：打开"Shape1.FillColor = &HC000&Label11.Caption = "串口已打开"If Err.Number <> 0 ThenLabel11.Caption = "串口已使用"Err.ClearEnd IfEnd IfEnd With'MsgBox (MSComm1.PortOpen)End SubPrivate Sub SetPort()Dim curPortOpen As BooleanDim intCommPort As IntegerDim strCheckBit As StringDim strSettings As StringDim i As IntegerSelect Case Combo1.TextCase "COM1"intCommPort = 1Case "COM2"intCommPort = 2Case "COM3"intCommPort = 3Case "COM4"intCommPort = 4Case "COM5"intCommPort = 5Case "COM6"intCommPort = 6Case "COM7"intCommPort = 7Case "COM8"intCommPort = 8Case "COM9"intCommPort = 9Case ElseintCommPort = 1End SelectSelect Case Combo2.TextCase "NONE"strCheckBit = "n"Case "EVEN"strCheckBit = "e"Case "ODD"strCheckBit = "o"Case ElsestrCheckBit = "n"End Select'9600,n,8,1strSettings = Combo4.Text & "," & strCheckBit & "," & Combo5.Text & "," & Combo3.Text curPortOpen = MSComm1.PortOpenmPort = intCommPortMSComm1.Settings = strSettingsIf (Command1.Caption = "打开连接") ThenShape1.FillColor = &HFF&MSComm1.PortOpen = TrueCommand1.Caption = "关闭连接"ElseIf (MSComm1.PortOpen = True) ThenMSComm1.PortOpen = FalseEnd IfEnd IfEnd SubPrivate Sub MSComm1_Click()End SubPrivate Sub Form_Load()Combo5.AddItem (8)Combo5.AddItem (7)Combo3.AddItem (1)Combo3.AddItem (2)Dim i As IntegercmbDataType(0).AddItem ("16位整数")cmbDataType(0).AddItem ("32位整数")cmbDataType(0).AddItem ("64位整数")cmbDataType(0).AddItem ("32位浮点型")For i = 1 To 255cmbSlId(0).AddItem (i)Next icmbSlId(0).Text = 1cmbDataType(0).Text = "16位整数"For m = 1 To 1000cmbRegAdd(0).AddItem (m)Next mcmbRegAdd(0).Text = 100End SubPublic Function CommandQuery03(strSlaveAdd As String, strBeginAdd As String, strDataType As String) As StringDim longCRC As LongDim i As IntegerDim strQuery As StringbyteModbusQurey(0) = strSlaveAdd 'Slave AddbyteModbusQurey(1) = 3 'FunctionbyteModbusQurey(2) = 0 'RegAddHibyteModbusQurey(3) = strBeginAdd 'RegAddLobyteModbusQurey(4) = 0 'RegNumHiSelect Case strDataType 'RegNumLoCase "16位整数"byteModbusQurey(5) = 1Case "32位整数"byteModbusQurey(5) = 2Case "64位整数"byteModbusQurey(5) = 4Case "32位浮点数"byteModbusQurey(5) = 2Case ElsebyteModbusQurey(5) = 1'cmbDataType(0).Text = "16位整数"End SelectlongCRC = CRC16(byteModbusQurey, 6)byteModbusQurey(6) = (longCRC And &HFF00) \ 256 'CRCHibyteModbusQurey(7) = longCRC And &HFF 'CRCLostrQuery = ""For i = 0 To 7strQuery = strQuery + ByteDataToString(byteModbusQurey(i)) + " "Next iCommandQuery03 = strQueryintQueryNum = 8Call SendCommand(byteModbusQurey, intQueryNum)'lblSlaveStatus(0).Caption = "读取从机,等待响应"End Function'****************************************************************************** ********************************'Private Function CommandQuery16(strSlaveAdd As String, strBeginAdd As String, strDataType As String,cryWriteData as currency) As String'功能: 16号命令'参数: 无'返回: 无'修改历史:'****************************************************************************** ********************************Public Function CommandQuery16(strSlaveAdd As String, strBeginAdd As String, strDataType As String, strWriteData As String) As StringDim longCRC As LongDim i As IntegerDim strQuery As StringDim byteByteData() As ByteDim cryData As CurrencyDim intByteDataLength As IntegerDim byteTmp(1) As BytebyteModbusQurey(0) = strSlaveAdd 'Slave AddbyteModbusQurey(1) = 16 'FunctionbyteModbusQurey(2) = 0 'RegAddHibyteModbusQurey(3) = strBeginAdd 'RegAddLobyteModbusQurey(4) = 0 'RegNumHiSelect Case strDataType 'RegNumLoCase "16位整数"byteModbusQurey(5) = 1Case "32位整数"byteModbusQurey(5) = 2Case "64位整数"byteModbusQurey(5) = 4Case "32位浮点数"byteModbusQurey(5) = 2Case ElsebyteModbusQurey(5) = 1cmbDataType(1).Text = "16位整数"End SelectbyteModbusQurey(6) = byteModbusQurey(5) * 2 'ByteNumcryData = strWriteDatabyteByteData = DataToByteArray(cryData, strDataType)'按字倒序intByteDataLength = UBound(byteByteData) + 1For i = 0 To intByteDataLength \ 2 - 1 Step 2byteTmp(0) = byteByteData(i)byteTmp(1) = byteByteData(i + 1)byteByteData(i) = byteByteData(intByteDataLength - 2 - i)byteByteData(i + 1) = byteByteData(intByteDataLength - 2 + 1 - i)byteByteData(intByteDataLength - 2 - i) = byteTmp(0)byteByteData(intByteDataLength - 2 + 1 - i) = byteTmp(1)Next i'写入的数据加入请求数组For i = 0 To intByteDataLength - 1byteModbusQurey(7 + i) = byteByteData(i)Next ilongCRC = CRC16(byteModbusQurey, 7 + byteModbusQurey(6))byteModbusQurey(7 + byteModbusQurey(6)) = (longCRC And &HFF00) \ 256 'CRCHibyteModbusQurey(8 + byteModbusQurey(6)) = longCRC And &HFF'CRCLostrQuery = ""For i = 0 To 8 + byteModbusQurey(6)strQuery = strQuery + ByteDataToString(byteModbusQurey(i)) + " "Next iCommandQuery16 = strQueryintQueryNum = 9 + byteModbusQurey(6)Call SendCommand(byteModbusQurey, intQueryNum)End Function'****************************************************************************** ********************************'Private Function CommandQuery08(strSlaveAdd As String, strDataType As String, cryDignoseData As Currency) As String'功能: 08号命令'参数: 无'返回: 无'修改历史:'****************************************************************************** ********************************Public Function CommandQuery08(strSlaveAdd As String, strDataType As String, cryDignoseData As Currency) As StringDim longCRC As LongDim i As IntegerDim strQuery As StringDim byteByteData() As ByteDim cryData As CurrencyDim intByteDataLength As IntegerDim byteTmp(1) As BytebyteModbusQurey(0) = strSlaveAdd 'Slave AddbyteModbusQurey(1) = 8 'FunctionbyteModbusQurey(2) = 0 'Subfunction HibyteModbusQurey(3) = 0 'Subfunction LocryData = cryDignoseDatabyteByteData = DataToByteArray(cryData, strDataType)byteModbusQurey(4) = byteByteData(0)byteModbusQurey(5) = byteByteData(1)longCRC = CRC16(byteModbusQurey, 6)byteModbusQurey(6) = (longCRC And &HFF00) \ 256 'CRCHibyteModbusQurey(7) = longCRC And &HFF 'CRCLostrQuery = ""For i = 0 To 7strQuery = strQuery + ByteDataToString(byteModbusQurey(i)) + " "Next iCommandQuery08 = strQueryintQueryNum = 8Call SendCommand(byteModbusQurey, intQueryNum)End FunctionPublic Function CRC16(data() As Byte, length As Integer) As Long Dim i As Integer, j As IntegerDim Bit As BooleanDim Temp As ByteDim CRC As LongDim Generator As LongCRC = 65535Generator = 40961For i = 0 To length - 1Temp = data(i)CRC = CRC Xor TempFor j = 1 To 8Bit = CRC And 1CRC = CRC \ 2If Bit = True ThenCRC = CRC Xor GeneratorEnd IfNext jNext iCRC16 = CRC \ 256CRC = (CRC - CRC16 * 256) * 256CRC16 = CRC + CRC16End FunctionPublic Function ByteDataToString(data As Byte) As StringDim OutString As StringDim datahi As ByteDim datalo As Bytedatahi = data \ 16datalo = data And &HFSelect Case datahiCase 0OutString = "0"Case 1OutString = "1"Case 2OutString = "2"Case 3OutString = "3"Case 4OutString = "4"Case 5OutString = "5"Case 6OutString = "6"Case 7OutString = "7"Case 8OutString = "8"Case 9OutString = "9"Case 10OutString = "A"Case 11OutString = "B"Case 12OutString = "C"Case 13OutString = "D"Case 14OutString = "E"Case 15OutString = "F"Case ElseOutString = "0"End SelectSelect Case dataloCase 0OutString = OutString + "0" Case 1OutString = OutString + "1" Case 2OutString = OutString + "2" Case 3OutString = OutString + "3" Case 4OutString = OutString + "4" Case 5OutString = OutString + "5" Case 6OutString = OutString + "6"Case 7OutString = OutString + "7"Case 8OutString = OutString + "8"Case 9OutString = OutString + "9"Case 10OutString = OutString + "A"Case 11OutString = OutString + "B"Case 12OutString = OutString + "C"Case 13OutString = OutString + "D"Case 14OutString = OutString + "E"Case 15OutString = OutString + "F"Case ElseOutString = OutString + "0"End SelectByteDataToString = OutStringEnd FunctionPublic Sub SendCommand(byteQueryArr() As Byte, length As Integer) Dim byteQ() As ByteDim i As IntegerReDim byteQ(length) As ByteFor i = 0 To length - 1byteQ(i) = byteQueryArr(i)Next iIf MSComm1.PortOpen = True ThenMSComm1.OutBufferCount = 0 '清空发送缓冲区MSComm1.Output = byteQintResponseNum = 0MSComm1.InBufferCount = 0 '清空接收缓冲区MSComm1.RThreshold = 1'等待接收数据timerReceiveTimeOut.Interval = 3000 '三秒无数据报错误timerReceiveTimeOut.Enabled = True '启动定时器End IfEnd SubPublic Sub delay(ms As Integer)Dim Savetime As DoubleSavetime = timeGetTime '记下开始时的时间While timeGetTime < Savetime + ms '循环等待DoEvents '转让控制权，以便让操作系统处理其它的事件。

Modbus 通讯协议编程

Modbus 通讯协议编程协议名称：Modbus 通讯协议编程一、引言Modbus 通讯协议是一种常用于工业自动化领域的通信协议，用于在不同设备之间进行数据传输和通信。

本协议旨在规范Modbus通信协议的编程实施，确保设备之间的数据交换和通信的准确性和稳定性。

二、协议版本本协议基于Modbus协议版本1.0进行编程实施。

三、通信方式1. Modbus RTU通信方式：- 通信速率：9600 bps- 数据位：8位- 停止位：1位- 奇偶校验：无校验2. Modbus ASCII通信方式：- 通信速率：9600 bps- 数据位：7位- 停止位：1位- 奇偶校验：偶校验四、数据帧格式1. Modbus RTU数据帧格式：- 起始位：1位- 设备地址：1位- 功能码：1位- 数据：n位- CRC校验：16位- 结束位：1位2. Modbus ASCII数据帧格式：- 起始符：1位冒号（:）- 设备地址：2位十六进制数- 功能码：2位十六进制数- 数据：n位十六进制数- LRC校验：2位十六进制数- 结束符：2位回车换行符（\r\n）五、通信功能码1. 读取线圈状态（读取线圈开关状态）：- 功能码：01H- 请求数据长度：4字节2. 读取输入状态（读取输入开关状态）： - 功能码：02H- 请求数据长度：4字节- 响应数据长度：n字节3. 读取保持寄存器（读取设备内部数据）： - 功能码：03H- 请求数据长度：4字节- 响应数据长度：n字节4. 读取输入寄存器（读取设备输入数据）： - 功能码：04H- 请求数据长度：4字节- 响应数据长度：n字节5. 写单个线圈（控制单个线圈开关状态）： - 功能码：05H- 请求数据长度：4字节- 响应数据长度：4字节6. 写单个寄存器（写入设备内部数据）： - 功能码：06H- 响应数据长度：4字节7. 强制多个线圈（控制多个线圈开关状态）：- 功能码：0FH- 请求数据长度：n字节- 响应数据长度：4字节8. 写多个寄存器（写入设备内部数据）：- 功能码：10H- 请求数据长度：n字节- 响应数据长度：4字节六、通信流程1. 主机向从机发送请求数据帧。

用VB实现Modbus串行通讯

如何用VB实现Modbus串行通讯在一些应用中可能需要使用诸如VB来进行上位机监控程序的开发，而Modbus协议是这类应用中首选的通讯协议；Modbus协议以其简单易用，在工业领域里已广泛的为其他第三方设备所支持。

这里对VB和Twido PLC间的通讯进行说明。

对于大部分应用，Twido PLC作为从站，它不需要编制通讯程序，只要把通讯口的参数设置好即可，例如下图表示此Twido通过编程口和上位机连接，其站号地址为2；波特率、数据位、校验、停止位和上位机设置保持一致。

VB程序通过利用MSComm控件很容易就能够实现。

1．通讯口初始化：MSComm1.Settings = "9600,n,8,1"mPort = 1MSComm1.SThreshold = 0If Not MSComm1.PortOpen Then MSComm1.PortOpen = True2．CRC校验码的计算方法，如以下函数，可以得到字节数组变量cmdstring指向的字符串的CRC校验码。

Function crc16_1(ByRef cmdstring() As Byte, ByVal j As Integer)Dim data As IntegerDim i As IntegerAddressreg_crc = &HFFFFFor i = 0 To jAddressreg_crc = Addressreg_crc Xor cmdstring(i)For j = 0 To 7data = Addressreg_crc And &H1If data ThenAddressreg_crc = Int(Addressreg_crc / 2)Addressreg_crc = Addressreg_crc And &H7FFFAddressreg_crc = Addressreg_crc Xor &HA001ElseAddressreg_crc = Addressreg_crc / 2Addressreg_crc = Addressreg_crc And &H7FFFEnd IfNext jNext iIf Addressreg_crc < 0 ThenAddressreg_crc = Addressreg_crc - &HFFFF0000End IfHiByte = Addressreg_crc And &HFFLoByte = (Addressreg_crc And &HFF00) / &H100End Function3．读多个字的命令（本例是从2号站读%MW10起始的4个字）：Dim SendStr(7) As ByteDim RcvStr() As ByteSendStr(0) = 2 ,从站号是2SendStr(1) = &H3 ,读多个字的命令代码SendStr(2) = 0 ,起始地址高字节SendStr(3) = 10,起始地址低字节SendStr(4) = &H0,数据长度高字节SendStr(5) = 4 ,数据长度低字节Call crc16(SendStr(), 5) ,CRC计算SendStr(6) = HiByteSendStr(7) = LoByte,读命令发送后,当接收5 + SendStr(5) * 2 个字节时产生中断CmdLenth = 5 + SendStr(5) * 2MSComm1.RThreshold = CmdLenthMSComm1.Output = SendStr ,发送命令4．写多个字的命令（本例是写2号站%MW20起始的3个字）：Dim WriteStr() As Bytek = 6 ,写6个字节ReDim WriteStr(8 + k)WriteStr(0) = 2 ,从站号是2WriteStr(1) = &H10 ,写多个字的命令代码WriteStr(2) = 0 ,起始地址高字节WriteStr(3) = 20 ,起始地址低字节WriteStr(4) = &H0 ,数据长度高字节<字的个数> WriteStr(5) = k / 2 ,数据长度低字节<字的个数>WriteStr(6) = k ,数据长度<字节的个数> WriteStr(7) = &H12,写的第1个字的高字节WriteStr(8) = &H34,写的第1个字的低字节WriteStr(9) = &H56,写的第2个字的高字节WriteStr(10) = &H78,写的第2个字的低字节WriteStr(11) = &H9A,写的第3个字的高字节WriteStr(12) = &HBC,写的第3个字的低字节Call crc16(WriteStr(), 6 + k)WriteStr(9 + (k / 2 - 1) * 2) = HiByteWriteStr(10 + (k / 2 - 1) * 2) = LoByteMSComm1.InBufferCount = 0MSComm1.Output = WriteStr,写命令发送后,当接收到8个字节时中断CmdLenth = 8MSComm1.RThreshold = CmdLenth5．通讯事件中断产生时的数据处理：Private Sub MSComm1_OnComm()Dim inx() As ByteSelect Case mEventCase comEvReceive ,判断为接收事件MSComm1.InputLen = CmdLenth ,接收数据的长度inx = MSComm1.Input ,接收数据MSComm1.InBufferCount = 0For k = 3 To CmdLenth - 3tmpstr = tmpstr & "/" & Hex(inx(k))NextText1.Text = tmpstr ,以十六进制显示所接收长度的数据BeepEnd SelectEnd Sub。
