第3章 Multisim7高级分析方法
确定扫描起始值、终止值及增量步长
确定扫描起始值、终止值及增量步长 确定扫描起始值、终止值及增量步长
列出扫描时的参数值，数字间可用空格、逗点或分号隔开
More Options
DC Operating Point （直流工作点） Transient Analysis （瞬态分析） AC Frequency Analysis （交流频率分析）
23
1.构造电路 极型晶体管放大电路的交流小信号等效电路，分析 该电路的输入阻抗、输出阻抗及其电路的转移函数。
24
2.启动传输函数分析工具 选择Simulate / Analysis / Transfer function
25
2.启动传输函数分析工具 传输函数分析对话框选项说明
项 目 Input source （输入电源） Voltage（电压） Output node（输出节点） Output reference （输出参考点） Current（电流） 默认值 电路中的电源 选中 电路中的节点 接地 未选 要分析的电压节点 电压的参考点 输出电流的变量 注 释 选择电压源或电流源
Points to sweep （选择扫描方式）
Decade （十倍刻度扫描） Liner （线性刻度值） Octave （八倍刻度扫描） Liste （取列表值扫描） 选中
确定扫描起始值、终止值及增量步长 确定扫描起始值、终止值及增量步长
列出扫描时的参数值，数字间可用空格、逗点或 分号隔开 未选 选中 未选 选中该项，进行直流工作点的参数扫描分析 选中该项，进行瞬态参数扫描分析，可以修改瞬 态分析时的参数设置 选中该项，进行交流频率参数扫描分析，可以修 11 改交流频率分析时的参数设置
温度扫描分析就是研究温度变化对电路性能的影响， 如果未设定温度扫描，Multisim7将在固定温度27℃下对 电路进行仿真分析。该分析相当于在不同的工作温度下 多次仿真电路性能。但如果要了解不同温度下电路性能 的变化，应采用Multisim7 提供的温度扫描分析工具。 Multisim7中的温度扫描分析不是对所有元件都有效，仅 限于考虑一些半导体器件和一些虚拟电阻。
Gain Analysis （增益分析）
Analysis type （分析类型） Impedance Analysis （互阻抗分析） Input impedance （输入阻抗） Output impedance （输出阻抗） Input（＋） （输入（＋）） Nodes （节点） Input（－） （输入（－））
28
1.构造电路
29
2.启动蒙特卡罗分析工具 选择Simulate / Analysis / Monte Carlo
30
蒙特卡罗分析Tolerance页
31
蒙特卡罗分析选项Model tolerance list页说明
选项框 Current list of tolerances Parameter Type Parameter Device Type Name Parameter 项 目 列出目前的元件模型容差 注 释
性。由于可选择电流或电压，所以分析的结果可以是
电压增益、电流增益、跨导及转移阻抗等。
18
1.构造电路
19
2.启动零极点分析工具 选择Simulate / Analysis / Pole-Zero
20
零极点分析对话框选项说明
选项框 项 目 默认值 选中 未选 未选 未选 注 释 输出电压 / 输入电压 输出电压 / 输入电流 从输入端看进去时的电压 / 电流 从输出端看进去时的电压 / 电流 正的输入端节点
删除已选择的容差。
32
蒙特卡罗分析Analysis Parameters页
33
蒙特卡罗分析Analysis Parameters页说明
选项框 项 目 默认值 Transient analysi 1 注 释 选择分析类型，Transient analysi（瞬态分 析）、AC analysis（交流分析）、DC operating（直流分析）。 误差分析执行次数，必须大于等于2。。 选择要观察的输出节点。 选择比较函数。
More Option （选择分析类型）
DC Operating Point （直流工作点） Transient Analysis （瞬态分析） AC Frequency Analysis （交流频率分析）
3.查看分析结果
12
3.3温度扫描分析 （Temperature Sweep Analysis）
AC Sensitivity （交流灵敏度）
分析结果产生一个分图
6
3.检查分析结果 直流灵敏度 分析结果
交流灵敏度 分析结果
7
3.2参数扫描分析 （Parameter Sweep Analysis）
参数扫描分析是在用户指定每个参数变化值的情况 下，对电路的特性进行分析。在参数扫描分析中，变化
的参数可以从温度参数扩展为独立电压源、独立电流源、
15
2.启动温度扫描分析工具
温度扫描分析对话框选项说明
选项框
Sweep Parameters Points to sweep （选择扫描方 式）
项 目
Temperature
默认值
起始温度
注 释
Decade （十倍刻度扫描） Liner （线性刻度值） Octave （八倍刻度扫描） Liste （取列表值扫描） 选中
选择所要设定的元件模型参数或器件参数。 选择所要设定参数的器件种类，包括电路图中使用的BJT、Capacior、 Diode、Resistor、Vsource等。 选择所要设定的元件序号。 选择所要设定的参数。 当前该参数的设定值（不可更改）。 Parameter所选参数的说明（不可更改）。 选择元器件参数容差的分布类型，包括Guassian（高斯分布）和Uniform （均匀分布）。 选择容差随机数出现方式，其中选择Lot表示对各种元件参数都有相同 的随机产生的容差率，较适用于集成电路；选择Unique表示每一个 元件参数随机产生的容差率各不相同，较适用于离散元件电路。 选择容差的形式，Absolute（绝对值）和Percent（百分比）。 根据所选的容差形式设置容差值。 编辑已选择的容差。
Voltage（电压）
Output reference
Current（电流） Output scaleing （灵敏度输出格 式） Output source Absolute Relative DC Sensitivity （直流灵敏度）
电路中的节点
电路中的电源
Analysis Type （分析类型）
26
3.检查分析结果
27
3.6蒙特卡罗分析 （Monte Carlo Analysis）
蒙特卡罗分析是一种统计分析方法，它是在给定电 路元器件参数容差的统计分布规律的情况下，用一组伪 随机数求得元器件参数的随机抽样序列，对这些随机抽 样的电路进行直流、交流和瞬态分析，并通过多次分析 结果估算出电路性能的统计分布规律，如电路性能的中 心值和方差、电路合格率及成本等。
13
1.构造电路 恒流源式差动放大器，由于Multisim7中的实际电阻没
有设计温度特性，所以这里全部采用具有温度特性的虚拟电
阻代替，讨论当温度改变时，引起元件参数的变化对电路性 能的影响。
14
2.启动温度扫描分析工具
选择Simulate / Analysis / Temperature Sweep
Analysis performed （分析）
Pole Analysis （极点分析） Zero Analysis （零点分析）
3.检查分析结果
22
3.5传输函数分析 (Transfer Function Analysis)
传输函数分析可以计算电路的交流小信号传输函数、 计算输入电阻和输出电阻等。对于任何非线性元件， Multisim7都将根据直流工作点先进行线性化，然后进行 小信号分析，可以指定电路中的任何一点为输出变量， 选择电路中某处所定义的独立源为输入源，从而分析这 两点的传输函数。
• 3.5传输函数分析(Transfer Function Analysis) • 3.6蒙特卡罗分析（Monte Carlo Analysis） • 3.7最坏情况分析（Worst case Analysis） • 3.8批处理分析（ Batched Analysis） • 3.9噪声指数分析（ noise Figure Analysis ） • 3.10用户自定义分析（ User defined Analysis ）
第3章 Multisim 7的高级分析方法
1
主要内容
• 3.1灵敏度分析（Sensitivity Analysis)
• 3.2参数扫描分析（Parameter Sweep Analysis）
• 3.3温度扫描分析（Temperature Sweep Analysis）
• 3.4零极点分析(Pole Zero Analysis)
未选 选中 未选
选中该项，进行直流工作点的参数扫描分析 选中该项，进行瞬态参数扫描分析，可以修改瞬态分析时 的参数设置 选中该项，进行交流频率参数扫描分析，可以修改交流频 率分析时的参数设置 16
3.检查分析结果
17
3.4零极点分析(Pole Zero Analysis)
零极点分析是确定电路的小信号交流传输函数的 零点和极点。利用Multisim7提供的零极点分析工具， 分析电路或复杂网络系统的零极点，这可以取代枯燥 繁琐的手工计算，以便清楚地了解电路或系统的稳定
Device Parameter （元件参数） Model Parameter （元件模型参数）
默认值
BJT （晶体管） BJT （晶体管）
注 释
multisim电路分析方法
在Variables in Circuit栏中列出的是电路中可 用于分析的节点和变量。点击 Variables in circuit 窗口中的下箭头按钮，可以给出变量类型选择表。 在变量类型选择表中： 点击Voltage and current选择电压和电流变量。
点击Voltage选择电压变量。 点击 Current选择电流变量。 点击Device／Model Parameters 选择元件／ 模型参数变量。 点击All variables选择电路中的全部变量。
其中Output variables、 Miscellaneous Options 和Summary 3个选项与直流工作点分析的设置 一样，下面仅介绍Analysis Parameters选项， Analysis Parameters对话框如图1.6.8所示。
图1.6.8 Analysis Parameters对话框
图 1.6.5 Miscellaneous Options对话框
如果选择Use this custom analysis，可以用 来选择用户所设定的分析选项。可供选取设定的 项目已出现在下面的栏中，其中大部分项目应该 采用默认值，如果想要改变其中某一个分析选项 参数，则在选取该项后，再选中下面的Use this option选项。选中Use this option选项将在其右边
2. Parameters区 在Parameters区可以对时间间隔和步长等参数 进行设置。
Start time窗口：设置开始分析的时间。 End time窗口：设置结束分析的时间。
点击Maximum time step settings，可以设 置分析的最大时间步长。其中：
（1）设置单位时间内的采样点数 点击Minimum number of time points，可以 设置单位时间内的采样点数。
Multisim7课程设计仿真
用户可以通过元件库面板选择需要的元件，并将其拖拽到电路图 编辑区。
调整元件属性
双击元件，可以在属性对话框中修改元件的参数和属性。
电路图的绘制
01
02
03
电路图编辑区
用于绘制电路图的区域， 用户可以在此区域内自由 绘制电路图。
连线工具
提供了多种连线工具，包 括直线、曲线等，方便用 户绘制电路图中的连线。
技巧3
05 利用 Multisim 的自动化功能
。
建议
06 利用软件的自动化布局和布线
功能，提高设计效率。
Multisim 7 的未来发展与展望
发展方向1
增加更多先进的仿真功能。
01
02
展望
随着电子技术的不断发展，Multisim 7 有望 增加更多高级的仿真功能，以满足更复杂的 设计需求。
发展方向2
1 2
模拟仪器
Multisim 7提供了多种模拟仪器，如示波器、信 号发生器、功率表等，可用于测量和调试电路的 各种参数。
数字仪器
数字仪器包括逻辑分析仪、逻辑转换仪等，可用 于分析数字电路的逻辑关系和转换。
3
仪器设置与调整
用户可以根据需要设置仪器的参数，如输入信号 的幅度、频率等，以满足不同的仿真需求。
问题2
仿真结果不准确。
仿真速度过慢。
问题3
解决方法
优化电路设计，减少元件数量和复杂度，或尝试升级计 算机硬件。
提高仿真效率的技巧和建议
技巧1
合理使用虚拟仪器。
01
建议
02 在仿真过程中，根据需要选择
合适的虚拟仪器，避免不必要 的复杂度。技巧2Fra bibliotek优化电路设计。
Multisim7的高级分析方法
选中该项，进行交流频率参数扫描分析，可以修 改交流频率分析时的参数设置
3.查看分析结果
11
3.3温度扫描分析 （Temperature Sweep Analysis）
温度扫描分析就是研究温度变化对电路性能的影响，如果未设定温度扫 描，Multisim7将在固定温度27℃下对电路进行仿真分析。该分析相当于在不 同的工作温度下多次仿真电路性能。但如果要了解不同温度下电路性能的变 化，应采用Multisim7 提供的温度扫描分析工具。Multisim7中的温度扫描分 析不是对所有元件都有效，仅限于考虑一些半导体器件和一些虚拟电阻。
主要内容
• 3.1灵敏度分析（Sensitivity Analysis) • 3.2参数扫描分析（Parameter Sweep Analysis） • 3.3温度扫描分析（Temperature Sweep Analysis） • 3.4零极点分析(Pole Zero Analysis) • 3.5传输函数分析(Transfer Function Analysis) • 3.6蒙特卡罗分析（Monte Carlo Analysis） • 3.7最坏情况分析（Worst case Analysis） • 3.8批处理分析（ Batched Analysis） • 3.9噪声指数分析（ noise Figure Analysis ） • 3.10用户自定义分析（ User defined Analysis ） 1
列出扫描时的参数值，数字间可用空格、逗点或 分号隔开
More Option （选择分析类型）
DC Operating Point （直流工作点）
Transient Analysis （瞬态分析）
基于Multisim 7的仿真分析
基于Multisim 7的仿真分析摘要：电子技术是电子类专业的一门主干课程，该课程既有较抽象的理论分析又有较具体的实践应用。
EDA对于这类课程的学习可以做出很大的帮助，而课程学习质量的优劣直接影响到该专业后续课程的学习以及我的电路理论分析和实践动手能力。
电子技术理论的学习应与实验同步进行，以加深感性认识，用仿真软件验证理论分析是可行有效的方法。
关键词：Multisim 7 EDA 仿真分析射频电路Simulation and Analysis Based on Multisim 7Zeng ShengAbstract:Electronic technology is the electronic profession a main course, the course is both more abstract and theoretical analysis there are more specific practical application.EDA for such courses of study can make a great help, the course of study directly affect the quality of follow-up to the professional courses of study and my analysis of circuit theory and practical ability.E-learning technology theory and experiment should be carried out simultaneously to enhance perceptual knowledge, the theoretical analysis with simulation software is feasible and effective method.Key words：Multisim 7 EDA Simulation RF Circuits第一章绪论 (3)第二章 Multisim 7常用的虚拟仪器及常用的基本分析方法 (4)第三章仿真电路的处理及基于Multisim 7的VHDL仿真知识 (5)第四章基于Multisim 7的射频电路的仿真分析 (6)4.1 引言 (6)4.2 射频电路的基本知识 (7)4.3 RF特性分析 (8)4.4 匹配网络分析 (14)第五章总结分析 (18)第六章致谢 (19)参考文献： (20)第一章绪论电子技术是电子类专业的一门主干课程，该课程既有较抽象的理论分析又有较具体的实践应用。
Multisim7的基本功能与操作

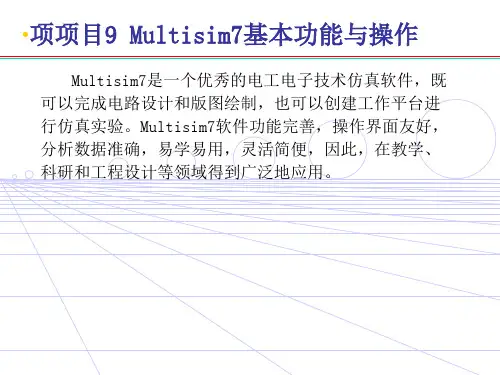

•项项目9 Multisim7基本功能与操作
5、仪器仪表齐全，精度高。 Multisim提供了数字万用表、示波器、逻辑分析仪、波 特图仪、函数信号发生器和瓦特表等18种虚拟仪器。仪表外观、 面板布置、按键功能和操作方法等与实际仪表基本相同，可以 毫无风险地进行使用。
6、强大的分析功能。 Multisim还提供了直流工作点分析、交流分析、直流扫 描分析和傅里叶分析等多种分析功能，为电路实验带来了极大 的便利。
图9-4 图形注释工具栏
•项项目9 Multisim7基本功能与操作
6、元件工具栏 如图9-5所示。元件工具栏通常在基本界面的左边。也可以 用鼠标将工具栏拖至界面的上方，呈水平状。从左至右依次是: 电源库(Source)、基本元件库(Basic)、二极管库(Diode)、晶 体管库(Transistor)、模拟元件库(Analog)、TTL元件库(TTL)、 CMOS元件库(CMOS)、数字元件库(Miscellaneous Digital)、混 合元件库(Mixed)、指示元件库(1ndicator)、其他元件库 (Miscellaneous)、射频元件库(RF)、机电类元件库 (Electromechanical)、放置分层模块、放置总线、登录 WWW．Electronics 和www．网站等。
图9-2 标准工具栏
•项项目9 isim7基本功能与操作
4、仿真开关
如图9-3所示。主要用于仿真控制。
图9.3 仿真开关
•项项目9 Multisim7基本功能与操作
5、图形注释工具栏
如图9-4所示。该工具栏主要用于在基本界面中放置各种 图形，从左至右依次是：文本、直线、折线、矩形、椭圆、圆 弧、多边形和图片。
•项项目9 Multisim7基本功能与操作
Multisim7电路设计及仿真应用
Multisim7电路设计及仿真应用本文由文库黄健贡献ppt文档可能在WAP端浏览体验不佳。
建议您优先选择TXT，或下载源文件到本机查看。

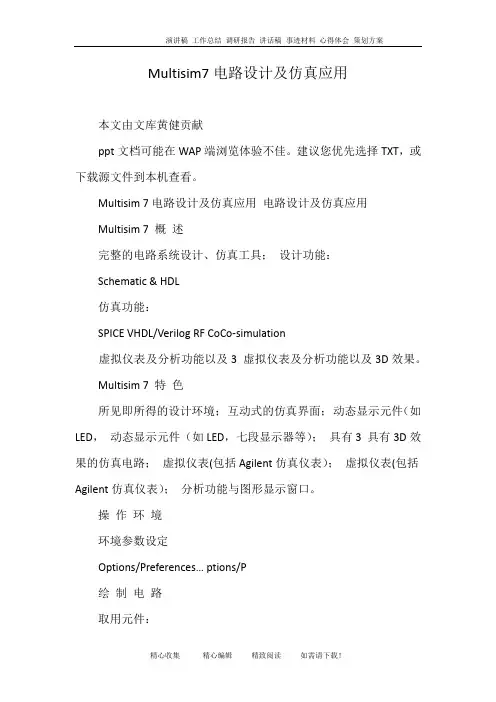

Multisim 7电路设计及仿真应用电路设计及仿真应用Multisim 7 概述完整的电路系统设计、仿真工具；设计功能：Schematic & HDL仿真功能：SPICE VHDL/Verilog RF CoCo-simulation虚拟仪表及分析功能以及3 虚拟仪表及分析功能以及3D效果。
Multisim 7 特色所见即所得的设计环境；互动式的仿真界面；动态显示元件（如LED，动态显示元件（如LED，七段显示器等）；具有3 具有3D效果的仿真电路；虚拟仪表(包括Agilent仿真仪表）；虚拟仪表(包括Agilent仿真仪表）；分析功能与图形显示窗口。
操作环境环境参数设定Options/Preferences… ptions/P绘制电路取用元件：从元器件库中取用所需元件；摆放元件：调整元件的位置与方向；线路连接：连接元件的引脚。
元件工具栏电源按钮件按钮元本基二极管按钮钮按管体晶拟元件模元器件按元器件按钮钮元（件按钮COMS 系列）系列）器（字数他其数混合元器件按钮模指示器件按钮杂射项库元元器器件按按钮钮件频电机置元器件按钮钮按件器元设放置总线按钮钮源按资育教网站按钮按钮74取用元件放置元件——电源元件元素Multisim 7的元件均具有下列元素: 7的元件均具有下列元素:Symbol –元件符号（for Schematic）Schematic）Model –元件模型（for Simulation）Simulation）Footprint –元件外型（for Layout）Layout）Electronic Parameter–电子元件参数Parameter–User Defined Info. –使用者自定资讯Pin model—管脚模型model—General—General—元件描述取用元件取用元件-元件属性对话框在元件上双击鼠标左键开启属性对话框Label：Label：修改元件序号、标识；Display：Display：设置元件标识是否显示；Value：Value：设定元件参数值；Fault：Fault：设定元件故障。
Multisim7快速入门第3章
第3章Multisim7的元件库在所有电路仿真软件中，都需要一个仿真元件库以存放和管理仿真元件，仿真元件库中元件多少、模型的精确度将对仿真结果有着较大的影响。
本章将主要介绍Multisim7中元件库及元件的使用、元件库管理及如何在Multisim7中创建新元件等内容。
3.1元件库的管理Multisim7的元件存储在三种不同的数据库中，执行“Tools”/“Database Management”命令即可看到数据库管理信息。
主要包括Multisim Master库、Corporate Library库（仅在专业版中存在）、User库，这三种数据库功能分别说明如下：●Multisim Master库：存放Multisim7提供的所有元件，不能被修改和编辑。
●Corporate Library库：存放被企业或个人修改、创建和选择的元件，能对选择了该库的企业或个人使用和编辑。
主要是方便企业的设计团队共享经常使用的一些特定的元件。
●User库：存放被个人修改、创建和导入的元件，仅能由使用者个人使用和编辑。
该库在刚使用Multisim7时是空的，可以通过导入或由用户自己编辑和创建（详见3.3节）。
如图3-1所示的Multisim Master库和User库中都包含如下13个元件库分类：信号及电源库（Sources）、基本元件库（Basic）、二极管库（Diodes）、晶体管库（Transistors）、模拟元件库（Analog）、TTL元件库（TTL）、CMOS元件库（CMOS）、其它数字元件库（Misc Digital）、混合元件库（Mixed）、显示元件库（Indicators）、其它元件库（Misc）、射频元件库（RF）、机电类元件库（Electro-mechanical），该分类和元件工具栏中的元件库图标相对应。
在Multisim Master库下面的每个分类元件库中，还包括多个元件箱（又称为Family），各种仿真元件放在这些元件箱中以供调用。
用Multisim7分析时序逻辑电路
Multisim7分析时序逻辑电路摘要：计算机技术的飞速发展，电路可以通过计算机辅助分析和仿真技术来完成设计。
Multisim7软件就是一个专门用于电子线路仿真与设计的 EDA 工具软件。
它具有很强的逻辑仿真功能，将给定的时序逻辑电路图输入计算机后得到时序图，操作简单快捷。
论文中介绍了Multisim7软件以及时序逻辑电路的特点和分析过程，并用例题加以说明。
关键词：Multisim7，时序逻辑电路，逻辑分析仪，信号发生器随着计算机科学与技术突飞猛进的发展，用数字电路进行信号处理的优势也更加突出。
为了充分发挥和利用数字电路在处理上的强大功能，我们可以先将模拟信号按比例转化成数字信号，然后送到数字电路（可以是专用的数字信号处理电路，也可以是通用的计算机）进行处理，最后处理结果根据需要转化为相应的模拟信号输出。
自20世纪70年代开始，这种用数字模拟信号的所谓“数字化”浪潮已经席卷了电子技术几乎所有，所有的应用领域。
Multisim7把整个学习和实验过程都搬到了虚拟实验室中进行，能够使实验电路，仪器以及实验结果等一起直观地展现在学生面前，另外对电路参数调整也极其方便。
本文就采用Multisim7对时序逻辑电路进行分析。
一、Multisim7软件的介绍Multisim7是由加拿大IIT(Interaction Image Technologies)公司推出的大型设计工具软件。
Multisim7 仿真软件的前身是EWB, 又称电子工作台（Electronics Work bench），它是由加拿大IIT 公司20 世纪80 年代推出的电子电路设计和仿真软件，一经推出就受到好评，尤其在教育领域取得了巨大的成功。
EWB 软件具有界面直观，操作方便等优点，创建电路、选用元件和测试仪器均可以直接通过元件库和仪器库选取。
EWB系列软件经过了多个版本的演变，在2003年IIT 公司推出了Multisim7版本，较之以前的版本功能更加齐全，应用也更加广泛。
Multisim 7电路设计仿真教程
