Aruba vlan 基本配置手册本章主要描述有关控制器的基本的网络配置，主要内容如下：一、VLANs 配置二、配置端口三、VLAN 协议四、配置静态路由五、环回IP地址配置六、控制器IP地址配置七、GRE隧道配置第一部分：VLANs配置/虚拟局域网配置2层交换机控制器的操作运用是以VLAN作为广播域，作为2层交换机，控制器要求需要外界的路径来实现与VLANs的路径连通。
该控制器还可以作为第三层交换机，可以定义VLAN 之间的交通路线的控制器。
你可以在控制器上配置一个/多个物理端口实现一个虚拟局域网。
另外，每个无线客户端口关联是连接到一个特定的虚拟局域网的端口控制器上。
你可以根据你的网络需要替换所有经认证授权的无线用户到单个VLAN或者替换到不同的VLANs。
VLANs可以单独存在在控制器里面或者可以通过802.1q VLAN标签存在在控制器外部。
你可以选择在控制器上为VLAN配置一个IP地址和子网掩码，当VLAN上最近的物理端口被激活的同时，该IP地址也被激活。
该VLAN IP地址可以作为外部设备的一个接入点，指向虚拟局域网IP地址的数据包不是为控制器指定的而是根据控制器的IP路由表来转发的。
创建和更新VLANs：创建和更新单个/多个VLANs1. 通过WEBUI 来创建或者修改单个VLAN1)打开2)点击“ADD新建”按钮创建一个新的VLAN。
（若需要修改，点击Edit按钮）具体参照58页创建一系列的VLANs。
3)为VLAN增加一个物理端口，点击选项4)点击2. 通过CLI(命令）创建或者修改VLAN3.通过WEBUI 来创建或者修改多个VLAN1)一次性增加并联的VLANs，点击2)在弹出的窗口，输入你想要创建的VLANs 序列。
例如，增加一个ID号码为200-300和302-350的VLAN，输入200-300，302-350。
3)点击“OK”4)为VLAN增加物理端点，点击“EDIT”进入你想要配置的VLAN页面，点击“PortSelection”选项设置端口。
(完整)aruba配置手册
拓扑图如下：客户的要求如下:ap地址通过核心交换机分配，全部在一个vlan中无线用户地址通过核心交换机分配，按照楼层不同,对应不同的vlan，分配不同的地址用户采用web或802.1x认证方式,与内部radius认证服务器联动所有ap均向外公布同一个ssid设备初始化设置拿到设备后，先进行初始化配置，恢复设备到出厂设置状态,在恢复出厂设置后,通过console连接到设备上，按照下面的提示进行初始信息的输入：Enter System name ［Aruba5000]： Aruba—masterEnter VLAN 1 interface IP address [172。
16。
0。
254]：Enter VLAN 1 interface subnet mask [255。
255。
255。
0］:Enter IP Default gateway ［none］:Enter Switch Role， (master｜local) [master]：Enter Country code （ISO-3166)， <ctrl—I> for supported list： cnYou have chosen Country code CN for China (yes｜no)?: yEnter Time Zone [PST—8:0］：Enter Time in GMT ［09：44:27］:Enter Date （MM/DD/YYYY) ［3/6/2007］：Enter Password for admin login （up to 32 chars): **＊**Re—type Password for admin login： *＊*＊*Enter Password for enable mode （up to 15 chars): ＊＊＊＊*＊Re-type Password for enable mode： *＊＊***Do you wish to shutdown all the ports （yes｜no)？［no]： nCurrent choices are:System name： Aruba800—4VLAN 1 interface IP address： 172。
Aruba设备配置操作手册
Aruba 无线控制器内部试验文档2010年06月目录第一章.Aruba售后基础.................................................................................................. - 4 -一.Aruba产品简介 .................................................................................................................... - 4 -1.Aruba 无线控制器（AC） ................................................................................................. - 4 -2.Aruba 无线接入点（AP） ................................................................................................. - 5 -二.组网方式 ............................................................................................................................. - 6 -1.与有线网二层连接............................................................................................................. - 6 -2.与有线网三层连接............................................................................................................. - 7 -三.控制器登陆方式 .................................................................................................................. - 7 -第二章.控制器Web基本管控 ......................................................................................... - 8 -1.登陆控制器............................................................................................................................ - 8 -2.修改登录密码........................................................................................................................ - 9 -3.查看控制器状态 .................................................................................................................. - 12 -4.查看接口状态...................................................................................................................... - 13 -5.查看AP状态.......................................................................................................................... - 15 -6.查看用户状态...................................................................................................................... - 17 -7.添加/清除黑名单 ................................................................................................................ - 19 -第三章.控制器CLI配置调试 .......................................................................................... - 21 -一.Aruba基础配置 .................................................................................................................. - 21 -1.Console登陆...................................................................................................................... - 21 -2.恢复出厂配置 .................................................................................................................. - 22 -3.初始化配置 ...................................................................................................................... - 22 -4.保存配置参数 .................................................................................................................. - 23 -5.Image升级 ........................................................................................................................ - 23 -6.备份与恢复配置文件 ....................................................................................................... - 23 -7.DHCP配置 ......................................................................................................................... - 24 -8.配置AP ............................................................................................................................. - 25 -9.为无线终端用户单独配置VLAN ....................................................................................... - 29 -二.Aruba无线认证加密方式................................................................................................... - 31 -1.OPEN ................................................................................................................................ - 31 -2.PSK 认证 .......................................................................................................................... - 32 -3.MAC地址认证................................................................................................................... - 33 -4.Dot1x （802.1x）认证： ................................................................................................. - 34 -5.Captive-portal认证............................................................................................................ - 35 -三.Aruba无线安全策略 .......................................................................................................... - 37 -1.Captive Portal界面定制 .................................................................................................... - 37 -2.Demo License .................................................................................................................... - 38 -3.PEF license ........................................................................................................................ - 39 -4.role 应用.......................................................................................................................... - 42 -5.利用role做带宽限制策略 ................................................................................................. - 43 -6.Radius服务器.................................................................................................................... - 44 -7.Master Local ..................................................................................................................... - 46 -8.VRRP ................................................................................................................................. - 47 -第四章.控制器Web配置调试 ....................................................................................... - 49 -1.AP更改组配置...................................................................................................................... - 49 -2.AP更改名字配置 .................................................................................................................. - 50 -第五章.Troubleshooting........................................................................................... - 52 -1.AP指示灯说明...................................................................................................................... - 52 -2.AP未启动故障检查 .............................................................................................................. - 52 -第一章.Aruba售后基础一.Aruba产品简介这里只是把Aruba全套产品线构成做简单展现，以便了解使用Aruba设备，详细产品说明请查看产品详细资料。
Aruba无线网络基本配置指导手册
Aruba无线网络基本配置指导手册2009-09一、无线方案设计 (3)1.1.无线网络拓扑图及组网设计........................................................... 错误！未定义书签。
1.1.1工程实施网络拓扑图............................................................ 错误！未定义书签。
1.1.2无线网络设计描述................................................................ 错误！未定义书签。
1.2无线网络设备的部署设计............................................................... 错误！未定义书签。
1.2.1无线控制器的部署................................................................ 错误！未定义书签。
1.2.2无线接入点AP的部署......................................................... 错误！未定义书签。
1.3网络VLAN 和IP地址规划 ........................................................... 错误！未定义书签。
1.3.1无线控制器VLAN 和IP地址规划 .................................... 错误！未定义书签。
1.3.2无线接入点AP的IP地址及VLAN规划 .......................... 错误！未定义书签。
1.3.3无线用户VLAN及IP地址规划 ......................................... 错误！未定义书签。
aruba操作手册
无线控制器配置手册一无线控制器初始化配置无线控制器刚启动的时候，是没有任何配置的，需要进行初始化配置才能进行管理。

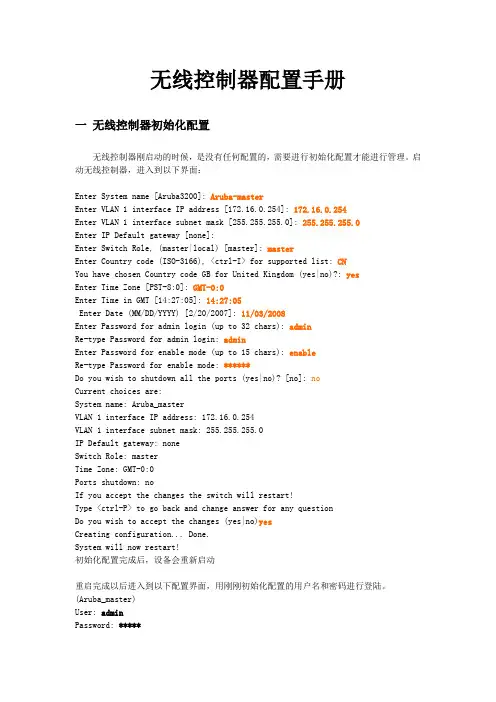

启动无线控制器，进入到以下界面：Enter System name [Aruba3200]: Aruba-masterEnter VLAN 1 interface IP address [172.16.0.254]: 172.16.0.254Enter VLAN 1 interface subnet mask [255.255.255.0]: 255.255.255.0Enter IP Default gateway [none]:Enter Switch Role, (master|local) [master]:masterEnter Country code (ISO-3166), <ctrl-I> for supported list: CNYou have chosen Country code GB for United Kingdom (yes|no)?: yesEnter Time Zone [PST-8:0]: GMT-0:0Enter Time in GMT [14:27:05]: 14:27:05Enter Date (MM/DD/YYYY) [2/20/2007]: 11/03/2008Enter Password for admin login (up to 32 chars): adminRe-type Password for admin login: adminEnter Password for enable mode (up to 15 chars):enableRe-type Password for enable mode:******Do you wish to shutdown all the ports (yes|no)? [no]: noCurrent choices are:System name: Aruba_masterVLAN 1 interface IP address: 172.16.0.254VLAN 1 interface subnet mask: 255.255.255.0IP Default gateway: noneSwitch Role: masterTime Zone: GMT-0:0Ports shutdown: noIf you accept the changes the switch will restart!Type <ctrl-P> to go back and change answer for any questionDo you wish to accept the changes (yes|no)yesCreating configuration... Done.System will now restart!初始化配置完成后，设备会重新启动重启完成以后进入到以下配置界面，用刚刚初始化配置的用户名和密码进行登陆。
aruba配置手册

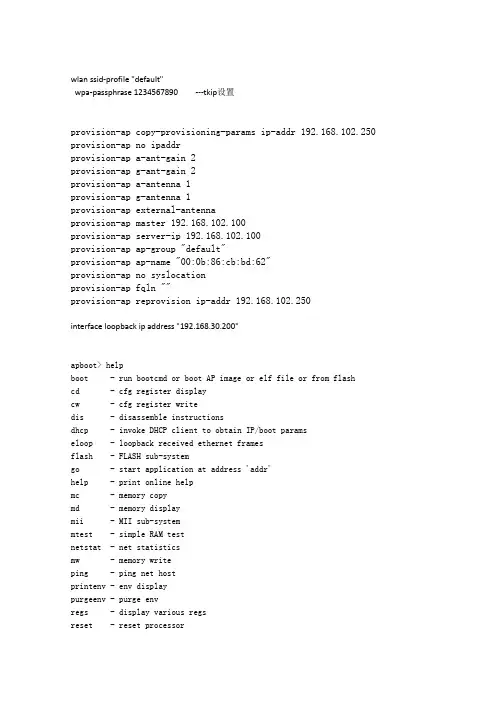

wlan ssid-profile "default"wpa-passphrase 1234567890 ---tkip设置provision-ap copy-provisioning-params ip-addr 192.168.102.250 provision-ap no ipaddrprovision-ap a-ant-gain 2provision-ap g-ant-gain 2provision-ap a-antenna 1provision-ap g-antenna 1provision-ap external-antennaprovision-ap master 192.168.102.100provision-ap server-ip 192.168.102.100provision-ap ap-group "default"provision-ap ap-name "00:0b:86:cb:bd:62"provision-ap no syslocationprovision-ap fqln ""provision-ap reprovision ip-addr 192.168.102.250interface loopback ip address "192.168.30.200"apboot> helpboot - run bootcmd or boot AP image or elf file or from flashcd - cfg register displaycw - cfg register writedis - disassemble instructionsdhcp - invoke DHCP client to obtain IP/boot paramseloop - loopback received ethernet framesflash - FLASH sub-systemgo - start application at address 'addr'help - print online helpmc - memory copymd - memory displaymii - MII sub-systemmtest - simple RAM testnetstat - net statisticsmw - memory writeping - ping net hostprintenv - env displaypurgeenv - purge envregs - display various regsreset - reset processorrun - run commands in an environment variablesaveenv - save environment variables to persistent storagesetenv - set variable in env (ipaddr/netmask/gatewayip/master/serverip) setenv ipaddr x.x.x.xsetenv netmask x.x.x.xsetenv gatewayip x.x.x.xsetenv serverip x.x.x.xsetenv master x.x.x.xtcpdump - dump received packetstcpsend - send TCP packettftpboot - boot via tftptlb - dump TLBtrace - dump trace bufferversion - print monitor versionwdog - stop refreshing watchdog timerapboot>No spanning-tree 关闭spanning-treeAdp discover disable 关闭ADPAdp imgp-join disable 关闭im-j一、WEB页面认证1、wlan ssid-profile (staff-ssid-profile) ：定义ssid配置文件1.1 essid staff ：定义ssid下的essid—显示出来的ssid2、wlan virtual-ap (staff-vap-profile) ：定义virtual-ap的配置文件2.1 ssid-profile (staff-ssid-profile) :在virtual-ap下引用定义过SSID2.2 vlan ID aa，bb :把virtual-ap加入到要ssid所属VLAN3、aaa profile staff-aaa-profile ：定义AAA认证配置文件4、aaa server-group (staff-servergroup) ：定义server-group配置文件4.1 auth-server internal ：定义认证服务器为本地认证4.2 set role condition role value-of 设置角色set role condition <condition> set-value <role> position <number>5、aaa authentication captive-portal (staff-auth-profile) ：captive-portal配置5.1 server-group staff-servergroup ：在下面引用定义过的server-group6、user-role staff-logon ：定义用户登陆前权限的配文件6.1 access-list session logon-control position 1定义用户登陆前的权限--位置16.2 access-list session captiveportal position 2 定义用户登陆前的权限--26.3 Captive-Portal staff-auth-profile position 3定义过captive-portalRe-authentication interval 480 再次认证间隔480秒默认3600秒7、user-role vip-role ：定义用户成功登陆后的配置文件7.1session-acl allowall 赋予所有允许权限session-acl http-acl 只有http8、wlan virtual-ap staff-vap-profile ：进入定义过的virtual-ap配置文件8.1 aaa-profile staff-aaa-profile ：引用定义过的AAA配置文件9、ap-group default ：定义ap-group，最好用默认的9.1 virtual-ap staff-vap-profile ：引用定义过的Virtual-ap配置文件10、aaa profile staff-aaa-profile ：进入定义过的AAA配置文件10.1 initial-role staff-logon ：把initial-role改为定义过用户登陆前配置11、aaa authentication-server internal use-local-switch ：定义认证SERVER为本地交换机12、local-userdb add username staff password 123456 role vip-role :定义用户的登陆的用户名和密码及权限二、MAC 地址认证配置1、wlan ssid-profile (staff-ssid-profile) ：定义ssid配置文件1.1 essid staff ：定义ssid下的essid2、wlan virtual-ap (staff-vap-profile) ：定义virtual-ap的配置文件2.1 ssid-profile (staff-ssid-profile) :virtual-ap下引用定义过的SSID配置文件2.2 vlan ID :把virtual-ap加入到要ssid所属的VLAN3、aaa profile staff-aaa-mac-profile ：定义AAA认证配置文件4、aaa authentication mac staff-mac-profile :定义mac配置文件4.1 Delimiter dash ：定义mac地址的格式4.2 Case upper （upper/lower）：定义mac地址的大/小写备注：aaa authentication mac staff-mac-profileclone <profile>delimiter {colon|dash|none}max-authentication-failures 数字aaa authentication mac mac-blacklist MAC黑名单max-authentication-failures 5 最多认证失败次数5、aaa server-group (staff-macservergroup) ：定义server-group配置文件5.1 auth-server internal ：定义认证服务器为本地认证5.2 set role condition role value-of6、user-role staff-logon ：定义用户登陆前权限的配文件6.1 access-list session logon-control ：定义用户登陆前的权限6.2 access-list session captiveportal ：定义用户登陆前的权限7、user-role vip-role ：定义用户成功登陆后的配置文件7.1session-acl allowall ：赋予权限8、wlan virtual-ap staff-vap-profile ：进入定义过的virtual-ap配置文件8.1 aaa-profile staff-aaa-mac-profile ：引用定义过的AAA配置文件9、ap-group default ：定义ap-group，最好用默认的9.1 virtual-ap staff-vap-profile ：引用定义过的Virtual-ap配置文件10、aaa profile staff-aaa-mac-profile ：进入定义过的AAA配置文件10.1 initial-role staff-logon ：把initial-role改为定义过的用户登陆前的配置文件10.2 authentication-mac staff-mac-profile :把定义的authentication mac文件引用10.3 mac-server-group staff-macservergroup :把定义的servergroup加入11、aaa authentication-server internal use-local-switch ：定义认证SERVER为本地交换机12、local-userdb add username mac地址password mac地址 role vip-role :定义用户的登陆的用户名和密码及权限注意：如果是有线直接连在端口上的话要进行认证必须把连接口设为UNTRUSTED.同时在设定：进入aaa authentication wired 后设定：profile (staff-aaa-profile) 为你设定认证的AAA profileBlacklist：5次错误就拒绝访问show aaa authentication captive-portal default：Max authentication failures 改为5次show aaa authentication dot1x default：Max authentication failures 改为5次1、aaa bandwidth-contract "256" kbits "256"2、aaa bandwidth-contract "256" kbits 256ip access-list session "pass"any any any permit queue low!user-role "ap512"access-list "pass" position 1bw-contract "256" per-user upstreambw-contract "256" per-user downstreamaaa bandwidth-contract "2M-BW" mbits "2" 带宽2M控制aaa bandwidth-contract 128_up kbits 128 带宽128k控制aaa bandwidth-contract 512 kbits 512aaa bandwidth-contract 64 kbits 64aaa bandwidth-contract 256 kbits 256aaa bandwidth-contract 1 mbits 1 带宽1M控制aaa bandwidth-contract 128_up kbits 128user-role 128bw-contract 128_up per-user upstreamuser-role ap-rolesession-acl controlsession-acl ap-acl!user-role pre-employeesession-acl allowallMaster mobility controller configuration1Initial setup of Aruba-master2Core VLAN configuration and IP addressing3Core VLAN port assignment4Loopback IP address ----- interface loopback ip address 设置环回地址Deploy APs5配置AP VLAN6配置 AP VLAN DHCP Server7Connect Aruba APs8Provisioning Aruba APs(Aruba-master) (config-if)#write mSaving Configuration...ip dhcp pool "userpool" 定义pool的名字default-router 192.168.11.254 定义默认路由网关—loopback地址dns-server 192.168.11.254---202.106.0.20 定义DNS网关lease 8 0 0network 192.168.11.0 255.255.255.0service dhcp 启动dhcpinterface gigabitethernet 1/1no muxportswitchport mode trunkip default-gateway 192.168.0.254interface vlan 1no ip addressno ip igmpinterface gigabitethernet 1/1no switchport access vlaninterface loopback ip address "192.168.0.100"(Aruba800-4) (config) # show ip interface briefInterface IP Address / IP Netmask Admin Protocolvlan 1 172.16.0.254 / 255.255.255.0 up upvlan 10 192.168.0.1 / 255.255.255.0 up upvlan 30 192.168.30.200 / 255.255.255.0 up uploopback unassigned / unassigned up up(Aruba800-4) (config) # rf arm-profile default ----------关闭ARM后调整channel---ok (Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #assignment disable (Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #no scan(Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #write memoryrf dot11g-radio-profile "default"tx-power 20 ------------------------发射功率调整rf dot11g-radio-profile "default"channel 11 ------------------------调整AP信道interface vlan 20ip address 192.168.0.1 255.255.255.0ip nat insideno ip igmp存配置：24 (Aruba2400) #configure t25(Aruba2400) (config) #copy tftp: 172.16.0.100 aruba2400-0904.cfg flash: 2400.bak 26(Aruba2400) (config) #copy flash: 2400.bak flash: 2400.cfg27(Aruba2400) # copy running-config tftp: 192.168.4.100 aruba2400-0904.cfgRadius配置：aaa authentication-server radius Radius1host <ipaddr>key <key>enableaaa server-group corpnetauth-server Radius1dot1x配置：aaa authentication dot1x corpnetaaa profile corpnetauthentication-dot1x corpnetdot1x-default-role employeedot1x-server-group corpnetvirtual AP:wlan ssid-profile corpnetessid Corpnetopmode wpa2-aeswlan virtual-ap corpnetvlan 1aaa-profile corpnetssid-profile corpnetap-group defaultvirtual-ap corpnet时间设定：time-range workhours periodic周期weekday 09:00 to 17:00ip access-list session restricted 受限制any any svc-http permit time-range workhoursany any svc-https permit time-range workhoursuser-role guestsession-acl restrictedmesh设置：ap mesh-radio-profile <profile-name>11a-portal-channel <11a-portal-channel>11g-portal-channel <11g-portal-channel>a-tx-rates [6|9|12|18|24|36|48|54]beacon-period <beacon-period>children <children>clone <source-profile-name>g-tx-rates [1|2|5|6|9|11|12|18|24|36|48|54]heartbeat-threshold <count>hop-count <hop-count>link-threshold <count>max-retries <max-retries>metric-algorithm {best-link-rssi|distributed-tree-rssimpv <vlan-id>rts-threshold <rts-threshold>tx-power <tx-power>ap mesh-radio-profile <profile-name>clone <source-profile-name>ap-group <group>mesh-radio-profile <profile-name>ap-name <name>mesh-radio-profile <profile-name>wlan ssid-profile <profile>essid <name>opmode <method> 方式wpa-passphrase <string> (if necessary)wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>virtual-ap <name># ip access-list session "Employee-Policy"any any any permit queue lowRemote AP配置The firewall must be configured to pass NAT-T traffic (UDP port 4500) to the controller.)1、Configure a public IP address for the controller.2、Configure the VPN server on the controller. The remote AP will be a VPN client to the server.3、Configure the remote AP role.4、Configure the authentication server that will validate the username and password for the remote AP.5、Provision the AP with IPSec settings, including the username and passwordfor the AP, before you install it at the remote location.1、Cli：vlan <id>interface fastethernet <slot>/<port>switchport access vlan <id>interface vlan <id>ip address <ipaddr> <mask>2、Using the CLI to configure VPN server:vpdn group l2tpppp authentication PAPip local pool <pool> <start-ipaddr> <end-ipaddr>crypto isakmp key <key> address <ipaddr> netmask <mask>3、Using the CLI to configure the user role:(table1) (config) # user-role remote(table1) (config-role) #session-acl allowallip access-list session <policy>any any svc-papi permitany any svc-gre permitany any svc-l2tp permitany alias mswitch svc-tftp permitany alias mswitch svc-ftp permit4、Using the CLI to configure the VPN authentication profile:4.1 aaa server-group <group>auth-server <server>4.2 aaa authentication vp ndefault-role <role>server-group <group>5、Using the CLI to enable double encryption:ap system-profile <profile>double-encryptap-name <name> 需要插上远端AP后配置ap-system-profile <profile>Using the CLI to enable double encryption:ap system-profile <profile>double-encryptap-name <name>ap-system-profile <profile>Using the CLI to configure the AAA profile:aaa profile <name>initial-role <role>authentication-dot1x <dot1x-profile>dot1x-default-role <role>dot1x-server-group <group>Using the CLI to define the backup configuration in the virtual AP profile: wlan ssid-profile <profile>essid <name>opmode <method>wpa-passphrase <string> (if necessary)wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>virtual-ap <name>orap-name <name>virtual-ap <name>Using the CLI to configure the DHCP server on the AP:ap system-profile <name>lms-ip <ipaddr>master-ip <ipaddr>rap-dhcp-server-vlan <vlan>wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>ap-system-profile <name>virtual-ap <name>orap-name <name>ap-system-profile <name> virtual-ap <name>。
Aruba快速配置手册
Aruba快速配置手册测试环境：连接在同一台交换机上面AP93 ip:172.16.20.254/244Aruba-650 VLAN 1:192.168.16.0/24AP VLAN 20:172.16.20.0/24User VLAN 30:172.16.30.1/241、Aruba-650初始化配置基本配置成功之后，会提示你自动重启2、通过web界面登录，浏览器输入https://192.168.16.1633、配置Aruba-650 上联端口的接入模式为trunk,允许所有vlan 通过(Aruba650) (config) #interface gigabitethernet 1/0(Aruba650) (config-if)#switchport mode trunk(Aruba650) (config-if)#switchport trunk allowed vlan all4、Aruba650配置DHCP，其中VLAN 20：172.16.20.0/24、AC的VLAN1:192.168.16.0/24、USER的VLAN 30:172.16.30.0/24；配置三个DHCP (Aruba650) (config) #vlan 20(Aruba650) (config) #interface vlan 20(Aruba650) (config-subif)#ip address 172.16.20.1 255.255.255.0(Aruba650) (config-subif)#operstate up(Aruba650) (config-subif)#no shut(Aruba650) (config-subif)#exit(Aruba650) (config) #ip dhcp pool ap(Aruba650) (config-dhcp)#network 172.16.20.0 255.255.255.0(Aruba650) (config-dhcp)#default-router 172.16.20.1(Aruba650) (config-dhcp)#dns-server 61.177.7.1(Aruba650) (config-dhcp)#exit(Aruba650) (config) #service dhcp(Aruba650) (config) #vlan 30(Aruba650) (config) #interface vlan 30(Aruba650) (config-subif)#ip address 172.16.30.1 255.255.255.0 (Aruba650) (config-subif)#operstate up(Aruba650) (config-subif)#no shut(Aruba650) (config-subif)#exit(Aruba650) (config) #ip dhcp pool user_client(Aruba650) (config-dhcp)#network 172.16.30.0 255.255.255.0 (Aruba650) (config-dhcp)#default-router 172.16.30.1(Aruba650) (config-dhcp)#dns-server 61.177.7.1查看已配置的DHCP，show ip dhcp database(Aruba650) (config) #show ip dhcp databaseDHCP enabled# apsubnet 172.16.20.0 netmask 255.255.255.0 {option vendor-class-identifier "ArubaAP";option vendor-encapsulated-options "192.168.16.163";option domain-name-servers 61.177.7.1;option routers 172.16.20.1;range 172.16.20.2 172.16.20.254;authoritative;}# user_clientsubnet 172.16.30.0 netmask 255.255.255.0 {option vendor-class-identifier "ArubaAP";option vendor-encapsulated-options "192.168.16.163";option domain-name-servers 61.177.7.1;option routers 172.16.30.1;range 172.16.30.2 172.16.30.254;authoritative;}5、开启Aruba650的telnet端口，telnet cli6、新增的SSID的模式为open定义aaa profile(Aruba650)(config)#aaa profile open-aaa(Aruba650) (AAA Profile "open-aaa") #Initial-role authenticated //默认为logon 打开IE 会有问题(Aruba650) (AAA Profile "open-aaa") #exit定义ssid profile(Aruba650) (config)# wlan ssid profile open-ssid(Aruba650) (SSID Profile "open-ssid") #essid Aruba-AP //定义ssid名字(Aruba650) (SSID Profile "open-ssid") #opmod opensystem //定义加密方式(Aruba650) (SSID Profile "open-ssid") #exit定义virtual-ap profile(Aruba650) (config) #wlan virtual-ap open-vap(Aruba650) (Virtual AP profile "open-vap") #aaa prolife open-aaa //关联aaa profile(Aruba650) (Virtual AP profile "open-vap") #ssid profile open-ssid //关联ssid profile(Aruba650) (Virtual AP profile "open-vap") #vlan 30 //关联用户vlan创建的open-aaaAAA相关联定义ap-group profile(Aruba650) (config) #ap-group open-ap(Aruba650) (AP group "open-ap") #virtual-ap open-vap //关联virtual-ap profileap加组到定义好的ap-group(Aruba650) (config)#ap-regroup [ap-name | serial-num | wired-mac]open-ap创建的AP组最后需要做NAT，才能让VLAN 30的客户能够出去上网，输入一下命令就可以上网了、(Aruba650) (config) #interface vlan 30(Aruba650) (config-subif)#ip nat inside7、查看吐出的SSID：Aruba-AP8、连接Aruba-AP，查看获取的IP地址，可以上网输入以上为Aruba650测试文档。
Aruba WLAN简明配置手册-v1
Aruba WLAN 简明配置手册目录目录 (2)1.初始化配置 (3)1.1.无线控制器初始化配置 (3)1.2.恢复出厂设置－无线控制器 (4)1.3.恢复出厂设置－Aruba AP (4)2.基本网络参数配置及维护 (6)2.1.基本网络参数配置 (6)2.2.控制器基本维护操作 (7)2.3.管理员帐号管理 (9)3.理解Aruba WLAN配置结构框架 (11)3.1.基本WLAN服务配置 (11)3.2.基于角色的用户策略管理 (12)4.配置范例 (14)4.1.建立WPA2-PSK服务 (14)4.2.建立Portal认证 (19)4.3.建立802.1X认证 (28)4.4.同一SSID中为不同用户配置不同的权限 (38)4.5.设置用户期限 (39)4.6.设定区域管理 (43)4.7.配置日志服务器 (49)4.8.带宽限制 (49)1.初始化配置1.1.无线控制器初始化配置Enter System name [Aruba3400]:Enter VLAN 1 interface IP address [172.16.0.254]:Enter VLAN 1 interface subnet mask [255.255.255.0]:Enter IP Default gateway [none]:Enter Switch Role, (master|local) [master]: ————————————控制器角色Enter Country code (ISO-3166), <ctrl-I> for supported list: cn———————控制器所在国家代码，此选项影响You have chosen Country code CN for China (yes|no)?:yes可用RF channel及功率参数Enter Time Zone [PST-8:0]: UTC8:0——————————————－时区系统（UTC、PST等）及所在时区Enter Time in UTC [06:07:59]: 6:11:30——————————————所选时区系统的标准时间而不是本地时间，Enter Date (MM/DD/YYYY) [8/14/2011]: 否则控制器的时钟可能就不对了。
