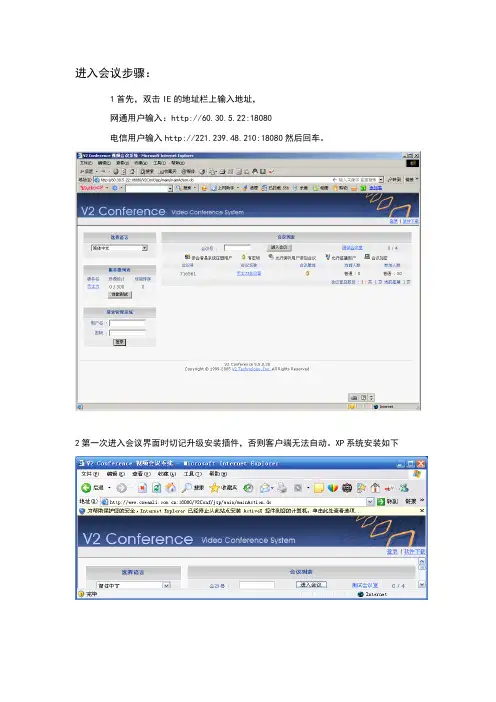

进入会议步骤:1首先,双击IE的地址栏上输入地址,网通用户输入:http://60.30.5.22:18080电信用户输入http://221.239.48.210:18080然后回车。

2第一次进入会议界面时切记升级安装插件,否则客户端无法自动。

XP系统安装如下软件下载下载V2 Conference客户端软件,并安装。

最后进入会议为了保障会议的安全,大家以后可以修改密码,具体方法会在培训时讲解。

视频设备的安装为了保障视频和音频的效果,公司统一采购了罗技的一款摄像头,该摄像头同时具有话筒的功能,具体设置方法为:1、安装好摄像头的驱动程序2、打开视频会议系统3、点击普通—设置—音频,在录制--设备处选择“Logitech Microphone (PTZ)”,如图一4、在视频—捕捉--设备处选择“Logitech QuickCam PTZ”,如图二图一主界面介绍:声音设置 1、音频设备选择双击通知区域的扬声器图标(屏幕右下角的小喇叭)检查属性设置。

在“音量控制”属性设置中,“麦克风音量平衡”应该设置为“静音”。

如下图所示。

图1点击可以看到自己或对方的图象点击可以发言麦克音量和喇叭音量在“录音控制”属性设置中,“麦克风音量平衡”应该设置为“选择”,如下图所示。

图 1。

会议中的回音问题:1)是否有人使用外置音箱,如使用音箱放音,会回传到麦克中,形成回声(麦克的定向性不好)。

改用耳麦或定向麦克可以消除回音。

某些耳麦(耳机和麦克一体),质量不好,也会使声音串扰。

需要更换较好的耳机麦克。

2)如仍有回音存在,按如下步骤检查设置:a)双击Windows音量控制按钮(小喇叭)设置声音属性●请检查选择正确的混音设备●请检查音量控制中的属性设置。

在“音量控制”属性设置中,“麦克风音量平衡”应该设置为“静音”,如下图所示:●在“录音控制”属性设置中,“麦克风音量平衡”应该设置为“选择”,其余不要选中,如下图所示:特别说明:各种声卡设置界面会略有不同。

威速V2视频会议安装及调试详解教学文稿

威速V2视频会议安装及调试详解教学文稿

威速V2视频会议软件安装及调试详解版本:1.0技术部编制2011-10-24一、视频会议软件介绍1.1、硬件组成威速视频会议系统的基础硬件组成包括:1、电脑(服务器)2、声卡3、视频采集卡4、网卡、5摄像头。

现在的电脑一般都内置声卡和网卡,也就是说我们需要给电脑添加一块视频采集卡。

1.11视频采集卡分类常用的视频采集卡分为内置式PCI接口和外置式的USB接口内置式PCI接口视频采集卡图示:外置式USB接口视频采集卡图示:1.12如何选择视频采集卡优先选择PCI接口的视频采集卡,PCI接口的视频采集卡运行稳定,与软件兼容性较好,速率传输快。

只有当电脑没有PCI接口(如IBM服务器)时,才考虑安装USB接口视频采集卡,USB接口受本身接口速率的限制,无法进行高码率的视频传输,长时间使用易造成死机,出现故障几率较高。

1.2视频采集卡随盘驱动及软件视频采集卡在包装里随机附送一张光盘,内含采集卡驱动及调试软件,当我们安装好视频采集卡并接入了摄像头以后,可先通过随盘附带的软件对摄像头进行调试。

反过来说,当后期威速视频会议软件无法显示图像时,我们也可以通过随盘软件对摄像头进行调试,帮助我们尽快排除故障。

1.21视频采集卡驱动及软件安装视频卡随机驱动及软件安装图示:然后一路NEXT安装即可这里选择第二项PAL 制式,然后继续next选择仍然继续一路NEXT YES后点Finish完成驱动及软件的安装。

.1.22通过随盘软件调试摄像头首先找到视频会议软件的安装目录,双机Video control pane出现如下界面,如果摄像头安装正确的话,通过简单的调试即可出现图像一般我们选择PAL和Composite注意:不同的厂商可能会出现不同的界面(下图):如果没有出现图像,或者图像颜色不正确,可以通过进行根据具体情况进行设置,直到图像满意为止。

二、视频会议软件安装2.1视频会议软件下载及安装视频会议软件下载地址:http://x.x.x.x:18080/conf/master/common/download.jsp依次下载图中的四个软件并安装。

V2视频会议管理员手册

V2视频会议管理员手册

管理员手册V 6.2所有权声明威速公司拥有此手册内容的全部解释权,本手册中的信息如有变动,恕不另行通知。

未经威速公司的明确书面许可,本手册的任何部分不得以任何形式进行增删、改编、节选、翻译、翻印或仿制。

威速公司假定对本手册中可能存在的任何错误不负责任。

威速公司可能拥有本手册内容的专利、专利申请、商标、版权或其它知识产权。

除了威速公司授权许可协议所提供的明确书面许可,拥有本文档并不赋予您任何有关这些权利、商标、版权或其它知识产权的许可。

所有标记和商标都是其各自持有人的财产。

本软件中使用的GIPS技术和相关商标为Global IP Sound AB公司版权所有,以下为相关版权声明。

Portions Copyright © 1999-2010 Global IP Sound Inc.All rights reserved.Global IP Sound,GIPS,SoundWare,NetEQ,iPCM,iLBC,GIPS V oiceEngine,and associated design marks and logos are trademarks owned or used under license by Global IP Sound AB,and may be registered in the United States and other countries.Patents and Patents Pending,Global IP Sound Inc.Copyright © 1999-2010 V2 Technology, Inc. 保留所有权利。

前 言内容介绍本手册介绍了如何正确部署V2 Conference系统以及管理员用户所能进行的其他一些操作。

手册分为4部分:第一部分:系统介绍V2 Conference系统简介;第二部分:服务器安装系统需求及服务器程序的安装过程;第三部分:配置服务器如何配置启动主/从服务器;第四部分:登录管理系统系统管理员登录主服务器及从服务器的管理系统可以实现哪些功能;读者对象本手册适合以下人员阅读:V2 Conference的系统管理员。

V2视频会议操作手册(太平洋网络)技术部2010.11

V2视频会议操作手册(太平洋网络)技术部2010.11

讨论问题。
申请发面左下角第二个“申请控制按钮”, 选择“申请控制权”。第一个申请控制权的参会 用户可得到“控制权” ,接下来再“申请控 制权”的用户会得到“操作权” 。
2-3 更换桌面布局
点击页面左下角第三个“桌面布局按钮”。会议提供了7种不同桌面会议布 局,可根据实际需求随意切换。
5.在确认以上设置以后如果问题依然存在,退出网络会议室后重新进入
6.其它注意事项 视频会议笔记本平时尽量不要用作其它用途,会议前应该尽量安排15~30分钟
进行异地协同调试
3.接上投影仪的VGA线后 投影仪没显示 在笔记本按win键+P 切换显示模式
4无法操作文档 上传删除文档 用户只有在获得了数据控制权后,才能进行共享操作。演示工作区所打开的文 档,每个参会者都可同步看到相应内容。由一位“控制权” 所有者控制共享文 档、翻页;其他人为“操作者”,可同时在“已打开文档”上,进行操作、修 改、做标注。
文档共享功能,可将文档在白板页上共享出来供所有与会人员观看,并支持多人 同时进行标注、勾画等操作。包括word、Excel、PPT、图片、AutoCAD、Pdf 等文件。 遇到有动画的文件会有选择
2-6同步操作
同步视频
自动同步: 当主席使用此功能后,普通用户
看到视频和主席看到的视频完全一样。 并且不允许其他用户打开或关闭视频。
置”,在设置窗口中确认视频菜单中选择“设置”,在设置窗口中, 确认音频设置如下图所示
2.声音方面的问题 检查是否选择了正确的音频设备,在“普通”菜单中选择“设置”,
在设置窗口中,确认音频设置如下图所示
要对方听到自己说话要先申请发言 进入会议界面,系统默认无法发言。 发言需点击“页面左下角”第一个“申请发言”按钮。

视频会议操作手册

视频会议操作手册

视频会议操作程序一、本地会议1、接通电源;(正常电压的指示数在220-225之间)2、开启“电源时序器”;3、将音量总开关推到+0位置,远端输出开关推到+6位置,我方麦音输入开关推到+0位置,对方麦音输入开关推到-6位置。

(根据会场输入输出音量高低情况做适当调整)4、如用投影仪,先通过掌控系统(TAIDEN)进入系统菜单-→投影仪控制-→开启投影仪-→对准高清视频头晃动遥控器-→然后把VGA 线连接笔记本电脑-→在遥控器上按键切换到投影仪上。

二、中煤视频会1、接通电源;(正常电压的指示数在220-225之间)2、开启“电源时序器”;3、将音量总开关推到+0位置,远端输出开关推到+6位置,我方麦音输入开关推到+0位置,对方麦音输入开关推到-6位置。

(根据会场输入输出音量高低情况做适当调整)4、通过掌控系统(TAIDEN)进入系统菜单-→电视机控制-→开启电视机1、2 -→开启投影仪控制-→对准高清视频头晃动遥控器,等待大屏幕显示画面。

5、发言完毕后要关闭相应MIC,最多三个麦同时启用。

6、会议结束后,关闭设备顺序按开机相反操作进行(注:关闭投影仪时要在将掌控中投影仪控制中按关机键两次)。

7、掌控系统关机时应在系统桌面上点击关闭系统。

三、早调会1、接通电源;(正常电压的指示数在220-225之间)2、开启“电源时序器”;3、将音量总开关推到+0位置,远端输出开关推到+6位置,我方麦音输入开关推到+0位置,对方麦音输入开关推到-6位置。

(根据会场输入输出音量高低情况做适当调整)4、通过掌控系统(TAIDEN)进入系统菜单-→电视机控制-→开启电视机1、2 -→开启投影仪控制-→对准高清视频头晃动遥控器,等待大屏幕显示画面-→呼叫相关会场(会场IP地址见附件)。

5、把笔记本连接网线后,IP地址设置为:IP:172.20.145.8网关:172.20.145.1。

在IE中输入MCU地址:192.168.63.51。

威速V2视频会议安装与调试详解

威速V2视频会议安装与调试详解

威速V2视频会议软件安装及调试详解版本:1.0技术部编制2011-10-24一、视频会议软件介绍1.1、硬件组成威速视频会议系统的基础硬件组成包括:1、电脑(服务器)2、声卡3、视频采集卡4、网卡、5摄像头。

现在的电脑一般都内置声卡和网卡,也就是说我们需要给电脑添加一块视频采集卡。

1.11视频采集卡分类常用的视频采集卡分为内置式PCI接口和外置式的USB接口内置式PCI接口视频采集卡图示:外置式USB接口视频采集卡图示:1.12如何选择视频采集卡优先选择PCI接口的视频采集卡,PCI接口的视频采集卡运行稳定,与软件兼容性较好,速率传输快。

只有当电脑没有PCI接口(如IBM服务器)时,才考虑安装USB接口视频采集卡,USB接口受本身接口速率的限制,无法进行高码率的视频传输,长时间使用易造成死机,出现故障几率较高。

1.2视频采集卡随盘驱动及软件视频采集卡在包装里随机附送一张光盘,内含采集卡驱动及调试软件,当我们安装好视频采集卡并接入了摄像头以后,可先通过随盘附带的软件对摄像头进行调试。

反过来说,当后期威速视频会议软件无法显示图像时,我们也可以通过随盘软件对摄像头进行调试,帮助我们尽快排除故障。

1.21视频采集卡驱动及软件安装视频卡随机驱动及软件安装图示:然后一路NEXT安装即可这里选择第二项PAL制式,然后继续next选择仍然继续一路NEXT YES后点Finish完成驱动及软件的安装。

.1.22通过随盘软件调试摄像头首先找到视频会议软件的安装目录,双机Video control pane出现如下界面,如果摄像头安装正确的话,通过简单的调试即可出现图像一般我们选择PAL和Composite注意:不同的厂商可能会出现不同的界面(下图):如果没有出现图像,或者图像颜色不正确,可以通过进行根据具体情况进行设置,直到图像满意为止。

二、视频会议软件安装2.1视频会议软件下载及安装视频会议软件下载地址:http://x.x.x.x:18080/conf/master/common/download.jsp依次下载图中的四个软件并安装。

  1. 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。

V2视频会议典型操作手册威速科技目录1登陆方式 (2)1.1常规登录 (2)1.2初次登陆 (3)1.3进入会议前应该注意事项 (5)1.4音视频设置 (5)2会议界面 (7)2.1显示视频 (7)2.2申请发言 (8)2.3更换桌面布局 (8)2.4文字交流区 (9)2.5申请控制权 (9)3数据协作 (10)3.1创建新白板 (10)3.2创建新WEB共享 (12)3.3创建新文档共享 (12)3.4共享我的程序 (13)3.4.1一对多程序共享 (13)3.4.2一对一程序共享 (13)3.5屏幕截图 (14)4文件传输 (14)5投票 (15)6会议议程 (15)7主席权限 (16)7.1同步视频 (16)7.2同步布局 (17)7.3会议分组 (17)7.4综合录制 (17)7.5主席置换/申请 (18)7.6电子举手 (18)7.7H.323互通 (18)1登陆方式1.1 常规登录打开IE(浏览器),在地址栏里输入会议地址,或从中直接点击会议地址,进入会议登陆页面。

如登录演示会议室的会议:zuyong.v2tech./Conf/jsp/conference/enterMeetingAction.do?confid=678450&jid=678450sla vemcu_1.machine1.v2c&parmeter=showconf输入“昵称”、“密码”,点击“进入会议”。

(预定时无密码会议此处不显示密码输入框;如已登录会议管理系统,不显示用户名称输入框)初次登陆,系统将自动提示“安装客户端”。

点击选择适合本地网络的会议服务器,再点击“进入会议”。

每次登录时系统会自动检测更新客户端。

1.2 初次登陆初次登陆,系统将自动提示“安装客户端”。

点击确定按提示下载运行安装客户端。

点击“运行”直接下载安装,或者点击“保存”将客户端下载到本机后安装客户端。

Win7或Vista系统用户建议将客户端下载到本机,安装时点击鼠标右键选择“以管理员身份”安装。

安装过程中根据本机安装的防病毒软件或防火墙不同提示,可能有安全警告,请点击“运行”,或“允许”“解除阻止”之类的选项放行安装。

安装过程依据提示默认安装即可。

也可以自定义安装路径系统提示安装完成后按照以上1)、2)步骤重新登陆会议即可。

1.3 进入会议前应该注意事项A、关闭正在本机运行的大程序;B、关闭或暂停正在下载的工具如(flashget\Net Transport\迅雷\pp\poco\……);C、关闭QQ或uc或其它的语音和视频功能软件;D、关闭占用视频的程序,如视频调试程序。

1.4 音视频设置1)进入会议以后,如果感觉到对方音量小或对方听到我们声音小,按下图提示将话筒和喇叭按钮拉到右边放大音量,如图:2)如果根据上面操作都正常,而进入会议系统检测到的摄像头和麦克风灰的,不能正常使用,请点会议界面左上角【普通】菜单下的【设置】,按照下面调节音频和视频的方法将音频设备和视频设备重新选择一下,如下图:【音频设备设置】【视频设备设置】2会议界面界面:简洁大方、友好直观,普通用户无需特殊培训即可快速掌握、熟练使用。

主要包括“用户列表区”、“数据操作区”、“视频区”和“文字交流区”。

左侧“参会者”列表:体现参会用户的不同状态。

如“申请发言”名字后出现“喇叭”,“申请操作”名字后出现“小笔”,安装摄像头的用户出现“摄像头图标”。

2.1 显示视频进入会议界面,系统默认不显示视频。

点击“用户列表区”“参会人名”,界面右侧“视频区”弹出视频窗口。

本地视频上的“传输速率k”显示本地视频的上行带宽(位bit)。

远端视频上的“传输速率,显示远端视频传输到本地的下行带宽(位bit)。

改变视频设置:右键点击本地视频图像,“改变视频设置”可以调整本地视频的“视频分辨率”“帧率”“带宽”等。

主席端可以调整所有与会用户的视频参数。

注意:专业版主席端不限视频路数(硬件资源要足够好,可打开所有参会用户视频),普通客户端支持24路视频。

音频同时支持12路混音。

2.2 申请发言进入会议界面,系统默认无法发言。

发言需点击“页面左下角”第一个“申请发言”按钮。

支持12路混音,可12人同时发言,像普通会议一样讨论问题。

申请发言按钮详细介绍:2.3 更换桌面布局点击页面左下角第三个“桌面布局按钮”。

会议提供了9种不同桌面会议布局,可根据实际需求随意切换。

2.4 文字交流区点击页面左下角第四个按钮,“文字交流区”可以隐藏或改变方式。

公共交流(聊天):点击“文字交流”标签,在文字输入区打字、提交后,所有参会用户都可看到发送文字。

私聊(悄悄话):右键点击页面左上“参会人名”,选择“打开文字悄悄话窗口”。

在“文字交流区”的“文字交流”标签右侧,会新弹出此“用户名”标签(红色闪烁字体)。

点击用户名标签后,在文字输入区打字、提交,只有此用户才可看到发送文字。

注意:主席可以禁止其他用户的私聊功能,此时用户的“打开文字悄悄话窗口”菜单项显示为灰色。

2.5 申请控制权点击界面左下角第二个“申请控制按钮”,选择“申请控制权”。

第一个申请控制权的参会用户可得到“控制权”,在用户列表区“参会人名”右侧会出现“控制权”图标。

可以对“数据操作区”进行操作,包括“白板共享”、“文档共享”、“共享网页浏览”、“共享我的程序”等功能。

接下来再“申请控制权”的用户会得到“操作权”。

可以对拥有控制权用户已打开文档,进行修改、标注。

但无法进行翻页,更换文档等操作。

可5人同时对文档进行操作,一个“控制权”,4个“修改权”。

申请控制权按钮详细介绍:3数据协作注意事项●用户只有在获得了数据控制权后,才能进行共享操作。

●演示工作区所打开的文档,每个参会者都可同步看到相应容。

●5人同时操作:由一位“控制权”所有者控制共享文档、翻页;另外4位“操作者”,可同时在“已打开文档”上,进行操作、修改、做标注。

●根据用户需要,可以通过拖拽“边框”或改变“布局”来调整“共享文件”的大小;●在共享的文档上鼠标右键点击,可将当前页(包括修改容)另存到本地电脑,为bmp格式文件;也可以调整文档显示比例。

3.1 创建新白板用户得到“控制权”后,点击页面左下“申请操作按钮”,选择“开始白板操作”;想对文档进行修改、标注的用户,也需“申请操作按钮”多电子白板共享,可由控制者在多个电子白板之间进行灵活切换。

支持5人同时操作,并支持荧光笔、指示手等多种标注讲解工具。

注意:选择除荧光笔以外的笔形在白板上操作时,“默认颜色”就是“每个参会用户名称前”的颜色框。

会议系统可外接手写笔(汉王)、手写板、电子白板等工具,使应用更加灵活。

3.2 创建新WEB共享用户得到“控制权”后,点击页面左下“申请操作按钮”,选择“开始共享网页浏览”,在“地址栏”直接输入英文网址。

不支持中文网址。

所有参会者都可以同步浏览到公网信息,可同时显示多个页面,,通过网页下边框多个网址随意切换。

新弹出窗口或小广告都会依次显示在共享网页的下边框上,关闭其中一页,可双击此网页名。

注意:活动广告过多的网址,例如“sina”。

若pc配置较低,突然弹出过多窗口,可能导致cpu 占到100%,而影响音视频质量。

所浏览的容应该是会议室中所有用户都可以访问到的地址,不要输入本地地址,如果应用在Internet上,也不要输入局域网的地址。

3.3 创建新文档共享用户得到“控制权”后,点击页面左下“申请操作按钮”,选择“开始文档共享”。

文档共享选中文档共享功能,可将所有可打印的文档在白板页上共享出来供所有与会人员观看,并支持多人同时进行标注、勾画等操作。

包括word、Excel、PPT、图片、AutoCAD、Pdf 等文件。

3.4 共享我的程序系统支持桌面共享与应用程序共享功能,分为“一对多”及“一对一”两种共享方式。

使用者可以方便的将桌面及应用程序操作情况、步骤共享给其他与会人员,而通过操作权的切换,某一用户可将自己桌面和程序的操作权交给其他远程用户,达到了远程控制。

共享程序:预先打开1~2个Word或Excel文件,共享时在选择框可选择共享的文件。

一定要把所共享文档放在当前显示页(最上面),若被其他文件盖住,远端看到的就会是网格。

目前程序共享可根据网络情况选择颜色质量及共享质量,以适应不同网络带宽条件。

3.4.1一对多程序共享一对多程序共享是指数据控制人共享程序给所有与会用户(不包括扩展用户与组播用户;旁听用户是否可见由预定会议时的设置决定)。

用户得到“控制权”后,点击页面左下“申请操作按钮”,选择“共享我的程序”。

弹出窗口中可选择“桌面”或已经打开的某一程序。

3.4.2一对一程序共享一对一程序共享即为仅限在两个用户之间的程序共享,也称为点对点程序共享。

用户得到“控制权”后,右键点击页面左上“参会人名”,选中“程序共享”。

弹出窗口中可选择“桌面”或已经打开的某一程序。

3.5 屏幕截图屏幕截图功能可随时对屏幕上任意矩形区域进行截图,并将截图共享在中间“数据操作”区域,方便了信息的交流与共享。

用户得到“控制权”后,点击页面左下“申请操作按钮”选择“屏幕截图”,进入截图状态鼠标显示为“十”字。

通过上下左右拖动该标志,用户可以选择会议界面任何矩形区域,被选区域会用红框显示。

点击鼠标左键则截图成功,显示提示信息。

想对会议以外其他界面进行截图,请使用键盘快捷键“ Ctrl+Shift+P ” 。

选择“是”,则将截图显示在“数据操作”页面的新建白板页上,如果选择“否”,则取消选择,您可以重新选择需要截图的区域。

4文件传输主席可以禁止传输文件功能,但禁止后主席仍可使用此功能,此时会议用户的“发送文件”菜单项显示为灰色,同时,“普通”菜单的“发送文件给参会用户”命令也显示为灰色。

一对多传送点击页面左上“普通”菜单,选择“发送文件给参会用户”,弹出窗口可选择多个或单个用户,选择文档、发送。

一对一传送右键点击左上“参会人名”,选择“发送文件”,选择文档、发送。

点击“文件传输”界面,“下载”栏显示接收的文件,可右键点击此文件,进行下载。

“上传”栏显示发送给其他用户文件。

注意:因为本地电脑有缓存纪录,用户退出会议系统后再登录会议,将显示您上次登录会议的文件传输信息。

主席可以删除会议室中的所有传输文件容,但保留文件名称。

此时,用户再点击“下载”会提示失败。

如果你上传的文件超过系统的可用空间,系统会提示“会议中上传空间不足”,系统默认会议中传输文件的总存储空间为100MB。

5投票主席控制:投票的全过程完全由主席控制。

利用电子投票功能,主席可以针对某一问题发起问答。

其他用户可以通过电子投票功能进行投票。

主席创建投票的主题、选项(单选投票或多选投票、记名投票或不记名投票)以及投票的时间,设置完毕后,即可向所有会议用户发布投票。
