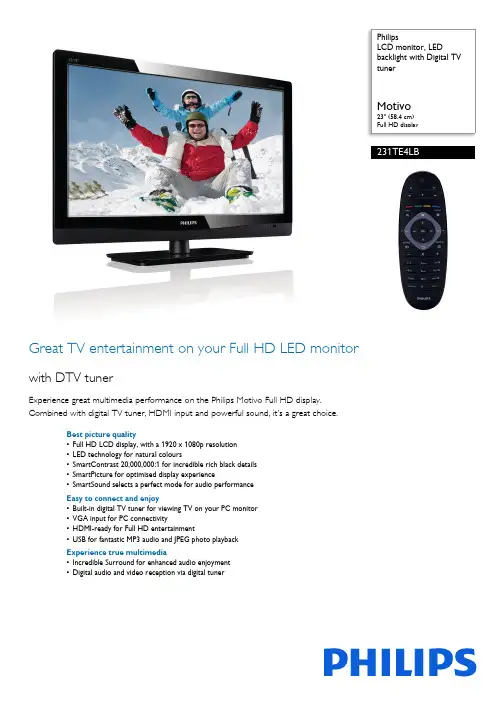

菲利普LCD显示器商品说明书

PhilipsLCD monitor, LEDbacklight with Digital TV tunerMotivo23" (58.4 cm)Full HD display231TE4LBGreat TV entertainment on your Full HD LED monitorwith DTV tunerExperience great multimedia performance on the Philips Motivo Full HD display. Combined with digital TV tuner, HDMI input and powerful sound, it's a great choice.Best picture quality•Full HD LCD display, with a 1920 x 1080p resolution •LED technology for natural colours•SmartContrast 20,000,000:1 for incredible rich black details •SmartPicture for optimised display experience•SmartSound selects a perfect mode for audio performance Easy to connect and enjoy•Built-in digital TV tuner for viewing TV on your PC monitor •VGA input for PC connectivity•HDMI-ready for Full HD entertainment•USB for fantastic MP3 audio and JPEG photo playback Experience true multimedia•Incredible Surround for enhanced audio enjoyment •Digital audio and video reception via digital tunerHighlightsLED technologyWhite LED's are solid state devices which light up to full, consistent brightness faster saving startup time. LED's are free from mercury content, which allows for eco-friendlyrecycling and disposal process. LED's allow for better dimming control of the LCD backlight, resulting in a super high contrast ratio. It also gives superior colour reproduction thanks to consistent brightness across the screen.Digital TV tunerA digital television tuner built into a monitor to receive and display high quality TV signals from various sources.Full HD LCD display 1920 x 1080pThe Full HD screen has the widescreenresolution of 1920 x 1080p. This is the highest resolution of HD sources for the best possible picture quality. It is fully future-proof as it supports 1080p signals from all sources,including the most recent sources such as Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colours.SmartContrast ratio 20,000,000:1You want the LCD flat display with the highest contrast and most vibrant images. Philipsadvanced video processing combined with unique extreme dimming and backlight-boosting technology results in vibrant images. SmartContrast will increase the contrast with excellent black level and accurate rendition of dark shades and colours. It gives a bright, lifelike picture with high contrast and vibrant colours.SmartPictureSmartPicture is an exclusive leading edge Philips technology that analyses the content displayed on your screen and gives you optimised display performance. This user friendly interface allows you to select various modes like Office, Image, Entertainment, Economy etc., to fit the application in use. Based on the selection, SmartPicturedynamically optimises the contrast, colour saturation and sharpness of images and videos for ultimate display performance. TheEconomy mode option offers you major power savings. All in real time with the press of a single button!Incredible SurroundIncredible Surround is an audio technology from Philips that dramatically magnifies the sound field to immerse you in the audio. Using state-of-the-art electronic phase shifting, Incredible Surround mixes sounds from left and right in such a way that it expands thevirtual distance between the two speakers. This wider spread greatly enhances the stereo effect and creates a more natural sounddimension. Incredible Surround allows you to experience total surround with greater depth and width of sound, without the use of additional speakers.SmartSoundSmartSound allows you to select variousmodes like Movie, Games, Music etc., thereby automatically activating predefined frequencies to enhance the sound related to the functionHDMI ReadyAn HDMI-ready device has all the required hardware to accept High-DefinitionMultimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).Digital audio and videoDigital audio and video reception via digitaltunerIssue date 2022-04-21Version: 1.1.212 NC: 8670 000 84779EAN: 87 12581 62595 5© 2022 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•LCD panel type: TFT-LCD •Backlight type: W-LED system•Diagonal screen size: 23 inch / 58.4 cm •Aspect ratio: 16:9, Widescreen •Panel resolution: 1920 x 1080•Response time (typical): 5 ms •Brightness: 250 cd/m²•SmartContrast: 20,000,000:1•Viewing angle: 170º (H)/160º (V), @ C/R > 10•Contrast ratio (typical): 1000:1•Picture enhancement: Progressive scan•Screen enhancement: Anti-Reflection coated screenSupported Display Resolution•Computer formats Resolution Refresh rate Optimum 1920 x 108060 Hz •Video formatsResolutionRefresh rate 480i 60 Hz 480p 60 Hz 576i 50 Hz 576p 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz1080p24, 50, 60 Hz Sound•Output power (RMS): 3 W x 2•Sound Enhancement: Incredible Surround, Smart Sound•Sound System: Mono, Stereo, Nicam StereoConvenience•Ease of Installation: Plug and Play, Automatic Tuning System (ATS)•Ease of Use: On-Screen Display, Programme List, Side Control•Remote control type: Philips RC6 Remote control •On-Screen Display languages: Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Kazakh, Latvian, Lithuanian, Norwegian,Portuguese, Polish, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish,Ukraine•Other convenience: VESA mount (100 x 100 mm)•Screen Format Adjustments: Auto (WSS), Movie expand 14:9, Movie expand 16:9, Widescreen, Super Zoom, Subtitle Zoom, 4:3•SmartPicture: Cinema, Custom, Energy saving, Game, Natural, Photo, Standard, Vivid•SmartSound: Cinema, Drama, Game, News, Personal, Sports, Standard•Teletext: 1000-page Smart TextStand•Tilt: 0/+15 degreeTuner/Reception/Transmission•Aerial Input: 75 ohm coaxial (IEC75)•TV system: PAL I, PAL B/G, PAL D/K, SECAM B/G, SECAM D/K, SECAM L/L'•Video Playback: NTSC, PAL, SECAM •Tuner Display:PLL•CI/CI+: yes (Burn CI+ key in set)•Digital TV: DVB-C, DVB-T •MHEG-5v1.06•MPEG-2, MPEG-4 support•Tuner bands: Hyperband, S-Channel, UHF, VHFConnectivity•Ext @ side: CI+, USB x 1 (JPG/MP3)•Ext @ rear: D-sub x 1, HDMI (1.4a) x 1,Headphone x 1, PC audio in x 1, Scart x 1, SPDIF out x 1 (RCA), Tuner x 1, YPbPr x 1 + L/R input x 1Power•On mode: 25.6 W (typ.)/34 W (max)•Off mode: 0.3 W (typ.)•Standby mode: 0.3 W (typ.)•Ambient temperature: 5°C to 40°C •Mains power: 100-240 V, 50/60 HzDimensions•Packaging in mm (W x H x D): 612 x 468 x 117 mm •Product with stand (mm): 573 x 410 x 174 mm •Product without stand (mm): 573 x 370 x 39 mmWeight•Product with packaging (kg): 4.83 kg •Product with stand (kg): 3.56 kg •Product without stand (kg): 3.32 kgAccessories•Included accessories: Power cord, Remote Control (with battery), Quick start guide, User Manual, VGA cable。

冠捷I2369V液晶显示器维修手册

维修手册客户/品牌机种名AOC I2369V变更说明版本发布日期变更说明对外机种名对内机种名A00 JAN,28,2013Initial Release I2369V TDCJN27YFVA2HNF.LF A01 FEB,06,201,2 Add new model I2369V/WW TDCJN27YFVA3HNF.LF目录1. 技术规格 -------------------------------------------------------------------------------------------------------------- 4 1.1 一般规格 --------------------------------------------------------------------------------------------------------- 4 1.2 工厂预设模式 --------------------------------------------------------------------------------------------------- 52. 操作说明 -------------------------------------------------------------------------------------------------------------- 62.1控制面板--------------------------------------------------------------------------------------------------------- 62.2接口说明--------------------------------------------------------------------------------------------------------- 7 2.3 OSD菜单调整 ------------------------------------------------------------------------------------------------- 83. 工厂模式调整 -------------------------------------------------------------------------------------------------------- 234. 电气方框图 ----------------------------------------------------------------------------------------------------------- 245. 线路图 ----------------------------------------------------------------------------------------------------------------- 255.1主板--------------------------------------------------------------------------------------------------------------- 255.2按键板------------------------------------------------------------------------------------------------------------ 305.3电源板------------------------------------------------------------------------------------------------------------ 316. ISP和DDC烧录SOP --------------------------------------------------------------------------------------------- 347. 故障处理流程 -------------------------------------------------------------------------------------------------------- 477.1主板--------------------------------------------------------------------------------------------------------------- 477.2按键板------------------------------------------------------------------------------------------------------------ 518.主要IC管脚及内部框图 -------------------------------------------------------------------------------------- 529. 附带软件使用SOP--------------------------------------------------------------------------------------------- 569.1分屏软件SOP -------------------------------------------------------------------------------------------------- 56 9.2 e-Saver SOP --------------------------------------------------------------------------------------------------- 57 9.3 i-Menu SOP ---------------------------------------------------------------------------------------------------- 5810. 料件清单 ------------------------------------------------------------------------------------------------------------ 591、技术规格1.1 一般规格1.2 工厂预设模式2. 操作说明2.1控制面板2.2接头引脚分配管脚号信号电缆的 15 针一端管脚号信号电缆的 15 针一端1 视频 - 红色9 +5V2 视频 - 绿色10 接地3 视频 - 蓝色11 N.C.4 N.C. 12 DDC- 串行数据5 检测电缆13 H- 同步6 GND-R 14 V- 同步7 GND-G 15 DDC- 串行时钟8 GND-B管脚号信号名称管脚号信号名称管脚号信号名称1 TMDS 数据 2- 9 TMDS 数据 1- 17 TMDS 数据 0-2 TMDS 数据 2+ 10 TMDS 数据 1+ 18 TMDS 数据 0+3 TMDS 数据 2/4 屏蔽11 TMDS 数据 1/3 屏蔽19 TMDS 数据 0/5 屏蔽4 TMDS 数据 4- 12 TMDS 数据 3- 20 TMDS 数据 5-5 TMDS 数据 4+ 13 TMDS 数据 3+ 21 TMDS 数据 5+6 DDC 时钟14 +5V 电源22 TMDS 时钟屏蔽7 DDC 数据15 接地（对于 +5V ）23 TMDS 时钟 +8 N.C. 16 热插拔检测24 TMDS 时钟 -2.3 OSD 调节明亮度图象设置色温窗口增亮OSD 设置其它退出3 工厂模式调整进入工厂模式方法：关机状态下，长按左右两个方向键后做开机动作，待按键指示灯亮后松手，从OSD菜单后左上角“F”进入工厂。

AOC CU32V3 LED背光LCD显示器用户手册说明书

LCD Monitor User Manual CU32V3LED backlightSafety (1)National Conventions (1)Power (2)Installation (3)Cleaning (4)Other (5)Setup (6)Contents in Box (6)Setup Stand & Base (7)Adjusting Viewing Angle (8)Connecting the Monitor (9)Adjusting (10)Hotkeys (10)OSD Setting (12)Luminance (13)Color Setup (14)Picture Boost (15)OSD Setup (16)Extra (17)Exit (18)LED Indicator (18)Driver (19)i-Menu (Screen+) (19)e-Saver (20)Troubleshoot (21)Specification (22)General Specification (22)Preset Display Modes (23)Pin Assignments (24)Plug and Play (25)SafetyNational ConventionsThe following subsections describe notational conventions used in this document.Notes, Cautions, and WarningsThroughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:NOTE: A NOTE indicates important information that helps you make better use of your computer system.CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.PowerThe monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fitonly into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.Do not overload power strips and extension cords. Overloading can result in fire or electric shock.To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC, Min. 5A.The wall socket shall be installed near the equipment and shall be easily accessible.InstallationDo not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electricshock. Never spill liquids on the monitor. Do not place the front of the product on the floor.If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate henceoverheating may cause a fire or damage to the monitor.See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:Installed with stand Installed with standPlease purchase a suitable wall mount to avoid the lack of distance between the back signal cable and the wall.CleaningClean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.Please disconnect the power cord before cleaning the product.OtherIf the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.Make sure that the ventilating openings are not blocked by a table or curtain.Do not engage the LCD monitor in severe vibration or high impact conditions during operation.Do not knock or drop the monitor during operation or transportation.SetupContents in BoxNot all signal cables (DP , HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.CD Manual Warranty card Base Power Cable HDMI Cable DP CableSetup Stand & BasePlease setup or remove the base following the steps as below. Setup:Remove:Adjusting Viewing AngleFor optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference.Hold the stand so you will not topple the monitor when you change the monitor’s angle.You are able to adjust the monitor as below:NOTE:Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.Connecting the MonitorCable Connections In Back of Monitor and Computer:1. Power2. Earphone3. DisplayPort4. HDMI-25. HDMI-1Connect to PC1. Connect the power cord to the back of the display firmly.2. Turn off your computer and unplug its power cable.3. Connect the display signal cable to the video connector on the back of your computer.4. Plug the power cord of your computer and your display into a nearby outlet.5. Turn on your computer and display.If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting. To protect equipment, always turn off the PC and LCD monitor before connecting.AdjustingHotkeys1Source/Exit/Up2Eco/DCR/Uniformity/Down3Clear Vision/Left4Volume/Right5Power/ Menu/EnterPower/Menu/EnterPress the Power button to turn on the monitor.When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 second to turn off the monitor.Volume/RightWhen there is no OSD, Press Volume button to active volume adjustment bar, Press Left or Right to adjust volume.Source/ExitWhen the OSD is closed, press Source/Exit button will be Source hot key function.Eco /DCR/Uniformity/DownWhen there is no OSD, Press this button to enter Eco/DCR/Uniformity adjustment. Then press Left or Right button to choose different Eco/DCR/Uniformity.Clear Vision1. When there is no OSD, Press the “Left” button to activate Clear Vision.2. Use the “Left” or “Right” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”.3. Press and hold “Left” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo:on” will be display on the screen for a duration of 5 seconds. Press and hold “Left” button for 5 seconds again, Clear Vision Demo will be off.Clear Vision function provides the best image viewing experience by converting low resolution and blurry images into clear and vivid images.Clear VisionOffAdjust the Clear VisionWeak Medium StrongClear Vision DemoOn or OffDisable or Enable DemoOSD SettingBasic and simple instruction on the control keys.OSD Setup1). Press the MENU-button to activate the OSD window.2). Press Left or Right to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it, press Left or Right to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.3). Press Left or Right to change the settings of the selected function. Press Exit–button to exit. If you want to adjustany other function, repeat steps 2-3.4). OSD Lock/Unlock Function: To lock or unlock the OSD, press and hold the Down–button for 10s while OSD functionis not active.Notes:1). If the product has only one signal input, the item of “Input Select” is disable to adjust.2). ECO modes (except Standard mode), Clear vision, DCR, DCB mode and Picture Boost, for these states that only onestate can exist.LuminanceOSD SetupContrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight AdjustmentEco modeStandard Standard ModeText Text ModeInternet Internet ModeGame Game ModeMovie Movie ModeSports Sports ModeReading Reading ModeUniformity Uniformity ModeGammaGamma1Adjust to Gamma 1Gamma2Adjust to Gamma 2Gamma3Adjust to Gamma 3DCROff Disable dynamic contrast ratioOn Enable dynamic contrast ratio OverdriveWeakAdjust the response time.MediumStrongOffColor SetupOSD SetupColor Temp.Warm Recall Warm Color Temperature from EEPROM.Normal Recall Normal Color Temperature from EEPROM.Cool Recall Cool Color Temperature from EEPROM.sRGB Recall SRGB Color Temperature from EEPROM.User Restore User Color Temperature from EEPROM. DCB ModeFull Enhance On or Off Disable or Enable Full Enhance ModeNature Skin On or Off Disable or Enable Nature Skin ModeGreen Field On or Off Disable or Enable Green Field ModeSky-blue On or Off Disable or Enable Sky-blue ModeAutoDetect On or Off Disable or Enable AutoDetect ModeDCB Demo On or Off Disable or Enable DemoRed0-100Red gain from Digital-register.Green0-100Green gain from Digital-register.Blue0-100Blue gain from Digital-register.LowBlueModeMultimediaDecrease blue light wave by controlling colortemperatureInternetOfficeReadingOffPicture BoostOSD SetupBright Frame on or off Disable or Enable Bright FrameFrame Size 14-100 Adjust Frame SizeBrightness 0-100 Adjust Frame BrightnessContrast 0-100 Adjust Frame ContrastH. position 0-100 Adjust Frame horizontal PositionV. position0-100 Adjust Frame vertical PositionNote:Adjust the brightness, contrast, and position of the Bright Frame for better viewing experience.OSD SetupOSD Setup Language Select the OSD language Timeout 5-120Adjust the OSD TimeoutDP Capability 1.1/1.2If the DP video content supports DP1.2, please select DP1.2 for DP Capability; otherwise, please select DP1.1.H. Position 0-100 Adjust the horizontal position of OSD V. Position 0-100 Adjust the vertical position of OSD Transparence 0-100Adjust the transparence of OSDBreak Reminderon or offBreak reminder if the user continuously work for more than 1hrsOSD Setup Input Select Select Input Signal SourceAuto Config. Yes or No Auto adjust the picture to default. (Only for the models with D-Sub)Off timer0-24hrs Select DC off timeImage Ratio Wide/4:3/1:1/Movie1/Movie2Select image ratio for display. DDC/CI Yes or No Turn ON/OFF DDC/CI Support Reset Yes or No Reset the menu to defaultOSD SetupExit Exit the main OSDLED IndicatorStatus LED Color Full Power Mode White Active-off Mode OrangeDriveri-Menu (Screen+)Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. The software Supported operating systems: Windows 10, Windows 8, Windows 7.Screen+ can be turned on via i-Menu. It is a desktop screen splitting tool, it splits the desktop into different panels, and each panel displays a different window. You only need to drag the window to a corresponding panel when you want to access it. It supports multiple monitor display to make your task easier.e-SaverWelcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).Please click on “driver/e-Saver/setup.exe” to start installing the e-Saver software, follow the install wizard to complete software installation.Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) you’re your monitor to automatically shut down. The example above illustrated:The monitor will never shutdown when the PC is powered on.The monitor will automatically shutdown 5 minutes after the PC is powered off.The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.The monitor will automatically shutdown 20 minutes after the screen saver appears.You can click “RESET” to set the e-Saver to its default settings like below.TroubleshootProblem & Question Possible SolutionsPower LED Is Not ON Make sure the power button is ON and the Power Cord is properlyconnected to a grounded power outlet and to the monitor.No images on the screen Is the power cord connected properly?Check the power cord connection and power supply.Is the cable connected correctly?(Connected using the HDMI cable)Check the HDMI cable connection.(Connected using the DP cable)Check the DP cable connection.* HDMI/DP input is not available on every model.If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows 7/8/10) and then change the frequency of the video card.(Refer to the Setting the Optimal Resolution)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.Can you see “Input Not Supported” on the screen?You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.Make sure the AOC Monitor Drivers are installed.Picture Is Fuzzy & Has Ghosting Shadowing Problem Adjust the Contrast and Brightness Controls.Press to auto adjust.Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back.Picture Bounces, Flickers Or Wave Pattern Appears In The Picture Move electrical devices that may cause electrical interference as far away from the monitor as possible.Use the maximum refresh rate your monitor is capable of at the resolution you are using.Monitor Is Stuck In Active Off-Mode”The Computer Power Switch should be in the ON position.The Computer Video Card should be snugly fitted in its slot.Make sure the monitor’s video cable is properly connected to the computer. Inspect the monitor’s video cable and make sure no pin is bent.Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.Missing one of the primary colors (RED, GREEN, or BLUE)Inspect the monitor’s video cable and make sure that no pin is damaged. Make sure the monitor’s video cable is properly connected to the computer.Picture has color defects(white does not look white)Adjust RGB color or select desired color temperature.Horizontal or vertical disturbances on the screen Use Windows 7/8/10 shut-down mode to adjust CLOCK and FOCUS. Press to auto-adjust.Specification General SpecificationPanel Model name CU32V3Driving system TFT Color LCDViewable Image Size80.0 cm diagonalPixel pitch 0.18159mm(H) x 0.18159mm(V) Video HDMI lnterface & DP Interface Display Color 16.7M ColorsOthers Horizontal scan range 30k-160kHzHorizontal scan Size(Maximum)697.306mmVertical scan range 23-75HzVertical Scan Size(Maximum)392.234mmOptimal preset resolution 3840x2160@60HzPlug & Play VESA DDC2B/CIInput Connector HDMI1/HDMI2/DPPower Source 100-240V~, 50/60Hz,1.5APower ConsumptionTypical (default brightness and contrast)41WMax. (brightness = 100, contrast =100)≤60WPower saving≤0.5WPhysical Characteristics Connector Type HDMI/DP/Earphone out Signal Cable Type DetachableEnvironmental TemperatureOperating 0°~ 40°Non-Operating -25°~ 55°HumidityOperating 10% ~ 85% (non-condensing)Non-Operating 5% ~ 93% (non-condensing) AltitudeOperating 0~ 5000 m (0~ 16404ft )Non-Operating 0~ 12192m (0~ 40000ft )Preset Display ModesSTANDARD RESOLUTION HORIZONTALFREQUENCY(kHz)VERTICAL FREQUENCY(Hz)VGA 640x480@60Hz31.46959.940 640x480@72Hz37.86172.809 640x480@75Hz37.50075.00SVGA 800x600@56Hz35.15656.250 800x600@60Hz37.87960.317 800x600@72Hz48.07772.188 800x600@75Hz46.87575.000XGA 1024x768@60Hz48.36360.004 1024x768@70Hz56.47670.069 1024x768@75Hz60.02375.029SXGA 1280x1024@60Hz63.98160.020 1280x1024@75Hz79.97675.025WXGA+1440x900@60Hz55.93559.887 1440x900@60Hz55.46959.901WSXGA 1680x1050@60Hz65.29059.954 1680x1050@60Hz64.67459.883FHD1920x1080@60Hz67.50060.000***1152x864@75Hz67.50075.000 1280x960@60Hz60.00060.000QHD2560x1440@60Hz88.78759.951 UHD3840x2160@30Hz67.50030 UHD3840x2160@60Hz135.0060IBM MODESDOS640x350@70Hz31.46970.087 DOS720x400@70Hz31.46970.087MAC MODESVGA640x480@67Hz35.00066.667 SVGA832x624@75Hz49.72574.551 XGA1024x768@75Hz60.24174.927Pin AssignmentsPin No.Signal Name Pin No.Signal Name Pin No.Signal Name1.TMDS Data 2+9.TMDS Data 0-17.DDC/CEC Ground2.TMDS Data 2 Shield10.TMDS Clock +18.+5V Power3.TMDS Data 2-11.TMDS Clock Shield19.Hot Plug Detect4.TMDS Data 1+12.TMDS Clock-5.TMDS Data 1Shield13.CEC6.TMDS Data 1-14.Reserved (N.C. on device)7.TMDS Data 0+15.SCL8.TMDS Data 0 Shield16.SDA20-Pin Color Display Signal CablePin No.Signal Name Pin No.Signal Name 1ML_Lane 3 (n)11GND2GND12ML_Lane 0 (p)3ML_Lane 3 (p)13CONFIG14ML_Lane 2 (n)14CONFIG25GND15AUX_CH(p)6ML_Lane 2 (p)16GND7ML_Lane 1 (n)17AUX_CH(n)8GND18Hot Plug Detect9ML_Lane 1 (p)19Return DP_PWR10ML_Lane 0 (n)20DP_PWRPlug and PlayPlug & Play DDC2B FeatureThis monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.。

19英寸和22英寸液晶显示器用户手册说明书

User Manual19” and 22” LCD MonitorLCD VIDEO MONITORSAFETY INSTRUCTIONS...............................................................................2-3 CAUTION . (4)FCC RF INTERFERENCE STATEMENT (5)CONNECTING WITH EXTERNAL EQUIPMENT (6)CONTROLS AND FUNCTIONS.........................................................................7-16 MOUNTING GUIDE .. (17)D-SUB CONNECTOR PIN ASSIGNMENTS (18)POWER MANAGEMENT (19)SPECIFICATIONS (20).1 …………………………………………………………………………… INSTRUCTION MANUAL1. Read all of these instructions.2. Save these instructions for later use.3. Follow all warnings and instructions in this manual and on the product.4. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Usea damp cloth for cleaning.5. Do not use this product near water.6. Do not place this product on an unstable cart, stand, or table. The product may fall, causing seriousdamage to the product or nearby people.7. Please comply with the following conditions:A. Allow a minimum distance of 10cm around the apparatus for sufficient ventilation.B. The ventilation openings should not be impeded by items such as paper, table-cloths,curtains, etc..C. No naked flame sources, such as lighted candles, should be placed on the apparatus.D. Please dispose of all batteries according to local regulations.E. Use the monitor in moderate climates.8. This product should be operated from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.9. This product is equipped with a 3 wire grounding type plug having a third (grounding) pin. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to update the outlet. Do not defeat the purpose of the grounding-type plug.10. Do not allow anything to rest on the power cord or place this product where people will walk on thecord.11. If an extension cord is used with this product, make sure that the total ampere ratings on the products plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the all of the products plugged into the wall outlet do not exceed the rating of the outlet.12. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts, which could result in the risk of fire or an electric shock. Never spill any kind of liquid on the product.13. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to trained personnel.INSTRUCTION MANUAL (2)14. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:A. When the power cord or plug is damaged or frayed.B. If liquid has been spilled into the product.C. If the product has been exposed to rain or water.D. If the product does not operate normally when the operating instructions are followed. Adjust onlythose controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore normal operation.E. If the product has been dropped or the cabinet has been damaged.F. If the product exhibits a distinct change in performance, indicating a need for service.CAUTION kThe power supply cord is used as the main disconnect device. Ensure that the socket-outlet is located/installed near the equipment and is easily accessible.3 …………………………………………………………………………… INSTRUCTION MANUAL▶ NEVER REMOVE THE BACK COVERRemoval of the back cover should be carried out only by qualified personnel.▶ DO NOT USE IN HOSTILE ENVIRONMENTSTo prevent electrical shock or a fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home. Do not subject the unit to vibrations, dust, or corrosive gases. ▶ KEEP IN A WELL VENTILATED PLACEVentilation holes are provided on the cabinet to prevent the temperature from rising. Do not cover or place anything on top of the unit.▶ AVOID HEATAvoid placing the unit in direct sunshine or near a heating appliance.▶ TO ELIMINATE EYE FATIGUEDo not use the unit against a bright back ground or where sunlight and other light sources will shine directly on the monitor.▶ BE CAREFUL OF HEAVY OBJECTSNeither the monitor itself nor any other heavy object should rest on the power cord. Damage to a power cord can cause fire or electrical shock.INSTRUCTION MANUAL (4)NOTEThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.- Reorient or relocate the receiving antenna.- Increase the space between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.- Consult the dealer, an experienced radio, or a TV technician for help.- Only a shielded interface cable should be used.Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the user's authority to operate such equipment.▶DOC COMPLIANCE NOTICEThis digital apparatus does not exceed the Class A limit for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of Communications.This monitor complies with the basic protection requirements of the Electromagnetic Compatibility (EMC) Directive 2004/108/EC for electrical and electronic equipment imported into the European Union (EU): The electromagnetic disturbance generated by the apparatus does not exceed the level specified in the harmonized EMC Standards for this type of apparatus. It has a level of immunity to the electromagnetic disturbance to be expected in its intended use, and should operate without unacceptable degradation ofits specified performance.5 …………………………………………………………………………… INSTRUCTION MANUALBottom and Side Panel ControlBack View of MonitorA. Connector Panel1. Audio In2. Audio Out3. BNC Out4. BNC In5. VGAINSTRUCTION MANUAL (6)12 354B. CONTROL KEYS/BUTTONSButtons are located on the back of the monitor on the right side of the Bezel.1. Menu/Source:Opens the OSD and steps down on the OSD. Also, theMENU button selects either the VGA or BNC input after the EXIT button ispushed) and then press the MENU button to Select2. Up: Increases the volume or moves the selector/indicator right in the OSD3. Down: Decreases the volume or moves selector/indicator left in the OSD4. Exit: Press MENU button to select the input (first push EXIT and then MENUbutton) or to exit the OSD7 …………………………………………………………………………… INSTRUCTION MANUAL1. OSD setup under BNC input modeA. COLOR MENUPress the MENU button to bring the menu onscreen, and then Up/ Down buttons to moveleft and right across the menu selections tohighlight the COLOR menu. Press the Menu(Source) button to enter the (highlighted)COLOR sub menu.Each additional press of the Menu/Sourcebutton moves the yellow highlighted sub-menuselection downward, moving from the bottomselection back to the top of the sub-menu.Pressing the Up / Down buttons will adjust thevalue of the highlighted item. Press the MENUbutton to save the values.Press EXIT to exit the sub-menu, and go backto the main menu choices. Pressing the EXITbutton while at the top level will close themenu and return to normal operations.AdjustmentsContrast:Adjusts the contrast between light and dark areas of the picture. Brightness:Adjusts the overall picture shade and brightness. Saturation:Increase or decrease the saturation of the image. Sharpness:Increase or decrease the sharpness of the image.Hue:Increase or decrease the hue or tint of the image.INSTRUCTION MANUAL (8)1. OSD setup under BNC input mode (continued)B. AUDIO MENUPress the MENU button to bring the menu onscreen, and then Up / Down buttons to moveleft and right across the menu selections tohighlight the AUDIO menu. Press the Menu(Source) button to enter the (highlighted)AUDIO sub menu.Pressing the Up/ Down buttons will adjustthe value of the highlighted item. Press theMENU button to save the values. Press EXITto exit the sub-menu and go back to the mainmenu choices. Pressing the EXIT buttonwhile at the top level will close the menu andreturn to normal operations.AdjustmentsVolume:Increase or decrease the volume.9 …………………………………………………………………………… INSTRUCTION MANUAL1. OSD setup under BNC input mode (continued)C. OSD MENUPress the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the OSD menu. Press the Menu (Source) button to enter the (highlighted) OSD sub menu. Each additional press of the Menu/Source button moves the yellow highlighted sub-menu selection downward, moving from the bottom selection back to the top of the sub-menu. Pressing the Up / Down buttons will adjust the value of the highlighted item. Press the MENU button to save the values.Press EXIT to exit the sub-menu, and go back to the main menu choices. Pressing the EXIT button while at the top level will close the menu and return to normal operations.AdjustmentsLanguage: There are four languages that you can choose from:English, French, Korean, and Chinese. H. Position: Adjusts the OSD Menu’s Horizontal Position.V. Position: Adjusts the OSD Menu’s Vertical Position.OSD Timer: The OSD Menu closes automatically after a set sleep time(between 1 and 60 seconds)OSD Blending: Adjusts the brightness of the OSD Menu.Zoom: Adjusts how much the OSD Menu is zoomed in.4 :INSTRUCTION MANUAL (10)1. OSD setup under BNC input mode (continued)D. MISCPress the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the MISC menu. Press the Menu (Source) button to enter the (highlighted) MISC sub menu.Each additional press of the Menu/Source button moves the yellow highlighted sub-menu selection downward, moving from the bottom selection back to the top of the sub-menu. Pressing the Up / Down buttons will adjust the value of the highlighted item. Press the MENU button to save the values. Press EXIT to exit the sub-menu, and go back to the main menu choices.Pressing the EXIT button while at the top level will close the menu and return to normal operations.AdjustmentsFactory Reset: Reset all settings back to default factory settings. Signal Source: Choose between a BNC input or a VGA input source. Display Ratio: Adjusts the dimensions of the display.4 :11 …………………………………………………………………………… INSTRUCTION MANUAL2. OSD setup under VGA input modeA. COLOR MENUPress the MENU button to bring the menu onscreen, and then Up / Down buttons to moveleft and right across the menu selections tohighlight the COLOR menu. Press the Menu(Source) button to enter the (highlighted)COLOR sub menu.Each additional press of the Menu/Sourcebutton moves the yellow highlighted sub-menuselection downward, moving from the bottomselection back to the top of the sub-menu.Pressing the Up / Down buttons will adjust thevalue of the highlighted item. Press the MENUbutton to save the values. Press EXIT to exitthe sub-menu, and go back to the main menuchoices. Pressing the EXIT button while at the toplevel will close the menu and return to normaloperations.AdjustmentsAuto Color: Automatically adjusts the colors to the best color setting. Contrast: Adjusts the contrast between light and dark areas of the picture. Brightness: Adjusts the overall picture shading and brightness.Color Temp: Adjusts the amount of red, green, and blue present in the image.INSTRUCTION MANUAL (12)2. OSD setup under VGA input mode (continued)B: IMAGE MENUPress the MENU button to bring the menu onscreen, and then Up / Down buttons to moveleft and right across the menu selections tohighlight the IMAGE menu. Press the Menu(Source) button to enter the (highlighted)IMAGE sub menu.Each additional press of the Menu/Sourcebutton moves the yellow highlighted sub-menuselection downward, moving from the bottomselection back to the top of the sub-menu.Pressing the Up / Down buttons will adjust thevalue of the highlighted item. Press the MENUbutton to save the values. Press EXIT to exitthe sub-menu, and go back to the main menuchoices. Pressing the EXIT button while at thetop level will close the menu and return to normal operations.AdjustmentsAuto Adjust:Automatically configures the Phase, Clock, Vertical, and Horizontal PositionsettingsH. Position:Adjusts the OSD Menu’s Horizontal Position.V. Position:Adjusts the OSD Menu’s Vertical Position.Phase:Adjusts the signal phase to improve sharpness when the image is fuzzy.Clock: If the clock setting is not exactly the same as the DVR or computer, you may observeperiodic vertical bars of video noise on your image. These noise bars are usually adjusted out when an Auto Adjust is performed. If the noise bars are still present, this setting can be adjusted manually.13 …………………………………………………………………………… INSTRUCTION MANUAL2. OSD setup under VGA input mode (continued)C. AUDIO MENUPress the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the AUDIO menu. Press the Menu (Source) button to enter the (highlighted) AUDIO sub menu.Each additional press of the Menu/Sourcebutton moves the yellow highlighted sub-menu selection downward, moving from the bottom selection back to the top of the sub-menu.Pressing the Up / Down buttons will adjust the value of the highlighted item. Press the MENU button to save the values. Press EXIT to exit the sub-menu, and go back to the main menu choices. Pressing the EXIT button while at the top level will close the menu and return to normal operations.AdjustmentsVolume: Increase or decrease the volume.4 :INSTRUCTION MANUAL (14)2. OSD setup under VGA input mode (continued)D. OSD MENUPress the MENU button to bring the menu onscreen, and then Up / Down buttons to moveleft and right across the menu selections tohighlight the OSD menu. Press the Menu(Source) button to enter the (highlighted)OSD sub menu.Each additional press of the Menu/Sourcebutton moves the yellow highlighted sub-menu selection downward, moving from thebottom selection back to the top of the sub-menu.Pressing the Up / Down buttons will adjustthe value of the highlighted item. Press theMENU button to save the values. Press EXITto exit the sub-menu, and go back to the mainmenu choices. Pressing the EXIT button while at thetop level will close the menu and return to normaloperations.AdjustmentsLanguage: There are four languages that you can choose from: English, French, Korean, and Chinese.H. Position:Adjusts the OSD Menu’s Horizontal Position.V. Position:Adjusts the OSD Menu’s Vertical Position.OSD Timer: The OSD Menu closes automatically after a set sleep time (between 1 and 60 seconds) OSD Blending: Adjusts the brightness of the OSD Menu.Zoom: Adjusts how much the OSD Menu is zoomed in. 15…………………………………………………………………………… INSTRUCTION MANUAL2. OSD setup under VGA input mode (continued)E. MISCPress the MENU button to bring the menu onscreen, and then Up / Down buttons to move leftand right across the menu selections to highlightthe MISC menu. Press the Menu (Source)button to enter the (highlighted) MISC sub menu.Each additional press of the Menu/Source buttonmoves the yellow highlighted sub-menuselection downward, moving from the bottomselection back to the top of the sub-menu.Pressing the Up / Down buttons will adjust thevalue of the highlighted item. Press the MENUbutton to save the values. Press EXIT to exit thesub-menu, and go back to the main menuchoices. Pressing the EXIT button while at thetop level will close the menu and return to normaloperations.AdjustmentsFactory Reset: Reset all settings back to default factory settings.Signal Source: Choose between a BNC input or a VGA input source.INSTRUCTION MANUAL (16)Wall or Other Mounting with VESA StandardCAUTION:The wall mount must bear a minimum of five times the monitor’s net weight. To mount your MONITOR to the wall or another surface, you need to purchase a VESA wall mount. Use four M4 x 8mm screws (not included) to attach the mount. The monitor mount VESA hole pattern is 100mm x 100mm. Note: Metric (M4 x 8 mm) is the type screw that should be used (do not use longer screws or the monitor may be damaged).Screws1. Before mounting the monitor, remove the base riser (vertical portion of the base) by removing the two screws at the top with a screwdriver. Then the base and the riser can be removed. In order to prevent losing the two screws, we suggest replacing the screws in their original holes.2. Attach the VESA mount (100mm x 100mm) plate to the rear of the monitor and follow all of the instructions provided with the mount to complete the mounting process.17 …………………………………………………………………………… INSTRUCTION MANUAL▶PIN ASSIGNMENTS▶ACCESSORIESINSTRUCTION MANUAL (18)POWER CONSUMPTION :<20WLED INDICATORThe power management feature of the monitor is comprised of three stages: On (Green Light), No Signal (Flashing Green Light), and Off (No Light).MODE COLOR MONITOR OPERATIONON Green Normal OperationNO SIGNALFlashing GreenNo Signal OFFNonePower Off2. Power Cord1. Quick Installation Guide3. VGA Cable4. User's Manual (available through re-saler)19 …………………………………………………………………………… INSTRUCTION MANUALModel 19” LCD Monitor 22” LCD Monitor Aspect Ratio 16:9Resolution (H x V) 1360 x 768 1920 x 1080Colors 16.7MViewing Angle H: 170º V: 170ºViewing Lines 420 TV LinesContrast Ratio 10000:1 (DCR)Response Time 5ms 2ms2D Comb Filter with De-Yesinterlace2D Noise Reduction YesBrightness 300cd/m2Speakers 2 each (2 watts)Composite Inputs / Outputs BNC x 1 / BNC x 1VGA VGA x 1Audio Inputs Stereo PCAuto Adjustment YESWall Hanging VESA StandardVESA Size 100 x 100mm▶▶ NOTE : Technical specifications are subject to change without notice.INSTRUCTION MANUAL (20)Stand Plastic BezelPlasticOSD LanguageEnglish, French, Korean and Simplified ChinesePower Consumption <20W <30WPower Supply AC110~240V, 50/60 Hz AccessoriesPower cord, Audio cable,VGA Cable and User’s guidePackaging (L x D x W) 19.6” x 17.8” x 7.5” 498mm x 453mm x 191.6mm 22.3” x 18.9” x 7.5"567mm x 482mm x 191.6mmDimension (L x D x W) 17.5” x 13.8” x 5.43" 444.2mm x 350.7mm x 138mm20.2” x 15.4” x 5.35”513.2mm x 391.7mm x 136mm Gross Weight 9.9lb (4.5Kg) 12.1lb (5.5Kg) Net Weight 7.89lb (3.58Kg)9.7lb (4.4Kg)Operating Temp 32 °F - 122 °F (0 °C - 50 °C)Safety FCC, CE, CB, RoHS。

Philips Q-LineDisplay 32 全面LED背光高清显示屏说明书

Philips Signage Solutions Q-Line Display32"Direct LED Backlight Full HD32BDL3550QIntensify your signage experienceEasy-setup 18/7 display.Inform and enthral with a Philips Q-Line Professional Full HD Display. This reliable solution can be up and running as quickly as you need.Effortless setup. Total control.•Operate, monitor and maintain with CMND and Control •CMND and Create. Develop and launch your own content Cost-effective system solution•Integrated media player. Easily schedule USB content •Easy control. Remotely manage networked displays •FailOver ensures that content is always playing Smart and powerful•Android SoC processor. Native and web apps •Connect and control your content via the cloudHighlightsCMND and ControlRun your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.Integrated media playerEasily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback has finished.FailOverFrom waiting room to meeting room, never show a blank screen. FailOver lets your PhilipsProfessional Display switch automatically between primary and secondary inputs,ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.CMND and CreateTake control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates andintegrated widgets ensure that your stills, text and video will be up and running in no time.Powered by Android 8Control your display via an Internet connection. Android-powered PhilipsProfessional Displays are optimised for nativeAndroid apps and you can install web apps directly to the display too. A new Android 8 OS ensures the software is kept secure and stays up to date with the latest specification for longer.SmartBrowserConnect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect either a single display or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the Internet using WiFi or with an RJ45 cable, and enjoy your own curatedplaylists.Issue date 2022-10-18Version: 7.0.112 NC: 8670 001 66103EAN: 87 12581 76532 3© 2022 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•Diagonal screen size: 31.5 inch / 80 cm •Panel resolution: 1920 x 1080p•Optimum resolution: 1920 x 1080 @ 60 Hz •Brightness: 350 cd/m²•Contrast ratio (typical): 4000:1•Dynamic contrast ratio: 500,000:1•Response time (typical): 8 ms •Aspect ratio: 16:9•Viewing Angle (H / V): 178 / 178 degree •Pixel pitch: 0.36375 x 0.36375 mm •Display colours: 16.7 Million •Panel technology: VA•Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Dynamic contrast enhancement, Motion compens. deinterlacing, Progressive scan •Operating system: Android 8.0•Clinical image: D-Image preset (dicom part 14 compatible)Supported Display Resolution•Computer formatsResolutionRefresh rate 1920 x 1080 60 Hz 1680 x 1050 60 Hz 1600 x 1200 60 Hz 1440 x 900 60 Hz 1280 x 1024 60 Hz 1280 x 800 60 Hz 1280 x 720 60 Hz 1152 x 870 75 Hz 1024 x 768 60, 70, 75 Hz 800 x 600 56, 60, 72, 75 Hz 720 x 400 70 Hz 640 x 480 60, 67, 72, 75 Hz 1152 x 864 75 Hz 832 x 624 75 Hz •Video formats Resolution Refresh rate 576p 50 Hz 576i 50 Hz 480p 60 Hz 480i 60 Hz 1080p 50, 60 Hz 1080i 50, 60 Hz 3840 x 2160 30Hz 3840 x 2160 60 Hz 720p 50,60 HzConnectivity•Video input: HDMI 2.0 (x 2), USB 2.0 (x 2), DVI-I (x 1)•Audio input: 3.5 mm jack •Audio output: 3.5 mm jack•External control: RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jackConvenience•Energy-saving functions: Smart Power •Tiled Matrix: Up to 15 x 15•Start-up: Switch on delay, Switch on status, Boot on source•Start-up window: enable/disable Philips logo •Keyboard control: Lockable, Hidden •Network controllable: RS232, RJ45•Signal loop through: RS232, IR Loop through •Placement: Landscape (18/7), Portrait (18/7)•Remote control signal: LockableDimensions •Bezel width:11.9 (TLR)/17.2 (B) mm •Set dimensions (W x H x D):726.5 x 425.4 x 69.1(D@Handle)/65.1(D@Wall mount) mm•Set dimensions in inch (W x H x D):28.6 x 16.75 x 2.72 (D@Handle)/2.56 (D@Wall mount) inch•Wall Mount: 100 mm x 100 mm, 200 mm x 200 mm, M4•Product weight: 5.31 kg •Product weight (lb): 11.71 lbOperating conditions•Temperature range (operation): 0 ~ 40 °C •Temperature range (storage): -20 ~ 60 °C •MTBF: 30,000 hour(s)•Altitude: 0 ~ 3000 m•Humidity range (operation)[RH]: 20~80% RH (No condensation)•Humidity range (storage) [RH]: 5~95% RH (No condensation)Power•Mains power: 100-240 V~, 50-60 Hz, 1.5 A •Standby power consumption: <0.5 W •Consumption (Max): 80 W •Consumption (Typical): 50 W•Power Saving Features: Smart Power •Energy Label Class: GSound•Built-in speakers: 2 x 10 W RMSMultimedia Applications•USB Playback Video: MPEG, H.264, H.263, H.265•USB Playback Picture: BMP, JPEG, PNG •USB Playback Audio: AAC, HEAAC, MPEG Accessories•Included accessories: AC Power Cord, RS232 cable, Remote Control, Batteries for remote control, Quick start guide•Included Accessories: IR sensor cable (1.8 m) (x 1), RS232 daisy-chain cable, Philips logo (x 1), USB Cover and screw (x 2)•Stand: BM02541/BM05911 (optional)Miscellaneous•Warranty:3 year warranty•On-Screen Display Languages: English, French, German, Italian, Polish, Turkish, Russian, Simplified Chinese, Spanish, Traditional Chinese, Arabic, Japanese•Regulatory approvals: CB, CE, BSMI, CU, EPA, ETL, FCC, Class A, VCCI, J-MossInternal Player•CPU: Dual core cortex A53 1.1 GHz, Dual core cortex A73 1.15 GHz •GPU: ARM Mali G51•Memory:2 GB DDR3, 8 GB。

MX239H LCD 显示器用户指南 October 2012说明书

October 2012MX239HLCD MonitorUser GuideiiCopyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.Table of contentsNotices..........................................................................................................iii rmation.......................................................................................iv Care.&.Cleaning.. (v)1.1.Welcome!.......................................................................................1-11.2.Package.contents..........................................................................1-11.3.Monitor.introduction.....................................................................1-21.3.1 Front of the LCD monitor ................................................1-21.3.2 Rear of the LCD monitor .................................................1-41.3.3 QuickFit Function ............................................................1-52.1.Assembling.the.base....................................................................2-12.2.Connecting.cables........................................................................2-12.3.Detaching.the.base.......................................................................2-22.4.Adjusting.the.monitor...................................................................2-33.1.OSD.(On-Screen.Display).menu..................................................3-13.1.1 How to reconfigure ..........................................................3-13.1.2 OSD Function Introduction ..............................................3-13.2.Specifications................................................................................3-63.3.Troubleshooting.(FAQ).................................................................3-73.4.Supported.Timing.List..................................................................3-8Noticesmission.StatementThis device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions:• This device may not cause harmful interference, and• This device must accept any interference received including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference willnot occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help. munications.StatementThis digital apparatus does not exceed the Class B limits for radionoise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.This class B digital apparatus complies with Canadian ICES-003.iiiivSafety information• Before setting up the monitor, carefully read all the documentation that came with the package.• To prevent fire or shock hazard, never expose the monitor to rain or moisture.• Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.• Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.• Use the appropriate power plug which complies with your local power standard.• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.• Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface.• Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges.• Never push objects or spill liquid of any kind into the slots on the monitor cabinet.• To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 ~ 240V AC.• The socket-outlet shall be installed near the equipment and shall be easily accessible• If you encounter technical problems with the monitor, contact a qualified service technician or your retailer.Use only the AC/DC adapter model: AD 3 *' %&(;$ <+vCare & Cleaning• Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.The.following.symptoms.are.normal.with.the.monitor:• The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears.• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.• When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.• When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!ed.in.this.guideWARNING: Information to prevent injury to yourself when trying tocomplete a task.CAUTION: Information to prevent damage to the componentswhen trying to complete a task.IMPORTANT: Information that you MUST follow to complete atask.NOTE: Tips and additional information to aid in completing a task.rmationRefer to the following sources for additional information and for productand software updates.1..ASUS.websitesThe ASUS websites worldwide provide updated information on ASUShardware and software products. Refer to 2..Optional.documentationYour product package may include optional documentation that mayhave been added by your dealer. These documents are not part ofthe standard package.vi1-1ASUS LCD Monitor MX239H 1.1.Welcome!Thank you for purchasing the ASUS ® LCD monitor!The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience.With these features, you can enjoy the convenience and delightful visual experience that the monitor brings you!1.2.Package.contentsCheck your package for the following items:LCD MonitorMonitor BaseQuick Start GuideWarranty Card1x Power Cord1x Power Adapter1x VGA Cable1x HDMI-DVI Cable1x Audio Cable• If any of the above items is damaged or missing, contact your retailerimmediately.1. QuickFit Button:• This is a hotkey to activate the QuickFit function designed for alignment.• The QuickFit function contains 7 pages of common grid patterns, paper sizes, and photo sizes. See page 1-5 for details.2. Button:• Automatically adjust the image to its optimized position, clock, and phase by long pressing this button for 2-4 seconds (for VGA mode only).• Use this hotkey to switch from six video preset modes (Scenery,Standard, Theater, Game, Night View, and sRGB Mode) withSPLENDID™ Video Intelligence Technology.• Exit the OSD menu or go back to the previous menu as the OSD menu is active.3. Button:• Press this button to decrease the value of the function selected or move to the next function.• This is also a hotkey for Volume adjustment.4. MENU Button:• Press this button to enter the OSD menu.• Press this button to enter/select the icon (function) highlighted while the OSD is activated.1-2Chapter 1: Product Introduction5. Button:• Press this button to increase the value of the function selected or move to the previous functions.• This is also a hotkey for Brightness adjustment.6.7.• Press this button to turn the monitor on/off.• The color definition of the power indicator is as the below table.ASUS LCD Monitor MX239H1-31.3.2.Rear.of.the.LCD.monitor1. DC-in Port2. HDMI Port3. VGA Port4. Audio-in Port5. Earphone-out Port6. Kensington Lock7. Control Buttons1-4Chapter 1: Product Introduction1-5ASUS LCD Monitor MX239H1.3.3.QuickFit.FunctionThe QuickFit function contains three patterns: (1) Grid (2) Paper size (3) Photo size.1.Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel.2.Paper size: Provides users to view their documents in real size on the screen.3.Photo size: Provides photographers and other users to accurately view and edit their photos in real size on the screen.2.1.Assembling.the.baseTo assemble the base:1. Carefully put the front of the monitor face down on a clean table.2. Attach the base to the stand. Use your fingers to screw the base tothe stand tightly.3. The monitor is now ready for connection.• We recommend that you cover the table surface with soft cloth to preventdamage to the monitor.2.2.Connecting.cablesConnect the cables you need based on the introductions on chapter 1.3.2,page 1-4.2-1Chapter 2: Setup2-2ASUS LCD Monitor MX239H 2.3.Detaching.the.baseTo detach the base:1. Disconnect power and signal cables. Carefully put the front of the monitor face down on a clean table.2. Use your fingers to loosen the screw located at the bottom of the base, and remove the base from the stand.3.Or you may directly use a screwdriver to remove the screw thatsecure the base to the stand, and detach the base from the stand.• We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.•Hold the base while removing the screw.2-3Chapter 2: Setup2.4.Adjusting.the.monitor• For optimal viewing, we recommend that you look at the full face of themonitor, then adjust the monitor to the angle that is most comfortable for you.• Hold the stand to prevent the monitor from falling while changing itsangle.•You can adjust the monitor’s angle from -5˚ to 20˚.-5 ~ 203.1.OSD.(On-Screen.Display).menu3.1.1.How.to.reconfigure1. Press the MENU button to activate the OSD menu.2. Press ❑ and ☐ to navigate through the functions. Highlight andactivate the desired function by pressing the MENU button. If thefunction selected has a sub-menu, press ❑ and ☐ again to navigatethrough the sub-menu functions. Highlight and activate the desiredsub-menu function by pressing the MENU button.3. Press ❑ and ☐ to change the settings of the selected function.4. To exit the OSD menu, press the button. Repeat step 2 andstep 3 to adjust any other function.3.1.2.OSD.Function.Introduction1..SplendidThis function contains six sub-functions that you can select for yourpreference. Each mode has the Reset selection, allowing you tomaintain your setting or return to the preset mode.•.Scenery.Mode: This is the best choice for scenery photo displaying with SPLENDID™ Video Intelligence Technology.ASUS LCD Monitor MX239H3-13-2Chapter 3: General Instruction•.Standard.Mode : This is the best choice for document editing with SPLENDID™ Video Intelligence Technology.•.Theater.Mode : This is the best choice for movie watching with SPLENDID™ Video Intelligence Technology.•.Game.Mode : This is the best choice for game playing with SPLENDID™ Video Intelligence Technology.•.Night.View.Mode : This is the best choice for playing dark-scene game or watching dark-scene movie with SPLENDID™ Video Intelligence Technology.•.sRGB.Mode : This is the best choice for viewing photos and graphicsfrom PCs.• In the Standard Mode, the Saturation, SkinTone, Sharpness, and ASCR functions are not user-configurable.•In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness, Brightness, Contrast and ASCR functions are not user-configurable.2..ColorSelect the image color you like from this function.•.Brightness also a hotkey to activate this function.•.Contrast : The adjusting range is from 0 to 100.•.Saturation : The adjusting range is from 0 to 100.•.Color.Temp.: Contains three preset color modes (Cool , Normal , Warm ) and one User Mode.•.Skin.Tone : Contains three color modes including Reddish , Natural , and Yellowish .•.Smart.View : The versatile viewing positions with Smart View Technology.3-3ASUS LCD Monitor MX239H •In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-configurable; the adjusting range is from 0 ~ 100..3..ImageYou can adjust the image Sharpness, Trace Free, Aspect Control, ASCR, Position (VGA only), and Focus (VGA only) from this main function.•.Sharpness : Adjusts the picture sharpness. The adjusting range is from 0 to 100.•.Trace.Free:.Speeds up the response time by Over Drive technology. The adjusting range is from lower 0 to faster 100.•.Aspect.Control : Adjusts the aspect ratio to “Full ”, “4:3”,“Overscan ”. •.ASCR : Select ON or OFF to enable or disable dynamic contrast ratio function.•.Position : Adjusts the horizontal position (H-Position ) and the vertical position (V-Position ) of the image. The adjusting range is from 0 to 100 (Only available for VGA input).•.Focus : Reduces Horizonal-line noise and Vertical-line noise of the image by adjusting (Phase ) and (Clock ) separately. The adjusting range is from 0 to 100 (Only available for VGA input).• •4..Input.SelectSelect the input source from VGA, HDMI1, or HDMI2.input signal.5..System.SetupAdjusts the system configuration.•.Splendid.Demo.Mode: Activate the demo mode for the Splendidfunction.•.Volume:.Adjust the earphone or speaker output volume level. The adjusting range is from 0 to 100.3-4Chapter 3: General Instruction•.ECO.Mode: Activate the ecology mode for power saving.•.OSD.Setup: Adjusts the horizontal postition (H-Position), verticalposition (V-Position), OSD.Timeout, DDC/CI, and Transparency of theOSD screen.•.Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Traditional Chinese,Simplified Chinese, Japanese, Persian, Thai, Indonesian, Poland,Turkey, Portugal, Czech, Croatia, Hungary, Romania, and Korean.•.Information: Displays the monitor information.•.All.Reset: Selects “Yes” to revert all settings to the factory default mode.ASUS LCD Monitor MX239H3-53.2.Specifications3-6Chapter 3: General Instruction3.3.Troubleshooting.(FAQ)ASUS LCD Monitor MX239H3-73.4.Supported.Timing.ListVESA./.IBM.Modes.Support.Timing.(D-SUB,.HDMI.inputs)HDMI.1.3.CEA-861.Formats.Supported.Timing.(HDMI.input)*..T he.modes.not.listed.in.the.above.tables.may.not.be.supported..For.optimal.resolution,.we.recommend.that.you.choose.a.mode.listed.in.the.above.tables.3-8Chapter 3: General Instruction。

计算机组装与维护实训报告书

计算机组装与维护实训报告书实训报告书实训名称：计算机组装与维护系（部）：信息工程系专业班级：计算机科学与技术11-1学生姓名：李亚飞学号：1143010113指导教师：杜春玲、蒲蓬勃、孙波、杨在春、张清菊、杨晓东、郭施祎完成日期：2012/03/01山东科技大学泰山科技学院实训课题计算机组装与维护实训人姓名李亚飞同组人员邬卓恒王帅崔鸿志实训日期2012/02/20至2012/03/01实训成绩指导教师评语指导教师签名：_____________________年____ 月____日目录一、实训目的 (1)二、实训要求 (1)三、实训内容 (1)（1）计算机的组成 (1)（2 ）认识和了解计算机的各部件 (1)（3）计算机的组装 (2)（4）计算机操作系统和驱动的安装 (3) （5）软件的安装和使用 (4)四、装机清单及价格 (5)五、实训心得 (6)计算机组装与维护实训报告书一、实训目的1、认识微机系统的总体结构，掌握各部件的功能和基本原理及连接方法2、熟悉CPU插座及安装，认识南北桥芯片、内存插槽、扩展插槽、各种接口、CMOS芯片及跳线3、掌握计算机系统中各部件的功能及安装，识别各部件的型号和指标4、认识鼠标、键盘等其他基本部件和设备5、熟练掌握BIOS、硬盘分区及格式化6、掌握计算机的安装步骤，学会正确的操作方法7、掌握操作系统和驱动以及常用软件的安装8、学会计算机测试软件与优化、数据恢复、日常维护二、实训要求识别计算机的各个部件，能自己动手组装一台计算机。

熟悉计算机的实体构成，以及一些芯片的应用和在计算机实体中的位置。

了解计算机硬件发展状况，及价格情况，可以独立安装计算机硬件及线路。

三、实训内容（一）计算机的组成1、硬件系统：运算器、控制器、存储器、输入设备、输出设备2、软件系统：系统软件和应用软件（二）认识和了解计算机的各部件CPU：构成计算机的核心，他的性能优劣直接影响到整个计算机的系统。

AOC液晶显示器用户说明书

安全说明 (4)关于本指南 (4)电源 (5)安装 (6)清洁 (8)其他 (9)安装 (10)标准配置 (10)安装支架底座 (11)调整视角 (12)连接显示器 (13)安装墙壁装配架 (14)调节显示器 (15)设置最佳分辨率 (15)Windows Vista (15)Windows XP (17)Windows ME/2000 (18)快捷键 (19)OSD 调节 (20)明亮度 (21)图像设置 (23)色温 (25)色彩增强 (27)窗口增亮 (29)OSD 设置 (31)其它 (33)重置 (35)退出 (37)LED 指示灯 (39)驱动 (40)显示器驱动 (40)Windows 2000 (40)Windows ME (40)Windows XP (41)Windows Vista (44)Windows 7 (46)i-Menu .............................................................................................................................................................. 51 故障排除 .. (54)规格 (56)主要规格 (56)e-Saver Screen+ ............................................................................................................................................................ 5.. (53)2即插即用 (59)安规信息 (60)FCC注意事项 (60)WEEE声明 (60)有毒有害物质或元素声明 (61)能效等级 (61)安全说明关于本指南下面说明本文档中使用的符号约定。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

安全说明 (4)关于本指南 (4)电源 (5)安装 (6)清洁 (8)其他 (9)安装 (10)标准配置 (10)安装支架底座 (11)调整视角 (12)连接显示器 (13)安装墙壁装配架 (14)调节显示器 (15)设置最佳分辨率 (15)Windows Vista (15)Windows XP (17)Windows ME/2000 (18)快捷键 (19)驱动 (35)显示器驱动 (35)Windows 2000 (35)Windows ME (35)Windows XP (36)Windows Vista (39)Windows 7 (41)i-Menu .............................................................................................................................................................. 46 故障排除 .. (49)规格 (51)主要规格 (51)预设显示模式 (52)接头引脚分配 (53)e-Saver Screen+ ............................................................................................................................................................ 47.. (48)OSD 调节 (21)明亮度 (22)图象设置 (24)色温 (26)窗口增亮 (28)OSD 设置 (30)其它 (32)退出 (34)LED 指示灯 (34)即插即用 (54)安规信息 (55)FCC注意事项 (55)WEEE声明 (55)有毒有害物质或元素声明 (56)《废弃电器电子产品回收处理管理条例》提示性说明 (56)能效等级 (57)安全说明关于本指南下面说明本文档中使用的符号约定。

注释、注意和警告在本指南中，文本块可能带有图标并且以粗体或斜体打印。

这些文本块是注释、注意和警告，如下所示：注释：“注释”表示一些有助于更好地使用计算机系统的重要信息。

注意：“注意”表示潜在的硬件损坏或数据丢失，并告诉您如何避免出现问题。

警告：“警告”表示潜在的人身伤害，并告诉您如何避免出现问题。

某些警告可能采用其它格式，也可能不带有图标。

在这种情况下，由相关的管理机构提供专门的警告表示方法。

监视器只应使用标签上注明的电源类型。

如果您不了解家中的电源类型，请与经销商或当地电力公司联系。

本监视器配备有一个三相接地插头，其中一个端头接地。

为安全起见，该插头应插入接地的电源插座中。

如果三相插头不能插入您的插座，请找电工安装一个正确的插座，或使用适配器将设备安全接地。

不要改变接地插头的安全功能。

遇有雷雨天气或长时间不使用时，应拔掉设备的电源线。

这样做可以防止因电压突变而损坏监视器。

不要使电源板或延长线过载。

过载可能导致火灾或电击。

为确保正常运行，本监视器只应与 UL 列出的计算机一起使用，这些计算机的的插座经过正确配置并且标记有100 - 240V AC, Min. 5A 。

墙壁电源应安装在靠近设备的地方并且便于插拔电源线。

仅限使用列有 UL、CSA 授权标记之连接电源变压器(针对带外置电源适配器的产品)。

制造商：1) TPV ELECTRONICS(FUJIAN) CO., LTD model : ADPC1245不要将监视器放置在不稳定的推车上、平台上或桌子上。

如果监视器掉落，可能会造成人员伤害并导致设备严重损坏。

仅使用制造商推荐的或随监视器一起销售的推车或平台。

如果将监视器挂在墙上或架子上，应使用制造商认可的安装工具并按照工具说明进行操作。

切勿将任何异物塞入监视器机壳的开槽内。

否则会导致电路短路而引起火灾或电击。

切勿使液体溅落到监视器上。

请不要把显示器的屏幕朝地面放置。

如需将显示器壁挂，请使用有制造商许可的壁挂件并遵照使用说明。

在安装本产品时，出于保持通风之目的，请确保将它与墙壁隔开一段距离，如下图所示。

否则由于通风不良导致的过热会引起火灾或损害显示器。

请看下图显示器使用支架或壁挂时周围应留出的通风区域：为了保持显示器崭新外观，要定期的用软布来清洁它，顽迹可用柔和的清洁剂去除，不要用强烈的清洁剂，如稀释剂或腐蚀性的清洁剂，这些东西会损伤外壳。

不可让液体浸入液晶显示屏内部，这将可能造成液晶显示屏内部元件损伤。

为了安全起见，清洁前要拔掉电源插头。

如产品产生强烈的气味，声音或烟雾，请立即拨掉电源并联系服务中心。

请确保显示器的散热开口没有被桌子或垫子所遮盖。

请勿将显示器置于高湿，高压的环境中使用。

运输或操作过程中请勿跌落或敲击显示器。

安装标准配置并非所有国家的地区都会配备模拟信号线、USB DVI 信号线或HDMI 信号线，请与当地的AOC 官方负责机构确认。

线、指南光盘DVI 线电源线电源适配器模拟信号线HDMI 线、音频线安装支架底座安装:请按照下列步骤安装底座。

a. 将显示器放在平稳的表面（如桌子）上b. 用手拿住显示器底座c. 将安全锁拨到右侧，用手折叠显示器底座，如上图所示d.一旦显示器底座开始折叠，即可松开安全锁（小心：将显示器底座折叠至竖立位置时，必须听到“咔嗒”一声，才能确保安全锁正确锁定。

） e. 将显示器放入底座调整视角为了取得最佳视觉效果，建议您面向显示器整个屏幕，然后根据需要调整显示器的角度。

改变显示器角度时请扶好平台，以免碰到显示器。

显示器角度调整范围是 -4°- 20°。

注释：* 当您调整显示器的视角时，不要用手碰液晶屏幕，这样可能会损害或弄碎液晶屏幕。

连接显示器显示器的电缆连接:1. 电源2. D-Sub 模拟接口为保护显示器，请在连接前关闭电脑和显示器。

1 将电源适电缆连接到监视器后部的 A C-In 端口。

2 将15针 D-Sub 电缆的一端连接到监视器后部，另一端连接到计算机的 D-Sub 端口。

4打开显示器和计算机的电源。

如果监视器显示一个图像，则说明安装完毕。

如果不显示图像，请参见故障排除。

3. 34.5. HDMI 1 HDMI 2 5将HDMI 电缆的一端连接到显示器的背后，然后将另一端连接到计算机的HDMI 端口。

音频将音频线一端连接到监视器后部的音频接口，另一端连接到计算机的音频输出端口。

安装墙壁装配架准备安装供选购的墙壁装配架。

1. 将显示器放在平稳的表面（如桌子）上2. 用手拿住显示器底座3. 将安全锁拨到右侧，用手折叠显示器底座，如上图所示4.一旦显示器底座开始折叠，即可松开安全锁（小心：将显示器底座折叠至壁挂架位置时，必须听到“咔嗒”一声，才能确保安全锁正确锁定。

）此监视器可以安装到您单独购买的墙壁装配架上。

在执行此步骤之前应断开电源。

按照下列步骤进行：5. 按照厂商说明安装墙壁装配架。

6. 将墙壁装配架放到监视器后部。

使装配架上的孔与监视器后部的孔对准。

7将四个螺丝插入孔中并拧紧。

8 . 重新连接电缆。

有关安装到墙壁上的说明，请参见选购的墙壁装配架附带的用户手册。

注意 : 非所有机种后壳自带壁挂设备安装锁附螺孔, 请购买时确认经销商或咨询AOC 官方机构..: M4x8mm螺丝型号调节显示器设置最佳分辨率Windows VistaWindows Vista操作系统:1. 单击开始。

2 .单击控制面板。

3 然后双击外观和个性化。

4 单击个性化。

5 单击显示设置。

6 把分辨率设置为1920x1080。

Windows XP Windows XP 操作系统: 1 单击开始。

2 单击设置。

3 单击控制面板。

4 单击外观和主题。

.5 双击显示。

6 单击设置。

7 把分辨率设置为1920x 1080 。

Windows ME/2000Windows ME/2000操作系统 : 1. 单击开始。

2 .单击设置。

3. 单击控制面板。

4. 双击显示。

5. 单击设置。

6. 把分辨率设置为1920x 1080 。

快捷键电源/菜单/选择自动/输入源/退出电源：按电源键开／关显示器的电源当没有OSD 菜单时,持续按自动调整快捷键2 秒启动自动调整功能。

当没有OSD 菜单时, 按信号源快捷键激活信号源功能(仅针对两种输入信号及以上机型) . 连续按信号源切换键来选择信息栏中显示的信号源，按菜单键调整为选择的信号源。

自动/输入源/退出>。

音量连续按下热键可打开音量控制，按“上”或“下”按键调整设置，按“菜单”按钮确认并退出OSD 。

Clear Vision/>音量+Clear Vision/>1. 当不显示 OSD 时，按“<”按钮激活 Clear Vision2. 使用“>”或“<”按钮选择弱、中、强、或关闭等设置。

默认设置是“关闭”3. 按住“<”按钮 5 秒激活 Clear Vision 演示，消息“Clear Vision 演示：开启”在屏幕上显示 5 秒。

按“菜单”或“退出”按钮，消息消失。

再次按住“<”按钮 5 秒，Clear Vision 演示将关闭。

Clear Vision 功能可将低分辨率的模糊图像转换为清晰鲜艳的图像，从而提供最佳图像观看体验。

OSD 调节基本按键操作说明1) 按按钮激活 OSD 窗口。

2) 按或浏览这些功能。

如果想要选择调整的功能，按按钮激活它。

如果所选的功能包含有子菜单，再按一下或可以浏览到子菜单功能。

如果想要调整的功能突出显示，按按钮激活它。

3) 按或更改所选功能的设置。

要退出和保存，按选择退出和保存。

如果您想调整其它任何功能，请重复步骤 2-3。

4) OSD 锁定功能：要锁定 OSD ，请在显示器关闭时，按住按钮，然后按电源按钮打开显示器。

要解锁OSD ，请在显示器关闭时，按住按钮，然后按电源按钮打开显示器。

请注意：1) 如果产品只有单一信号输入, OSD 中的 "输入选择" 项目不可调整2) 如果产品屏幕比例是4:3或者输入分辨率是宽屏模式, OSD 中的 "图像比例" 项目不可调整3) 当动态对比度, 色彩增强, 窗口增亮任意一项功能启动, 另外4项功能将被自动关闭.亮度情景模式,Clear Vision ,明亮度1按(菜单键) 显示菜单2按或选择(明亮度), 按进入3按或选择子菜单, 按进入4按或调节5按退出.亮度 0-100 调整显示亮度对比度 0-100 调整显示对比度Eco mode标准正常使用模式节能文本应用模式网络网络应用模式游戏游戏应用模式电影观赏电影应用模式运动运动应用模式伽玛伽玛1 调整为伽玛值1伽玛2 调整为伽玛值2伽玛3 调整为伽玛值3 DCR关闭关闭动态对比度启用开启动态对比度图象设置1按(菜单键) 显示菜单2按或选择(图像设置), 按进入3按或选择子菜单, 按进入4按或调节.5按退出.时钟0-100 调整图片时钟以降低垂直线噪声相位0-100 调整图片相位以降低水平线噪声锐度0-100 调增图片的锐度水平位置0-100 调整图片的水平位置垂直位置0-100 调整图片的垂直位置色温1按(菜单键) 显示菜单2按或选择(色温), 按进入. 3按或选择子菜单，按进入.4按或调整.5按退出.色温暖色温设置为暖色温常规色设置为常规色温冷色温设置为冷色温 sRGB设置为sRGB 使用者设定红微调红色色温绿微调绿色色温蓝微调蓝色色温色彩增强模式全色增强禁用/启用开启或关闭全色增强模式自然肤色禁用/启用开启或关闭自然肤色模式绿茵场景禁用/启用开启或关闭绿色增强模式蔚蓝风景禁用/启用开启或关闭蓝色增强模式自动检测禁用/启用开启或关闭自动增强模式色彩增强演示禁用/启用开启或关闭左画面演示窗口增亮1按(菜单键) 显示菜单2按或去选择(窗口增亮), 按进入. 3按或选择子菜单，按进入.4按或调整5按退出.窗口尺寸 14-100 调整窗口尺寸大小亮度 0-100 调整窗口亮度对比度 0-100 调整窗口增强对比度水平位置 0-100 调整水平窗口位置垂直位置 0-100 调整垂直窗口位置增亮禁用/启用开启或关闭增亮窗口OSD设置1按(菜单键) 显示菜单..2按或选择 (OSD 设置), 按进入. 3按或选择子菜单, 按进入.4按或调整.5按退出.水平位置0-100调整OSD水平位置垂直位置0-100 调整OSD垂直位置OSD显示时间设定5-120 调整OSD显示时间透明度0-100 调整OSD透明度语言选择OSD语言其它1按(菜单键) 显示菜单.2按或选择(其它),按进入. 3按或选择子菜单,按进入.4按或调节.5按退出.输入选择自动调整是或者否自动调整画面定时关机 0-24小时设定显示器关机时间画面比例宽屏 or 4:3 选择宽屏或4:3显示格式DDC-CI 是或者否打开/关闭DDC/CI支持重置是或者否恢复到出厂设置显示信息显示输入信号信息自动自动检测输入信号模拟选择输入为模拟信号源HDMI 选择HDMI 信号源作为输入1/HDMI21/HDMI2退出1按(菜单)显示菜单.2退出.按或选择(退出), 按退出退出OSDLED 指示灯状态 LED颜色开机模式蓝色待机模式橙色驱动显示器驱动Windows 20001. 激活Windows 2000 。
