货船完整稳性计算书

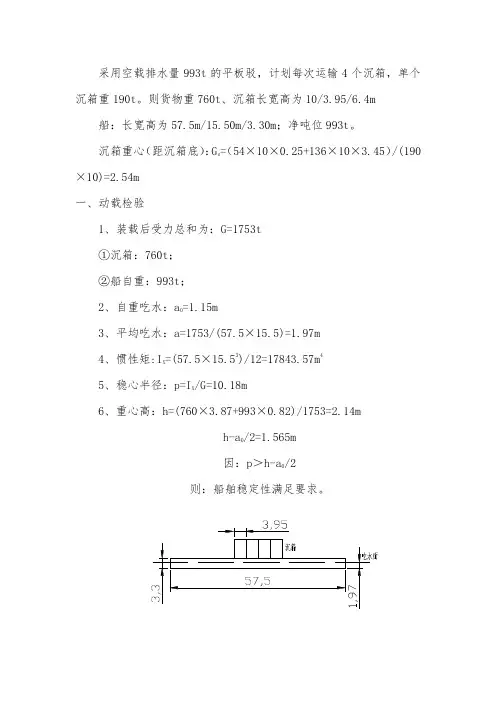

完整稳性计算书(海驳)
12. 各种装载情况的稳性计算................................................... 16
12.1空船状态................................................................ 16
12.2 压载出港............................................................... 22
6. 受风面积计算.............................................................. 9
7. 结冰计算.................................................................. 11
8. 许用极限重心高度曲线...................................ห้องสมุดไป่ตู้.................. 12
编制drwout校对chkd共页第标检stachktotalsheetspageno?remark审核apvd新港船厂技术科审定apvdtec
•
编制 drw out 校对 chkd 标检 sta chk REMARK 共 页 第
total sheets
page no.
审核 apvd 审定 apvd
3. 主要使用说明.............................................................. 4
4. 分舱布置图................................................................ 6
船舶稳性校核计算书
一、概述本船为航行于内河B级航区的一条旅游船。
现按照中华人民共和国海事局《内河船舶法定检验技术规则》（2004）第六篇对本船舶进行完整稳性计算。
二、主要参数总长L OA13.40 m垂线间长L PP13.00 m型宽 B 3.10 m型深 D 1.40 m吃水 d 0.900 m排水量∆17.460 t航区内河B航区三、典型计算工况1、空载出港2、满载到港五、受风面积A及中心高度Z六、旅客集中一弦倾侧力矩L KL K=1∆1−n5lb=0.030 mn lb =1.400<2.5，取nlb=1.400式中：C—系数，C=0.013lbN=0.009<0.013，取C=0.013 n—各活动处所的相当载客人数，按下式计算并取整数n=NSbl=28.000S—全船供乘客活动的总面积，m2，按下式计算：S=bl=20.000 m2b—乘客可移动的横向最大距离，b=2.000 m；l—乘客可移动的横向最大距离，b=2.000 m。
七、全速回航倾侧力矩L VL V=0.045V m2SKG−a2+a3F r d KN−m式中：Fr—船边付氏数，F r=m9.81L；Ls—所核算状态下的船舶水线长，m；d—所核算状态下的船舶型吃水，m；∆—所核算状态下的船舶型排水量，m2；KG—所核算状态下的船舶重心至基线的垂向高，m；Vm—船舶最大航速，m/s；a3—修正系数，按下式计算；a3=25F r−9当a3<0，取a3=0；当a3>1时，取a3=1；a2—修正系数，按下式计算；a2=0.9(4.0−Bs/d)当Bs/d<3.5时，取Bs/d=3.5；当Bs/d>4.0时，取Bs/d=4.0；。
船舶稳性和吃水差计算
船舶稳性和吃水差计算船舶稳性和吃水差计算Ship stability and trim calculations1.总则General rules保证船舶稳性和强度在任何时候都保持在船级社认可的稳性计算书规定范围内，防止因受载不当，产生应力集中造成船体结构永久性变形或损伤。
Ensure stability and strength of the ship at all times to maintain stability within stability calculations approved by the classification societies in order to prevent due to load improperly resulting in stress concentration which will cause the ship structure permanent deformation or subversion.2.适用范围Sphere of application公司所属和代管船舶的稳性、强度要求To satisfy the requirement of company owned and managed ships stability and strength3.责任Responsibility3.1.大副根据本船《装载手册》或《稳性计算手册》等法定装载资料，负责合理配载或对相关部门提供的预配方案进行核算，确保船舶稳性及强度处于安全允许值范围。
Based on the ship "loading manual" or "stability calculations manual" and other legal loading information, the chief officer is responsible for making reasonable stowage plan or adjust accounts of the pre plan from relevant departments to ensure stability and strength of the ship in a safe range of allowed values.3.2.船长负责审批大副确认的配载方案和稳性计算。
船舶稳性校核计算书
一、概述本船为航行于内河B级航区的一条旅游船。
现按照中华人民共和国海事局《内河船舶法定检验技术规则》（2004）第六篇对本船舶进行完整稳性计算。
二、主要参数总长L OA 13.40 m垂线间长L PP13.00 m型宽 B 3.10 m型深 D 1.40 m吃水 d 0.900 m排水量∆17.460 t航区内河B航区三、典型计算工况1、空载出港2、满载到港四、稳性总结表五、受风面积A及中心高度Z六、旅客集中一弦倾侧力矩L KL K=1∆1−n5lb=0.030 mn lb =1.400<2.5，取nlb=1.400式中：C—系数，C=0.013lbN=0.009<0.013，取C=0.013 n—各活动处所的相当载客人数，按下式计算并取整数n=NSbl=28.000S—全船供乘客活动的总面积，m2，按下式计算：S=bl=20.000 m2 b—乘客可移动的横向最大距离，b=2.000 m；l—乘客可移动的横向最大距离，b=2.000 m。
七、全速回航倾侧力矩L VL V=0.045V m2L SKG−a2+a3F r d KN−m式中：Fr—船边付氏数，F r=V m9.81L；Ls—所核算状态下的船舶水线长，m；d—所核算状态下的船舶型吃水，m；∆—所核算状态下的船舶型排水量，m2；KG—所核算状态下的船舶重心至基线的垂向高，m；Vm—船舶最大航速，m/s；a3—修正系数，按下式计算；a3=25F r−9当a3<0，取a3=0；当a3>1时，取a3=1；a2—修正系数，按下式计算；a2=0.9(4.0−Bs/d)当Bs/d<3.5时，取Bs/d=3.5；当Bs/d>4.0时，取Bs/d=4.0；其中：Bs—所核算状态下船舶的最大水线宽度；八、横摇周期及横摇角的计算。
