电源管理芯片工作原理和应用
电源管理芯片工作原理和应用本文主要是关于电源管理芯片的相关介绍，并着重对电源管理芯片进行了详尽的阐述。
电源管理芯片电源管理芯片（Power Management Integrated Circuits），是在电子设备系统中担负起对电能的变换、分配、检测及其他电能管理的职责的芯片。
主要负责识别CPU供电幅值，产生相应的短矩波，推动后级电路进行功率输出。
常用电源管理芯片有HIP6301、IS6537、RT9237、ADP3168、KA7500、TL494等。
基本类型主要电源管理芯片有的是双列直插芯片，而有的是表面贴装式封装，其中HIP630x系列芯片是比较经典的电源管理芯片，由著名芯片设计公司Intersil设计。
它支持两/三/四相供电，支持VRM9.0规范，电压输出范围是1.1V-1.85V，能为0.025V的间隔调整输出，开关频率高达80KHz，具有电源大、纹波小、内阻小等特点，能精密调整CPU供电电压。
应用范围电源管理芯片的应用范围十分广泛，发展电源管理芯片对于提高整机性能具有重要意义，对电源管理芯片的选择与系统的需求直接相关，而数字电源管理芯片的发展还需跨越成本难关。
当今世界，人们的生活已是片刻也离不开电子设备。
电源管理芯片在电子设备系统中担负起对电能的变换、分配、检测及其它电能管理的职责。
电源管理芯片对电子系统而言是不可或缺的，其性能的优劣对整机的性能有着直接的影响。
提高性能所有电子设备都有电源，但是不同的系统对电源的要求不同。
为了发挥电子系统的最佳性能，需要选择最适合的电源管理方式。
首先，电子设备的核心是半导体芯片。
而为了提高电路的密度，芯片的特征尺寸始终朝着减小的趋势发展，电场强度随距离的减小而线性增加，如果电源电压还是原来的5V，产生的电场强度足以把芯片击穿。
所以，这样，电子系统对电源电压的要求就发生了变化，。
正负电源芯片
正负电源芯片
正负电源芯片，也叫做电池管理芯片或电源管理芯片，是一种用于管理电池电力的重要集成电路。
正负电源芯片的主要作用是监控电池的状态、确保电池的安全使用、提供电力管理功能和优化电池的充放电效率。
在移动设备、电动车辆、无人机、消费电子产品等领域都有广泛的应用。
正负电源芯片的基本原理是通过内嵌的电流传感器、电压传感器、温度传感器等元器件来监测电池的状态。
它可以实时检测电池的电量、电压、温度等重要参数，并将这些信息传输给主控电路或外部设备。
这样，就可以及时了解电池的状况，避免过充、过放、过电流等问题，保护电池的安全性。
正负电源芯片不仅能监控电池的状态，还具备智能电力管理功能。
它可以根据电池的实际情况，自动调节电流、电压等参数，提供合适的电力输出。
例如，在手机充电时，正负电源芯片可以根据电池的状态，智能地控制充电速度，避免过快充电导致电池发热、安全问题。
同时，正负电源芯片还能提供快速充电、低功耗等功能，满足用户的多样化需求。
另外，正负电源芯片还能优化电池的充放电效率。
它能够提供最佳的电流、电压输出曲线，减少能量损耗，提升充电效率。
例如，在电动车辆中使用正负电源芯片，可以实现快速充电、长续航时间等优势。
这不仅可以减少用户的充电时间，还能提高电池的使用寿命，延长电池的循环充放电次数。
总之，正负电源芯片是一种重要的电池管理器件，它能够监控
电池的状态、提供电池的安全使用、实现电力管理和优化充放电效率。
随着移动设备、电动车辆等领域的快速发展，正负电源芯片也将进一步提升其功能和性能，为各种电池应用提供更加可靠、高效的解决方案。
双节锂电池充电芯片
双节锂电池充电芯片双节锂电池充电芯片（Dual-cell lithium-ion battery charging chip）是一种专门设计用于双节锂电池充电管理的集成电路芯片。
双节锂电池是一种由两节锂电池组成的电池组，通常用于高功率应用和需要更大能量密度的设备。
现如今，由于无线通信技术的快速发展以及移动设备的广泛应用，对电池的需求越来越大。
而双节锂电池由于其更高的能量密度和较小的尺寸，成为了无线通信设备中常用的电源。
为了保证双节锂电池的安全充电和更好地管理电池容量，需要使用专用的充电芯片。
双节锂电池充电芯片通常具有以下几个主要功能：1. 充电电流控制功能：双节锂电池充电芯片能够根据电池的状态和需求，自动调整充电电流。
这可以有效地保护电池不会过充或过放，延长电池的使用寿命。
2. 充电状态监测功能：双节锂电池充电芯片能够实时监测电池的充电状态，包括电压、电流和温度等参数。
通过监测这些参数，可以及时掌握电池的工作状态和健康情况，确保电池的正常运行。
3. 温度监测和保护功能：双节锂电池充电芯片具有温度监测和保护功能，可以监测电池的温度，并在温度过高时做出相应的控制，以防止电池过热引起安全问题。
4. 充电完成提示功能：当电池充满时，双节锂电池充电芯片可以发出充电完成提示信号，以提示用户及时拔掉充电器，避免过度充电。
5. 电池状态显示功能：双节锂电池充电芯片一般都有电池状态显示功能，可以通过LED指示灯或其他显示方式，显示电池的工作状态，方便用户了解电池的使用情况。
6. 快速充电功能：部分双节锂电池充电芯片还具备快速充电功能，可以在很短的时间内完成电池的充电，提高充电效率。
总之，双节锂电池充电芯片是用于双节锂电池充电管理的重要集成电路芯片，具有充电电流控制、充电状态监测、温度监测和保护、充电完成提示、电池状态显示等功能。
通过使用双节锂电池充电芯片，可以有效地保护电池安全，并延长电池的使用寿命。

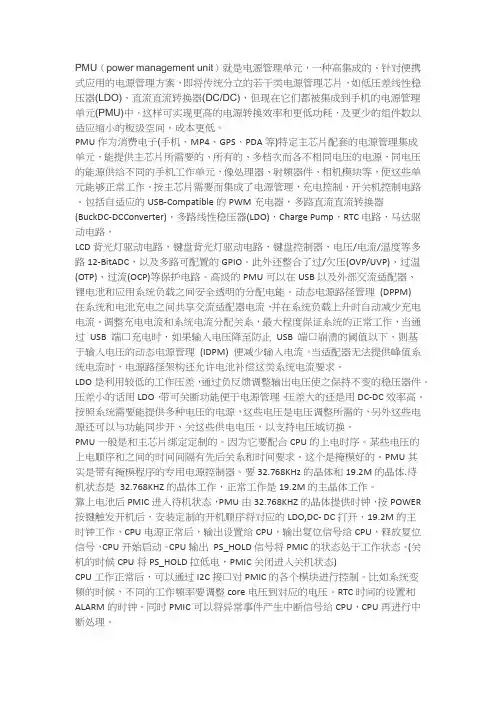

PMU(PMIC)线性电源,开关电源
PMU（power management unit）就是电源管理单元，一种高集成的、针对便携式应用的电源管理方案，即将传统分立的若干类电源管理芯片，如低压差线性稳压器(LDO)、直流直流转换器(DC/DC)，但现在它们都被集成到手机的电源管理单元(PMU)中，这样可实现更高的电源转换效率和更低功耗，及更少的组件数以适应缩小的板级空间，成本更低。
PMU作为消费电子(手机、MP4、GPS、PDA等)特定主芯片配套的电源管理集成单元，能提供主芯片所需要的、所有的、多档次而各不相同电压的电源，同电压的能源供给不同的手机工作单元，像处理器、射频器件、相机模块等，使这些单元能够正常工作。
按主芯片需要而集成了电源管理，充电控制，开关机控制电路。
包括自适应的USB-Compatible的PWM充电器，多路直流直流转换器(BuckDC-DCConverter)，多路线性稳压器(LDO)，Charge Pump，RTC电路，马达驱动电路，LCD背光灯驱动电路，键盘背光灯驱动电路，键盘控制器，电压/电流/温度等多路12-BitADC，以及多路可配置的GPIO。
此外还整合了过/欠压(OVP/UVP)、过温(OTP)、过流(OCP)等保护电路。
高级的PMU可以在USB以及外部交流适配器、锂电池和应用系统负载之间安全透明的分配电能。
动态电源路径管理(DPPM)在系统和电池充电之间共享交流适配器电流，并在系统负载上升时自动减少充电电流。
调整充电电流和系统电流分配关系，最大程度保证系统的正常工作，当通过USB 端口充电时，如果输入电压降至防止USB 端口崩溃的阈值以下，则基于输入电压的动态电源管理(IDPM) 便减少输入电流。
当适配器无法提供峰值系统电流时，电源路径架构还允许电池补偿这类系统电流要求。
LDO是利用较低的工作压差，通过负反馈调整输出电压使之保持不变的稳压器件。
压差小的话用LDO，带可关断功能便于电源管理。
压差大的还是用DC-DC效率高。
双节串联锂电池充电管理芯片,充放电IC电路图
4. DC 直流 9V-20V 输入，降压 8.4V 给双节锂电池充电，充电电流最大 2A。提供了一 个充电常亮，充满灭灯的充电指示灯。
双节锂电池保护板电路图：
5.三个电路系统的组合电路图： 1，双节锂电池保护电路 PL7022 或者 HY2120， 2， 双节锂电池充电电路 PW4203， 3，双节锂电池输出 5V 电路 PW2162 或者 PW2163。
2.在产品设计和芯片应用中，锂电池的电路，离不开三大基本电路，来控制锂电池的充 电，放电。双节串联锂电池可以提供 6V-8.4V 的供电电压，双节串联锂电池充电管理 芯片也可以选择 5V 升压型的 PL7501C，和 9V-20V 降压型的 PW4203。
3.双节锂电池充电电路 USB 口常用的 5V 输入， 升压 8.4V 充双节锂电池充电。最大充 电电流 1A(电池端)。提供了一个充电常亮，充满灭灯的充电指示灯。
Байду номын сангаас
双节串联锂电池充电管理芯片，IC 整套电路图
1.概述 锂离子电池在如今是广泛应用存在我们生活中的方方面面的电子产品中。如，电子玩具， 美容仪，医疗产品，智能手表，手机，笔记本，电动汽车等等非常多。单节锂电池的供 电电压是 3V-4.2V 直接，而随着消费类电子产品的日新月异，对于功率的要求已经达 不到要求了。双节锂电池的供电电压 6-8.4V，在同样电流情况下，功率得到增加。才 能满足一些 20 多 W 等功率得输出应用。
双电源芯片
双电源芯片双电源芯片是一种具有双电压供应的集成电路芯片，可以同时接受两个不同电压等级的电源输入，并根据需要分配给各个部分的供电。
双电源芯片被广泛应用于各种电子设备中，可以提供更高的电源稳定性和可靠性。
双电源芯片的设计需要考虑多个方面的因素，包括电源输入的电压范围、电源电流需求、芯片内部电路的稳定性、供电电路的布局等。
为了满足这些要求，双电源芯片通常采用多级电源滤波和稳压电路，以确保电源输入的稳定性和纹波的可接受范围。
双电源芯片通常由多个功能部分组成，包括输入电源选择开关、电池管理电路、稳压电路、信号处理电路等。
输入电源选择开关用于选择并切换两个电源输入，使其分别供电给不同的部分。
电池管理电路负责管理电池的充电、放电和保护功能，以确保电池的安全和长寿命。
稳压电路用于生成各个部分所需要的稳定电压，以保证其正常工作。
信号处理电路则负责对输入信号进行处理和解码，最终输出电子设备所需的结果。
双电源芯片的应用非常广泛，涵盖了很多领域。
在手机和平板电脑等移动设备中，双电源芯片可以提供更高的电池寿命和更好的充电性能。
在工业自动化和机器人领域，双电源芯片可以保证设备在不同电压条件下的正常运行。
在医疗设备和仪器仪表中，双电源芯片可以提供更高的安全性和可靠性。
在通信设备和网络设备中，双电源芯片可以提供更好的电源稳定性和抗干扰能力。
双电源芯片的设计和制造需要高度的技术水平和严格的质量控制，以确保其性能和可靠性。
同时，双电源芯片的不断创新和进步也推动了整个电子行业的发展和进步。
未来，随着电子设备的不断发展和普及，双电源芯片还将继续发挥重要的作用，并不断提升其性能和功能。
综上所述，双电源芯片是一种具有双电压供应的集成电路芯片，可以提供更高的电源稳定性和可靠性。
它被广泛应用于各种电子设备中，包括手机、平板电脑、工业自动化、医疗设备、通信设备等。
双电源芯片的设计和制造需要高技术水平和严格的质量控制，未来还将继续发展和进步。
手机电源管理芯片
手机电源管理芯片手机电源管理芯片是指一种集成了多个电源管理功能的芯片。
它主要负责管理手机的电源供应、电池充电等功能，是保证手机正常运行和延长电池寿命的关键部件。
本文将从电源管理芯片的原理、功能和市场前景三方面进行介绍。
一、电源管理芯片的原理手机电源管理芯片是利用集成电路技术将多个功能模块集成在一起的芯片。
它通常包括电源管理单元、充放电管理单元、电池保护单元等。
电源管理单元用于对外部电源进行管理和选择，保证手机能够得到稳定的电压和电流供应。
充放电管理单元则负责对电池进行充电和放电控制，确保电池能够正常工作和延长其使用寿命。
电池保护单元则用于对电池进行监测和保护，防止过充、过放和短路等情况发生。
二、电源管理芯片的功能1. 电源控制：电源管理芯片可以对手机的电源进行控制和管理，保证电源供应的稳定性和安全性。
它可以根据手机的使用情况智能调整电源的输出电压和电流，提供最佳的供电环境。
2. 充电控制：电源管理芯片可以对手机的充电进行控制和管理。
它可以智能地调节充电电流和充电电压，确保充电速度和安全性。
同时，它还可以监测充电状态和电池温度，防止过充和过热等问题。
3. 电池保护：电源管理芯片还可以对电池进行保护。
它可以监测电池的电压和电流，防止过充和过放等情况发生。
同时，它还可以监测电池温度，当温度过高时会停止充电或降低充电速率，以保护电池不受损害。
4. 快充技术支持：现在的手机电源管理芯片可以支持快充技术，快速充电手机电池。
快充技术能够在短时间内将电池充满，提高手机的使用效率。
同时，快充技术也可以通过智能控制电池温度和充电电流，保护电池的安全性。
三、电源管理芯片的市场前景随着手机功能的不断增强和电池容量的提升，手机电源管理芯片的需求越来越大。
目前，电源管理芯片已经成为手机芯片的重要组成部分，几乎所有手机都使用了电源管理芯片。
而且，由于电池寿命和充电时间一直是用户关注的焦点，电源管理芯片也成为手机制造商竞争的一个重要方面。
电源管理芯片是什么_电源管理芯片介绍
电源管理芯片是什么_电源管理芯片介绍电源管理芯片（Power Management Integrated Circuits），是在电子设备系统中担负起对电能的变换、分配、检测及其他电能管理的职责的芯片。
主要负责识别CPU供电幅值，产生相应的短矩波，推动后级电路进行功率输出。
常用电源管理芯片有HIP6301、IS6537、RT9237、ADP3168、KA7500、TL494等。
主要电源管理芯片有的是双列直插芯片，而有的是表面贴装式封装，其中HIP630x系列芯片是比较经典的电源管理芯片，由著名芯片设计公司Intersil设计。
它支持两/三/四相供电，支持VRM9.0规范，电压输出范围是1.1V-1.85V，能为0.025V的间隔调整输出，开关频率高达80KHz，具有电源大、纹波小、内阻小等特点，能精密调整CPU供电电压。
电源管理芯片发展的必要性智能电源管理芯片的市场容量和发展前景所有电子设备都有电源，但是不同的系统对电源的要求不同。
为了发挥电子系统的最佳性能，需要选择最适合的电源管理方式。
首先，电子设备的核心是半导体芯片。
而为了提高电路的密度，芯片的特征尺寸始终朝着减小的趋势发展，电场强度随距离的减小而线性增加，如果电源电压还是原来的5V，产生的电场强度足以把芯片击穿。
所以，这样，电子系统对电源电压的要求就发生了变化，也就是需要不同的降压型电源。
为了在降压的同时保持高效率，一般会采用降压型开关电源。
同时，许多电子系统还需要高于供电电压的电源，比如在电池供电设备中，驱动液晶显示的背光电源，普通的白光LED驱动等，都需要对系统电源进行升压，这就需要用到升压型开关电源。
此外，现代电子系统正在向高速、高增益、高可靠性方向发展，电源上的微小干扰都对电子设备的性能有影响，这就需要在噪声、纹波等方面有优势的电源，需要对系统电源进行稳压、滤波等处理，这就需要用到线性电源。
上述不同的电源管理方式，可以通过相应的电源芯片，结合极少的外围元件，就能够实现。
什么是电源管理芯片如何设计电源管理芯片
什么是电源管理芯片如何设计电源管理芯片电源管理芯片是一种用于控制和管理电源供应的集成电路。
它在电子设备中起着关键的作用，能够提供稳定的电压和电流，保护设备免受过电流、电压等异常情况的损害。
本文将介绍电源管理芯片的定义、功能及设计原则。
一、电源管理芯片的定义电源管理芯片，简称PMIC（Power Management Integrated Circuit），是一款专门设计用于电子设备中的集成电路。
它能够控制和管理设备的电源供应，提供所需的电压和电流。
电源管理芯片通常包括多个子模块，如电源开关、电压调节器、电池充放电管理等，这些子模块共同协作，确保设备能够正常工作。
二、电源管理芯片的功能电源管理芯片具有多种功能，以下是其中几个常见的功能：1. 电源稳定性控制：电源管理芯片能够监测并保持电源输出稳定，防止电压波动对设备造成影响。
2. 电源开关控制：通过开关控制，电源管理芯片能够实现设备的开关机功能，降低功耗。
3. 充电管理：对于电池供电的设备，电源管理芯片能够监测电池电量，并控制充电和放电过程，保护电池免受过充、过放等情况的损害。
4. 温度监测和保护：电源管理芯片能够监测设备温度，并采取相应的措施，如关闭电源、降低电压等，以防止温度过高引起设备故障。
5. 供电切换：对于多种电源供应的设备，电源管理芯片能够实现供电切换，确保设备能够在不同电源条件下正常工作。
三、电源管理芯片的设计原则在设计电源管理芯片时，需要考虑以下几个原则：1. 稳定性：电源管理芯片应能够提供稳定的电压和电流，并具备良好的抗干扰能力，以确保设备的正常运行。
2. 效率：电源管理芯片应尽可能提高能量转换的效率，减少能量的损耗，降低设备的功耗水平。
3. 安全性：电源管理芯片应具备过流保护、过温保护、短路保护等功能，以保护设备和用户的安全。
4. 可靠性：电源管理芯片应具备良好的稳定性和可靠性，能够在各种环境条件下正常工作，并具备长寿命特性。
5. 整合性：电源管理芯片应具备集成度高、体积小等优势，以满足电子设备对空间的限制要求。
