彩色Sony一体化摄像机
彩色Sony一体化摄像机使用说明书FCB-EX 45FCB-EX48FCB-EX480FCB-EX980Color camera module inside请在使用前仔细阅读说明书，并妥善保管以供参考感谢您购买SONY FCB系列产品。
请在使用本产品之前，详细阅读产品说明书，以确保正确使用，并将其保留，以备用！目录1、目录 (1)2、简介 (2)3、警告 (3)4、操作面板图、接口安装说明 (4)5、按键操作说明 (5)6、菜单说明…………………………………6-127、远程控制说明……………………………13-148、特性………………………………………15-16 1简介本产品有超强的感光能力，智能化自动夜视功能，区域隐私设定和智能化报警模式，无须人工值守操作；同时可远程进行摄像机全部参数的设置，做到边看监视器图像效果，并及时校正调整摄像机，呈现图像最佳化，真正的人工智能设计。
注意事项：1、摄像机内有精密器件，在运输、保管及安装过程中请勿重压、剧烈振动等，以免对产品造成损坏。
2、在使用中必须遵守各项电气安全标准，摄像机或信号传输线应与高压设备或电缆保持足够的距离（50米以上）；必要时做好防雷、防浪涌等防护措施。
3、无论是在使用中或非使用中绝不可使其正对太阳或其他强光，以免损坏CCD器件。
4、清洁摄像机时，尤其是镜头要使用专用的镜头布或镜头纸擦洗，不要用化学溶剂清洗。
5、不要在超出限定温度（0～50℃）、湿度（小于90％）或电源不规格的状态下使用摄像机。
6、摄像机出现故障时，应由专业人员进行维修，或联系本公司技术部门解决问题。
7、任何私自拆机或修改本设备的构造而未经生产厂家允许，后果2自负。
警告请用户看到本标记时，一定要按照说明书操作和维护本产品请用户看到本标记时小心，因为该产品可能会导致严重的电击1．请勿将本产品置于潮湿或易被雨淋的地方，已防止发生火灾或电击事故。
2．请严格按说明书标志电源供电，以免损坏本产品。
480SONY尾板说明书
SONY FCB Series camera explain We try hard and do better
2. 注意事项 3. 后板说明 4. 按键说明 5. 操作说明
------------------------------------------------- 1-2
SONY DS P C olo r
操作
M.FOCUS M.SHTTR M.IRIS A.NIGHT SBLC BRIGHT WB.MODE R.GAIN B.GAIN SHARP ALARM P1.ZONE
ON/OFF OFF/ON ON/OFF 01-13 01-08 OFF/13 MODE INT OFF/ON SET
菜单
6
菜单 FCB-EX48BP/CP/DP
ca me r a
简介
1 注意事项
7. 摄像机出现故障时,应由专业人员进行维修,或联系本公司技术部门解决问题,切不可自行拆机,否则本公司有权不给予维修服务. 8. 产品符合EMC国际标准,不会产生干扰.
2
我公司系列产品采用日本原装进口机芯,具有超强的感光能力,超长的光学镜头,超高图像解昕,超宽的智能动态,创新的智能化,人性化菜单,区 域隐私设置,电子倒像,自动,手动夜视切换等功能,尤其新一代产品智能设计如:红外夜视超宽灵敏度设定,或是外同步锁定功能,夜视效果的设置, 外同步信号菜单内部频率设定功能,两点变焦功能,变焦,聚焦限位功能,变焦速度设置,键盘安全锁,不断电镜头初始化,信息反馈屏显功能,一键恢 复全自动等强大,灵活;方便的菜单操作模式无须人工守值操作;同时可以进行远程摄像机全部参数设置,做到边看监视器图效果,及时校正调 整摄像机,呈现图像最佳化,真正的人工智能设计.产品分:1.LC 线控型(直接电压控制); 2.SC 串控型(计算机串行 RS232/485 控制) 3.SC/LC 串控/线控型(计算机串行RS485 远程/直接电压控制); 4.ID 内置解码型(计算机 RS485 直接远程控制,一体机内的解码器可直接驱 动云台电机,设有辅助开关输出,菜单设置修改波特率,地址码,协议,并在屏幕下面显示对应的状态信息等)
索尼FCB480设置菜单说明书

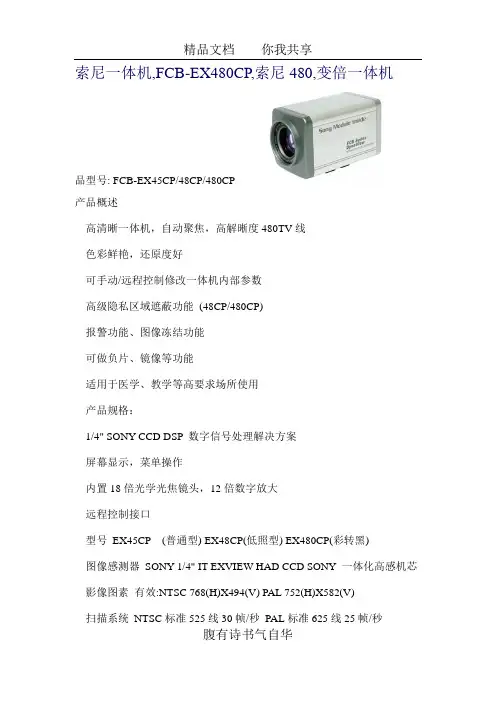

索尼一体机,FCB-EX480CP,索尼480,变倍一体机品型号: FCB-EX45CP/48CP/480CP产品概述高清晰一体机，自动聚焦，高解晰度480TV线色彩鲜艳，还原度好可手动/远程控制修改一体机内部参数高级隐私区域遮蔽功能(48CP/480CP)报警功能、图像冻结功能可做负片、镜像等功能适用于医学、教学等高要求场所使用产品规格：1/4" SONY CCD DSP 数字信号处理解决方案屏幕显示，菜单操作内置18倍光学光焦镜头，12倍数字放大远程控制接口型号EX45CP(普通型) EX48CP(低照型) EX480CP(彩转黑)图像感测器SONY 1/4" IT EXVIEW HAD CCD SONY 一体化高感机芯影像图素有效:NTSC 768(H)X494(V) PAL 752(H)X582(V)扫描系统NTSC标准525线30帧/秒PAL标准625线25帧/秒腹有诗书气自华水平解晰度480TV线电子快门控制开/关(自动电子快门)(NTSC 1/60-1/100000 PAL 1/50-1/100000)伽玛（γ）0.45内置镜头18倍光学变焦镜头F＝4.1-73.8mm(F1.4-F2.4)数字电子放大12倍可自动聚集视场角48°(Wide) -2.7°(Tele)聚焦方式手动/自动变焦速度3 Sec Mode / 6 Sec Mode最低照度1.0Lux 0.05Lux 0.002Lux彩色转黑白无无机械转换/双芯片组视频输出标准1Vp-P/75欧姆混合杂讯比>48db(自动增益关)白平衡手动/自动白平衡(2000°K～10000°K)逆光补偿开/关先进的数字AE窗口侦测EV补偿-10.5db - 10.5db正负片控制开/关镜像控制开/关工作环境温度-10℃～+50℃储存环境温度-30℃～80℃电源供应DC12V功率损耗DC12V 1.5W －2.5 W腹有诗书气自华尺寸88.5(L)X60(W)X55(H)mm重量550g品型号: FCB-EX45CP/48CP/480CP产品概述高清晰一体机，自动聚焦，高解晰度480TV线色彩鲜艳，还原度好可手动/远程控制修改一体机内部参数高级隐私区域遮蔽功能(48CP/480CP)报警功能、图像冻结功能可做负片、镜像等功能适用于医学、教学等高要求场所使用产品规格：1/4" SONY CCD DSP 数字信号处理解决方案屏幕显示，菜单操作内置18倍光学光焦镜头，12倍数字放大远程控制接口型号EX45CP(普通型) EX48CP(低照型) EX480CP(彩转黑)图像感测器SONY 1/4" IT EXVIEW HAD CCD SONY 一体化高感机芯影像图素有效:NTSC 768(H)X494(V) PAL 752(H)X582(V)扫描系统NTSC标准525线30帧/秒PAL标准625线25帧/秒水平解晰度480TV线电子快门控制开/关(自动电子快门)(NTSC 1/60-1/100000 PAL腹有诗书气自华1/50-1/100000)伽玛（γ）0.45内置镜头18倍光学变焦镜头F＝4.1-73.8mm(F1.4-F2.4)数字电子放大12倍可自动聚集视场角48°(Wide) -2.7°(Tele)聚焦方式手动/自动变焦速度3 Sec Mode / 6 Sec Mode最低照度1.0Lux 0.05Lux 0.002Lux彩色转黑白无无机械转换/双芯片组视频输出标准1Vp-P/75欧姆混合杂讯比>48db(自动增益关)白平衡手动/自动白平衡(2000°K～10000°K)逆光补偿开/关先进的数字AE窗口侦测EV补偿-10.5db - 10.5db正负片控制开/关镜像控制开/关工作环境温度-10℃～+50℃储存环境温度-30℃～80℃电源供应DC12V功率损耗DC12V 1.5W －2.5 W尺寸88.5(L)X60(W)X55(H)mm重量550g 出师表腹有诗书气自华两汉：诸葛亮先帝创业未半而中道崩殂，今天下三分，益州疲弊，此诚危急存亡之秋也。
2010年SONY公司产品说明书
Return to Top LikeIf at anytime you want to use the search function, just press (SEARCH). Here you can search for anything from TV to movies and web content to audio. You can also search for help websites, TV programs, and applications.Press (SEARCH) to display the Quick Search Box, and then input keywords to begin your search.Return to TopLikePress (MENU) when the Home screen is displayed. Press (MENU) when the Home screen is displayed. Press (MENU) when the Home screen is displayed.Press (MENU) when the Home screen is displayed.Press / to change the position.Select [done].Press (MENU) when the Home screen is displayed.Press (MENU) when the Home screen is displayed.Press /// to change the position.Select [done].Press (MENU) when the Home screen is displayed.Return to TopLikeSearchFAQTo select a menu item, press /// to move the cursor to the item, and then press ENTERTo return to the previous screen on the Internet TV, press (BACK). With some applications, you may not be able to use (BACK) to return to the previous screen. In such case, hold down (HOME) to display the Recent apps list then select another application.To return to the previous screen on the currently displayed device, press ESC.Hold down Fn and Enter until the pairing screen disappears.The AMP indicator blinks fast twice when pairing starts, and blinks slowly twice when pairingReturn to TopLikePress (HOME) and select [All Apps] - [Timer] - [Add Timer], then set the timer.To modify the timer setting, select the timer you want to modify and change its settings.To delete a timer, select [Delete this timer] in the Timer Setting menu.Press (HOME) and select [All Apps] - [Timer] - [Sleep Timer], then select the desired amount of time for the power to remain on before turning off automatically.Return to TopLikePress (WINDOW) when the TV screen is displayed. When another application is displayed while the Live TV application is running, hold down (WINDOW) and select [TV].Press (WINDOW) again to return the TV screen in the sub window to its full size.Hold down (WINDOW) until the Picture-in-Picture menu appears.Select [Increase size]/[Decrease size].Hold down (WINDOW) until the Picture-in-Picture menu appears.Select [Move].Press /// to move the sub window.Press ENTER.Return to Top LikeHold down (HOME) and select the application by pressing / and ENTER.Return to TopLikeReturn to Top LikeReturn to Top LikePress (HOME). Return to TopPress (MENU) when the Home screen is displayed.Return to TopLikePress (MENU) when the Home screen is displayed.Press (MENU) when the Home screen is displayed.Press /// to change the position.Select [done].Press (MENU) when the Home screen is displayed.Return to TopLikePress (HOME) and select [All Apps].Press (MENU) when the All Apps list is displayed. Return to TopPress (MENU) when the All Apps list is displayed.Return to TopLikePress (MENU) when the Home screen is displayed.Press (MENU) when the Home screen is displayed.Press / to change the position.Select [done].Return to TopLike(1)/// (4-directions)/ENTERPress /// to select an item. Then press ENTER to confirm the highlighted item.(2)VOL +/- (VOLUME)Adjusts the volume.(ON/STANDBY) (BD/EXT)Turns on the connected device or sets to standby mode.(ON/STANDBY) (TV)Turns on the TV.(BACK)Returns to the previous display or shuts down the application or the task.(BACK) functions regardless of displayed content.(HOME)Displays the Home menu.The Home menu is a gateway to various contents. See(WINDOW)Switches the window style.Return to TopVideo control areadisplays the TV screen in a sub window, and the Home menu or other applications in the full screen. See To Display Another Application While Watching TV. (MENU)Displays menu items according to applications.Select the desired setting from the displayed menu items.Some applications do not support (MENU).(11)Optical Finger Sensor (OFS)Allows you to control the pointer only with your thumb.To operate the pointer, slide your thumb on the OFS.To click, press down the OFS.(12)MUTINGSilences the sound.(13)GUIDEDisplays the TV Guide. See From TV program guide (GUIDE).When GUIDE is pressed with Fn, the BD's or DVD's Top Menu is displayed.(14)TVDisplays live TV. See Watching Live TV.(15)DVRDisplays the DVR (Digital Video Recorder) menu.When DVR is pressed with Fn, the BD-ROM's Pop-up Menu is displayed.(16) (BOOKMARK)Bookmarks your favorite content.(17)Colored keysEach key corresponds to the functions displayed on the screen.(1) (REC)Records programs into the Digital Video Recorder.(2)(STOP)Stops playback.(3)/ (PREV/NEXT)Skips to the previous/next chapter, track, or file.(4)/ (FR/FF)Fast rewinds/fast forwards video or music.(5)(PLAY)Starts or re-starts playback.(6)Return to TopReturn to Top(PAUSE)Pauses or re-starts playback.(SEARCH)Displays the Quick Search Box.Type your interest in the Quick Search Box, and the Internet TV will suggest content from various media providers.(1)Fn(2) (DELETE)Deletes input characters.SCROLLScrolls a page or list.Hold down SCROLL and slide your thumb up and down on the OFS.Return to TopLikeHold down Fn and Enter until the pairing screen disappears. Return to TopLikePressing (SEARCH) allows you to search the Internet, TV programs, downloaded content, and applications for your interest thing.Press (SEARCH) to display the Quick Search Box.Input your query into the Quick Search Box.Return to TopLikeReturn to TopPress (MENU) when the All Apps list is displayed.Return to TopLikePress (HOME) and select [Market]. Select an application and follow the on-screen instructions.Press (HOME).Select [All Apps].Select on the Home screen.Return to TopLikePress (HOME).Select [Google Chrome] to launch Google Chrome.Pressing (MENU) provides multiple functions for browsing.You can also access websites using the Quick Search Box. Press (SEARCH) and Input a URL or your query into the Quick Search Box. When suggestions are listed, select one which Return to TopLikePress (MENU) while browsing a website.Press (MENU) while browsing a website.Return to TopLikePress (MENU) while browsing a website.Return to TopLikePress (HOME).Select [All Apps] - [Download].Press (HOME).Select [All Apps] - [Download].Press (MENU).Return to TopLikePress (HOME).Select [All Apps] - [Podcasts]. Return to TopLikeReturn to TopReturn to TopPress (HOME).Select either Live TV or TV & Movie. Return to TopLikePress (BOOKMARK) while watching a TV program.Select [Add channel to favorites].You can also add a favorite channel by pressing (MENU) and selecting [Save] - [AddPress (BOOKMARK) while watching a TV program.Select [View favorite channels].You can also view a favorite channel by pressing (MENU) and selecting [View favorite channels] - the desired channel or by pressing (MENU) and selecting [Save] - [Favorite channels] - [View favorite channels] - the desired channel.Return to TopLikePress (WINDOW) when the TV screen is displayed. When another application is displayed while the Live TV application is running, hold down (WINDOW) and select [TV].Press (WINDOW) again to return the TV screen in the sub window to its full size.Hold down (WINDOW) until the Picture-in-Picture menu appears.Select [Increase size]/[Decrease size].Hold down (WINDOW) until the Picture-in-Picture menu appears.Select [Move].Press /// to move the sub window.Press ENTER.Return to TopLikeReturn to Top LikeReturn to Top LikePlayback starts automatically. Or press (PLAY).If playback does not start automatically or you have quit Disc Player, press (HOME) and select(PLAY):(PAUSE):(STOP):/ (FR/FF):changes each time you press the button duringplayback. When you press (FF) in pausemode, the video plays one frame at a time./ (PREV/NEXT):next track (music playback). To go to the previoustrack, press (PREV) twice (music playback).To eject a discPress (EJECT) on the unit, or press Fn + 0 on the Keypad.If you cannot eject the disc when pressing (EJECT), press (on/standby) button to turn off the unit, then press (EJECT).To display the BD's Top MenuPress Fn + GUIDE (TOP MENU).To display the BD-ROM's Pop-up Menu or DVD's menuPress Fn + DVR (POP UP/MENU). To close the menu, press Fn + DVR again.To switch the language trackWhen multilingual tracks are recorded on BD-ROMs/DVD VIDEOs, press Fn + 2 (AUDIO) repeatedly.To switch the subtitle languageWhen multilingual subtitles are recorded on BD-ROMs/DVD VIDEOs, press Fn + 3 (CC (Subtitle)) repeatedly.Return to TopDisplaying the play informationPress Fn + 4 (INFO) to check the playback information, etc.The displayed information differs depending on the disc type and player status.(1)Title/Cover Art areaReturn to TopJava and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle LikeSearch FAQYour unit has a region code printed on the bottom of the unit and will only play BD-ROMs/DVD-ROMs labeled with identical region codes or .Return to TopLikeReturn to Top LikePress (HOME) and select [All Apps] - [Media Player]. Press (MENU) and select [Select device].(PLAY):(PAUSE):(STOP):/ (FR/FF):/ (PREV/NEXT):Return to Top LikePress (HOME) and select [All Apps] - [Sony Recommends]. Select a content provider.Return to TopLikeVarious settings and playback operations are available by pressing (MENU) during playback.Return to TopReturn to Top Like。
sony菜单中英文对照
SONY 摄像机菜单使用说明一、菜单键定义95&[PREST]键2秒钟打开或关闭菜单(限嘉杰快球) [FAR]:设置菜单项(限嘉杰快球) [WIDE]:向下翻菜单(限嘉杰快球) [TELE]:向上翻菜单(限嘉杰快球)[OPEN]:菜单项数值增加调整(限嘉杰快球) [CLOSE]:菜单项数值减少调整(限嘉杰快球) 二、菜单使用方法 1、 95&[PREST]键2秒钟打开或关闭菜单，打开菜单后，可通过[WIDE]和[TELE]键向下和向上翻阅菜单，选取需要设置的菜单项。
2、 当某个菜单项带有“！”时可通过[OPEN]和[CLOSE]键调整此项的参数值。
4、 菜单项目功能介绍 .FOCUS------Auto/Manual!用户可通过此项选择摄像机聚焦的工作模式。
选择Auto ，摄像机工作在自动聚焦模式下，此时无法通过外部控制系统手动调节摄像机的聚焦位置。
选择 Manual ，摄像机工作在手动聚焦模式下，此时只能通过外部控制系统手动调节摄像机的聚焦位置。
WB----------Auto/R.Gain/B.Gain用户可通过此项选择摄像机白平衡的工作模式。
选择Auto ，摄像机自动获取白平衡。
选择R.Gain ，红光增益，此时可通过[OPEN]和[CLOSE]键，调节红光增益的程度。
此时显示器左下角显示选择B.Gain ，蓝光增益，此时可通过[OPEN]和[CLOSE]示器左下角显示SHTTR-----Auto/Manual!用户可通过此项选择摄像机快门的工作模式。
选择Auto ，摄像机工作在自动状态下选择Manual ，摄像机可通过[OPEN]和[CLOSE]键调节快门速度，并可在显示器左下角观察快门速度设定值。
默认值：NTSC ：1/60sec PAL ： 1/50sec SBLC-------Off/On!逆光补偿功能。
选择Off ，逆光补偿关 选择ON ，逆光补偿开，此功能使得即使在强背景光下,图像暗区的细节也能得到很好的再现。
相机说明书英文版
索尼相机使用说明书中的外语字索尼hx300相机使用说明书的思路很清晰，按照想照什么样的照片，排列使用说明，很实用。
它自己讲，是“从想要执行的操作搜索”，这是它的一个发明。
遗憾的是，相机使用说明书用了太多的英语缩略语，对于不熟悉相机术语的人，会感到不知所云。
有些字在字典和网上都查不到。
故此将它们收集起来，根据我在使用索尼hx300相机过程中的理解，作一解释。
条目以在说明书中出现次序排列。
hd：高清jeita：日本电子信息技术产业协会design rule for camera file system (dcf)：（日本）相机文件系统设计标准playmemories home：索尼相机在windows视窗系统播放所用的软件imovie：索尼相机在苹果mac系统使用用的专用处理软件 high profile：公开的态度、明确的立场cyber-shot：日本索尼(sony)公司旗下的数码相机品牌。
cyber源自cybernetics，代表“与电脑相关的”，而shot代表“拍照”的意思。
memory stick pro duo (mark2)记忆棒：由日本索尼（sony）公司最先研发出来的移动存储媒体。
记忆棒它用在sony的pmp，psx系列游戏机，数码相机，数码摄像机，索爱的手机，还有笔记本上，用于存储数据，相当于计算机的硬盘。
sd存储卡：sd卡是secure digital card卡的简称，中文翻译为安全数码卡，是一种基于半导体快闪记忆器的新一代记忆设备，它被广泛地于便携式装臵上使用，例如数码相机、个人数码助理(pda)和多媒体播放器等。
sd卡由日本松下、东芝及美国sandisk公司于1999年8月共同开发研制。
大小犹如一张邮票的sd记忆卡，重量只有2克，但却拥有高记忆容量、快速数据传输率、极大的移动灵活性以及很好的安全性。
sd卡在外形上同multimedia card 卡保持一致，大小尺寸比mmc卡略厚，容量也大很多。
