Use and Maintenance ManualforThree-phase Synchronous Motor Dalian Yulin Electric Motor Co., Ltd.1. OverviewThis manual provides the instructions and guidance on the receipt, storage, installation, operation and maintenance of a synchronous motor.Only when the installation, operation and maintenance are performed in strict accordance with the requirements of the manual, can the long-term, safe and reliable use of the motor can be ensured.1.1Main components of motorThe main components of the motor are: stator, rotor, rolling bearing, end cap, terminal box, chassis, slip ring, etc.1.2Meaning of sign code1.2.1 Ingress protectionDepending on installation location and use conditions, the types of protection for the motor enclosure include IP23 and IP44.1.2.2 Cooling methodThe sign of cooling method consists of characterization letters "IC" and the subsequent characterization numbers and letters. This series is IC01, self-cooling open-type, with a fan mounted on the shaft.1.3 Terminal of stator and rotor1.3.1 The wire terminals of three-phase winding of synchronous motor stator use U, V, W and N as the signs and use N as the ground terminal.1.3.2 The initial and final terminals of winding of synchronous motor rotor (magnetic field) use F1 and F2 as the signs.1.4 Rotation directionThe rotation direction of synchronous motor is clockwise looking from the drive end.2. Installation2.1 Packing and deliveryThe packing for the motor shall adopt unit packing. For this reason, the user should refer to the outline drawing to determine the content receiving, verify that the receipt is complete, and inspect that the box has signs of damage.If the box is indeed defective or damaged, please notify the manufacturer’s business sector in severe cases. Preferably in the presence of representatives of the transport sector, open the damaged box for check. If the motor body is found to have damage, the necessary testing and repair should be conducted according to the damage degree prior to installation. Meanwhile, the motor nameplate must be stated with the relevant data, including model, power, voltage, speed, production number and date of manufacture and so on.2.2 Lifting and handling2.2.1 The slings must be used, so that the motor can be lifted via lifting bar, lifting hole or boom.2.2.2 When the entire motor is lifted, the weight distribution must be appropriate.2.3 Storage informationThe motor should be stored in a clean and dry place and be covered. If the place is kept cold, wet or humidity-variable, and the temperature of the motor winding should be several degrees higher than the ambient temperature, in order to avoid dew condensation or damping. During long-term storage, the electric heater on the motor can be electrified to get rid of moisture insidethe motor.Preferably, the insulation resistance shall be measured once every month to test the protective effect of storage. When there are significant changes in insulation resistance, indicating the cause is damping. Now, you should consider improving the storage conditions.2.4 Preparation before installation2.4.1 UnboxingRemove all packaging, clean away anti-rust oil and dirt with petroleum solvent, and comply with necessary safety precautions.2.4.2At the installation site, check all the items in the packing list of the motor. If you receivethe parts and components are missing or the equipment is damaged, you should immediately notify the manufacturer.2.4.3On the base frame, the location marker shall be determined to identify the center line andof the unit and the elevation of the base surface.2.4.4According to the outline drawing, the foundation shall be verified to determine that the pit,ventilation pipes, cables and tubing position is correct, and there is enough space for the installation of the unit and its accessories.2.4.5According to the outline drawing, the size and location of foundation bolt hole, and theelevation on the top of bolt.2.5Selection of installation locationWhile deciding where to install the motor, you should consider the following factors:2.5.1 Environmental conditions for the installation of the motor:a. Altitude of not more than 1000m;b. Ambient air temperature of not exceeding 40 ℃;c. The monthly average maximum relative humidity of ambient air in the wettest month is 90%, while the monthly average minimum temperature is not higher than 25 ℃.In case of failure to meet the above three requirements, special orders shall be needed, which will be indicated in special technical conditions.2.5.2 The motor shall be installed in a well ventilated place, and the air inlet and outlet on the motor shall be kept in appropriate positions, in order to prevent the exhaust hot air from entering the air inlet, resulting in repeated cycles, or prevent the hot air exhausted from a motor from directly entering another motor.2.5.3 There should be sufficient space around the motor to disassemble, clean, or check the motor.2.6 Foundation2.6.1 The foundation must be rigid, and the resulting vibration shall be reduced.2.6.2 The motor foot (or chassis side) must be placed on the base plate. The top surface of the base plate shall be a horizontal plane, and its elevation shall be slightly lower than the maximum size of the distance from the motor shaft centerline to the foot (or chassis side).2.7 GroutingThe clean sand and cement shall be mixed at the mixing ratio of 1: 1, and be mixed with water into slurry; the slurry shall be thin enough to fully fill the underside of the chassis or the base plate. The entire operation process of slurry mixing and pouring shall be as fast as possible without interruption. The slurry shall fill all the structural space of the chassis or the base, and be perfused to flush with the top surface of the chassis or the base plate.2.8 Adjustment of mounting surface2.8.1 The adjustment shims shall be made of the thin steel plates with different thicknesses, the width and length shall be slightly greater than the foot size (those with the chassis are not subject to this limit), and a gap or hole shall be provided to get out of the foundation bolts.2.8.2 After the adjustment in the direction of height, plugging shall be performed using the shims with the thickness used for measurement.2.8.3Upon the final alignment of axis, the shims shall adopt a small quantity of thick shims, instead of a large quantity of thin shims. In general, multiple shims with the thickness of 1.5mm and above shall be replaced by the single shim with the equal thickness. After the final alignment the center, the positioning pin hole shall be drilled and shorn, and then be installed with the positioning pins.2.8.4 In case the drive end of the motor needs to be installed with coupling, hammering shall be prohibited, in order to prevent the shaft from withstanding the impact.3. Operation Instructions3.1 Preparation before operation3.1.1 Inspect that the voltage, frequency, phase, etc on the motor nameplate are consistent with the parameters of power supply.3.1.2 Measure the insulation resistance of motor winding. For the minimum allowable value, see4.4.1. If necessary, dry it.3.1.3Inspect that the stator (armature) lead and power line signs of the motor to determine whether the motor rotation direction meet the requirements.3.1.4Inspect that the connections of motor control, protection and monitoring devices are in compliance with the specifications and the corresponding drawings.3.1.5 Inspection of slip ring and carbon brushThe carbon brush shall be able to move freely up and down in the carbon brush box, and the carbon brush shall maintain a certain pressure.3.1.6 Inspect for any foreign objects left in the motor, and use appropriate hand tools to move the rotor disk, and inspect for rubbing sound.3.2 Commissioning of motor3.2.1 It is recommended that the commissioning of synchronous motor should be conducted in the case of failure to butt the supporting machine.3.2.2 Verification of rotation directionFor the synchronous motor, inspect the correctness of the rotation direction in the way of post-electrification inching (press start control button, then immediately press the shutdown control button).3.2.3 Rotate the motor again to timely inspect the temperature of the bearing.3.2.4 For the allowable temperature of the bearing, see4.1.2.3.4 Startup and shutdown of synchronous motor3.4.1 For the salient-pole synchronous motor with slip ring, start-up resistance shall be connected in series within the loop of rotor (magnetic field) winding upon start-up, and start-up resistor element resistance, current and other parameters shall be consistent with the electrical documents.3.4.2 Start-up duty of synchronous motor3.4.3.1 When the initial state of the motor is the ambient temperature, the second consecutive start shall be allowed.3.4.3.2 When the initial state of the motor is rated operating temperature, only once start shall be allowed.3.4.3.3Only after an interval of 1-3 hours, can re-start-up be conducted according to Section 3.4.3.1 and Section 3.4.3.2.The start-up time interval stated in this section depends on the heat capacity and cooling conditions of start winding. In principle, the start-up winding shall be cooled to ambient temperature before re-start-up.3.4.4 Start-up mode of synchronous motor3.4.4.1 Direct start-up, i.e. the terminal of stator (armature) winding is connected directly to the power supply.3.4.4.2 Undervoltage start-up, i.e. during start-up, the terminal of stator (armature) winding is connected to the power supply via the reactor (or auto-transformer, heat rheostat). The start-up voltage upon undervoltage start-up shall be determined based on the motor parameters, in order to avoid the motor damage caused by overheating during start-up.3.4.5 Start-up of synchronous motor after electrification, i.e. after the motor is synchronized, the excitation current shall be adjusted to meet the need of the load.3.4.6 Shutdown of synchronous motor3.4.6.1 Turn-on of motor power switch.3.4.6.2 Input of start-up resistance, this will play the role of resistance de-excitation.3.4.6.3 Stop of auxiliary equipment (fuel pumps, water pumps, blowers, etc.).4 Maintenance and repairThrough regular periodic inspection, you can discover defects, in order to eliminate hidden dangers and prevent the occurrence of faults, and improve operational reliability.4.1 Temperature rise limit and allowable temperature of motor4.1.1 For the temperature rise limits of motor, see Table 6.4.1.2 Allowable temperature of motor bearing:Rolling bearing (at the ambient temperature of not exceeding 40 ℃) is 95 ℃.4.2 Monitoring for temperature of motor4.2.1 For the monitoring setting values (initial value) of Class B insulation and Class F insulation4.2.2 If the operating temperature values are known, then:Alarm value = operating temperature +5 ℃ Tripping value = operating temperature +10 ℃4.2.3 Normal operating temperature often changes with the ambient temperature; the setting value shall be adjusted according to the ambient temperatures in different seasons. 4.3 Vibration limits of motora. At the rated speed of 600r/min and above, the vibration limit of motor shall be 2.8mm / s; b At the rated speed of 600r/min below, the double-amplitude limit of motor shall be 0.075mm.4.4 Insulation resistance of motor4.4.1 Minimum allowable values of winding insulation resistance:a. At the ambient air temperature: 1MΩ/kV;b. In the hot state (under operating conditions):=1000+100UR PWhere: R- insulation resistance of motor winding, MΩ; U- rated voltage of motor winding, V;P - rated power of motor, kW; rated power of generator, kV A.4.4.2 At the ambient air temperature, the minimum allowable value of insulation resistance of embedded temperature detectors : 1MΩ4.4.3 At the ambient air temperature, the minimum allowable value of insulation resistance of insulation bearing:a. Newly installed motor: 1MΩ;b. After r egular overhaul: 0.3MΩ. 4.5 Drying of motorIf the insulation resistance value of motor winding is less than the minimum allowable value, heating and drying shall be performed to remove moisture.4.6 Maintenance and repair of stator (armature) winding and the rotor (magnetic field) windingIn order to fully examine and clean the motor, the rotor must be pulled from the stator.According to the degree and condition of accumulation of dust on the winding, you can clean the motor with the following method. 4.6.1 Wipe-dryWhen the surface that needs to be cleaned is just covered with dust, use a clean lint-free cloth to wipe it dry, but you can not use a waste cloth.4.6.2 BlowingSome gaps inside the motor, which are difficult to reach shall be blown with clean and dry compressed air (pressure less than 0.2MPa), in such a direction that the dust can not be brought deeper into the motor.4.6.3Solvent cleaning methodFor the removal of fat, dirt, wax, oil, etc from the winding, solvent cleaning method is particularly effective. A cloth moistened with mild detergent solution shall be used to wipe the surface, and then it shall be wiped with a dry cloth.4.7 Maintenance and repair of bearing4.7.1 Maintenance and repair of rolling bearingRolling bearing is the standard replaceable part.The grease grade used for rolling bearing shall comply with the standard requirements. The grease has a finite life, and under the influence of mechanical stress and chemical aging, it has gradually lost its lubricating properties. Therefore, it needs to be regularly replaced.For the allowable temperature of rolling bearing, see 4.1.2, so that the grease can achieve the expected normal life.4.7.2Replacement of lubricantGenerally, 50g lubricant shall be injected once a month, and complete replacement shall be conducted once a year. However, this depends largely on the running time, operating temperature and the degree of oil contamination. In case of severe turbidity or sudden rise in temperature without external influence, the lubricant shall be replaced.4.8Maintenance and repair of slip ring ring and carbon brush4.8.1 The surface of slip ring shall be kept smooth and cylindrical. After a period of running, slip ring contact surface will form a layer of oxide film containing graphite, and the surface film may be in color between light gray and black, depending on carbon brush grades, current density, air temperature and humidity.When the surface of slip ring is not smooth, but is covered with rust and burn marks, the fine sand paper can be used for grinding.4.8.2To make two rings be worn uniformly, their polarities need to be replaced once to twice within one year.4.8.3 During the running of motor, it is normal that the carbon brush wear is less than 6mm/1000 hours. When the carbon brush is worn too much, you should also get a new carbon brush. The grade of the new carbon brush must be the same as that of the original carbon brush. The contact surface between the new carbon brush and the slip ring shall be machined into the arc that is the same as the radius of slip ring, in order to ensure the good contact between the carbon brush and the slip ring.4.8.4On the insulation between the slip ring and the carbon brush holder, the extent of accumulation of dust shall be regularly checked and the dust shall be cleared away, preferably by removing the toner with a vacuum cleaner, and blowing with compressed air, and finally wiping with a clean dry cloth.4.9 Routine inspection of motor during running4.9.1 Measure the stator (armature) winding temperature, bearing temperature, inlet and outlet airtemperature, analyze the records, and inspect that there is abnormal situation.4.9.2 Inspect that the motor has unusual mechanical noise or the changing sound (such as friction or percussion sound, etc.).4.9.3Vibration measurement, the measuring point can be selected in the middle of the bearing chamber.4.9.4Inspection of lubrication system, including the oil level of bearing, the rotation state and oil-bring extent of slip ring, any oil spills and discoloring of lubricant, etc.4.10 Regular shutdown maintenance period of motorThe regular shutdown maintenance period of motor shall be based on site conditions and type of the motor structure, typically be in accordance with the following deadlines:a.Motor overhaul: once a year;b.Motor repair: 2-4 times per year.5 Motor failure analysis5.1 Possible failure of synchronous motor5.1.1 During start-up, due to the too low supply voltage, the motor can not rotate.The decrease rate of the motor start-up torque is proportional to the square of the voltage drop. If the decreased start-up torque is less than the load resistance torque, the motor will not rotate.5.1.2During start-up, the motor has magnetic noise, but the rotor does not rotate, with obviousvibration.This may be because the motor is started after being supplied with the excitation current. Now, the excitation status of the excitation device shall be inspected.5.1.3 During start-up, the motor gives normal magnetic noise, but the rotor does not rotate.This may be because the load torque is too large, or the increase in load is more than the motor start-up torque due to a failure of dragged machine.5.1.4 During start-up, the junction of damping ring sparks.Usually, the connecting bolts are not tightened, or the junction of damping ring has bad contact.5.1.5 The motor fails to be frequently started in accordance with the requirements of Section 3.4.3, so overheating is caused to the start-up winding, resulting in unsoldering or breaking of damping bar.5.1.6 During start-up, due to the low supply voltage and insufficient torque, the speed can not be increased to 95-97% of rated speed, resulting in non-pull-in synchronization.5.1.7 The setting range of excitation part of excitation device can also cause non-pull-in synchronization.5.1.8 Slip ring flash or singeing, mainly due to:5.1.9 The cylindrical coaxiality of slip ring is not good, or the surface of slip ring is rough.5.1.10 The grade of the carbon brush is inappropriate, or the pressure on the carbon brush is too small, which hinders the carbon brush from sliding because of being tightly packed in the carbon brush box.。
TC1005 LQFP32规格书V2版

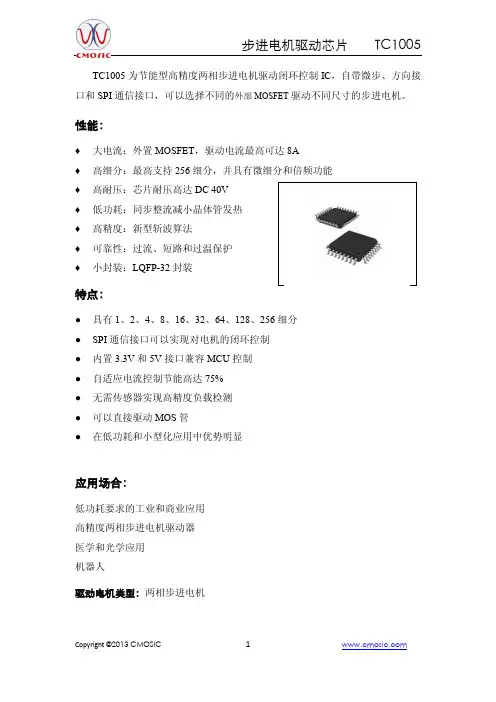

TC1005为节能型高精度两相步进电机驱动闭环控制IC ，自带微步、方向接口和SPI 通信接口，可以选择不同的外部MOSFET 驱动不同尺寸的步进电机。
性能：♦ 大电流：外置MOSFET ，驱动电流最高可达8A ♦ 高细分：最高支持256细分，并具有微细分和倍频功能 ♦ 高耐压：芯片耐压高达DC 40V ♦ 低功耗：同步整流减小晶体管发热 ♦ 高精度：新型斩波算法 ♦ 可靠性：过流、短路和过温保护 ♦ 小封装：LQFP-32封装特点：● 具有1、2、4、8、16、32、64、128、256细分 ● SPI 通信接口可以实现对电机的闭环控制 ● 内置3.3V 和5V 接口兼容MCU 控制 ● 自适应电流控制节能高达75% ● 无需传感器实现高精度负载检测 ● 可以直接驱动MOS 管● 在低功耗和小型化应用中优势明显应用场合：低功耗要求的工业和商业应用 高精度两相步进电机驱动器 医学和光学应用 机器人驱动电机类型：两相步进电机1 工作原理1.1 原理框图1.2 步进和方向控制序列发生器和SPI通过斩波的方式实现电机控制两种控制方案：第一种是步进和反向控制脉冲的控制方式，第二种是通过SPI配置参数的方式。
控制和诊断寄存器给改变电机条件和修改电机状态带来了灵活性。
内部集成了正弦和余弦发生器，在接收一个脉冲后，运动一个微步距，从而实现电机的微步运行。
1.3 SPI控制方式还有一种方式只需要通过SPI进行控制。
高级的控制和诊断功能可以灵活的控制微步的波形实现两相电流的控制，通过电机自适应实现电机平滑控制。
通过CPU查找驱动表发送给两个控制单元，低速性能得到改善，高速可在几十KHZ 至几百KHZ依靠处理器的供电，实现电机控制。
1.4 斩波驱动每个斩波周期，电机电流通过采样电压和设定值进行比较。
这种方案可以满足高动态需求，从而实现了快衰减和过零的保障。
衰减周期可以设置，过零可以通过编程得到改善。
1.5 无感负载检测高精度负载测量，无需外置传感器实现电机的机器负载，负载的测量明显减小了机器的功耗，从而使驱动器散热得到改善，提高了驱动器精度和降低了功耗。
同步电机技术参数
MQY5580溢流型球磨机同步电机技术参数3.3磨机设备外配套件部分技术说明——主电机MQY5580溢流型球磨机配置为磨机专用的TDMK 型低转速有刷励磁同步电机，Y 接星点打开并引出，留有配置液态软启动装置的接口，主电机空负荷起动。
允许电压的偏差范围为±5%，因为功率因数超前，对电网有一定的补偿作用。
电机技术数据：此时电动机的起动电流与端电压成正比下降，而起动转矩则与端电压成正比降低。
主电机通过空气离合器与小齿轮联接，实现单级减速传动，驱动回转部转动。
因为装备了空气离合器，可以实现电机——磨机分段起动，首先起动主电机，当主电机达到额定转速时，向空气离合器的气囊中充气，4～6秒内空气离合器的气囊达到额定压力压着闸瓦抱紧轮毂，带动小齿轮，驱动回转部回转。
分段起动可降低起动电流，改善起动条件，减少了对电网的冲击，空气离合器可使电机的起动力矩仅为额定力矩的0.4倍（一般要达到1.8～2.8倍）,牵入转矩为额定力矩的0.3倍（一般为1.0倍），起动电流为额定电流的3倍左右（一般为6～7倍）。
这样电机可获得良好的机械特性，尚可避免对电源造成巨大的冲击，可相应减小选矿厂主变压器的容量，降低无功损耗，同时可以降低磨机的装机功率。
主电机进入PLC信号有定子温度、轴承温度、轴承振动、电机电流。
——有刷同步电动机微机励磁主要特点：静态励磁为全控桥整流方式，谐波较小，灭磁采用带电流回馈的逆变灭磁；标准配置互为热备用双套调节控制通道，工作通道故障时自动切换至备用通道，励磁无波动；操作电源采用交直流同时供电，两套独立开关电源；不停机更换故障插件；主回路、控制回路、触发脉冲及操作回路完全隔离；故障状态甩功能及故障消失后自动恢复；全数字化微机控制；双闭环励磁调节，可恒励磁电流或恒功率因数运行；失步保护及不减载再同步；智能化故障检测；中文菜单、触摸屏控制、数字化设置及调整参数，显示故障信息；具有RS-485串行通讯接口，方便与后台监控系统连接。
永磁同步电动机说明书PPT课件
2、内置径向式转子磁路结构
早期常用
3
4 N
1
S
应用较为广泛
2 1
3
N
4
S
SN
NS
SN
NS
S
S
N
N
(a)ห้องสมุดไป่ตู้
(b)
1—转轴 2—永磁体槽 3—永磁体 4—转子导条
2、内置径向式转子磁路结构
更大的永磁体空间 外转子结构
3
4
2
3
1
NN
4
S SN
S N
(c)
(d)
1—转轴 2—永磁体槽 3—永磁体 4—转子导条
2、内置混合式转子磁路结构
这类结构集中了径向式和切问式转子结构的优点， 但结构和制造工艺均较复杂，制造成本也比较高。图 (a)是由德国西门子公司发明的混合式转子磁路结构， 需采用非磁性转轴或采用隔磁铜套，主要应用于采用 剩磁密度较低的铁氧体永磁同步电动机。图(b)所示结 构近年来用得较多，也采用隔磁磁桥隔磁。这种结构 的径向部分永磁体磁化方向长度约是切向部分永磁体 磁化方向长度的一半。图(c)和(d)永磁体的径向部分与 切向部分的磁化方向长度相等，也采取隔磁磁桥隔磁。 但制造工艺却依次更复杂，转子冲片的机械强度也有 所下降。
1
3
N
N
4
S
S
2
1 N
S
3
N
4
S
S
S
N
N
S
S
N
N
(a)
(b)
1—转轴 2—空气隔磁槽 3—永磁体 4—转子导条
2、内置切向式转子磁路结构
电烤箱同步电机检验指导书
文件编号：JS3K0610/003
电烤箱同步电机检验指导书
实施日期：2004年2月9日
版/次：A/0
共2页第1页
序
号
检查
项目
参考标准
(文件)
检验规则
检验工具及其仪器
试验
环境
检验要求及其规格值
记录方法
1
外观
转盘电机规格书和图纸
GB2828
水平Ⅱ
一次抽样
AQL 4.0
目视
检验科
外观无损伤、变形、变色、裂纹，无毛刺，无污迹。
5
转速
（无负荷）
″
秒表
″
加额定电压、额定频率，转速为2.5-3rpm。
实
测
值
6
输入功率
（无负荷）
″
电机
测试仪
″
加额定电压、额定频率下，转盘电机输入功率应≤4W。
实
测
值
拟制/日期
审核/日期
批准/日期
xx有限公司检验指导书
文件编号：JS3K0610/003
电烤箱同步电机检验指导书
实施日期：2004年2月9日
4.启动电压：≤AC187V能启动
5.绝缘电阻：≥100MΩ
6.耐压：
AC1500V/min(0.5mA)无闪络或击穿现象。
″
拟制/日期
审核/日期
批准/日期
版/次：A/0
共2页第2页
序
号
检查
项目
参考标准
(文件)
检验规则
检验工具及其仪器
试验
环境
检验要求及其规格值
记录方法
7
转矩
GB2828
电机规格书
2-3安装
电机可任意角度安装，但电机出力轴垂直向上安装为最佳。
3电机规格:
表一
No.
项目
标准
备注
1
电压
参照外形图
2
频率
50/60Hz
3
极数
12极
4
绝缘等级
F级
5
出力轴转速
参照外形图
6
出力轴转向
参照外形图
4特性:
4-1 电机特性:
表二
No.
项目
标准
备注
1
起动电压
4）制动转矩：参照外形图。（在额定电压及频率下）
同步电机规格书
5）外观：1.产品上不可有会损害产品性能的刮痕，毛边及脏污。
2.产品在正常运转下，不可有任何腐蚀或颜色改变的情形。
6）噪音：40dB以下。（在额定电压、频率下，离电机30cm的位置处）。
表四
序号
Байду номын сангаас项目
测试条件
1
湿热试验
在温度40℃，相对湿度90~95%的环境中放置96小时后，有水滴时，除去水滴，在常温和常湿中放置30分钟。
No.
项目
标准
备注
6
绝缘阻抗
100MΩ以上
在
耐压强度
AC1500V/MIN
或AC1800V/1 SEC
开断电流
4-2 机械特性
表三
No.
项目
标准
备注
1
制动转矩
参照外形图
在额定电压及频率下
2
重量
约100g
3
噪音
40dB以下
在额定电压、频率下连续运转，离电机30厘米水平位置处。
TC1002规格书
K)
tWR
WR 脉宽
20
nS
tWH
WR 上升沿后数据保持时间
0
nS
fPWM PWM 频率
20
KHz
fCLK SCLK 输入频率
10
MHz
表 1.2: 交流电气特性
参数
符号
范围
单位
直流工作电压
VDD
输入电压
VIN
VSS-0.3 to +7.0
V
VSS-0.3 to VDD +7.0
V
5
高性能步进电机细分 IC TC1002
三:引脚功能说明
44 脚 37 36
名称 SCLK RESET
38
DIR
12
CSEL
10
RSEL
引脚功能 阶跃时钟输入。一个正边沿能够使电机前进一个增量。 当 RESET 脚为低时，这一输入会复位芯片。当重新释放时， 控制器会在它的初始状态（OUTA 为 0，OUTB 为峰值） 方向输入。这一输入用来改变电机的方向。物理位置也和电机 线圈连接有关。 时钟选择输入。为低时，内部的正弦余弦发生器作为 SCLK 输 入且不依赖于 EN 输入电平。为高时，当 EN 输入为低时，COUT 输出将作为 SCLK 输入，相反地，当 EN 输入为高时，内部的 正弦余弦发生器将作为 SCLK 信号。 ROM 选择脚，为低选择 SIN/COS 发生器，为高选择外部查找
7
高性能步进电机细分 IC TC1002
图 1.7 芯片选择设置
5:整步输出
这个引脚输出为高就表明当前马达正处在整步中。在 OUTA 或 OUTB 为最低 时就会有整步输出。
6:对偶 PWM
TC1002 包含一个独特的对偶 PWM 电路，它能有效的控制两相马达线圈中的 电流，内部的 PWM 使用在快速衰减或慢速衰减模式中控制电流慢速衰减模式, 在慢速衰减 PWM，线圈中的电流在 PWM 关闭下，在电路中循环慢速衰减，通常用在低感 应系数的马达中。见图 1.5 快速衰减模式,在快速衰减 PWM，电流在 PWM 关闭的情况下， 通过桥流向电压源。这种方式控制电流允许快速响应但会降低效率，增加电流纹波。尤其在 低感应系数马达中。见图 1.6
同步电机样本
: 630mm : ExeⅡT1， ExeⅡT2 ａｎｄ ExeⅡT3
Based on this series motors, outdoor type (W type), tropical humidity type (TH type) and tropical humidity
outdoor type (THW type) three-phase synchronous motors have been modified. The performance index and
The standards referenced in this series motors are listed in the following: GB3836.1-2000 Electrical Apparatus for Explosive Gas Atmospheres
Part 1: General Requirements GB3836.3-2000 Electrical Apparatus for Explosive Gas Atmospheres
Incorporating explosion protection technique, electric and electronic technology, automatic control engineering and motor technique into an integral, series TAW increase-safety brushless excitation synchronous motors are high-and-new technology products developed and manufactured by Nanyang Explosion Protection Group Co., Ltd (CNE). This series motors can be widely used in petroleum, chemical, fertilizer, refrigeration industries, the locations where present explosion hazard gasses, and can be used to drove reciprocating compressors.
