General-purpose Limit Switch HL-5000 Economical, Miniature Limit SwitchBoasting Rigid ConstructionHighly rigid construction (head and cover snugly fitin box).Dustproof and drip-proof construction.Smooth operation with greater OT.Easy-to-wire conduit opening design.Models with grounding terminals conform to the CEmarking.HL-5jjj1231. Actuators000:Roller lever030:Adjustable roller lever 050:Adjustable rod lever 100:Sealed plunger 200:Sealed roller plunger 300:Coil spring500:Remote control wire 2. Ground T erminal SpecificationsBlank:Without ground terminalG:With ground terminal/M5 tapping on the rear side 3. ContactBlank:Standard (silver rivet contact)A:Gold platingNote:1.The above figures are for standard currents.2.Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).mp load has an inrush current of 10 times the steady-state current.4.Motor load has an inrush current of 6 times the steady-state current.CharacteristicsNote:1.The above figures are initial values.2.The above characteristics may vary depending on the model. For further details, contact your OMRON sales representative.3.Life expectancy values are calculated at an operating temperature of 5°C to 35°C, and an operating humidity of 40% to 70%. Con -tact your OMRON sales representative for more detailed information on other operating environments.Contact FormNO (4)(3)NO (1)(2)Operating CharacteristicsNote:1.Measured with the types of the 31.5-mm arm or rod length.2.OF and RF measured at the arm length of 75 mm for HL-5030, and 145 mm for HL-5050 (reference values).Electrical Life Expectancy (cos φ=1)L i f e e x p e c t a n c y (x 10 o p e r a t i o n s )4Switching current (A)Operating frequency:30 operations/min 125 VAC (cos φ = 1)Operating temperature: 5°C to 30°C Operating humidity: 40% to 70%2.Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.Roller Lever HL-5000Adjustable Roller Lever HL-5030Adjustable Rod Lever HL-5050Sealed Plunger HL-510017.5 dia. × 6.6(See note 1)Three,M3 cover clamping screwsT wo, 5.2 dia.mounting holesRubber connectorM5 x 12Allen-head bolt Adjustable up to 30R to 75RM5 × 16Allen-head bolt M5 × 12Allen-head bolt3 dia. × 160stainless steel rodM5 × 16Allen-head bolt M5 × 12Allen-head bolt(See note 2)16.532(See note)(19)39.5±0.8(See note)16.532 max.39.5±0.853.4±0.862.8±0.35.4Stainless steel plungerTwo, M3 head clamping screws8 dia.16.520.2(19)60.6Note:1.The resin roller can be mounted anywherein 360°.2.The head can be mounted in any of thefour directions.Note:The head can be mounted in any of the four directions. Dimensions not shown are the same as HL-5000.Note:Dimensions not shown are the same as HL-5000.Note:The head can be mounted in any of the four directions. Dimensions not shown are the same as HL-5000.+0.2Sealed Roller Plunger HL-5200Coil Spring HL-530012.7 dia. × 4.8Two, M3 head clamping screws Note:The head can be mounted in either of the two direc-tions. Dimensions not shown are the same as HL-5000.Resin rodTwo, M3 head clamping screws6.6 dia.3.2 dia.(See note)(19)16.52.5384260.6(See note 1)Note:1.The coil spring may be operated from any direc-tions except axial directions (↓).2.Be sure to use the dog or cam within 30 mmfrom the top end of the spring. (Avoid use within 80 mm from the mounting hole.)3.Dimensions not shown are the same asHL-5000.(see note 2)Three, M3 headOperation of Limit SwitchActuator Position Change (HL-5000, HL-5030,HL-5050)To change the angle of the actuator , loosen the Allen-head bolt on the side of the actuator lever. Then the actuator can be set at any angle.Loosen the Allen-head boldHead Direction Change (HL-5000, HL-5030)(HL-5050, HL5200)To change the head direction, loosen the two mounting screws.Then the head can be changed at 90° increments in one of four directions.HL-5000HL-5030HL-5050Head mounting screw (Small white screw that can be turned with either a Phillips-head orflat-blade screwdriver)Head mounting screw (Black non-removable torque screw)Head mounting screw (Small white screw that can be turned with either a Phillips head orflat-blade screwdriver)Head mounting screw (Black non-removable torque screw)The head of the HL-5200 can be mounted in two directions only . Re-fer to the following illustration.HL-5200Head mounting screw (white)Head-mounting screw(white)Wiring Procedure1.Loosen the cover mounting screws and remove the cover .2.Disconnect the rubber connector from the box conduit and press-fit a solderless terminal. The following solderless terminals are available.3.After inserting the solderless terminal into the Switch, tighten the terminal screws securely.4.After wiring the Limit Switch, insert the rubber connector into the groove of the box securely .tightening torque for each screw is 0.49 to 0.59 N S m {5 to 6 kgf S cm}.CoverCover mounting screwRubber connectorTerminalApplicable Lead W iresNote:Do not use wires containing silicone, otherwise a contact failure may result.Applicable Solderless T erminalThe following solderless terminals are available. Do not use fork or any other type of terminals, otherwise an accidental disconnection resulting in a ground fault may result.10 max.3.0 to 3.7 dia.6.4 max.10 max.3.0 to 3.7 dia.14 max.3.0 to 3.7 dia.14 max.3.0 to 3.7 dia.MountingTo mount the Limit Switch securely, be sure to use two M5 Allen-head bolts and washers. The tightening torque applied to each bolt is 4.90 to 5.88 N S m {or 50 to 60 kgf S cm}. T o mount the Limit Switch more securely , use two M5 screw holes on the rear panel and rear holes for positioning if the model is the HL-5jjj G-Series Limit Switches.Mounting holesTwo, 5.2-dia. holes (locateddiagonally for securing the rear side)Two, M5 screws or 5.2-dia. holes (located diagonally for securing the front side)Only the HL-5jjj G has M5 x 0.8 screw holes on the rear side.Others•Do not use the Limit Switch outdoors, otherwise the Limit Switch will become damaged by rust or ozone.•The Limit Switch is not suitable in places exposed to the spray of rainwater, seawater, or oily water. Consult your OMRON representative for models resisting rainwater, seawater, and oily water.•If high-sealing performance is required along with shielded wiring or conduit wiring, use the D4C or WL.Correct Tightening TorqueA loose screw may result in a malfunction. Be sure to tighten each screw to the proper tightening torque as shown below.Note:If the head direction has been changed, check the torque of each screw and make sure that the screws are free of for-eign substances, and that each screw is tightened to theproper torque.12345OMRON CorporationIndustrial Automation CompanyIndustrial Devices and Components Division H.Q.Industrial Control Components Division 28th Fl., Crystal Tower Bldg.,1-2-27, Shiromi, Chuo-ku, Osaka 540-6028 Japan Phone: (81)6-6949-6025 Fax: (81)6-6949-6029Authorized Distributor:Regional HeadquartersOMRON EUROPE B.V.W egalaan 67-69, NL-2132 JD Hoofddorp The NetherlandsT el: (31)2356-81-300/Fax: (31)2356-81-388OMRON ELECTRONICS, INC.1 East Commerce Drive, Schaumburg, IL 60173U.S.A.T el: (1)847-843-7900/Fax: (1)847-843-8568OMRON ASIA PACIFIC PTE. LTD.83 Clemenceau Avenue, #11-01, UE Square,Singapore 239920T el: (65)835-3011/Fax: (65)835-2711Cat. No. C004-E1-9 Note: Specifications subject to change without notice.Printed in JapanALL DIMENSIONS SHOWN ARE IN MILLIMETERS.To convert millimeters into inches, multiply by 0.03937. T o convert grams into ounces, multiply by 0.03527.。
行程开关
外形尺寸
灵巧型:外形小巧安装尺寸小,应用于小型运动机构. 例:YBLX-ME、YBLX-JW2、YBLX-X2系列. 普通型:外形安装尺寸在35X50㎜左右,这应用于一般普通机床上。 例:YBLX-K1、YBLX-K3、 YBLX-19系列.
庞大型:外形以及安装尺寸较大,应用于大型运动机构.比如用于
钢厂行车的提升机构、码头龙门吊车的轨道吊钩等. 例:YBLX-4 、YBLX-22 、YBLX-33、YBLX-44 等系列. 因为这些设 备的控制容量较大 ,开关外形结构尺寸相应的增大以便于提供足 够的空间供触头动作及散热.
微动开关
微动开关作为限位开关的一个类别,在使用上与一般限位开 关有某些区别,关键在于理解”微动”二字. 动作行程更小,一般在3~4mm以内,因此开关灵敏性强,控制精度高,
外形安装尺寸小,一般只有普通限位开关的1/3,甚至1/4.由 于其外形小,广泛地使用于电子产品中,作为机械触发信号.
如:YBLXW-N系列.
归纳
综合对限位开关的论述,可按以下几个方面进行选择:
根据控制回路的容量选择相应容量的限位开关. 根据运动机构及开关安装位置方式,确定限位开关的操动方 式. 根据安装孔尺寸,选择相应大小的开关;若没有安装孔，则
控制容量 控制容量就是其电性能参数(额定电压、额定电流、功率 等).例如:选择的开关电性能过高,势必造成系统成本的增加,
否则选择的开关又不能可靠地对电路进行接通与分断.
小电流:市场上销售的限位开关绝大多数额定电压在380V以 下、额定电流5A以下.究其原因可以从其控制方式可以知晓. 从图1电气控制图可知限位开关与线圈串联.因此开关控制电 参数性能满足线圈电压、电流大小;根据电磁感应原理电磁 动力F∝I2N,按此公式电磁力与电流平方和线圈匝数成正比, 同时由电流热效应.焦耳定律Q= I2Rt,电流越大产生热量越大, 从而使线圈温度上升造成烧损。
AOI自动光学检测(OMRON)欧姆龙资料
欧姆龙株式会社N o. 1649390-7A电路板检查装置VT-RNS-pt维护说明书前 言对贵公司这次购买本公司的电路板检查装置VT-RNS-ptH，谨表示衷心的感谢。
VT-RNS-pt是检查元件贴装状态和焊接状态,并将不良状态显示在显示器上的装置。
本说明书记载了使用VT-RNS-pt之际所必需的功能、性能、使用方法等信息。
在使用VT-RNS-pt之际，请您遵守以下事项。
·请仔细阅读本说明书，在充分理解的基础上正确使用。
·请妥善保管本说明书，以便随时参阅。
·关于装置的基本操作，请您仔细阅读使用相关说明书的相关内容，在充分理解的基础上正确使用。
●各位读者本说明书对基本操作和维护等进行说明。
其内容是面对参加过本公司举办的有关VT-RNS-pt研修培训的人员。
●对应装置本手册以电路板检查装置VT-RNS-ptH及电路板检查装置VT-RNS-ptS为对象进行记载。
VT-RNS-ptH与VT-RNS-ptS型，分别有相应的附带显示器的主机规格和显示器另置规格。
手册正文中记载为VT-RNS-pt。
电路板检查装置VT-RNS-pt维护说明书前言 承诺事项、安全注意事项、目录第１章 概要第２章 装置规格第３章 装置的移动与设置第４章 日常运转第５章 日常检查第６章 定期检查和维护第７章 消耗品一覧第８章 故障检修第9章 保管、报废使用时的承诺事项1.保修内容① 保修期间本产品的保修期间为购买后1年或提交给指定场所后1年。
② 保修范围在上述保修期间内，因本公司原因而导致本产品发生故障的情况下，可无偿进行故障品的更换及修理。
然而，故障的原因为如下情况时，将不在保修范围内。
a) 在产品目录、使用说明书和提交规格书等所记载内容以外的条件、环境、操作及使用方法下而导致故障时b) 本产品以外的原因而导致故障时c) 没有经由本公司而进行的改造或修理d) 没有按照本产品本来的使用方法来使用e) 本公司出厂时的科技水准所无法预见的情况时f) 因其它天灾和灾害等不属于本公司责任的原因时并且，在这里所说的保修指的仅为对本产品的保修，因本产品的故障而引发的损害不在保修范围之内。
行程开关-接近开关-光电开关
行程开关LX1系列-1LX1系列行程开关适用于交流50Hz，电压至380V直流电压至220V的控制电路中，作为控制速度不小于0 .1米/分的运动机构之行程或变换其运动方向或速度之用。
行程开关LX1系列-2行程开关LX2系列-1LX2系列行程开关适用于交流50Hz电压至380V，直流220V的控制电路中，作为控制运动机构的行程或变换其运动方向或速度之用。
行程开关LX2系列-2行程开关LX3系列-1LX3系列行程开关适用于交流50Hz，电压至380V直流220V的控制电路中，作为控制运动机构的行程或变换其运动方向或速度之用。
行程开关LX3系列-2行程开关LX4系列-1LX4系列行程开关适用于交流50Hz，电压至380V或直流220V 的控制电路中，作限制各种机构和行程之用。
行程开关LX4系列-2LX4-11、12型行程开关：适用于惰性行程不甚大的平移机构LX4-21、22型行程开关：适用于惰性行程较大的平移机构LX4-31、32型行程开关：适用于提升机构LX4-41、42型行程开关：适用于需要三个操作位置的平移机构LX4-62型行程开关：适用于速度较大的平移机构LX4-12S型行程开关：适用于需防水场合的惰性行程不甚大的平移机构。
行程开关LX4系列-3行程开关LX5系列-1LX5系列行程开关适用于交流50Hz、电压至380V、电流至3A 的控制电路，籍瞬时换接触头和很小的控制行程，作控制机床工作之用。
行程开关LX5系列-2行程开关LX6系列LX6系列行程开关适用于交流50Hz，电压至380V，直流电压至220V，电流20A的电路中，是矿山设备、化工设备、冶金机械设备，作机床自动控制，限制运动机构动作或程序控制保护之用。
行程开关LX7系列-1LX7系列行程开关一般用作起重机限制提升机构的行程，亦可作自动化系统或电力拖动装置的终端开关。
行程开关LX7系列-2行程开关LX8系列LX8系列行程开关适用于交流50Hz，额定电压交流380V，直流220V，额定电流2 0A，作为控制电路及安全行车之用。

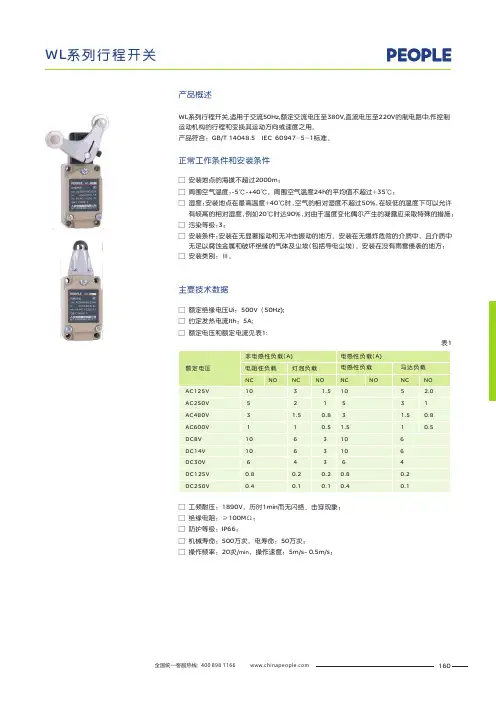

人民电器 WL系列行程开关 产品说明书
