丹佛斯Danfoss压力开关KP36
丹佛斯-自动控制产品介绍
各种阀的主要特性
PM主阀工作原理
PM主阀是一个伺服控制的阀门。它的功能是由 导阀决定的。根据所接的导阀，PM主阀可以实 现开关调节，比例调节，比例积分调节等诸多调 节功能，他特别适用于制冷系统的温度、压力控 制。
PM主阀的开度由作用于活塞上下的压差 （△P=P2-P3）所决定。
当△P<0.07bar时，主阀将处于关闭状态
阀的螺旋阀杆由步进电 动机直接驱动。没有传 动装置，可以精确控制 阀杆移动的位置。
这种设计，可以确保即 使在很低的负荷工况下 烦闷打开的精度
EVR/EVRH 电磁阀
属于常闭型，直动式或伺服式电动机，用 于氟化物制冷剂的液体管路，吸气管路， 热气管路。
线圈通电后，电枢被电磁力吸起，当进入 线圈磁场时，阀直接全开，这意味着工作 允许的流体最小压力差为零。
具有背封功能，可在运行时更换密封函
采用聚四氟乙烯阀板，使阀在关闭时具有可靠地 密封性能
SFA 安全泄压阀
属于背压式的泄压阀，SFA15、SFV20、 SFV25安全阀设置的开启压力在10和 25bar之间，可作为内部安全阀使用
适用于R717在内的各种不可燃制冷剂及 无腐蚀性的气体，液体，但要注意密封性
ETS6
通过螺旋机构的线性运 动实现开启与关闭，当 线圈通电时，磁针阀转 动，螺旋机构线性运动， 在线圈机构内，存在不 同的绕组配置，极性由 施加的电信号改变。当 以脉冲形式施加适合的 组合信号时，线圈迫使 阀转子步进
精确定位确保冷媒喷入量的最优控制
大冷量范围可供选择
平衡流口设计，可进行双向流操作，在MOP为33bar时， 和电磁阀一样紧密的双向开关功能
当储液器的压降下降，KVD压力调节 器打开，通过热气旁通阀保证储液器 内的压力与设定值一致
Danfoss压力开关KPS
Data sheetPressure switches and thermostatsType KPS10/2003DKACT.PD.P10.E2.02520B07822DKACT.PD.P10.E2.02 Danfoss A/S 10-20033DKACT.PD.P10.E2.02Danfoss A/S 10-2003KPS 43, 45, 47KPS 31, 33KPS 35, 37, 394DKACT.PD.P10.E2.02Danfoss A/S 10-2003Pressure switches and thermostats, type KPSKPS 31:±0.2 bar KPS 39:±3.0 bar KPS 33:±0.3 bar KPS 43:±1.0 bar KPS 35:±0.5 bar KPS 45:±4.0 bar KPS 37:±1.0 barKPS 47:±6.0 barKPS 31:±0.1 bar KPS 39:±0.7 bar KPS 33:±0.2 bar KPS 43:±0.2 bar KPS 35:±0.3 bar KPS 45:±1.0 bar KPS 37:±0.4 barKPS 47:±1.5 barSwitchSingle pole changeover (SPDT)Contact material: Gold-plated silver contact Contact load1. Alternating current:Ohmic:10 A, 440 V, AC-1Inductive: 6 A, 440 V, AC-34 A, 440 V, AC-15Starting current max. 50 A (locked rotor)2. Direct current:12 W, 220 V, DC-13See curve, fig. 4Scale accuracyAmbient temperatureKPS 31 - 39: –40 to +70 °C KPS 43 - 47: –25 to +70 °CTemperature of medium KPS 31 - 39: –40 to +100 °C KPS 43 - 47: –25 to +100 °CFor water and seawater, max. 80°C.Vibration resistanceVibration-stable in the range 2-30 Hz,amplitude 1.1 mm og 30-300 Hz, 4 G.EnclosureIP 67 to IEC 529 an DIN 40050.The pressure switch housing is enamelled pressure die cast aluminium (GD-AlSi 12).The cover is fastened by four screws which are anchored to prevent loss.The enclosure can be sealed with wire.Cable entryPg 13.5 for cable diameters from 5 to 14 mm.IdentificationThe type designation and code no. of the unit is stamped in the side of the housing.Mean value of snap point variation after 400 000 operationsFig. 4. d.c.-loadCurve A gives the maximum load.Hatched area B: Acceptable load for the gold plating of the contact.Materials in contact with the mediumBellows capsule:Deep-drawn plate,material no. 1.0524 (DIN 1624)KPS 31, 33Bellows:Stainless steel,material no. 1.4306 (DIN 17440).Pressure connection:Steel C20,material no. 1.0420 (DIN 1652)KPS 35, 37,39Bellows:Stainless steel,material no. 1.4306 (DIN 17440)Pressure connection:Brass,W.No. 2.0401 (DIN 17660)KPS 43, 45, 47Diaphragm capsule:Nickel-plated brass,DIN 50 968 Cu/Ni 5 (DIN 1756)Diaphragm:Nitrile-Butadien rubberApprovals Ship approvalsEN 60 947-4-1EN 60 947-5-1Det norske Veritas, Norway American Bureau of Shipping Lloyds Register of Shipping, UKFGermanischer Lloyd, Federal Republic of Germany (FRG)Bureau Veritas, FranceIncludes thermostats with fixed sensor and pressure controls with armoured capillary tube.Registro Italiano Navale, ItalyU Underwriters Laboratories Inc., USA PPolski Rejestr Statków, PolandMRS, Maritime Register of Shipping,RussiaNippon Kaiji Kyokai, J apan5DKACT.PD.P10.E2.02Danfoss A/S 10-2003Pressure switches and thermostats, type KPSAccessoriesPartDescriptionCode no.G 3/8 connector, nipple and washer Connector with nipple(10 mm) o.d. x 6.5 mm i.d.), for 017-4368brazingG 3/8 connector, nipple and washer Connector with nipple (10 mm o.d. x 6.5 mm i.d.) for 017-4229weldingReducerG 3/8 x 7/16 - 20 UNF (1/4 flare) reduction with washer017-4205AdaptorG 3/8 x 1/8 - 27 NPT with washer060-3334NippleR 3/8 o.d x 7/16 - 20 UNF (1/4 flare)060-3240NippleG 3/8 A - 1/4 NPT with washer060-3335AdaptorG 3/8 x 1/4 - 18 NPT with washer 060-3336G 1/4 A x G 3/8 A060-3332NippleG 1/4 A x o.d. M10 x 1 with washer 060-3338Damping coil with 1/4 flare connectors and 1 m copper capillary tube. Damping coils used for applications with 3/8 RG Damping coil connector requires the use of 060-0071reducer.For informations about capillary tube lengths, please contact DanfossDamping coilDamping coil with G 3/8 connectors and 1.5 m copper capillary tube060-1047Damping coil with G 3/8 connectors and Armoured damping coil1 m armoured copper capillary tube.060-3333Standard washers included.Dimensions and weightWeight:KPS 31 - 39 approx. 1.0 kg KPS 43 - 47 approx. 1.3 kg6DKACT.PD.P10.E2.02 Danfoss A/S 10-20037DKACT.PD.P10.E2.02Danfoss A/S 10-2003Pressure switches and thermostats, type KPSFig. 10Function1. KPS 31Contacts 1-2 make and contacts 1-4 break when the pressure falls under the set range value. The contacts changeover to their initial position when the pressure again rises to the set range value plus the differential (see fig. 8).I. Alarm for falling pressure given at the set range value.II. Alarm for rising pressure given at the set range value plus the differential.Scale setting2. All other KPS pressure switchesContacts 1-4 make and contacts 1-2 break when the pressure rises above the set range value. The contacts changeover to their initial position when the pressure again fails to the range value minus the differential (see fig. 9).I. Alarm for rising pressure given at the set range value.II. Alarm for falling pressure given at the set range value minus the differential.Scale settingExample 1An alarm must be given when the lubricating oil pressure in a motor fails below 0.8 bar.The alarm is in the form of a lamp.Choose a KPS 31 (range 0 to 2.5 bar).The minimum permissible lubricating oil pressure of 0.8 bar must be set on the range spindle. The differential is fixed at 0.1 bar, i.e.the alarm will not cut out before the pressure rises to 0.9 bar. The lamp must be connected to terminals 1 and 2 in the pressure control.Example 2An alarm must be given by a bell when the pressure in a boiler rises to 10 bar. The normal operating pressure is 9 bar.Choose a KPS 36 (range from 6 to 18 bar).The range value of the pressure control must be set at 10 bar, the differential at 1 bar.The bell must be connected to terminals 1and 4.Example 3The pressure in a start air reservoir must be regulated with a compressor controlled by a KPS pressure switch so that it lies between 30 and 36 bar.Choose a KPS 45 (range 4 to 40 bar).The range value must be set at 36 bar.The differential of 6 bar must be set in accordance with the nomogram, fig. 10, at approx. 2 on the differential scale.The required start function is obtained by connection to terminals 1 and 2 in the pressure control.Mechanical differential Mechanical differentialFig. 8Fig. 98DKACT.PD.P10.E2.02Danfoss A/S 10-2003Pressure switches and thermostats, type KPSEN 60 947-4-1EN 60 947-5-1–10- 30 3-10 80 65 75 110 160 2060L3112 060L3113 KPS 7620- 603-14130-75---060L3118KPS 7720- 603-14130--110--060L3100KPS 7720- 603-14130--160-060L3136KPS 7720- 603-1413065751101602-060L3101060L3102KPS 7720- 603-14130--1101605060L3119060L3120KPS 7750-1004-16200 -75---060L3121KPS 7950-1004-16200--110-060L3103KPS 7950-1004-16200160060L3137KPS 7950-1004-1620065751101602060L3104060L3105KPS 7950-1004-16200--1101605060L3122060L3123KPS 7950-1004-16200--1101608060L3124060L3125KPS 7950-1004-16200-751101603060L3143KPS 7950-1009200-75---060L31411)KPS 7970-120 4.5-18220-75---060L3126KPS 8070-120 4.5-18220--110--060L3127KPS 8070-120 4.5-18220---160-060L3138KPS 8070-120 4.5-18220---200-060L3157KPS 8070-120 4.5-1822065751101602060L3128060L3129KPS 8070-120 4.5-18220-751101603060L3156KPS 8070-120 4.5-18220--1101605060L3130060L3131KPS 8070-120 4.5-18220--1101608060L3132060L3133KPS 8060-1505-2525065751101602060L3106060L3107KPS 8160-1505-25250--1101605060L3134060L3135KPS 8160-1505-252501101608060L3111KPS 8160-1505-25250200060L3110KPS 81100-2006.5-3030065751101602060L3108060L3109KPS 83100-2001830065751101602060L31391)060L31401)KPS 83Thermostats, introductionKPS thermostats are temperature-controlled switches. The position of the contacts depends on the temperature of the sensor and the set scale value. In this series, special attention has been given to meeting demands for : a high level of enclosure,robust and compact construction, resistance to shock and vibration.The KPS series covers most outdoor as well as indoor application requirements.KPS thermostats are suitable for use inmonitoring, alarm and regulation systems in factories, diesel plant, compressors, power stations and on board ship.KPS with rigid sensorKPS with remote sensorKPS with remote sensor and armoured capillary tube Approvals 1) Thermostat with max. reset.When ordering, please state type and code numberTechnical data and ordering Ship approvalsDet norske Veritas, Norway American Bureau of Shipping Lloyds Register of Shipping, UK F Germanischer Lloyd, Federal Republicof Germany (FRG)Bureau Veritas, FranceIncludes thermostats with fixed sensor and pressure controls with armoured capillary tube.U Underwriters Laboratories Inc., USA Registro Italiano Navale, Italy PPolski Rejestr Statków, PolandMRS, Maritime Register of Shipping,RussiaNippon Kaiji Kyokai, J apanCode nos.Mech.Max.Suitable Cap.Setting diff.sensor sensor length Tube Typerangeadjustable/temp.(see also lengthfixed“Accessories”)°C °C °C m m m9DKACT.PD.P10.E2.02Danfoss A/S 10-2003Pressure switches and thermostats, type KPSKPS 76:±3 °C KPS 80:±3 °C KPS 77:±3 °C KPS 81:±6 °C KPS 79:±3 °CKPS 83:±6 °CFig. 1Curve A gives the maximum load.Hatched area B: Acceptable load for the gold plating of the contact.Contact load (Alternating current):Ohmic:10 A, 440 V, AC-1Inductive: 6 A, 440 V, AC-34 A, 440 V, AC-15Starting current max. 50 A (locked rotor)Ambient temperature –40 to +70 °C Vibration resistanceVibration-stable in the range 2-30 Hz,amplitude 1.1 mm og 30-300 Hz, 4 G.EnclosureIP 67 to IEC 529 and DIN 40050.The thermostat housing is enamelled pres-sure die cast aluminium (GID-AlSi 12). The cover is fastened by four screws which are anchored to prevent loss.The enclosure can be sealed with fuse wire.Cable entryPg 13.5 for cable diameters from 5 to 14 mm.IdentificationThe type designation and code no. of the unit is stamped in the side of the housing,Scale accuracySnap point variation after 400 000 operations.KPS 76-83: max. drift 2 °C.SwitchSingle-pole changeover switch (SPDT).Contact material: Gold-plated silver contact.Direct current: 12 W, 220 V, DC-13 – See fig. 1Accessories: Sensor pockets Sensor A Thread Code no.Sensor A Thread Code no.for KPS-thermostats pocket m m Bpocket m m B Brass651/2 NPT060L3265751/2 NPT 060L3264Steel 18/875G 1/2 A060L326775G 1/2 A 060L3262 Brass75G 3/4 A060L326675G 1/2 A (ISO 228/1)060L328175G 3/4 A (ISO 228/1)060L34041101/2 NPT 060L3280Steel 18/8110G 1/2 A 060L3268110G 1/2 A060L32711101/2 NPT 060L3270Brass110G 1/2 A (ISO 228/1)060L3406110G 3/4 A (ISO 228/1)060L3403160G 1/2 A060L3263Steel 18/8160G 1/2 A 060L3269Brass160G 1/2 A (ISO 228/1)060L3407160G 3/4 A (ISO 228/1)060L3405200G 1/2 A060L3206Steel 18/8200G 1/2 A 060L3237Brass 200G 1/2 A (ISO 228/1)060L3408200G 3/4 A 060L3238200G 3/4 A (ISO 228/1)060L3402Brass 250G 1/2 A 060L3254Brass 330G 1/2 A 060L3255Brass 400G 1/2 A 060L3256Brass500G 1/2 A060L3257Part DescriptionNo. of per unitCode no.Clamping bandFor KPS thermostats with remote sensor (L = 392 mm)X017-4204For KPS thermostats with sensor fitted in a sensor pocket.Heat-conductive Compound for filling sensor pocket to improve heat transfer As required 041E0110compound between pocket and sensor. Application range for compound:(4.5 cm 2 tube)–20 to +150 °C, momentarily up to 220°C.Supplied without gland nut,gaskets and washer10DKACT.PD.P10.E2.02 Danfoss A/S 10-200311DKACT.PD.P10.E2.02Danfoss A/S 10-2003Pressure switches and thermostats, type KPSKPS 76–10 - +30 1.1KPS 7720 - 60 1.0 1.4KPS 7950 - 100 1.5 2.2 2.9KPS 8070 - 120 1.72.43.1KPS 8160 - 150 3.7KPS 83100 - 2006.2Scale correctionThe sensor on KPS thermostats contains an adsorption charge. Therefore function is not affected whether the sensor is placed warmer or colder than the remaining part of thethermostatic element (bellows and capillary tube). However, such a charge is to some extent sensitive to changes in thetemperature and bellows and capillary tube.Under normal conditions this is of noimportance, but if the thermostat is to be used in extreme ambient temperatures there will be a scale deviation. The deviation can be compensated for as follows:Scale correction = Z × aZ can be found from fig. 4, while a is the correction factor from the table below.Correction factor a Regulation for thermostats Typerangewith with with rigid 2 and 5 m 8 m °Csensor cap.tube cap.tubeRelative scale setting in %Electrical connectionKPS thermostats are fitted with a Pg 13.5screwed cable entry suitable for cables from 5 to 14 mm. GL approval is conditional on the use of a ship’s cable entry.Contact function is shown in Fig. 5ExamplesExample 1A diesel engine with cooling watertemperature of 85 °C (normal). An alarm must be triggered if the cooling water temperature exceeds 95 °C.Choose a KPS 80 thermostat (range 70 to 120 °C).Main spindle setting: 95 °C.Differential spindle setting: 5 °C.The required alarm function is obtained by connecting to thermostat terminals 1-4. After the system has been in operation, assess the operating differential and make a correction if necessary.Example 2Find the necessary scale correction for a KPS 80 set at 95 °C in 50 °C ambient temperature.The relative scale setting Z can be calculated from the following formula:Setting value – min. scale value max. scale value – min. scale valueRelative scale setting: 95 – 70× 100 = 50%120 – 70Factor for scale deviation Z (fig. 4 page 11),Z ≅ 0.7Correction factor a (table under fig. 4page 11) = 2.4Scale correction = Z × a = 0.7 × 2.4 = 1.7 °C The KPS must be set at 95 + 1.7 = 96.7 °CScale deviation factorFig. 4Fig. 5× 100 = %12DKACT.PD.P10.E2.02 Danfoss A/S 10-2003。
丹佛斯电动调节阀
☆ 阀门具有行程自检功能，能够自动检测阀杆的最高位和最低位，并将之分配给相应的电压信号。 ☆ 阀位显示功能，能够显示阀门的开度位置； ☆ 阀门正反向动作设定，能够方便地满足不同工况的要求； ☆ 手动操作功能，确保无电状态下的正常操作； ☆ 模拟量控制与三点控制方式选择； ☆ 可在驱动器上对阀体的调节特性在对数/线性之间选择；
三、安全可靠：
☆ 具有极限位置力敏开关，起过载保护作用，能够有效地防止烧坏驱动器； ☆ 接线安全保护功能，接线接错时不会烧坏驱动器； ☆ 故障报警功能，能够对驱动器出现的异常情况进行报警；
Date
功能及调试(AME 为例)
•接线
SN = 公共线 SP = 电源 (-15% +10% 24Vac) Y = 阀位给定信号 1 = 驱动轴向伸出方向运动 3 = 驱动轴向收缩方向运动 X = 阀位反馈信号
16 11 6 3 2 1
AME25 11
1000 15
AME35 3 600 15
AME55 8
2000 40
最大关闭压差(bar)
16
16
16
13
16
8
9
5
6
3
3
2
4.5
3
1.5
1
0.5
AME85 8
5000 40
3 1.5
Date
丹佛斯电动调节阀快速选型表
阀门口径
阀门型号
kv 值 （m3/h）
☆ 3：等百分比型：同样行程在
小开度时流量变化小，大开度时 流量变化大。
☆ 4：快开型：行程较小时，流
量就比较大，阀的有效行程＜d/4， 多用于关断阀。
阀门理想流量特性的实现：阀芯形状
丹福斯电源解决方案公司的中中性锁定开关套装说明书
AX427479388119en-000101& Co. OHG DanfossPower Solutions GmbH Krokamp 35D-24539 Neumünster, Germany Phone: +49 4321 871 0DanfossPower Solutions (US) Company 2800 East 13th Street Ames, IA 50010, USA Phone: +1 515 239 6000Installation InformationNo. 4-421April, 1997Copyright Danfoss Corporation, 1997All Rights Reserved Printed in USANeutral Lockout Switch Kits1.Remove the switch from the adaptor.2.Connect a test light with a 12 Vdc power source or a multimeter to the switch terminals. Polarity does not matter. See gure 1-2. If a multimeter is used,set to “ohms” and note that our reference to light “On” is the same as zero ohms and light o is the same as in nite ohms.3.If the light is o when the ball in the end of the switch is not depressed but comes on when the ball is depressed, then it is a normally open (N/0) switch.Caution: Do not depress the ball beyond a point where it is ush with the housing. Permanent damage to the switch could occur.4.If the test light comes on when the ball is not depressed, but goes o when the ball is depressed, it is a normally closed (N/C) switch.Neutral Lockout – Switch Identi cationScrew Terminal SwitchSwitch with Delphi Packard ConnectorDisassemblyNeutral Lockout Switch1.Disconnect wiring from the lockout switch.2.Loosen hex set screws in adapter andremove neutral lockout switch from adapter.3.Remove neutral lockout adapter from servo control valve assembly.Figure 1-1Unexpected movement or operation of equipment may cause serious injury or death. Make sure the battery is discon-not running. Make sure the parking brake is engaged and other peripheral equipment is disengaged.NOTE: Hydraulic uid can leak from the servo control valve assembly when remov-ing the neutral lockout switch and adapter assembly. First shut o the hydraulic reservoir to the pump and drain the hydraulic uid from the pump case to a level below the servo control valve assembly.Reassembly Normally ClosedNote: Reassembly may be done with the Servo Control Valve Assembly on or o the main hydrostatic pump. The nal check of the switch must be done on the pump with all the linkage attached and before engine start-up.Normally Closed (N/C) Neutral Lockout Switch 1.With the switch removed from the adapter, install the adapter into the control assembly. Torque the adapter to 60-72 N·m (44-53 lbf·ft).2.With the adaptor installed, proceed and install the neutral lockout switch into the adapter, again refer to gure 1-1.3.The adjustment procedures for the switch are as follows;(a). First apply a high temperature water resistant grease to the threads. Screw the switch in slowly, while moving the hydraulic control arm back and forth, until “detent” action is detected in the arm movement. See gure 2-1 . Backout the switch until the “detent” action is very slight. Then position the arm out of the detent position ( gure 2 -2 ).(b). Obtain a test light and 12 Vdc power source or use a multimeter. Multimeter use is described under “Switch Identi cation”. Attach the leads from the test light to the(c). Screw the switch in until the light just goes o . Mark this as position “A” with two adjacent marks on the switch adapter. Refer below to gure 2-3. Move the control arm to the detent position and the test light should come back on.(d).Leaving the control arm in the detent position, screw the switch in until the light just goes o . Mark this position “B” on the switch adjacent to the original mark on the adapter.(e).Back out the switch o ne half the distance between “B”and “A”. Refer to gure 2 -3. Torque either hex socket head set screw to 3.2 to 3.8 N·m [28 to 34 lbf·in.] One screw may be inaccessible and does not need to be tightened.4.As a nal precaution, test the switch by moving themachine’s hydrostatic control handle to the neutral position – the light should be on. Move the control handle slightly out of the neutral position and the light should go o .5.Remove test light, reattach original wiring to the Neutral Lockout Switch and put servo control valve assembly into operation.Figure 2-1 Figure 2-2Figure 2-3Reassembly Normally OpenNormally Open (N/O) Neutral Lockout Switch 1.With the switch removed from the adapter, install the adapter into the control assembly, refer to gure 1-1.Torque the adapter to 60-72 N·m (44-53 lbf·ft).2.With the adaptor installed proceed and install the neutral lockout switch into the adapter.3.The adjustment procedures for the switch are as follows;(a). First apply a high temperature water resistent grease to the threads. Screw the switch in slowly, while moving the hydraulic control arm back and forth, until “detent”action is detected in the arm movement. See gure 3-1.Back out the switch until the “detent” action is very slight.Then position the arm out of the detent position. Seegure 3-2.(b).Obtain a test light and 12 Vdc power source or use a multimeter. Multimeter use is described under “Switch Identi cation”. Attach the leads from the test light to the switch. If the light comes on, back the switch out until it goes out.(c).Screw the switch in until the light just comes on.Mark this as position “A” with two adjacent marks on the switch and adapter. Refer to gure 3-3 below. Move the control arm to the detent position and the test light should go back o .(d).Leaving the control arm in the detent position, screw the switch in until the light just comes on. Mark thisposition “B” on the switch adjacent to the original mark on the adapter.(e).Back out the switcho ne half the distance between “B”and “A”. Refer to gure 3-3. Torque either hex socket head set screws to 3.2 to 3.8 N·m [28 to 34 lbf·in.] One screw may be inaccessible and does not need to be tightened.4.As a nal precaution, test the switch by moving the machine’s hydrostatic control handle to the neutralposition – the light should be o . Move the control handle slightly out of the neutral position and the light should go on.5.Remove test light, reattach original wiring to the Neutral Figure 3-1 Figure 3-2Figure 3-3Neutral Lockout – Adaptor Identi cation1.Please note that Eaton has manufactured two sizes ofNeutral Lockout Adaptors. Check to be sure which size youare working with.2.The “old style” adaptor accepts a 3/4" threaded switch, andthe new style accepts a 9/16" threaded switch. See gure4-1.3.When ordering a replacement switch kit the appropriateadaptor is included.Note: New switches are 9/16" threads and will n ot mate witholder style adaptors.3/4" (.750)“Old Style”“New Style”Figure 4-1Neutral Lockout Adaptors4-421Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and electric components. We specialize in providing state-of-the-art technology and solutions that excel in the harsh operating conditions of the mobile o -highway market as well as the marine sector. Building on our extensive applications expertise, we work closely with you to ensure exceptional performance for a broad range of applications. We help you and other customers around the world speed up system development, reduce costs and bring vehicles and vessels to market faster.Danfoss Power Solutions – your strongest partner in mobile hydraulics and mobile electri cation.Go to for further product information.We o er you expert worldwide support for ensuring the best possible solutions foroutstanding performance. And with an extensive network of Global Service Partners, we also provide you with comprehensive global service for all of our components.Local address:DanfossPower Solutions GmbH & Co. OHG Krokamp 35D-24539 Neumünster, Germany Phone: +49 4321 871 0DanfossPower Solutions ApS Nordborgvej 81DK-6430 Nordborg, Denmark Phone: +45 7488 2222DanfossPower Solutions (US) Company 2800 East 13th Street Ames, IA 50010, USA Phone: +1 515 239 6000DanfossPower Solutions Trading (Shanghai) Co., Ltd.Building #22, No. 1000 Jin Hai Rd Jin Qiao, Pudong New District Shanghai, China 201206Phone: +86 21 2080 6201Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in speci cations already agreed.All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.© Danfoss | September 2022Products we o er:•Cartridge valves •DCV directional control valves•Electric converters •Electric machines •Electric motors •Gear motors •Gear pumps •Hydraulic integrated circuits (HICs)•Hydrostatic motors •Hydrostatic pumps •Orbital motors •PLUS+1® controllers •PLUS+1® displays •PLUS+1® joysticks and pedals•PLUS+1® operator interfaces•PLUS+1® sensors •PLUS+1® software •PLUS+1® software services,support and training •Position controls and sensors•PVG proportional valves •Steering components and systems •TelematicsHydro-GearDaikin-Sauer-Danfoss。
丹佛斯压力控制器原理与应用调节方法
丹佛斯压力控制器原理与应用调节方法压力控制器是传统制冷设备、冷库机组不可或缺的压力配套检测保护器件。
在众多的压力控制器品牌中，丹佛斯使用广泛、保护性能稳定，受到制冷行业工程设备商的青睐，但是该压力控制器属于国外知名品牌，如果对其产品特点不了解或了解不够深入，就会给使用、调试、替换等带来一定的困难，笔者结合自身对该产品使用心得撰文，以供同行参考，避免走弯路!丹佛斯压力控制器常用的有三种，分别为KP1型(低压压力控制器)、KP5型(高压压力控制器)、KP15型(高低压压力控制器)。
这些压力控制器中有自动复位或手动复位功能，以及回差调节款和恒定压差款等。
本文以工程中应用最广泛，由波兰共和国(POLAND)或印度(INDIA)制造的KP1、KP5以及KP15为例，逐一进行技术分享 !丹佛斯采用的压力单位为bar(巴)或psi(磅/平方英寸)，为了便于读者换算以及结合在国内常使用压力单位实际情况，本文全部采用传统的kgf/cm²为单位进行撰文表达，其转换式为:1k gf/cm²= 1bar=14.5psi。
一、KP1压力控制器KP1压力控制器如图1所示，是一款低压压力控制器件，主要用于防止制冷系统低压压力过低保护。
该款为自动复位型控制器。
1.内部面向用户的主要结构框图拆开KP1的顶盖和前外壳后，如图2所示，面向用户的主要有压力显示刻度盘、低压压力及低压回差压力调节螺杆、接线端子等。
2.低压压力控制器工作原理KP1压力控制器冷媒接入口(1/4英寸喇叭口连接)，接至制冷系统的低压侧，制冷设备工作时系统的低压侧压力会实时传送至压力控制器，如果检测到压力比设定的压力值高，说明系统正常(正常时:接线部位的1、4端口接通)，KP1电气原理示意图如图3所示。
如果检测的压力比设定的压力值低，说明系统低压压力过低(例如冷媒泄漏、干燥过滤器、毛细管、热力膨胀阀堵塞等都会导致低压压力过低)，为了保护压缩机，不至于在压力过低或者没冷媒的系统中运行时，导致压缩机温升过高、磨损加剧、加速老化等，所以一旦检测到低压压力低于设定值时，就会报警保护，触头1、4断开，切断压缩机电路，1、2接通促使指示灯或喇叭得电报警等，使压缩机保护停机等，实现低压过低保护功能。
丹佛斯MBC压力开关说明书

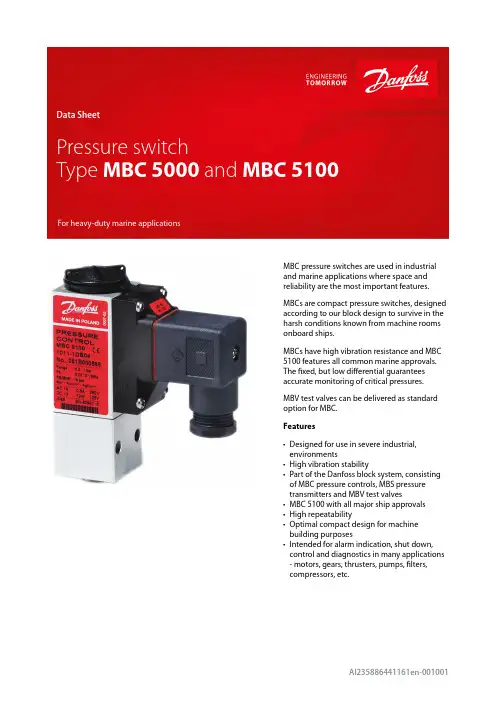

MBC pressure switches are used in industrial and marine applications where space and reliability are the most important features.MBCs are compact pressure switches, designed according to our block design to survive in the harsh conditions known from machine rooms onboard ships.MBCs have high vibration resistance and MBC 5100 features all common marine approvals.The fixed, but low differential guarantees accurate monitoring of critical pressures.MBV test valves can be delivered as standard option for MBC.Features•Designed for use in severe industrial,environments•High vibration stability•Part of the Danfoss block system, consisting of MBC pressure controls, MBS pressure transmitters and MBV test valves•MBC 5100 with all major ship approvals •High repeatability•Optimal compact design for machine building purposes•Intended for alarm indication, shut down,control and diagnostics in many applications - motors, gears, thrusters, pumps, filters,compressors, etc.Product specification Technical dataFigure 1: Electrical connectionf o s s 19.11Figure 3: ThreadFigure 4: Flange connection on MBV 5000 Test ValveMechanical connectionNOTE:Flange connection is not applicable for piston type MBCHow to chooseTo achieve the best operating conditions for MBC pressure controls, it is recommended to apply the following rules of thumb.Choose:Figure 5: MBC 5000, Net weight: 0.25 kgFigure 6: MBC 5100, Net weight: 0.25 kgOrdering standard types(1)Max value, all values lower or equal are correct (2)Preferred versionsOrdering stainless steel types(1)Max value, all values lower or equal are correctPressure switch, MBC 5000 and MBC 5100AccessoriesThe list contains all certificates, declarations, and approvals for this product type. Individual code number may have some or all of these approvals, and certain local approvals may not appear on the list.Some approvals may change over time. You can check the most current status at or contact your local Danfoss representative if you have any questions.CE-marked in accordance with:LVD 2014/35/EU (EN 60947-1, EN 60947-4-1, EN 60947-5-1)Pressure switch, MBC 5000 and MBC 5100Any information, including, but not limited to information on selection of product, its application or use, product design, weight, dimensions, capacity or any other technical data in product manuals, catalogues descriptions, advertisements, etc. and whether made available in writing, orally, electronically, online or via download,shall be considered informative, and is only binding if and to the extent, explicit reference is made in a quotation or order confirmation. Danfoss cannot accept any responsibility for possible errors in catalogues, brochures, videos and other material. Danfoss reserves the right to alter its products without notice. This also applies to products ordered but not delivered provided that such alterations can be made without changes to form, fit or function of the product. All trademarks in this material are property of Danfoss A/S or Danfoss group companies. Danfoss and the Danfoss logo are trademarks of Danfoss A/S. All rights reserved.Online supportDanfoss offers a wide range of support along with our products, including digital product information, software,mobile apps, and expert guidance. See the possibilities below.The Danfoss Product StoreThe Danfoss Product Store is your one-stop shop for everything product related—no matter where you are in the world or what area of the cooling industry you work in. Get quick access to essential information like product specs, code numbers, technical documentation, certifications, accessories,and more.Start browsing at .Find technical documentationFind the technical documentation you need to get your project up and running. Get direct access to our official collection of data sheets, certificates and declarations, manuals and guides, 3D models and drawings, case stories, brochures, and much more.Start searching now at /en/service-and-support/documentation .Danfoss LearningDanfoss Learning is a free online learning platform. It features courses and materials specifically designed to help engineers, installers, service technicians, and wholesalers better understand the products, applications, industry topics, and trends that will help you do your job better.Create your Danfoss Learning account for free at /en/service-and-support/learning .Get local information and supportLocal Danfoss websites are the main sources for help and information about our company andproducts. Find product availability, get the latest regional news, or connect with a nearby expert—all in your own language.Find your local Danfoss website here: /en/choose-region .。
