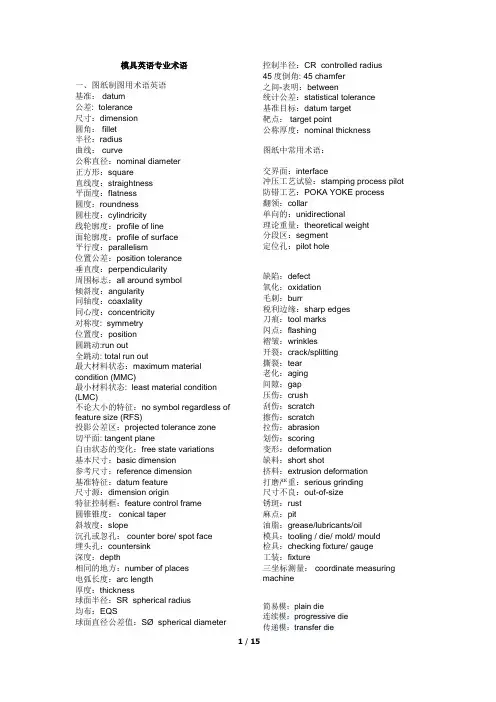

模具英语专业术语一、图纸制图用术语英语基准： datum公差: tolerance尺寸：dimension圆角： fillet半径：radius曲线： curve公称直径：nominal diameter正方形：square直线度：straightness平面度：flatness圆度：roundness圆柱度：cylindricity线轮廓度：profile of line面轮廓度：profile of surface平行度：parallelism位置公差：position tolerance垂直度：perpendicularity周围标志：all around symbol倾斜度：angularity同轴度：coaxlality同心度：concentricity对称度: symmetry位置度：position圆跳动:run out全跳动: total run out最大材料状态：maximum material condition (MMC)最小材料状态: least material condition (LMC)不论大小的特征：no symbol regardless of feature size (RFS)投影公差区：projected tolerance zone切平面: tangent plane自由状态的变化：free state variations基本尺寸：basic dimension参考尺寸：reference dimension基准特征：datum feature尺寸源：dimension origin特征控制框：feature control frame圆锥锥度： conical taper斜坡度：slope沉孔或忽孔： counter bore/ spot face埋头孔：countersink深度：depth相同的地方：number of places电弧长度：arc length厚度：thickness球面半径：SR spherical radius均布：EQS球面直径公差值：SØ spherical diameter 控制半径：CR controlled radius45度倒角: 45 chamfer之间-表明：between统计公差：statistical tolerance基准目标：datum target靶点： target point公称厚度：nominal thickness图纸中常用术语：交界面：interface冲压工艺试验：stamping process pilot 防错工艺：POKA YOKE process翻领：collar单向的：unidirectional理论重量：theoretical weight分段区：segment定位孔：pilot hole缺陷：defect氧化：oxidation毛刺：burr税利边缘：sharp edges刀痕：tool marks闪点：flashing褶皱：wrinkles开裂：crack/splitting撕裂：tear老化：aging间隙：gap压伤：crush刮伤：scratch擦伤：scratch拉伤：abrasion划伤：scoring变形：deformation缺料：short shot挤料：extrusion deformation打磨严重：serious grinding尺寸不良：out-of-size锈斑：rust麻点：pit油脂：grease/lubricants/oil模具：tooling / die/ mold/ mould检具：checking fixture/ gauge工装：fixture三坐标测量： coordinate measuring machine简易模：plain die连续模：progressive die传递模：transfer die复合模：gang die型腔母模：mould cavity模芯公模：mould core上模板：下模板：上垫板：下垫板：冲压：stamping冲孔：pierce落料/下料：blank成型：form整型：restrike切边：trim折弯：bend翻边：flange翻孔：extrude卷耳：curling导向：pilot压筋：bead压凸台：emboss空步：idle回折：tip back拉深：draw剪边：shear铆合：rivet印字：stamp marker压印：coin压平： stretch切断：cut off切开：split切舌：lance斜楔：cam模具述语一、入水：gate进入位： gate location水口形式：gate type大水口：edge gate细水口： pin-point gate水口大小：gate size转水口： switching runner/gate唧嘴口径： sprue diameter二、流道: runner热流道： hot runner,hot manifold 热嘴冷流道: hot sprue/cold runner 唧嘴直流: direct sprue gate圆形流道：round(full/half runner 流道电脑分析：mold flow analysis 流道平衡:runner balance热嘴： hot sprue热流道板：hot manifold发热管：cartridge heater探针: thermocouples 插头： connector plug插座： connector socket密封/封料： seal三、运水：water line喉塞：line lpug喉管：tube塑胶管：plastic tube快速接头：jiffy quick connectorplug/socker四、模具零件： mold components三板模：3-plate mold二板模：2-plate mold边钉/导边：leader pin/guide pin边司/导套：bushing/guide bushing 中托司：shoulder guide bushing中托边L：guide pin顶针板：ejector retainner plate托板： support plate螺丝： screw管钉：dowel pin开模槽：ply bar scot内模管位：core/cavity inter-lock顶针： ejector pin司筒：ejector sleeve司筒针：ejector pin推板：stripper plate缩呵：movable core,return core core puller扣机（尼龙拉勾）：nylon latch lock 斜顶：lifter模胚（架）： mold base上内模：cavity insert下内模：core insert行位（滑块）： slide镶件：insert压座/斜鸡：wedge耐磨板/油板：wedge wear plate压条：plate撑头: support pillar唧嘴： sprue bushing挡板：stop plate定位圈：locating ring锁扣：latch扣鸡：parting lock set推杆：push bar栓打螺丝：S.H.S.B顶板：eracuretun活动臂：lever arm分流锥：spure sperader水口司:bush垃圾钉：stop pin隔片：buffle弹弓柱：spring rod弹弓:die spring中托司：ejector guide bush中托边：ejector guide pin镶针：pin销子：dowel pin波子弹弓：ball catch喉塞: pipe plug锁模块：lock plate斜顶：angle from pin斜顶杆：angle ejector rod尼龙拉勾：parting locks活动臂：lever arm复位键、提前回杆：early return bar气阀：valves斜导边：angle pin术语：terms承压平面平衡：parting surface support balance模排气：parting line venting回针碰料位：return pin and cavity interference模总高超出啤机规格：mold base shut hight顶针碰运水：water line interferes withejector pin料位出上/下模：part from cavith (core) side模胚原身出料位：cavity direct cut on A-plate,core direct cuton B-plate.不准用镶件： Do not use (core/cavity) insert用铍铜做镶件： use beryllium copper insert初步（正式）模图设计：preliinary (final) mold design反呵：reverse core弹弓压缩量：spring compressed length 稳定性好：good stability,stable强度不够：insufficient rigidity均匀冷却：even cooling扣模：sticking热膨胀：thero expansion公差：tolorance铜公(电极）：copper electrodeMold & die components 模具单元Mold changing systems 换模系统Mold core 模芯Mold heaters/chillers 模具加热器/冷却器Mold polishing/texturing 模具打磨/磨纹Mold repair 模具维修Molds 模具Pressing dies 压模Quick die change systems 速换模系统Quick mold change systems 快速换模系统三、模具塑料模具 mould of plastics注塑模具injection mould冲压模具die模架mould base定模座板Top clamping plateTop plateFixed clamp plate水口推板stripper plateA 板A plateB 板B plate支承板 support plate方铁 spacer plate底针板 ejector plate面针板 ejector retainer plate回针 Return pin导柱 Guide pin有托导套 Shoulder Guide bush直导套 Straight Guide bush动模座板Bottom clamp plateMoving clamp plate基准线datum line基准面datum plan型芯固定板core-retainer plate凸模固定板punch-retainer plate顶针ejector pin单腔模具single cavity mould多腔模具multi-cavity mould多浇口multi-gating浇口gate缺料starving排气breathing光泽gloss合模力mould clamping force锁模力mould locking force挤出extrusion开裂crack循环时间cycle time老化aging螺杆screw麻点pit嵌件insert活动镶件movable insert起垩chalking浇注系统feed system主流道 sprue分流道runner浇口gate直浇口direct gate , sprue gate轮辐浇口spoke gate , spider gate点浇口pin-point gate测浇口edge gate潜伏浇口submarine gate , tunnel gate料穴cold-slug well浇口套sprue bush流道板runner plate排飞槽vent分型线（面）parting line定模stationary mould，Fixed mould动模movable mould, movable half上模upper mould， upper half下模lower mould， lower half型腔cavity凹模cavity plate，cavity block拼块split定位销dowel定位销孔dowel hole型芯core斜销angle pin, finger cam滑块slide滑块导板slide guide strip楔紧块heel block, wedge lock拉料杆sprue puller定位环locating ring冷却通cooling channel脱模斜度draft滑动型芯slide core螺纹型芯threaded core热流道模具hot-runner mould绝热流道模insulated runner mould熔合纹weld line （flow line）三板式模具 three plate mould脱模ejection换模腔模具 interchangeable cavity mould 脱模剂release agent注射能力shot capacity注射速率injection rate注射压力injection pressure差色剂colorant保压时间holdup time闭模时间closing time定型装置sizing system阴模female mould，cavity block阳模male mould电加工设备Electron Discharge Machining 数控加工中心CNC machine center万能铁床Universal milling machine卧式刨床Horizontal planer车床Engine lathe平面磨床Surface grinding machine去磁机Demagnetization machine万能摇臂钻床Universal radial movable driller立式钻床Vertical driller超声波清洗机Ultrasonic clearing machine compre sion molding 压缩成型flash mold 溢流式模具plsitive mold 挤压式模具split mold 分割式模具cavity 型控母模core 模心公模taper 锥拔leather cloak 仿皮革shiver 饰纹flow mark 流痕welding mark 溶合痕post screw insert 螺纹套筒埋值self tapping screw 自攻螺丝striper plate 脱料板piston 活塞cylinder 汽缸套chip 细碎物handle mold 手持式模具（移转成型用模具）encapsulation molding 低压封装成型（射出成型用模具）two plate 两极式（模具）well type 蓄料井insulated runner 绝缘浇道方式hot runner 热浇道runner plat 浇道模块valve gate 阀门浇口band heater 环带状的电热器spindle 阀针spear head 刨尖头slag well 冷料井cold slag 冷料渣air vent 排气道welding line 熔合痕eject pin 顶出针knock pin 顶出销return pin 回位销反顶针sleave 套筒stripper plate 脱料板insert core 放置入子runner stripper plate 浇道脱料板guide pin 导销eject rod (bar)（成型机）顶业捧subzero 深冷处理three plate 三极式模具runner system 浇道系统stress crack 应力电裂orientation 定向sprue gate 射料浇口，直浇口nozzle 射嘴sprue lock pin 料头钩销(拉料杆) slag well 冷料井side gate 侧浇口edge gate 侧缘浇口tab gate 搭接浇口film gate 薄膜浇口flash gate 闸门浇口slit gate 缝隙浇口fan gate 扇形浇口dish gate 因盘形浇口diaphragm gate 隔膜浇口ring gate 环形浇口subarine gate 潜入式浇口tunnel gate 隧道式浇口pin gate 针点浇口Runner less 无浇道(sprue less)无射料管方式long nozzle 延长喷嘴方式sprue 浇口;溶渣emboss 凸点dome 凸圆semi-shearing 半剪stamp mark 冲记号deburr or coin 压毛边punch riveting 冲压铆合side stretch 侧冲压平reel stretch 卷圆压平groove 压线blanking 下料stamp letter 冲字(料号) shearing 剪断tick-mark nearside 正面压印tick-mark farside 反面压印冲压名称类extension dwg 展开图procedure dwg 工程图die structure dwg 模具结构图material 材质material thickness 料片厚度factor 系数upward 向上downward 向下press specification 冲床规格die height range 适用模高die height 闭模高度burr 毛边gap 间隙weight 重量total wt.总重量punch wt.上模重量五金零件类inner guiding post 内导柱inner hexagon screw 内六角螺钉dowel pin 固定销coil spring 弹簧lifter pin 顶料销eq-height sleeves=spool 等高套筒pin 销lifter guide pin 浮升导料销guide pin 导正销wire spring 圆线弹簧outer guiding post 外导柱stop screw 止付螺丝located pin 定位销outer bush 外导套模板类top plate 上托板（顶板）top block 上垫脚punch set 上模座punch pad 上垫板punch holder 上夹板stripper pad 脱料背板up stripper 上脱料板male die 公模(凸模)feature die 公母模female die 母模(凹模)upper plate 上模板lower plate 下模板die pad 下垫板die holder 下夹板die set 下模座bottom block 下垫脚bottom plate 下托板(底板)stripping plate 内外打(脱料板)outer stripper 外脱料板inner stripper 内脱料板lower stripper 下脱料板零件类punch 冲头insert 入块(嵌入件)deburring punch 压毛边冲子groove punch 压线冲子stamped punch 字模冲子round punch 圆冲子special shape punch 异形冲子bending block 折刀roller 滚轴baffle plate 挡块located block 定位块supporting block for location定位支承块air cushion plate 气垫板air-cushion eject-rod 气垫顶杆trimming punch 切边冲子stiffening rib punch = stinger 加强筋冲子ribbon punch 压筋冲子reel-stretch punch 卷圆压平冲子guide plate 定位板sliding block 滑块塑料模具专业术语动模 movable mould moving half定模座板 fixed clamp plate, top clamping plate. top plate动模座板 moving clamp plate. bottom clamping plate. bottom plate上模座板 upper clamping plate下模座板 lower clamping plate凹模固定板 cavity-retainer plate型芯固定板 core-retainer plate凸模固定板 punch-retainer plate模套 chase. bolster. frame支承板 backing plate. supprr plate垫块 spacer parallel支架 ejector housing. mould base leg 压力铸造模具 die-casting die压铸模零部件定模 fixed die, cover die定模座板 fixed clamping plate定模套板 bolstor, fixed die动模 moving die,ejector die动模座板 moving clamping plate直流道 sprue横流道 runner内浇口 gatelanded plunger mold||有肩柱塞式模具burnishing die||挤光模landed positive mold||有肩全压式模具button die||镶入式圆形凹模loading shoe mold||料套式模具center-gated mold||中心浇口式模具loose detail mold||活零件模具chill mold||冷硬用铸模loose mold||活动式模具clod hobbing||冷挤压制模louvering die||百叶窗冲切模composite dies||复合模具manifold die||分歧管模具counter punch||反凸模modular mold||组合式模具double stack mold||双层模具multi-cavity mold||多模穴模具electroformed mold||电铸成形模multi-gate mold||复式浇口模具expander die||扩径模offswt bending die||双折冷弯模具extrusion die||挤出模palletizing die||叠层模family mold||反套制品模具plaster mold||石膏模blank through dies||漏件式落料模porous mold||通气性模具duplicated cavity plate||复板模positive mold||全压式模具fantail die||扇尾形模具pressure die||压紧模fishtail die||鱼尾形模具profile die||轮廓模flash mold||溢料式模具progressive die||顺序模gypsum mold||石膏铸模protable mold||手提式模具hot-runner mold||热流道模具prototype mold||雏形试验模具ingot mold||钢锭模punching die||落料模lancing die||切口模raising(embossing)||压花起伏成形re-entrant mold||倒角式模具sectional die||拼合模runless injection mold||无流道冷料模具sectional die||对合模具segment mold||组合模semi-positive mold||半全压式模具shaper||定型模套single cavity mold||单腔模具solid forging die||整体锻模split forging die||拼合锻模split mold||双并式模具sprueless mold||无注道残料模具squeezing die||挤压模stretch form die||拉伸成形模sweeping mold||平刮铸模swing die||振动模具three plates mold||三片式模具trimming die||切边模unit mold||单元式模具universal mold||通用模具unscrewing mold||退扣式模具yoke type die||轭型模模具钢材 khuôn thépalloy tool steel 合金工具钢aluminium alloy 铝合金钢bearing alloy 轴承合金blister steel 浸碳钢bonderized steel sheet 邦德防蚀钢板carbon tool steel 碳素工具钢clad sheet 被覆板clod work die steel 冷锻模用钢emery 金钢砂ferrostatic pressure 钢铁水静压力forging die steel 锻造模用钢galvanized steel sheet 镀锌铁板hard alloy steel 超硬合金钢high speed tool steel 高速度工具钢hot work die steel 热锻模用钢low alloy tool steel 特殊工具钢low manganese casting steel 低锰铸钢marging steel 马式体高强度热处理钢martrix alloy 马特里斯合金meehanite cast iron 米汉纳铸钢meehanite metal 米汉纳铁merchant iron 市售钢材molybdenum high speed steel 钼系高速钢molybdenum steel 钼钢nickel chromium steel 镍铬钢prehardened steel 顶硬钢silicon steel sheet 矽钢板stainless steel 不锈钢tin plated steel sheet 镀锡铁板tough pitch copper 韧铜troostite 吐粒散铁tungsten steel 钨钢vinyl tapped steel sheet 塑胶覆面钢板塑件与模具compre sion molding压缩成型flash mold溢流式模具plsitive mold挤压式模具split mold分割式模具cavity型控母模core模心公模taper锥拔leather cloak仿皮革shiver饰纹flow mark流痕welding mark溶合痕post screw insert螺纹套筒埋值self tapping screw自攻螺丝striper plate脱料板piston活塞cylinder汽缸套chip细碎物handle mold手持式模具（移转成型用模具）encapsulation molding低压封装成型（射出成型用模具）two plate两极式（模具）well type蓄料井insulated runner绝缘浇道方式hot runner热浇道runner plat浇道模块valve gate阀门浇口band heater环带状的电热器spindle阀针spear head刨尖头slag well冷料井cold slag冷料渣air vent排气道welding line熔合痕eject pin顶出针knock pin顶出销return pin回位销反顶针sleave套筒stripper plate脱料板insert core放置入子runner stripper plate浇道脱料板guide pin导销eject rod (bar)（成型机）顶业捧subzero深冷处理three plate三极式模具runner system浇道系统stress crack应力电裂orientation定向sprue gate射料浇口，直浇口nozzle射嘴sprue lock pin料头钩销(拉料杆) slag well冷料井side gate侧浇口edge gate侧缘浇口tab gate搭接浇口film gate薄膜浇口flash gate闸门浇口slit gate缝隙浇口fan gate扇形浇口dish gate因盘形浇口diaphragm gate隔膜浇口ring gate环形浇口subarine gate潜入式浇口tunnel gate隧道式浇口pin gate针点浇口Runner less无浇道(sprue less)无射料管方式long nozzle延长喷嘴方式sprue浇口;溶渣零件类punch冲头insert入块(嵌入件)deburring punch压毛边冲子groove punch压线冲子stamped punch字模冲子round punch圆冲子special shape punch异形冲子bending block折刀roller滚轴baffle plate挡块located block定位块supporting block for location定位支承块air cushion plate气垫板air-cushion eject-rod气垫顶杆trimming punch切边冲子stiffening rib punch = stinger 加强筋冲子ribbon punch压筋冲子reel-stretch punch卷圆压平冲子guide plate定位板sliding block滑块sliding dowel block滑块固定块active plate活动板lower sliding plate下滑块板upper holder block上压块upper mid plate上中间板spring box弹簧箱spring-box eject-rod弹簧箱顶杆spring-box eject-plate弹簧箱顶板bushing bolck衬套cover plate盖板guide pad导料块模板类top plate上托板（顶板）top block上垫脚punch set上模座punch pad上垫板punch holder上夹板stripper pad脱料背板up stripper上脱料板male die公模(凸模)feature die公母模female die母模(凹模)upper plate上模板lower plate下模板die pad下垫板die holder下夹板die set下模座bottom block下垫脚bottom plate下托板(底板) stripping plate内外打(脱料板) outer stripper外脱料板inner stripper内脱料板lower stripper下脱料板plain die简易模pierce die冲孔模forming die成型模progressive die连续模gang dies复合模shearing die剪边模riveting die铆合模pierce冲孔forming成型(抽凸,冲凸) draw hole抽孔bending折弯trim切边emboss凸点dome凸圆semi-shearing半剪stamp mark冲记号deburr or coin压毛边punch riveting冲压铆合side stretch侧冲压平reel stretch卷圆压平groove压线blanking下料stamp letter冲字(料号) shearing剪断tick-mark nearside正面压印tick-mark farside反面压印冲压名称类extension dwg展开图procedure dwg工程图die structure dwg模具结构图material材质material thickness料片厚度factor系数upward向上downward向下press specification冲床规格die height range适用模高die height闭模高度burr毛边gap间隙weight重量total wt.总重量punch wt.上模重量连接器connector端子terminal条型连接器bar connector 阴连接器Housing阳连接器wafer 线束wire harness间距space额定电压 rated voltage额定电流 rated current接触电阻contact resistance绝缘电阻insulation resistance超声波焊接ultrasonic welding耐压withstand voltage针pin物料编号part number导线wire基体金属Base metal电缆夹cable clamp倒角chamfer接触面积contact area接触件安装孔contact cavity接触长度contact length接触件电镀层contact plating接触压力contact pressure接触件中心距contact space接触簧片contact spring插孔socket contact法兰、凸缘Flange界面间隙interfacial gap键Key键槽keyway过渡段ramp屏蔽套shielding定位基准Datum reference扁平电缆flat cable ，Ribbon cable柔性印刷电线Flexible printed wiring多层印制电路Multilayer printed circuit焊盘pad图形pattern间距pitch负极Negative pole正极positive pole回流Reflow原理图Schematic diagram单面板single sided board双面板Two-sided board，Double-sided board表面安装surface Mounting翘曲warp， bow波峰焊wave soldering编织层braid同轴电缆coaxial cable电介质dielectric电缆中导线的头数ends外部干扰external interference填充物filler护套jacket比重specific gravity电阻的温度系数Temperature coefficient of resistance模具塑料模具mould of plastics注塑模具injection mould 冲压模具die模架mould base定模座板Top clamping plateTop plateFixed clamp plate水口推板stripper plateA板A plateB板B plate支承板 support plate方铁 spacer plate底针板 ejector plate面针板 ejector retainer plate回针 Return pin导柱 Guide pin有托导套 Shoulder Guide bush直导套 Straight Guide bush动模座板Bottom clamp plateMoving clamp plate基准线datum line基准面datum plan型芯固定板core-retainer plate凸模固定板punch-retainer plate顶针ejector pin单腔模具single cavity mould多腔模具multi-cavity mould多浇口multi-gating浇口gate缺料starving排气breathing光泽gloss合模力mould clamping force锁模力mould locking force挤出extrusion开裂crack循环时间cycle time老化aging螺杆screw麻点pit嵌件insert活动镶件movable insert起垩chalking浇注系统feed system主流道 sprue分流道runner浇口gate直浇口direct gate , sprue gate轮辐浇口spoke gate , spider gate点浇口pin-point gate测浇口edge gate潜伏浇口submarine gate , tunnel gate 料穴cold-slug well浇口套sprue bush流道板runner plate排飞槽vent分型线（面）parting line定模stationary mould，Fixed mould 动模movable mould, movable half 上模upper mould， upper half下模lower mould， lower half型腔cavity凹模cavity plate，cavity block拼块split定位销dowel定位销孔dowel hole型芯core斜销angle pin, finger cam滑块slide滑块导板slide guide strip楔紧块heel block, wedge lock拉料杆sprue puller定位环locating ring冷却通cooling channel脱模斜度draft滑动型芯slide core螺纹型芯threaded core热流道模具hot-runner mould绝热流道模insulated runner mould 熔合纹weld line （flow line）三板式模具three plate mould脱模ejection换模腔模具 interchangeable cavity mould 脱模剂release agent注射能力shot capacity注射速率injection rate注射压力injection pressure差色剂colorant保压时间holdup time闭模时间closing time定型装置sizing system阴模female mould，cavity block阳模male mould电加工设备Electron Discharge Machining 数控加工中心CNC machine center万能铁床Universal milling machine卧式刨床Horizontal planer车床Engine lathe平面磨床Surface grinding machine去磁机Demagnetization machine万能摇臂钻床Universal radial movable driller立式钻床Vertical driller超声波清洗机Ultrasonic clearing machine模具零件Top Plate 上托板（顶板）Top Block 上垫脚Punch Set 上模座Punch Pad 上垫板Punch Holder 上夹板Stripper Pad 脱料背板Up Stripper 上脱料板Male Die 公模（凸模）Feature Die 公母模Female Die 母模（凹模）Upper Mold Plate 上模板Lower Mold Plate 下模板Die Pad 下垫板Die Holder 下夹板Die Set 下模座Bottom Block 下垫脚Bottom Plate下托板（底板）Stripping Plate 内外打（脱料板）Outer Stripper 外脱料板Inner Stripper 内脱料板Lower Stripper 下脱料板Inner Guiding Post 内导柱Inner Hexagon Screw 内六角螺钉Dowel Pin 固定销Mould Coil Spring 模具弹簧Lifter Pin 顶料销Isoheight Sleeve 等高套筒Pin 销Lifter Guide Pin 浮升导料销Guide Pin 导正销Wire Spring 圆线弹簧Outer Guiding Post 外导柱Stop Screw 止付螺丝Located Pin 定位销Outer Bush 外导套Punch 冲头Insert 入块（嵌入件）Deburring Punch 压毛边冲子Groove Punch 压线冲子Stamped Punch 字模冲子Round Punch 圆冲子Special Shape Punch 异形冲子Bending Block 折刀Roller 滚轴Baffle Plate 挡块Located Block 定位块Supporting Block for Location 定位支承块Air Cushion Plate 气垫板Air-Cushion Eject-rod 气垫顶杆Trimming Punch 切边冲子Stiffening Rib Punch Stinger 加强筋冲子Ribbon Punch 压筋冲子Reel-stretch Punch 卷圆压平冲子Guide Plate 定位板Sliding Block 滑块Sliding Dowel Block 滑块固定块Active Plate 活动板Lower Sliding Plate 下滑块板Upper Holder Block 上压块Upper Mid Plate 上中间板Spring Box 弹簧箱Spring-Box Eject-rod 弹簧箱顶杆Spring-Box Eject-Plate 弹簧箱顶板Bushing Block Liner Bushing 衬套Cover Plate 盖板Guide Pad 导料块模具技术用语各种常用模具成形方式Accurate Die Casting 精密压铸Powder Forming 粉末成形Calendaring Molding 压延成形Powder Metal Forging 粉末锻造Cold Chamber Die Casting 冷式压铸Precision Forging 精密锻造Cold Forging 冷锻Press Forging 冲锻Compacting Molding 粉末压出成形Rocking Die Forging 摇动锻造Compound Molding 复合成形Rotary Forging 回转锻造Compression Molding 压缩成形Rotational Molding 离心成形Dip Mold 浸渍成形Rubber Molding 橡胶成形Encapsulation Molding 注入成形Sand Mold Casting 砂模铸造Extrusion Molding 挤出成形Shell Casting 壳模铸造Foam Forming 发泡成形Sinter Forging 烧结锻造Forging Roll 轧锻Six Sides Forging 六面锻造Gravity Casting 重力铸造Slush Molding 凝塑成形Hollow Blow Molding 中空（吹出）成形Squeeze Casting 高压铸造Hot Chamber Die Casting 热室压铸Swaging 挤锻Hot Forging 热锻Transfer Molding 转送成形Injection Molding 射出成形Warm Forging 温锻Investment Casting 精密铸造Matched Die Method 对模成形法Laminating Method 被覆淋膜成形Low Pressure Casting 低压铸造Lost Wax Casting 脱蜡铸造Matched Mould Thermal Forming 对模热成形模Close Mold 合模Demould 脱模脱模剂Mould Unloading 开模Eject 顶出Tool Change Retooling Die Changing 换模Mould Clamping 锁模各式模具分类用语Bismuth Mold 铋铸模Landed Plunger Mold 有肩柱塞式模具Burnishing Die 挤光模Landed Positive Mold 有肩全压式模具Button Die 镶入式圆形凹模Loading Shoe Mold 料套式模具Center-Gated Mold 中心浇口式模具Loose Detail Mold 活零件模具Chill Mold 冷硬用铸模Loose Mold 活动式模具Cold Hobbing 冷挤压制模法Louvering Die 百叶窗冲切模Composite Dies 复合模具Manifold Die 分歧管模具Counter Punch 反凸模Modular Mold 组合模具Double Stack Mold 双层模具Multi-Cavity Mold 多模穴模具Electroformed Mold 电铸成形模Multi-Gate Mold 复式浇口模具Expander Die 扩径模Offset Cold Bending Die 双折冷弯模具Extrusion Die 挤出模Stack Mold, Stack Injection Mould 叠层模Family Mold 反套制品模具Plaster Mold 石膏模Blank Through Dies 漏件式落料模Porous Mold 通气性模具Duplicated Cavity Plate 复板模Positive Mold 全压式模具Fantail Die 扇尾形模具Pressure Die 压紧模Fishtail Die 鱼尾形模具Profile Die 轮廓模Flash Mold 溢料式模具Progressive Die 顺序模Gypsum Mold 石膏铸模Portable Mold 手提式模具Hot-Runner Mold 热流道模具Prototype Mold 雏形试验模具原型模具Ingot Mold 钢锭模Punching Die 落料模Lancing Die 切口模切缝模Raising（Embossing）压花起伏成形Re-entrant Mold 倒角式模具Sectional Die 拼合模Runless Injection Mold 无流道冷料模具Sectional Die 对合模具Segment Mold 组合模Semi-Positive Mold 半全压式模具Shaper 定型模套Single Cavity Mold 单腔模具Solid Forging Die 整体锻模Split Forging Die 拼合锻模Split Mold 双并式模具Sprueless Mold 无注道残料模具Squeezing Die 挤压模Stretch Form Die 拉伸成形模Sweeping Mold 平刮铸模Swing Die 振动模具Three Plates Mold 三片式模具Trimming Die 切边模Unit Mold 单元式模具Universal Mold 通用模具Unscrewing Mold 退扣式模具Yoke Type Die 轭型模模具厂常用之标准零配件Air Vent Valve 通气阀Anchor Pin 锚梢Angular Pin 角梢Baffle 调节阻板Angular Pin 倾斜梢Baffle Plate 折流档板Ball Button 球塞套Ball Plunger 定位球塞Ball Slider 球塞滑块Binder Plate 压板Blank Holder 防皱压板Blanking Die 落料冲头Bolster 上下模板Bottom board 浇注底板Bolster 垫板Bottom Plate 下固定板Bracket 托架Bumper Block 缓冲块Buster 堵口Casting Ladle 浇注包Casting lug 铸耳Cavity 模穴（模仁）Cavity Retainer Plate 模穴托板Center Pin 中心梢Clamping Block 锁定块Coil Spring 螺旋弹簧Cold Punched Nut 冷冲螺母Cooling Spiral 螺旋冷却栓Core 心型Core Pin 心型梢Cotter 开口梢Cross 十字接头Cushion Pin 缓冲梢Diaphragm Gate 盘形浇口Die Approach 模头料道Die Bed 型底Die Block 块形模体Die Body 铸模座Die Bush 合模衬套Die Button 冲模母模Die Clamper 夹模器Die Fastener 模具固定用零件Die Holder 母模固定板Die Lip 模唇Die Plate 冲模板Die Set 冲压模座Direct Gate 直接浇口Dog Chuck 爪牙夹头Dowel 定位梢Dowel Hole 导套孔Dowel Pin 合模梢Dozzle 辅助浇口Dowel Pin 定位梢Draft 拔模锥度Draw Bead 张力调整杆Drive Bearing 传动轴承Ejection Pad 顶出衬垫Ejector 脱模器Ejector Guide Pin 顶出导梢Ejector Leader Bush 顶出导梢衬套Ejector Pad 顶出垫Ejector Pin 顶出梢Ejector Plate 顶出板Ejector Rod 顶出杆Ejector Sleeve 顶出衬套Ejector Valve 顶出阀Eye Bolt 环首螺栓Filling Core 填充型芯椿入蕊Film Gate 薄膜形浇口Finger Pin 指形梢Finish Machined Plate 角形模板Finish Machined Round Plate 圆形模板Fixed Bolster Plate 固定侧模板Flanged Pin 带凸缘针Flash Gate 毛边形浇口Flask 上箱Floating Punch 浮动冲头Gate 浇口Gate Land 浇口面Gib 凹形拉紧楔Goose Neck 鹅颈管Guide Bushing 引导衬套Guide Pin 导梢Guide Post 引导柱Guide Plate 导板Guide Rail 导轨Head Punch 顶头冲孔Headless Punch 直柄冲头Heavily Tapered Solid 整体模蕊盒Hose Nippler 管接头Impact Damper 缓冲器Injection Ram 压射柱塞Inlay Bush 嵌入衬套Inner Plunger 内柱塞Inner Punch 内冲头Insert 嵌件Insert Pin 嵌件梢King Pin 转向梢King Pin Bush 主梢衬套Knockout Bar 脱模杵Land 合模平坦面Land Area 合模面Leader Bush 导梢衬套Lifting Pin 起模顶针起模杆Lining 内衬Locating Center Punch 定位中心冲头Locating Pilot Pin 定位导梢Locating Ring 定位环Lock Block 压块Locking Block 定位块Locking Plate 定位板Loose Bush 活动衬套Making Die 打印冲子Manifold Block 歧管档块Master Plate 靠模样板Match Plate 分型板Mold Base 塑胶模座Mold Clamp 铸模紧固夹Mold Platen 模用板Moving Bolster 换模保持装置Moving Bolster Plate 可动侧模板One Piece Casting 整体铸件Parallel Block 平行垫块Parting Line 分模线Parting Lock Set 合模定位器Pass Guide 穴型导板Peened Head Punch 镶入式冲头锤击强化冲头钻杆凸模Pilot Pin 定位销导向销子Pin Gate 针尖浇口Plate 衬板Pre Extrusion Punch 顶挤冲头Punch 冲头Puncher 推杆Pusher Pin 衬套梢Rack 机架Rapping Rod 起模杆Re-entrant Mold 凹入模Retainer Pin 嵌件梢Retainer Plate 托料板Return Pin 回位梢Riding Stripper 浮动脱模器Ring Gate 环型浇口Roller 滚筒Runner 流道Runner Ejector Set 流道顶出器Runner Lock Pin 流道拉梢Screw Plug 头塞Set Screw 固定螺丝Shedder 脱模装置Shim 分隔片Shoe 模座之上下模板Shoot 流道Shoulder Bolt 肩部螺丝Skeleton 骨架Slag Riser 冒渣口Slide（Slide Core）滑块Slip Joint 滑配接头Spacer Block 间隔块Spacer Ring 间隔环Spider 模蕊支架Spindle 主轴Sprue 注道Sprue Bushing 注道衬套Sprue Bushing Guide 注道导套Sprue Lock Bushing 注道定位衬套Sprue Puller 注道拉料浇道推出杆注道残料顶销Spew Line 合模线Square Key 方键Square Nut 方螺帽Square Thread 方螺纹Limit Stop Collar 限位套Stop Pin 止动梢Stop Ring 止动环Stopper 定位停止梢Straight Pin 圆柱销Stripper Bolt 脱料螺栓Stripper Bushing 脱模衬套Stripper Plate 剥料板Stroke End Block 行程止梢Submarine Gate 潜入式浇口Support Pillar 支撑支柱顶出支柱Support Pin 支撑梢Supporting Plate 托板Sweep Template 造模刮板Tab Gate 辅助浇口Taper Key 推拔键Taper Pin 拔锥梢锥形梢Teeming Pouring 浇注Three Start Screw 三条螺纹Thrust Pin 推力销Tie Bar 拉杵Tunnel Gate 隧道形浇口Vent 通气孔Wortle Plate 拉丝模板模具术语翻译动模 Movable Mould Moving Half定模座板 Fixed Clamp Plate Top Clamping Plate Top Plate动模座板 Moving Clamp Plate Bottom Clamping Plate Bottom Plate上模座板 Upper Clamping Plate下模座板 Lower Clamping Plate凹模固定板 Cavity-retainer Plate型芯固定板 Mould Core-retainer Plate凸模固定板 Punch-retainer Plate模套 Die Body Die Sleeve Die Blank支承板 Backing Plate Support Plate垫块 Spacer Parallel支架 Ejector Housing Mould Base Leg模头 Die Head根据国家标准，以下为部分压铸模具标准翻译。
模具专业的英语词汇大全
WORD格式模具专业的英语词汇大全一、模具专业英语入水：gate进入位：gatelocation水口形式：gatetype大水口：edgegate细水口：pin-pointgate 水口大小：gatesize转水口：switchingrunner/gate唧嘴口径：spruediameter二、流道:runner热流道：hotrunner,hotmanifold热嘴冷流道:hotsprue/coldrunner:directspruegate圆形流道：round(full/halfrunnermoldflowanalysis流道平衡:runnerbalancehotsprue热流道板：hotmanifoldcartridgeheater探针:thermocouplesconnectorplug插座：connectorsocket/封料：seal三、运水：waterline喉塞：linelpug喉管：tube塑胶管：plastictube快速接头：jiffyquickconnectorplug/socker四、模具零件：moldcomponents三板模：3-platemold二板模：2-platemold/导边：leaderpin/guidepin边司/导套：bushing/guidebushingshoulderguidebushing中托边L：guidepinejectorretainnerplate托板：supportplatescrew管钉：dowelpinplybarscot内模管位：core/cavityinter-lockWORD格式ejectorpin司筒：ejectorsleeveejectorpin推板：stripperplatemovablecore,returncorecorepullernylonlatchlock斜顶：liftermoldbase上内模：cavityinsertcoreinsert行位（滑块）：slideinsert压座/斜鸡：wedge/油板：wedgewearplate压条：plate:supportpillar唧嘴：spruebushingstopplate定位圈：locatingringlatch扣鸡：partinglocksetpushbar栓打螺丝：S.H.S.Beracuretun活动臂：leverarmspuresperader水口司:bushstoppin隔片：bufflespringrod弹弓:diespringejectorguidebush中托边：ejectorguidepinpin销子：dowelpinballcatch模具成形不良用语英汉对照aberration色差atomization?化bankmark?料纹bite咬入blackinghole涂料孔(铸疵)blackingscab涂料疤WORD格式blister起泡blooming起霜lowhole破孔blushing泛白bodywrinkle侧壁皱纹breaking-in冒口带肉bubble膜泡burnmark糊斑burr毛边camber翘曲cell气泡centerbuckle表面中部波皱check细裂痕checking龟裂chipping修整表面缺陷clamp-off铸件凹痕collapse塌陷colormottle色斑corrosion腐蚀crack裂痕crazing碎裂crazing龟裂deformation变形edge切边碎片edgecrack裂边fading退色fillerspeak填充料斑fissure裂纹flangewrinkle凸缘起皱flaw刮伤flowmark流痕galling毛边glazing光滑gloss光泽greasepits污斑grindingdefect磨痕haircrack发裂haze雾度incrustation水锈indentation压痕internalporosity内部气孔mismatch偏模mottle斑点necking缩颈WORD格式nick割痕orangepeel橘皮状表面缺陷overflow溢流peeling剥离pit坑pittingcorrosion点状腐蚀platemark模板印痕pock麻点pockmark痘斑resinstreak树脂流纹resinwear树脂脱落riding凹陷sagging松垂saponification皂化scar疤痕scrap废料scrapjam废料阻塞scratch刮伤/划痕scuffing深冲表面划伤seam裂痕shockline模口挤痕shortshot充填不足shrinkagepool凹孔sinkmark凹痕skininclusion表皮折叠straightening矫直streak条状痕surfacecheck表面裂痕surfaceroughening橘皮状表皮皱折surging波动sweatout冒汗torsion扭曲warpage翘曲waviness波痕webbing熔塌weldmark焊痕whitening白化wrinkle皱纹各式模具分类用语英汉对照landedplungermold有肩柱塞式模具burnishingdie挤光模landedpositivemold有肩全压式模具buttondie镶入式圆形凹模loadingshoemold料套式模具WORD格式center-gatedmold中心浇口式模具loosedetailmold活零件模具chillmold冷硬用铸模loosemold活动式模具clodhobbing冷挤压制模louveringdie百叶窗冲切模compositedies复合模具manifolddie分歧管模具counterpunch反凸模modularmold组合式模具doublestackmold双层模具multi-cavitymold多模穴模具electroformedmold电铸成形模multi-gatemold复式浇口模具expanderdie扩径模offswtbendingdie双折冷弯模具extrusiondie挤出模palletizingdie叠层模familymold反套制品模具plastermold石膏模blankthroughdies漏件式落料模porousmold通气性模具duplicatedcavityplate复板模positivemold全压式模具fantaildie扇尾形模具pressuredie压紧模fishtaildie鱼尾形模具profiledie轮廓模flashmold溢料式模具progressivedie顺序模gypsummold石膏铸模protablemold手提式模具hot-runnermold热流道模具prototypemold雏形试验模具ingotmold钢锭模punchingdie落料模lancingdie切口模raising(embossing)压花起伏成形re-entrantmold倒角式模具sectionaldie拼合模runlessinjectionmold无流道冷料模具sectionaldie对合模具segmentmold组合模semi-positivemold半全压式模具WORD格式shaper定型模套singlecavitymold单腔模具solidforgingdie整体锻模splitforgingdie拼合锻模splitmold双并式模具spruelessmold无注道残料模具squeezingdie挤压模stretchformdie拉伸成形模sweepingmold平刮铸模swingdie振动模具threeplatesmold三片式模具trimmingdie切边模unitmold单元式模具universalmold通用模具unscrewingmold退扣式模具yoketypedie轭型模各种模具常用成形方式英汉对照accuratediecasting精密压铸powderforming粉末成形calendaringmolding压延成形powdermetalforging粉末锻造coldchamberdiecasting冷式压铸precisionforging精密锻造coldforging冷锻pressforging冲锻compactingmolding粉末压出成形rockingdieforging摇动锻造compoundmolding复合成形rotaryforging回转锻造compressionmolding压缩成形rotationalmolding离心成形dipmold浸渍成形rubbermolding橡胶成形encapsulationmolding注入成形sandmoldcasting砂模铸造extrusionmolding挤出成形shellcasting壳模铸造foamforming?泡成形sinterforging烧结锻造forgingroll轧锻sixsidesforging六面锻造gravitycasting重力铸造slushmolding凝塑成形hollow(blow)molding中空(吹出)成形WORD格式squeezecasting高压铸造hotchamberdiecasting热室压铸swaging挤锻hotforging热锻transfermolding转送成形injectionmolding射出成形warmforging温锻investmentcasting精密铸造matcheddiemethod对模成形法laminatingmethod被覆淋膜成形lowpressurecasting低压铸造lostwaxcasting脱蜡铸造matchedmouldthermalforming对模热成形模机械类常用英语：冲压模具-零件类punch冲头insert入块(嵌入件)deburringpunch压毛边冲子groovepunch压线冲子stampedpunch字模冲子roundpunch圆冲子specialshapepunch异形冲子bendingblock折刀roller滚轴baffleplate挡块locatedblock定位块supportingblockforlocation定位支承块aircushionplate气垫板air-cushioneject-rod气垫顶杆trimmingpunch切边冲子stiffeningribpunch=stinger加强筋冲子ribbonpunch压筋冲子reel-stretchpunch卷圆压平冲子guideplate定位板slidingblock滑块slidingdowelblock滑块固定块activeplate活动板lowerslidingplate下滑块板upperholderblock上压块uppermidplate上中间板springbox弹簧箱spring-boxeject-rod弹簧箱顶杆spring-boxeject-plate弹簧箱顶板bushingbolck衬套WORD格式coverplate盖板guidepad导料块机械类常用英语：冲压模具-模板类topplate上托板（顶板）topblock上垫脚punchset上模座punchpad上垫板punchholder上夹板stripperpad脱料背板upstripper上脱料板maledie公模(凸模)featuredie公母模femaledie母模(凹模)upperplate上模板lowerplate下模板diepad下垫板dieholder下夹板dieset下模座bottomblock下垫脚bottomplate下托板(底板)strippingplate内外打(脱料板)outerstripper外脱料板innerstripper内脱料板lowerstripper下脱料板冲压模具-冲压名称类英汉对照plaindie简易模piercedie冲孔模formingdie成型模progressivedie连续模gangdies复合模shearingdie剪边模rivetingdie铆合模pierce冲孔forming成型(抽凸,冲凸)drawhole抽孔bending折弯trim切边emboss凸点dome凸圆semi-shearing半剪stampmark冲记号deburrorcoin压毛边WORD格式punchriveting冲压铆合sidestretch侧冲压平reelstretch卷圆压平groove压线blanking下料stampletter冲字(料号)shearing剪断tick-marknearside正面压印tick-markfarside反面压印extensiondwg展开图proceduredwg工程图diestructuredwg模具结构图material材质materialthickness料片厚度factor系数upward向上downward向下pressspecification冲床规格dieheightrange适用模高dieheight闭模高度burr毛边gap间隙weight重量totalwt.总重量punchwt.上模重量。
HI-P公司模具专业英语培训——注塑模
模具专业英语培训——注塑模English Training——Injection Mold（一）模具专业基本用词Professional Terms1．塑料—plastic, resin2．样件—sample3．钢料—steel4．注塑机—injection machine, press5．产品—part, product, moulding6．模具—mold, mould, toolA 简易模（样板模）—prototype moldB 量产用模具—production mold 7．三维造型（数模）—model, 3D data8．二维产品图—2D part drawing9．设计—design10．制造—manufacture, build up, construction11．检验—check, inspection12．测量—measure, inspection13．修改—change, modify, correction14．工程更改—engineer change15．质量—quality16．数量—quantity17．基准—datum, reference（二）如何解析2D 产品图？How to read 2D part drawing?一．产品几何Geometry1．点—point2．线（边）—line, edge3．面faceA 侧面—sideB 表面—surfaceC 外观面—appearance surface 4．壁厚—wall thickness, stock thickness5．加强筋（骨位）—rib6．孔—hole7．细长的槽—slot8．柱位—boss9．角—cornerA 圆角—filletB 倒角—chamferC 尖角—sharp corner 10．斜度—angle, taper11. 凹槽—recess , groove二．分模信息Splitting1．分型线—parting line (P/L), splitting line2．主分模方向—main direction, line of draw3．浇口设定—gating三．产品标识Part Identification1．产品名称—part name (P/N)2．产品编号+版本号—part number + revision (Rev.)3．型腔号—cavity number4．材料标记—material symbol5．模具编号—mold number (no.)6．日期印—dating insert, date code7．循环印—cycling code8．公司标志—company logo四．技术要求Specification (Special Requirement)1．项目启动表Kick-off sheet1）项目名称—program name, project name2）产品名称—part name, product name, part description3）产品编号—part number (P/N)4）客户模号—customer mold no.5）项目启动日期—kick off date, start date6）项目完成日期—due date,lead time7）内模件用钢—tool steel8）型腔数量—number of cavities9）数模文件编号—data file no.10）注塑材料—resin, plastic, raw material11）收缩率—shrink, shrinkage, shrink factor12）注塑机吨位—molding machine size, injection machine size 13）成型周期—cycle time14）型腔光洁度—cavity polish15）型芯光洁度—core polish16）皮纹（晒纹）—texture, grain17）拔模斜度—draft angle, removal taper18）注塑件颜色及光泽—molded color & gloss19）模具加工地—manufacturing facility20）热流道供应商—manifold manufacturer, manifold supplier 21）浇口位置—gate location / position22）浇口类型—gate type23）产品标识—stamp information, part identification24）特殊要求—special instructions2．产品质量及外观要求Part Quality & Appearance1）尺寸及公差Dimension & Tolerance①重要尺寸—critical dimension, important dim., key dim.②理论尺寸—nominal dimension③实际尺寸—actual dimension④公差—tolerance⑤公差带—tolerance range⑥尺寸超差—dimension deviation⑦接受（合格）—accept, OK⑧拒绝（不合格）—reject, refuse, obsolete, NG⑨让步接受—concession, special admit⑩返工—re-work2）产品缺陷（较常见）Defects (normal)①缩印—sink mark, shrinkage②飞边—flash, burr③段差—mismatch discrepancy④银丝纹—snake marks, streak⑤弯曲—warpage, distortion⑥打不足（缺料）—short shot⑦熔接线—weld line3．产品外观Part Appearance①产品颜色—part color②产品光泽—gloss③皮纹粒度—grain4．常用词汇、词组及短语Normal Word, Short Sentence1）单边—per side2）双边—both sides3）加入，添加—add, incorporate4）去除，取消—remove, cancel5）满足…的要求，符合，与…要求一致—according to, conform to, satisfy, meet 6）要求，需要—require, need, demand7）确认—be approved, agreed by …8）允许—permit, allow9）在…范围之内—within10）不可以，不允许，禁止—free from, prevent, avoid11）…，除非有另指—…unless otherwise specified12）…或少于—…or less13）自动化运作—automatic operation14）未注尺寸（详细形状）见三维造型Non dimensioned contour (detailed shape) see 3D model.15）分型线上的飞边（披缝）或段差应小于…Burrs and discrepancy on the P/L shall be … or less.五．标题栏Title Block1．产品名称—part name2．图纸编号 + 版本号（索引号）—drawing no. + level (index)3．一般公差[的标准] —general tolerance（三）如何阅读制模标准？How to read tooling standard? 一．模具结构术语Mold Construction TerminologyA．模架Mold Base1．模架量化特征Measurement Feature①长X 宽X 高—Length X Width X Height②模具推高尺寸（模厚）—stack height of mould③模具重量—total weight of mould, mould thickness2．定模底板—front plate, top clamping plate, clamp plate, clamping plate 3．定模板—cavity plate, fixed mould plate, A – plate4．动模板—core plate, moving mould plate, B – plate5．支撑板—support plate, backing plate6．模脚—support blocks, rails, risers, spacer block7．顶杆固定板—retaining plate, ejector retaining plate8．顶板—ejector plate9．动模底板—back plate10．导柱—guide pillar, leader pin, guide pin11．导套—guide bush, leader pin bush12．复位杆—return pin, push-back pin13．弹簧—spring14．撑头—support pillar15．推板导柱、导套—ejection guide pin / bush16．挡钉—stop pin, stop button17．站立脚—standing-off pillars18．标牌—plaque scutcheonB．成型零部件moulding components19．型芯—core20．型腔—cavity21．镶针—core pin22．镶块—insert, split23．滑块—slide, sliding split24．斜顶—lifter, angled-lift splitA 斜顶头—lifter headB 斜顶杆—lifter rod, lifter shaft 25．成型顶杆—moulding face pin, form pinC．浇注系统Feed System1．塑料Mouldinga．主流道—sprueb．分流道runner①主分流道—main runner②二级分流道—branch runner分流道断面形状cross-sectional shape of runner①圆形—full round②半圆形—semicircular③梯形—trapezoidalc．浇口gate常用浇口形式normal gate type :①边缘浇口（J型浇口）—edge gate, J – gate②侧浇口—side gate③潜伏式浇口—sub-gate, cashew gate, subsurface gate, submarine gate④潜伏式二次浇口(隧道式浇口) —tunnel gate onto feeder post⑤点浇口—pin gate⑥直接浇口(主流道型浇口) —sprue gate, direct gate⑦护耳式浇口—tab gated．模腔—impressione．冷料井—cold slug wellf．热流道—hot runner2．模具零件mold componentsa．定位圈—locating ring, location ring, register ringb．浇口套—sprue bushc．挡圈—stop ringd．浇口镶块—gate inserte．热流道板—manifoldf．热嘴—hot dropD．分型面及其锁紧、排气Parting Surface, inter-locking & venting1．分型线—parting line ( P/L )2．镶拼线—bodyline, joint line3．平/ 不平的分型面—flat / non – flat parting surface4．封胶面—shut off surfaces, seal-off surfaces5．擦位—shut off6．碰穿位—kiss-off7．管位—parting line lock8．分型面的释放(避空) —relief of parting surface9．分型面的平衡—balancing of parting surface10．锁紧角度—locking angle11．锁紧力—clamping force12．锁模板—safety strap13．精定位—Interlock, die lock14．困气—air trap15．排气槽—vent, vent slotE．滑块机构Slide1．驱动Actuation①斜导柱—angled pin, horn pin, cam pin②弹簧—spring③油缸—hydraulic cylinder2．制动Detention①滑块固定器—slide retainer②弹簧制动器—spring-loaded detention (plunger)③挡钉、挡板—stop pin, stop plate, slide stop3．导轨—gib, guide strip4．锁紧块（楔紧块）—heel block, locking heel, wedge block, chase block 5．耐磨片—wear plate, wear strip6．压板—retainer7．螺钉—screw8．定位销—dowelF．斜顶机构Lifter1．斜顶头—lifter head2．斜顶杆—lifter rod, lifter shaft3．开口销—split pin4．固定板（压板）—retainer plate5．耐磨片—wear plate6．铜导套—bronze bushing7．衬套—spacer8．导轨—L – gib9．滑动块—slideG．顶出系统Ejection System1．基本词汇Basic Word①顶出行程—ejection stroke②模具开档—daylight③粘模—stick④产品脱模—part is push off from, clear part of mould, separation of part 2．顶板机构Ejector plate assembly①顶板（推板）—ejector plate②顶板固定板—retaining plate③推板导柱—ejector guide pin④推板导套—ejector guide bush⑤撑头—support pillar, pillar support3．复位机构Return System①复位杆（回程杆）—return pin, push – back pin②挡钉—stop pin, stop button③压簧—compressed spring④碟簧— a stack of ―Belleville‖ washers⑤早复位机构—early return system⑥强制复位机构—positive return system4．顶出方法Ejection Techniques1）顶杆顶出—pin ejection2）顶管顶出—sleeve ejection3）顶块顶出—bar ejection4）扁顶顶出—blade ejection5）顶板顶出—stripper ejection6）油缸顶出—hydraulic ejection7）气顶—air ejection8）阀门顶出—valve ejection5．顶出元件Ejection Elements1）拉料杆—sprue puller, sucker pin2）顶杆—ejector pin3）阶梯式顶杆—stepped ejector pin4）顶管—ejection sleeve, sleeve5）扁顶—ejector blade, slabbed off ejector pin6）顶块—stripper bar7）顶环—stripper ring8）推板—stripper plate9）加速顶—accelerated ejection6．顶出辅助机构Supplementary operating system1）弹簧柱塞器—spring – loaded plunger2）弹珠定位器—ball catch system3）插销式锁扣—Latch – lock4）尼龙拉杆装置—friction puller device7．电器元件Electric Components1）压力传感器—pressure transducer2）限位开关—limit switchF．冷却系统Cooling System1．基本词汇Basic Word1）温差—temperature variation2）水孔（水道）—waterlines, water-ways, flow-way, channel3）水路—cooling circuit4）水路示意图—water schematic, schematic circuit5）冷却液—coolant, coolant fluid6）内连接—interconnect7）外连接—external connection8）出口、入口—outlet、inlet9）漏水—water leakage2．水路分布Circuits1）阶梯式水路—stepped system2）喷淋—baffled hole system3）斜孔式水路—angled hole system3．水路元件Components1）闷头（螺塞、止水栓）—（threadless）brass pressure plug : female plug & male 2）隔水片—baffle3）密封圈—O – ring4）快插水路接头—quick disconnect fitting, quick connection adaptor5）弯头—elbow6）偶合器（连接器、接头）—adaptor (including a plug & a socket)7）橡皮管—rubber hose8）分水板—water manifoldG．螺纹、螺纹孔& 螺钉Thread, thread hole & screw1．螺纹—thread2．管螺纹—pipe thread3．螺纹孔—screw hole, tapped hole4．起吊孔—handling hole, jack screw hole, eye bolt hole5．螺钉—screw6．内六角螺钉—socket headed cap screw （s.h.c.s.）7．沉头螺钉—flat headed cap screw （f.h.c.s）8．螺栓—bolt, eye bolt9．螺母—nut10．锁紧螺母—locknut11．螺纹标准Thread Standard①公制标准—Metric②英制标准—Imperial③英制管螺纹标准—British Standard Pipe thread （BSP）④美制管螺纹标准—NPT⑤美制粗螺纹标准—United Coarse thread （UNC）⑥美制细螺纹标准—United Fine thread （UNF）H．润滑Lubrication1．润滑槽—grease groove2．加油管—grease line3．油杯—lubrication fittingI．测量仪器Measuring Instruments1．游标卡尺—vernier caliper2．千分尺—micrometer3．高度规—height gauge4．刻度规—dial gauge5．三坐标测量仪—Coordinate Measure Machine（CMM）6．塞规—pin gauge7．圆角量规—radii gauge8．輪廓投影機—profile projectorJ．注塑机参数Injection Machine Parameter1．注塑机规格参数Injection Machine Specification①锁紧类型clamp typea．油缸—hydraulic b．肘杆式—toggle②垂直注塑机导柱间距—tie bar vertical clearance③水平注塑机导柱间距—tie bar horizontal clearance④台板尺寸—platen dim.⑤最小/ 最大模厚—mold height Min. / Max., Min. / Max. mold thickness⑥最小/ 最大注塑机开档—open daylight Min. / Max.⑦锁紧行程—clamp stroke⑧锁紧力—clamping force⑨顶出行程—ejector stroke⑩顶出力—ejector force2．试模工艺参数Moulding Process Parameter, machine setting①时间Timer（TM）, seca．注塑（充填）时间—filling time, injection timeb．冷却时间—cooling timec．补缩时间—packing timed．保压时间—holding timee．成型周期—cycle time②速率、速度Velocity, %、speed, in/seca．注塑（充填）速度—injection speedb．保压速率—hold pressure velocityc．螺杆转速—screw rotation speed③压力Pressure（Prs.）, psia．注塑压力—injection pressureb．保压压力—hold pressurec．回压（背压）—back pressure④温度Temperature（Temp.）, °Fa．注塑机喷嘴温度—nozzle temp.b．料筒前段、中段、后段温度—barrel front、middle、rear temp.c．模温—mould temp.d．料温—purged resin melt temp.e．空射料温—air shot melt temp.关于注塑成型对产品造成的各种缺陷及解决方法(一)熔接痕熔接痕是由于来自不同方向的熔融树脂前端部分被冷却、在结合处未能完全融合而产生的。
模具加工方法英语词汇大全
模具加工方法英语词汇大全在模具加工领域，掌握相关英语词汇是非常重要的。
本文将为你提供一个模具加工方法英语词汇大全，帮助你更好地理解和交流相关的知识。
1. 模具加工方法基础词汇Mold (模具)•Cavity: 空腔•Core: 芯子•Ejector Pins: 推杆•Draft Angle: 脱模锥度•Runner: 浇口Machining (加工)•Milling: 铣削•Turning: 车削•Drilling: 钻削•Grinding: 磨削•Boring: 镗削Surface Treatment (表面处理) •Polishing: 抛光•Electroplating: 电镀•Anodizing: 阳极氧化•Coating: 涂层•Sandblasting: 喷砂Measurement (测量)•Caliper: 卡尺•Micrometer: 千分尺•Height Gauge: 高度规•CMM (Coordinate Measuring Machine): 三坐标测量机•Profile Projector: 轮廓投影仪2. 模具加工方法高级词汇CNC Machining (数控加工)•CNC Milling: 数控铣削•CNC Turning: 数控车削•CNC Grinding: 数控磨削•CNC Wire EDM (Electrical Discharge Machining): 数控线切割•CAM (Computer-ded Manufacturing): 计算机辅助制造Injection Molding (注塑)•Mold Design: 模具设计•Mold Flow Analysis: 模流分析•Mold Temperature Control: 模具温度控制•Gate Design: 浇口设计•Venting: 排气Die Casting (压铸)•Die Design: 压铸模具设计•Die Lubrication: 压铸模具润滑•Die Casting Defects: 压铸缺陷•Cold Chamber Die Casting: 冷室压铸•Hot Chamber Die Casting: 热室压铸Stamping (冲压)•Progressive Die: 渐进模具•Blanking: 冲裁•Piercing: 穿孔•Bending: 弯曲•Deep Drawing: 深冲3. 模具加工方法其他相关词汇Mold Materials (模具材料)•Tool Steel: 工具钢•Stnless Steel: 不锈钢•Aluminum: 铝•Copper: 铜•Plastic: 塑料Mold Components (模具部件)•Guide Pins: 导柱•Ejector Sleeves: 推杆套筒•Sprue Bushing: 浇口套筒•Inserts: 嵌件•Lifter: 脱模销Mold Mntenance (模具维护)•Cleaning: 清洁•Lubrication: 润滑•Repr: 修复•Storage: 存储•Replacement: 更换以上是一个模具加工方法英语词汇大全，涵盖了基本和高级词汇以及其他相关词汇。
模具专业的英语词汇大全

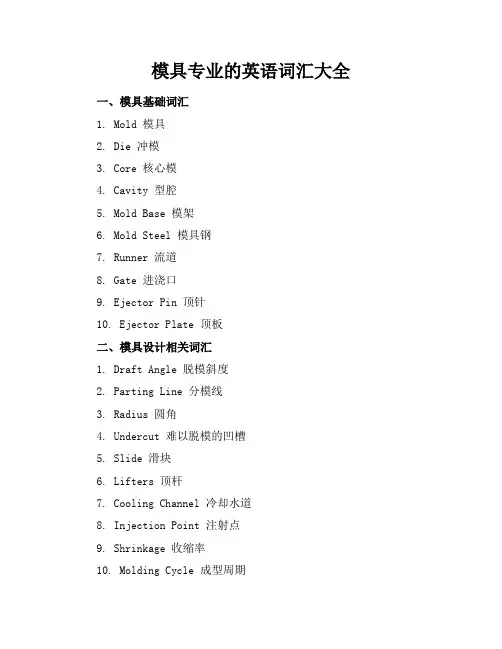

模具专业的英语词汇大全一、模具基础词汇1. Mold 模具2. Die 冲模3. Core 核心模4. Cavity 型腔5. Mold Base 模架6. Mold Steel 模具钢7. Runner 流道8. Gate 进浇口9. Ejector Pin 顶针10. Ejector Plate 顶板二、模具设计相关词汇1. Draft Angle 脱模斜度2. Parting Line 分模线3. Radius 圆角4. Undercut 难以脱模的凹槽5. Slide 滑块6. Lifters 顶杆7. Cooling Channel 冷却水道8. Injection Point 注射点9. Shrinkage 收缩率10. Molding Cycle 成型周期三、模具加工与维护词汇1. Machining 加工2. Milling 铣削3. Grinding 磨削4. EDM (Electrical Discharge Machining) 电火花加工5. Wire Cutting 线切割6. Polishing 抛光7. Assembly 装配8. Maintenance 维护9. Repair 修理10. Replacement 更换四、模具材料与热处理词汇1. Tool Steel 工具钢2. Stainless Steel 不锈钢3. Aluminum 铝4. Plastic 塑料5. Rubber 橡胶6. Heat Treatment 热处理7. Hardness 硬度8. Tempering 回火9. Quenching 淬火10. Annealing 退火五、模具行业相关词汇1. Mold Maker 模具师傅2. Mold Designer 模具设计师3. Mold Manufacturer 模具制造商4. Injection Molding 注塑成型5. Blow Molding 吹塑成型6. Compression Molding 压缩成型7. Transfer Molding 传递成型8. Prototype Model 原型模具9. Mass Production 批量生产10. Quality Inspection 质量检验六、模具测试与质量控制词汇1. First Article Inspection 首件检查2. Sample 样品3. Defect 缺陷4. Dimensional Accuracy 尺寸精度5. Tolerance 公差6. Surface Finish 表面光洁度7. Stress Analysis 应力分析8. Flow Analysis 流动分析9. Mold Flow Simulation 模具流动模拟10. Quality Control 质量控制七、模具行业常用设备词汇1. Injection Molding Machine 注塑机2. Extruder 挤出机3. Blow Molding Machine 吹塑机4. CNC Machine 数控机床5. Lathe 车床6. Milling Machine 铣床7. Grinder 磨床8. EDM Machine 电火花机床9. Laser Cutter 激光切割机10. Robot 自动化八、模具生产流程词汇1. Design Drawing 设计图纸2. Mold Construction 模具构建3. Machining Process 加工工艺4. Tooling Setup 模具安装5. Trial Run 试模6. Adjustment 调整7. Production Run 生产运行8. Mold Maintenance 模具保养9. Mold Modification 模具修改10. Mold Recycling 模具回收九、模具行业认证与标准词汇1. ISO Certification ISO认证2. Quality Management System 质量管理体系3. Standard 标准化4. DIN 德国工业标准5. ASTM 美国材料与试验协会6. JIS 日本工业标准7. Certification Body 认证机构8. Audit 审核检查9. Compliance 符合性10. Continuous Improvement 持续改进十、模具行业发展趋势词汇1. Automation 自动化2. Intelligent Manufacturing 智能制造3. 3D Printing 三维打印4. Rapid Prototyping 快速原型5. Industry 4.0 工业4.06. Internet of Things (IoT) 物联网7. Big Data 大数据8. Cloud Computing 云计算9. Sustainable Development 可持续发展10. CrossIndustry Integration 跨行业整合通过这些词汇，我们可以看到模具行业不仅涉及具体的技术和操作，还包括了管理、质量控制、认证以及未来的发展趋势。
模具专业英文术语大全
模具专业英文术语大全1. Die - 模具2. Mold - 模具3. Cavity - 型腔4. Core - 芯子5. Ejector pin - 顶杆6. Land - 分型面7. Gate - 浇口8. Filleting - 去毛刺9. Trim - 修整10. Draft - 拔模斜度11. Undercut - 底切12. Flash - 飞边13. Warpage - 翘曲14. Shrinkage - 收缩15. Melt flow rate - 熔融指数16. Injection molding - 注塑成型17. Blow molding - 吹塑成型18. Compression molding - 压缩成型19. Vacuum molding - 真空成型20. Overmolding - 包覆成型21. Co-injection molding - 双色注塑成型22. Gas assist injection molding - 气体辅助注塑成型23. Rotational molding - 旋转成型24. Injection compression molding - 注射压缩成型25. Injection blow molding - 注射吹塑成型26. Injection stretch blow molding - 注射拉伸吹塑成型27. Injection transfer molding - 注射传递成型28. Injection foam molding - 注射发泡成型29. Injection gas assisted rotational molding - 注射气体辅助旋转成型30. Injection compression blow molding - 注射压缩吹塑成型31. Injection stretch blow molding - 注射拉伸吹塑成型32. Injection transfer blow molding - 注射传递吹塑成型33. Injection foam blow molding - 注射发泡吹塑成型34. Injection gas assisted transfer molding - 注射气体辅助传递成型35. Injection compression foam molding - 注射压缩发泡成型36. Injection stretch foam molding - 注射拉伸发泡成型37. Injection transfer foam molding - 注射传递发泡成型38. Injection gas assisted foam blow molding - 注射气体辅助发泡吹塑成型39. Injection compression foam blow molding - 注射压缩发泡吹塑成型40. Injection stretch foam blow molding - 注射拉伸发泡吹塑成型41. Injection transfer foam blow molding - 注射传递发泡吹塑成型42. Injection gas assisted compression molding - 注射气体辅助压缩成型43. Injection gas assisted stretch blow molding - 注射气体辅助拉伸吹塑成型44. Injection gas assisted transfer blow molding - 注射气体辅助传递吹塑成型45. Injection gas assisted foam compression molding - 注射气体辅助发泡压缩成型46. Injection gas assisted foam stretch blow molding - 注射气体辅助发泡拉伸吹塑成型47. Injection gas assisted foam transfer blow molding - 注射气体辅助发泡传递吹塑成型48. Injection gas assisted compression foam molding - 注射气体辅助压缩发泡成型49. Injection gas assisted stretch foam blow molding - 注射气体辅助拉伸发泡吹塑成型50. Injection gas assisted transfer foam blow molding - 注射气体辅助传递发泡吹塑成型51. Mold temperature control system - 模具温度控制系统52. Coolant system - 冷却系统53. Ejector system - 顶出系统54. Feed system - 喂料系统55. Packaging machine - 包装机56. Automated guided vehicle (AGV) - 自动导引车（AGV）57. Robotic arm - 机械臂58. Computer numerical control (CNC) machine - 计算机数控（CNC）机床59. Plastics injection machine - 塑料注塑机60. Plastics extruder - 塑料挤出机61. Plastics blow molding machine - 塑料吹塑机62. Plastics injection compression molding machine -塑料注塑压缩成型机63. Plastics injection stretch blow molding machine - 塑料注塑拉伸吹塑成型机64. Plastics injection transfer molding machine - 塑料注塑传递成型机65. Plastics injection foam molding machine - 塑料注塑发泡成型机66. Plastics injection gas assisted rotational molding machine - 塑料注塑气体辅助旋转成型机67. Plastics injection compression foam molding machine - 塑料注塑压缩发泡成型机68. Plastics injection stretch foam molding machine - 塑料注塑拉伸发泡成型机69. Plastics injection transfer foam molding machine - 塑料注塑传递发泡成型机70. Plastics injection gas assisted foam blow molding machine - 塑料注塑气体辅助发泡吹塑成型机71. Plastics injection compression foam blow molding machine - 塑料注塑压缩发泡吹塑成型机72. Plastics injection stretch foam blow molding machine - 塑料注塑拉伸发泡吹塑成型机73. Plastics injection transfer foam blow moldingmachine - 塑料注塑传递发泡吹塑成型机74. Plastics injection molding machine with movable platen - 带活动模板的塑料注塑机75. Plastics injection molding machine with fixed platen - 带固定模板的塑料注塑机76. Plastics injection molding machine with hot runner system - 带热流道系统的塑料注塑机77. Plastics injection molding machine with cold runner system - 带冷流道系统的塑料注塑机78. Plastics injection molding machine with multi-cavity design - 带多腔设计的塑料注塑机79. Plastics injection molding machine with clamping force control - 带夹紧力控制的塑料注塑机80. Plastics injection molding machine with cycle time reduction - 带循环时间缩短的塑料注塑机81. Plastics injection molding machine with energy saving features - 带节能功能的塑料注塑机82. Plastics injection molding machine with high precision control - 带高精度控制的塑料注塑机83. Plastics injection molding machine with automatic tool changing system - 带自动换模系统的塑料注塑机84. Plastics injection molding machine with roboticautomation - 带机器人自动化的塑料注塑机85. Plastics injection molding machine with quality control system - 带质量管理系统的塑料注塑机86. Plastics injection molding machine with process monitoring system - 带工艺监控系统的塑料注塑机87. Plastics injection molding machine with maintenance reminder system - 带维护提醒系统的塑料注塑机88. Plastics injection molding machine with data logging and analysis - 带数据记录和分析的塑料注塑机89. Plastics injection molding machine with remote control and monitoring - 带远程控制和监控的塑料注塑机90. Plastics injection molding machine with safety features - 带安全功能的塑料注塑机91. Plastics injection molding machine with operator interface - 带操作员界面的塑料注塑机92. Plastics injection molding machine with easy cleaning system - 带易清洁系统的塑料注塑机93. Plastics injection molding machine with quick change tooling - 带快速换模装置的塑料注塑机94. Plastics injection molding machine with low noiseoperation - 带低噪音运行的塑料注塑机95. Plastics injection molding machine with high throughput capacity - 带高产量能力的塑料注塑机96. Plastics injection molding machine with energy recovery system - 带能量回收系统的塑料注塑机97. Plastics injection molding machine with environmental protection features - 带环保功能的塑料注塑机98. Plastics injection molding machine with advanced materials compatibility - 带先进材料兼容性的塑料注塑机99. Plastics injection molding machine with customizable options - 可定制选项的塑料注塑机100. Plastics injection molding machine with reliable performance and durability - 具有可靠性能和耐用性的塑料注塑机。
模具专业英语词汇
模具专业英语词汇landed plunger mold 有肩柱塞式模具burnishing die 挤光模英语站landed positive mold 有肩全压式模具button die 镶入式圆形凹模loading shoe mold 料套式模具center-gated mold 中心浇口式模具loose detail mold 活零件模具chill mold 冷硬用铸模loose mold 活动式模具clod hobbing 冷挤压制模louvering die 百叶窗冲切模composite dies 复合模具manifold die 分歧管模具counter punch 反凸模modular mold 组合式模具double stack mold 双层模具multi-cavity mold 多模穴模具electroformed mold 电铸成形模multi-gate mold 复式浇口模具expander die 扩径模offswt bending die 双折冷弯模具extrusion die 挤出模palletizing die 叠层模family mold 反套制品模具plaster mold 石膏模blank through dies 漏件式落料模porous mold 通气性模具duplicated cavity plate 复板模positive mold 全压式模具fantail die 扇尾形模具pressure die 压紧模fishtail die 鱼尾形模具profile die 轮廓模flash mold 溢料式模具progressive die 顺序模gypsum mold 石膏铸模protable mold 手提式模具hot-runner mold 热流道模具prototype mold 雏形试验模具ingot mold 钢锭模punching die 落料模lancing die 切口模raising(embossing) 压花起伏成形re-entrant mold 倒角式模具sectional die 拼合模runless injection mold 无流道冷料模具sectional die 对合模具segment mold 组合模semi-positive mold 半全压式模具shaper 定型模套single cavity mold 单腔模具solid forging die 整体锻模split forging die 拼合锻模split mold 双并式模具sprueless mold 无注道残料模具squeezing die 挤压模stretch form die 拉伸成形模sweeping mold 平刮铸模swing die 振动模具three plates mold 三片式模具trimming die 切边模unit mold 单元式模具universal mold 通用模具unscrewing mold 退扣式模具yoke type die 轭型模accurate die casting 精密压铸powder forming 粉末成形calendaring molding 压延成形powder metal forging 粉末锻造cold chamber die casting 冷式压铸precision forging 精密锻造cold forging 冷锻press forging 冲锻compacting molding 粉末压出成形rocking die forging 摇动锻造compound molding 复合成形rotary forging 回转锻造compression molding 压缩成形rotational molding 离心成形dip mold 浸渍成形rubber molding 橡胶成形encapsulation molding 注入成形sand mold casting 砂模铸造extrusion molding 挤出成形shell casting 壳模铸造foam forming 发泡成形sinter forging 烧结锻造forging roll 轧锻six sides forging 六面锻造gravity casting 重力铸造slush molding 凝塑成形hollow(blow) molding 中空(吹出)成形squeeze casting 高压铸造hot chamber die casting 热室压铸swaging 挤锻hot forging 热锻transfer molding 转送成形injection molding 射出成形warm forging 温锻investment casting 精密铸造matched die method 对模成形法laminating method 被覆淋膜成形low pressure casting 低压铸造lost wax casting 脱蜡铸造matched mould thermal forming 对模热成形模bismuth mold 铋铸模landed plunger mold 有肩柱塞式模具burnishing die 挤光模landed positive mold 有肩全压式模具button die 镶入式圆形凹模loading shoe mold 料套式模具center-gated mold 中心浇口式模具loose detail mold 活零件模具chill mold 冷硬用铸模loose mold 活动式模具clod hobbing 冷挤压制模louvering die 百叶窗冲切模composite dies 复合模具manifold die 分歧管模具counter punch 反凸模modular mold 组合式模具double stack mold 双层模具multi-cavity mold 多模穴模具electroformed mold 电铸成形模multi-gate mold 复式浇口模具expander die 扩径模offswt bending die 双折冷弯模具extrusion die 挤出模palletizing die 迭层模family mold 反套制品模具plaster mold 石膏模blank through dies 漏件式落料模porous mold 通气性模具duplicated cavity plate 复板模positive mold 全压式模具fantail die 扇尾形模具pressure die 压紧模fishtail die 鱼尾形模具profile die 轮廓模flash mold 溢料式模具progressive die 顺序模gypsum mold 石膏铸模protable mold 手提式模具hot-runner mold 热流道模具prototype mold 雏形试验模具ingot mold 钢锭模punching die 落料模raising(embossing) 压花起伏成形re-entrant mold 倒角式模具sectional die 拼合模runless injection mold 无流道冷料模具sectional die 对合模具segment mold 组合模semi-positive mold 半全压式模具shaper 定型模套single cavity mold 单腔模具solid forging die 整体锻模split forging die 拼合锻模split mold 双并式模具sprueless mold 无注道残料模具squeezing die 挤压模stretch form die 拉伸成形模sweeping mold 平刮铸模swing die 振动模具injection mold 注塑模rubber molding 橡胶成形hot chamber die casting 热室压铸sand mold casting 砂模铸造extrusion mold 挤出模multi-cavity mold 多模穴模具palletizing die 叠层模plaster mold 石膏模three plates mold 三板模plain die 简易模pierce die 冲孔模progressive die 连续模gang dies 复合模shearing die 剪边模riveting die 铆合模compre sion molding 压缩成型flash mold 溢流式模具plsitive mold 挤压式模具split mold 分割式模具cavity 型控母模core 模心公模runner system浇道系统sprue/cold material trap 浇道/冷料井sprue puller 拉杆runner design 流道设计main runner 主流道secondary runner 次流道gate design 浇口设计submarine gate 潜伏浇口tunnel gate 隧道式浇口pinpoint gate 点浇口fan gate 扇形浇口side gate 侧浇口edge gate 侧缘浇口tab gate 搭接浇口film gate 薄膜浇口flash gate 闸门浇口slit gate 缝隙浇口dish gate 盘形浇口diaphragm gate 隔膜浇口ring gate 环形浇口Runner less 无浇道(sprue less) 无射料管方式long nozzle 延长喷嘴方式sprue 浇口;溶渣insulated runner/hot runner 热浇道runner plat 浇道模块valve gate阀门浇口slag well 冷料井cold slag 冷料渣sprue gate 射料浇口，直浇口nozzle 射嘴sprue lock pin 料头钩销(拉料杆) 注塑缺陷：flash 飞边warpage 翘曲air trap 积风blush 发赤flow line 流痕splay 银纹short shot 短射sink mark 缩痕streak 条纹void 缩孔weld line 熔接线gas mark 烧焦cold slug 冷斑delamination 起皮burr 毛刺flaw/scratch 刮伤gloss 光泽glazing 光滑surface check 表面裂痕hesitation 迟滞注塑工艺:molding conditions 成型条件drying 烘干barrel temperature 料筒温度melt temperature 熔化温度mold temperature 模具温度injection pressure 注塑压力back pressure 背压injection speed 注塑速度screw speed 螺杆转速tensile strength 抗拉强度tensile elongation 延伸率flexural modulus 弯曲模数flexural strength 抗弯强度shrinkage 收缩率regrind usage 次料使用机械设备:lathe车床planer |刨床miller 铣床grinder 磨床driller 钻床linear cutting 线切割electrical sparkle 电火花welder 电焊机punching machine 冲床robot机械手common equipment常用设备EDM=Electron Discharge Machining 放电加工3D coordinate measurement 三次元量床boring machine 搪孔机milling machine 铣床contouring machine 轮廓锯床copy grinding machine 仿形磨床cylindrical grinding machine 外圆磨床die spotting machine 合模机engraving machine 雕刻机engraving E.D.M. 雕模放置加工机form grinding machine 成形磨床graphite machine 石墨加工机horizontal boring machine 卧式搪孔机horizontal machine center 卧式加工制造中心internal cylindrical machine 内圆磨床模具零件:top plate上托板（顶板）top block上垫脚punch set上模座punch pad上垫板punch holder上夹板stripper pad脱料背板up stripper上脱料板male die公模(凸模)feature die公母模female die母模(凹模)upper plate上模板lower plate下模板die pad下垫板die holder下夹板die set下模座bottom block下垫脚bottom plate下托板(底板) stripping plate内外打(脱料板) outer stripper外脱料板inner stripper内脱料板lower stripper下脱料板inner guiding post内导柱inner hexagon screw内六角螺钉dowel pin固定销coil spring弹簧lifter pin顶料销eq-height sleeves=spool等高套筒pin销lifter guide pin浮升导料销guide pin导正销wire spring圆线弹簧outer guiding post外导柱stop screw止付螺丝located pin定位销outer bush外导套punch冲头insert入块(嵌入件)deburring punch压毛边冲子groove punch压线冲子stamped punch字模冲子round punch圆冲子special shape punch异形冲子bending block折刀roller滚轴baffle plate挡块located block定位块supporting block for location定位支承块air cushion plate气垫板air-cushion eject-rod气垫顶杆trimming punch切边冲子stiffening rib punch = stinger 加强筋冲子ribbon punch压筋冲子reel-stretch punch卷圆压平冲子guide plate定位板sliding block滑块sliding dowel block滑块固定块active plate活动板lower sliding plate下滑块板upper holder block上压块upper mid plate上中间板spring box弹簧箱spring-box eject-rod弹簧箱顶杆spring-box eject-plate弹簧箱顶板bushing bolck衬套cover plate盖板guide pad导料块模具述语一、入水：gate进入位：gate location水口形式：gate type大水口：edge gate细水口： pin-point gate水口大小：gate size转水口：switching runner/gate 唧嘴口径：sprue diameter二、流道: runner热流道：hot runner,hot manifold 热嘴冷流道: hot sprue/cold runner 唧嘴直流: direct sprue gate圆形流道：round(full/half runner 流道电脑分析：mold flow analysis 流道平衡:runner balance热嘴：hot sprue热流道板：hot manifold发热管：cartridge heater探针: thermocouples插头：connector plug插座： connector socket密封/封料： seal三、运水：water line喉塞：line lpug喉管：tube塑胶管：plastic tube快速接头：jiffy quick connector plug/socker四、模具零件：mold components 三板模：3-plate mold 二板模：2-plate mold边钉/导边：leader pin/guide pin边司/导套：bushing/guide bushing中托司：shoulder guide bushing中托边L：guide pin顶针板：ejector retainner plate托板：support plate螺丝： screw管钉：dowel pin开模槽：ply bar scot 撑头: support pillar唧嘴： sprue bushing挡板：stop plate定位圈：locating ring锁扣：latch扣鸡：parting lock set推杆：push bar栓打螺丝：S.H.S.B顶板：eracuretun活动臂：lever arm分流锥：spure sperader水口司:bush垃圾钉：stop pin隔片：buffle弹弓柱：spring rod弹弓:die spring中托司：ejector guide bush中托边：ejector guide pin镶针：pin销子：dowel pin波子弹弓：ball catch喉塞: pipe plug锁模块：lock plate斜顶：angle from pin斜顶杆：angle ejector rod尼龙拉勾：parting locks活动臂：lever arm复位键、提前回杆：early return bar气阀：valves斜导边：angle pin术语：terms承压平面平衡：parting surface support balance模排气：parting line venting回针碰料位：return pin and cavity interference模总高超出啤机规格：mold base shut hight顶针碰运水：water line interferes withejector pin料位出上/下模：part from cavith (core) side模胚原身出料位：cavity direct cut on A-plate,core direct cut on B-plate.内模管位：core/cavity inter-lock顶针：ejector pin司筒：ejector sleeve司筒针：ejector pin推板：stripper plate缩呵：movable core,return core core puller扣机（尼龙拉勾）：nylon latch lock斜顶：lifter模胚（架）： mold base上内模：cavity insert下内模：core insert行位（滑块）： slide镶件：insert压座/斜鸡：wedge耐磨板/油板：wedge wear plate压条：plate 不准用镶件： Do not use (core/cavity) insert 用铍铜做镶件： use beryllium copper insert初步（正式）模图设计：preliinary (final) mold design反呵：reverse core弹弓压缩量：spring compressed length稳定性好：good stability,stable强度不够：insufficient rigidity均匀冷却：even cooling扣模：sticking热膨胀：thero expansion公差：tolorance铜公(电极）：copper electrodAabrasion n. 磨损mósǔnabrasion resistance n. 耐磨损性nài mósǔn xìng abrasive n. 磨料móliàoaccelerator n. 促进剂cùjìnjìaccuracy n. 准确性zhǔnquèxìngacrylic n. 丙烯酸bǐngxīsuān，压克力yākelìadditive n. 添加剂tiānjiājìadhere v. 黏附niánfùadhesion n. 黏合niánhéadhesive n. 胶粘剂jiāozhānjìair entrapment n. 困气kùnqìanneal v. 退火tùihuǒassemble v. 总成zǒngchéngBbarrel n. 机筒jītǒng，料筒liàotǒngblow molding n. 吹塑成型chūisùchéngxíng blow molding machine n. 吹塑机chūisùjībrittle adj. 脆性cùixìngbubble n. 气泡qìpàoby-product n. 副产品fùchǎnpǐnCcalendering n. 压延yāyáncarbon steel n. 碳素钢tànsùgāngcasting n. 铸造zhùzàocatalyst n. 催化剂cūihuàjìcavity n. 型腔xíngqiāngchemical resistance n. 耐化学腐蚀性nài huàxuéfǔshíxìngchip v. 削xiāo，凿záoclamping force n. 锁模力suǒmólìclamping tonnage n. 锁模吨位suǒmódūnwèicomputer aided design (CAD) n. 电脑辅助设计diànnǎo fǔzhùshèjìcomputer aided manufacture (CAM) n. 电脑辅助制造diànnǎo fǔzhùzhìzàocomputer numerical control (CNC) n. 电脑数字控制diànnǎo shùzìkòngzhìceramic n. 陶瓷táocícold rolled steel n. 冷轧圆钢lěng zháyuán gāngcold runner n. 冷流道lěng liúdàocolorant n. 着色剂zhuósèjìcomposite n. 复合材料fùhécáiliàocompression strength n. 抗压强度kàngyāqiángdùcooling channel/circuit n. 冷却管道lěngquèguǎndàocooling rate n. 冷却速率lěngquèsùlǜcore n. 型芯xíngxīn，模芯móxīncorrosion n. 腐蚀fǔshícorrosion resistance n. 耐腐蚀性nài fǔshíxìngcure v. 固化gùhuàcustom adj. 定制dìngzhìcycle time n. 循环时间xúnhuán shíjiānDdegassing n. 排气páiqìdensity n. 密度mìdùdeform v. 变形biànxíngdie n. 冲模chòngmódie casting n. 压铸yāzhù，模铸mózhùdimension n. 尺寸chǐcùndimensional tolerance n. 尺寸公差chǐcùn gōngchàdistort v. 扭曲niǔqūdraft angle n. 拨模斜度bōmóxiédùdwell time n. 驻留时间zhùliúshíjiāndye n. 染料ránliàoEejector mark n. 顶出痕迹dǐngchūhénjìejection pin n. 顶出杆dǐngchūgān，推顶锁tūidǐng suǒ，脱模锁tuōmósuǒejection plate n. 推顶板tūidǐng bǎn，脱模板tuōmóbǎnejection rod n. 脱模板拉杆tuōmóbǎn lāgānelastomer n. 弹性体tánxìngtǐelectrical discharge machining (EDM) n. 电火花加工diànhuǒhuājiāgōngepoxy n. 环氧树脂huányǎngshùzhīextruder n. 挤出机jǐchūjīextrusion n. 挤出jǐchū，挤塑jǐsùFfabricate v. 制造zhìzàofiber n. 纤维xiānwéifiberglass n. 玻璃纤维bōli xiānwéifiber reinforcement n. 纤维增强xiānwéi zēngqiángfilm n. 薄膜báomófire retardant n. 阻燃剂zǔránjìflash n. 溢料yìliàoflow mark n. 流痕liúhénflow rate n. 流动速率liúdòng sùlǜfluorescent adj. 荧光yíngguāngfluorescent brightener n. 荧光增白剂yíngguāng zēngbáijìfoam n. 泡沫pàomòfuse v. 熔合rónghéGgas assisted injection molding n. 气辅注射成型qìfǔzhùshèchéngxínggate n. 浇口jiāokǒugate mark n. 浇口痕jiāokǒu héngear n. 齿轮chǐlúngrinder n. 研磨机yánmójī，磨床móchuángHheat conduction n. 热传导rèchuándàoheater band n. 加热圈jiārèquānheat treatment n. 热处理rèchǔlǐhigh density polyethylene (HDPE) n. 高密度聚乙烯gāo mìdùjùyǐxīhigh impact plastic n. 高抗冲塑料gāo kàngchòng sùliàohigh impact polystyrene n. 高抗冲聚苯乙烯gāo kàngchòng jùběnyǐxīhobbing n. 滚铣gǔnxǐ，挤压制模jǐyāzhìmó，切压制模qiēyāzhìmóholding n. 保压bǎoyāhot runner n. 热流道rèliúdàoIimpact strength n. 冲击强度chòngjīqiángdùinjection n. 注射zhùshè，注塑zhùsùinjection molding n. 注塑成型zhùsùchéngxínginjection molding machine n. 注塑机zhùsùjīinjection pressure n. 注塑压力zhùsùyālìinsulated runner n. 绝热流道juérèliúdào，保温流道bǎowēn liúdàoinsulation layer n. 绝热层juérècénginternally heated runner n. 内加热流道nèi jiārèliúdàointernal void n. 内部空腔nèibùkōngqiāngJjoint n. 接头jiētóu，连接liánjiēLlaser n. 激光jīguānglaser cutter n. 激光切割机jīguāng qiēgējīlathe n. 车床chēchuánglocating pin n. 定位锁dìngwèi suǒlow density polyethylene n. 低密度聚乙烯dīmìdùjùyǐxīMmelt v. 熔融róngróngmelt index n. 熔融指数róngróng zhǐshùmill (metal) v. 铣 xǐmachining n. 机加工jījiāgōngmachining path n. 加工路径jiāgōng lùjìng manufacture v. 制造zhìzàomeld line n. 融合线rónghéxiànmetal machining n. 金属加工jīnshùjiāgōngmilling machine n. 铣床xǐchuángmodel n. 模型móxíngmonomer n. 单体dāntǐmold n. 模具mójùmold cavity n. 模具型腔mójùxíngqiāngmold life n. 模具寿命mójùshòumìngmulticavity mold n. 多腔模具duōqiāng mójùmulticolor injection molding n. 多色注塑duōsèzhùsùmultigate mold n. 多浇口模具duōjiāokǒu mójùmultishot injection molding n. 多色注塑duōsèzhùsùNnozzle n. 喷嘴pēnzǔiNylon n. 尼龙NílóngOoxidation resistance n. 耐氧化性nài yǎnghuàxìng oxidize v. 氧化yǎnghuàPpackaging n. 包装bāozhuāngpacking n. 补料bǔliàoparison n. 型坯xíngpīpart n. 零件língjiànparting line n. 分模线fēnmóxiànparting plane n. 分模面fēnmómiànpinhole gate n. 针孔形浇口zhēnkǒngxíng jiāokǒu plastic n. 塑料sùliàoplasticity n. 塑性sùxìngplasticizer n. 增塑剂zēngsùjìplotter n. 绘图机hùitújīpolish v. 抛光pāoguāngpolycarbonate (PC) n. 聚碳酸酯jùtànsuānzhǐpolyethylene n. 聚乙烯jùyǐxīpolyester n. 聚酯jùzhǐpolymer n. 聚合物（体）jùhéwù(tǐ)，高聚物gāojùwùpolymerization n. 聚合jùhépolystyrene n. 聚苯乙烯jùběnyǐxīpolyurethane n. 聚氨脂jù'ānzhīpolyvinyl chloride (PVC) n. 聚氯乙烯jùlǜyǐxīporous adj. 多孔duōkǒngprecise adj. 精密jīngmìprecision n. 精度jīngdùprecision injection machine n. 精密注塑机jīngmìzhùsùjīprecision molding n. 精密模塑jīngmìmósùpreform n. 预成型yùchéngxíngpreform molding n. 预成型模塑yùchéngxíng mósùprocess v. 处理chǔlǐ；加工jiāgōngproduction line n. 生产线shēngchǎnxiànprototype n. 原型yuánxíngpunch n. 冲头chòngtóuQquench v. 淬火cùihuǒRregrind n. 回用料húiyòngliàoresin n. 树脂shùzhīrib n. 肋条lèitiáorib stiffener n. 加强肋jiāqiáng lèirigidity n. 刚性gāngxìngripple n. 波纹bōwén，皱纹zhòuwénrough adj. 粗糙cūcāorubber n. 橡胶xiàngjiāo；橡皮xiàngpírunner n. 流道liúdàorunnerless adj. 无流道wúliúdàorunnerless injection mold n. 无流道注塑模具wúliúdào zhùsùmójùSscale n. 比例bǐlìschematic n. 图解tújiěseal v. 密封mìfēngshort shot n. 短射duǎnshè，欠料注射qiànliào zhùshèshot n. 注料zhùliào，注射zhùshèshot size n. 注塑量zhùsùliàngshrinkage n. 收缩shōusuōside core n. 侧性芯cèxìngxīnside gate n. 侧向浇口cèxiàng jiāokǒusilicone n. 聚硅氧烷jùgūiyǎngwánsilicone rubber n. 硅橡胶gūixiàngjiāosimulate v. 模拟mónǐsingle cavity mold n. 单腔模具dān qiāng mójùsingle gate mold n. 单浇口模具dān jiāokǒu mójùsink mark n. 凹痕āohén，缩痕suōhénslide n. 滑动阀huádòngfásoftener n. 软化剂ruǎnhuàjìsprue n. 注道zhùdàosteam channel n. 汽道qìdàostabilizer n. 稳定剂wěndìngjìstamping n. 冲压chòngyāstainless steel n. 不锈钢bùxiùgāngstrain n. 应变yìngbiànstreak n. 条纹tiáowén，条痕tiáohénstress n. 应力yìnglìstripper n. 脱模器tuōmóqì，顶出器dǐngchūqìstripper ring n. 脱模圈tuōmóquānsurface defect n. 表面缺陷biǎomiàn quēxiàn surface treatment n. 表面处理biǎomiàn chǔlǐsymmetrical adj. 对称dùichēngsymmetry n. 对称dùichēngTtie bar n. 连接杆liánjiēgānTeflon n. 特氟隆Tèfúlóngtemper v. 回火hùihuǒtensile strength n. 抗张强度kàngzhāng qiángdùthermoforming n. 热成型rèchéngxíngthermoplastic n. 热塑性塑料rèsùxìng sùliào adj. 热塑性rèsùxìngthermoset n. 热固性塑料règùxìng sùliào adj. 热固性règùxìngthree-dimensional adj. 三维空间sānwéi kōngjiāntolerance n. 公差gōngchàtool mark n. 刀痕dāohéntool steel n. 工具钢gōngjùgāngUultrasonic welder n. 超声波焊接机chāoshēngbōhánjiējīundercut n. 凹孔āokǒngunit cost n. 单价dānjiàVvacuum n. 真空 zhēnkōngvented injection molding n. 排气式注塑成型páiqìshìzhùsùchéngxíngviscosity n. 黏度niándù，黏性niánxìngvulcanize v. 硫化liúhuàWwarpage n. 翘曲变形qiàoqūbiànxíngwear n. 磨损mósǔnwear resistance n. 耐磨损性nài mósǔn xìngweld line n. 熔接线róngjiēxiànworking drawing n. 工程图根据国家标准，以下为部分塑料模具成形术语的标准翻译。
模具英语词汇
air pipe 气管 packaging tool打包机 packaging打包automatic screwdriver电动启子 thickness gauge厚薄规 gauge(or jig)治具 power wire电源线 buzzle蜂鸣器 defective product label不良标签 identifying sheet list标示单 screwdriver holder起子插座
file 锉刀 flange joint 凸缘接头 grinder 砂轮机 hammer 铁锤 hand brace 手摇钻 hatching 剖面线 hexagon headed bolt六角头螺栓 hexagon nut 六角螺帽 index head 分度头 jack 千斤 jig 治具
kit 工具箱
六：common vocabulary for die engineering模具工程常用词汇 die 模具 figure file, chart file图档 cutting die, blanking die冲裁模 progressive die, follow (-on)die 连续模 compound die复合模 punched hole冲孔 panel board镶块 to cutedges=side cut=side scrap切边 to bending折弯 to pull, to stretch拉伸 Line streching, line pulling线拉伸 engraving, to engrave刻印 upsiding down edges翻边 to stake铆合 designing, to design设计 design modification设计变化 die block模块 folded block折弯块 sliding block滑块
