PARKER--胶管基本理论
胶管的性能要素
真空试验 在真空下保持5分钟，检测软管是否有起泡或其他症状 体积膨胀试验 在特定压力下，测试软管的体积膨胀变化
真空试验设备
体积膨胀试验设备
胶管的性能要素
SAE J 1273 软管和软管总成的挑选, 安装和维护 SAE J 343 : SAE 100R 系列软管和软管总成 SAE J 517 : 液压软管 SAE J 1405 : 液压软管总成的脉冲试验程序 ASTM D 380 : 橡胶软管的标准试验方法
•温度：软管的温度范围由压力、流体和环境 温度决定 •当在选择软管时，必须考虑流体和环境温度 •无论是稳定的还是瞬时的温度，都不得超过 软管的耐温极限，否则会降低软管性能
STAMP
应用-Application
•挑选软管时，了解软管的应用目的是非常重 要的，这也可以为接头型式的选择提供参考 •询问你的客户在哪，怎样使用软管
STAMP
介质-Media • 介质是在软管中流动的液体或气体 • 首先决定在使用中，介质的成分 • 可从化学兼容性表查得
STAMP
压力-Pressure
• 当在挑选软管时，其最大推荐工作压力不 得小于最大系统压力，压力瞬时峰值也必 须被考虑在内 • 一般胶管的压力随着内径的减小而增大
Parker 软管 选型
Parker 软管 选型 问题
客户 : 我要买橡胶软管,1英寸尺寸,有330 Kgf/cm2工作压力,使用普通液压油，温度低于 100 C
Parker 软管 选型 回答
• SAE J517 100R13-16 软管 有 350 Kgf/cm2 工作压力，EN 856 4SH-16 (DIN 20023 4SH-16) 软管 有 350 Kgf/cm2 工作压力 • 781(C)-16, 731-16
增强层
增强层类型 : 编织 / 缠绕
编织
缠绕
增强层
• 增强层可以是： – 编织 – 缠绕
外 层
• 耐全天候的合成胶料制成。 • 保护增强层免受: – 磨损 – 化学物品 – 腐蚀 – 臭氧 & 紫外线
外 层
外胶层基本材料 • Nitrile (NBR) 丁晴橡胶 • Neoprene (SBR, CR) 氯丁橡胶 • PKR (CPE) 氯化聚乙烯 • 纤维编织层 (尼龙, 聚脂) 取代合成橡胶 • 其它
内层: 流畅介质 增强层: 包裹内胶层提供胶管支撑力和耐 压力 外层: 保护增强层免受磨损和腐蚀
内层
• 具有介质兼容性的合成胶料。 • 由胶料挤压心轴而制成的。
内层
内胶层基本材料 • Nitrile (NBR)丁晴橡胶 • Neoprene (SBR, CR) 氯丁胶 • EPDM 三元乙丙橡胶 • PKR (CPE) 氯化聚乙烯 •尼龙
胶管选型
选择胶管
遵循STAMP原则，可引导你如何选用软管
S-Size 尺寸 T-Temperature 温度 A-Application 应用 M-Media 介质 P-Pressure 压力
STAMP
尺寸-Size
•为保持软管内介质流量和流速,选择合适ID的软管 很重要. •太小的ID会造成流速过快. •太大的ID会造成资源浪费达不到压力要求.
Parker 软管 选型 问题
• 客户 : 我需要橡胶软管,尺寸1英寸 ,JIS系列号为 W275, 使用普通液压油.使用 什么型号产品呢?
Parker 软管 选型 回答
• JIS W275 表示最大工作压力为 280 Kgf/cm2, 和 1 inch 尺寸. SAE J517 100R12-16 软管 有 280 Kgf/cm2 工作压力. • 771-16
3/16 1/4 5/16 3/8 1/2 5/8 3/4 1 6 8 10 12 16 19 25
D 规格(D ) 5 IN N 公制尺寸 (m ) m
4.8 6.3 7.9 9.5 12.7 15.9 19.1 25.4 31.8 38.1 50.4 63.5
STAMP
温度-Temperature
使胶管破裂时所使用的真实压力，最小爆破压力通常是额定压力 的4倍 安全系数是 4:1
胶管的性能要素
温度 温度范围定义了: 最低和最高的环境和流体温度
胶管的性能要素
最小弯曲半径
•是在不影响软管寿命的情况下软管所能弯曲的半径
胶管的性能要素
长度变化 在工作压力下，测量软管总成的长度变化
在软管上标记
当软管受压后，检查其长度的变化
胶管的性能要素
爆破试验
在特定的最小爆破压力之下，测 试软管是否有渗漏、破裂
胶管的性能要素
脉冲试验
- 在软管总成内部施加脉冲压力
脉冲试验设备
软管总成的清洁度
软管总成清洁度
软管清洗机
胶管的性能要素
渗漏试验 在最小爆破压力的70%的压力之下，软管是否有破裂或渗漏
耐油试验 在特定温度下，浸泡在ASTM（美国试验材料协会）指定用油70小 时后，检查内管和外层有无变形 耐臭氧试验 暴露在臭氧下，检查其表面是否有龟裂
什么 是胶管?
•胶管是一种柔软的强化橡胶产品，应用于流体动 力，可以传输介质。
• 原始的资源通过力的转化和传递达到人为的应
用。
为什么 要使用胶管?
• 在刚性管无法使用的情况下使用 • 持续的运动 • 振动 • 冲击 • 任意排列 • 高压和压力的释放
3要素
3个基本要素
内层 增强层
外层
3 要 素作用
成为全球流体传动产品，技术与 服务以及系统工程的首选厂商
流体连接件部门 质量方针
我们承诺通过质量.服务.生产率. 培训.交流和团队的合作精神.提 高客户的满意度
Hose Products
胶管
HPD
样本：4400 UK
4400 US 4400 CH*
胶管的基本理论Байду номын сангаас
内容
• 什么 是胶管? 为什么 要使用胶管? • 胶管的 3 要素
外层
• 外观
光管
毛管
外层
挤出胶管内层
编织
外层
外层
挤压芯棒
外层
硫化
剥离硫化层
外层
4层缠绕
6层缠绕
胶管的性能要素
压力 温度 最小弯曲半径
长度变化
脉冲
胶管的性能要素
压力
最大工作压力
胶管在使用时所能承受的最大压力包括瞬间的峰值压力
试验压力
软管耐压试验使用的压力，通常是额定压力的2倍
最小爆破压力
派克汉尼汾公司 流体连接件产品介绍
Fluid Connectors 流体连接件部门
概要
• • • • • • • HPD软管及软管接头 TFD硬管接头 QCD / Senso-Control 快换接头 PARFLEX 热塑管 BPD 黄铜接头 IHP 工业管 Parker Gpp方针
流体连接件部门 宗旨
胶管存放
胶管存放期限: 通常情况下,胶管生产之日起可存 放10 年. 热塑管则 无限
胶管存放
正确存放的五点原则: 1.按照其圈轴长度放置于原箱内. 2. 存放于阴凉.干燥避光灰尘的环境.理想温度是10—20C 3.避免接触有害物质,如热.阳光.臭氧.等 4.采取“先进先出”的库存原则. 5.不要压碾或纠结否则会使胶管过早的失效.
STAMP
尺寸-Size
•大多数胶管使用内径来区分，是测量内管直径的 准确数字，通常用划线尺寸来表示 •例：1“=-16, 1/2“=-8
STAMP
尺寸-Size
SA E 划线规格 英制规格 -3 -4 -5 -6 -8 -10 -12 -16 -20 -24 -32 -40 11/4 11/2 2 32 40 50 21/2 65
派克胶管基础培训
液压胶管基础知识培训
• 液压胶管的一般结构
钢丝缠绕胶管（Spiral Hose）
按照不同的钢丝层数分类： • 四层缠绕液压胶管： 731等 • 六层缠绕液压胶管： 781等
4
液压胶管基础知识培训
• 液压胶管的部分应用场合 工业应用：
高速铁路、养护 机械、地铁
钻井平台
5
矿用液压支架
液压胶管基础知识培训
17
液压胶管基础知识培训
轴芯挤出、焊接工序不良对产品的影响：
3. 轴芯焊接不牢固会造成在內胶挤出时轴芯可能会断裂，从而影响产品质量 和生产效率
18
液压胶管基础知识培训
轴芯挤出、焊接工序不良对产品的影响：
4.轴芯颜色过深或者表面有白色划痕是轴芯材料强度下降的标志，这样的轴芯 在吹芯过程中有将轴芯表皮切下而残留在胶管内壁风险。其影响是胶管在 使用的过程中塑料碎屑会进入液压系统中而造成系统的堵塞、损坏
液压胶管基础知识培训
• 影响胶管寿命的因素：
小于标定的最小弯曲半径
R
钢丝结构和胶料过压，脉冲寿命显著缩小
胶管变形: 拉伸，打结，扭曲 钢丝层过压，变形，爆管
胶管只被扭曲7º而寿命缩短超过90 %.
10
液压胶管基础知识培训
• 影响胶管寿命的因素： 70% 工作压力和弯曲半径的关系 60%
50%
40%
3.钢丝使用错误会导致胶管性能偏差
36
液压胶管基础知识培训
编织、缠绕工序不良对产品的影响：
4.不使用铝箔标识缺陷部分会大幅提高缺陷流向客户的风险
37
液压胶管基础知识培训
编织、缠绕工序不良对产品的影响：
5.使用错误的齿轮会导致节距错误而造成脉冲失效的风险
Parker软管培训资料派克液压胶管培训资料技术培训资料
公制 6
8
10 12 15 20 25 32 40 50
公称
规格
英制 3/16 1/4 5/16 13/32 1/2 5/8 7/8 1-1/8 1-3/格
划线规格－4＝4/16=1/4 (英制)
压力－会导致软管爆破！
系统工作压力？ 静压还是动压？最高冲击压力？压力交
20023(4SH, 4SN) 特定行业和质量机构的认证
软管试验方法的国际标准
ISO1402－液压静压力试验 ISO6803－液压脉冲寿命试验 ISO7233－耐负压试验 ISO1817－介质相容性试验 ISO4672－低温柔软性试验 ISO6945－耐磨性试验 ISO7326－耐臭氧试验 ISO8033－黏附力试验
软管的基本参数
基本参数： 内径，外径
额定工作压力，最低 爆破压力，压力脉冲 寿命
耐真空度 介质适应性 适应温度范围 最小弯曲半径
长度变化率 耐磨性 耐臭氧 高压绝缘型 容积膨胀率 低温柔软性 粘合强度
软管选择的基本条件
介质 尺寸规格 压力 温度 应用条件 管接头 可供性

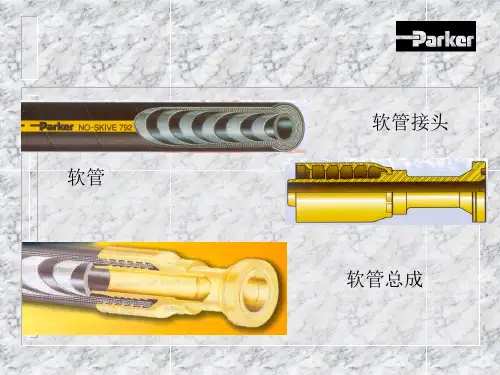

软管
软管接头 软管总成
软管的基本结构-钢丝编织软管
增强层
钢丝编织的夹角
－中位角－ 54°44“
外层
内层
软管的基本结构－钢丝缠绕软管
钢丝缠绕的夹角 －中位角－ 54°44“
软管的类别(按基本材料区分)
橡胶 软管（派克 HPD 产品 ) 热塑 软管（派克PARFLEX 和
POLYFLEX 产品)
781，782，792 热塑软管具有更优越的抗紫外线性能
软管接头－ 是确保软管总成可靠工作的关键
液压软管基本知识2
HPDE-GB_M06_Nr.20_27/07/98
FluidConnectors
派克订货信息
FluidConnectors
尺寸转换示例
DN(公称尺寸）-〉Size(划线规格) 例: 381 - 12.7 (size 08) 尺寸基准 = 16/16 = 1“ = 25.4mm
HPDE-GB_M06_Nr.30_27/07/98
1 CA 48 15-8
1 CA 48 15-8 1 CA 48 15-8
> 接头系列
HPDE-GB_M06_Nr.110_27/07/98
> 硬管连接尺寸 > 胶管内径 (划线规格)
FluidConnectors
订货信息
3. 胶管总成
例: F301SN CA CF 15 15 08 1000 ...F301SN CA CF 15 15 08 1000 ...- > F301SN CA CF 15 15 08 1000 ...- > F301SN CA CF 15 15 08 1000 ...- > F301SN CA CF 15 15 08 1000 ...- > F301SN CA CF 15 15 08 1000 ...- > F301SN CA CF 15 15 08 1000 ...- > F301SN CA CF 15 15 08 1000 ...- > F301SN CA CF 15 15 08 1000 ...- > F301SN CA CF 15 15 08 1000 ...- > F301SN CA CF 15 15 08 1000 ...- >
48
-15
硬管外径 (连接尺寸)
2019年-PARKER接头基础-PPT精选文档
接头解析 接头螺纹-特征
牙顶和牙底:
接头解析 接头螺纹-特征
牙侧和牙型角:
接头解析 接头螺纹-特征 牙形角和锥度:
螺纹角度
锥度
接头解析 接头螺纹-特征
螺距：螺纹之间的距离
公制螺纹
接头解析 接头螺纹-特征
常用接头公制螺 纹螺距：1.0mm 、1.5mm、2.0mm
接头密封 形式
密封形式
• 24°扣咬型(切入型)
– 接头体、管套、螺母组成
– Ferulok,EO,EO-2,Compression,Compress-Align, Air Brake,Vibra-Lok,Poly-Tite
– 例：Ferulok, EO :卡套扣咬住(切入)管外壁，形 成密封。
接头密封 形式
接头解析 接头螺纹
平行螺纹(直螺纹)：每个螺纹的外径都相等
平行
接头解析 接头螺纹
平行螺纹:
• 平行螺纹只能提供机 械支持力
• 通过其他方式来完成 密封例如： O-ring
接头解析 接头螺纹
锥形螺纹：螺纹的外径逐渐变小
锥形
接头解析 接头螺纹
锥形螺纹:
• 锥形螺纹有2方面作用:
机械支持力
密封 (通常需要其他辅
助密封剂)
• 英制螺纹 • 公制螺纹
螺纹型式
螺纹型式 英制螺纹
管螺纹： 管螺纹有锥形螺纹的特征 可提供机械支撑力和密封，通常还需使用密 封剂防止泄漏。
国家标准管螺纹和英国标准管螺纹的主 要区别在于牙形角 美国国家标准管螺纹：60度 英国标准管螺纹：55度
螺纹型式 英制螺纹
管螺纹（续）： 多种形式管螺纹 干式密封：SAEJ476A和ANSI B1.20.3螺纹系列
Parker软管培训资料,派克液压胶管培训资料,技术培训资料共36页文档
软管尺寸规格－选择合理的流速
划线 －4 －5 －6 －8 －10 －12 －16 －20 －24 －32 规格
英制 1/4 5/16 3/8 1/2 5/8 3/4 1 尺寸
1-1/4 1-1/2 2
公制 6.4 7.9 9.5 12.7 15.9 19 尺寸
25.4 31.8 38.1 50.8
热塑软管的优点
介质适应性强，耐油性好 耐磨性好－是天然胶的20倍 弹性好，耐扯断强度高－是橡胶的3倍 温度适应范围广－ －70到＋120C 重量轻 弯曲半径小－ 是一般胶管的1/2 阻燃性好 抗老化性能强，耐压力脉冲寿命长 容积膨胀系数小 外表光洁，美观，流体阻力小
软管的基本参数
基本参数： 内径，外径
FluidConnectors
液压软管的耐压
工 作 压 力- 软 管 保 持 正 常 工 作 所 能 承 受 的 最 高 压 力(Pw) 合 格 试 验 压 力- 软 管 总 成 进 行 静 压 试 验 时 必 须 承 受 的 压 力(=2XPw) 最 低 爆 破 压 力- 软 管 总 成 进 行 爆 破 试 验 时 必 须 超 过 该 压 力(=4XPw) 脉 冲 试 验 压 力- 软 管 总 成 进 行 脉 冲 疲 劳 试 验 时 规 定 的 压 力(=1.33Pw)
额定工作压力，最低 爆破压力，压力脉冲 寿命 耐真空度 介质适应性 适应温度范围 最小弯曲半径
长度变化率 耐磨性 耐臭氧 高压绝缘型 容积膨胀率 低温柔软性 粘合强度
软管选择的基本条件
介质 尺寸规格 压力 温度 应用条件 管接头 可供性
介质适应性与软管的内层材料
橡胶软管的5种基本内衬管材料：
丁晴胶，高含量丁晴胶 -(381,481) 氯丁胶 -(771/77C,781/78C,731) PKR（氯化聚乙烯) -(213, 296) 尼龙 -( P80) EPDM（三元乙丙胶) -(274,304) 查阅软管的介质相容性表 热塑软管具有更强的介质适应性
