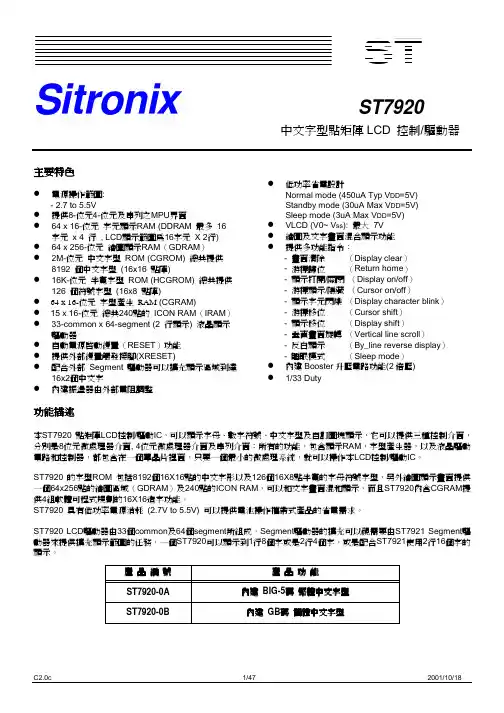

ST7920[1](字库)12864
12864](https://img.taocdn.com/s3/m/3b7b4f57f01dc281e53af0ac.png)
Sitronix
主要特色
z 電源操作範圍: - 2.7 to 5.5V z 提供8-位元4-位元及串列之MPU界面 z 64 x 16-位元 字元顯示RAM (DDRAM 最多 16 字元 x 4 行 , LCD顯示範圍為16字元 X 2行) z 64 x 256-位元 繪圖顯示RAM（GDRAM） z 2M-位元 ㆗文字型 ROM (CGROM) 總共提供 8192 個㆗文字型 (16x16 點陣) z 16K-位元 半寬字型 ROM (HCGROM) 總共提供 126 個符號字型 (16x8 點陣) z 64 x 16-位元 字型產生 RAM (CGRAM) z 15 x 16-位元 總共240點的 ICON RAM（IRAM） z 33-common x 64-segment (2 行顯示) 液晶顯示 驅動器 z 自動電源啟動復置（RESET）功能 z 提供外部復置觸發接腳(XRESET) z 配合外部 Segment 驅動器可以擴充顯示區域到達 16x2個㆗文字 z 內建振盪器由外部電阻調整
ST7920
㆗文字型點矩陣 LCD 控制/驅動器
Байду номын сангаас
z 低功率省電設計 Normal mode (450uA Typ VDD=5V) Standby mode (30uA Max VDD=5V) Sleep mode (3uA Max VDD=5V) z VLCD (V0~ Vss): 最大 7V z 繪圖及文字畫面混合顯示功能 z 提供多功能指令： - 畫面清除 （Display clear） - 游標歸位 （Return home） - 顯示打開/關閉 （Display on/off） - 游標顯示/隱藏 （Cursor on/off） - 顯示字元閃爍 （Display character blink） - 游標移位 （Cursor shift） - 顯示移位 （Display shift） - 垂直畫面旋轉 （Vertical line scroll） - 反白顯示 （By_line reverse display） - 睡眠模式 （Sleep mode） z 內建 Booster 升壓電路功能(2 倍壓) z 1/33 Duty
控制极控制系统HC900产品介绍说明书
CONTROLEDGE™The ControlEdge HC900 is fully validated to perform its safety tasks, and is certified by TUV for use in a SIL-2 environment. The system isideal for a process/safety environment. Its non-interfering software meansthat the ControlEdge HC900 system iscapable of hosting process control andsafety applications, providing control,monitoring, password protectionfor configuration, alarm processingand data acquisition for processapplications thus adding to reliabledata and information being stored andprotected.TUV Compliance TYPICAL INDUSTRIES• Chemicals (including specialty andfine chemicals, plastics and rubber)• Life sciences and Cosmetics• Power (excluding nuclear)• Cement and Glass• Pulp and Paper• Mining and Metals• Water and Wastewater• Food and Beverage• Heat Treatment• Buildings/ Infrastructure-Metro Rail, HVAC etc.CUSTOMER BENEFITSProven & ReliableMaximizes uptime• Proven track record• Redundancy• G3 conformal coating forharsh environment• RoHS compliant• Actionable informationHigh PerformanceIncreases profitability• Tighter control• Reduced scrap• Higher throughputEasy to Use & EngineerLowers operational costs• Easy engineering• Faster startup• Simple intuitive tools• No additional maintenance feesEnhanced Safetywith SIL2 certification• Common hardware andsoftware for process and safety• Improved plant safetyTYPICAL APPLICATIONSSafety• Burner Management Systems (e.g.furnaces, boilers, ovens, pre-heaters,reactors, calciners, dryers, thermaloxidizers, kilns, melters, incinerators,process heaters, vaporizers)• Combustion Control• Pipeline Monitoring• Spill Prevention• Metro/ Road Transportation-Tunnel Safety, Ventilation• Wastewater Treatment• Terminal Automation• Emergency Shutdown• Fire & Gas Monitoring• Pressure and Flow ControlCritical Control• Electronics & SemiConductor• Cement and Glass• TextilesCertifications• TUV SIL2• CSA-Canada and USA(HazLoc) / FM CL1 / Div2• ATEX• ABS• UL• CE• RoHSsuch as burner management systems (BMS), emergency shutdown systems (ESD), fire & gas monitoring, pipeline monitoring, spill prevention, tunnel ventilation, etc.MUL TIPLE SYSTEMS,MUL TIPLE I/O RACKSControlEdge HC900 Hot Stand-by ArchitectureCPU CapacityControlEdge HC900 Designer Software• Configuration: ControlEdge HC900 Controller – offline with run-mode editing • Operating environment: Windows 7 Pro (32 or 64-Bit), Win 8 and Win 10• PC: Pentium, 1.5 GHz with 1 GB RAM minimum, SVGA or greater screen resolution • English and Mandarin languages supported (switchable after installation)• Cable: RS 485 – three-wire, Ethernet 10/100 base T • Modem support: Monitor, upload, download configuration• New input voting (1oo2 and 2oo3) and outputvalidation function blocks (with feedback verification)• New non-interfering process and safety worksheets in • Change management and Version Control built into the software same configuration• Function Blocks: C70, C75 CPU–15000, C50 CPU–2000, C30 CPU–400• Controller C75 CPU supports redundancy (in common and separate rack). Redundant CPU racks can be placed at least 1km apart • Analog Inputs: Up to 1152 universal analog inputs, 2304 high level, A/D Resolution is ±15 Bits • Accuracy: 0.1% of span(field calibration to ±0.05% of span)• Analog Outputs: Up to 480 withinternal power, 2304 with external power 0 to 20 mA maximum, 0.1% accuracy • Universal SIL IO Module (UIO)- 16 channel, with 1ms SOE, HART, Line Monitoring, Voting & Validation and IO redundancy • HART-IP support for improved device diagnostics and easy maintenance • Digital Inputs / Outputs: Up to 4608, contact DI, 24 Vdc DI / DO, 120VacDI /DO, 240 Vac DI/DO • Total I/O: Up to 4608• I/O Racks per System: One controller and up to 11 remote I/O racks• Control Loops: PID, on/off, cascade, ratio, %C, three-position step• Control Output Types: Current, time -proportioning, position-proportioning, three-position steps • New Input Voting (1oo2 and 2oo3) and outputvalidation function blocks (with feedback verification)• Setpoint Programmers: 50 segments each, 16 event outputs, multiple stored profiles • Setpoint Scheduler: 50 segments, 8 ramp / soak outputs, eight auxiliary outputs, 16 events, multiple schedules• Communications: Ethernet 10 / 100/ base T,Modbus / TCP protocol, up to 10 Ethernet hosts on C50, C70, C75 up to 32 peer-to-peer controllers, Serial Modbus RTU, RS485, slave or master operation (up to 32 slaves), HART-IP for Analog signals • Operating Temp: Rated 32° to 140°F (0° to 60°C)• Humidity: Rated 10% RH to 90% RH, non-condensingControllerMODULAR AND SCALABLE• Available in three rack sizes and three CPU performance levels• Handles a wide range of automation requirements• Analog and digital modules support up to 4608 I/O points • Scalable and expandable• Easy to own, engineer,operate and maintain•Upto 12 racks and 4608 IO’sFUNCTION BLOCKS• Simplify execution of complex control strategies• Over 125 different types of softwarefunction blocks available• Each function block represents a uniquealgorithm for a specific control function• Available CPU options support up to 400,2,000 or 15,000 function blocks• Simply drag and drop, and soft-wire• 1oo2 and 2oo3 Voting Function Blocks.DO-V and AO-V (Digital Output and AnalogOutput Validation Function blocks).SEPARATE PROCESS SAFETY WORKSHEETS• Same type of controller can be used for process andsafety applications thus reducing total cost of ownership• Provisions are provided within programming environmentto program using safety/process worksheetsUNIVERSAL ANALOG INPUTS• Accept both direct and indirect inputs from sensors• Minimize the number of input cardsand spare parts required• Inputs may be mixed on a module and mayinclude multiple thermocouple types, RTDs,ohms, voltage or millivoltage types.SIL UNIVERSAL IO MODULE• 16 channel user configurable to DI, DO, AI or AO• High resolution SOE with 1 ms time stamp• Line Monitoring (Open Wire, Short Circuit Detection)• HART support for Analog signals• In-built Voting & ValidationCONTROL LOOPS• Provide tighter, more accurateprocess control• Include applications ranging from single loop control to interactive cascade, ratio, duplex, feed-forward, three-position-step, or custom controlled strategies • Increase throughput, reduce scrap, and minimize energy costs•Quantity of loops per controller is not limitedFUZZY OVERSHOOT SUPPRESSION• Fuzzy Overshoot Suppression minimizesthe Process Variable (PV) overshootfollowing a Setpoint (SP) change or aprocess disturbance. This is especiallyuseful in processes that experienceload changes or where even a smallovershoot beyond the setpoint mayresult in damage or product loss.• The Fuzzy Logic in the controller observesthe speed and direction of the PV signalas it approaches the setpoint andtemporarily modifies the internal controllerresponse action as necessary to avoidan overshoot. There is no change to thePID algorithm, and the Fuzzy Logic doesnot alter the PID tuning parameters.CARBON POTENTIAL• The carbon potential of the furnaceatmosphere can be controlled bymonitoring the furnace temperature andthe probe output because oxygen potentialdirectly relates to the carbon potential.A combined carbon probe, temperatureprobe and PID algorithm determinecarbon potential of furnace atmospheresbased on a zirconium probe input.• Activates anti-sooting feature thatlimits the working setpoint of thecarbon control loop to a value thatprevents sooting in the furnace.FREE-FORMAT LOGIC• Optimizes design by combining multiple logic functions into one • Simplifies operation and troubleshootingSEQUENCERS• Control the output states ofmultiple digital parameters• Control the sequence of process operation based on time or process events • Each sequencer supports up to 16 digital outputs and may have up to 50 process states • Multiple sequences can be selected on demand from the operator interface oras part of a recipeRECIPES• Stored in the controller memory • Ensure error-free product/process changeovers• Write values into analog and digital variables • Load via Control Station • Load via RCP block • Can be used to:– Write a value to any variable – Load setpoints– Select setpoint programs – Set alarm limits– Activate control valvesSETPOINT PROGRAMMER• Automatically manipulates a setpoint value for use by PID loops • Creates a time / value profile for process batch control• Multiple setpoint programmers, with profiles of up to 50 segments each, may be configured and stored • Any programmer may run any profile separately or simultaneously• Each also has an auxiliary soak output and up to 16 event outputs for integration with sequence control functionsDEW POINT CONTROL• Dew point analysis measures the amount of water vapor present which in turn helps determine the carbon potential of a furnace atmosphere • This application uses the dew point function block to calculate dew point based on using a carbon probe where the input is an O2 sensor • A typical example is control of an endothermic atmosphere generator when the user requires dew point for PVSETPOINT SCHEDULER• Provides up to eight ramp/soak setpoints that operate on a common time base • Supports up to 16event digital outputs 50 segments per schedule; the number of storedschedules is configurable • Auxiliary Scheduler provides an additional 8 Soak Setpoints • Multiple independent setpoint schedulers areavailable in a configurationREDUNDANCY• Maximize process availability by providing backupcontrollers, power supplies and communications for seamless failover under fault conditions • Redundant Switch Module (RSM) is located in the rack between two CPUs and visuallyindicates which CPU is the lead and which is the reserve• Key switch on the RSM allows the user to change the operating mode of the lead and reserve CPUs • Ethernet network ports are continuously active on the leadcontroller, each on a different subnet • Transfer of communicationsfrom one port to another port on the same CPU is handled by the host application • A secondary power supply can also be added to eachControlEdge 900 Platform I/O rack for standby redundancy • Supports redundant I/Oconfiguration in Universal ModuleAMS COMPLIANCE• The ControlEdge HC900 meets AMS 2750E, the key requirement for controlling, monitoring and recording instruments, which is acalibrated accuracy (± 2° F/1.1°C)FLEXIBLECONNECTIVITY SUITS YOUR PROCESSENVIRONMENTOPEN ETHERNET CONNECTIVITY• Enables ControlEdge HC900 controllers to communicate with their host interfaces and each other • Open Modbus / TCP protocol allows interfacing to most popular HMI, data acquisition and OPC software • Up to 10 device connections are supported on the host Ethernet port • ControlEdge HC900 network of controllers and operator interfaces are partitioned into segments on the network to maximize communication performanceSERIAL ETHERNET CONNECTIVITY• Allows two RS485 ports to be configured as Modbusslaves, while one of the ports is selected as a Modbus master • Wide variety of devices (touch panel operator interfaces, I/O devices, etc.) can be connected to the controller • Provides greater flexibility in system designCONNECTIVITY AND COMMUNICATIONS• Adapts to existing process-line infrastructure • Satisfies specific control requirements• Accommodates specialtyapplicationsPEER-TO-PEER COMMUNICATIONS• The improved ControlEdge HC900 controllers provide peer-to-peer interface between a maximum of 32 units for process/safetyequipment applications that require sharing data between controllers.• Up to 2,240 parameters per controller may be exchanged • Standard Ethernet communication port supports concurrent peer-to-peer communications andconnectivity to supervisory systems• Peer-peer between safety systems is done using the new Safety-peer protocol that can exchange safety critical data between peersINTEGRATION WITH EXPERION• ControlEdge HC900 controllers can be integrated with the Honeywell Experion DCS system for supervisory control and data acquisition• Can be integrated with Experion PKS, LX and HS systems Configured using Quick Builder application • Uses Universal Modbus Driver for communication • Redundant controllers can also be integrated with ExperionCONTROLEDGE HC900 OPC SERVER FROM MATRIKONOPC• Provides secure and reliable real-time data access between the ControlEdge HC900 Controller and any OPC-enabled applications such as Historians, HMIs, SCADA etc.• Enables 3rd party connectivity for successful phased migration and integration • Enables easy and cost-efficient management of openly connected systemsBUILDING-BLOCK CONFIGURATION SIMPLIFIES CONTROLIMPLEMENTATIONCONTROLEDGE HC900 DESIGNER SOFTWARE• Enables system configuration with a Windows 7 (32 or 64-bit), Win 8 and Win 10 based PC • English and Mandarin languages supported (switchable after installation) • Uses drag-and-drop placement techniques for graphic icons and soft-wiring connections between function blocks • Automatically calculates memory usage and processor scan time as function blocks are configured • User-friendly graphic development allows partitioning of the control strategy into multiple worksheets• Ease of record-keeping, faster access to functional areas during programming • Better support for user-specified process function identificationsCONFIGURATION DEBUG TOOLS• Simplify troubleshooting Include online monitoring of multiplefunction blocks on a single display, on/off identification of digital signal flow connections, and output forcing capability for most block outputs • Selectable user-defined Watch Windows and Signal Trace-back provide a clear view of the configuration operation and quick identification of potential errorsPRINTABLE PRESENTATION FORMATS• Simplify configuration documentation• Include a summary of controller I/O, the graphic configuration diagram, function block properties, recipe groups, setpoint profile groups, operator display and point selectionRUN-MODECONFIGURATION EDITING• Standard feature that cansignificantly reduce start-up time and avoid costly process shutdowns• History Backfill: If Experion HS loses communication with ControlEdge HC900 the History backfill functionality will backfill data to the HMI once communication is restored. This feature is very important for food and beverage, pharmaceutical and other data critical applications and is not often provided by other general purpose PLC’s• Paired with Experion HS,ControlEdge HC900 can meet FDA 21 CFR part 11 requirements for pharmaceuticals, food and beverage industry that need a proven and reliable solution capable of change management, automated electronic recordkeeping, and advanced controller security and protection methods • Seamless integration with FDM for HART signalsSYSTEMCONFIGURATION AND OPERATION ADAPT TO YOUR NEEDSThe 900 Control Station operator interfaceStandard displays provided inControlEdge HC900 Control Station• NEMA Type 4X operator interface screen withstands harsh operating environments • Easy-to-operate 10” and 15” touch screen display • Standard and custom graphic elements can be assembled into specific displays, for fast and easy start-up• Custom graphics tools let you select from 4,000+ pre-built objects for animation support, math, formulas, scripting• Function block widgets accelerate configuration development • Controller status displays verify system integrity, with no configuration required• Recipe selection makesproduct/process changeovers simple and accurate • Trending and data logging is provided via SD card storage • Multi-level log-on security feature prevents unauthorized access • Alarm/Event logging withe-mail notification of impending problems tracks process upsets and validates performance • Ethernet or serial connectivity enhance installation flexibility, includes Modbus and Modbus\TCP protocol support • Embedded web serverfeature allows access to your application from anywhere• Multiple interfaces on each controller enableprocess management from up to three locations• Multilingual: English, French, Italian, German, Spanish. Other languages may be added by expanding its lexicon library• The software also supportsaccessing the translation libraries of Microsoft® and / or Google® for any untranslatable text strings used in the product during configuration • Setpoint Programmer Pre-PlotDisplay: Pre-plot display is a Widget that gets bound to a Setpoint Programmer function block • Concurrent Batch Reports: Schedules multiple batch reports to run concurrentlyOPERATOR INTERFACE FEATURESStandard displays in station designer 4 - WidgetsGraphic symbols provided in Station Designer software tosimplify configuration. Hundreds of icons availableincluding pumps, valves, and tanks icons shown.CONTROL STATION OPERATOR INTERFACE• The 900 Control Station is available with either a 10.4 inch (254 mm) or 15 inch (381mm) display size • LCD Display: 10” (800 x 600), 15” (1024 x 768) pixels, color active matrix thin film transistor (TFT), 16M colors • Touch Screen: Resistive analog• Backlight: 50,000 hr typical lifetime at room temperature (field replaceable in non-hazardous locations)• Distance from Controller: Ethernet-328 ft (100 m), RS485 - 2000ft (600 m) RS232 - 50ft (15.24 m)• Power Supply 10 inch: 24 Vdc, 16 Watts maximum 15 inch 22 Watts maximum without options • Operating Temperature: 14 to 122 °F, (-10 to 50 °C)• Humidity: Rated 0 to 85%, non-condensing from 14 to 122 °F, (-10 to 50 °C)• Panel Rating: Type 4X / IP66• Memory: 512MB onboard non-volatile flash, optional SD card• Communication Ports: 10 inch (254 mm) 1 x Ethernet RJ45 10/100 base T, 15 inch (381mm) 2 x Ethernet 10/100 base T, 2 x RS-485, 2 x RS232 Serial • USB Ports: 2 x USB specification 2.0 host port, type A, 1 x USB specification 2.0 device port type B900 STATION DESIGNER SOFTWARE• Configuration: 900 control station CR interface – offline • Operating environment: Windows 7 (32, 64-bit), Windows 8, Windows 10• PC: Pentium class processor and RAM as required by the chosen operating system plus 50MB for software installation, 800 by 600 pixels minimum, 256 or more colors. RS-232 or USB port•Cable: USB Host, RS232 Serial, Ethernet 10/100 base TEASY ENGINEERING AND FLEXIBILITY THROUGH USER FRIENDL Y TOOLSCONFIGURATION COMPARISON• Change management • Save engineering hours in finding previous changesBULK EDIT• Reduces engineering hoursVERSION CONTROL• Easy tracking, de-bugging • Revert to earlier versions • Save dollars for a separate version control offeringPASTE SPECIAL• Saves 15-20% of engineering effortsCHANGEMANAGEMENT• Manage versions, track and compare configurations • Easier troubleshooting thereby reducing maintenance costsPASSWORD PROTECTION• Controllers are password protected and thus prevents any intrusion through the network • Any changes to thecontroller are monitored and validated with credentialsRE-USABLE CUSTOM LIBRARIES• Save engineeringtime, create logic once and avoid errorsControlEdge™ is a trademark and Experion® is a registered trademark of Honeywell International Inc.BR -20-42-ENG | 10/2020© 2020 Honeywell International Inc.For more informationTo learn more about Honeywell’s ControlEdge HC900, visit or contact your Honeywell account manager.Honeywell Process Solutions2101 CityWest Blvd, Houston TX 77042Honeywell House, Skimped Hill Lane Bracknell, Berkshire, England RG12 1EB UK Building #1, 555 Huanke Road, Zhangjiang Hi-Tech Industrial Park, Pudong New Area, Shanghai 。
ST7920控制器液晶模块使用手册说明书
________________________________________________________________________________________1清達光電技術有限公司TSINGTEK DISPLAY CO.,LTDLCD CONTROLLER & DRIVERST7920 OR EQUIVALENT公司地址：杭州市文三路569号康新花园A座703公司电话：0571-******** 85121742 85121304(f)（总公司）62000662 62366871(f)（北京分部）门市地址：杭州市登云路639号杭州电子市场2A095/K31 门市电话：0571-******** 89902095（f）网址：目录使用须知 3 第一章液晶模块汇总 6 第二章液晶模块的结构特点7 第三章液晶模块供电说明9 第四章液晶模块控制器介绍10 第五章液晶模块指令系统24 第六章液晶模块接口技术及测试程序31 第七章液晶模块调试经验41 附录一清达光电配套产品42 附录二清达光电维修服务规范42 附录三液晶模块内部字符集432________________________________________________________________________________________3使用须知十分感谢您购买我公司的产品，因为液晶模块属于精密器件，结构复杂、工艺精细，所以在使用前请您首先仔细阅读以下注意事项，以免给您造成不必要的损失。
您在使用过程中遇到困难时，请拨打我们的技术服务电话，我们将竭诚为您提供服务和帮助。
一、处理保护膜在装好的模块成品表面贴有一层保护膜，以防在装配时沾污显示屏表面，在整机装配结束前不得揭去，以免弄脏或划商显示屏表面。
二、加装衬垫在模块与前面板之间最好加装一块约0.1毫米左右的衬垫。
面板还应保持平整，以免在装配后产生扭曲，并可提高其抗振性能。
科达会议产品及终端的安装调试
2012/12/3
23
TS6610接口介绍
2012/12/3
24
TS5610标清一体终端
2012/12/3
25
TS5610产品概述
型号
觋码能力
编码能力
双流能力
H600-B
1080P60帧
1080P30帧
解码 1080P60+1080P60 1080p60+UXGA60 编码 1080P30+1080P30 1080p30+UXGA60 解码 1080P60+1080P60 1080p60+UXGA60 编码 720P60+720P60 720P60+UXGA60
支持标准H.239双流功能
全觌控操作高清硬件桌面终端，适 用于各类办公桌面。
2012/12/3
29
KDV1000硬件介绍
KDV1000左侧面图
KDV1000史侧面图
2012/12/3
30
软件桌面终端PCMT
3
KDV7920/7820产品概述
H.320、H.323、SIP协议 嵌入式设计，19英寸1.5U机架式结构 支持64k-8M会议速率 高清1080i/P画质、高保真CD级音效 内置标准H.239双流功能 适合大、中型与业会议室部署或 丰富的音频接口 高端视频通信应用。
2012/12/3
35
目录
终端产品介绍
平台产品介绉 外设产品介绍 附录：MCU单板介绍
2012/12/3
36
KDV8000A介绍
2012/12/3
实验台通风柜柜技术指标
试验台、通风柜柜技术指标技术规定：技术参数规定中带▲符号旳为本次台柜设备配套项目重要技术参数规定，必须提供有关汇报或者证明文献证明设备符合规定。
（一）试验家俱材质规定1.试验台、中央台---（钢木构造）1.1、试验台台面参照品牌：上海榕德(roadlab)、费亚泰克（friatec）和德国赛试验台台面主材阐明：采用20mm厚试验室工业陶瓷板台面。
采用高温一体烧制成型，耐1550℃极限高温，耐强酸、强碱、强有机溶剂、染色剂等多种化学试剂，耐刮磨，耐高温，抗明火，抗污染，抗菌，抗变形，经久耐用，无需维护，安全环境保护，其中所有水池台台面采用碟形工艺，操作面部分整体下凹5mm 翘边，总厚度25mm,配置同品牌试验室专用570*470*350mm陶瓷水槽，防止有害液体外溢，有效保持台面美观。
投标时需提供如下相对应检测汇报及资质文献：▲环境保护性能：需提供辐射限量检测汇报，参照GB6566《建筑材料放射性核素限量》原则，检测成果必须符合：内照射指数≤0.4。
▲化学性能：需提供及持续2年SGS机构出具旳耐腐蚀检测汇报：参照SEFA3-科学设备及家俱协会-试验室工作台面条款2.1台面检测原则，台面至少抗“47”种以上化学品且检测成果为0级（表面无变化）旳检测汇报。
▲物理性能：台面旳耐污染性能：需提供提供国家建筑材料测试中心出具旳GB/T4100-检测汇报出具旳测试项目为“吸水率”检测汇报，测试成果最大值不得不小于0.03%。
▲高温性能：需提供耐极限高温到达1500度以上旳国家级检测汇报。
1.2、▲柜体：柜体：采用≥15mm厚优质高密度中纤板面贴三聚氰胺板，所有断面经优质2mm厚度pvc封边防水处理，中纤板静曲强度≥15.0mpa，甲醛释放量≤0.5mpa，吸水厚度膨胀率≤0.5%。
（投标供应商须提供以上参数旳CMA或CAL机构出具旳检测汇报，检测汇报中须附产品旳实物照片）1.3、铰链：采用110°铰链，弹性好，使用过程中无噪音，耐酸碱、耐腐蚀，使用寿命长。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
LEC-7920桌面型嵌入式工业控制器
Intel Core CPU，带2×LAN,2×COM,DVI-D/DVI-I显示
特点
支持intel 酷睿i7-620M/i5-520M CPU
内置2G DDR3内存，2×DDR3 SO-DIMM，最大支持
到8GB
DVI-I和DVI-D双显示
2×Intel GbE，1×RS-232，1×RS-232/422/485
4×USB 2.0，4×DI/O，1×Mic in/Audio out
Mini-PCIe扩展及SIM读卡器插槽
支持9~30VDC宽电源输入，A TX开关控制
电源及IDE指示灯状态显示
支持Linux，XPE/WES2009，XP PRO，FES，WS7E，
WS7P，WIN 7 PRO-E操作系统
概述
LEC-7920是一款高性能嵌入式工控机，支持Intel i7/i5 Socket CPU。
英特尔i5/i7处理器使得LEC-7920具有超高的数据处理能力和硬件视频解码能力，英特尔高清显卡通过DVI-I和DVI-D端口为机器提供了高清晰的播放能力，千兆以太网确保了顶尖的网络功能。
此外，LEC-7920还提供了多种插槽支持，增加了更多扩展机会。
硬件规格
数字I/O
DI/O 4×DI/O （DB9 Female ） 4路DI 逻辑0：0 ~2VDC 逻辑1：5 VDC 4路DO
逻辑0：0 VDC 逻辑1：5 VDC/50mA 显示
图形控制芯片 Intel GMA HD Graphics 显示 DVI-I+DVI-D
分辨率
DVI-I:2536×1920 DVI-D:2536×1920 机械特性
尺寸 277（W ）×54（H ）×194（D ）mm 净重
3.1kg 工作环境
工作温度 -20~55℃ 工作湿度 5~95%，无凝结 存储温度
-40~80°C 电源需求
输入电压 +9~30VDC ，A TX 电源适配器 75W ，+19V@3.95A 接头 DC Jack /Lock 典型功耗
50W 安规认证
EMC CE,FCC 环境
RoHS
可靠性
报警工具 内建凤鸣器和RTC （实时时钟） 看门狗
内建WTD （看门狗时钟）
保修期
2年内免费维修，终身维护
订购信息
系统
CPU Intel i7-620M 双核2.66GHz Intel i5-520M 双核2.4GHz 芯片组 HM55
DRAM 内置2G DDR3，2×SODIMM （最大8GB ） 操作系统 Linux , XPE/WES2009, XP PRO FES, WS7E, WS7P , WIN 7 PRO-E
存储扩展 1×2.5’’ HDD/SSD, 1×SA TA-DOM 扩展总线 1×Mini-PCIe with SIM card reader 其它接口
6×USB2.0（2个在内部） LAN 口
LAN
2×Intel 82547L ，RJ45接口 数据传输率
10/100/1000Mbps 串口
串口数量 2个 接头 DB9 Female
串口通讯参数
串口标准 1×RS-232/422/485，1×RS-232 数据位 5，6，7，8 停止位 1，1.5，2
奇偶校验 None ，Even ，odd ，Space ，Mark 流量控制 RTS/CTS ，XON/XOFF ，RS-485自动流控 通信速率
RS-232：50bps~115.2Kbps RS-485：50bps~921.6Kbps
串口信号 RS-232 TxD,RxD,DTR,DSR,RTS,CTS,DCD,GND RS-422
TxD+， TxD-， RxD+， RxD-， GND 2-wire RS-485
Data+， Data-， GND 声音
Mic in 1×Phone jack Audio out
1×Phone jack
LEC-7920：2×千兆LAN ，2×COM ，DVI-D/DVI-I 双显示，SATA ，Mic in/Audio Out ，4×USB ，Mini-PCIe 扩展，SIM 读卡器。
