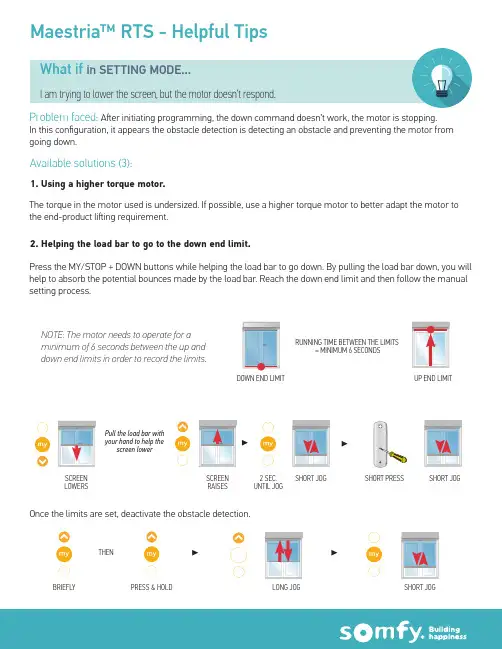

SHORT PRESSWhat if in SETTING MODE...I am trying to lower the screen, but the motor doesn’t respond.Available solutions (3):Problem faced: After initiating programming, the down command doesn’t work, the motor is stopping.In this configuration, it appears the obstacle detection is detecting an obstacle and preventing the motor from going down.The torque in the motor used is undersized. If possible, use a higher torque motor to better adapt the motor to the end-product lifting requirement.1. Using a higher torque motor.2. Helping the load bar to go to the down end limit.Press the MY/STOP + DOWN buttons while helping the load bar to go down. By pulling the load bar down, you will help to absorb the potential bounces made by the load bar. Reach the down end limit and then follow the manualsetting process.UNTIL JOGscreen lowerBRIEFLYPRESS & HOLDTHENLOWERSRAISES▶▶= MINIMUM 6 SECONDSNOTE: The motor needs to operate for a minimum of 6 seconds between the up and down end limits in order to record the limits.SHORT PRESSPress the MY/STOP + DOWN button while helping the load bar to go down.By pulling the load bar down, you will help to absorb the potential bounces made by the load bar.Once the limits are set, deactivate the obstacle detection.UNTIL JOGscreen lowerIn the event the load bar is not able to go to the down end limit.Once the obstacle detection is deactivated, re-set the end limits and follow the limits setting process.What if in SETTING MODE...I cannot register the end limits in Manual Mode.RUNNING TIME BETWEEN THE LIMITS= MINIMUM 6 SECONDSLOWERSRAISESBRIEFLYPRESS & HOLDTHEN▶▶▶3. Helping the load bar to go to a temporary down end limit.NOTE: The motor needs to operate for a minimum of 6 seconds between the up and down end limits in order to record the limits.What if I want to change the SETTING MODE...Switching from one mode to another (manual to auto, auto to semi-auto, etc...).In Setting ModeIn User ModePerform a Single Power Cut to delete all previous settings and return the motor to FACTORY MODE.Start the setup in a desired mode.Remote control not paired yet and settings not yet validated.Remote control already paired.Perform a Dual Power Cut to delete all previous settings and return the motor to FACTORY MODE.PowerONCut power for 2 sec.Cut power for 2 sec.Power ONPower back ON for 8 secondsPower ON Cut power for 2 sec.7 SEC.VALIDATING THE RESETWhat if I am plugging in the motor and it jogs...Re-set the motor to Factory Mode before setting the motor again.If the motor jogs when it is plugged in, it means that the motor limits are set, but the motor is not yet paired with a transmitter. The limits were registered (MY/STOP button pressed for 2 sec at the end of the process), but the remote control was not paired (the programming button on the remote was not pressed). In this situation, you will not be able to reset the motor. If you want to reset the motor, it should be done after the programming process is 100% completed.PowerON▶2. Perform a Dual Power Cut to delete all previous settings and return the motor to FACTORY MODE.PowerONCut powerfor 2 sec.Cut powerfor 2 sec.PowerONPowerbackON for 8seconds7 SEC.VALIDATINGTHE RESET3. Re-set the motor.Choose the Setting Mode:ManualFull automaticSemi-automatic (automatic up end limit and manual down end limit).What if in USER MODE...The obstacle is not detected.You can deactivate the obstacle detection or increase the sensitivity from the default level, during the downward movement (the upward movement obstacle detection can not be deactivated). It will then require less torque to detect an obstacle. This adjustment could be useful with: - Narrow product featuring a lighter load bar- Product equipped with a motor which has excessive torque compared to the end-product’s size.BRIEFLYHOLDTHENStarting with the screen in the halfway position, press MY and UP briefly and again MY and UP until the screen jogs.1. Enter the obstacle setting mode.Press UP briefly within 2 seconds and then press UPdeactivated.Press DOWN briefly within 2 seconds and then pressnow more sensitive.To Increase Sensitivity:To Deactivate:IF THE JOG IS SHORT, YOU’VE REACHED THE DEFAULT SETTING. TO DEACTIVATE,PRESS UP AGAIN.IF THE JOG IS SHORT, YOU’VE REACHED THE DEFAULT SETTING. TO INCREASE SENSITIVITY, PRESS DOWN AGAIN.3. CONFIRM THE NEW SETTING & exit the setting mode.2. Change the obstacle detection level.The registered level of Obstacle Detection will be reached when entering Step 1 again.▶When programming, all button presses must be completed within 2 seconds of the previous press.If the actuator goes back to USER MODE (short jog) repeat Step 1.2 SEC. UNTIL JOGWhat if in USER MODE... I am reaching the upper end limit and the load bar is going down.Perform the dual power cut only on the concerned motor.1. Perform a Dual Power Cut to delete all previous settings and return the motor to FACTORY MODE.Power ONCut power for 2 sec.Cut power for 2 sec.Power ONPower back ON for 8 secondsFOR ABOUT 7 SEC.VALIDATING THE RESETOn the transmitter, press briefly both UP and DOWN simultaneously. The screen jogs.NOTE: If hand-held transmitter direction is not properly programmed, the Eolis/Soliris RTS sensor will not function in the manner it was intended. Damage to the screens and injury could occur as a result.1. INITIATE PROGRAMMING.2. CHECK THE DIRECTION OF OPERATION.Check the direction of rotation by pressing UP or DOWN. If necessary, change the direction of rotation by simply pressing and holding the MY button until the screen jogs.simultaneously: the screen raises.the screen jogs.2. Re-set the motor.Reset the motor in manual mode by ensuring the up end limit will be positioned at about 1/4 of an inch lower than the previous up end limit (at least 1/4 of an inch below the cassette).The load bar shouldn’t touch the cassette.Limit。
纽曼CTV16说明书
纽曼数码播放器—C T V16使用手册Ver 0902您 好感谢您选用本公司生产的产品！本品支持数字电视，多种音频、视频，超大容量、随意扩展空间将带您进入完美的便携影音播放世界。
播放设置更加人性化，足以体现您的个性风采，满足您的娱乐需求。
在使用本品之前，请仔细阅读我们随机提供的所有资料，本手册将为您介绍它的功能,使您在使用过程中更加轻松方便。
通过它，您可以获取有关产品介绍、使用方法等方面的知识，以便您能更好地使用该产品。
在编写本手册时我们非常认真和严谨，希望能给您提供完备可靠的信息，然而难免有错误和疏漏之处，请您给予谅解并由衷地欢迎您批评和指正。
如果您在使用该产品的过程中发现什么问题，请及时拨打我们的服务热线，感谢您的支持与合作！请随时备份您的数据资料到您的计算机上。
本公司对于因软件、硬件的误操作、产品维修、电池更换或其它意外情况所引起的个人数据资料的丢失和损坏不负任何责任，也不对由此而造成的其它间接损失负责。
同时我们无法控制用户对本手册可能造成的误解，因此，本公司将不对在使用本手册过程中可能出现的意外损失负责，并不对因使用该产品而引起的第三方索赔负责。
本手册的信息以当前产品情况为准。
我们将继续开发提供新的功能，相关信息的更新恕不另行通知。
本手册信息受到版权保护，任何部分未经本公司事先书面许可，不准以任何方式影印和复制。
●产品及产品颜色款式请以购买的实物为准。
●本公司保留对本手册、服务手册及其相关资料的最终解释权。
标准号Q/SD 001-2007。
标准备案号QB/440301L2150-2007使 用 注 意 事 项★ 禁止儿童单独玩耍本机,请勿摔落或与硬物摩擦撞击，否则可能导致机器表面磨花、硬盘损伤、数据丢失或其它硬件损坏。
★ 建议不要大音量连续使用耳机，请将音量调整至合适的音量大小，并控制使用时间，以避免您的听力受损。
因为使用耳机时如果音量过大，可能导致永久性的听力损伤。
★ 请不要试图分解或改造本机,这样可能导致电击或妨碍产品质保。
东软载波科技PLCM16型采集器使用说明书
文档：技术文件密级：低编号：ESJS13071702DCZL33-PLCM16型采集器使用说明书VERSION：1.0日期：2014-8-7青岛东软载波科技股份有限公司青岛东软载波科技股份有限公司Qingdao Eastsoft Communication Technology Co.,Ltd 外发文档目录1.产品介绍 (3)1.1.外观介绍 (3)1.2.功能介绍 (3)1.3.执行标准 (4)1.4.技术指标 (4)2.安装及接线 (5)2.1.产品安装 (5)2.2.接线 (5)3.使用与维护 (6)3.1.产品的使用 (6)3.2.产品的维护 (6)4.故障诊断与排除 (6)4.1.常见的接线问题 (6)4.2.其它问题 (7)5.其它 (7)5.1.质保期 (7)5.2.配件清单 (7)5.3.原理图 (8)1.产品介绍1.1.外观介绍图1 DCZL33-PLCM16型采集器外壳结构图上行通信图2 DCZL33-PLCM16型采集器状态灯说明LED状态指示灯如下：运行灯——运行状态指示灯，红色。
灯亮1s灭1s交替闪烁表示采集器正常运行，灯常灭表示未上电；告警灯——告警状态指示，红色。
灯亮1s灭1s交替闪烁表示采集器告警；上行通信灯——上行通信状态指示灯，红绿双色灯。
红色闪烁表示采集器上行通道接收数据，绿色闪烁表示采集器上行通道发送数据。
下行通信灯——下行通信状态指示灯，红绿双色灯。
红色闪烁表示采集器下行通道接收数据，绿色闪烁表示采集器下行通道发送数据。
1.2.功能介绍DCZL33-PLCM16型采集器主要完成对RS485电表的电量采集，并且利用低压电力线作为通信信道，把用电量数据以电力线载波方式上传，提供给东软远程集中抄表系统。
特点如下：◆支持最多32块表；◆电力线载波远程抄读◆支持DL/T 645 1997和2007（自动切换速率97/645默认1200bps，07/645 默认2400bps，目前DL/T 645 2007可设置）◆可抄读当前电量、日月冻结电量◆电量存储功能，每日零点自动冻结电量◆电量存储功能，每月结算日自动冻结电量◆保存上64天日冻结电量◆保存上12月冻结电量◆支持数据透传◆可使用红外、载波和485接口对采集器进行抄读和设置◆支持广播校时命令◆支持开箱检测，记录总次数和最近10次发生结束时间◆可配合集中器实现电能表通信参数的自维护功能采集器整体上分上行规约处理，下行抄表及存储数据；下行抄表功能：完成抄表任务，包括抄读实时电量、日冻结、月冻结（抄表日冻结），透传功能；（支持1997-645和2007-645规约）；数据存储：存储其所管理的所有电能表最近12个月的月有功电量数据，能保存用户电能表最近64天的日有功电量数据；功能实现：日冻结抄读是在每日0点开始抄读，默认支持的数据项9A1F，当表不支持日冻结时，使用实时数据存储，日冻结存储是在成功或在实时数据有效时存储，采集器在连续3天抄读日冻结数据失败后自动删除失败表表地址；同样的月冻结（抄表日冻结）数据抄读是在抄表日时发生，默认为1日0时，存储原理与日冻结相同。
ma5620e-16使用手册
一、MA5620E-16 简介MA5620E-16 是华为公司推出的一款高性能接入设备，主要用于宽带接入业务。
该设备具有高速、稳定、安全的特点，广泛应用于各种接入场景中。
本手册将详细介绍该设备的使用方法和注意事项，以帮助用户更好地利用 MA5620E-16。
二、设备外观及结构1. 设备外观：MA5620E-16 的外观设计简洁大方，采用黑色金属外壳，整体造型稳重大气。
2. 结构特点：该设备采用模块化设计，具有良好的可维护性和易升级性。
设备背面配有各种接口，方便连接其他设备和线缆。
三、设备接口及功能说明1. 网口接口：MA5620E-16 设备配备了多个百兆、千兆网口接口，支持各种接入方式，可满足不同场景需求。
2. 光口接口：设备同时支持EPON、GPON以及10G PON等接入方式，具有较高的带宽和稳定性。
3. USB接口：设备提供USB接口，方便用户进行数据备份和管理。
4. 其他接口：设备还配备了通信方式接口、天线接口等功能，为用户提供更多的扩展和应用可能。
四、设备使用方法1. 设备上电和初始化：在接通电源后，用户需根据手册指引进行设备初始化设置，包括设定管理IP、管理用户等信息。
2. 设备接入配置：用户需根据实际需求，使用设备提供的工具进行接入配置，包括接口配置、VLAN划分、服务配置等。
3. 设备管理和监控：用户可以通过设备提供的WEB管理界面或者命令行界面进行设备的管理和监控，包括查看设备状态、监控端口流量、查看日志等功能。
五、设备维护及故障处理1. 设备维护：用户需定期对设备进行维护和清洁，保持设备良好的工作状态，延长设备使用寿命。
2. 故障处理：用户在使用设备过程中遇到故障时，首先可通过设备提供的故障定位工具进行快速定位和处理，若无法解决，可联系厂家技术支持进行协助。
六、安全注意事项1. 设备安全：用户在使用设备时需注意设备的安全性，避免长时间过载使用以及避免设备遭受机械振动和冲击。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
智能计步传感芯片DS3553
使用指南
一．基本应用电路
◆如果I2C通讯速率低于50KHZ，则可以不接R1，R2上拉电阻，可以降低功耗。
◆INT2为抬手感应实时脉冲输出，根据具体应用接到主控芯片的GPIO。
◆INT1为实时计步脉冲输出，根据具体应用接到主控芯片的GPIO。
◆对于只使用脉冲信号的应用（不使用I2C接口），CSB需接到VDD保持为高。
二．I2C接口通讯协议
◆硬件接口：SDA,SCL,CSB
◆如果使用GPIO软件模拟的I2C，则主控的SDA,SCL IO需设置为open drain模式,或者在通讯完成I2C STOP
后，CSB拉高前，SDA,SCL的IO设置为输入模式。
◆每次进行通讯时主控需先把CSB置低,延时5ms开始I2C通讯，通讯完成后把CSB置为高。
◆如果需要连续访问计步芯片，则CSB恢复为高的时间至少大于10ms以上，方可拉低CSB继续通讯。
◆通讯时序如下：
◆I2C地址：0x27,地址+写为0x4E，地址+读为0x4F
◆I2C通讯会中断内部算法计算，影响计步的准确性，在非实时显示步数的情况下，尽量减少通讯次数。
◆DS3553的I2C总线只能单独使用，不能与其他芯片共用。
◆上电复位时，DS3553内部需要20ms的初始化时间。
◆可参考本公司的应用例程。
三．读取计步数据及寄存器说明
◆CHIP_ID:Chip ID
◆计步数据寄存器：3字节，STEP_CNT_H（MSB),STEP_CNT_M,STEP_CNT_L(LSB)
◆芯片设置寄存器：USER_SET,进行修改操作时，先读取USER_SET，对相应位修改后再写入DS3553
◆计步算法说明：
DS3553集成了3种计步应用算法，分别如下：
手环计步算法：应用于手环，手表；即产品佩戴于手腕的产品。
计步鞋算法：应用安装于鞋中的计步产品。
计步器算法：应用于佩戴在腰部，口袋，裤袋，挂件，耳机，智能服饰等产品。
DS3553上电默认为手环算法，可通过USER_SET寄存器的bit1,bit0来选择计步算法。
四．USER_SET寄存器说明
五．计步鞋应用说明
◆读取的计步数据需乘以2，才是实际走步的步数。
◆DS3553芯片相对于鞋有方向安装要求，即芯片1，2,3脚指向鞋后跟那一边，在画PCB时需要特别留意，
否则计步会不准确。
如图所示。
◆如果15秒时间没有任何动作，DS3553自动进入休眠模式，功耗仅为4uA，有任何动作自动唤醒。
对于计
步鞋算法，唤醒时INT2会输出一个64ms的低电平脉冲，可做为唤醒主控用途，达到降低整体功耗目的。
六．电气特性说明
列表项目参数范围说明
1工作电压 2.3V-3.6V
2平均计步电流160uA SDA,SCL接4.7K上拉电阻
3平均计步电流230uA SDA,SCL无上拉电阻
4自动休眠电流4uA15秒无任何动作自动休眠，有任何动作自动唤醒
5待机电流2uA把USER_SET的PWR_MOD置1，使能待机模式
7I2C速率1400KHZ SDA,SCL接4.7K上拉电阻
8I2C速率250KHZ SDA,SCL无上拉电阻
9工作温度-20℃-50℃注：单独测试DS3553电流时，CSB脚需接到VDD保持为高。
