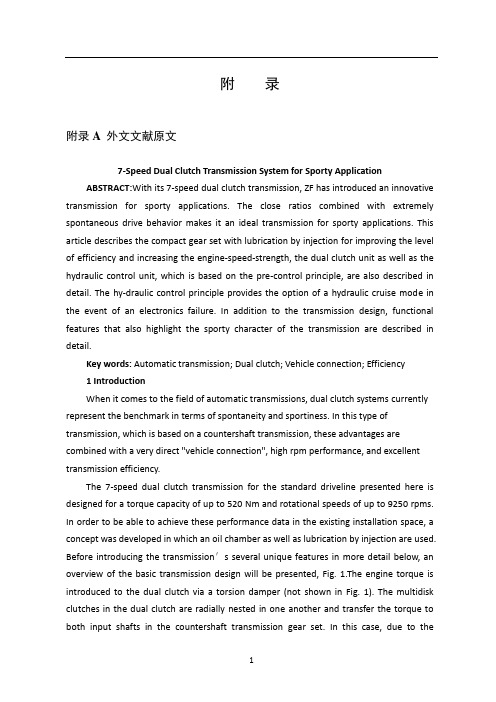

附录附录A外文文献原文7-Speed Dual Clutch Transmission System for Sporty Application ABSTRACT:With its 7-speed dual clutch transmission, ZF has introduced an innovative transmission for sporty applications. The close ratios combined with extremely spontaneous drive behavior makes it an ideal transmission for sporty applications. This article describes the compact gear set with lubrication by injection for improving the level of efficiency and increasing the engine-speed-strength, the dual clutch unit as well as the hydraulic control unit, which is based on the pre-control principle, are also described in detail. The hy-draulic control principle provides the option of a hydraulic cruise mode in the event of an electronics failure. In addition to the transmission design, functional features that also highlight the sporty character of the transmission are described in detail.Key words: Automatic transmission; Dual clutch; Vehicle connection; Efficiency1 IntroductionWhen it comes to the field of automatic transmissions, dual clutch systems currently represent the benchmark in terms of spontaneity and sportiness. In this type of transmission, which is based on a countershaft transmission, these advantages are combined with a very direct "vehicle connection", high rpm performance, and excellent transmission efficiency.The 7-speed dual clutch transmission for the standard driveline presented here is designed for a torque capacity of up to 520 Nm and rotational speeds of up to 9250 rpms. In order to be able to achieve these performance data in the existing installation space, a concept was developed in which an oil chamber as well as lubrication by injection are used. Before introducing the transmission′s several unique features in more detail below, an overview of the basic transmission design will be presented, Fig. 1.The engine torque is introduced to the dual clutch via a torsion damper (not shown in Fig. 1). The multidisk clutches in the dual clutch are radially nested in one another and transfer the torque to both input shafts in the countershaft transmission gear set. In this case, due to theinstallation space, the countershaft is not located under the main shaft, but is tilted laterally. This becomes possible because the concept is based on lubrication by injection with a dry sump. On the one hand, lubrication by injection improves heat removal, on the other, there are no noticeable losses due to the gears splashing in the oil pan. The oil is supplied to the transmission via an internal gear pump which is driven by a spur gear train behind the dual clutch. With the help of a spur gear train, the drive unit has the advantage that, via different gear ratio phases and depending on the intended use, the flow rate and the max. speed of the pump can be adapted. An additional advantage is that based on theresulting I proved installation space, an optimal ratio between the pump width and the pump diameter can be achieved for the pump′s level of efficiency. The hydraulic control unit is arranged under the gear set. The hydraulic unit supplies the clutch, based on need, with pressure and cooling oil as well as shift actuators. The latter are arranged laterally to the gear set and work with double-acting cylinders. The sensor for detecting the position of the gearshifts is attached directly onto the four gearshifts. The transmission has an external control unit.Fig.1Overview dual clutch transmission (DCT)2 Seven speeds with sophisticated stepping-a concept for extrme sporti- nessThe gear set concept of the dual clutch transmission introduced here was developed in house taking into consideration the following requirements:High power densityHigh speed endurance strength up to 9250 rpm Variability and modular designRepresentation of transmission-ratio spreads of about 4.7 and 6.8 with 7 speedsUse of existing synergies for manual transmissionsAfter extensive systematic development of the gear set in which many thousands of variants were produced and compared, the gear set concept that is illustrated in Fig. 2 isthe final variant and the ideal concept for achieving the goals specified.The gear set selected is based on the constant drive concept and consists of two concentric drive shafts each of which are driven by one of the two multidisk clutches in theFig.2Gear set scheme of 7D variantdual clutch, two countershafts also concentric to one another, a main shaft and an output shaft. The gear ratios are engaged by the four synchronizer units A/B, C/D, E/F, and G/H, which are arranged on the main shaft and on the hollow countershaft and these are connected to the loose wheels or the adjacent shafts. An important feature in the gear set is the connectability of both countershafts through the C/D synchronizer unit. In the D shift position, the gear ratios selected in this way can be doubly used which reduces construction costs compared to conventional dual clutch gear sets. Similarly, this feature is used in first gear because then the vehicle is started up using the more powerful K1 clutch. Because of this dual use of the last gear level in the transmission for the first and second gear, the desired ratio step 1-2 is achieved through the transmission ratios of both constant drive phases.The use of the K1 clutch for starting up in first gear results inevitably in the direct gear also being assigned to the odd subsection. In this case, the fifth and seventh gears can be selected as a direct drive. With this feature, it was possible to develop a modular gear set which, on just a few changes,contains two different transmission gear ratio variants with fundamentally different characters.For the first version, with an overall spread of about 4 . 7 , the seventh gear isselected as a direct gear (called the 7D variant). Fig. 2 shows the relevant gear set diagram with the performance flows in all speeds. Due to its sophisticated gear steps, this transmission is highly suitable for very sporty vehicles that need only a "little" transmission stepping due to the high rotating engine. Optimal tractive power can be provided at any time during vehicle operation.The second version is based on the 7D variant, however, fifth gear was selected as the direct drive. When maintaining the torque multiplication ratio and in adapting the transmission ratio of several lower gear levels, you get the 5D variant with a considerably higher transmission-ratio spread for vehicles with increased comfort demands and simultaneously reduced consumption.Fig. 3 illustrates the design of the 7D variant. The main similarity with existing manual transmissions for standard transmissions is noticeable. Due to the compact gear set design, the sufficient shaft dimensioning and the favorable arrangement in proximity of the bearing of the high transmitting ratios, central bearing glasses were not necessary despite the proportionally large bearing clearance.Overall, only two housing bearing levels are necessary where the front level is located behind both constant gears. In addition, a very compact and inexpensive transmission design could be implemented based on the bearing concept selected, especially in the area of the hollow shaft.Fig.3Sectional Drawing of 7D variant3 The dual clutchThe central module of this highly topical transmission concept is the wet dual clutch. With a broad spectrum of technical features, it implements the functional provisions of the transmission control unit and thus distinguishes the special character of this transmission concept.Very fast delay times, low inertia and good, comfortable friction value progressions facilitate, very sporty handling with highly dynamic gear shifting and comfortable cruisingat a high level of efficiency. The dual clutch placed directly on the transmission input accepts the engine torque from thtorsion damper and feeds it to one of the two subsections, depending on the situation.Safety considerations have led to a "normall open" design.The radial arrangement of the multidisk pack age represents the best combination of performanc and installation space need, Fig. 4.Fig.4Dual clutchCareful lining and oil selection as well as intensive enhancement of this tribological system are the requirements for comfort and performance of this clutch throughout its service life.Through intense testing and detailed calculations, it was possible to achieve a very high therma loading capacity. As part of the process, the lining type, dimensioning, and grooving as well as equal distribution of thermal load and oil flow in the multidisk package are decisive design features.Low torque drag even with low temperatures as well as high speed endurance strength support comfort and a high level of sportiness, but are also important safety requirements.Rotating, centrifugal force-compensating clutch cylinders with hysteresis optimized gaskets make the clutches easy to control. Integrated plate springs reliably accept rapid piston resetting even at high speeds.In the case of an open clutch, only transmission input shafts with very low additional mass inertia are used. This supports rapid synchronizing sequences and a long service life of the synchronizer units.4 The hydraulic control unitIn the present dual clutch transmission, the hydraulic control unit fulfills the following tasks:Actuating the dual clutchShifting the gearshifts, i. e. engaging/synchronizing the gearCooling the dual clutchGear lubricationEmergency stop function in case of complete failure of transmission electronicsSeveral features in the hydraulic control unit as well as criteria for the selection of the control concept are going to be described in more detail below.4.1 PerformanceThe use of the dual clutch transmission in sporty vehicles demands high performance from the hydraulic control unit, especially with regard to the first two tasks because the timely "handling" of these tasks come into play in gear shifting and gear shifting times.That is why particular value is placed on the selection of the right control unit concept as part of the system design. During the decision process, the choice was made, in principle, between two concepts, Fig. 5.Fig.5Control concept direct control / precontrolPrecontrol of the valvesDirect control of the valves (so-called cartridge valves)In case of direct control, the valve that is used for pressure control, e.g. a clutch, is directly connected to the power-generating proportional solenoids and provides the main pressure to the corresponding clutch pressure.The precontrol uses the pressure that is supplied by a pressure controller, for example,to actuate an additional valve that supplies the clutch pressure from the main pressure.To assess the performance of both concepts, a larger number of compared measurements were performed with different systems, of which two systems shall be considered here:ZF hydraulic control unit with precontrol for DCT standard driveComparative hydraulic control unit with direct controlA reference clutch was used as the clutch to engage. Criteria for assessing the performance were (see also Fig. 6):Fig.6Delay, increase/rise, and fall times. Red curve: Power /Electric current. Green curve: ClutchpressureDelay time, 1 to 4Time of step response until clutch inflation pressure, 1 to 2Time of the step response up to 90% of the main pressure 1 to 3Time of pressure drop (emptying times), 5 to 6Fig. 6 shows, as an example, the times for a transmission oil temperature of + 20°C to be reached. One notices that the direct control first in dicates a lower delay time (14.3 ms) compared to the precontrol (30.1 ms), see also time of brand 1to 4.For increase to clutch inflation pressure or to 90% of the main pressure shows, however, the advantage of the precontrolled system (see also summarizing tab 1).Emptying times, also present a disadvantage for direct control. Trans-mission oiltemperature of -20°C also show comparable results for step responses and fall times.All of the tests support the statement that direct control has an advantageous effect with small oil volumes. However, if large oil volumes have to be transported, precontrol valves are to be preferred due to larger opening cross-sections.4.2 Operational safetyOperational safety is determined essentially due to the soiling tendency because the so-called silting can lead to the valves getting jammed. Provocation tests with transmission-specific environmental conditions (dirty oil) demonstrated the influences of soiling on the characteristic curves. Technical, trouble-free characteristic curve progressions could be illustrated only with a high dither amplitude in valve actuation, which leads, in turn, to increased valve wear-and-tear due to the micro movements that it causes. The increased tendency toward soiling can result needing a fine filter.4.3 CostsIn addition to the delay time comparison as well as assessing the operational safety, the costs were relevant for a final evaluation. The compari son with regard to the hydraulic and electro-mag netic components shows that a precontrol system has cost benefits compared to a direct control system. Added to this are the higher flows with the actuation of direct control valves, which, in turn, result in a more expensive TCU. Furthermore, in opting for precontrol, ZF is able to "pool" together pressure controllers in large quantities because these, too, are used in the automatic ZF planetary gear set.4.4 Emergency stop functionIn case there is a complete outage in the transmission electronics, a hydraulic emergency stop function is actuated in the transmission. The clutch that is pressurized with a larger amount of pressure in the event of a system outage will continue to be pressurized. This condition is maintained until an adjustable engine speed threshold is achieved, then the clutch opens in order to prevent the engine from being choked. It is not possible to re-start this system.5 Sporty functionsFor function developers, the dual clutch transmission offers the opportunity to combine the comfort of a stepped automatic transmission with the dynamics and sportiness of a countershaft transmission. Connected, therefore, are typical " catalog values," such as time from zero to 100 kilometers per hour or the time from 80 to 120kilometers per hour with correspondingly fast kick-down shifting, but also subjective acceleration sensitivity during a shifting sequence where the purist among the manual transmission drivers still wants to feel that jolt of acceleration.One function especially designed for the dual clutch transmission in sports cars is the "race start"function. The race start is a function used to achieve optimal acceleration from a standstill, i.e. in the shortest time from 0 to 100 km/h. The sequence progresses as follows:The engine is brought to a suitably high rpm with the clutch engaged in first gear. The driver simultaneously actuates the brakes with the lef foot so that the clutch can already be lightly engaged and the gas pedal (full throttle) in order to bring the vehicle up to the target speed. By simultaneously pressing and holding an operating element, such as the selector lever or a push button on the steering wheel, the race start intention is conveyed to the system, the engine speed adjusted and the start up prevented until the driver releases the brake. During the race start, the clutch is closed under the control of the wheel slip with which the optimal acceleration is achieved and by exploiting the dynamic engine torque (inertia torque). The entire procedure progresses automatically once the driver releases so that even an inexperienced drivercan achieve the best possible drive performance figures. Obviously, the driver can cancel the procedure by removing his/her foot from the gas pedal or touching the brakes. Also, the system recognizes when the street conditions do not permit a race start, such as wet roads, for example. Due to the optimal start-up and a shifting sequence into second gear free of traction interruption (see also sports shifting), the race start function enables the acceleration time of 0 to 100 km/h to be improved by an average of 0.2 sec compared to a car with a manual transmission. At the same time, this functionality helps avoid improper use and resulting clutch overload.The top chart in Fig. 7 illustrates the engine and transmission input shaft speed, the lower chart shows the vehicle′s longitudinal acceleration. Starting with a cranking speed of 6,800 rpm, the clutch begins to close, which leads to an engine pressure up to about 4,000 rpm. The dynamic engine torque used to achieve this results in an acceleration of 0.7-0.9 g. In the process, noticeable vibrations in the transmission input shaft speed signal develop due to the wheel slip regulation. After about 1.2 sec, the vehicle is accelerated only by the engine torque with approx. 0.5 g. It must be mentioned here that this test wasperformed using a vehicle with very high traction. In most cases, a starting speed of only up to about 4,000 rpm is reasonable.A further function developed for the dual clutch transmission is so-called sports shifting. This is described in more detail below.In general, a gear-shift change by the driver is only perceived acoustically by the change in the engine speed. The transition from the acceleration level of the original gear toFig.7Measurement of a race starthe new gear should be made smoothly and continuously. This also corresponds to the standard shifting sequences in auto-matic and dual clutch transmissions. However, many drivers of sporty cars wish that they had the option of both distinctive comfort shifting sequences as well as sporty shifting sequences, which, besides the haptic response (acceleration jolt), also have an acceleration advantage as a result. To this end, the dynamic engine torque can also be used again. The requirement for this is the torque capacity of the dual clutch which has to be able to transmit this torque increase. As the possible torque increase depends on the gradients of the engine speed, this can be used particularly effectively in shifting gears with a large speed difference with the target gear (large ratio spread/ratio step), which is why the gear changes 1-2, 2-3, and 3-4 are offered. In the process, sports shifting from the frst to second gear can serve as a supplement to the ace start for improving the acceleration time from to 100 km/h. As the use of thedynamic torque is pure application topic, we distinguish, as a rule,between three shifting systems. Fig. 8 illustrates he stylized differences and features between the hifting systems, Fig. 9 shows an original measurement from a prototype vehicle.The top chart shows the respective engine and ransmission speed, the bottom chart shows the orques from both clutches. The bottom line in the hart represents the clutch from the target gear that is used to achieve the torque increase during engine sp eed adjustment and thereby acceleration gains.Fig.8Simplified depiction of acceleration procedures withFig.9Measurement of sports shift 2-3 in the vehicle附录B外文文献翻译运动型7速双离合器变速器系统摘要：ZF公司的7速双离合器变速器是一款创新型的、适用于运动型车辆的变速器。
机械毕业设计英文外文翻译353汽车变速箱动态建模轮齿局部缺陷的早期检测
附录1Dynamic Modeling of Vehicle Gearbox for EarlyDetection of Localized Tooth DefectNagwa Abd-elhalim, Nabil Hammed, Magdy Abdel-hady,Shawki Abouel-Seoud and Eid S. MohamedHelwan UniversityABSTRACTDynamic modeling of the gear vibration is a useful tool to study the vibration response of a geared system under various gear parameters and operating conditions. An improved understanding of vibration signal is required for early detection of incipient gear failure to achieve high reliability. However, the aim of this work is to make use of a 6-degree-of-freedom gear dynamic model including localized tooth defect for early detection of gear failure. The model consists of a gear pair, two shafts, two inertias representing load and prime mover and bearings. The model incorporates the effects of time-varying mesh stiffness and damping, backlash, excitation due to gear errors and modifications. The results indicate that the simulated signal shows that as the defect size increases the amplitude of the acceleration signal increases. The crest factor and kurtosis values of the simulated signal increase as the fault increases. Though the crest factor and kurtosis values give similar trends, kurtosis is a better indicator as compared to crest factor. KEYWORDS：Vibration acceleration, system modeling, Crest Factor, Kurtosis value, defect size, gear meshing, pinion, gearNOMENCLATURED J ，1J ，2J ，L J Drive motor, pinion, gear, and load mass moment of inertia replacement decision in a suitable time.1m ，1m Masses of pinion and gear.D TDriving motor torque. L TLoad torque. 1F T ，2F TFriction torque. 1C ，2CViscous damping coefficient of pinion and gear bearing. m CGear mesh damping. m KGear mesh stiffness. 1K ，2KPinion and gear shaft stiffness. 4σThe variance square. NThe number of samples. fThe defect width in face direction. h KUnit width Hertzian stiffness. D θ，1θ，2θ，L θ Angular displacement of drive motor, pinion, gear and load. D θ ，1θ ，2θ ，L θ Angular velocity of drive motor, pinion, gear and load. D θ ，1θ ，2θ ，L θAngular acceleration of drive motor, pinion, gear and load.INTRODUCTIONMuch of the past research in the dynamic modeling area has concluded that an essential solution to the problem is to use a comprehensive computer modeling and simulation tool to aid the transmission design and experiments. These have been two major obstacles to such an approach: (1) Progress in understanding of the basic gear rattle phenomenon has been limited and slow. This is because theengine-clutch-transmission system involves some strong nonlinearities including gear backlash, multi-valued springs, dry friction, hysteresis, and the like. (2)The gear rattle is a system problem and not only problem of gear teeth. Even through the research and industrial community has discussed the difficulties in varies stages of the problem, yet no thorough frame work covering the entire investigation process of such problem currently exists. This is largely due o the complexity of the power train system, which may make a computer analysis tool inefficient, in particularly when many different elements and clearances are encountered (e.g., gears, bearings, splines, synchronizers, and clutch) [1-3].A comprehensive review of mathematical models used in gear dynamics, published before 1986, has been presented by [4]. In this review, gear dynamic models without defects have been discussed. In the past few years, researchers have been working on the gear dynamic models which include defects like pitting, spalling, crack and broken tooth.A single-degree-of-freedom model is used which include the e4ffects of variable mesh stiffness, damping, gear errors, profile modifications and backlash. The effect of time-varying meshing damping is also included in this case, The solution is obtained by using the harmonic balance methods. A method of calculated the optimum profile modification has been proposed in order to obtain a zero vibration of the gear pair [5-7]. They also proposed a linear approximate equation to mode the gear pair by using a single-degree-of freedom modelGear rattle vibration is a undesirable vibration for passenger cars and light trucks equipped with manual transmissions. Unlike automatic transmissions, manualtransmission do not have the high viscous damping inherent to a hydrodynamic torque converter to suppress the impacting of gear teeth oscillating through their gear backlash. Therefore a significant level of vibration an be produced by the gear rattle and transmitted both inside the passenger compartment and outside the vehicle. Gear rattle, idle shake, and other vibration generated in the automobile driveline have become an important concern to automobile manufactures in their pursuit of an increased level of perception of high vibration quality. The torsional vibration o driveline is a major source of gear rattle vibration. The manual transmission produces gear rattle by the impacting of gear oscillating through their gear backlash. The impact collisions are transmitted to the transmission housing via shafts and bearings [8].The gear pair dynamic models including defects have been done by [9]. The study suggests that little work has been done on modeling of gear vibration with defect and an accurate analytical procedure to predict gear vibrations in the presence of local tooth fault has yet to be developed.However, the purpose of this paper is to develop a multidegree-of-freedom nonlinear model for a gear pair that can be used to study the effect of lateral-torsional vibration coupling on vibration response in the presence of localized tooth defect. A typical fault signal is assumed to be impulsive in nature because of the way it is generated. The simulation artificially introduced pitting in gears in multi-stage automotive transmission gearbox at different operation conditions (load, speed, etc). The processing of simulated and experimental signals is also introduced.SIGNAL-PROCESSING TECHNIQUEAmong various signal-processing techniques, crest factor and kurtosis analysis have been used for analyzing the whole vibration signal for the early detection of fault. In this section, crest factor and kurtosis value have been explained. MATHEMATICAL MODEL FORMULATIONHelical gears are almost always used in automotive transmissions. The meshing stiffness of a helical tooth pair is time-varying [10], and was modeled as a series of suggested spur gears so that the simulation techniques for spur gears can be applied.where M is Module (mm), b is Face width (mm), α1 is pressure angle (deg), βis helix angle (deg) and D1 is pitch diameter (mm). Fig. 2 shows the equivalent gear system in the first gear-shift, where the main parameters for the gear system ofFiat-131 gearbox and the equivalent gear system in the first gear-shift are also shown in the figures.附录2汽车变速箱动态建模轮齿局部缺陷的早期检测Nagwa Abd-elhalim, Nabil Hammed, Magdy Abdel-hady,Shawki Abouel-Seoud and Eid S. Mohamed阿勒旺大学摘要在研究齿轮系统中各种齿轮参数的振动响应和操作条件时，齿轮振动的动态建模是一个非常有用的工具。
机械毕业设计英文外文翻译259减速器和差速器的调整与装配
附录 A 外文文献Farm Machinery Using & MaintenanceThe most important thing is the meshing mark and meshing backlash of the driven bevel gears and active bevel gears, the firmness adjustment of half axle gears and planetary gear in maintenance of the BJ2020S jeep driving axle . This is an important and difficult job ,because the rear axle and driven working under the large load and high speed. And the bear is alternating load. If the meshing mark is not conforming to requirements or the meshing backlash is not good, it will appear smooth transmission speed and noise, wear, or even broken tooth gear, which directly influences the car service life and various tasks when it is working. At the same time , lord and driven tapered gear meshing mark and the check assembly and adjustment became a complicated problem although automobile driving axle structure is not a very complicated but some people is not familiar with the principle on gear transmission. Based on years of teaching and practice in the maintenance work with the adjustment of BJ2020S jeep driving axle differential gears and bearings has some method and steps of the relevant views and comments about something.ⅠAdjustment of the axis gear differential planetary gear mesh clearanceHalf axle gears and planetary gear mesh clearance is adjusted by half axle gears and differential shell thickness between three different (0.5 mm, 1.0 mm, 0.2 mm) thrust washers . Because of the planetary gear differential between shell with the thrust washers, so it must be the half axle gears through the thrust washers (two half axle gears and add, subtract washers), and the gap of the planetary gear mesh. Then using pins will planetary gear axle fixed. ⅡAdjustment of differential backlashThis bearing clearance is adjusted by adding, subtracting differential bearings and differential between shell thickness (0.5 mm in four different, o. mm, 0.15 ram, 0.10 ram) to adjust the adjustment of the gasket. In the adjustment of the former ready right and left bridge between shell of gasket, installation fixed good follower bevel gears. Active bevel gears should not installed in accordance with the relevant provisions of the torque (40-60N, m) installed left and right with tapered bridge housing, active gear with long bar, or a screwdriver to turn down, or pry differential assembly, to check differential assembly bearings between differential to feel no axial clearance and rotate freely.ⅢActive bevel gears bearing clearance adjustmentIn active position of bevel gears can be determined by the basic, increase and decrease active bevel gears with active before bearings taper gear bearing thrust ring between four different thickness (0.10 mm, 0.15 ram, 0.25 mm mm) adjustment, 0.50 gasket to adjust, the flexible rotation, no axial and radial clearance. ⅣActive bevel gears and driven bevel gears clearance and meshing mark adjustmentDomestic automobile gear for no modifier, assembling widely adopted, the first meshing mark check whether the meshing mark requirements, such as requirements, through the change of bevel gears, driven axial position to get to meet the requirements of meshing mark, the active bevel gears bearing and differential bearing clearance (pre-tightening degrees) basis, rub-up, driven bevel gears, initiative on 3-4 taper gear teeth are coated with thin layer opposite, oil (or face turns into oil), according to the requirements and differential assembly installed left, right, forward and backward bridge housing, then turn active bevel gears decomposition of left and right to bridge housing, driven gear tooth surface of conical whether imprint requirements. If meshing mark requirements, visible to the situation by outward, to the right or left, bevel gears, driven to adjust. When the meshing mark to tooth root cap, the main, small or client, the formula for the Lord: "the Lord,from (i.e., big into bevel gears into active driven gear), small (i.e. driven out from bevel gears removed from active gear)." When the Lord, driven gear cone of meshing mark complies with the standards and inspection, driven bevel gears, active bevel gears and clearance of bevel gears driven backlash should actively bevel gears in the radius of 45mm flanges on the circumference displacement measurement, the arc length) should be in (0.2-0.6 mm. If does not accord with a standard, can increase and decrease active bevel gears and bearings taper gear after the shim between left and right or mobile differential bearing adjustment gasket, driven to adjust the gap, so bevel gears, driven when the bevel gears has adjusted, adjust the marks are not destroyed, small volume, driven tapered gear meshing mark.ⅤDrive and differential assemblyWe can start assemble the drive and differential when the differential gears, driven gear, each bearing, tapered meshing mark adjustment is over. Based on the thickness of the gasket and the bolt torques, we should coated with rubber seal, assembled active bevel gears, mount differential assembly, then closed the bridge housing.附录 B 中文译文减速器和差速器的调整与装配在对BJ2020S吉普车后桥的维修中，最主要的就是减速器主、从动圆锥齿轮的啮合印痕及啮合间隙；差速器半轴齿轮、行星齿轮啮合间隙和各轴承松紧度的调整。
机械设计专业的毕业设计(英文版)
Mechanical EngineeringIntroduction to Mechanical EngineeringMechanical engineering is the branch of engineering that deals with machines and the production of power. It is particularly concerned with forces and motion.History of Mechanical EngineeringThe invention of the steam engine in the latter part of the 18th century, providing a key source of power for the Industrial Revolution, gave an enormous impetus to the development of machinery of all types. As a result a new major classification of engineering, separate from civil engineering and dealing with tools and machines, developed, receiving formal recognition in 1847 in the founding of the Institution of Mechanical Engineers in Birmingham, England.Mechanical engineering has evolved from the practice by the mechanic of an art based largely on trial and error to the application by the professional engineer of the scientific method in research, design, and production.The demand for increased efficiency, in the widest sense, is continually raising the quality of work expected from a mechanical engineer and requiring of him a higher degree of education and training. Not only must machines run more economically but capital Costs also must be minimized.Fields of Mechanical EngineeringDevelopment of machines for the production of goods the high material standard of living in the developed countries owes much to the machinery made possible by mechanical engineering. The mechanical engineer continually invents machines to produce goods and develops machine tools of increasing accuracy and complexity to build the machines.The principal lines of development of machinery have been an increase in the speed of operation to obtain high rates of production, improvement in accuracy to obtain quality and economy in the product, and minimization of operating costs. These three requirements have led to the evolution of complex control systems.The most successful production machinery is that in which the mechanical design of the machine is closely integrated with the control system, whether the latter is mechanical orelectrical in nature. A modern transfer line (conveyor) for the manufacture of automobile engines is a good example of the mechanization of a complex series of manufacturing processes. Developments are in hand to automate production machinery further, using computers to store and process the vast amount of data required for manufacturing a variety of components with a small number of versatile machine tools. One aim is a completely automated machine shop for batch production, operating on a three shift basis but attended by a staff for only one shift per day.Development of machines for the production of power Production machinery presuppose an ample supply of power. The steam engine provided the first practical means of generating power from heat to augment the old sources of power from muscle, wind, and water One of the first challenges to the new profession of mechanical engineering was to increase thermal efficiencies and power; this was done principally by the development of the steam turbine and associated large steam boilers. The 20th century has witnessed a continued rapid growth in the power output of turbines for driving electric generators, together with a steady increase in thermal efficiency and reduction in capital cost per kilowatt of large power stations. Finally, mechanical engineers acquired the resource of nuclear energy, whose application has demanded an exceptional standard of reliability and safety involving the solution of entirely new problems- The control systems of large power plank and complete nuclear power stations have become highly sophisticated networks of electronic, fluidic. Electric, hydraulic, and mechanical components, ail of these involving me province of the mechanical engineer.The mechanical engineer is also responsible for the much smaller internal combustion engines, both reciprocating (gasoline and diesel) and rotary (gas-turbine and Wankel) engines, with their widespread transport applications- In the transportation field generally, in air and space as well as on land and sea. the mechanical engineer has created the equipment and the power plant, collaborating increasingly with the electrical engineer, especially in the development of suitable control systems.Development of military weapons The skills applied to war by the mechanical engineer are similar to those required in civilian applications, though the purpose is to enhance destructive power rather than to raise creative efficiency. The demands of war have channeled huge resources into technical fields, however, and led to developments that have profound benefits in peace. Jet aircraft and nuclear reactors are notable examples.Biaengineering Bioengineering is a relatively new and distinct field of mechanical engineering that includes the provision of machines to replace or augment the functions of the human body and of equipment for use in medical treatment. Artificial limbs have been developed incorporating such lifelike functions as powered motion and touch feedback. Development is rapid in the direction of artificial spare-part surgery. Sophisticated heart-lung machines and similar equipment permit operations of increasing complexity and permit the vital functions in seriously injured or diseased patients to be maintained.Environmental control Some of the earliest efforts of mechanical engineers were aimed at controlling man's environment by pumping water to drain or irrigate land and by ventilating mines. The ubiquitous refrigerating and air-conditioning plants of the modem age are based on a reversed heat engine, where the supply of power "pumps" heat from the cold region to the warmer exterior.Many of the products of mechanical engineering, together with technological developments in other fields, have side effects on the environment and give rise to noise, the pollution of water and air, and the dereliction of land and scenery. The rate of production, both of goods and power, is rising so rapidly that regeneration by natural forces can no longer keep pace. A rapidly growing field for mechanical engineers and others is environmental control, comprising the development of machines and processes that will produce fewer pollutants and of new equipment and techniques that can reduce or remove the pollution already generated.Functions of Mechanical EngineeringFour functions of the mechanical engineering, common to all the fields mentioned, are cited. The first is the understanding of and dealing with the bases of mechanical science. These include dynamics, concerning the relation between forces and motion, such as in vibration; automatic control; thermodynamics, dealing with the relations among the various forms of heat, energy, and power; fluid flow; heat transfer; lubrication; and properties of materials.Second is the sequence of research, design, and development. This function attempts to bring about the changes necessary to meet present and future needs. Such work requires not only a dear understanding of mechanical science and an ability to analyze a complex system into its basic factors, but also the originality to synthesize and invent.Third is production of products and power, which embraces planning, operation, and maintenance. The goal is to produce the maximum value with the minimum investment and cost while maintaining or enhancing longer term viability and reputation of the enterprise or the institution.Fourth is the coordinating functioning of the mechanical engineering, including management, consulting, and, in some cases, marketing.In all of these functions there is a long continuing trend toward the use of scientific instead of traditional or intuitive methods, an aspect of the ever-growing professionalism of mechanical engineering. Operations research, value engineering, and PABLA (problem analysis by logical approach) are typical titles of such new rationalized approaches. Creativity, however, cannot be rationalized. The ability to take the important and unexpected step that opens up new solutions remains in mechanical engineering, as elsewhere, largely a personal and spontaneous characteristic.The Future of Mechanical EngineeringThe number of mechanical engineers continues to grow as rapidly as ever, while the duration and quality of their training increases. There is a growing: awareness, however, among engineers and in the community at large that the exponential increase in populationand living standards is raising formidable problems in pollution of the environment andthe exhaustion of natural resources; this clearly heightens the need for all of the technical professions to consider the long-term social effects of discoveries and developments. -There will be an increasing demand for mechanical engineering skills to provide for man's needs while reducing to a minimum the consumption of scarce raw materials and maintaining a satisfactory environment.Introduction to DesignThe Meaning of DesignTo design is to formulate a plan for the satisfaction of a human need. The particular need to be satisfied may be quite well defined from the beginning. Here are two examples in which needs are well defined:1. How can we obtain large quantities of power cleanly, safely, and economical/ without using fossil fuels and without damaging the surface of the earth?2. This gear shaft is giving trouble; there have been eight failures in the last six weeks. Do something about it.On the other hand, the statement of a particular need to be satisfied may be so nebulous and ill defined that a considerable amount of thought and effort is necessary in ( order to state it dearly as a problem requiring a solution. Here are two examples.-1. Lots of people are killed in airplane accidents.2. In big cities there are too many automobiles on the streets and highways.This second type of design situation is characterized by the fact that neither the need nor the problem to be solved has been identified. Note, too, that the situation may contain not one problem but many.We can classify design, too. For instance, we speak of:1. Clothing design 7. Bridge design2. Interior design 8. Computer-aided design3. Highway design 9. Heating system design.4. Landscape design 10. Machine design5. Building design 11. Engineering design6. Ship design 12. Process designIn fact, there are an endless number, since we can classify design according to the particular article or product or according to the professional field,In contrast to scientific or mathematical problems, design problems have no unique answers; it is absurd, for example, to request the "correct answer" to a design problem, because there is none. In fact, a "good" answer today may well turn out to be a "poor" answer tomorrow, if there is a growth of knowledge during the period or if there are other structural or societal changes.Almost everyone is Involved with design in one way or another, even in dally living, because problems are posed and situations arise which must be solved. A design problem is not a hypothetical problem at all. Design has an authentic purpose—the creation of an end result by taking definite action, or the creation of something having physical reality. In engineering, the word design conveys different meanings to different persons. Some think of a designer as one who employs the drawing board to draft the details of a gear, clutch, or other machine member. Others think of design as the creation of a complex system, such as a communications network. In some areas of engineering the word design has been replaced by other terms such as systems engineering or applied decision theory. But no matter what words are used to describe the design function, in engineering it is still the process in which scientific principles and the tools of engineering—mathematics, computers, graphics, and English—are used to produce a plan which, when carried out, will satisfy a human need.Mechanical Engineering DesignMechanical design means die design of things and systems of a mechanical nature machines, products, structures, devices, and instruments. For the most part, mechanical design utilizes mathematics, the materials sciences, and the engineering-mechanics sciences.Mechanical engineering design includes all mechanical design, but it is a broader study, because it includes all the disciplines of mechanical engineering, such as the thermal and fluids sciences, too. Aside from the fundamental sciences that are required, the first studies in mechanical engineering design are in mechanical design.The Phases of DesignThe complete process, from start to finish. The process W begins with a recognition of a need and a decision to do something about it. After much iteration, the process ends with the presentation of the plans for satisfying the need.Design ConsiderationsSometimes the strength required of an element in a system is an important factor in the determination of the geometry and the dimensions of the element. In such a situation we say that strength is an important design consideration. When we use the expression design consideration, we are referring to some characteristic which influences the design of the element or, perhaps, the entire system. Usually quite a number of such characteristics must be considered in a given design situation. Many of the important ones are as follows:1. Strength2. Reliability3. Thermal properties4. Corrosion5. Wear6. Friction7. Processing8. Utility9. Cost10. Safety11. Weight12. Life13. Noise14. Styling15. Shape16. Size17. Flexibility18. Control19. Stiffness20. Surface finish21. Lubrication22. Maintenance23. Volume24. LiabilitySome of these have to do directly with the dimensions, the material, the processing, and the joining of the elements of the system. Other considerations affect the configuration of the total system.To keep the correct perspective, however, it should be observed that in many design situations the important design considerations are such that no calculations or experiments are necessary in order to define an element or system. Students, especially, are often confounded when they run into situations in which it is virtually impossible to make a single calculation and yet an important design decision must be made. These are not extraordinary occurrences at all; they happen every day. Suppose that it is desirable from a sales standpoint—for example, in medical laboratory machinery—to create an impression of great strength and durability. Thicker parts assembled with larger-than-usual oversize bolts can be used to create a rugged-looking machine. Sometimes machines and their parts are designed purely from the standpoint of styling and nothing else. These points are made here so that you will not be misled into believing that there is a rational mathematical approach to every design decision.ManufacturingManufacturing is that enterprise concerned with converting raw material into finished products. There are three distinct phases in manufacturing. These phases are as follows: input, processing, and output.The first phase includes all of the elements necessary to create a marketable product. First, there must be a demand or need for the product. The necessary materials must be (available. Also needed are such resources as energy, time, human knowledge, and human skills. Finally, it takes capital to obtain all of the other resources.Input resources are channeled through the various processes in Phase Two. These are the processes used to convert raw materials into finished products. A design is developed. Based on the design, various types of planning are accomplished. Plans are put into action through various production processes. The various resources and processes are managed to ensure efficiency and productivity. For example, capital resources must be carefully managed to ensure they are used prudently. Finally, the product in question is marketed.The final phase is the output or finished product. Once the finished product has been purchased it must be transported to users. Depending on the nature of the product, installation and ongoing field support may be required. In addition, with some products, particularly those of a highly complex nature, training is necessary.Materials and Processes in ManufacturingEngineering materials covered herein are divided into two broad categories: metals and nonmetals. Metals are subdivided into ferrous metals, nonferrous metals, high-performance alloys, and powdered metals. Nonmetals are subdivided into plastics, elastomers, composites, and ceramics. Production processes covered herein are divided into several broad categories including forming, forging,casting/molding, .heat treatment^ .fastening joining metrology/quality control, and material removal. Each of these is subdivided into several other processes.Stages in the Development of ManufacturingOver the years, manufacturing processes have- gone through four distinct,-although overlapping, stages of development. These stages are as follows: Stage 1 ManualStage 2 MechanizedStage 3 AutomatedStage 4 IntegratedWhen people first began converting raw materials into finished products, they used manual processes. Everything was accomplished using human hands and manually operated tools. This was a very rudimentary form of fully integrated manufacturing. A person identified the need, collected materials, designed a product to meet the need, produced the product, and used it. Everything from start to finish was integrated within the mind of the person who did all the work.Then during the industrial revolution mechanized processes were introduced and humans began using machines to accomplish work previously accomplished manually. This led to work specialization which, in turn, eliminated the integrated aspect of manufacturing. In this stage of development, manufacturing workers might see only that part of an overall manufacturing operation represented by that specific piece on which they worked. There was no way to tell how their efforts fit into the larger picture or their workpiece into the finished product.The next stage in the development of manufacturing processes involved the automation of selected processes. This amounted to computer control of machines and processes. During this phase, islands of automation began to spring up on the shop floor. Each island represented a distinct process or group of processes used in the production of a product. Although these islands of automation did tend to enhance the productivity of the individual processes within the islands, overall productivity often was unchanged. This was because the islands were sandwiched in among other processes that were not automated and were not synchronized with them.The net result was that workpieces would move quickly and efficiently through the automated processes only to back up at manual stations and create bottlenecks. To understand this problem, think of yourself driving from stoplight to stoplight in rush hour traffic Occasionally you find an opening and an: able to rush ahead of the other cars that are creeping along, only to find yourself backed up at the next light. The net effect of your brief moment of speeding ahead is canceled out by the bottleneck at the next stoplight. Better progress would be made if you and the other drivers could synchronize your speed to the changing of the stoplights. Then all cars would move steadily and consistently along and everyone would make better progress in the long run.This need for steady, consistent flow on the shop floor led to the development of integrated manufacturing, a process that is still emerging. In fully integrated settings, machines and processes are computer controlled and integration is accomplished through computers. In the analogy used in the previous paragraph, computers would synchronize the rate of movement of all cars with the changing of the stoplights so that everyone moved steadily and consistently along.The Science of MechanicsThat branch of scientific analysis which deals with motions, time, and forces is called mechanics and is made up of two parts, static’s and dynamics. Static’s deals with the analysis of stationary systems, i. e., those in which time is not a factor, and dynamics deals with systems which change with time.Dynamics is also made up. of tyro major disciplines, first recognized as separate entities by Euler in 1775.The investigation of the motion of a rigid body may be conveniently separated into two parts, the one geometrical, the other mechanical. In the first part, the transference of the body from a given position to any other position must be investigated without respect to the cause of the motion, and must be represented by analytical formulae, which will define the position of each point of the body. This investigation will therefore be referable solely to geometry, or rather to stereotomy.It is clear that by the separation of this part of the question from the other, which belongs properly to Mechanics, the determination of the motion from dynamical principles will be made much easier than if the two parts were undertaken conjointly.These two aspects of dynamics were later recognized as the distinct sciences of kinematics and kinetics, and deal with motion and the forces producing it respectively.The initial problem in the design of a mechanical system therefore understands its kinematics. Kinematics is the study of motion, quite apart from the forces whichproduce that motion. More particularly, kinematics is the study of position, displacement rotation, speed, velocity, and acceleration. The study, say of planetary or orbital motion is also a problem in kinematics.It should be carefully noted in the above quotation that Euler based his separation of dynamics into kinematics and kinetics on the assumption that they should deal with rigid bodies. It is this very important assumption that allows the two to be treated separately. For flexible bodies, the shapes of the bodies themselves, and therefore their motions, depend on the forces exerted on them. In this situation, the study of force and motion must take place simultaneously, thus significantly increasing the complexity of the analysis.Fortunately, although all real machine parts are flexible to some degree, machines are usually designed from relatively rigid materials, keeping part deflections to a minimum. Therefore, it is common practice to assume that deflections are negligible and parts are rigid when analyzing a machine's kinematics performance, and then, after the dynamic analysis when loads are known, to design the parts so that this assumption is justified.。
机械毕业设计英文外文翻译43变速器介绍
附录A 英文文献Transmission descriptionTransmission gearbox's function the engine's output rotational speed is high, the maximum work rate and the maximum torque appears in certain rotational speed area. In order to display engine's optimum performance, must have a set of variable speed gear, is coordinated the engine the rotational speed and wheel's actual moving velocity. The transmission gearbox may in the automobile travel process, has the different gear ratio between the engine and the wheel, through shifts gears may cause the engine work under its best power performance condition. Transmission gearbox's trend of development is more and more complex, the automaticity is also getting higher and higher, the automatic transmission will be future mainstream.Automotive Transmission's mission is to transfer power, and in the process of dynamic change in the transmission gear ratio in order to adjust or change the characteristics of the engine, at the same time through the transmission to adapt to different driving requirements. This shows that the transmission lines in the automotive transmission plays a crucial role. With the rapid development of science and technology, people's car is getting higher and higher performance requirements, vehicle performance, life, energy consumption, such as vibration and noise transmission depends largely on the performance, it is necessary to attach importance to the study of transmission.Transmission gearbox's pattern the automobile automatic transmission common to have three patterns: Respectively is hydraulic automatic transmission gearbox (AT), machinery stepless automatic transmission (CVT), electrically controlled machinery automatic transmission (AMT). At present what applies is most widespread is, AT becomes automatic transmission's pronoun nearly.AT is by the fluid strength torque converter, the planet gear and the hydraulic control system is composed, combines the way through the fluid strength transmission and the gear to realize the speed changebending moment. And the fluid strength torque converter is the most important part, it by components and so on pump pulley, turbine wheel and guide pulley is composed, has at the same time the transmission torque and the meeting and parting function.And AT compare, CVT has omitted complex and the unwieldy gear combination variable transmission, but is two groups of band pulleys carries on the variable transmission. Through changes the driving gear and the driven wheel transmission belt's contact radius carries on the speed change. Because has cancelled the gear drive, therefore its velocity ratio may change at will, the speed change is smoother, has not shifted gears kicks the feeling.AMT and the hydraulic automatic transmission gearbox (AT) is the having steps automatic transmission equally. It in the ordinary manual transmission gearbox's foundation, through installs the electrically operated installment which the microcomputer controls, the substitution originally coupling's separation which, the joint and the transmission gearbox completes by the manual control elects to keep off, to shift gears the movement, realizes fluid drive.Manual transmission gear mainly uses the principle of deceleration. Transmission within the group have different transmission ratio gear pair, and the car at the time of shift work, that is, through the manipulation of institutions so that the different transmission gear pair work. Manual transmission, also known as manual gear transmission, with axial sliding in the gears, the meshing gears through different speed to achieve the purpose of torque variation. Manual shift transmission can operate in full compliance with the will of the driver, and the simple structure, the failure rate is relatively low, value for money.Automatic transmission is based on speed and load (throttle pedal travel) for two-parameter control gear in accordance with the above two parameters to automatically take-off and landing. Automatic transmission and manual transmission in common, that is, there are two-stage transmission, automatic transmission can only speed the paceto automatically shift, manual transmission can be eliminated, "setback" of the shift feel.Automatic transmission is a torque converter, planetary gears and hydraulic manipulation of bodies, through the hydraulic transmission and gear combination to achieve the purpose of variable-speed torque variation.Also known as CVT-type continuously variable CVT. This transmission and automatic transmission gear generally the biggest difference is that it eliminates the need of complex and cumbersome combination of variable-speed gear transmission, and only two groups to carry out variable-speed drive pulley.CVT transmission than the traditional structure of simple, smaller and it is not the number of manual gear transmission, no automatic transmission planetary gear complex group, mainly rely on the driving wheel, the driven wheel and the transmission ratio brought about by the realization of non-class change.Widely used in automotive internal combustion engine as a power source, the torque and speed range is very small, and complex conditions require the use of motor vehicles and the speed of the driving force in the considerable changes in the scope. To resolve this contradiction, in the transmission system to set up the transmission to change transmission ratio, the expansion of the driving wheel torque and speed range in order to adapt to constantly changing traffic conditions, such as start, acceleration, climbing and so on, while the engine in the most favorable conditions to work under the scope; in the same direction of rotation of the engine under the premise of the automobile can be driven back; the use of neutral, interruption of power transmission, in order to be able to start the engine, idle speed, and ease of transmission or power shift . Transmission is designed to meet the above requirements, so that the conditions in a particular vehicle stability.In addition to transmission can be used to meet certain requirements, but also to ensure that it and the car can have a good match, and can improve the car's power and economy to ensure that theengine in a favorable condition to increase the scope of the work of the use of motor vehicles life, reduce energy consumption, reduce noise, such as the use of motor vehicles.Today the world's major car companies CVT are very active in the study. The near future, with electronic control technology to further improve, electronically controlled Continuously Variable Transmission-type is expected to be a wide range of development and application.附录B 文献翻译变速器介绍发动机的输出转速非常高，最大功率及最大扭矩在一定的转速区出现。
机械制造 毕业设计 外文英文文献 翻译 齿轮和齿轮传动
机械制造毕业设计外文英文文献翻译齿轮和齿轮传动Gears and gear driveGears are the most durable and rugged of all mechanical drives. They can transmit high power at efficiencies up to 98% and with long service lives. For this reason, gears rather than belts or chains are found in automotive transmissions and most heavy-duty machine drives. On the other hand, gears are more expensive than other drives, especially if they are machined and not made from power metal or plastic.Gear cost increases sharply with demands for high precision and accuracy. So it is important to establish tolerance requirements appropriate for the application. Gears that transmit heavy loads or than operate at high speeds are not particularly expensive, but gears that must do both are costly.Silent gears also are expensive. Instrument and computer gears tend to be costly because speed or displacement ratios must be exact. At the other extreme, gears operating at low speed in exposed locations are normally termed no critical and are made to minimum quality standards.For tooth forms, size, and quality, industrial practice is to follow standards set up by the American Gear Manufactures AssociationAGMA.Tooth formStandards published by AGMA establish gear proportions and tooth profiles. Tooth geometry is determined primarily by pitch, depth, and pressure angle.Pitch：Standards pitches are usually whole numbers when measured as diametral pitch P. Coarse-pitch gearing has teeth larger than 20 diametral pitch ?usually 0.5 to 19.99. Fine-pitch gearing usually has teeth of diametral pitch 20 to 200.Depth: Standardized in terms of pitch. Standard full-depth have working depth of 2/p. If the teeth have equal addendaas in standard interchangeable gears the addendum is 1/p. Stub teeth have a working depth usually 20% less than full-depth teeth. Full-depth teeth have a larger contract ratio than stub teeth. Gears with small numbers of teeth may have undercut so than they do not interfere with one another during engagement. Undercutting reduce active profile and weakens the tooth.Mating gears with long and short addendum have larger load-carrying capacity than standard gears. The addendum of the smaller gear pinion is increased while that of larger gear is decreased, leaving the whole depth the same. This form is know as recess-action gearing.Pressure Angle: Standard angles are and . Earlier standards include a 14-pressure angle that is still used. Pressure angle affectsthe force that tends to separate mating gears. High pressure angle decreases the contact ratio ratio of the number of teeth in contact but provides a tooth of higher capacity and allows gears to have fewer teeth without undercutting.Backlash: Shortest distances between the non-contacting surfaces of adjacent teeth .Gears are commonly specified according to AGMA Class Number, which is a code denoting important quality characteristics. Quality number denote tooth-element tolerances. The higher the number, the closer the tolerance. Number 8 to 16 apply to fine-pitch gearing.Gears are heat-treated by case-hardening, through-hardening, nitriding, or precipitation hardening. In general, harder gears are stronger and last longer than soft ones. Thus, hardening is a device that cuts the weight and size of gears. Some processes, such as flame-hardening, improve service life but do not necessarily improve strength.Design checklistThe larger in a pair is called the gear, the smaller is called the pinion.Gear Ratio: The number of teeth in the gear divide by the number of teeth in the pinion. Also, ratio of the speed of the pinion to the speed of the gear. In reduction gears, the ratio of input to output speeds.Gear Efficiency: Ratio of output power to input power. includesconsideration of power losses in the gears, in bearings, and from windage and churning of lubricant.Speed: In a given gear normally limited to some specific pitchline velocity. Speed capabilities can be increased by improving accuracy of the gear teeth and by improving balance of the rotating parts.Power: Load and speed capacity is determined by gear dimensions and by type of gear. Helical and helical-type gears have the greatest capacity to approximately 30,000 hp. Spiral bevel gear are normally limited to 5,000 hp, and worm gears are usually limited to about 750 hp.Special requirementsMatched-Set Gearing: In applications requiring extremely high accuracy, it may be necessary to match pinion and gear profiles and leads so that mismatch does not exceed the tolerance on profile or lead for the intended application.Tooth Spacing: Some gears require high accuracy in the circular of teeth. Thus, specification of pitch may be required in addition to an accuracy class specification.Backlash: The AMGA standards recommend backlash ranges to provide proper running clearances for mating gears. An overly tight mesh may produce overload. However, zero backlash is required in some applications.Quiet Gears: To make gears as quit as possible, specify thefinest pitch allowable for load conditions. In some instances, however, pitch is coarsened to change mesh frequency to produce a more pleasant, lower-pitch sound. Use a low pressure angle. Use a modified profile to include root and tip relief. Allow enough backlash. Use high quality numbers. Specify a surface finish of 20 in. or better. Balance the gear set. Use a nonintegral ratio so that the same teeth do not repeatedly engage if both gear and pinion are hardened steel. If the gear is made of a soft material, an integral ratio allows the gear to cold-work and conform to the pinion, thereby promoting quiet operation. Make sure critical are at least 20% apart from operating speeding or speed multiples and from frequency of tooth mesh.Multiple mesh gearMultiple mesh refers to move than one pair of gear operating in a train. Can be on parallel or nonparallel axes and on intersection or nonintersecting shafts. They permit higer speed ratios than are feasible with a single pair of gears .Series trains:Overall ratio is input shaft speed divided by output speed ,also the product of individual ratios at each mesh ,except in planetary gears .Ratio is most easily found by dividing the product of numbers of teeth of driven gears by the product of numbers of teeth of driving gears.Speed increasers with step-up rather than step-down ratios mayrequire special care in manufacturing and design. They often involve high speeds and may creste problems in gear dynamics. Also, frictional and drag forces are magnified which, in extreme cases , may lead to operational problems.Epicyclic Gearing:Normally, a gear axis remains fixed and only the gears rotates. But in an epicyclic gear train, various gears axes rotate about one anther to provide specialized output motions. With suitable clutchse and brakes, an epicyclic train serves as the planetary gear commonly found in automatic transmissions.Epicyclic trains may use spur or helical gears, external or internal, or bevel gears. In transmissions, the epicyclic or planetary gears usually have multiple planets to increase load capacity.In most cases, improved kinematic accuracy in a gearset decreases gear mesh excitation and results in lower drive noise. Gearset accuracy can be increased by modifying the tooth involute profile, by substituting higher quality gearing with tighter manufacturing tolerances, and by improving tooth surface finish. However, if gear mesh excitation generaters resonance somewhere in the drive system, nothing short of a “perfect” gearset will substantially reduce vibration and noise.Tooth profiles are modified to avoid interferences which can result from deflections in the gears, shafts, and housing as teeth engageand disendgage. If these tooth interferences are not compensated for by profile modifications, gears load capacity can be seriously reduced. In addition, the drive will be noisier because tooth interferences generate high dynamic loads. Interferences typically are eliminated by reliving the tooth tip, the tooth flank, or both. Such profile modifications are especially important for high-load , high-speed drives. The graph of sound pressure levelvs tip relief illustrates how tooth profile modifications can affect overall drive noise. If the tip relief is less than this optimum value, drive noise increases because of greater tooth interference; a greater amount of tip relief also increase noise because the contact ratio is decreased.Tighter manufacturing tolerances also produce quietier gears. Tolerances for such parameters as profile error, pitch AGMA quality level. For instance, the graph depicting SPL vs both speed and gear quality shows how noise decreases example, noise is reduced significantly by an increase in accuracy from an AGMA Qn 11 quality to an AGNA Qn 15 quality. However, for most commercial drive applications, it is doubtful that the resulting substantial cost increase for such an accuracy improvement can be justified simply on the basis of reduced drive noise.Previously, it was mentioned that gears must have adequate clearance when loaded to prevent tooth interference during the course of meshing. Tip and flank relief are common profile modifications thatcontrol such interference. Gears also require adequate backlash and root clearance. Noise considerations make backlash an important parameter to evaluate during drive design. Sufficient backlash must be provided under all load and temperature conditions to avoid a tight mesh, which creates excessively high noise level. A tight mesh due to insufficient backlash occurs when the drive and coast side of a tooth are in contact simultaneously. On the other hand, gears with excessive backlash also are noisy because of impacting teeth during periods of no load or reversing load. Adequate backlash should be provided by tooth thinning rather than by increase in center distance. Tooth thinning dose not decrease the contact ratio, whereas an increase in center distance does. However, tooth thinning does reduce the bending fatigue, a reduction which is small for most gearing systems.齿轮和齿轮传动在所有的机械传动形式中，齿轮传动是一种最结实耐用的传动方式。
汽车变速器的设计外文文献翻译、中英文翻译、外文翻译
本科毕业设计（论文）英文资料翻译*****指导教师：孙飞豹（副教授）学科、专业：车辆工程沈阳理工大学应用技术学院2011年12月20日transmission used in automobilesA standard transmission or manual transmission is the traditional type of transmission used in automobiles. The manual or standard transmission consists of a series of gears, synchros, roller bearings, shafts and gear selectors. The main clutch assembly is used to engage and disengage the engine from the transmission. Heliacal cut gears are used to select the ratio desired the sector fork move gears from one to another by using the gearshift knob. Synchros are used to slow the gear to a stop before it is engaged to avoid gear grinding, the counter shaft hold the gears in place and against the main input and output shaft. A stick shift transmission has no torque converter so there is no need for a transmission cooler. A stick shift transmission needs a simple fluid change for proper service. (there is no transmission filter in a stick shift transmission).Transmission ShifterMost manual transmissions have one reverse gear and four to six forward gears. Some cars also have eight forward gears while thirteen to twenty-four gears are present in semi trucks. To differentiate among the available standard transmissions, they are addressed by the number of forward gears. For example, if the standard transmission has five gears, it will be referred to as 5-speed standard transmission or 5-speed standard.Typical Standard Transmission ConfigurationInside the transmission shafts contain all forward and reverse gears. Most transmissions contain three shafts: input shaft, output shaft and counter or lay shaft. Other than standard transmission, there are other transmissions like continuously variable transmission, automatic transmission and semi-automatic transmission. In the manual transmission, a pair of gears inside the transmission selects the gear ratios. Whereas, in an automatic transmission, combination of brake bands and clutch packs control the planetary gear which selects the gear ratio.If there is a provision to select a gear ratio manually in automatic transmissions, the system is called a semi-automatic transmission. The driver can select from any of the gears at any pointof time. In some automobiles like racing cars and motorcycles that have standard transmissions, the driver can select the preceding or the following gear ratio with no clutch operation needed. This type of standard transmission is known as sequential transmission. In this transmission the clutch is still used for initial take off.Clutch and Flywheel AssemblyThe main clutch plays the role of a coupling device which separates the transmission and the engine. If the clutch is absent and the car comes to a stop the engine will stall. In automobiles, the clutch can be operated with the help of a pedal located on the floor of the vehicle. In an automatic transmission instead of a clutch, a torque converter is used to separate the transmission and engine.Typical Stick Shift PatternsA desired gear can be selected by a lever which is usually located on the floor in between the driver and passenger seat. This selector lever is called the gear lever or gear selector or gear shift or shifter. This gear stick can be made to move in right, left, forward and backward direction. When the gear is placed on the N position or neutral position, no gear will be selected. To move the car in the backward direction, the R gear or reverse gear should be selected.Standard transmissions are more efficient and less expensive to produce than automatic transmissions. A Standard transmission is about 15% more efficient compared to an automatic transmission. Standard transmissions are generally stronger than automatic transmissions and off road vehicles take advantage of a direct gear selection so they can withstand rough conditions. Less active cooling is also required in manual transmission system because less power is wasted.●Popular Problem ChecksCar will not go into gearClutch disc is broken completelyInternal transmission damageFailed clutch master cylinderSeized clutch slave cylinderBroken clutch fork pivotBroken clutch cableCar goes into gear but it fades out or is slippingClutch is worn out and needs replacementClutch is oil soaked from a external engine oil leakCar makes grinding noise while operating or shifting gearsOne of the roller or thrust bearings has failedThe gear synchro is worn out not forcing the gear stop before it is engaged causing a grinding gear.A counter or main shaft bearing has failed causing misalignment of the gears●Troubleshooting Noise and ProblemsIf the vehicle is running and a whirring sound is heard, then it goes away when the clutch is depressed, the transmission input bearing has failed.If the transmission is quiet in neutral but when you depress the clutch a squeaking noise is observed, a clutch throw out bearing has failed.Tips:Never let little noises go unattended; a small noise can cause a large noise and transmission operation failure. Never overload a vehicle or tow beyond the capacity this can cause premature transmission failure.汽车变速器汽车传统变速器是那种标准的手动变速器。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
OPTIMUM DESIGN OF MULTISPEED GEARBOXES ANDMODELING OF TRANSMISSION COMPONENTSProf. dr Božidar Rosid, dr Aleksandar Marinkovic, Mr Aleksandar Vencl Abstract: By applying the optimum design in the field of gear transmission design it is possible to define the optimal relations between the parameters of the complete gear transmission, and of each transmission stage separately. This paper presents a one criterion procedure for gear transmission optimization and multicriterion optimization procedure for each transmission stage. Second part of the paper is focused on modeling of cylindrical gears that are common used machine elements and main parts of gear transmissions. These models are made using part and assembly design module in CATIA V5R11 software. On the end of paper some applications of models in finite elements analysis and optimization are also described 。
Keywords:optimum design, multistage gearbox, computer added design, gears modeling, CATIA1. Introduction：Concept from optimization and decision theory can play an important role in all stages the design process. The optimizing design theory applying and methodology will be illustrated on a multispeed gearbox example. Gearboxes present a very important group of machine members, which are utilized in a great number of engineering fields and which must satisfy very rigorous technical requirements regarding reliability, efficiency, precise manufacturing of gears, bearing, etc. In addition, the latest achievements in the fields of technology and testing of the preciseness of manufacturing gears, bearings, etc., have been applied to the manufacturing process.The development of the computer technology，together with the corresponding computer programs (Auto CAD, Solid Works, CATIA, etc.), have very quickly found their place in the development of the expert system for gearbox design at a high technical level. Thus, it can freely be said nowadays that the gearbox design is no longer a “routine job”, which in most cases based upon the designer’s experience and knowledge.This paper demonstrates the application of a nonlinear multicriteria optimization method, with the purpose to build such a powerful method as a module into the gearbox design expert system. The introduction of some criteria considering the desirable performances, combined with high quality gearbox component modeling represents a significant step towards the reality of a gear train model.2. Gearbox decompositionGearboxes represent complex mechanical systems that can be decomposed into the corresponding number of gears with corresponding interaction. This means that the procedure for multistage gearbox optimization can also be carried out through thecorresponding number of stages. During the first optimization stage, characterized by comparatively small number variables, the distribution of transmission ratio per gearbox stages is defined from the conditions of the minimal volume of the gear sets. During the second stage, the multicriteria optimization problem is solved by introducing a greater number of criteria which represent the essential gearbox performances. Thereby, it is necessary to satisfy the restrictions from the following aspects: load distribution, stresses, kinematics and correct conjugate gear action.The target function for multistage gearbox representing the volume of the gearsets can be written in the form the following relation [1]:f(x) = 0.25πd13jI((1+uI2)+jIId32/d12jI(1+uII2)+...) (1)where:uI, uII–the transmission ration for particular transmission stages of multistage gearbox; d1, d3– diameters of kinematics circles of the driver gears; j=b/d1– ratio of width of the gear and diameter of the driver gear kinematics circle.For the target function stated, it is also necessary to define the functional restrictions from the standpoint of the surface strength for the first stage of gearing, which can be written in the following form:G（x）=Z·[(2·K·T1)/d13] ·(U1+1)/U1≤[SH]1/SH (2)and, from the standpoint of the volume strength:g``(x)=K·Y·(2T1)/(Ψ1·d12·m1) ≤[Φf]1/SF (3)In the exactly analogous way, the functional restrictions from the standpoint of the surface and volume strength for other transmission stages of gearboxes are determined.Commencing from the technical requirement concerning the transmission ratio of a gearbox, it is also necessary to determine the functional restriction in the form of the equation:h1(x)=u-u1·u2·u3·…·u(n)=0 (4)Basing upon the determined target function and the restrictions, it can be noticed that this problem belongs to the field of nonlinear optimization with the restrictions in the form of inequalities. For the solution of this problem, the computer program SUMT, based on the mixed penalty functions, has been applied. Fig. 1 shows a graphic representation of the results of the computer program SUMT. Basing upon the section of the corresponding functions, the domains of the optimum transmission ratios for the multistage gearboxes are defined in the following way:Figure.1: The relation between the volume of gear trainand overall gear ratio.To complete this analysis of decomposed gearbox, here are added a pair of restrictions in the form of inequalities, based on stress restrictions:- tooth gear stress for I stage gear- tooth-root gear stress for II stage gearBased on gear stress relations the value of gear module is determinated:- for contact stress3131121221)()1(2⎥⎦⎤⎢⎣⎡+≥z u S Z u kT m I H I H σϕ - for contact stressFig. 2 shows graphical interpretation of relations (7) and (8) in function of tooth number Z1. Upper of two lines on the Fig. 2 presents values of gear moduledeterminated on contact stress and lower one for values determinated on tooth-rootstress. The lines and admissible space on Fig. 2. indicate that contact stress relation for gear module (7) is prior and is to be used for gear dimensions dermination.Figure. 2: Diagram of module values up to tooth number3. Gears modelingGears are very important machine elements today and they are common used in different kinds of gearboxes and transmissions.Especially cylindrical gears are most applicable because of their very high efficiency and not complicated production. Modeling of cylindrical gears is very important process in machine design, as for making real model of gearbox, such for gear and transmission structure analysis and optimization. Last years this process can be done very fast and qualitative using new software tools such as CATIA. This software is very complex, but some main modules like Part design and Assembly design are in use for cylindrical gear modeling. The main problem in any gears modeling is to define a real gear tooth and after that to import it into gear body making. Cylindrical gears modeling consists of several phases, depends from gear body and kind of its production:The first phase of gear modeling is definition and making real involute gear teeth profile.CATIA module to make gear body.design module to connect all its parts.All this phases consists of several operations and it will be described separately in followed chapters. Every chapter gives principal facts of general modeling, some special operations with advantages of using CATIA software in gears modeling andexamples of different cylindrical gears that are modeled.In analysis of internal and external gear profiles there are four different lines in one pitch, which defines complete profile of gear. So there are the involute profile arc, profile foot circle arc, addendum circle arc and trochoid arc as a connection [4]. In analytic-kinematics way for profile definition is to define a lot of restrictions and constrains for setting parameter equations each of this profile arcs and angles. After some matrix transformations matrix parameter equation for contact line of engaged gear tooth profiles can be de-terminated. Based on this analytic-kinematics model computer program is developed to define points of gear profiles [5].Gears modeling is very useful and important, as to make real gear transmission simulation, so for lot of other analysis. Different software tools are in use today for machine design and machine elements modeling, as ACAD, Mechanical Desktop, Pro Engineer and last years Solid Works, CATIA etc.But it can be seen that gear modeling (especially internal gears) with real profiles is more complicated compared with modeling of all other machine elements. Here will be presented the possibilities of cylindrical gears modeling using CATIA V5R11 software. Depends of production way and form of gear body it is possible to use Part design module or Assembly design module of CATIA software.For designing simplest cylindrical gear (flat) first step is to define correct sketch, where involute profile tooth coordinates (from first phase) should be imported. After that designer can apply Sketch based features (Create pad), to get cuted gear model as is shown at Fig. 3.Figure 3: Simplest model of cylindrical gearOne step forward is designing a press made gear body, that could be modeled byrotating scatch made figure, or like simulation of production process. On Fig. 4 it is given a gear model made also by using scatch and few Sketch-Based, Dress-Up and Transformation Features. Presented gears are common in use and they have an external involute profile. But in some cases, like planetary gear train designing, it is necessary to make a model of internal profiled gear. For this purpose designer has to calculate a new table with involute profile coordinates, by using external gear as a tool for making internal profile. After that properly sketch and other features as for other cylindrical gears modeling has to be used.Figure 4: Press made model of cylindrical gearAssembly design is another module in CATIA which is in use in aim to complete all parts and standard elements that are already modeled in Part or Shape designmodules. Besides that it is possible to insert new bodies in existing assembly and also to do Boolean Operations between bodies if it is necessary. These Boolean operations between bodies are Assemble Bodies, Intersect Bodies, Add Bodies, Remove Bodies,Trim Bodies, Remove Lumps, etc.The best sample of using Assembly design is cylindrical gear made by welding number of separated elements. It means that this type of gear consists of many elements that are modeled in Part design. The main part is outer plate with involute profiles that are welded with central cylinder with two circle plates and six stiffeners at both sides (Fig. 5).Figure 5: Cylindrical gear made by weldingA gear modeling is very significant because of many applications that could be done:another CATIA module DMU.in mechanical engineering, such as structural analysis, contact pressure between corresponding gears and also thermal and many other analyses [8]. A typical example for this could be following structural analysis made using finite element method, where Fig. 6 shows gear model made of 77633 tetrahedrons which makes 18965 nodes.Figure 7: Gear model in form of finite element netStress values (Fig. 7) represent critical constructive points where gear is high loaded which could be also very useful in design and optimization process and procedure.Figure 7: Stress values of loaded gear model calculatedin structural analysis4. ConclusionThe paper represents a brief illustration of a wider study undertaken with the aim of building the powerful multicriteria optimization methods into the expert system for gearbox design. It points out the necessity of decomposition multistage gearboxes ascomplex mechanical systems. In the way, the gearboxes optimization procedure is also carried out through the corresponding number of stages. In this first optimization stage, the domains of the practical application of gearboxes are defined, whereas, during the second stage, the multicriteria optimization problem is solved.To resume the point of this modeling part of paper, here could be said that it presents only a brief of cylindrical gears modeling possibilities in CATIA software. Besides presentation of modeling in Part and Assembly design modules, at the end of this paper it is to add that CATIA is powerful and today may by completest design software in engineering with wide range of applications.References：[1] RosidB, 1993.: Parameter Investigation and Optimization of Planetary Gear Train Transmission, Ph.D Thesis, Mechanical Engineering Faculty, University of Belgrade [2] Arora J.S, 1989.: Introduction to optimum design, McGraw–Hill Book Company, New York[3] RosidB., MarinkovidA.: Planetary gear transmission as a tribosystem: Efficiency calculation and simulation, ÖTG Jahres Symposium, Wien, November 2003.[4] Colbourne, J. R., 1987: The geometry of Involute gears, Springer-Verlag, New York[5] Ro sidB., Rinkovec B., MarinkovidA., PavlovidN.: The analytical-kinematics method for definition of internal cylindric gears,Yugoslav Conference “IRMES 2002”, Faculty of Mechanical Engineering Srpsko Sarajevo, Jahorina – BIH, September 2002, Proceedings, pp. 625-630.[6] RosidB.: Planetary gear trains, Monography, Faculty of Mechanical Engineering, University of Belgrade, edited in year 2003.[7] RosidB., MarinkovidA., Vencl А, 2004.: Cylindrical Gears modeling using CATIA software,4th International Confer ence “RADMI 04“, Zlatibor, Serbia and Montenegro, August- September 2004., Proceedings on CD, pp. 73-77.[8] RosidB., MarinkovidA., Vencl А, 2004.: Modeling and Structural Optimization of Cylindrical Gears construction profiles,Yugoslav Conference “IRMES 04”, Faculty of Mechanical Engineering Kragujevac, Kragujevac, September 2004, Proceedings, pp. 173-178.英文文献中文翻译多速变速箱的优化设计传动部件的建模博日达尔·洛赛克教授，亚历山大·马林科维奇博士，亚历山大温瑟主席摘要:通过应用优化设计中的齿轮传动装置设计领域，可以分别定义每个传输级的完整齿轮传动装置的参数之间的最佳关系，并且。
