电子压力开关DS 217-德国BD SENSORS
贺德克HYDAC温度开关ETS386-2-150-000常规型号
贺德克HYDAC温度开关ETS386-2-150-000常规型号德国HYDAC温度开关正品库存现货：德国HYDAC温度传感器应用领域德国HYDAC温度传感器是最早开发，应用*的一类传感器。
温度传感器的*大大超过了其他的传感器。
从17世纪初人们开始利用温度进行测量。
在半导体技术的支持下，本世纪相继开发了半导体热电偶传感器、PN结温度传感器和集成温度传感器。
德国HYDAC贺德克温度开关大量现货供应，德国HYDAC温度开关正品库存现货；ETS32285100000（插头ZBE08 5芯）现货图参考：HYDAC贺德克温度开关ETS3200是一款紧凑型电子产品带4位显示器的温度开关。
通过其集成的温度探头,ETS3200特别适用于直接储罐安装，有多种长度。
耐压高达600bar,集成18mm温度探头,模型可以直接安装在内联或液压块。
一个或两个不同的输出模型切换输出，可选择使用附加模拟输出信号，提供各种应用可能性。
开关点和相关可以非常快速地调整滞后轻松使用键盘。
为了最佳地适应特定环境应用，仪器有很多附加调整参数（例如。
开关延迟时间、N/C/N/O功能）。
ETS3200也有一种变体,菜单导航符合VDMA。
德国HYDAC贺德克温度开关大量现货供应；德国HYDAC贺德克电子产品：EDS300系列、EDS3000系列、EDS210系列、EDS510系列、EDS601系列、EDS1700系列、HDA3800系列、HDA3840系列、HDA4400系列、HDA4500系列、HDA4700、HDA4755系列、ETS300系列等。
HYDAC温度开关ETS1701100000产品原理德国HYDAC温度传感器应用领域温度传感器是最早开发，应用*的一类传感器。
温度传感器的*大大超过了其他的传感器。
从17世纪初人们开始利用温度进行测量。
在半导体技术的支持下，本世纪相继开发了半导体热电偶传感器、PN结温度传感器和集成温度传感器。
两种不同材质的导体，如在某点互相连接在一起，对这个连接点加热，在它们不加热的部位就会出现电位差。
2120音叉液位开关
低液位 湿 = 开
Dry On Wet On
0.3 1 3 10 30
0.3 1 3 10 30
0.3 1 3 10 30
0.3 1 3 10 30
Seconds Delay
Seconds Delay
+
OUT
-
+
OUT
-
+
OUT
-
+
OUT-Biblioteka PLC （正输入 )U
<3V IL
OPERATION MODE
PLC/PNP
Wet On
+
OUT
-
Dry On Mode Dry Wet
Dry On
0.3 1 3 10 30
0.3 1 3 10 30
Isolate Supply Before Removing
Dry Wet
1
2
熔断器 2A Fuse 2A(T)
3
4
Wet On Mode
爆炸可能会导致死亡或严重伤害
外表面可能温度很高
过程泄漏可能导致死亡或严重伤害
触电可能导致死亡或严重伤害
2
2013 年 6 月
快速入门指南
罗斯蒙特 2120 概述
罗斯蒙特 2120 是液位开关。 2120 基于振动短音叉技术，它适用于几乎所有液体。 罗斯蒙特 2120 利用音叉原理设计。压电 - 电子晶体使音叉以其固有振动频率 （~1400 Hz）振动。该频率的变化将受到持续监测。振动音叉传感器的频率随其所浸 入的媒质而变化。液体密度越大，频率越低。 当用作低液位报警器时，储罐或管道中的液体将下降并经过音叉，导致电子装置检测 到的音叉固有频率发生变化，从而把输出状态切换为干态。当 2120 开关用作高液位 报警器时， 储罐或管道中的液体升高， 与音叉接触， 因而音叉将输出状态切换为湿态。 2120 配有 “ 心跳式 ” LED，该 LED 指示其工作状态。当开关的输出为 “OFF” 时， LED 闪烁，当输出为 “ON” 时， LED 恒亮。
★MDM300.I.S★
英国密析尔MICHELL 仪表制造商露点变送器，dewpointmeters ，冷/冷镜湿度计，相对湿度传感器，过程水分测定仪，碳氢露点分析仪，液体分析仪中的水分和氧气分析仪，是一家国际领先的高精度传感与结束在该领域有30多年的经验。
我们的产品范围的高精度电容湿度传感器，帮助客户测量微量水分，在其过程中的应用，而我们的相对湿度变送器，相对湿度和温度传感器被广泛应用于HV AC 应用，药品储存等生产流程控制的环境条件是至关重要的。
，再加上我们的参考露点湿度计，湿度校准系统使客户能够进行校准便携式湿度计和相对湿度的仪器内部的，节省费用和停机时间。
我们提供高速测量中的应用范围，包括发电站，燃烧优化控制CO 2的水平啤酒厂，清洁气体的过程，如硅片生产和纯气体生成氧气。
天然气行业和发电厂的客户节省数百万美元的维修和停机时间，通过使用我们的康达迈科Condumax II 烃露点分析仪，以确保传输的天然气质量在贸易交接，防止燃气燃烧器故障，延长寿命过程的设备。
我们在烃类液体中的水分分析仪适用于防爆，本质安全和实验室版本，并允许范围广泛的烃类液体，包括变压器油，液压油，石油馏分和纯烃中的水分含量的连续测量。
一个高速的便携式露点仪，提供快速的现场检查在许多应用中，包括压缩空气，天然气和高电压开关淬气露点或水分含量测量。
这款轻巧，ATEX ，IECEx 认证，FM ，CSA ，GOST 认证产品比其他任何同类产品让更多的测量每工作小时。
硬质耐磨，但符合人体工程学的情况下和一个易于使用的接口，可以在恶劣的工业环境中的舒适和实际操作。
产品特点∙ 在低压下从T95至-60℃，小于15分钟时间反复快速的测量∙ 更高的压力测量成为可能 - 高达350巴 ∙ 电池寿命长：长达48小时的典型使用费用之间∙ 直观的应用套件，允许快速和简单的连接到您的采样点∙ 耐用，易于处理和操作：专为在工业环境中使用∙ 4-20 mA 外部设备输入变送器校准和验证∙ 轻量级：小于1.5公斤 ∙13点可溯源校准证书MDM300的MDM300采样选项MDM300 MDM300要获得最佳性能，它是为您的测量点有适当的样品调节至关重要。
电子压力传感器PM1708的说明书
PM1708
Electronic pressure sensor
PM-,25BREA01-E-ZVG/US
Interfaces
Communication interface
Transmission type
IO-Link revision
IO-Link device ID
Profiles
SIO mode
Min. pressure cycles
Tightening torque
[Nm]
Process connection
Displays / operating elements
Display unit
Remarks
Pack quantity
Electrical connection
Connector: 1 x M12; Contacts: gold-plated
UL approval number
J021
281.5 stainless steel (1.4404 / 316L); PBT ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
AEP = 250 mbar
-1.25...25 kPa -1.25...20 kPa 3.75...25 kPa
0.01 kPa
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) < ± 0,2 (DIN EN 61298-2); (incl. zero point and
EDS说明书

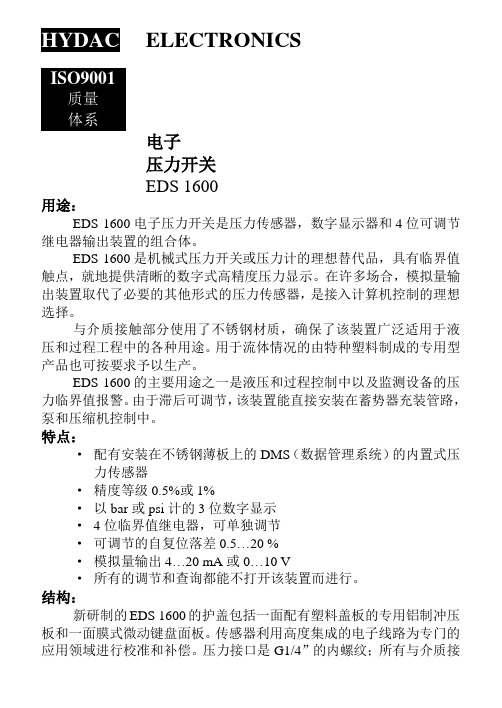

ELECTRONICS电子压力开关EDS 1600用途：EDS 1600电子压力开关是压力传感器，数字显示器和4位可调节继电器输出装置的组合体。
EDS 1600是机械式压力开关或压力计的理想替代品，具有临界值触点，就地提供清晰的数字式高精度压力显示。
在许多场合，模拟量输出装置取代了必要的其他形式的压力传感器，是接入计算机控制的理想选择。
与介质接触部分使用了不锈钢材质，确保了该装置广泛适用于液压和过程工程中的各种用途。
用于流体情况的由特种塑料制成的专用型产品也可按要求予以生产。
EDS 1600的主要用途之一是液压和过程控制中以及监测设备的压力临界值报警。
由于滞后可调节，该装置能直接安装在蓄势器充装管路，泵和压缩机控制中。
特点：·配有安装在不锈钢薄板上的DMS（数据管理系统）的内置式压力传感器·精度等级0.5%或1%·以bar或psi计的3位数字显示·4位临界值继电器，可单独调节·可调节的自复位落差0.5…20 %·模拟量输出4…20 mA或0…10 V·所有的调节和查询都能不打开该装置而进行。
结构：新研制的EDS 1600的护盖包括一面配有塑料盖板的专用铝制冲压板和一面膜式微动键盘面板。
传感器利用高度集成的电子线路为专门的应用领域进行校准和补偿。
压力接口是G1/4”的内螺纹；所有与介质接触的部分都由不锈钢制成。
电气接线使用了安装板内的带14个接点的端子板。
调节：切换和自复位点的显示当在面板上按下切换点按键1…4，EDS 1600显示继电器状态发生改变时的压力值。
这就是说如果临界值尚未触发（切换点发光二极管不亮），EDS 1600显示开通值。
如果临界值触发（该发光二极管亮起），显示关断值。
该功能还允许精确读取自复位值。
如果没有按键被按下，EDS 1600始终显示当前压力值。
如果测量值低于该装置的精度等级（P型是0.5% ，N型是1%），始终显示0。
德国印刷的DUNGS单阶安全阀门说明书
1 (6)P r i n t e d i n G e r m a n y • E d i t i o n 11.18 • N r . 214 756Single-stage safety solenoid valves MV/4MVD, MVD/5, MVDLE/56.20T echnical descriptionThe DUNGS safety solenoid valve MV/4, MVD, MVD/5, MVDLE/5 is a single-stage automatic shut-off valve as per EN 161 for gas burners and gas appliance.- Max. operating pressure up to 200, 360 or 500 mbar (20, 36 or 50 kPa)- normally closed- MV , MVD: fast opening- MVDLE: Slow opening with adjustable fast stroke for start gas volume- Main volume adjustable (MVD/MVDLE)- DC solenoid, rectifier wiring with radio interference suppression in terminal box with PG screw union- Mountable closed position signal contact to monitor closed position of valve (.../5)- Pipe thread as per ISO 7/1- Flange connection as per DIN EN 1092-1- Reliable function, rugged and mainte-nance-free- On request, design without non-ferrous metalsApplicationThe solenoid valve is used for securing, limit-ing, shutting off and releasing gas supply to gas burners and gas appliances.MV/4 Range of application: for large break -ing capacities, e.g. pulsed firing.The DUNGS safety solenoid valve MV ... is suitable for gases of families 1, 2, 3 and other neutral gaseous media.ApprovalEC type testing certificate as per: • EC-Gas Appliances Regulation • EC-Pressure Equipment DirectiveApprovals in other important gas consum -ing countries.Special designs for the North American market with U L, FM and CSA registrations.2 (6)10 15 20 25 40 50 65 80 100 125 1503/8 1/2 3/4 1 1 1/2 2 2 1/2Connection flange (PN 16) as per DIN EN 1092-1up to 200 mbar (20 kPa), 360 mbar (36 kPa) or up to 500 mbar (50 kPa) - refer to type overviewValve as per EN 161, Class A, Group 2, single-stage mode < 1 s< 1 s for MVDLE approx. 20 s at room temperature 20 °C and without fast stroke AdjustableManually adjustable on MVD and MVDLE Housing: aluminium, steel, brass Seals:NBR basis230 V AC (+10 % -15 %); 50-60 Hz - other voltages on request Solenoids 60E, 61E in 24-28 VDCexternal activation of solenoid coils required, see operating and mounting instructions Refer to type overview 100 %IP 54, IP 65 on requestAt screw terminals via PG* 11 cable gland (* = heavy-gauge conduit thread)Plug connection as per DIN 175 0301-803 can be retrofittedMV/4, MVD…/5: max. 1000/h MVDLE…/5: max. 100/hMVD 2125/5, MVD 2150/5, MVD 5100/5, MVD 5125/5, MVD 5150/5: max. 20/h MV 5125/5 S, MV 5150/5 S: max. 20/hG 1/4 ISO 118, on both sides in inlet section,additionally G 3/4 on input side, form size DN 40 (flange) upwards Sieve installed, mesh width 1 mm -15 °C to +60 °CSolenoid from vertically upright to horizontally lyingMV/5, MVD/5, MVDLE/5: Type K01/1, DIN-tested, mountable on DN 10 - DN 150T ype VDK 200 A S02, mountable via G 1/4 test connection, T ype VPS 504, mountable with adapter up to DN 80K01 closed position signal contact, see Datasheet 12.01 211 202Equipment plug for line socket, DIN 175301-803215 733SpecificationsNominal diametersPipe thread as per ISO 7/1, Rp FlangeMax. operating pressure Solenoid valve Closing time Opening time Fast strokeMain volume adjustment Materials of gas-conveying parts Voltage/frequencyRating / power consumption Switch-on duration Degree of protection Electrical connection Switching rateMeasuring/ignition gas connection Dirt trapAmbient temperature Installation positionClosed position signal contact Valve proving system Accessoriesd = largest width1)Solenoids 60E, 61E in 24-28 VDCexternal activation of solenoid coils required, see operating and mounting instructions2)= for max. 3 s* = PG 11** = Line socket, black3 (6)4 (6)** Switch-on current for approx. 3 sDimensions [mm]DN / Rp P max. [VA]* Weight [kg]Opening time f e c a d bg I max.~(AC) 230 V [A] **Typep max.OrderNo.Sole-noid No. h 1)external activation of solenoid coils required, see operating and mounting instructions5 (6)GasartT ype of gas T ype de gaz Tipo di gasErdgas/Nat.Gas/Gaz naturel/Gas metano Stadtgas/City gas/Gaz de ville/Gas cittàFlüssiggas/LPG/Gaz liquide/Gas liquido Luft/Air/Air/AriaDichte Spec. Wgt.poids spécifique Peso specifico[kg/m 3]0.810.582.081.24dv 0.650.471.671.00f1.241.460.771.00Dichte LuftSpec. weight airpoids spécifique de l´air peso specifico ariaDichte des verwendeten Gases Spec. weight of gas usedpoids spécifique du gaz utilisépeso specifico del gas utilizzatof =V verwendetes Gas/gas used/ gaz utilisé/gas utilizzato= V Luft/air/air/aria x f °Functional descriptionThe DUNGS safety solenoid valve is an automatic shut-off valve operated with auxiliary power.The electromagnetic drive opens against the force of the closing spring 4.If the auxiliary power is interrupted (operating voltage), closing spring 4 closes the valve within 1 second.The closed position of the valve can be monitored by a mountable closed position signal contact.The stroke of armature 5 can be limited by the setting screw 8.The hydraulic brake 10 permits slow opening. Fast stroke 9 can be ad -justed.°6 (6)We reserve the right to make any changes in the interest of technical progress.Single-stage safety solenoid valves MV/4MVD, MVD/5,MVDLE/5Head Offices and Factory Karl-Dungs-Platz 1D-73660 Urbach, Germany T elephone +49 (0)7181-804-0Fax +49 (0)7181-804-166Postal addressKarl Dungs GmbH & Co. KG Postfach 12 29D-73602 Schorndorf, Germany ********************Internet 。
400V断路器说明书
CW3G系列 隔 离开关（AC，DC）
C M3DC系 列 塑料外 壳式 断路器
CH系 列小 型断路 器
CE1系列 智能型电力仪表
CI1系列 远程智能I/O模块
CN1DP-MP CN1DP-MD CN1DP-MC 通信 适配器 CN1EG以太 网
适配器
FDM3 短消息 通知 模块 FWB1温度报 警模块
目录
概
述
1
结构简介
3
主要技术指标
10
断路器功耗及降容系数
12
高海拔降容
12
智能控制器特性
13
接地故障保护电路
26
电气附件
27
机械附件
29
自动电源转换系统
32
电子压力继电器EDS1700-HYDAC中文
于液压和气动领域 。该仪器用于频繁开关 的循环工作 (数 百万次 ),是 需要开关点 精度恒定或者简单精确调整场合的理想选 择。
特性
・在不锈钢薄膜上 内置带 DMs的 压 力传 感器 ・精度等级 05%或 1% ・4位 数显 ・按键 编程 ,操 作简单 ・4个 设定值 ,开 关 点和 回复点可独立调 整 ●可选 的模拟输 出信号 ・具有 多项附加 的用途和功能 ・可选 的安装位置 (压 力连接在上方或
■
■刂 ■
INTERN川丌I□ NAL
电子压 力继 电器
应用
EDs1700s配 置 了内置压 力测量单元 ,4位
数显和4路 切换开关输 出 ,为 用 户提供 一 个 现代 电子压 力继 电器具 有的全部优 点 。4个 开 关 点和 开关 回复 点通过 触摸 键盘 方便 而
相互独立地调整 。为便于实现监控 系统 ( 如与 PLC连 接 ),提 供 了一 路模拟输 出量
标准振动安装 )。 压力连接必须通过微型 软管以便机械解藕。EDs1700不 得直接与 刚性管路连接 。 供货时压力连接在底部 ,电 器连接在顶部。 对特殊应用场合 ,仪 器的前面板可以转动 18σ 以便在下部 电器连接 ,面 在上部压力 连接 。
过载压 力 爆破压 力
300%Fs
EDs1700-P∶ ‘ ± 0.5o/o Fs EDs1700-N∶ 兰 ± 1.0o/o
● 显示范围的单位确定 (bar,p。 或者用 户定义 ● 显示单位 (bar,p。
) )
・ 模拟输出 ・ 功能锁定
(⒋ 20mA或 0ˉ 10V)
C〓
Ψ■ 囚
0
安装 在关键应用场合 (如 剧烈振动或冲击 EDs1700必 须安装在橡胶缓冲垫上 (DIN
FEMA压力开关简介-13页精选文档
FEMA菲玛压力，温度及流量控制仪表FEMA菲玛是Honeywell(霍尼维尔)下属的世界领先的仪器仪表生产厂家。
主要产品: 压力开关,压力变送器,温度控制器(恒温器),温度变送器,电磁阀,流量监视器等。
广泛应用于冶金，食品，造纸等行业。
Fema压力开关:空气+空气调节：气体压力开关HCD空气差压开关DPS流体+气体+电子：气体/液体电子压力开关Smart SN气体/液体电子压力开关Smart DCM高粘性搅动液体电子压力开关SmartPress（PST系列）气体、低粘性液体电子压力开关SmartPress（PST系列）流体+气体+机械：气体、液体压力开关DCM气体、液体压力开关小范围DCM气体、液体压力开关DNS气体、液体差压开关DDCM气体、液体真空开关VCM气体、液体真空开关VNS燃气压力监控DGM特殊结构的最大压力监控DA热水/蒸气/气体/燃料压力监控DWR 热水/蒸气/气体/燃料/气体最大压力监控DWR-B热水/蒸气/气体/燃料/气体最小压力监控DWR-B最大压力限制器FD特殊结构的最大压力限制器FDATEX级气体、液体压力开关Ex-DCM气体、液体压力开关Ex-DNS气体、液体差压开关Ex-DDCM气体、液体真空开关Ex-VCM气体、液体真空开关Ex-VNSATEX级元件测试可燃气体压力监控Ex-DGM热水/蒸气/气体/燃料压力监控Ex-DWR Pressure switches压力开关Air + Airconditioning: HCD,DPSLiquid + Gas, SmartPress : PSTLiquid + Gas: DCM,DNS,DDCM,VCM,VNSComponent tested: DGM, DA, DWR, DWR-B, FD, SDBATEX-Approval: Ex-DCM, Ex-DNS, Ex-DDCM, Ex-VCM, Ex-VNS Accessories: FV185/185/162/749, APV630压力开关主要用于流体或气体介质的调节和控制。
Honeywell压力开关产品介绍及特点说明书
DESCRIPTIONThe Honeywell Pressure Switch portfolio consists of:• High Pressure (HE/HP Series)• Medium Pressure (ME/MH Series)• Low Pressure (LE/LP Series)• 5000 Series, 1000 SeriesThese pressure switches are durable, reliable electromechanical gauge pressure on/off switches that are available with either single pole single throw (SPST) normally open or normally closed circuitry, or single pole double throw (SPDT) circuitry. Their high proof pressure and burst pressure ratingscan allow for use in many rugged applications that require the making or breaking of an electrical connection in response to a pressure change of the system media.DIFFERENTIATION• Through optional smart diagnostic technology, Honeywell pressure switches are able to detect failures such as open circuits, cut wires, worn insulation, and more6• Optional smart diagnostic technology allows up to four segregated signal amplitudes to perform diagnostics and status6• Pressure port snubber suppresses pressure spikes2• IP67 sealing provides enhanced durability in harsh environmental and washing applications1POTENTIAL APPLICATIONS • Agriculturalmachinery• Heavy dutyconstructionmachinery andtrucks• Lawn & gardenmachinery• Marine vessels• Materialhandlingmachinery• Railway• CNC machines• Compressors/boilers• Frackingequipment• Food & beverageequipment• Generators• HVAC/Requipment• Mud pumps• Pneumaticequipment• Presses/punches• Pressurewashers• Trashcompactors• Water pumps& jet cuttingmachines PORTFOLIOHoneywell also offers the PBN1 Series and PBN3 Series Pressure Sensor.1 HP, HE, MH, ME, LP, LE Series2 HP, HE Series3 ME, LP, LE Series4 HP, HE, LP, LE, ME Series5 HP, HE, LP Series6 HP, HE, ME, LP, LE SeriesPRESSURE SWITCHES HP, HE, MH, ME, LP, LE, 5000, and 1000 Series 50094081Issue 7VALUE TO CUSTOMERS• Designed to provide resistance to corrosion and enhances equipment life with available two million life cycle rating and IP67 rating1• Can expedite design and product cycle due to ability to receive samples in two weeks and production units in four weeks• Can reduce tooling, service, and manufacturing labor costs due to standard connections, extended product life, and expedited design and production cycleFEATURES• Pressure switching set point range: 3.5 psi to 4500 psi• Proof pressure: from 500 psi up to 10,000 psi• Burst pressure: from 1250 psi up to 20,000 psi• Life cycle rating up to 2 million• IP67 sealing rating4• Operating temperature: -40°C to 120°C [-40°F to 248°F]• Hysteresis option5• More than 15 pressure port options and over 30 electrical terminations • Plated steel, brass or stainless steel options3• Switching point accuracy up to ±2 %8Port Style C: Switches less than 975 psi will use Base Style B; switches greater than 975 psi will use Base Style A.Port Styles F and G: Switches less than 350 psi will use Base Style B; switches greater than 350 psi will use Base Style A. Port Styles A, B, E, M, P, T, and Y will use Base Style B.Switches less than 150 psi will only use Base Style B.2 /ast2Operating pressure: Maximum normal system operating pressure3Proof pressure: Maximum pressure that the switch can handle while it maintains set point accuracy. Intermittent spikes to this level are acceptable. 4Burst pressure: Point of complete switch failure5SPST: Single pole, single throw. SPDT: Single pole, double throw. NO: Normally open. NC: Normally closed. 6Field adjustability only available with AA, BA, CA, and DA (SPST only) terminations.7IP00 for AA and BA terminations.Honeywell Advanced Sensing Technologies 3*These connectors are designed for dual circuit (SPDT) by default. They can be used for single-circuit applications (SPNC/SPNO) by making suit-able connections. Refer to wiring diagram.4 /astHoneywell Advanced Sensing Technologies 5DIMENSIONS - HIGH PRESSURE: HP SERIES (BASE STYLE A), HE SERIESBase Style A key specifications • Life: 2 million (HP), 1 million (HE); Burst pressure: 20,000 psiFigure 1. AMP Superseal 1.5(top view)Female Connector Part Number (included): C-282105Male Mating Connector (customer provided): C-282087IP Rating: IP67(top view)Female Connector Part Number (included): DT04-3P Male Mating Connector (customer provided): DT06-3S IP Rating: IP67(top view)27 mm [1.063] hex A/F(top view)IP Rating: IP676 /astDIMENSIONS - HIGH PRESSURE: HP SERIES (BASE STYLE B)Base Style B key specifications • Life: 1 million; Burst pressure: 9,000 psi1Port Style C: Switches less than 975 psi will use Base Style B; switches greater than 975 psi will use Base Style A.2Port Styles F and G: Switches less than 350 psi will use Base Style B; switches greater than 350 psi will use Base Style A. Switches less than 150 psi will use only Base Style B.Figure 6. HP Series Base Style Bfor all base ports.Honeywell Advanced Sensing Technologies 7DIMENSIONS - MEDIUM PRESSURE: MH SERIESFigure 13. MH Series Pressure Port DimensionsFigure 8. AMP Superseal 1.5Figure 12. Screw terminal8 /astDIMENSIONS - MEDIUM PRESSURE: ME SERIESFigure 20. ME Series Pressure Port DimensionsMale mating connector (customer provided): C-282087IP rating: IP67Female connector part number (included): DT04-3P Male mating connector (customer provided): DT06-3S IP rating:IP67Figure 17. Wire outMale mating connector (customer provided): DT06-2S IP rating:IP67Honeywell Advanced Sensing Technologies 9DIMENSIONS - LOW PRESSURE: LP SERIES, LE SERIESFigure 24. Wire outFigure 27. LP/LE Series Pressure Port Dimensions10 /astDIMENSIONS - 1000 SERIES, 5000 SERIESFigure 28. 1000 Series Dimensions[0.39 in]Figure 29. 5000 Series DimensionsTHoneywell Advanced Sensing Technologies 11NOMENCLATURE: HIGH PRESSUREHPSeriesSet PointRPressure UnitPHP Series HE Series (100 psi to 4500 psi),High Pressure SwitchFPort TypePressure Set Point05500NOutputBaseSPActuation/ApplicationOptionsAAAConnector TypePackaging Options01They can be used for single-circuit applications (SPNC/SPNO) by making suitable connections. Refer to wiring diagram.For example, HPR05500PFNSPAAA01 defines a high pressure switch, rising factory set, non-adjustable set point, 550 psi set point, psig, sealed gage pressure unit, M14 x 1.5 port type, SPST-NO silver contacts output, cold-rolled steel base, glycol-based fluid (EPDM) actuation/application, spade terminal connectors, standard switch, individually boxed units.12 /astNOMENCLATURE: MEDIUM PRESSURE, HIGH BURSTMHSeriesSet PointRPressure UnitPMedium PressureSwitchAPort TypePressure Set Point01500POutputBaseNMActuation/ApplicationOptionsAAAConnector TypeThey can be used for single-circuit applications (SPNC/SPNO) by making suitable connections. Refer to wiring diagram.Packaging Options01For example, MHR01500PFPNMAAA01 defines a medium pressure, high burst switch, rising factory set, non-adjustable set point, 150 psi set point, psig, sealed gage pressure unit, 1/4-18 NPT port type, SPST-NO contacts output, plated steel base, LTNB diaphragm, and spade terminal connectors.Honeywell Advanced Sensing Technologies 13NOMENCLATURE: MEDIUM PRESSUREMESeriesSet PointRPressure UnitPMedium PressureSwitchFPort TypePressure Set Point01500POutputBaseVKActuation/ApplicationOptionsAPackaging Options01AAConnector TypeThey can be used for single-circuit applications (SPNC/SPNO) by making suitable connections. Refer to wiring diagram.For example, MER01500PFPVKAAA01 defines a medium pressure switch, rising factory set, non-adjustable set point, 55 psi set point, psig, sealed gage pressure unit, M14 x 1.5 port type, SPST-NO gold-plated contacts output, stainless steel base, Kapton ® diaphragm (Teflon ® coated), Nitrile O-ring actuation/application, spade terminal connectors, standard switch, individually boxed units.14 /astNOMENCLATURE: LOW PRESSURELPSeriesSet PointRPressure UnitPLowPressureSwitchFPort TypePressure Set Point00550POutputBaseVKActuation/ApplicationOptionsAPackaging Options01AAConnector TypeThey can be used for single-circuit applications (SPNC/SPNO) by making suitable connections. Refer to wiring diagram.**For electrical termination with SPST option, only SPNOconfiguration is available. SPNC configuration cannot be provided.For example, LPR00550PFPVKAAA01 defines a low pressure switch, rising factory set, non-adjustable set point, 55 psi set point, psig, sealed gage pressure unit, M14 x 1.5 port type, SPST-NO gold-plated contacts output, stainless steel base, Kapton ® diaphragm (Teflon ® coated), Nitrile O-ring actuation/application, spade terminal connectors, standard switch, individually boxed units.® DuPont™, Teflon ®, Tefzel ®, and Kapton ® are trademarks or reg-istered trademarks of E.I. du Pont de Nemours and Company50094081-7-EN | 7 | 04/21© 2021 Honeywell International Inc.WARRANTY/REMEDYHoneywell warrants goods of its manu-facture as being free of defective materi-als and faulty workmanship during the applicable warranty period. Honeywell’s standard product warranty applies un-less agreed to otherwise by Honeywell in writing; please refer to your order ac-knowledgment or consult your local sales office for specific warranty details. If war-ranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items that Honeywell, in its sole discretion, finds defective. The foregoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages.While Honeywell may provide applica-tion assistance personally, through our literature and the Honeywell web site, it is buyer’s sole responsibility to determine the suitability of the product in the ap-plication.Specifications may change without notice. The information we supply isbelieved to be accurate and reliable as of this writing. However, Honeywell assumes no responsibility for its use.m WARNINGPERSONAL INJURYDO NOT USE these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.Failure to comply with theseinstructions could result in death or serious injury.m WARNINGMISUSE OFDOCUMENTATION•The information presented in this product sheet is for reference only. Do not use this document as a product installation guide.•Complete installation, operation, and maintenance information is provided in the instructions supplied with each product.Failure to comply with theseinstructions could result in death or serious injury.HoneywellAdvanced Sensing Technologies 830 East Arapaho Road Richardson, TX /astFOR MORE INFORMATIONHoneywell Advanced SensingTechnologies services its customers through a worldwide network of sales offices and distributors. For application assistance, current specifications, pricing, or the nearest AuthorizedDistributor, visit /ast or call:USA/Canada +302 613 4491Latin America +1 305 805 8188Europe +44 1344 238258Japan +81 (0) 3-6730-7152Singapore +65 6355 2828Greater China+86 4006396841。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
info@
DS 217
OEM 压力开关
技术参数
机械稳定性
抗震 抗冲击
10 g (25 … 2000 Hz) 500 g / 1 ms
符合 DIN EN 60068-2-6 标准 符合 DIN EN 60068-2-27 标准
storage: -40 ... 85 °C
Electrical protection
Short-circuit protection Reverse polarity protection Electromagnetic compatibility
permanent no damage, but also no funcition emission and immunity according to EN 61326
DS 217
OEM Pressure Switch
Technical Data
Mechanical stability Vibration Shock Materials Pressure port / Housing Display housing Seal sensor Diaphragm Media wetted parts
Long term stability
≤ ± 0.3 % FSO / year at reference conditions
CE-conformity
EMC Directive: 2004/108/EC
Pressure Equipment Directive: 97/23/EC (module A) 2
IEC 607701:≤ ± 0.5 % FSO 0.05 % FSO / kΩ
节点 (标准)
数量 / 型号 开关电流 开关精度 复现误差 开关频率 开关寿命 延迟
标准: 1个 PNP 节点 标准: 最大 500 mA, 短路保护 ≤ ± 0.75 % FSO ≤ ± 0.5 % FSO 最大 10 Hz > 100 x 106 周期 0 ... 100 s
I Contact 2
VS
A
RL
RL
Pin configuration
Electrical connections supply + supply –
signal + (only for 3-wire) contact 1 contact 2 shield
Connections (dimensions in mm)
DS 217
压力开关 焊接式不锈钢传感器
产品特点 ► 精度： 0.25 % FSO BFSL （IEC 60770: 0.5 % FSO） ► 额定量程： 从 0 … 6 bar 至 0 … 600 bar ► 1 个模拟输出;最多 2 个节点输出 ► 数显表头和外壳可旋转 ► 适合氧气环境应用
技术参数
10 Hz
1 accuracy according to IEC 60770 – limit point adjustment (non-linearity, hysteresis, repeatability)
Contact (standard)
load:
0.05 % FSO / kΩ
Number / type
压力测量设备规范: 97/23/EC (module A) 2
2 本规范仅适用于最大允许过压>200bar 的设备
接线图
3 线制(电压)
电源+ p
电源–
V S
信号+
节点 1 I 节点 2
A
RL
RL
信号线定义
电气连接
电源 + 电源 – 信号+ (仅 3 线制) 节点 1 节点 2
地线
连接 (尺寸单位 mm)
电气保护
短路保护 反极性保护 电磁兼容
永久 无损害，但不工作 射频保护符合 EN 61326
BD SENSORS 欧智博德仪器仪表（上海）有限公司 上海市长宁区金钟路 658 弄 8 号 B 座 6 楼 200335
电话：+86 (0) 21 / 33600610 传真：+86 (0) 21 / 33600613
可选: 最多2个独立PNP 节点; 1个模拟输出
温漂特性 (零点偏移和量程范围) / 工作温度
温漂系数 工作温度
≤ ± 0.5 % FSO / 10 K 介质: -25 ... 125 °C
补偿范围 -25 ... 85 °C 电子元器件/环境: -25 ... 85 °C
保存: -40 ... 85 °C
不限
输出信号/电源
模拟输出
标准
无模拟输出
可选
3 线制:
4 ... 20 mA / VS = 24 VDC ± 10 %
精度
≤ ± 0.25 % FSO BFSL
负载特性 影响效应
3 线制: Rmax = 500 Ω 电源: 0.05 % FSO / 10 V
负载:
测试频率
10 Hz
1 精度符合 IEC 60770 –限位点调整 (非线性，迟滞性，复现性)
Thermal error Permissible temperatures
≤ ± 0.5 % FSO / 10 K medium: -25 ... 125 °C
in compensated range -25 ... 85 °C electronics / environment: -25 ... 85 °C
M12x1 (5-pin) plastic 1 3 2 4 5
via pressure port
Mechanical connections - optional
Electronical connections
10
G1/4" EN 837
M12x1 (5-pin)
This data sheet contains product specification, properties are not guaranteed. Subject to change without notice.
材料
压力接口/ 外壳
不锈钢 1.4571 (316 Ti) / 不锈钢 1.4301 (304)
显示器外壳
PA 6.6, 聚碳酸酯（polycarbonate）
密封件传感器
无 (焊接式)
隔膜
不锈钢 1.4542 (17-4PH)
湿件
压力接口,压力接口密封件, 隔膜
其他
重量
约 160 g
显示 长期稳定性
M12x1(5 针)塑料
1 3 2 4 5
通过压力接口
压力接口 - 可选
电气接口
10
G1/4" EN 837
M12x1 (5 针)
本数据资料仅用于描述该产品技术参数 并不保证其技术性能。所作任何修改恕不另行通知。 ,
G1/2" EN 837
1/4“ NPT
DS217_CN_010711
BD SENSORS GmbH BD-Sensors-Straße 1 D - 95199 Thierstein
Telefon +49 (0) 92 35 / 98 11- 0 Telefax +49 (0) 92 35 / 98 11- 11
info@bdsensors.de
4位，红色7段LED 显示，字高 7 mm，字宽4.85 mm (角度 10°)；显示范围：-1999 ... +9999； 显示精度：0.1% ± 1位；数字阻尼0.3 … 30 s (可调)；测量值更新0.0 … 10 s (可调) ≤ ± 0.3 % FSO /年
CE-认证
EMC 规范: 2004/108/EC
standard: contact rating max. 500 mA, short-circuit resistant ≤ ± 1.5 % FSO
≤ ± 0.5 % FSO
max. 10 Hz
> 100 x 106
0 ... 100 sec
Thermal effects (Offset and Span) / Permissible temperatures
Switching current Accuracy of switching points Repeatability Switching frequency Switching cycles Delay time
standard:
1 PNP contact
option:
max. 2 independent PNP contact; 1 analogue output
Option Accuracy 1
3-wire:
4 ... 20 mA / VS = 24 VDC ± 10 %
≤ ± 0.5 % FSO
Permissible load Influence effects
3-wire: Rmax = 500 Ω supply: 0.05 % FSO / 10 V
Measuring rate
Miscellaneous
Weight
approx. 160 g
Display
4-digit, red LED display, digit height 7 mm, digit width 4.85 mm (angle 10°); range of indication -1999 ... +9999; accuracy 0.1% ± 1 digit; digital damping 0.3 … 30 sec (programmable); measured value update 0.0 … 10 sec (programmable)
