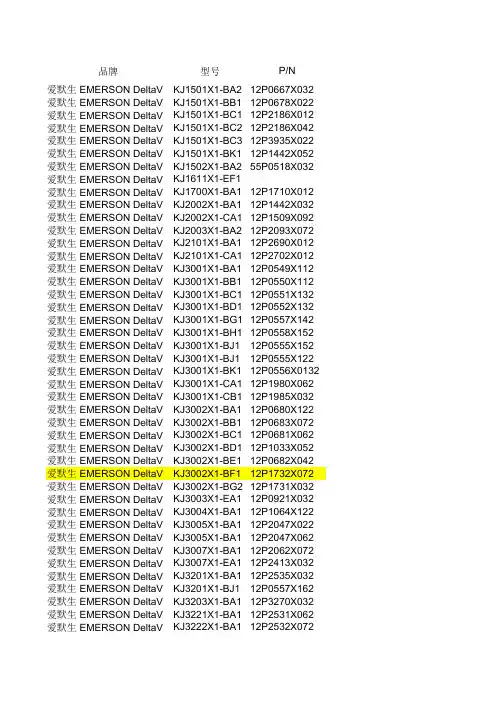

DeltaV卡件选型

品牌型号P/N爱默生 EMERSON DeltaV KJ1501X1-BA212P0667X032爱默生 EMERSON DeltaV KJ1501X1-BB112P0678X022 爱默生 EMERSON DeltaV KJ1501X1-BC112P2186X012爱默生 EMERSON DeltaV KJ1501X1-BC212P2186X042爱默生 EMERSON DeltaV KJ1501X1-BC312P3935X022爱默生 EMERSON DeltaV KJ1501X1-BK112P1442X052爱默生 EMERSON DeltaV KJ1502X1-BA255P0518X032爱默生 EMERSON DeltaV KJ1611X1-EF1爱默生 EMERSON DeltaV KJ1700X1-BA112P1710X012 爱默生 EMERSON DeltaV KJ2002X1-BA112P1442X032爱默生 EMERSON DeltaV KJ2002X1-CA112P1509X092爱默生 EMERSON DeltaV KJ2003X1-BA212P2093X072爱默生 EMERSON DeltaV KJ2101X1-BA112P2690X012爱默生 EMERSON DeltaV KJ2101X1-CA112P2702X012爱默生 EMERSON DeltaV KJ3001X1-BA112P0549X112爱默生 EMERSON DeltaV KJ3001X1-BB112P0550X112爱默生 EMERSON DeltaV KJ3001X1-BC112P0551X132爱默生 EMERSON DeltaV KJ3001X1-BD112P0552X132爱默生 EMERSON DeltaV KJ3001X1-BG112P0557X142爱默生 EMERSON DeltaV KJ3001X1-BH112P0558X152爱默生 EMERSON DeltaV KJ3001X1-BJ112P0555X152爱默生 EMERSON DeltaV KJ3001X1-BJ112P0555X122爱默生 EMERSON DeltaV KJ3001X1-BK112P0556X0132爱默生 EMERSON DeltaV KJ3001X1-CA112P1980X062爱默生 EMERSON DeltaV KJ3001X1-CB112P1985X032爱默生 EMERSON DeltaV KJ3002X1-BA112P0680X122爱默生 EMERSON DeltaV KJ3002X1-BB112P0683X072爱默生 EMERSON DeltaV KJ3002X1-BC112P0681X062爱默生 EMERSON DeltaV KJ3002X1-BD112P1033X052爱默生 EMERSON DeltaV KJ3002X1-BE112P0682X042爱默生 EMERSON DeltaV KJ3002X1-BF112P1732X072爱默生 EMERSON DeltaV KJ3002X1-BG212P1731X032爱默生 EMERSON DeltaV KJ3003X1-EA112P0921X032爱默生 EMERSON DeltaV KJ3004X1-BA112P1064X122爱默生 EMERSON DeltaV KJ3005X1-BA112P2047X022爱默生 EMERSON DeltaV KJ3005X1-BA112P2047X062爱默生 EMERSON DeltaV KJ3007X1-BA112P2062X072爱默生 EMERSON DeltaV KJ3007X1-EA112P2413X032爱默生 EMERSON DeltaV KJ3201X1-BA112P2535X032爱默生 EMERSON DeltaV KJ3201X1-BJ112P0557X162爱默生 EMERSON DeltaV KJ3203X1-BA112P3270X032爱默生 EMERSON DeltaV KJ3221X1-BA112P2531X062爱默生 EMERSON DeltaV KJ3222X1-BA112P2532X072爱默生 EMERSON DeltaV KJ3241X1-BA112P0914X062爱默生 EMERSON DeltaV KJ3242X1-BA112P2471X022爱默生 EMERSON DeltaV KJ4001X1-BA1爱默生 EMERSON DeltaV KJ4001X1-BA212P1562X022爱默生 EMERSON DeltaV KJ4001X1-BE1爱默生 EMERSON DeltaV KJ4001X1-CA112P0623X022爱默生 EMERSON DeltaV KJ4001X1-CB112P0625X052爱默生 EMERSON DeltaV KJ4001X1-CC112P0733X032爱默生 EMERSON DeltaV KJ4001X1-CJ112P1902X012爱默生 EMERSON DeltaV KJ4001X1-DG112P1298X012爱默生 EMERSON DeltaV KJ4001X1-EA112P0733X022爱默生 EMERSON DeltaV KJ4001X1-GA112P0830X022爱默生 EMERSON DeltaV KJ4001X1-GG112P1812X022爱默生 EMERSON DeltaV KJ4001X1-HA112P0949X022爱默生 EMERSON DeltaV KJ4002X1-BA112P1727X042爱默生 EMERSON DeltaV KJ4002X1-BB112P1728X042爱默生 EMERSON DeltaV KJ4002X1-BF22P3866X012爱默生 EMERSON DeltaV KJ4010X1-BF112P0831X042爱默生 EMERSON DeltaV kJ4010X1-BG112P0830X042爱默生 EMERSON DeltaV KJ4110X1-BA112P1867X012爱默生 EMERSON DeltaV KJ4110X1-BC112P1869X012爱默生 EMERSON DeltaV VE300412P1509X092爱默生 EMERSON DeltaV VE300512P2093X072爱默生 EMERSON DeltaV VE3051CO12P1562X012爱默生 EMERSON DeltaV VE4001S2T112P0549X112爱默生 EMERSON DeltaV VE4001S2T212P0550X142爱默生 EMERSON DeltaV VE4001S2T2B212P2535X042爱默生 EMERSON DeltaV VE4001S2T2B412P1980X042爱默生 EMERSON DeltaV VE4001S3T1B112P0551X132爱默生 EMERSON DeltaV VE4002S1T112P0557X152爱默生 EMERSON DeltaV VE4002S1T2B212P0555X122爱默生 EMERSON DeltaV VE4002S1T2B212P0555X122爱默生 EMERSON DeltaV VE4002S1T2B512P1985X032爱默生 EMERSON DeltaV VE4002S2T112P0558X152爱默生 EMERSON DeltaV VE4002S2T212P0556X142爱默生 EMERSON DeltaV VE4003S1B212P0681X072爱默生 EMERSON DeltaV VE4003S212P0680X072爱默生 EMERSON DeltaV VE4003S2B112P2532X092爱默生 EMERSON DeltaV VE4003S5B112P1731X032爱默生 EMERSON DeltaV VE4003S6B112P1732X012爱默生 EMERSON DeltaV VE4005S1B2爱默生 EMERSON DeltaV VE4005S2B212P0682X042爱默生 EMERSON DeltaV VE400712P1064X102爱默生 EMERSON DeltaV VE400912P0914X062爱默生 EMERSON DeltaV VE4010B1爱默生 EMERSON DeltaV VE401412P2062X082爱默生 EMERSON DeltaV VE4017PO12P2471X032爱默生 EMERSON DeltaV VE4050S2K1C012P0818X022爱默生 EMERSON DeltaV VE4050S2K1C112P0818X032爱默生 EMERSON DeltaV VE4055S1C012P1727X052爱默生 EMERSON DeltaV VE4055S2C012P1728X052爱默生 EMERSON DeltaV VE405612P2702X022爱默生 EMERSON DeltaV VE500112P0677X062 爱默生 EMERSON DeltaV VE500355P0518X042爱默生 EMERSON DeltaV VE500812P2186X032爱默生 EMERSON DeltaV VE600612P1710X012 爱默生 EMERSON DeltaV VE6101参数System Power Supply(AC/DC)System Passthrough Power Supply 12/12VDC(DC/DC) System Dual DC Power Supply (DC/DC)System Dual DC Power Supply (DC/DC)System Power Supply(DC/DC)ControllerBULK AC TO 24 VDC POWER SUPPLYController MODULEMedia ConverterM3 ControllerM5+ ControllerMD ControllerPROVOX M3+ CONT CARPROVOX M3 CONT CARDI, 32-Channel, 24 VDC, Isolated CardDI,24 VDC,Dry Contact CardDI,(8 CH)120 VAC,lsolatdDISCRETE IN,120 VAC,Dry ContactDO, 8-Channel,24 VDC, Isolated CardDO,（8-CH）120/230 VAC IsolatedDO, (8-Ch), 24 VDC, High Side CardDO, 8-Ch, 24 VDC, High Side Card,DO, 8-Channel, 120/230 VAC, High SideDI,32 CH,24 VDC，Dry ContactDO, 32-Channel, 24 VDC, High-SideAnalog Input, 8 Channel, 4-20mA, HART Card ANALOG OUTPUT, 4-20mAAnalog Input Module Final Assy, 4-20mA,ANALOG INPUT 1-5 VDCAnalog Output, 8-Channel, 4-20mA, HART Card RTD,ohms 12VDC,160mAThermocouple, MV CardSerial Interface Terminal BlockFieldbus H1ASi Actuator SensorASi Actuator SensorPROFIBUS DP CARDPROFIBUS DP Terminal BlockDI,8-Channel, 24 VDC, Dry Contact CardDO, 8-Channel, 24 VDC, High SideDI,32 CH,24 VDC，Dry Contact,Series 2ANALOG OUTPUT, 4-20mA, HART, SERIES 2 ANALOG INPUT, 8 Ch, 4-20mA, HART, SERIES 2Serial Interface Card New ModelFieldbus H1, Series 2CONTROLLER M3 2SLOT CARRIERPower Controller 2 Wide Carrier8 Wide I/O Carrier with Shield BarI/O Terminal BlockFused I/O Terminal Block4 Wire TX Terminal Block32 Channel Terminal BlockFUSED TERM PWBTERM BLOCK 4 WIRELocal Bus Right Extender CableThermocouple Terminal BlockLocal Bus Extender CableLeft 8 Wide Vertical CarrierRight 8 Wide Vertical CarrierBottom Extender CableLocal Bus Left ExtensionLocal Bus Right ExtensionINTRINSICALLY SAFE DO 4 CH SOLENOID DRIVER IIC DI 16 CH FIELD TERMINALM5+ ControllerMD ControllerPower Controller 2 Wide CarrierDI, 32-Channel,24 VDC, Isolated CardDI 24 VDC, Dry Contact CardDI, 8-Channel, 24 VDC, Dry Contact CardDI,32-Channel,24 VDC, Dry Contact CardDI 120VAC ISOLATEDDO, 8-Channel, 24 VDC, Isolated CardDO, 8-Ch, 24 VDC, High Side CardDO, 8-Ch, 24 VDC, High Side Card, CARDDO, 32-Channel,24 VDC, High-Side CardDO, 8-Ch, 120/230 VAC IsolatedDO,8-Channel, 120/230 VAC, High SideAnalog Input Module Final Assy, 4-20mA, CardAnalog Input, 8 Channel, 4-21mA, HART CardANALOG INPUT, 8 Ch, 4-20mA, HART, SERIES 2 Thermocouple, MVRTD CardANALOG OUTPUT MODULEAnalog Output, 8-Channel, 4-20mA, HARTFIELDBUS H1 CARDSerial Interface CardDI,16 CH FIELD TERMINALPROFIBUS DP CardFieldbus H1 Series 28-WIDE I/O I/F CARRIER8 Wide I/O Carrier with Shield BarLeft 8 Wide Vertical Carrier CardRight 8 Wide Vertical Carrier Card PROVOX I/O InterfaceAC/DC SYSTEM POWER SUPPLY BULK AC TO，24 VDC POWER SUPPLY System Dual DC Power Supply (DC/DC) Media ConverterCARRIER BLANK CAP。

foxboro工程师手册

I/A’s系统维护手册（工程师手册）编制：何卫兵上海福克斯波罗有限公司二零零二年元月第一章系统概述本手册为上海福克斯波罗有限公司DCS系统I/A维护手册，并作为I/A’s 培训手册的补充。

用户可以结合两本手册来进行系统操作、软件组态及系统维护。

必要时还应参考随机的原版资料及福克斯波罗公司提供的中文培训手册。

本手册针对福克斯波罗制造的I/A’S，采用Solaris 2.5.1操作系统和I/A’s 6.2.1版本应用软件。

整个系统为一个节点，在冗余的节点总线DNBI上挂有：●三台工程师站AW5101、AW5102、AW5103该站作为工程师站，内置256M内存及8GB硬盘，AW5102外挂一台喷墨打印机（电缆长度15米），AW5103配有和MIS系统通讯用的第二以太网卡。

该工作站安放在工程师站内，与I/A机柜（位于电子间）之间的通讯电缆长度为30米。

●四台操作员站WP5101、WP5103、WP5104、WP5105该站内置128M内存及8GB硬盘，并各配有一个21”的CRT。

该工作站安放在主控室内与I/A机柜（位于电子间）之间的通讯电缆长度为30米。

●一台操作员站WP5102该站作为大屏幕操作站，内置128M内存及8GB硬盘，除配有一个21”的CRT外。

还配有一台用于显示大屏幕的以太网卡。

该工作站安放在主控室内，与I/A机柜（位于电子间）之间的通讯电缆长度为30米。

●十一对容错台控制处理站CP4001、CP4002、CP4003、CP4004、CP4005、CP4006、CP4007、CP4008、CP4009、CP4010、CP4011此容错型控制处理站CP40BFT，用于实现DCS系统的数据采集及控制。

该控制处理器安放在电子间内。

现场由十八个装有现场总线组件FBM的现场机柜、十个安装DCS系统辅助装置（包括冗余的24VDC电源、交流继电器、直流继电器、SIMENSE交流接触器、以及相应的I/O端子）的继电器柜、一个DCS系统220VAC配电柜共同构成。

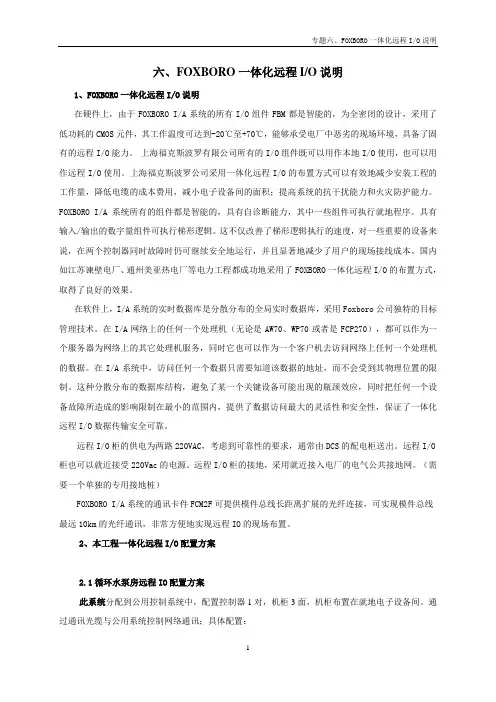

61FOXBORO远程IO说明

六、FOXBORO一体化远程I/O说明1、FOXBORO一体化远程I/O说明在硬件上，由于FOXBORO I/A系统的所有I/O组件FBM都是智能的，为全密闭的设计，采用了低功耗的CMOS元件，其工作温度可达到-20℃至+70℃，能够承受电厂中恶劣的现场环境，具备了固有的远程I/O能力。

上海福克斯波罗有限公司所有的I/O组件既可以用作本地I/O使用，也可以用作远程I/O使用。

上海福克斯波罗公司采用一体化远程I/O的布置方式可以有效地减少安装工程的工作量，降低电缆的成本费用，减小电子设备间的面积；提高系统的抗干扰能力和火灾防护能力。

FOXBORO I/A系统所有的组件都是智能的，具有自诊断能力，其中一些组件可执行就地程序。

具有输入/输出的数字量组件可执行梯形逻辑。

这不仅改善了梯形逻辑执行的速度，对一些重要的设备来说，在两个控制器同时故障时仍可继续安全地运行，并且显著地减少了用户的现场接线成本。

国内如江苏谏壁电厂、通州美亚热电厂等电力工程都成功地采用了FOXBORO一体化远程I/O的布置方式，取得了良好的效果。

在软件上，I/A系统的实时数据库是分散分布的全局实时数据库，采用Foxboro公司独特的目标管理技术。

在I/A网络上的任何一个处理机（无论是AW70、WP70或者是FCP270），都可以作为一个服务器为网络上的其它处理机服务，同时它也可以作为一个客户机去访问网络上任何一个处理机的数据。

在I/A系统中，访问任何一个数据只需要知道该数据的地址，而不会受到其物理位置的限制。

这种分散分布的数据库结构，避免了某一个关键设备可能出现的瓶颈效应，同时把任何一个设备故障所造成的影响限制在最小的范围内，提供了数据访问最大的灵活性和安全性，保证了一体化远程I/O数据传输安全可靠。

远程I/O柜的供电为两路220VAC，考虑到可靠性的要求，通常由DCS的配电柜送出。

远程I/O 柜也可以就近接受220Vac的电源。

远程I/O柜的接地，采用就近接入电厂的电气公共接地网。

FOXBORO卡件 21h2d4b4(FBM44)

输出通道
每个输出通道驱动一个外部负载并产生一个0至20mA的输出。该输出通道执行现场执行器的电气输出信号与冗余的现场总线之间接口所需的信号转换。
组件的输出通道部分执行模拟量输入／输出应用程序，该程序的组态选项有故障安全组态(保持／退出)，模拟量输出故障安全退出数据(以每个通道为基础)，现场总线切换许可和现场总线切换时间。
温度
变送器
RTT20
2A-1F4 A；2A-1Z9 F（可选）
阀门
定位器
SRD991
EVE0105 A-（en）
远方通讯
组态器
HHT (仅用于FoxCom)
2A-1Z3 A
PC 20 (FoxCom和HART)
2A-1Z3 E
Model 275(仅用于HART)
没有
I/A系列接口(仅用于FoxCom)
1-6F5 A/1-6F6 A
1-6F8 A
旋涡流量
流量计
83系列
1-8A1 E（83F和83W）；1-8A2 D（83S）
压力
变送器
I/A系列（-D）
I/A系列（-T）
I/A系列（-A，-I）
I/A系列（-V）
I/A系列（-F）
2A-1C13 A；2A-1C14 A；2A-1C14D；2A-1C14E；2A-1Z9E
美国境外：请与Foxboro当地办事处联系
Foxboro和I/A系列是福克斯波罗公司注册商标
福克斯波罗公司1994-1999年版权所有
MB 021
An Invensys Company
上海福克斯波罗公司翻译（徐阳）（2001年3月）1299
输出通道
输出
4个隔离的和独立的通道
输出范围(每个通道)

诺信常用备件1.2

3400V胶机胶缸部件143653983064111801982000106340过滤105622感温器108907超温保护器249800螺丝3383682881549834149834369822129834042881481054121055901876391056199834149834149834049820501614243400V胶机壳体1056182883071824932344341436522254562254551055932254542881602344332882221056142309082308979830053400V 分歧座120324983414288023982096整个滤网105432 2745699412209402813100V胶机胶缸部件143653983064111800982000106339过滤105621感温器108907超温保护器249800螺丝3383682881549834149834369822129834042881481054111055891876261056199834149834149834049820501614243100V胶机壳体1056171448691824932344351436522254562254551055932254542881602344332882221056142309082308979830053100V 分歧座120324983414288023982096整个滤网105432 2745699412209402813000V通用过滤系统（105432）2745782745789411722745139817473000Vista TC 通用电气控制系统234423U 型弹簧锁母操作面板232682开关225451225450297706 含第4、5接头185092控制板248043螺丝9829712325403000Vista TC 活塞泵（161424）1.164601泵维修组件（包含图中1-11项及高温润滑油211228）2.166880 磁叉3.164606 泵换向执行机构4.120306 泵出口密封圈（包含白色和棕色密封圈）166880 164606ProBlue 胶机胶缸分歧座备件明细（P4、P7和P10）活塞泵活塞泵10283031064649 240VAC 1064650 400VAC 1017009 1017060 超温保护器1028321 连接管1017186 密封圈 94116111感温器1028320 感温器1028320P4&P7 1064651 P10 1064653P4 1025885 P7 1025885 P10 10178921017189泄压阀 1028308过滤网 1028305 P4 1051033 P7 1051034 P10 10510351028304 活塞泵维修组件（含高温润滑油） 1028307 ProBlue 胶机活塞泵控制机构（含电磁阀）磁叉、执行机构的编号和3000系列胶机相同CPU板1028325操作面板P4&P7 1028326P10 1028327挡板1017223诺信喉管1. 按照使用性分防水型喉管、标准喉管和高弹性喉管2. 按喉管内径有9/16”和5/8” 两种3. 按照喉管本身使用的感温器分为RTD 、Feco 和PT100的喉管型号：5/16” , RTD 喉管用于自动喷枪喉管针脚定义（连接胶机一端）1 和 2：胶枪加热器 3 和 5：胶枪感温器 4 和 6 : 胶管加热器 5 和 8：胶管感温器喉管的不正确安装方式：诺信喉管及胶枪胶机连接接头为了保证接头及胶枪、胶管和胶机的螺纹不被损坏，拆装时个部件必须在加热状态，连接胶机和胶枪一端时，先用手慢慢将接头拧入胶机分歧座或胶枪座的螺纹，直到密封圈进入到分歧座或胶枪上的槽内，然后调整好角度并用扳手将锁紧锁母锁死，连接喉管时同样用手拿住喉管一端的锁母，慢慢于接头连接，待全部扣戴正，且用手劲拧不动时，用两把扳手锁紧。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

I/A Series®硬件
Control Processor 60
控制处理器60 是可选的容错处理站，当它与现场总线组件 (FBMs)相连接，可实现调节控制、逻辑控制、定时、顺序控制。

它同时执行数据采集(通过FBMs), 报警监测和告示
CP60支持两种基本型的FBMs,他们是DIN导轨安装的 FBM系列（FBM201，FBM202等等）和Y型FBMs(FBM01,FBM02 等等)。

CP60支持与液压静力接口单元（HIU），质量流量计和面板显示站的通讯。

CP60通过10Mbps的以太网现场总线与所有相关设备相连。

设备（FBMs）与10Mbps的以太网现场总线之间的接口通过现场总线通讯组件（FCM10E或FCM10Ef组件）和/或现场总线隔离器（FBI10E组件）来实现。

无容错的CP60是一个单宽的处理器组件。

容错的CP60是由两个单宽的处理器组件组成。

增强的可靠性
容错配置的CP60由2块并行工作的组件，分别和I/A系列节点总线和以太网现场总线单独连接。

两块控制处理器组件，作为容错的一对，在任何一块组件发生硬件故障时，可提供连续的运行。

两块组件同时接收处理信息，组件自身可以检测到故障。

故障检测的一种重要途径是在组件外部接口处比较通讯的信息。

检测到故障后，两块组件同时启动自诊断程序以确定有故障的组件。

非故障的组件则继续控制，而不影响正常的系统运行。

为进一步确保通讯的可靠性，容错的控制处理器在节点总线和现场总线的接口上均进行误差检测和地址确认。

在维护和运行期间为加强其可靠性，CP60还配置了一个凹进去的复位按钮，位于组件的正面。

这一特征可以允许手动使组件下电和上电，而无需从机柜中拔出组件。

诊断
CP60使用下列三种诊断方法来检测并/或隔离故障：
∙上电时自检查
∙运行时间与watchdog定时器检查
∙离线诊断
当CP上电时，上电自检查功能进行自动初始化。

这些检查依次对CP内功能元件进行检查。

CP组件前面的红绿指示灯反映了控制处理器启动顺序中不同阶段是否成功。

运行时间和watchdog定时器检查，在系统正常运行期间对控制处理器提供连续的监视功能。

操作员可以通过系统信息打印或显示来得知故障信息。

离线诊断可以临时装载到系统，以对系统中不同的站和设备进行全面的测试和检查。

利用离线诊断，可以将CP内可能存在的故障隔离并/或进行确认。

支持的设备
CP60支持以下设备：
∙所有DIN 导轨安装子系列 FBMs(FBM201,FBM202等等)
∙所有Y型FBMs(FBM01,FBM02等等)
∙FOXBORO液压静力接口单元（HIU）
∙FOXBORO质量流量计
∙FOXBORO面板显示站
∙用于Honeywell TDC2000系统的DCS现场总线组件（H2Mxx系列）
∙SPEC200 控制集成器FBMs
∙SPEC200 MICRO控制集成器FBMs
∙SPEC200 CCM控制集成器FBMs
CP60不支持以下设备：
Foxboro煤气色谱仪，密集型I/O及其他使用现场总线处理器（FBP10，11，12，13 或14）的设备；用于Honeywell TDC3000系统的H3MxxDCS现场总线组件；用于Bailey NET90和 INFI90系统的DCS 现场总线组件；用于Fisher PROVOX控制器系列和20系列系统的DCS现场总线组件。

现场总线组件
现场总线组件（FBMs）提供数字量I/O，模拟量I/O，和智能变送器信号的转换。

允许相应的信号值与控制处理器通讯。

宽量程的FBMs可以执行各种类型的信号转换使控制处理器与现场传感器和执行机构接口。

要了解DIN导轨安装的现场总线组件更为详细的信息，可查阅产品说明书PSS21H-2W1 B3。

要了解Y型的现场总线组件更为详细的信息，可查阅产品说明书PSS21H-2B1 B3。

现场总线的灵活性
CP60有两种基本的网络组态方式，可提供I/O子系统执行过程中广泛的灵活性：
∙直接网络组态 (图1) –控制处理器与FCM(s) 和/或FBI10E组件直接连接，光纤扩展可选。

图 1. 直接网络组态（典型）
有源星型网络组态 (图2) –多接口光纤转换器（hub）进一步扩展了现场总线的距离同时也增加了应用的多面性和安全性。

每一种组态支持最多120块现场总线组件，（用于组态时，HIUs,质量流量计和面板显示站像FBMs 一样计数）最大电缆距离参阅本产品说明书最后部分的“技术指标”。

图 2. 有源星型网络组态(典型)
福克斯波罗公司
美国，麻省，福克斯波罗镇02035-2099
网址：
电话：美国境内： 1-508-543-8750 或1-888-369-2676
美国境外：请与Foxboro当地办事处联系
Foxboro 和I/A系列是福克斯波罗公司注册商标
Invensys是英维思公司注册商标
AMD是Micro Devices公司注册商标
Intel是英特尔公司注册商标
福克斯波罗公司1999-2000年版权所有
MB 021
An Invensys Company
上海福克斯波罗公司翻译（徐阳）（2001年6月）0700。
