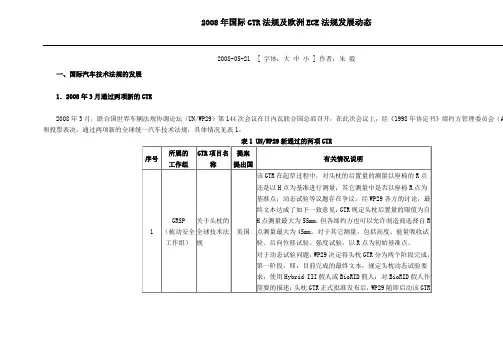

2008年国际GTR法规及欧洲ECE法规发展动态2008-05-21 [ 字体：大中小 ] 作者：朱毅一、国际汽车技术法规的发展1．2008年3月通过两项新的GTR2008年3月，联合国世界车辆法规协调论坛（UN/WP29）第144次会议在日内瓦联合国总部召开，在此次会议上，经《1998年协定书》缔约方管理委员会（AC3）审议和投票表决，通过两项新的全球统一汽车技术法规，具体情况见表1。
表1 UN/WP29新通过的两项GTR这样，截止到2008年5月，在联合国世界车辆法规协调论坛《1998年协定书》的框架下，共有7项GTR和一项特别决议（S.R.1）出台。
2．目前仍在起草的其它GTR法规项目的进展2008年1～5月，WP29继续对尚未完成的GTR项目开展起草工作，表2为具体项目。
在上述仍处于起草过程的GTR中，ESC项目为2007年新列的GTR制定项目。
根据美国代表的提案，WP29在第141次会议（2007年3月）上一致同意将车辆电子稳定控制系统ESC列为新的全球技术法规（GTR）制定项目，在制动与行走系工作组（GRRF）内成立开展ESC GTR制定工作的非正式工作小组，美国担任该非正式小组的主席。
ESC全球法规项目立项后，其起草工作进展较快，WP29/GRRF（制动与行走系）工作组在WP29第144次会议（2008年3月）上提交法规的文本草案，并将无法解决的问题提交WP29决策，计划在WP29第145次会议（2008年6月召开）上进行投票表决。
在ESC全球法规的起草过程中，我国组织相关专家和人员直接参与了该GTR的起草工作，并结合我国汽车行业的具体情况，对ESC相关条款提出了我国的意见和建议，基本上被WP29所采纳，反映在具体的法规文本中，我国提出的意见和建议包括：·针对该法规的使用范围提出了提案，建议将该全球技术法规的适用范围限定为安装有电子稳定性控制系统并且最大设计总质量在4536kg 以下的1-1、1-2和2类车辆，在内容上只规定电子稳定性控制系统的功能和性能要求以及对应的试验要求和试验规程，由各签约国根据本国国情自行决定哪些车辆需要强制安装ESC。
基于全球安全技术技术法规EVS-GTR的整车电安全测试
√
√
车辆和外部电源的物理连接
√
整车碰撞后安全要求
√
√ 豁免
正常使用 滥用、失效 模拟碰撞
电动汽车安全球技术 法规 (EVS -GTR)
电池包要求
一般汽车（主要为乘用车）
一般要求
√
耐振动
√
热冲击、循环
√
耐火性
√
外短路保护
√
过充电保护
√
过放电保护
√
过热保护
√
过电流保护
√
低温保护
√
有害气体排放
√
热扩散
√
直接触防护 间接触防护
标识要求 遮拦 /外壳防护等级
高压连接器要求 维修断开装置 电位均衡要求 绝缘电阻要求
防水要求
一般汽车（主要 为乘用车）
√ √ √ √ √ √ √
重型汽车
√ √（考虑顶部充电技术）
√ √ √ √ √
可行驶模式的启动提醒
√
√
离开时的可行驶模式提醒源自√√功能安全要求
驱动反向提示 要求
驱动方向提示 要求
行驶车辆的驱动方向应能被驾员辨识。
车辆和外部电 车辆与位置固定的外部电源传导连接时，车 源的物理连接 辆不应通过其自身的驱动
外部直流电源测量法
EVS -GTR 整车安全测试技术：绝缘电阻测量 使用车载REESS作为直流电压源的测量方法
测试电压应不小于 B 级 电力系统的最大工作电 压一半的直流电压，使 用绝缘电阻测试仪加载 在相互连接的 B 级电压 电力系统带电部分和电 平台之间并施加足够长 的时间（至少30s）以 获得稳定的读数
电动汽车安全球技术 法规 (EVS -GTR)-防水要求
部件防水试验
GTR13和ECER134的主要内容简析
收稿日期： ２０１８－０３－２０ 基金项目： 国家重点研究计划项目 （２０１６ＹＦＢ０１０１４００） 作者简介： 赵志成， 男， 工程师， 研究方向为汽车技术开发及管理。 Ｅ⁃ｍａｉｌ： ｚｈａｏｚｈｉｃｈｅｎｇ＠ ｃａｔａｒｃ������ ａｃ������ ｃｎ。
Ｃ பைடு நூலகம் Ｙ Ｋ
表 １ 压缩氢气储存系统性能验证试验
严格测试。 其中基本性能测试用来确定爆破压力中值和压力循 环寿命； 液压顺序试验实际上是道路性能的耐久验证试验； 气 压顺序试验实际是系统期望的道路性能验证试验； 使用终止验 证试验是用来验证氢气不能继续储存的极端严重情况下的防 破裂性能。 氢气储存系统的标签不是储氢系统的性能之一， 但作为使用要求必须具备， 因此文中把标签要求附加在性能 要求部分。 压缩氢气储存系统性能验证试主要内容验如表 １ 所示。
１ 压缩氢气储存系统
这部分规定了压缩氢气储存系统完整性的要求。 用于道路 车辆的新 型 压 缩 氢 储 存 系 统， 其 标 称 工 作 压 力 不 应 高 于 ７０ ＭＰａ， 使用寿命不超过 １５ 年。
１������ １ 压缩氢气储存系统性能试验要求 作为一个完整的汽车子系统， 氢气储存系统的性能要经过
Ｃ Ｍ Ｙ Ｋ
ＤＯＩ： １０������ １９４６６ ／ ｊ������ ｃｎｋｉ������ １６７４－１９８６������ ２０１８������ ０６������ ０１７
ＧＴＲ １３ 和 ＥＣＥ Ｒ１３４ 的主要内容简析
赵志成， 王微， 王仁广， 郝冬， 王晓兵， 朱凯
（ 中国汽车技术研究中心有限公司， 天津 ３００３００）
关键词： 燃料电池汽车； 氢气储存系统； 标准与法规 中图分类号： Ｕ４７３������ ４ 文献标志码： Ｂ 文章编号： １６７４－１９８６ （２０１８） ０６－０７３－０７
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

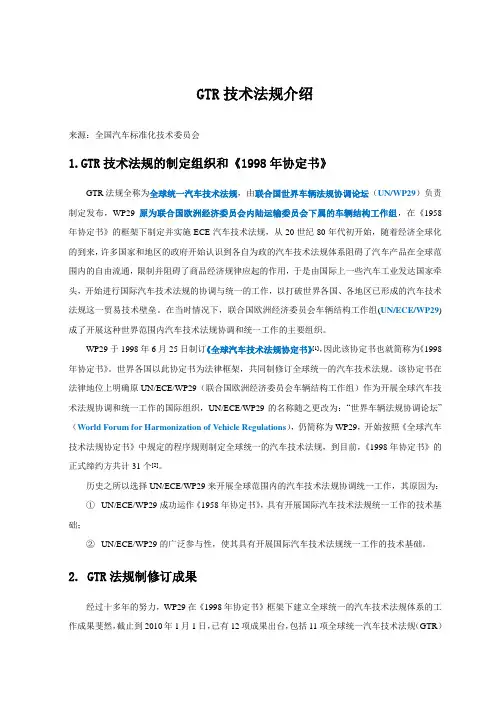

GTR技术法规介绍
全国汽车标准化技术委员会
1.GTR技术法规的制定组织和《1998年协定书》
GTR法规全称为全球统一汽车技术法规，由联合国世界车辆法规协调论坛（UN/WP29）负责制定发布，WP29原为联合国欧洲经济委员会内陆运输委员会下属的车辆结构工作组，在《1958年协定书》的框架下制定并实施ECE汽车技术法规，从20世纪80年代初开始，随着经济全球化的到来，许多国家和地区的政府开始认识到各自为政的汽车技术法规体系阻碍了汽车产品在全球范围内的自由流通，限制并阻碍了商品经济规律应起的作用，于是由国际上一些汽车工业发达国家牵头，开始进行国际汽车技术法规的协调与统一的工作，以打破世界各国、各地区已形成的汽车技术法规这一贸易技术壁垒。
在当时情况下，联合国欧洲经济委员会车辆结构工作组(UN/ECE/WP29)成了开展这种世界范围内汽车技术法规协调和统一工作的主要组织。
[1]
WP29于
1998年6月25日制订《全球汽车技术法规协定书》，因此该协定书也就简称为《1998年协定书》。
世界各国以此协定书为法律框架，共同制修订全球统一的汽车技术法规。
该协定书在法律地位上明确原UN/ECE/WP29（联合国欧洲经济委员会车辆结构工作组）作为开展全球汽车技术法规协调和统一工作的国际组织，UN/ECE/WP29的名称随之更改为：
“世界车辆法规协调论坛”（World Forum for Harmonization of Vehicle Regulations），仍简称为WP29，开始按照《全球汽车技术法规协定书》中规定的程序规则制定全球统一的汽车技术法规，到目前，《1998年协定书》的正式缔约方共计31个[2]。
历史之所以选择UN/ECE/WP29来开展全球范围内的汽车技术法规协调统一工作，其原因为：
①UN/ECE/WP29成功运作《1958年协定书》，具有开展国际汽车技术法规统一工作的技术基础；
②UN/ECE/WP29的广泛参与性，使其具有开展国际汽车技术法规统一工作的技术基础。
2. GTR法规制修订成果
经过十多年的努力，WP29在《1998年协定书》框架下建立全球统一的汽车技术法规体系的工作成果斐然，截止到
2010年1月1日，已有12项成果出台，包括11项全球统一汽车技术法规（GTR）和一项规范性技术文件（S.R.1）。
具体项目见表1：
表1WP29已出台的GTR项目及其修订情况
序号法规编号
1GTR 1法规名称全球注册日期缔约方通报采用
状况最后期限法规修订情况关于车门锁和车门保持件2004年11月18日2
006年1月18日
的全球技术法规
2就气体污染物排放、CO2
勘误本1排放物以及发动机燃油消
GTR 2耗对装有点燃或压燃式发
2005年6月22日2
006年8月22日修正本1的勘误本动机的两轮摩托车的测量1规程
GTR 3修正本1摩托车制动系统全球技术2006年11月15日2
008年1月15日
法规勘误本13
4就污染物排放方面对压燃
式发动机和燃用天然气
GTR 4（NG）或液化石油气
2006年11月15日2
008年1月15日修正本1（LPG）的点燃式发动机的
试验规程
GTR 5
GTR 6道路车辆车载诊断系统2006年11月15日2
008年1月15日勘误本1（OBD）技术要求
用于机动车辆及机动车辆2008年3月12日2
009年5月12日
装备的安全玻璃材料2008年3月13日2
009年5月13日2008年11月13日2
010年1月13日勘误本156789
10
11GTR 7头枕
GTR 9行人保护全球技术法规
GTR 8电子稳定控制系统（ESC）
2008年6月26日2
009年8月26日勘误本1GTR10非循环排放全球技术法规
2009年6月24日2
010年8月24日
GTR11农林拖拉机与非道路机动2009年11月12日2
011年1月12日
机械车辆排放（NRMM）
12《在全球技术法规中使用
S.R.1的统一定义和规程的特别
决议》
3．GTR法规的重要性
长期以来，对于世界汽车行业而言，只有统一的国际标准，而技术法规一直是由各国各地区自行制定实施，从来没有统一的国际汽车技术法规，《1998年协定书》和GTR法规的出台，彻底打破了这一格局，全球不同汽车技术法规之间的协调工作有了法律依据、固定的渠道和程序，同时也有了正式的成果体现。
按照《1998年协定书》的规定，在GTR的表决中采取一票否决制，即每一项GTR法规的出台，必须获得所有参与表决的缔约方的全体一致通过，有任何一个缔约方反对，该GTR草案就不能被通过，因此获得通过的每一项GTR法规都是全体缔约方共同协调、一致认可的结果，为今后在全球推广实施奠定了基础。
《1998年协定书》同时又规定，某项GTR草案一旦获得缔约方的一致通过，即成为全球性技术法规，所有对该GTR法规投赞成票的缔约方有义务争取迅速将该GTR法规引入各自国家或地区的法律或法规体系中。
并将是否采用该GTR法规（包括接受符合该GTR法规的产品），以及开始采用GTR法规的日期和其它相关情况以书面形式上报联合国。
因此GTR法规出台后，不同的国家和地区往往都积极以各种不同的方式将GTR法规的相关内容引入自身的汽车技术法规中，如欧盟常常采取先根据GTR法规修改ECE法规，再按照ECE法规修改
与之相对应的EEC/EC指令，或直接采用该ECE法规的方式来采用GTR法规，美国则直接修改其自身的汽车技术法规来达到采用GTR法规的目的。
我国也不例外，近年来，我国根据汽车产业和标准化工作发展的实际情况和需要，在我国汽车标准的制修订工作中积极采用GTR，目前已采用GTR9制定我国国家推荐性标准：
GB/T 24550-2009汽车对行人的碰撞保护，该标准于
2009年10月30日发布，
2010年7月1日实施，今后将根据发展情况将其转化为强制性国家标准。
2010年年初，我国启动了参照GTR8“电子稳定控制系统（ESC）”制定我国标准的工作，计划2010年—2011年完成该标准的制定，该项目同行人保护标准一样，将先制定为推荐性国家标准，今后再过渡为强制性国家标准。
此外，在我国2009年的国标制修订计划中，已将GB15086—2006“汽车门锁及车门保持件的性能要求和试验方法”的修订列入计划，该项目的修订将参照采用GTR
1。
"在摩托车标准化工作领域内，2009年年底，在启动我国摩托车排放第4阶段标准的制定工作中，已考虑将GTR2（WMTC）的相关内容纳入到我国的标准中。
由此可见，我国企业充分掌握和了解GTR法规的发展动态及其具体技术内容，有助于了解国际汽车技术法规的最新发展状态，紧跟国际汽车技术法规发展的步伐，同时也了解和掌握包括我国在内的整个国际汽车市场技术法规的发展方向，使自己的产品能更好地适应整个国际汽车市场的要求。
[1]该协定书全称为《关于对轮式车辆、安装和/或用于轮式车辆的装备和部件制定全球性技术法规协定书》
[2]美国、加拿大、日本、法国、英国、欧洲联盟、德国、俄罗斯、中国、韩国、意大利、南非、芬兰、匈牙利、土耳其、斯洛伐克、新西兰、荷兰、阿塞拜疆、西班牙、罗马尼亚、瑞典、挪威、塞浦路斯、卢森堡、马来西亚、印度、立陶宛、摩尔多瓦、突尼斯、澳大利亚。
