美标稳压二极管型号: 500mW部分: 1N4614 1.8V 1N4615 2V 1N4616 2.2V 1N4617 2.4V 1N4618 2.7V 1N4619 3V 1N4620 3.3V 1N4621 3.6V 1N4622 3.9V 1N4623 4.3V 1N4624 4.7V 1N4625 5.1V 1N4626 5.6V 1N4627 6.2V1N4099 6.8V 1N4100 7.5V 1N4101 8.2V 1N4102 8.7V 1N4103 9.1V 1N4104 10V 1N4105 11V 1N4106 12V 1N4107 13V 1N4108 14V 1N4109 15V 1N4110 16V 1N4111 17V 1N4112 18V 1N4113 19V 1N4114 20V 1N4115 22V 1N4116 24V 1N4117 25V 1N4118 27V 1N4119 28V 1N4120 30V 1N4121 33V 1N4122 36V 1N4123 39V 1N4124 43V 1N4125 47V 1N4126 51V 1N4127 56V 1N4128 60V 1N4129 62V 1N4130 68V 1N4131 75V 1N4132 82V 1N4133 87V 1N4134 91V 1N4135 100V1W稳压部分: 1N4727 3V0 1N4728 3V3 1N4729 3V61N4730 3V9 1N4731 4V3 1N4732 4V7 1N4733 5V11N4734 5V6 1N4735 6V2 1N4736 6V8 1N4737 7V51N4738 8V2 1N4739 9V1 1N4740 10V 1N4741 11V1N4742 12V 1N4743 13V 1N4744 15V 1N4745 16V1N4746 18V 1N4747 20V 1N4748 22V 1N4749 24V1N4750 27V 1N4751 30V 1N4752 33V 1N4753 36V1N4754 39V 1N4755 43V 1N4756 47V 1N4757 51V1N4758 56V 1N4759 62V 1N4760 68V 1N4761 75V 1N4762 82V 1N4763 91V 1N4764 100VHITACHI(日立)0.5W稳压二极管型号参数HZ3A1 2.5~2.7VHZ3A2 2.6~2.8VHZ3A3 2.6~2.9VHZ3B1 2.8~3.0VHZ3B2 2.9~3.1VHZ3B3 3.0~3.2V线性稳压器件(输入输出电流相等,压降3V以上) 型号稳压(V) 最大输出电流可替代型号79L05 -5V 100mA 79L06 -6V 100mA 79L08 -8V100mA LM7805 5V 1A L7805,LM340T5LM7806 6V 1A L7806 LM7808 8V 1A L7808 LM7809 9V 1A L7809 LM781212V 1A L7812,LM340T12 LM7815 15V1A L7815,LM340T15 LM7818 18V 1A L7815 LM7824 24V 1A L7824 LM7905 -5V 1A L7905 LM7906 -6V 1A L7906,KA7906 LM7908 -8V 1A L7908LM7909 -9V 1A L7909 LM7912 -12V 1A L7912 LM7915 -15V 1A L7915 LM7918 -18V 1A L7918 LM7924 -24V 1A L7924 78L05 5V 100mA 78L06 6V 100mA78L08 8V 100ma 78L09 9V 100ma 78L1212V 100ma 78L15 15V 100ma 78L18 18V 100ma 78L24 24V 100ma开关稳压器件(电压转换效率高) 型号说明最大输出电流LM1575T-3.3 3.3V简易开关电源稳压器 1A LM1575T-5.0 5V简易开关电源稳压器1A LM1575T-12 12V简易开关电源稳压器1A LM1575T-15 15V简易开关电源稳压器1A LM1575T-ADJ 简易开关电源稳压器(可调1.23V~37V) 1A LM1575HVT-3.3 3.3V简易开关电源稳压器 1A LM1575HVT-5.0 5V简易开关电源稳压器 1A LM1575HVT-12 12V简易开关电源稳压器 1A LM1575HVT-15 15V简易开关电源稳压器 1A LM1575HVT-ADJ 简易开关电源稳压器(可调1.23V~37V) 1A LM2575T-3.3 3.3V简易开关电源稳压器1A LM2575T-5.0 5V简易开关电源稳压器 1A LM2575T-12 12V简易开关电源稳压器 1A LM2575T-15 15V简易开关电源稳压器 1A LM2575T-ADJ 简易开关电源稳压器(可调1.23V~ 37V) 1A LM2575HVT-3.3 3.3V简易开关电源稳压器1A LM2575HVT-5.0 5V简易开关电源稳压器1A LM2575HVT-12 12V简易开关电源稳压器1A LM2575HVT-15 15V简易开关电源稳压器1A LM2575HVT-ADJ 简易开关电源稳压器(可调1.23V~37V) 1A LM2576T-3.3 3.3V简易开关电源稳压器 3A LM2576T-5.0 5.0V简易开关电源稳压器 3A LM2576T-12 12V简易开关电源稳压器 3A LM2576T-15 15V简易开关电源稳压器 3A LM2576T-ADJ 简易开关电源稳压器(可调1.23V~37V) 3A LM2576HVT-3.3 3.3V简易开关电源稳压器 3A LM2576HVT-5.0 5.0V简易开关电源稳压器3A LM2576HVT-12 12V简易开关电源稳压器3A LM2576HVT-15 15V简易开关电源稳压器3A LM2576HVT-ADJ 简易开关电源稳压器(可调1.23V~37V) 3A。

MM5Z5V6T1G稳压二极管原厂DCY品牌推荐

Zener Voltage Regulators150mW SOD–523Surface MountWe declare that the material of product compliance with RoHS requirements.ORDERING INFORMATIONDevice Package Shipping MM5ZXXXT1GSOD-5233000/Tape&ReelThis series of Zener diodes is packaged in a SOD–523surface mount package that has a power dissipation of 100mW.They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium.They are well suited for applications such as cellular phones,hand held portables,and high density PC boards.Specification Features:•Standard Zener Breakdown Voltage Range –2.4V to 75V •Steady State Power Rating of 200mW•Small Body Outline Dimensions:0.047"x 0.032"(1.20mm x 0.80mm)•Low Body Height:0.028"(0.7mm)•ESD Rating of Class 3(>16kV)per Human Body ModelMechanical Characteristics:CASE:Void-free,transfer-molded,thermosetting plastic Epoxy Meets UL 94V-0LEAD FINISH:100%Matte Sn (Tin)QUALIFIED MAX REFLOW TEMPERATURE:260°C Device Meets MSL 1Requirements MOUNTING POSITION:AnyMAXIMUM RATINGSRatingSymbol Max Unit Total Device Dissipation FR−5Board,P D150mW@T A =25︒C Junction and Storage T J,Tstg−65to ︒CTemperature Range+150Maximum ratings are those values beyond which devicedamage can occur.Maximum ratings applied to the device are individual stress limit values (not normal operating conditions)and are not valid simultaneously.If these limits are exceeded,device functional operation is not implied,damage may occur and reliability may be affected.MM5Z2V4T1G SERIES12CATHODE ANODEMARKING DIAGRAMxx dxx=Specific Device Code d =Date CodeSOD–523MM5Z2V4T1G SERIES ELECTRICAL CHARACTERISTICS I(T A=25︒C unless otherwise noted,I FV F=0.9V Max.@I F=10mA for all types)Symbol ParameterVZ Reverse Zener Voltage@I ZT IZT Reverse Current VZVRVZ ZT Maximum Zener Impedance@I I R VFZT IZTIZK Reverse CurrentZZK Maximum Zener Impedance@I ZKIR Reverse Leakage Current@V RV R Reverse VoltageI F Forward Current Zener Voltage Regulator V F Forward Voltage@I FQV Z Maximum Temperature Coefficient of V ZC Max.Capacitance@V R=0and f=1MHz100(%)80DISS IP ATI ON 60 40POWER20255075100125150TEMPERATURE(︒C)Figure1.Steady State Power Derating MM5Z2V4T1G SERIESELECTRICAL CHARACTERISTICS (T A =25︒C unless otherwise noted,V F =0.9V Max.@I F =10mA for all types)Zener Voltage (Note 1)Zener Impedance Leakage CurrentQ V Z C ZZT(mV/k)@V =0V(Volts)@I@I ZT Z@II @VRZZKR@IZTf =1MHzDevice ZTZKRDevice Marking Min Nom Max mA W W mA m A Volts Min Max pF MM5Z2V4T1G 00 2.2 2.4 2.651001000 1.050 1.0−3.50450MM5Z2V7T1G 01 2.5 2.7 2.951001000 1.020 1.0−3.50450MM5Z3V0T1G 02 2.8 3.0 3.251001000 1.010 1.0−3.50450MM5Z3V3T1G 05 3.1 3.3 3.55951000 1.05 1.0−3.50450MM5Z3V6T1G 06 3.4 3.6 3.85901000 1.05 1.0−3.50450MM5Z3V9T1G 07 3.7 3.9 4.15901000 1.03 1.0−3.5−2.5450MM5Z4V3T1G 08 4.0 4.3 4.65901000 1.03 1.0−3.50450MM5Z4V7T1G 09 4.4 4.7 5.0580800 1.03 2.0−3.50.2260MM5Z5V1T1G 0A 4.8 5.1 5.4560500 1.02 2.0−2.7 1.2225MM5Z5V6T1G 0C 5.2 5.6 6.0540400 1.01 2.0−2.0 2.5200MM5Z6V2T1G 0E 5.8 6.2 6.6510100 1.03 4.00.4 3.7185MM5Z6V8T1G 0F 6.4 6.87.2515160 1.02 4.0 1.2 4.5155MM5Z7V5T1G 0G 7.07.57.9515160 1.01 5.0 2.5 5.3140MM5Z8V2T1G 0H 7.78.28.7515160 1.00.7 5.0 3.2 6.2135MM5Z9V1T1G 0K 8.59.19.6515160 1.00.27.0 3.87.0130MM5Z10VT1G 0L 9.41010.6520160 1.00.18.0 4.58.0130MM5Z11VT1G 0M 10.41111.6520160 1.00.18.0 5.49.0130MM5Z12VT1G 0N 11.41212.752580 1.00.18.0 6.010130MM5Z13VT1G 0P 12.413.2514.153080 1.00.18.07.011120MM5Z15VT1G 0T 14.31515.8530200 1.00.0510.59.213110MM5Z16VT1G 0U 15.316.217.1240200 1.00.0511.210.414105MM5Z18VT1G 0W 16.81819.1245225 1.00.0512.612.416100MM5Z20VT1G 0Z 18.82021.2255225 1.00.0514.014.41885MM5Z22VT1G 1020.82223.3255250 1.00.0515.416.42085MM5Z24VT1G 1122.824.225.6270120 1.00.0516.818.42280MM5Z27VT1G 1225.12728.9280300 1.00.0518.921.425.370MM5Z30VT1G 14283032280300 1.00.0521.024.429.470MM5Z33VT1G 18313335280300 1.00.0523.227.433.470MM5Z36VT1G 19343638290500 1.00.0525.230.437.470MM5Z39VT1G 203739412130500 1.00.0527.333.441.245MM5Z43VT1G 214043461150500 1.00.0530.137.646.640MM5Z47VT1G 1A 4447501170500 1.00.0532.942.051.840MM5Z51VT1G 1C 4851541180500 1.00.0535.746.657.240MM5Z56VT1G 1D 5256601200500 1.00.0539.252.263.840MM5Z62VT1G 1E 5862661215500 1.00.0543.458.871.635MM5Z68VT1G 1F 6468721240500 1.00.0547.665.679.835MM5Z75VT1G1G70757912555001.00.0552.573.488.6351.Zener voltage is measured with a pulse test current I Z at an ambient temperature of 25︒C.MM5Z2V4T1G SERIESSC-79/SOD-523DIMENSIONS (mm are the original dimensions)UNIT A b p c D E H E V m m0.70.350.2 1.30.9 1.70.150.50.250.11.10.71.5Note1.The marking bar indicates the cathode.OUTLINE REFERENCES EUROPEAN ISSUE DATEVERSION IECJEDECEIAJ PROJECTIONSOD523SC-7998-11-25。

稳压二极管型号大全

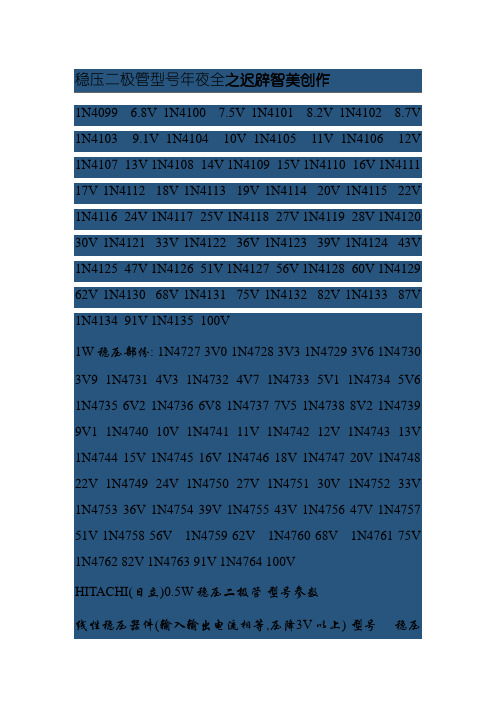

稳压二极管型号年夜全之迟辟智美创作1N4099 6.8V 1N4100 7.5V 1N4101 8.2V 1N4102 8.7V 1N4103 9.1V 1N4104 10V 1N4105 11V 1N4106 12V 1N4107 13V 1N4108 14V 1N4109 15V 1N4110 16V 1N4111 17V 1N4112 18V 1N4113 19V 1N4114 20V 1N4115 22V 1N4116 24V 1N4117 25V 1N4118 27V 1N4119 28V 1N4120 30V 1N4121 33V 1N4122 36V 1N4123 39V 1N4124 43V 1N4125 47V 1N4126 51V 1N4127 56V 1N4128 60V 1N4129 62V 1N4130 68V 1N4131 75V 1N4132 82V 1N4133 87V 1N4134 91V 1N4135 100V1W稳压部份: 1N4727 3V0 1N4728 3V3 1N4729 3V6 1N4730 3V9 1N4731 4V3 1N4732 4V7 1N4733 5V1 1N4734 5V6 1N4735 6V2 1N4736 6V8 1N4737 7V5 1N4738 8V2 1N4739 9V1 1N4740 10V 1N4741 11V 1N4742 12V 1N4743 13V 1N4744 15V 1N4745 16V 1N4746 18V 1N4747 20V 1N4748 22V 1N4749 24V 1N4750 27V 1N4751 30V 1N4752 33V 1N4753 36V 1N4754 39V 1N4755 43V 1N4756 47V 1N4757 51V 1N4758 56V 1N4759 62V 1N4760 68V 1N4761 75V 1N4762 82V 1N4763 91V 1N4764 100VHITACHI(日立)0.5W稳压二极管型号参数线性稳压器件(输入输出电流相等,压降3V以上) 型号稳压(V) 最年夜输出电流可替代型号79L05 -5V 100mA79L06 -6V 100mA 79L08 -8V 100mA LM7805 5V1A L7805,LM340T5 LM7806 6V 1A L7806LM7808 8V 1A L7808 LM7809 9V 1A L7809 LM7812 12V 1A L7812,LM340T12LM7815 15V 1A L7815,LM340T15 LM7818 18V1A L7815 LM7824 24V 1A L7824 LM7905-5V 1A L7905 LM7906 -6V 1A L7906,KA7906 LM7908 -8V 1A L7908 LM7909 -9V 1A L7909 LM7912 -12V 1A L7912LM7915 -15V 1A L7915 LM7918 -18V 1A L7918 LM7924 -24V 1A L7924 78L05 5V 100mA 78L06 6V 100mA 78L08 8V 100ma78L09 9V 100ma 78L12 12V 100ma 78L15 15V 100ma 78L18 18V 100ma 78L24 24V 100ma开关稳压器件(电压转换效率高) 型号说明最年夜输出电流LM1575T-3.3 3.3V简易开关电源稳压器1A LM1575T-5.0 5V简易开关电源稳压器 1A LM1575T-12 12V简易开关电源稳压器1A LM1575T-15 15V简易开关电源稳压器1A LM1575T-ADJ 简易开关电源稳压器(可调1.23V~37V) 1ALM1575HVT-3.3 3.3V简易开关电源稳压器1ALM1575HVT-5.0 5V简易开关电源稳压器1A LM1575HVT-12 12V简易开关电源稳压器1A LM1575HVT-15 15V简易开关电源稳压器1A LM1575HVT-ADJ 简易开关电源稳压器(可调1.23V~37V) 1A LM2575T-3.3 3.3V简易开关电源稳压器 1A LM2575T-5.0 5V简易开关电源稳压器1A LM2575T-12 12V简易开关电源稳压器1A LM2575T-15 15V简易开关电源稳压器1A LM2575T-ADJ 简易开关电源稳压器(可调1.23V~ 37V) 1A LM2575HVT-3.3 3.3V简易开关电源稳压器1A LM2575HVT-5.0 5V简易开关电源稳压器1A LM2575HVT-12 12V简易开关电源稳压器1A LM2575HVT-15 15V简易开关电源稳压器1A LM2575HVT-ADJ 简易开关电源稳压器(可调1.23V~37V) 1A LM2576T-3.3 3.3V简易开关电源稳压器 3A LM2576T-5.0 5.0V简易开关电源稳压器3A LM2576T-12 12V简易开关电源稳压器3A LM2576T-15 15V简易开关电源稳压器3A LM2576T-ADJ 简易开关电源稳压器(可调1.23V~37V) 3A LM2576HVT-3.3 3.3V简易开关电源稳压器3A LM2576HVT-5.0 5.0V简易开关电源稳压器3A LM2576HVT-12 12V简易开关电源稳压器3ALM2576HVT-15 15V简易开关电源稳压器3A LM2576HVT-ADJ 简易开关电源稳压器(可调1.23V~37V) 3A。

MM5Z18VT1G稳压二极管规格书

Zener Voltage Regulators150mW SOD–523Surface MountWe declare that the material of product compliance with RoHS requirements.ORDERING INFORMATIONDevice Package Shipping MM5ZXXXT1GSOD-5233000/Tape&ReelThis series of Zener diodes is packaged in a SOD–523surface mount package that has a power dissipation of 100mW.They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium.They are well suited for applications such as cellular phones,hand held portables,and high density PC boards.Specification Features:•Standard Zener Breakdown Voltage Range –2.4V to 75V •Steady State Power Rating of 200mW•Small Body Outline Dimensions:0.047"x 0.032"(1.20mm x 0.80mm)•Low Body Height:0.028"(0.7mm)•ESD Rating of Class 3(>16kV)per Human Body ModelMechanical Characteristics:CASE:Void-free,transfer-molded,thermosetting plastic Epoxy Meets UL 94V-0LEAD FINISH:100%Matte Sn (Tin)QUALIFIED MAX REFLOW TEMPERATURE:260°C Device Meets MSL 1Requirements MOUNTING POSITION:AnyMAXIMUM RATINGSRatingSymbol Max Unit Total Device Dissipation FR−5Board,P D150mW@T A =25︒C Junction and Storage T J,Tstg−65to ︒CTemperature Range+150Maximum ratings are those values beyond which devicedamage can occur.Maximum ratings applied to the device are individual stress limit values (not normal operating conditions)and are not valid simultaneously.If these limits are exceeded,device functional operation is not implied,damage may occur and reliability may be affected.MM5Z2V4T1G SERIES12CATHODE ANODEMARKING DIAGRAMxx dxx=Specific Device Code d =Date CodeSOD–523MM5Z2V4T1G SERIES ELECTRICAL CHARACTERISTICS I(T A=25︒C unless otherwise noted,I FV F=0.9V Max.@I F=10mA for all types)Symbol ParameterVZ Reverse Zener Voltage@I ZT IZT Reverse Current VZVRVZ ZT Maximum Zener Impedance@I I R VFZT IZTIZK Reverse CurrentZZK Maximum Zener Impedance@I ZKIR Reverse Leakage Current@V RV R Reverse VoltageI F Forward Current Zener Voltage Regulator V F Forward Voltage@I FQV Z Maximum Temperature Coefficient of V ZC Max.Capacitance@V R=0and f=1MHz100(%)80DISS IP ATI ON 60 40POWER20255075100125150TEMPERATURE(︒C)Figure1.Steady State Power Derating MM5Z2V4T1G SERIESELECTRICAL CHARACTERISTICS (T A =25︒C unless otherwise noted,V F =0.9V Max.@I F =10mA for all types)Zener Voltage (Note 1)Zener Impedance Leakage CurrentQ V Z C ZZT(mV/k)@V =0V(Volts)@I@I ZT Z@II @VRZZKR@IZTf =1MHzDevice ZTZKRDevice Marking Min Nom Max mA W W mA m A Volts Min Max pF MM5Z2V4T1G 00 2.2 2.4 2.651001000 1.050 1.0−3.50450MM5Z2V7T1G 01 2.5 2.7 2.951001000 1.020 1.0−3.50450MM5Z3V0T1G 02 2.8 3.0 3.251001000 1.010 1.0−3.50450MM5Z3V3T1G 05 3.1 3.3 3.55951000 1.05 1.0−3.50450MM5Z3V6T1G 06 3.4 3.6 3.85901000 1.05 1.0−3.50450MM5Z3V9T1G 07 3.7 3.9 4.15901000 1.03 1.0−3.5−2.5450MM5Z4V3T1G 08 4.0 4.3 4.65901000 1.03 1.0−3.50450MM5Z4V7T1G 09 4.4 4.7 5.0580800 1.03 2.0−3.50.2260MM5Z5V1T1G 0A 4.8 5.1 5.4560500 1.02 2.0−2.7 1.2225MM5Z5V6T1G 0C 5.2 5.6 6.0540400 1.01 2.0−2.0 2.5200MM5Z6V2T1G 0E 5.8 6.2 6.6510100 1.03 4.00.4 3.7185MM5Z6V8T1G 0F 6.4 6.87.2515160 1.02 4.0 1.2 4.5155MM5Z7V5T1G 0G 7.07.57.9515160 1.01 5.0 2.5 5.3140MM5Z8V2T1G 0H 7.78.28.7515160 1.00.7 5.0 3.2 6.2135MM5Z9V1T1G 0K 8.59.19.6515160 1.00.27.0 3.87.0130MM5Z10VT1G 0L 9.41010.6520160 1.00.18.0 4.58.0130MM5Z11VT1G 0M 10.41111.6520160 1.00.18.0 5.49.0130MM5Z12VT1G 0N 11.41212.752580 1.00.18.0 6.010130MM5Z13VT1G 0P 12.413.2514.153080 1.00.18.07.011120MM5Z15VT1G 0T 14.31515.8530200 1.00.0510.59.213110MM5Z16VT1G 0U 15.316.217.1240200 1.00.0511.210.414105MM5Z18VT1G 0W 16.81819.1245225 1.00.0512.612.416100MM5Z20VT1G 0Z 18.82021.2255225 1.00.0514.014.41885MM5Z22VT1G 1020.82223.3255250 1.00.0515.416.42085MM5Z24VT1G 1122.824.225.6270120 1.00.0516.818.42280MM5Z27VT1G 1225.12728.9280300 1.00.0518.921.425.370MM5Z30VT1G 14283032280300 1.00.0521.024.429.470MM5Z33VT1G 18313335280300 1.00.0523.227.433.470MM5Z36VT1G 19343638290500 1.00.0525.230.437.470MM5Z39VT1G 203739412130500 1.00.0527.333.441.245MM5Z43VT1G 214043461150500 1.00.0530.137.646.640MM5Z47VT1G 1A 4447501170500 1.00.0532.942.051.840MM5Z51VT1G 1C 4851541180500 1.00.0535.746.657.240MM5Z56VT1G 1D 5256601200500 1.00.0539.252.263.840MM5Z62VT1G 1E 5862661215500 1.00.0543.458.871.635MM5Z68VT1G 1F 6468721240500 1.00.0547.665.679.835MM5Z75VT1G1G70757912555001.00.0552.573.488.6351.Zener voltage is measured with a pulse test current I Z at an ambient temperature of 25︒C.MM5Z2V4T1G SERIESSC-79/SOD-523DIMENSIONS (mm are the original dimensions)UNIT A b p c D E H E V m m0.70.350.2 1.30.9 1.70.150.50.250.11.10.71.5Note1.The marking bar indicates the cathode.OUTLINE REFERENCES EUROPEAN ISSUE DATEVERSION IECJEDECEIAJ PROJECTIONSOD523SC-7998-11-25。

MM3Z9V1T1G稳压二极管规格书

Zener Voltage Regulators200 mW SOD–323 Surface MountMM3Z2V0T1GSeriesThis series of Zener diodes is packaged in a SOD–323 surface mount package that has a power dissipation of 200 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.Specification Features:• Standard Zener Breakdown Voltage Range – 2.0 V to 75 V • Steady State Power Rating of 200 mW• Small Body Outline Dimensions: 0.067" x 0.049"(1.7 mm x 1.25 mm).Low Body Height: 0.035" (0.9 mm)• Package Weight: 4.507mg/unit• ESD Rating of Class 3 per Human Body Model • Pb-Free package is available.Mechanical Characteristics:CASE:Void-free, transfer-molded plasticFINISH:All external surfaces are corrosion resistant260°C for 10 SecondsPOLARITY:Cathode indicated by polarity band FLAMMABILITY RATING: UL94 V-0MOUNTING POSITION: AnyMAXIMUM RATINGSRating SymbolMax UnitTotal Device Dissipation FR–5 P DBoard(Note 1.) @ TA = 25°C 200 mW Derate above 25°C 1.5mW/°C Thermal Resistance fromR θJA635 °C/W Junction to Ambient Junction and StorageT J , T stg –65 to+150 °CTemperature Range 1. FR–4 Minimum PadDevicePackageShippingMM3Z2V0T1G Series SOD-3233000/Tape&ReelMM3Z2V0T3G SeriesSOD-32310000/Tape&ReelRev.A 1/6• S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable.• We declare that the material of product compliance with RoHS requirements.ORDERING INFORMATIONMaximum case temperature for soldering purpose:MM3Z2V0T1G SeriesELECTRICAL CHARACTERISTICS(T A = 25°C unless otherwise noted,V F = 0.9 V Max. @ IF = 10 mA for all types)Symbol ParameterV Z Reverse Zener Voltage @ I ZT I ZT Reverse CurrentZ ZT Maximum Zener Impedance @ I ZT I ZK Reverse CurrentZ ZK Maximum Zener Impedance @ I ZK I R Reverse Leakage Current @ V R V R Reverse Voltage I F Forward Current V F Forward Voltage @ I FQ V Z Maximum Temperature Coefficient of V Z CMax. Capacitance @V R = 0 and f = 1 MHzRev.A 2/62.Zener voltage is measured with a pulse test current I Z at an ambient temperature of 25°C.Rev.A 3/6MM3Z2V0T1G SeriesTypical CharacteristicsZ Z T , D Y N A M I C I M P E D A N C E ()Ω1000100101.0C , C A P A C I T A N C E (p F )70V Z , NOMINAL ZENER VOLTAGE (V)Figure 3. Typical Capacitance 104.0V Z , NOMINAL ZENER VOLTAGE (V)Figure 4. Typical Leakage Current70605040302010Rev.A 4/6MM3Z2V0T1G SeriesTypical Characteristics12V Z , ZENER VOLTAGE (V)100101.00.10.01108.06.04.02.00I Z , Z E N E R C U R R E N T (m A )V Z , ZENER VOLTAGE (V)Figure 5. Zener Voltage versus Zener Current(V Z Up to 12 V)Figure 6. Zener Voltage versus Zener Current(12 V to 75 V)1001010.10.011030507090I Z , Z E N E R C U R R E N T (m A )Figure 7. Steady State Power DeratingRev.A 5/6300200100005025100150P O W E R D I S S I P A T I O N : P d (m W )AMBIENT TEMPERA TURE : T a (°C)MM3Z2V0T1G SeriesPACKAGE DIMENSIONSSOD-323Rev.A 6/6HE NOTES:1.DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.2.CONTROLLING DIMENSION: MILLIMETERS.3.LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING.4.DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS.5.DIMENSION L IS MEASURED FROM END OF RADIUS.NOTE 3DIM MIN NOM MAX MILLIMETERSA 0.800.90 1.00A10.000.050.10A30.15 REF b 0.250.320.4C 0.0890.120.177D 1.60 1.70 1.80E 1.15 1.25 1.350.082.30 2.50 2.70L 0.0310.0350.0400.0000.0020.0040.006 REF0.0100.0120.0160.0030.0050.0070.0620.0660.0700.0450.0490.0530.0030.0900.0980.105MINNOM MAX INCHESSOLDERING FOOTPRINT*MM3Z2V0T1G Series。

教你读稳压二极管的规格书

教你读稳压二极管的规格书
教你读稳压二极管的规格书主要参数
以《1smb5942b-_1n5921b-1n5942b》panjit台湾强茂稳压二极管规格书介绍
on的稳压二极管逐步停工，公司采用了台湾强茂电子的二极管。

主要参数：
vz标称稳压值，以1smb5923b为了，vz=8.2v,vz有最小值7.79v，最大值8.61v.
izt则表示在标称稳压值8.2v下的电流值，为45.7ma。

zzt表示在标称稳压值8.2v和标称稳压电流值45.7ma下的稳压二极管阻抗，该值为4ω。

izk则表示稳压二极管逆向打穿拐点处的电流。

zzk表示稳压二极管反向击穿拐点处的阻抗。

稳压二极管的电阻随着电流的减小而增大，电阻zz与电流iz基本上存有一个反比例的关系。

vr表示稳压二极管的反向电压(对于稳压二极管来说的反向电压，相当于其他普通二极管就是正向电压)。

ir则表示稳压二极管在逆向电压6.5v情况下的漏电流为5ua.
另外，热耗散功率pd为1.5w,注意功率不能超过1.5w，否则会烧坏该二极管。
