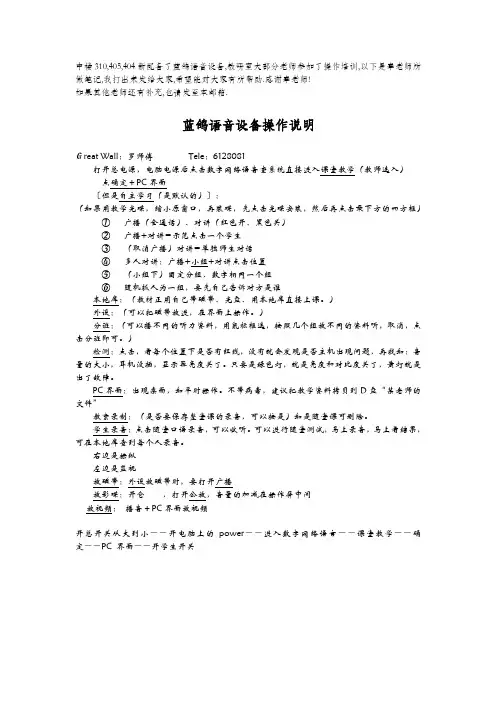

中310操作说明

中楼310,405,404新配备了蓝鸽语音设备,教研室大部分老师参加了操作培训,以下是章老师所做笔记,我打出来发给大家,希望能对大家有所帮助.感谢章老师!如果其他老师还有补充,也请发至本邮箱.蓝鸽语音设备操作说明Great Wall:罗师傅Tele:6128081打开总电源,电脑电源后点击数字网络语音室系统直接进入课堂教学(教师选入)点确定+PC界面…但是自主学习(是默认的)‟:(如果用教学光碟,缩小原窗口,再装碟,先点击光碟安装,然后再点击最下方的四方框)①广播(全通话)、对讲(红色开、黑色关)②广播+对讲=示范点击一个学生③(取消广播)对讲=单独师生对话④多人对讲:广播+小组+对讲点击位置⑤(小组下)固定分组,数字相同一个组⑥随机抓人为一组,要先自己告诉对方是谁本地库:(教材正用自己带磁带、光盘、用本地库直接上课。
)外设:(可以把磁带放进,在界面上操作。
)分班:(可以播不同的听力资料,用鼠标框选,按照几个组放不同的资料听,取消,点击分班即可。
)检测:点击,看每个位置下是否有红线,没有就会发现是否主机出现问题,再找如:音量的大小,耳机没插,显示器亮度关了。
只要是绿色灯,就是亮度和对比度关了,黄灯就是出了故障。
PC界面:出现桌面,如平时操作。
不带病毒,建议把教学资料拷贝到D盘“某老师的文件”教案录制:(是否要保存整堂课的录音,可以按是)如是随堂课可删除。
学生录音:点击随堂口语录音,可以收听。
可以进行随堂测试,马上录音,马上看结果,可在本地库查到每个人录音。
右边是操纵左边是监视放磁带:外设放磁带时,要打开广播放影碟:开仓,打开公放,音量的加减在操作屏中间放视频:播音+PC界面放视频开总开关从大到小――开电脑上的power――进入数字网络语言――课堂教学――确定――PC 界面――开学生开关。
DA310多功能蓝牙数字音频转换器

DA310多功能蓝牙数字音频转换器DA310是一款支持光纤、同轴、蓝牙、U盘多模式输入的多功能音频转换器,可以将电视机或投影仪的光纤同轴数字音频信号转为RL 或3.5模拟信号输出给传统音响设备。
同时支持蓝牙无线联接播放和U 盘无损音乐播放。
并且支持唛克风K歌输入,自带遥控支持模式及音效及唛克风调节。
产品特点1、蓝牙5.0输入2、U盘播放3、光纤/同轴输入4、高音质麦克风输入5、3.5mm和R/L立体声同步输出6、遥控器控制选择U盘:绿灯常亮;光纤:红灯常亮;同轴:绿白常亮蓝牙:蓝色闪烁(配对状态),蓝色常亮(已联接)蓝牙连接1、装上标配天线,接通电源,拨动开关,按遥控器选择蓝牙模式,接收器会进入配对状态,指示灯蓝灯快闪。
2 、打开手机/平板等设备的蓝牙功能-点击搜索。
3、选择蓝牙名:DA310,选择配对连接,连接上蓝牙后蓝灯常亮;。
4、转换器会在下次开机自动回联最后配对设备。
同轴/光纤连接:将电视机&投影仪的同轴或光纤输出口与DA310设备对应输入接口联接,将电视等设备音源修改同轴或光纤输出,格式调整为PCM。
当音源输入后,用DA310标配遥控可选择任一对应功能。
U盘播放:1 、选择32G以下U盘,将U盘格式化为FTA32,并拷入相应音乐(MP3、WAV、WMA、APE、FLAC等格式)2、接入U盘,用遥控器选择U盘模式即可以播放。
U盘播放绿灯常亮;唛克风输入:DA310支持唛克风输入,直接将有线或无线电容唛克风插入MIC 接口,即可以将唛克风声音与任何音频输入信号叠加,在家即可以K 歌。
产品接口介绍1:光纤输入口2:指示灯3:USB输入 4:同轴输入 5:麦克风输入(6.5MM)6:3.5MM输出口 7:RCA输出口 8:开关 9:电源接口 10:蓝牙天线READ为摇控器接收窗口产品参数:产品型号……………DA310电源输入……………5V 1000mA蓝牙版本……………蓝牙5.0蓝牙协议……………A2DP, AVRCP,PBAPU盘输入……………FAT32 up 32G音乐格式……………MP3、WAV、WMA、APE、FLAC 信噪比………………≥90dBDAC SNR……………96dB频率响应……………20HZ- 20khz采样率………………8,11.025,12,16,22.05,32,44.1 and48KHz产品净重……………114g音效模式顺序………流行、摇滚、爵士、古典、乡村常见问题与解决方案不能开机·选择合格的适配器通电,推荐选择输出电压为5V 1A适配器(务必不要使用可变电压的快充充电)。
DAC310中文操作手册

4.3 参数的设定 4.3.1 概要 设置一个参数之前首先要用光标选择好此参数,每个参数都有自己的标记代码。 每个参数的设定只能在有效的范围内选择(最小值与最大值之间),设定的值小于最小值 系统就显示最小值,设定的值大于最大值就显示最大值。 ‘Xp’是不可以设定的参数,当用光标选中它时,后挡料的实际位置会显示在显示屏上。 这些参数包括如下: —‘Xp’:后挡料的实际位置; —‘Xm’:后挡料的编程位置; —‘#’: 剪切程序循环次数; —‘ST’:程序步号; —‘M’:进入系统内部常量的路径。
小数点键正负键清除键清除参数值光标键上下选择参数手动正方向慢动手动负方向慢动x手动快速键须与或同时按下停止手动方式键包含led指示灯单步方式键包含led指示灯自动方式键包含led指示灯第5页共12页22显示dac310系统有一个单色的液晶显示屏分辨率12864显示屏显示下面的信息
DAC 310
中文操作说明
4.3.9
ST 程序的单步数
ST 的设定为程序需要执行的单步数。
当设定为 0 时,可以使用‘+’和‘—’浏览系统存储器里缺省的 99 个单步,若按下自
动运行键程序就会从第一个单步开始执行直到第 99 个单步,期间只有按下停止键系
统才会停止程序的运行。若按下单步运行键,系统就会运行当前的程序步。
当设定的 ST 的值大于 1,设定的值就会显示在屏幕上,例如 ST 设 3,屏幕上将显示 1/3,此时按下自动或单步运行键,系统将运行设定的单步程序。
DAC310 系统提供完整的软件控制,对于操作者或机床本体没有机械安全保护装置.所以在万一系统出现故 障时,机床必须能提供对操作者的外部保护装置.DLEM BV 不提供任何由于系统在正常或非正常操作下引起的 直接或间接损失.
- 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。
在一个程序编辑完成后按下自动模式或单步模式键则后挡料会自动定位到当前程序设定 的位置。相应的运行模式的LED灯会亮。
当按下停止键时DAC310系统可以使后挡料保持在当前的实际位置。同时停止键的LED灯会 亮。
后挡料的编程位置 Xm 可以选择 mm 或 inch 为长度单位。
注释:在多步程序里,可以对 Xm 编辑一个负值,就是所谓的相对值的编程。Xm 编辑
正值时为绝对值编程,Xm 编辑负值时为相对值编程(适合于前送料程序编辑)。
第 9 页 共 12 页
4.3.4 COR 位置校正 若剪出的板材长度与设定的数值有小的误差,因为板料的拱凸等原因从而使得实际剪切 长度有误差。 若剪出的板材长度多出0.2mm 可进行COR 的编程即将光标移至COR 处将COR 编为 -0.2 即可。
第 7 页 共 12 页
3.4 单步模式 单步方式执行程序的一个单步,在一个程序编辑完成后按下单步 方式键则系统会自动执行当前程序的第一个单步并停止。
执行单步的循环运行类似与自动运行模式,有以下的不同之处: 1:在每个单步运行结束后系统会自动停止。 2:在执行当前的单步程序时,系统要等此单步程序的循环次数执行结束后才会切换到停 止状态。 3:在单步模式下可以选择程序的任意的一个单步开始执行。
4.3.11 G 刀口间隙 刀口间隙:工作台与刀口的间隙,该值的是一个绝对值的设定,单位为 mm 或 inch。
注释:新系统上电后在操作界面无此参数,需要在功能参数内打开设置。
4.3.12 M 编程常量
移动光标至状态参数 M,回车确认后进入系统编程常量操作界面。具体介绍见第 5 章的 介绍。
4.3.12 编程锁 系统可以用一个编程锁的 on/off 来控制程序的编辑,编程锁开关 off 时系统的参数值 将不可编辑,它有两个特例: 1:在手动模式下,即使编程锁 off,参数依然可以编辑。 2:在自动模式下,即使编程锁 off,‘#’值和 ‘Cor’的值依然可编辑。
第 6 页 共 12 页
在系统运行时‘#’显示在屏幕的上方。 手动移轴:
1:系统必须在停止状态(按下停止键) 2:用光标键移动到实际位置‘XP’(背光亮),此时在显示屏左上角的手形图标的两侧会出 现两个箭头符号。 3:按下面板上的手动位移键就可以移动轴的位置,共有三个键操作:
‘+’ 手动正方向慢动 ‘-’ 手动负方向慢动 ‘++’ X‘ - -’键须与‘+’或‘-’同时按下为手动快速移轴。 3.3 自动模式 在自动模式下系统可以执行一个多步的程序。
4.3 参数的设定 4.3.1 概要 设置一个参数之前首先要用光标选择好此参数,每个参数都有自己的标记代码。 每个参数的设定只能在有效的范围内选择(最小值与最大值之间),设定的值小于最小值 系统就显示最小值,设定的值大于最大值就显示最大值。 ‘Xp’是不可以设定的参数,当用光标选中它时,后挡料的实际位置会显示在显示屏上。 这些参数包括如下: —‘Xp’:后挡料的实际位置; —‘Xm’:后挡料的编程位置; —‘#’: 剪切程序循环次数; —‘ST’:程序步号; —‘M’:进入系统内部常量的路径。
当设定的 ST 的值大于 1,存储器内多余的单步不可以浏览,但它们依然保存在存储器 内。要浏览多余的单步必须把 ST 的值重新设为 0。
注释:新系统上电后在操作界面无此参数,需要在功能参数内打开设置。
4.3.10 S 剪切行程 剪切行程:剪切一个板料所需行程,它是设定一个最大剪切行程的百分比。
注释:新系统上电后在操作界面无此参数,需要在功能参数内打开设置。
程序步
状态指示
当前参数
参数
实际位置
第 5 页 共 12 页
3、 操作模式
3.1 概述 DAC310 有三种工作方式:
·手动方式 ·单步方式 ·自动方式
DAC-310系统在编程时每个程序可以编辑100个单步(0-99)。使用‘+’键和‘—’ 键进行浏览。
手动模式选择 ‘ST’功能参数为0。
自动模式时当程序编辑后并确认,移动到第一个单步按下自动运行键系统开始自动执行 程序。
DAC310 系统提供完整的软件控制,对于操作者或机床本体没有机械安全保护装置.所以在万一系统出现故 障时,机床必须能提供对操作者的外部保护装置.DLEM BV 不提供任何由于系统在正常或非正常操作下引起的 直接或间接损失.
DELEM 公司保留由于功能更改或印刷排版错误而随时更新的权力. Delem BV, Holland. Luchthavenweg 42 5657 EB Eindhoven The Netherlands Tel:+31(0)40-2552969 Fax:+31(0)40-2551923
第 8 页 共 12 页
4、 参数的设定。
4.1 介绍 DAC-310 是一个可编程的后挡料控制系统,系统可编辑一个 100 个单步的程序,并具
有相对位置编程与绝对位置编程两种编辑方式,从而方便操作者的使用。
4.2 程序步的说明 一个程序步的程序号的范围是 0-99,就是说一个程序可以编辑 100 个单步并存储到系 统存储器里。 单步程序号为 0 是一个特定设置,仅用于手动模式,在多步编程里不会使用。 在多步编程里设定的 ST 的值会显示在显示屏的左上角,用‘+’或‘—’可以浏览设 定的多步程序,一直按住‘+’或‘—’可以起到快速的效果。
4.3.9
ST 程序的单步数
ST 的设定为程序需要执行的单步数。
当设定为 0 时,可以使用‘+’和‘—’浏览系统存储器里缺省的 99 个单步,若按下自
动运行键程序就会从第一个单步开始执行直到第 99 个单步,期间只有按下停止键系
统才会停止程序的运行。若按下单步运行键,系统就会运行当前的程序步。
当设定的 ST 的值大于 1,设定的值就会显示在屏幕上,例如 ST 设 3,屏幕上将显示 1/3,此时按下自动或单步运行键,系统将运行设定的单步程序。
4.3.7 CY 单步重复次数 单步重复次数:系统在执行程序的下一个单步前要执行完当前单步的重复次数。
范围:0—9999 缺省值:1 注释 1:在多步程序里编辑 CY 为 0 表示该单步被跳过,系统不执行此单步。 注释 2:在手动模式下该值设为 0 并且没有意义。 注释 3:此参数需要在功能参数内打开设置。
4.3.6 F 功能输出 共有两个功能输出(on/off):F1 和 F2。 两个输出的值可以像参数一样被设定。
Value
F2
F1
00
off
off
01
off
on
10
on
off
11
on
on
缺省值:00(都为 off) F 功能的输出由 F1 和 F2 组合设定。 设定值的数字输出在系统运行时使能信号的输入由低变高开始有效,在系统运行时一直 有效,当系统停止时功能输出复位。 注释:新系统上电后在操作界面无此参数,需要在功能参数内打开设置。
移动后挡料的实际位置。
4.3.3
后挡料的编程位置 Xm
Xm 是设定的后挡料需要定位的位置。
系统执行程序时,后挡料会移动到每个单步编辑的 Xm 的位置,实际位置由 Xp 显示,
当后挡料定位到设定的 Xm 位置时,实际位置 Xp 显示的值与编辑的 Xm 值几乎一致。此时
Xp 的值在屏幕上会有一个醒目的显示。
DAC 310
中文操作说明
V1.2
南京埃斯顿工业自动化有限公司
地址:南京市江宁经济开发区将军南路155号 电话:(0086)25 52785569 传真页
权限申明
本手册版权为 DELEM BV 所有,.未经 DELEM 公司同意不得随意增加或删减部分或全部内容,不允许将该 手册部份或全部内容用于第三方的设计.
显示屏
数字键
停止键
单步键
自动键
DAC-310 前面板上包含下面的按键: · 0 ~ 9 10 个数字键 · ‘.’ 小数点键 · ‘±’ 正/ 负键 · 清除键,清除参数值 · 光标键,上下选择参数 · ‘+’ 手动正方向慢动 · ‘-’ 手动负方向慢动 · ++ X - - 手动快速键须与‘+’或‘-’同时按下 · 停止/ 手动方式键(包含LED指示灯) · 单步方式键(包含LED指示灯) · 自动方式键(包含LED指示灯)
光标键
确认键 清除键
+/-键 手动移轴键
第 4 页 共 12 页
2.2 显示 DAC-310 系统有一个单色的液晶显示屏,分辨率 128×64
显示屏显示下面的信息: 1. 显示屏的左边显示的是一些被激活的状态参数。 2. 显示屏的中间显示的是一些参数的值和相关的位置的设定值和系统显示的实际位置。 3. 显示屏的右边显示的是几个可以选择的参数符号(Xm,Xp,#,ST,M)
在自动模式下编辑一个多步程序,按下自动运行键后档料会自动定位到程序的第 一个单步的编程位置。
只有在START 换步信号输入有效的情况下(由高到低)自动执行程序的下一个单步直 到程序结束。
在执行一个程序的单步时,单步的循环次数大于 1 时,系统要等此单步循环执行结束才 换步的下一个单步。
因为在自动模式按下自动运行键后系统会执行程序的第一个单步,所以在编辑 ‘ST’的 值时设定值必须大于 0。
第 2 页 共 12 页
1 、简介
DAC-310剪板机数控系统,提供数控剪板机的通用控制功能,包括后挡料的控制、刀口间 隙和剪程控制
DAC-310 操作简单使用方便具有先进的线路设计,采用简单的参数编程并备有完善的检 测,系统对所输入的数据进行检测并提示校正,同时还能对系统本身进行硬件诊断。
DAC-310 可以配备一个单速或双速的交流或直流伺服电机,具有单向或双向的定位功能 从而能自动消除丝杠间隙
