日本松下电解水机(水素水、整水机)TK7715说明书
电解水机

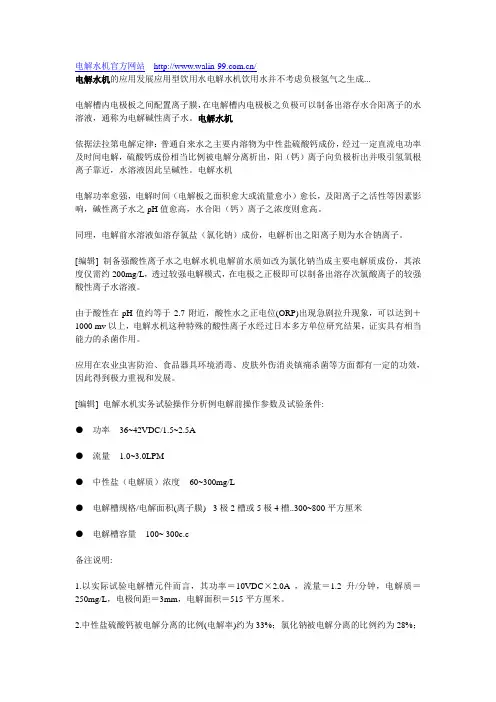

电解水机官方网站/电解水机的应用发展应用型饮用水电解水机饮用水并不考虑负极氢气之生成...电解槽内电极板之间配置离子膜，在电解槽内电极板之负极可以制备出溶存水合阳离子的水溶液，通称为电解碱性离子水。
电解水机依据法拉第电解定律：普通自来水之主要内溶物为中性盐硫酸钙成份，经过一定直流电功率及时间电解，硫酸钙成份相当比例被电解分离析出，阳（钙）离子向负极析出并吸引氢氧根离子靠近，水溶液因此呈碱性。
电解水机电解功率愈强，电解时间（电解板之面积愈大或流量愈小）愈长，及阳离子之活性等因素影响，碱性离子水之pH值愈高，水合阳（钙）离子之浓度则愈高。
同理，电解前水溶液如溶存氯盐（氯化钠）成份，电解析出之阳离子则为水合钠离子。
[编辑] 制备强酸性离子水之电解水机电解前水质如改为氯化钠当成主要电解质成份，其浓度仅需约200mg/L，透过较强电解模式，在电极之正极即可以制备出溶存次氯酸离子的较强酸性离子水溶液。
由于酸性在pH值约等于2.7附近，酸性水之正电位(ORP)出现急剧拉升现象，可以达到＋1000 mv以上，电解水机这种特殊的酸性离子水经过日本多方单位研究结果，证实具有相当能力的杀菌作用。
应用在农业虫害防治、食品器具环境消毒、皮肤外伤消炎镇痛杀菌等方面都有一定的功效，因此得到极力重视和发展。
[编辑] 电解水机实务试验操作分析例电解前操作参数及试验条件:●功率- 36~42VDC/1.5~2.5A●流量- 1.0~3.0LPM●中性盐（电解质）浓度- 60~300mg/L●电解槽规格/电解面积(离子膜) - 3极2槽或5极4槽..300~800平方厘米●电解槽容量- 100~ 300c.c备注说明:1.以实际试验电解槽元件而言，其功率＝10VDC×2.0A ，流量＝1.2升/分钟，电解质＝250mg/L，电极间距＝3mm，电解面积＝515平方厘米。
2.中性盐硫酸钙被电解分离的比例(电解率)约为33%；氯化钠被电解分离的比例约为28%；氯化钾之电解率约为47%。
水质电解器
水质电解器概述水质电解器也叫固体沉淀促进仪，是美国食品医药管理局（F.D.A），认定用来对已经被污染的水进行基本判定的简易的水质检测方法，对于需要检验水源纯净时很有实际意义，可使用户清楚、直观地看到自己日常所饮用水的实际情况。
使用方法1、准备检验水——取两只容量为100～150毫升的透明玻璃杯，一杯盛普通的水(井水或自来水），另一杯盛矿泉水或经过深度净化的水（例如纯净水或蒸馏水），并排放在桌子上。
2、准备检验——将电解器两端分别放进两个玻璃杯内，插上220伏电源。
3、检验——将电解器上的电源开关按钮按向ON（开）的位置，开始检验。
通常检验的时间为30秒。
结束时，先将电源开关按向OFF（关）的位置，最后取出电解器。
安全警告接通电源后，双手不得抓在电极上；不得将手指伸入检验水中；不要让儿童玩耍电解器。
电解器用完后，应用干布将电极擦干，并用细纱布将铁质极杆上的水擦净，并妥善保管。
说明水质电解器是把电场置入水中，由正负两个电极（铁棒和铝棒）组成，通电后，带有正电荷的+离子从铁棒中释出，与水中负价的电解质离子进行反应，生成不溶于水的金属团，同时凝聚和吸附了水中的胶质、有机物、无机物。
并且由于电流的作用，原来溶于水中的金属粒子，如铅、砷、铬、锰、钾、钴等被还原出来，并逐渐聚成金属团，由于不同金属离子的显色不同，从而产生颜色的分离。
到目前为止，已知的显色如下，仅供参考：绿色:砷（砒霜）、三氯甲烷、四氯甲烷、氧化铜、二价铁蓝色: 细菌、病毒、有机磷（化肥、洗涤剂和农药）、硫酸铝红色:一价汞、三价铁白色: 铅、锌、汞、石棉、钙、镁黑色: 重金属（锌、铅、汞、铜、铬、锰、镉）黄色:溶解氧、微量元素、有机矿物质可参考性水质电解器是水质检查人员使用次数最多、携带最方便、最重要的检测工具。
原水通过电解后可初步判断水中的杂质情况。
可是，已知水中的溶解物质有2200多种，仅凭7种颜色（赤橙黄绿青蓝紫）是不能详尽显现各种杂质的名称及含量的。
(新)自动售水机产品说明书
《LEMIO自动售水机系列》目录一. 产品特点二. 技术参数三. 主板平面图及其设置四. 全自动控制功能说明五. 安装六. 更换滤芯七. 调试八．使用、保养、维护注意事项九. 故障、问题分析与排除十. 使用须知与有限保修一、产品特点自动售水机犹如一个微型自动超市，是集自动生产与销售优质饮用水为一体的全自动机器。
只需接通水源和电源，通过其内部的高技术装置(反渗透系统和杀菌系统)，即可以将任何水源的水净化成符合国家饮用水标准的健康活净水，客户自备容器，通过投币或刷卡的方式即可自动购水。
适合安装的场所高密集度的生活小区、工业区、村庄、学校、工厂等场所。
控制的基本功能净化系统：采用美国反渗透系统，共七级净化：5微米PP，UDF颗粒活性炭，CTO压缩活性炭，1微米PP，RO反渗透膜，矿化功能滤芯，臭氧，活净水。
照明系统：节能环保灯夜间自动照明设定价格：售水价格可以随意调整暂停功能：在取水过程中，可以使用该按钮短暂中止控制系统：自主开发第四代智能PC级控制板销售记录：控制板双重查账，投币器和刷卡独立计账硬币接收：出厂默认可接受中国人民币1元的硬币刷卡功能：在线消费模式。
操作和管理极为方便，人性化功能设计，配套专用M1感应卡，消费精确到每分。
安全保障：采用自主研发的防撬暗锁设计，安全有保障。
二、技术参数进水水质适用范围：符合《生活饮用水水质卫生规范》（2001）的市政自来水。
出水水质：符合《生活饮用水水质卫生规范》（2001）和《生活饮用水水质处理器卫生安全与功能评价规范…..一般水质处理器》（2001）要求。
三、主板平面图及其设置1、主板平面图2、主板设置本设置适用于LM-RO-400,LM-RO-800型售水机控制器，说明如下：⑴功能说明：1.缺水停售2.非接触式IC卡收费售水3.投币收费售水4.主板提供感光控制5.售水计费方式：按流量和时间控制售水，双重功能，随意转换6.水量费率可以通过电路板设定7.支持臭氧控制，启动周期与开启的时间可以调节⑵电气性能1.正常工作电压范围： 50HZ,AC12V,>10W2.工作温度范围：-8℃∽ +60℃3.储存温度范围：-20℃∽ +70℃4.相对湿度：30-90%5.抗干扰能力：EMC脉冲群测试通过 2 KV/2分钟⑶接口说明输入信号1.暂停按钮：开关闭合时停止打水，出水阀与增压阀关闭2.取水按钮：开关闭合时开始打水，出水阀与增压阀打开3.低水位开关：开关断开时表示缺水停售（常开）四、全自动控制功能说明1、功能概要该售水机系统采用感应式（非接触）刷卡售水方式。
Panasonic产品安装使用说明书

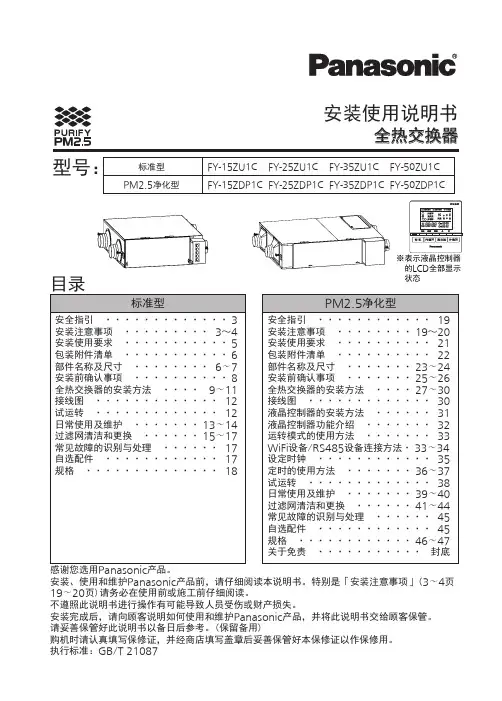

安装使用说明书型号：感谢您选用Panasonic 产品。
安装、使用和维护Panasonic 产品前，请仔细阅读本说明书。
特别是「安装注意事项」(3～4页19～20页)请务必在使用前或施工前仔细阅读。
不遵照此说明书进行操作有可能导致人员受伤或财产损失。
安装完成后，请向顾客说明如何使用和维护Panasonic 产品，并将此说明书交给顾客保管。
请妥善保管好此说明书以备日后参考。
(保留备用)购机时请认真填写保修证，并经商店填写盖章后妥善保管好本保修证以作保修用。
执行标准：GB/T 21087全热交换器标准型PM2.5净化型FY-15ZU1C FY-25ZU1C FY-35ZU1C FY-50ZU1C FY-15ZDP1C FY-25ZDP1C FY-35ZDP1C FY-50ZDP1C※表示液晶控制器 的LCD 全部显示 状态24是结合了「24小时换气」和「热交换」的节能、舒适的换气设备。
交换小时换气热缓慢的置换室内的空气，使室内一直处于新鲜空气的状态。
排出室内的污浊空气和导入室外的新鲜空气之间通过热交换芯，在相互隔离的状态下，可以进行温湿度能量的交换。
全热交换器是什么2为了避免对您或其他人造成伤害或财物损害，请仔细阅读并遵守本说明书中的安全注意事项。
■以下标志是根据错误使用所产生的危险或受伤程度进行分类。
■以下标志为务必遵守的指示种类。
345以下尺寸为除隔热材料厚度之外的全热交换器上的尺寸。
回风过滤网热交换芯电机风口框架名称8NO.6123457PPABS 材质数量142111备注风轮吊装部件初效过滤网19电源箱14镀锌钢板特殊纸+树脂无纺布镀锌钢板镀锌钢板名称NO.材质数量备注6■FY-25ZU1C■FY-35ZU1C适用管道直径Φ150■FY-50ZU1C7②设置检修口(图2)(1)双点划线内部为检修保留区不 应设置其他装置。
(2)逆向安装时，检修口的位置也 要满足右记尺寸关系。
且由于无法进行下检修，可不设置过滤器检修口。
纯水机操作规程
纯水机操作规程一、引言纯水机是一种用于制备高纯度水的设备，广泛应用于实验室、制药、电子、化工等领域。
为了确保纯水机的正常运行和操作的安全性，制定本操作规程。
二、设备准备1. 确保纯水机所需的供电电压和频率与实际供电相匹配。
2. 检查纯水机的进水管道和出水管道是否连接良好，无渗漏现象。
3. 检查纯水机的滤芯是否安装完好，并按照要求更换滤芯。
三、操作步骤1. 打开纯水机的主电源开关，确保电源指示灯亮起。
2. 检查纯水机的水箱水位，若水位低于最低标记线，则需添加适量的进水。
3. 按下纯水机的开机按钮，待设备启动完成后，进入待机状态。
4. 按下纯水机的制水按钮，纯水机开始制水。
5. 当纯水机制水完成后，自动进入纯水贮存状态，此时纯水机的出水口会有纯水流出。
6. 使用纯水时，将容器放置在出水口下方，打开出水阀门，取出所需的纯水。
7. 使用完毕后，关闭出水阀门，并将容器移开。
四、注意事项1. 在操作纯水机时，严禁将手插入设备内部，以免发生触电或其他意外事故。
2. 纯水机的进水和出水管道应定期清洗，以保证水质的纯净度。
3. 定期检查纯水机的滤芯状况，如发现滤芯损坏或堵塞，应及时更换。
4. 纯水机长时间不使用时，应关闭主电源开关，并拔掉电源插头，以免浪费电能和影响设备寿命。
5. 如发现纯水机出水异常或设备故障，应及时联系维修人员进行维修。
五、紧急情况处理1. 在纯水机操作过程中，如发生设备漏水、冒烟等异常情况，应立即关闭主电源开关，并迅速联系维修人员。
2. 在纯水机操作过程中，如发现电源线短路、电气设备故障等情况，应立即切断电源，并迅速联系维修人员。
六、操作培训和记录1. 新员工入职时，应进行纯水机操作培训，并签署相关培训记录。
2. 纯水机的日常操作记录应详细记录，包括操作人员、操作时间、制水量等信息。
3. 定期对操作人员进行操作规程的复习和培训，以确保操作的正确性和安全性。
七、附录1. 纯水机的维护保养手册，包括滤芯更换周期、设备清洗方法等内容。
松下 电风扇 水离子净味器 FV-15CSD1C 安装使用说明书
附保修证7装上限位螺丝。
使用及维护注意事项禁止非专业人员进行检查和维修。
否则可能会引起触电或受伤。
在接触本产品前，必须确保连接本产品的电源开关处于关闭状态。
否则可能会导致触电。
检查时，即使关掉电源，扇叶还会有短时间的旋转，请确认在产品已完全停止运转的情况下才进行检查。
否则手指或物等可能会被卷进旋转部分，导致人员受伤。
89机体百叶百叶机体在接通电源后，请进行试运转检查以下事项：扇叶是否旋转？蓝色的运转指示灯是否亮灯？是否发生异常的声音或震动？旋转百叶使百叶上的“▽”与机体上的“ ”对齐，同时听到“嗒”的一声表示锁紧。
找到百叶上的“▽”标志，按“ ▽ ”与机体上“ △ ”对齐的角度，将百叶嵌入机体。
试运转注意确保百叶贴紧天花板。
否则部品可能会掉落导致受伤。
确保螺丝扭紧力在20 cN m至40 cN m的之间。
如果扭紧力不足可能会导致产品掉落，如果扭紧力过大，可能会损坏产品。
提示事项，用6阶气味强度表示法※1下降1个等级)；检测机构:广州市微生物研究所报告No .:KJ201908963实验空间:30 m 实验时间:2小时对象:白色葡萄球菌实验结果:除菌率95.55%(详细见下表)检测依据:Q/GPS 013 附录D 除菌性能试验方法除菌性能Panasonic客户咨询服务中心电话：4008-811-315工厂售后服务热线电话：4008-308-583发行：2019年06月P0619-0 15CSD1403 C。
介绍电解水机标准用语及实验步骤
介绍电解水机标准用语1.营业员五指并拢，指向电解水机机头说：这是日本原装进口的雅马哈电解水机，在日本已经有20多年的销售历史，目前大约70%的家庭都会用到这样的电解水机；日本更是世界上对碱性水研究时间最长的国家，已经超过40年。
客户问：什么是电解水机？电解水机就是将净化后的水，通过电解的方式，进行了更高级的处理，将水细分为碱性水、酸性水、净水等多种功能性用水。
雅马哈碱性水不仅是干净、好喝的水，而且能改善身体体质，增加人体免疫力，长期饮用对各种疾病有一定疗效。
2. 客户问：为什么会有这些功能？营业员说：老师，耽误你2、3分钟时间，我可以边做实验边讲解，您就更清楚碱性水给您带来的好处了！电解水机实验步骤介绍实验目的:水经过电解后，有正极必有负极，因此有酸性必有碱性；水中的钙、镁、钠、钾等正离子被阴极吸收，氢氧根离子增加而形成碱性，这样就可以中和人体内的酸毒，改善酸性体质。
其中酒精呈酸性，喝碱性水可以中和人体内的酸根离子，从而达到身体酸碱度平衡。
这也是为什么人们说喝碱性水好的真正原因。
实验目的：一般的水约为13到16个分子团，经电解后水分子团约为5到6个，因为矿物质已被离子化，所以水的渗透力和溶解力更强，人体容易吸收，更能有效清除细胞及血液中的油脂及其他废旧物质，从而促进新陈代谢。
实验目的：碱性水具有负250MV以下的氧化还原电位，能迅速清除人体内多余自由基（活性氧），中和酸毒，清除人体致病因子。
自来水不具有细小分子团和还原电位的特点；对身体没有任何改善作用。
其中碱性水中含氧量高，活性氧量大，是有益身体的健康好水（每升约5毫克氧）。
实验目的：证明料理用碱性水是小分子团、抽出能力及溶解力更强。
并且能够更好的提取出茶叶中的精华。
同理，这也是为什么用碱性水煮米饭能够使米饭更有嚼劲，颗粒更饱满的原因。
3. 料理用水有什么用处？1）对饮食有益的水：其实，它就是PH值更高的碱性水，具有更多的小分子团水，能在烹调食物的时候起到提味的作用，煲汤也可不放味精；同时，它还有良好的冲泡作用，可使茶和咖啡的口感更好；用它煮出来的米饭，更加蓬松可口；蔬菜瓜果在碱性水中浸泡30分钟以上，可祛除残留农药（因为农药呈酸性，酸碱可中和达到祛除农药的作用），并且浸泡后的食物更新鲜不易被腐坏；2）对肠胃好的水：对于胃肠内异常发酵、慢性拉肚子、消化不良、胃酸过多、胃溃疡有一定的疗效；在日本以上碱性水功能已经过临床证明；3）对身体好的水：由于它是小分子团、并具有还原性，所以可防治三高、痛风、动脉硬化等。
Panasonic 基本水浴疗浴机操作手册说明书
OPERATING MANUAL[Basic Water Bath]Model : BW ? 05B, 10B, 20BManual No : 00HAA0001200(Rev.1)This operating manual describes the important subjects to maintain the product¡s functions and to use it safely. Especially, be sure to read <Safety Precaution> carefully before you use this equipment. Please keep this operating manual close to the equipment to use it after reading through it once. Please place it where the new user can find it easily for the safety use when you hand over or lend the equipment to othersTable of ContentsChapter 1 : Introduction⏹Caution about the operating manual ---------------------------- 4⏹Warning mark ------------------------------------------ 4⏹Caution for safe operation and unauthorized modification ---------5⏹Disclaimer ----------------------------------------------------------------- 5 Chapter 2 : Check the condition of unit ----------------------6,7 Chapter 3 : Installation⏹Contents-------------------------------------------------------------------- 9⏹Installation -----------------------------------------------------------------9 Chapter 4 : Safety Alert and Caution⏹Safety Alert --------------------------------------------------------------- 12⏹Safety Caution ----------------------------------------------------------- 13⏹Warning Label ----------------------------------------------------------- 14 Chapter 5 : Names of each component & functions⏹Part names and functions◆Main Body ---------------------------------------------------------- 16◆Over temp limit ---------------------------------------------------- 17 Chapter 6 : Controls and functional element⏹Operating and functional element------------------------------------ 19⏹Temperature setting procedure----------------------------------------20 Chapter 7 : Maintenance and Troubleshooting⏹Maintenance ------------------------------------------------------------ 22⏹Safekeeping and Cleaning -------------------------------------------- 23⏹Troubleshooting--------------------------------------------------------- 24 Chapter 8 : Specifications and Circuit diagram⏹Specifications ----------------------------------------------------------- 27⏹Circuit diagram --------------------------------------------------------- 28 Chapter 9 : Warranty and Service⏹Warranty service -------------------------------------------------------- 30⏹Exceptions from warranty ----------------------------------------------30⏹Service request ----------------------------------------------------------30⏹Return process ---------------------------------------------------------- 30Chapter 1IntroductionThank you for purchasing the Lab Companion Bath.Lab Companion Baths are realized perfectly the control andBath circumstance related to the operator¡s experimental condition. Excellent Incoloy sheath heater positioned below bath widely and offers prompt temp compensation and accurate temp uniformity. Before using the Bath, please comprehend the manual in detail.Including;●Caution about the operating manual●Warning mark●Caution for safe operation and unauthorized modification●DisclaimerCaution about the operating manual1.Always keep this instruction near to the instrument.2.Copying and distributing part or the whole of this the operating instruction with no permissionare prohibited with the law.3. The operating instruction promised perfection but please ask an agent or us if you have anyquestion about insufficient points, error and omission on the operating instruction. Warning mark1.This operating instruction uses the warning Signal Word for safe operation to prevent theusers from accidents or damage beforehand.2.Defined by the Symbol Mark about the safety caution.¡Warning¡ means that the user may have seriousdamage and even die by improper handling on thisunit.¡Caution¡ means that the user may have minordamage and unit may have physical damage byimproper handling on this unit.Protective Ground TerminalIt marks the terminal must be connected Groundprior to operating the product.It marks additional information on the operation andfeatures of the product.3.Be fully aware of the warning contents during operation.4.Please exchange original label to the new warning label when it is unreadable from warningout.☞ Please request the new label to an agent or us.Caution for safe operation and unauthorized modification1.In order to protect the product and system, please use the product in accordance with theinstructions.2.We shall not be responsible for any incidental or abnormal operation for breach of anyexpress or implied warranty on this product or any part thereof.3.It forbids reorganization of Inside of the product or adds.4.Please contact the agent or us in case of the component and the consumable parts of theproduct will be replaced.5.Do not give a strong shock to the product. It becomes the cause of product damage andwrong operations.Disclaimer1.In no event will Jeio Tech industries be liable for any incidental or consequential damages forbreach of any implied warranty relating to the product.2.Any special indirect or consequential property or commercial damage of any naturewhatsoever. Some cases do not allow the exclusion of incidental or consequential damages, so the above limitation may apply to you.Chapter 2Check the condition of unit Before you install Shaker, inspect it for damage that may have occurred in transportation. Confirm any damage for compensating following the Compensation regulations and transportation of Lab Companion.Check the condition of unit before unpackProtection from any damage occurring in transit, Lab Companion administers excellent packing and radical transportation.Any damage or loss during transit, all responsibility is filled with the delivery carrier.After receiving the unit, carefully unpack and inspect it for damage.If the unit is damaged or loss during transit, Make sure as follows to be protected from the ¡Lab Companion Regulations¡.Confirmation a damaged unit1. Check the front and rear sides of the unit under packed condition.2. Carefully unpack the package.3. Check with care any damage during the transportation of the unit4. Check the parts (i.e. accessories- Page 9) of the unit.Compensation regulation of damaged unitIf the unit is damaged, contact the delivery service company immediately.1. Keep the condition as it delivered and wait for the confirmation by the carrier.2. Within 15 days, submit an application be made in writing to the delivery service company.Do not discard the carton or packing materialfor the unit until you have checked all of thedamaged parts.Compensation regulation of transport1.Any damage that is occurred during the transport is responsible to the delivery servicecompany.2.Except for all damage from the transport, we Jeio T ech will service or return.3. 3. If Jeio Tech or our authorized dealers do not deliver the unit, Jeio Tech disclaims all theresponsibility for the damage.Chapter 3InstallationBefore installation, be sure to check the electric conditions for electric safe. All persons expected to carry out operation, installation and maintenance of the unit, read and understand the safety information and operating instructions.Including;●contents●Installation⏹Check points⏹Select a proper place⏹Level off⏹Power connectionContentsAfter unpacking, Please check listed Bath component description as follows.If you didn¡t receive one or more component as follow, Contact the Jeio Tech Service center or the distributor where you purchased .Operating manualAfter unpacking, check the operating manual. If you receive the operating manual, Contact distributor or the Jeio T ech service center .InstallationThe machine should be installed on a safe and proper environment following to the belowCheck Points- Select a proper place, Level off the machine, - Power connectionSelect a proper place1. Operating conditionRoom condition of temperature and humidity should be normal as 18 ℃ ~ 25℃, below 80%RH.2. Environmental conditionDo not expose the machine to direct ray of light.3. Setting placeThe floor should be on flat and leveled ground.4. SpaceThe machine should be kept at least 1.5m from any illuminators and 20 cm from walls.Level offAll of the bottom sides should be leveled.Power connectionCheck the ID Plate on the back side of the machine to find the electric conditions. Power must be used upper 2 classes grounded.1. Check if the plug condition and electric wires are normal.2. Check the connection of ground wire.Chapter 4Safety Alert and Caution¡Signal Word¡ is used in the operation manual for safe and proper operation and keeps users from being damaged by accidents.Each ¡Symbol Mark¡ is identified following to the degree of importance and danger.Pay attention to the ¡Alert¡ and ¡Notice¡ in the manual to avoid from any accidents.Safety Alert⏹Check the voltage, phase and capacity on the ID plate before installation. Sources of electricity should be separately wired.⏹The sources of electricity should be grounded. The sources of electricity without ground connection can cause serious damage to users or the machine. Don¡t earth the machine to gas pipes or water pipes. ⏹Do not connect multiple power cord. It can cause fire and malfunction.⏹Running water recommended must be non-flammability.In case of flammability, the flashing point of running water must be over 40℃.⏹Running water can be circulated and pumped below 20degrees.⏹Running water circulated and pumped can be used below ambient 20℃. Running water must be lower 5℃ from the flashing point. (Fp-5)⏹Don¡t install the machine near to places where inflammable gas can be leaked .Do not use the machine near to places where explosion can be happened due to organic evaporating gases.Explosive materials: Acid, Esther , Nitro compoundInflammable materials: salt peroxides, inorganic peroxide, salt acids⏹Do not put inflammables and explosives in the machine.⏹Put off the power plug if some sounds and smell, smokes are happened.⏹Keep out the machine from heating source and sun direct. Install the unit ambient 5~40and below ℃℃80%RH.⏹Do not use the machine at places where moisture is high and flooding can be happened.⏹Do not disassemble or fix, change the machine.⏹Do not move the machine when running water heated. Must drain running water completely when moving theMain PowerSafetymachine.Overflowing running water can cause malfunction and burn.⏹At least 2 persons should move the machine when it is necessary.⏹Be careful to enter moisture, organic solvents, dust and corrosiveness gas.Caution⏹Do not put heavy things on the power line. Do not put the machine on the line.It causes fire and electric shock.⏹Connect the plug correctly and do not touch it with hands.It can cause fire if the connection is not fit. It can cause fire and damage to users.⏹Install the machine near to the power cord can be easily reached.⏹Do not install the machine near the high frequency noise place.Keep out a high-frequency welder and mass capacity SCR Controller .⏹Do not put inflammables and explosives in the machine.⏹Do not install the machine near to the organic solvents.It may cause fire and malfunction.⏹ Do not make the machine wet while cleaning. Do notput liquid on the machine.If the machine is wet, off the power and contact where you purchase the machine to check it.⏹ Do not shock the machine or vibrate it.It can cause damage to the machine.⏹Do not clean the machine with solvent abstergent. Use smooth cloths.Cleaning with solvent can cause fire and deformity.Main PowerSafetyAlert LabelAlert labels are attached on the body for informing of safety and danger.Keep the alerts in mind and follow the instructionAsk extra labels to where you purchased the equipment if they¡re damaged.* WarningIt informs not to put flammable or explosive samples in thechamber.* CautionUsers can be burnt by the hot surface of thechamber due to the high temperature.Chapter 5Names of each Component & FunctionsPlease, we recommend that operator learns name of each part of main body and function & and operation of display before using unit.If you do not understand any, please, contact with agent or Jeio tech. Including;●Part names and functions⏹Main Body⏹Over temp. limitPart names and functions1. Main Body3. FuseSafety device is for preventing internal flow from overcuuent.For replacement;Fuse Specification Model 230V 120V 100V BW-05B 5A 8A 8A BW-10B 5A 10A 12A BW-20B10A10A12A4. Main Power Plug & Cable1. Control PanelSetting controls and operating2. Main Power Switch43122. Over Temp. LimitOver Temp. LimitThis safety device cuts mains of equipment andthe unit stops when it detects high temperatureover set temperature.Indication : Buzzer and O/T LED blinking.To start the unit again, press START/STOP key.Note) Please, eliminate the potential dangerousfactor.How to set :1.Turn the knob (red color) of over temperature limit to clockwise with screw driver.℃℃2.Set the value 10~15 higher than set temperature.Chapter 6Controls and functional element Please, learn controls and functional element before operating unit. Including;●Operating and Functional element●Temperature setting procedureOperating and functional element1. Rotary knob for temperatureTuning the aim of analogue rotary knob to set temperature.2. Status indicationRUN LED: operating status.HEAT LED: operating of heating element.O/T LED: It is ON when overtemperature device is activated.3. Over Temp. LimitTo prevent overheat of the unit or higher temperature than set temperature.12Temperature setting procedure① Press Main Power Switch.A. RUN LED is ON.B.The unit starts operating.② Tune the aim (temperature) of rotary knob.Switch Range()℃0 ~ 110A.HEAT LED blinks and is ON after tuning.③ Set Over temp. limit 10 ~ 15℃ higher than set temperature.ValueChapter 7Maintenance & Troubleshooting This chapter shows symptoms while operation. Please contact us referring to the contents when the equipment has problems.Please keep in mind how to clean the equipment and maintain it regularly.Including;●Maintenance⏹Every week/month/quarter/year●Safekeeping and cleaning⏹Storage/Cleaning/Cleaning accessories●TroubleshootingMaintenance⏹ Check the connection of the accessories. ⏹ Keep clean the surface of the equipment..⏹ Check the condition of power plug or wires.⏹ Check the button input condition, set values are input correctly ⏹ Check the condition of ¡Over T emp. Limit¡⏹ Check the every week/month ¡check point¡.⏹ Check if vibration or noise happens in the equipment.⏹ Check the every week/month/quarter ¡check point¡.⏹ Check the temperature is controlled properly. Check if theconstant temperature is maintained.Maintain the equipment following to the maintenance standard for keeping the equipment under the best condition.Every WeekEvery MonthEvery QuarterEvery YearSafekeeping and CleaningStorageKeep the equipment following to the orders below in case no operation for a long time. 1. Power off .2. Get rid of all solvents in the chamber .3. Keep the equipment after packing for dust protection.CleaningExternal cleaning1. Clean the external body by detergent.2. Clean the external body by soft towel with pure water .3. Clean the display with dry towel.Inner cleaning 1. Power off .2. Clean in the bath by soft towel with detergent.3. Clean it with dry towel.Cleaning accessories1. Soak accessories in detergent.2. Clean it with pure water .3. Keep it after drying.Cleaning AccessoriesInner cleaningExternal cleaningStorageTroubleshootingFollow the below when problems happen.Please ask service if problems not included in the table happen or can¡t be solved by the mentioned solutions.SymptomsCausesSolutionsThe equipment is not on.⏹ Wrong electric standard. - Or -⏹Circuit breaker is off or power failure - Or -⏹The plug is not fit into the socket properly . - Or -⏹ Fuses are disconnected. - Or -⏹Socket/plug/power lines are damaged.1.Check the ID plate on the back to find electric condition whether it¡s fit to the socket power . If not sloved¡.2.Check if the power is off. If the circuit breaker is off, fix it and operate the equipment again. If not solved¡3. Plug the power to the socket again. If not solved¡4.Check if the fuse set on the back of the equipment is short circuitted. Replace with a new one when short circuitted. Fuse capacity: Refer to Specifications (Page 27)If not solved¡5. Check the socket/plug/power lines and replce with new one if they are damaged.6.Contact your local dealer to fix the equipment if the problems are not yest solved.Fuses are short circuitted friquently.⏹ Electric standare of fuses are not fit. - Or - ⏹ Wires are damaged or shorted. - Or - ⏹ Power input parts are wet. 1. Connect the fuse tightly after checking voltage and amphere. Refer to ¡Specifications¡ (Page 27) If not solved¡2. Replace with a new wires if they are damaged or shorted.If not solved¡3. If the power connecting parts are wet,dry them and reconnect.4. Contact your local dealer to fix theequipment if the problems are not yet solved.If circuit breakage is shorted continually.⏹T oo many plugs are connected. 1.Check the voltage capacity supplied to the circuit breaker .2.Check many similar equipments are connected on the socket. Use separate socket not exceeded of the voltage capacity . 3.Contact your local dealer to fix the equipment if the problems are not yet solved.Symptoms Causes SolutionsDisplay does not show anything when power is on. ⏹Innter harness fails- Or -⏹Controller & Display fails.1.Check the equipment by contacting thelocal dealer.The equipment stops working automatically. ⏹The equipment is affected bystrong noise.1.Check equipments with strong noises areinstalled near to the equipment and keepit far from them.2.Contact your local dealer to fix theequipment if the problems are not yetsolved.The equipment stops working by ¡Over Temp Limit¡. ⏹Over T emp. Limit is setwrongly.Reset the ¡Over T emp. Limit¡.1.Operate the equipment again to find anyproblems.2.Contact your local dealer to fix theequipment if the problems are not yetsolved.Chapter 8Specifications and Circuit diagramCheck the specifications and circuit diagrams of the basic baths for proper operation.Including;●Specifications●Circuit diagramSpecificationsModelBW-05BBW-10BBW-20BChamber volume3.5ℓ11.5ℓ20ℓRange Amb. +7℃ ~ 100℃(lid off)Accuracy±0.5℃ at 50℃ Uniformity ±0.3℃ at 50℃ Heat up Time 50℃ within 40min TemperatureControllerAnalog controller typePermissibleEnvironment conditionTemperature 5℃ to 40℃ Maximum relative humidity 80%Altitude up to 2,000mInternalStainless steel, 0.6tMaterialExternalSteel, 1.2t, Double painted & bakedHeater 700W/230V 700W/120V 700W/100V1000W/230V 1000W/120V 1000W/100V 2000W/230V 1000W/120V 1000W/100VSensorPt 100 Ω Bath240¡136¡115 300¡240¡165 498¡300¡165 Top open 240¡136 300¡240 498¡300 Size(mm) (W¡D¡H)Overall (Lid off)303¡242¡245357¡330¡290564¡392¡295 Safety deviceOver temp limit / Current fuse230VAC, 60/50Hz 3.0A 4.4A 8.7A 120VAC, 60Hz 5.8A 8.3A 8.3A Electricrequirement100VAC, 60Hz7.0A 10.0A 10.0A Weight(Net)6.5Kg 10Kg18.5KgAccuracy, Uniformity and Heat up time are changed by room temp. condition of heating ※load, power voltages.Circuit diagram Models ?BW-05B, 10B, 20BChapter 9Warranty & ServiceThe equipment is covered by the warranty standard regulated by Jeio tech. Exceptions from the standards can¡t be covered by warranty. Including;●Warranty and Service⏹Warranty service⏹Exceptions from warranty⏹Service request⏹Return processWarranty and ServiceWarranty serviceIf trouble occurs during product use, User can get free service for one year from the date of purchase.Exceptions from warrantyUser can not be credited by warranty in case of as below. 1. If trouble occurs by an act of God.2. If the equipment breaks down due to misusing of availablevoltage.3. If damage occurs by dropping a product, or impact.4. If damage occurs in an appearance by organic solvents such asthinner , benzene.5. If damage occurs without following to notice in themanual6. If damage occurs by fixing the equipment by any personwho is not related with Jeio tech.7. If damage occurs by a mistake of a customerService request1. Contact the local agent with claim form including the belowconditions.* Date of purchase* Name/Address/Contact no./E-mail * Serial Number * SymptomsReturn processContact the local agent with claim form including the below conditions* Date of purchase* Name/Address/Contact no./E-mail * Serial Number * Symptoms* Causes of returns * Forwarder informationReturnsServiceExceptionUnder WarrantyPage 31Service contactKorea (Head office-Overseas department) 4F Hosu B/D, 379-13, Seogyo-dong, Mapo-ku, Seoul,Republic of Korea. (121-839)TEL: +82 - (0)2 - 3143 - 1823 / 1825FAX: +82 - (0)2 - 3143 - 1824E-mail:*********************U.S.A.2400 East Devon Ave, Suite 2005, Des Plaines, IL 60018, USA TEL: 1-847-298-6613FAX: 1-847-699-8487E-mail:********************ChinaRM107,No.68 Line, 569 Xin Hua Road, Shanghai, China Postcode: 200052TEL: 86-21-62940608FAX: 86-21-62940602E-mail:******************South East AsiaNo.7A, Jalan Kemboja 1 B/2, 48300 Bandar BukitBeruntung, Selangor Darul Ehsan, MalaysiaTEL: 603-60285833, 603-60285825FAX: 603-60285822E-mail:********************England (UK)Unit 33 , Monument Business Park Warpsgrove Lane , Chalgrove , Oxfordshire OX44 7RW , UKTEL: +44-1865-400321FAX: +44-1865-400736E-mail:**************************Service contact。
