E NSAFETY• The charger is designed for charging 12V Lithium-ion batteries with LiFePO4 technol-ogy. Do not use the charger for any other purpose.• Never try to charge non rechargeable batteries.• Check the charger cables prior to use. Ensure that no cracks have occurred in the cables or in the bend protection. A charger with damaged cables must not be used.A damage cable must be replaced by a CTEK representative.• Never charge a damaged battery.• Never charge a battery with temperature below 0°C if not specified by the battery manufacturer.• Never place the charger on top of the battery when charging.• Always provide for proper ventilation during charging.• Avoid covering the charger.• All batteries fail sooner or later. A battery that fails during charging is normally taken care of by the chargers advanced control, but some rare errors in the battery could still exist. Don’t leave any battery during charging unattended for a longer period of time.• Ensure that the cabling does not jam or comes into contact with hot surfaces or sharp edges.• Always check that the charger has switched to STEP 7 before leaving the charger unattended and connected for long periods. If the charger has not switched to STEP 7 within 24 hours, this is an indication of an error. Manually disconnect the charger.• This appliance is not designed for use by young children or people who cannot read or understand the manual unless they are under the supervision of a responsible person to ensure that they can use the battery charger safely. Store and use the bat-tery charger out of the reach of children, and ensure that children cannot play with the charger.• Connection to the mains supply must be in accordance with the national regulations for electrical installations. TECHNICAL SPECIFICATIONSModel number1081Rated Voltage AC220–240VAC, 50–60HzCharging voltage13.8/14.4 VDCCharging current5A maxCurrent, mains0.65A rms (at full charging current)Back current drain*<1Ah/monthRipple**<4%Ambient ***temperature-20°C to +50°C, output power is reducedautomatically at high temperaturesCharger type 8 step, fully automatic charging cycleBattery types12V LiFePO4 batteriesBattery capacity5–60Ah up to 120Ah for maintenanceDimensions168 x 65 x 40mm (L x W x H)Insulation class IP65Weight0.6kg*) Back current drain is the current that drains the battery if the charger is not connected tothe mains. CTEK chargers have a very low back current.**) The quality of the charging voltage and charging current is very important. A high cur-rent ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.***) The battery charger is designed to operate from -20°C to +50°C. However battery manufacturers may recommend other temperature ranges for charging their batteries.Please check battery specifications.21843BE N LIMITED WARRANTY CTEK SWEDEN AB, issues this limited warranty to the original purchaser of this product. This limited warranty is not transferable. The warranty applies to manufacturing faults and material defects for 5 years from the date of purchase. The customer must return the product together with the receipt of purchase to the point of purchase. This warranty is void if the battery charger has been opened, handled carelessly or repaired by anyone other than CTEK SWEDEN AB or its authorised representatives. One of the screw holes in the bottom of the charger is sealed. Removing or damaging the seal will void the war-ranty. CTEK SWEDEN AB makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential dam-ages. Moreover, CTEK SWEDEN AB is not obligated to any other warranty other than this warranty.SUPPORT CTEK offers a professional custom support: .For latest user manual see . By e-mail: ************, by telephone: +46(0) 225 351 80, by fax +46(0) 225 351 95.2012–05–30。

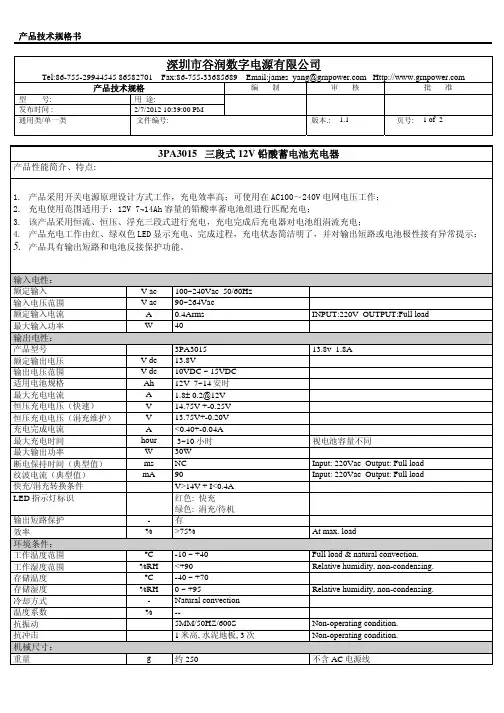

3PA3015 12V铅酸蓄电池组充电器规格书
Tel:86-755-29944545 86582701 Fax:86-755-33685689 Email:james_yang@ 产品技术规格编制审核批准型号: 用途:发布时间 : 2/7/2012 10:39:00 PM通用类/单一类文件编号: 版本.: 1.1 页号: 1 of 23PA3015 三段式12V铅酸蓄电池充电器产品性能简介、特点:1.产品采用开关电源原理设计方式工作，充电效率高；可使用在AC100～240V电网电压工作；2.充电使用范围适用于：12V 7~14Ah容量的铅酸率蓄电池组进行匹配充电；3.该产品采用恒流、恒压、浮充三段式进行充电，充电完成后充电器对电池组涓流充电；4.产品充电工作由红、绿双色LED显示充电、完成过程，充电状态简洁明了，并对输出短路或电池极性接有异常提示；5.产品具有输出短路和电池反接保护功能。
输入电性：额定输入V ac 100~240Vac 50/60Hz输入电压范围V ac 90~264Vac额定输入电流 A 0.4Arms INPUT:220V OUTPUT:Full load最大输入功率W 40输出电性：产品型号 3PA3015 13.8v 1.8A额定输出电压V dc 13.8V输出电压范围V dc 10VDC ~ 15VDC适用电池规格Ah 12V 7~14安时最大充电电流 A 1.8± 0.2@12V+-0.25V恒压充电电压（快速）V 14.75V恒压充电电压（涓充维护）V 13.75V+-0.20V充电完成电流 A <0.40+-0.04A最大充电时间hour 3~10小时视电池容量不同最大输出功率W 30W断电保持时间（典型值）ms NC Input: 220Vac Output: Full load纹波电流（典型值）mA 90 Input: 220Vac Output: Full load快充/涓充转换条件V>14V + I<0.4ALED指示灯标识红色: 快充绿色: 涓充/待机输出短路保护- 有效率% >75% At max. load环境条件：工作温度范围°C -10 ~ +40 Full load & natural convection.工作湿度范围%RH <+90 Relative humidity, non-condensing.存储温度°C -40 ~ +70存储湿度%RH 0 ~ +95 Relative humidity, non-condensing.convection冷却方式- Natural温度系数% --condition.抗振动 5MM/50HZ/600S Non-operating抗冲击1米高, 水泥地板, 3次Non-operating condition.机械尺寸：重量g 约250 不含AC电源线Tel:86-755-29944545 86582701 Fax:86-755-33685689 Email:james_yang@ 产品技术规格编制审核批准型号: 用途:发布时间 : 2/7/2012 10:39:00 PM通用类/单一类文件编号: 版本.: 1.1 页号: 2 of 2外形尺寸mm 约117X61X37毫米Casing only接线端子- 客户指定 AC/DC插头可选安全特性：最大溫升°C < 40 on casing At any line and Max. Load安全规格标准- EN60950BEMC特性- EN5502230000MTBF hrs防静电等级kV 8.0隔离耐电压V i/p to o/p: 3000 (1 min.) For final unit, cut-off current =10mA。
12V1A电源适配器规格书
金宝通/BESTGK R&D
电源适配器 Power adapter
版本/ Version
SHEET 9
OF 14
K-A7 系列
A1
10、包装说明/PACKING:
金宝通/BESTGK R&D

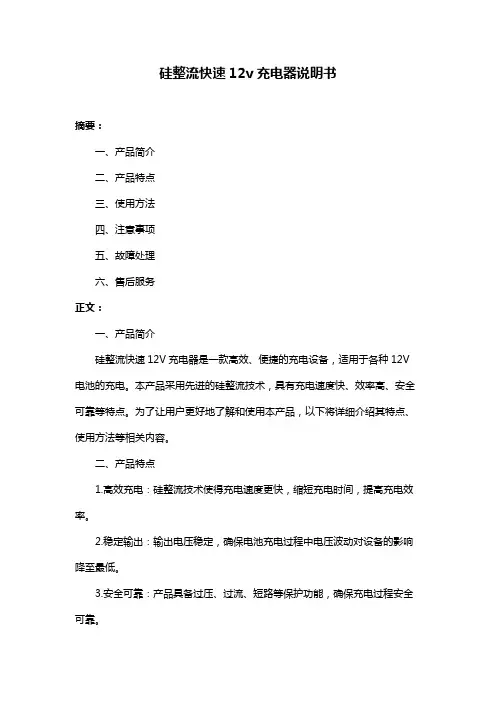

硅整流快速12v充电器说明书
硅整流快速12v充电器说明书摘要：一、产品简介二、产品特点三、使用方法四、注意事项五、故障处理六、售后服务正文：一、产品简介硅整流快速12V充电器是一款高效、便捷的充电设备，适用于各种12V 电池的充电。
本产品采用先进的硅整流技术，具有充电速度快、效率高、安全可靠等特点。
为了让用户更好地了解和使用本产品，以下将详细介绍其特点、使用方法等相关内容。
二、产品特点1.高效充电：硅整流技术使得充电速度更快，缩短充电时间，提高充电效率。
2.稳定输出：输出电压稳定，确保电池充电过程中电压波动对设备的影响降至最低。
3.安全可靠：产品具备过压、过流、短路等保护功能，确保充电过程安全可靠。
4.兼容性强：适用于各种12V电池类型，如汽车电池、摩托车电池、储能电池等。
5.便携设计：小巧轻便，便于携带和使用。
三、使用方法1.在使用前，请确保电池已放空，以免损坏充电器。
2.将充电器输出端与电池连接，注意正负极不要接反。
3.打开充电器开关，此时充电器开始工作。
4.观察充电进度，当电池充满时，充电器会自动断电，以保护电池。
5.充电完成后，先关闭充电器开关，然后断开电池连接。
四、注意事项1.请勿在潮湿、高温、易燃易爆的环境中使用充电器。
2.充电过程中，请勿触碰充电器输出端，以免发生触电事故。
3.勿将充电器置于水中或潮湿处，防止短路事故。
4.定期检查充电器线路连接是否牢固，如有松动请及时处理。
五、故障处理1.若充电器无法正常工作，请检查电源线是否接触良好，电池是否接反。
2.若充电过程中出现异常声音或异味，请立即停止使用，并检查电池是否有故障。
3.若充电器出现故障，请勿自行修理，以免造成安全隐患。
请联系售后服务人员进行处理。
六、售后服务本公司为您提供一年的免费保修服务，如有任何产品质量问题，请随时联系我们。
在使用过程中，如有疑问，请随时咨询，我们将竭诚为您解答。
总之，硅整流快速12V充电器是一款具有高效、稳定、安全等特点的充电设备。

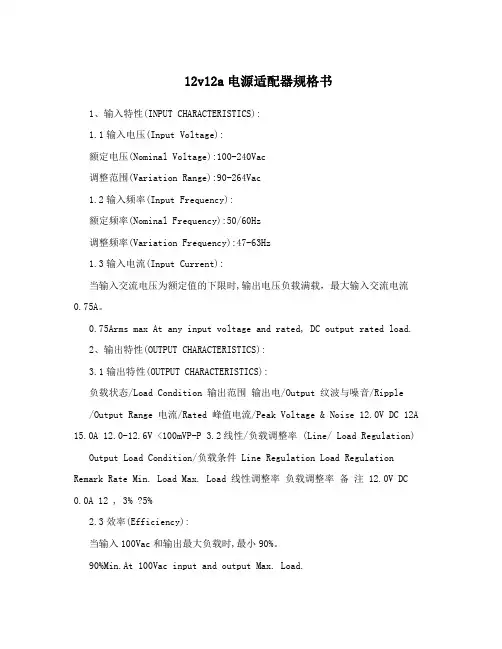

12v12a电源适配器规格书
12v12a电源适配器规格书1、输入特性(INPUT CHARACTERISTICS):1.1输入电压(Input Voltage):额定电压(Nominal Voltage):100-240Vac调整范围(Variation Range):90-264Vac1.2输入频率(Input Frequency):额定频率(Nominal Frequency):50/60Hz调整频率(Variation Frequency):47-63Hz1.3输入电流(Input Current):当输入交流电压为额定值的下限时,输出电压负载满载，最大输入交流电流0.75A。
0.75Arms max At any input voltage and rated, DC output rated load.2、输出特性(OUTPUT CHARACTERISTICS):3.1输出特性(OUTPUT CHARACTERISTICS):负载状态/Load Condition 输出范围输出电/Output 纹波与噪音/Ripple /Output Range 电流/Rated 峰值电流/Peak Voltage & Noise 12.0V DC 12A 15.0A 12.0-12.6V <100mVP-P 3.2线性/负载调整率 (Line/ Load Regulation)Output Load Condition/负载条件 Line Regulation Load Regulation Remark Rate Min. Load Max. Load 线性调整率负载调整率备注 12.0V DC 0.0A 12 , 3% ?5%2.3效率(Efficiency):当输入100Vac和输出最大负载时,最小90%。
90%Min.At 100Vac input and output Max. Load.当输入240Vac和输出最大负载时，最小95%。
SGA12E系列 12W AC-DC高信赖性轻薄型壁挂式适配器说明书
■ 特性:‧轻薄型‧国际通用全范围交流输入‧ 2极欧式插头,Class Ⅱ电源‧空载功耗<0.075W‧能效等级Ⅵ‧符合EU ErP 和CoC version 5‧保护种类：短路/过负载/过电压‧全防护型塑胶外壳‧通过LPS(限功率电源)‧还有54V 机型可用于PoE‧提供适配器各种DC plug 转接头配件，换头简便（插头套件可单独售卖，请参考官网: )‧ 3年保固File Name:SGA12E-SPEC 2020-10-30‧消费电子设备‧电信设备‧办公设施‧工业设备‧PoE 设备■ 应用:系列名额定功率欧式2极AC 插头输出电压DC 插头类型{■ 描述:■ 型号编码P1J:标准型插头, 2.1ψ×5.5ψ×11mm, C+ 音叉型根据客服需求可选其他插头(参考4~5页)USB: USB (A 型)仅5V 标准型SGA12E 是一个12W 轻薄型壁挂式单组输出绿色环保型适配器，外型小巧，方便携带。
SGA12E 是 class Ⅱ电源(无FG)，该产品是采用2pin 欧式标准插头。
适合输入电压90~264VAC 应用，整系列输出电压为5V 至48VDC 不同的电压，可满足各种消费电子设备的需求。
SGA12E 效率高达86%，低于0.075W 的超低空载功耗，SGA12E 符合和，最重要的特点是当工EU ErP CoC version 5作于正常方式或旁路方式时，适配器可节省能耗。
整系列通过国际安全法规认证，采用94V-0防火塑料外壳，能有效防护用户遭受电击风险。
(线缆连接)(USB 连接)快速转接头范例:Min. DIN 3 Pin with Lock ( Min. DIN 4 Pin with Lock (。
EYA01200010 电源适配器12V1A规格书
lssued date: 2014/05/30 Model NO: EYA-01200010开关电源供应器承认规格书Switching power supply specification1.总则2.电气特性2.1输入特性2.1.1输入电压2.1.2输入频率2.1.3输入电流2.1.4输入冲击电流2.1.5功率因数2.1.6保护功能2.1.7保护功能2.2 输出特性2.2.1输出电压2.2.2输出负载2.2.3输出功率2.2.4输出调整率2.2.5保护功能2.2.6输出电压纹波及噪音2.2.7过冲3.环境要求3.1 温度范围3.1.1工作温度3.1.2储存温度4.安全要求4.1 高压测试4.2 漏电流4.3 电磁兼容5.机械特性5.1 外型尺寸1.总则本规格书定义数码技术设备采用的12W交流适配器规格的要求，该电源适配器是将交流市电变换为连续稳定的直流电压+12V的开关电源，具有输入电压范围宽，输出过压短路保护功能2.电气特性2.1 输入特性2.1.1输入电压范围额定输入电压范围：100-240V AC工作输入电压范围：90-260V A2.1.2输入频率电压频率：47-63HZ2.1.3输入电流最大输入电流≤0.3A2.1.4输入冲击电流冲击电流≤10A2.1.5功率因数功率因数≥0.52.1.6整机效率效率≥75%2.1.7保护功能2.1.7.1欠压保护当电压低于2.1.1部分规定的最小输入电压，不会导致适配器任何损坏2.1.7.2突发性故障保护适配器的任何元件失效，均不产生下列现象A.巨大爆炸的响声B.火焰C.浓烟D.引发人身安全的漏电2.2 输出特性2.2.1输出电压输出电压范围：12V±5%2.2.2输出负载最少负载：0A额定负载：1A最大负载：1.2A2.2.3输出功率额定功率：12W最大功率：14.5W2.2.4输出电压调整率在2.1.1所叙输入条件下，2.2.2部分所叙输出电压均符合2.2.1部分规定。
12V3A美规插墙式电源适配器参数
12V3A美规插墙式电源适配器特点
• • • • • • • • • • • • • • •
产品特点： 1）.小体积、重量轻、流线型、全密封、携带方便； 2）.极高性价比，可靠性高； 3）.内置过压、过流和短路保护； 4）.输入特性：电压：100-240VAC±10%；频率：50/60Hz；电流：1.5A Max； 启动时间：3sMax；启动冲击电流：20A/240VAC Max； 5）.输出特点：恒压模式；高精度，低噪音；保持时间：20mS Min； 6）.环境：工作温度：0℃-40℃，5%-90%RH； 存储温度：-20℃-85℃，5%-95%RH； 7）.冷却方式：自然冷却； 8）.符合能效：ERP/CEC-VI标准； 9）.安规标准：IEC/UL60950-1,UL62368,CSA C22.2 NO 60950-1-07, FCC PART 15, CEC-400-2014-009-CMF, 10-CFR Part 430, UL1310； 10）.符合ROHS标准； 11）.插脚类型：UL； 12）.平均故障率：50，000小时；
12V3A美规插墙式电源适配器图片
SK05T-XXXXYYYW SK05T-XXXXYYYW SK05T-XXXXYYYW SK05T-XXXXYYYW SK05T-XXXXYYYW SK05T-XXXXYYYW
19.0V-23.9V 0.1-2.52A 24.0-30V 0.1-2.0A
12V3A美规插墙式电源适配器图片
12V3A美规插墙式电源适配器图片
12V3A美规插墙式电源适配器电性特性：
• • • • • • • • •
产品型号 输入条件 Model
输出电压
输出电流
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
1.INPUT REQUIREMENT
2.OUTPUT SPECIFICATION
3.MECHANICAL
4.RELIABILITY
5.ENVIRONMENT
6.OUTLOOKING
7.SAFETY
8.QC CHECK
9.DIMENSION
BEL
11.PACKING
1.INPUT REQUIREMENT
MIN TYP.MAX 100Vac 110Vac/220Vac 240Vac 90Vac 110Vac/220Vac 264Vac 47Hz 50/60Hz 63Hz 550mA 30A 82%
MIN TYP.MAX 12Vdc 11.4V 12.6V 0.1A 2.0A 2.3A 120mV 10mS 3S 13.8V 16V 0.3W *TEST MEASURES
C1：0.1uF CERAMICS CAPACITOR
C2：10uF 50V ALUMINUM CAPACITOR
SHORT CIRCUIT PROTECTRON
THE ADAPTER SHALL NOT DAMAGE BY SHORT THE
DC OUTPUT TO GROUND OVER VOLTAGE PROTECTION
NO LOAD POWER DISSIPATION TURN-ON DELAY
TYPICAL INPUT VOLTAGE AND TOP LOAD CURRENT OVER CURRENT PROTECTION AUTO RECOVERY
RIPPLE
TYPICAL INPUT VOLTAGE , TYPICAL LOAD CURRENT , 25℃HOLD-UP TIME
AT TYPICAL INPUT VOLTAGE AND FULL LOAD LOAD CURRENT RANGE PEAK LOAD CURRENT TIME<60S
NORMAL DC OUTPUT VOLTAGE
DC OUTPUT VOLTAGE RANGE TYPICAL OUTPUT VOLTAGE ±5%
AVERAGE EFFICIENCY TYPICAL INPUT VOLTAGE& OUTPUT AT (STANDARD LOAD)2.OUTPUT SPECIFICATION
ITEM
SPECIFCATION AC INPUT CURRENT TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD.
AC INRUSH CURRENT TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD , 25℃.
AC INPUT VOLTAGE RANGE SINGLE PHASE
AC INPUT FREQUENCY SINGLE PHASE
ITEM
SPECIFCATION NORMAL AC INPUT VOLTAGE SINGLE PHASE
min.typ.max.0℃
40℃-20℃
85℃5%RH
90%RH 5%RH 90%RH SPECIFICATION OR TEST CONDITION HI-POT TEST LIFE BENDING TEST VIBRATION BENDING SPEED 40CYCLE/MINUTE
FREQUENCY RANGE:10~55Hz AMPLITUDE:1.5mm ACCELERATION: 1G SWEEP 1 MINUTE FOR X,Y,Z,AXIS EACH
NON-CONDENSING
STORAGE HUMIDITY ITEM
ITEM INSULATION RESISTANCE BURN-IN ITEM
TYPICAL LOAD 5.ENVIRONMENT
4.RELIABILITY
OPERATING
TEMPERATURE STORAGE TEMPERATURE OPERATING HUMIDITY NON-CONDENSING NO DAMAGE
SPECIFICATION OR TEST CONDITION
INPUT TO OUTPUT,DC 500V LEFT TO RIGHT AT AN ANGLE OF 60 DEG. 1000CYCLE TIMES MIN.
S/R SHALL WITHSTAND WEIGHT OF 1N. SWINGING FROM LEFT TO
RIGHT AT AN ANGLE OF 60DEG. 1000CYCLE TIMES MIN.
TEST CONDITION TEST AT SURFACE OF THE CASE WITH TYPICAL INPUT TO OUTPUT APPEARNCE STRUCTURE
AND OPERATING THERE SHALL BE NO
NO SHORT CIRCUIT
NO BREAKAGE OF THE CORD
ABNORMALITY ON THE
ACCEPTANCE CRITERIA NORMAL TEMPERATURE THE CORD SHALL WITHSTAND WEIGHT OF 200g, SWINGING FROM 3.MECHANICAL
ACCEPTANCE CRITERIA TEMPERATURE UP UNDER AC INPUT AND TYPICAL LOAD IN OUTPUT
50/60Hz
35 DEGREES TEMPERATURE UP WITH GRADUALLY RAISED FROM 0 TO THE 3000Vac AND HELD AT
THAT VALUE FOR 3S,5mA
>50M Ω
1YEARS ABOVE
2YEARS ABOVE
TYPICAL INPUT&FULL LOAD, 40℃TYPICAL INPUT&FULL LOAD, 25℃MTBF TYPICAL INPUT&FULL LOAD , 25℃50000 HOURS
2~4 HOURS AT 30℃(±10℃),NORMAL INPUT VOLTAGE
:96(L)X43.7(W)X27.8(H)mm :ABOUT 175g :2PIN 美规 8字尾 线身长:1.2±0.05M :5.5×2.5×10 S TYPE 音叉沟槽
:USE 2468 20AWG WIRE :LABEL :94V-0 PC+ABS :94V-0
7.SAFETY
STANDARD UL60950J609508.QC CHECK ALL OF THE QUANTITY SHALL BE CHECKED BEFORE SHIPMENT,CHECK ITEM AS BELOW:
(1)DC PLUG POLE CHECK
(2)OCP FUNCTION CHECK
(3)DC OUTPUT VOLTAGE CHECK
(4)HIPOT&INSULATION CHECK
(5)OUTLOOKING CHECK
JD50163955
FILE NO.
E241618 CASE MATERIAL
PCB MATERIAL WEIGHT
AC INPUT TYPE
FCC CE
UL CUL
COMPLY SAFETY STANDARDS PSE
EMI
INDICATION
6.OUTLOOKING
DC OUTPUT CABLE
DC OUTPUT TYPE DIMENSION
音叉沟槽。
