磁力锁说明书

合集下载

单管塔磁性防盗锁磁力锁产品技术手册

2：放置磁性锁
将锁舌挡板拆下，双锁紧螺母拆卸后，把锁旋转放入 D52mm 的门孔中，套上防水像皮止圈，拧上 M50 双锁紧螺母。
3：锁紧固定螺母组
将锁舌固定板套上锁具，拧上 M18 双锁紧螺母，固定后用钥匙调整档板的拉置即可使用。
4：安全性检查
本锁具内置磁性，具有很高的防盗性能，一般常规的方式无法将其打开，具有一定的防盗性能。完成安装后,用专用磁性钥匙,检查开闭程度与锁紧度,如果较松,可适当调整楔形块的倾斜角度.
富阳佳淇通信技术有限公司-单管塔磁性防盗锁技术说明书
2、磁性锁及钥匙的磁体部分不得接触高温,油污,避免剧烈震动,以防失去磁性,导致功能丧失 3、锁体内部含有精密部件,请不要随意打开.确实需要更换零部件的,请及时与厂家联系. 4、为了保持锁具良好的性能,请勿置放于粉尘较多的环境下,不要将锁眼
堵塞,不得随意往锁体内添加黄油,润滑油,以防灰尘粘附. 5、锁具本体均为 SUS304 高强度不锈钢材质,工作环境在-15℃~+45℃之间,如果超过此环境,有
1：新产品：本产品是拥有知识产权的专利产品（专利证号 200920197683.9），是受法律保护的，在通信铁塔领域具有一定影响力的知名品牌产品，可排除一切知识产权纠纷，客户可放心使用。
2：新材料：本产品主体材料为 304 高强度不锈钢，具有很强的抗冲击与抗扭性，磁性材料采用钕铁硼强力磁铁，等级 N52，锁紧螺母与挡板固定螺母均为高强度不锈钢细牙，防盗性能极高。
2：将锁舌挡板拆下，双锁紧螺母拆卸后，把锁旋转放下D50的门孔中，套上防水像皮止圈，拧上M50双锁紧螺母。
3：将锁舌固定板套上锁具，拧上M18双锁紧螺母，固定后用钥匙调整档板的拉置即可使用。
4：本锁具内置磁性，具有很高的防盗性能，一般常规的方式无法将其打开，具有一定的防盗性能。

磁力锁、电插锁、电动开门机说明书

磁力锁电插锁电动开门机规格书技术参数（DAIC-MJ-DCLS）产品名称：280KG单门磁力锁（带信号输出)产品图片：产品概述：磁力锁（或称电磁锁）的设计和电磁铁一样，是利用电磁的原理，当电流通过硅钢片时，磁力锁会产生强大的吸力紧紧吸住铁板；只要非常小的电流就会让磁力锁产生很大的磁力，从而能有效地控制门的开关。

深圳多奥磁力锁采用国际领先的生产和封装工艺，不仅让磁力锁表面抗氧化能力达到国际领先水平，还使磁力锁的拉力远高于同类产品达20%以上。

我们的产品已远销到全球六十个国家或地区，且广泛应用于机场、地铁、银行、监狱、智能大厦、智能小区等重要场所，为全球用户提供方便、快捷、智能化的出入口管理锁具，受到了用户的广泛好评和青睐。

产品优势：◆ 250KG±10%静态直线拉力◆ 可自行设定12VDC±10% 或24VDC±10%◆ 内置反向电流保护装置（MOV）◆ 防残磁设计，防磨损材料制造◆ 铝外壳采用高强度合金材料◆ 双重锁体绝缘处理◆ 完全电磁吸力工作，不存在机械故障技术参数：锁体尺寸：长250x宽47x厚26(mm) 吸板尺寸：长180x宽38x厚11(mm) 工作电压：DC12V±10%/DC24V±10% 工作电流：480mA±5%/240mA±5%信号输出：锁状态信号输出延时开门：无安全类型：断电开门适用门型：木门\玻璃门\金属门\防火门等质量认证：CE/FCC/CMA/ROHS 选配支架：DA-280L/280U/280ZL产品尺寸：产品规格书（DAIC-MJ-LXS）产品名称：灵性锁（电机锁)产品图片：产品概述：电机锁(或称灵性锁)的设计有效结合了传统电控锁及磁力锁的优点，克服了电控锁噪音过大、磁力锁耗电等方面的不足而开发的新产品，电机锁与电控锁和磁力锁相比较，它的性能更加的完善、优点更加明显，可与楼宇对讲、门禁等智能化系统配套使用。

标准电磁锁-10010 20 40 60型号安装说明书

REV 1.0Fitting Instructions for Standard Electro Magnetic Lock - Model 10010/20/40/60The fixing option you use will depend on the height and depth of the Door frame header.1. Fig. 1 shows an outward opening door with a deep frame header. The Standard Flat Mounting plate which comes with the magnet can be used if measurement 'A' is at least 60mm (2.36") and 'B' is at least 80mm (3.15").2. Fig. 2 shows an outward opening door with a shallow frame header. The optional Transom 'L' bracket (AC-EMBR006) must be used if measurement 'A' is less than 45mm (1.75") and 'B' is at least 80mm (3.15").3. Fig. 3 shows an inward opening door for which the 'Z&L' bracket set must be used. The optional 'Z&L' bracket set (AC-EMBR026F) must be used if measurement 'A' is up to 20mm (0.78") and 'B' is at least 60mm (2.36"), 'C' must be at least 60mm (2.36").If any of the above measurement requirements do not match you may need to use a different magnetic lock . Important points to consider during installation:1. Check that the door is properly aligned with the door frame when in the closed position. If the gap around the door and frame is not equal the magnet should not be fitted until the door is correctly aligned.2. Always handle the equipment with care as damage to the mating surfaces of the magnet or armature plate may reduce locking efficiency.3. Ensure the correct screws and fittings from the fixing pack are used as incorrect screws or fittings will affect the operation of the magnetic lock and armature plate.4. It is essential that the magnetic lock and armature plate are correctly aligned and installed correctly.5. When using the template the door must be in the closed and latched position.6. Thread lock must be applied to all threads on the magnetic lock and fixing brackets and the armature Standard magnetic lock is suitable for Timber or Aluminium Entry and Exit doors to provide controlled access via an Access Control System. It should not be used as the only lock securing the door, a mortice deadlock or similar should also be fitted.It can also be used on an Internal door when a stronger holding force may be needed.It is essential that the Header Frame and Top Rail of the door are strong enough to accommodate the magnet and Armature Plate, if in doubt consult door and frame supplier for advice.NOTE: THIS LOCK IS SUITABLE FOR SOLID DOORS 35-53mm THICK OR HOLLOW DOORS 35-46mm THICK.A B C D E F G H I J LM N OFIXING PACK CONTENTS QTY M8 Counter sunk Allen bolt 50mm (2") long1Dome nut 41 x 12mm (1.6x0.5") ChromeAluminium spacer 43 x 16mm (1.7x0.63") (For hollow doors)No 10. 32mm (No 10x1.25") Csk wood screwNo 8. 15mm (No 8x0.6") Csk wood screw (for slotted holes)Steel washer 22mm (0.87") diameter (for Armature plate)Rubber washer 15mm (0.6") diameter (for Armature plate)*Guide pin 16 x 5mm (0.63x0.2") (split dowel)M5 x 8mm (0.31") Csk Machine screw M4 x 25mm (0.5") Csk screw (thread relieved)Allen key wrench 5 x 80mm (0.2x3.15")M8 Nylock nut (for use with 'Z' bracket)M6 Allen bolt 36mm (1.42") long Incl head**Metal spacer 21 x 9mm (0.83x0.35")**1111822222222A B C D E FG H IJLM N O * + 1 Spare(see Fig.1).2. With the door closed and latched fix the template to the door and frame. Place the edge of the template 60mm (2.4") from the side frame (see Fig.4).3. Mark the centre of each hole shown on the template and drill holes to size and depth stated on Template.4. From the outside of the door enlarge the 9mm hole to 12mm to a depth of 36mm (On Hollow doors enlarge the hole to 16mm through the outer door skin only to accomodate the a hollow door push the the Aluminium spacer (C) into the 16mm hole then cut down flush with door face. Push Dome nut (B) into Spacer (C).6. Gently tap the 2 guide pins (H) into the holes on the back of the Armature plate. Push the M8 50mm Allen bolt (A) through the countersunk hole in the Armature plate. Slide a Steel washer (F) over the M8 Allen bolt at the back of the Armature plate followed by a Rubber washer (G) and a Steel washer (F). (see Fig.5).7. Fix the Armature plate to the door using the Allen key (L) and tighten until the Armature plate sits 3-5mm away from 8. Using the Allen key wrench (L) remove the two M6 Allen bolts (N) and metal spacer (O) through the holes at the base of the magnetic lock. Slide the Mounting plate forward and lift up to remove it from the lock (see Fig.6).10mm cable hole is visible through the oval hole of the plate.Fix using two No 8 15mm Csk screws (E) through the slotted holes into pilot holes drilled previously (see Fig.7).Oplate towards the Armature plate until the edges are 2-3mm apart and parallel along the length of the armature plate (see Fig.8).O14. Hold the Magnet with the front facing the armature plate and the mushroom head screws at the top. Lift the magnet up onto the Mounting plate with the mushroom head screws located into the 13mm slotted holes and push forward towards the Armature plate. (see Fig.10).15. Fix the magnet to the mounting plate using two M6 Allen bolts (N) and Metal Spacer (O) fixed through the holes in the bottom of the magnet and tighten with the Allen key wrench (L).frame (see Fig.11) and connect to Magnet PCB as per wiring instructions on pages 7&8.17. Apply voltage to the Magnet. Close the door andcheck Armature plate is correctly aligned with the magnet. Apply firm pressure against the door to check magnet is holding properly. Remove voltage and open the door.apply Thread lock. Re-fit as per steps 6&7.19. Remove one at a time the M6 Allen bolt (N) from the bottom of the magnet and apply Thread lock. Re-fit as per step 15.20. Using the two M4 25mm Csk screw (J) fix the PCB cover plate in position on the magnet and into the counter sunk hole at the opposite end (see Fig.12). These screws will prevent the M6 Allen bolt from unscrewing (see Fig.12A).11. Mark the centres of the 6 countersunk holes through the Mounting plate.12. Drill six 3.2mm dia. holes to a depth of 25mm for the No 10. 32mm Csk screws.13. Fix the Mounting plate with the 6 No. 10 32mm Csk screws (D). (see Fig.9).ALLEN BOLTS FROM UNSCREWINGFIG 17Head Frame. (see Fig.2).2. With the door closed and latched, tape the template to the door and frame. Place the edge of the template 60mm from the side frame. (see Fig.13).3. Mark vertical lines for the 'L' bracket at the edge of the template, mark centre of each hole shown on the template. Drill all holes to the size and depth shown on template.4. From the outside of the door enlarge the 9mm hole to 12mm to a depth of 36mm (on a hollow metal door drill a 16mm hole through the outer door skin only to accommodate a hollow door push the the Aluminium spacer (C) into the 16mm hole then cut down flush with door face. Push Dome nut (B) into Spacer (C).6. Gently tap the 2 guide pins (H) into the holes on the back of the Armature plate. Push the M8 50mm Allen bolt (A)through the counter sunk hole in the Armature plate followed by one Rubber washer (G) sandwiched between 2 Steel washers (F) behind the Armature plate. (see Fig.14).7. Fix the Armature plate to the door using the Allen key (L) and tighten until the Armature plate sits 3-5mm away from the 8. Using the Allen key wrench (L) remove the two M6 Allen bolt (N) and Metal spacer (O) through the bottom of the magnetic lock. Slide the Mounting plate forward and lift up to remove it from the magnet. (see Fig.15).9. Remove the two Mushroom head screws from the top of the magnet and replace with the two M5 8mm machine screw (I).10. Use the Transom 'L' bracket (AC-EMBR006) as atemplate. Place the short side between the vertical lines on the frame (make sure it is flat against the frame) the bottom of the bracket should be 5mm below the underside of the frame header (fig 16).12. With the door closed and latched place the face of the magnet so that it touches the Armature plate and check that the hole in the top of the magnet lines up with one of the tapped holes on the bracket. If the holes do not line uploosen the M8 Allen bolt (A) making sure the gap behind the14. Pass lock cable through the cable entry hole (see Fig.19) and connect to Magnet PCB as per the wiring instructions on pages 7&8.15. Apply voltage to the Magnet. Close the door and check Armature plate is correctly aligned with the magnet. Apply firm pressure against the door to check magnet is holding properly. Remove voltage and open the door.16. Remove M8 Allen bolt (A) from Armature plate and apply Thread lock. Re-fit as per step 6&7.17. Remove one at a time the M6 Allen bolt (N) from the bottom of the magnet and apply Thread lock. Re-fit as per step 13.18. Using the two M4 25mm Csk screw (J) fix the PCB Cover plate in postion on the magnet and into the counter sunk hole at the opposite end (see Fig.20). These screws will prevent the M6 Allen bolt from unscrewing (see Fig.20A).13. Fix the magnet to the bracket using two M6 Allen bolts (N) and Metal spacer (O) fixed through the holes in thebottom of the magnet and tighten with the Allen key wrench (L). (see Fig.18).OALLEN BOLTS FROM UNSCREWINGFixing detail - Standard Double Magnetic Lock - Models 10040 and 10060REV 1.0Installation to Deep Header frame using Flat Mounting PlateInstallation to Shallow Header frame using 2 Transom 'L' BracketsThe Standard Double magnetic locks are used for a pair of double doors. They are fixed in exactly the same way as the Single version using 2 fixing packs.1. With both doors closed and latched fix the template across the centre of both doors and continue as steps 3&4 on page 2 (see Fig. 21).2. Fit the 2 Armature plates to each door as per steps 5-7 (Fig.5) on page 2.3. Remove the four M6 allen bolts (N) and Metal spacers (O) as per step 8 page 2 (see Fig.22).4. Fix the Mounting plate using 4 No.8 15mm Csk screws (E) as per step 9 page 2. Ensure Mounting plate is adjusted correctly as per step 10 (Fig.8) page 2.5. Fix the mounting plate using 12 No. 10 32mm Csk screws (D) as per steps 11-13 (Fig.9) page 3.6. Fix the Magnet to the mounting plate using four M6 Allen bolts (N) & Metal Spacers (O) as per steps 14&15 page 3.7. Fit 2 seperate cables for each magnet PCB as per steps 16&17 (Fig.11) page 3.8. Apply Thread lock to Allen Bolts as per steps 18&19 page 3.9. Fit four M4 25mm Csk screws (J) as per step 20 (Fig.12) page 3.1. With both doors closed and latched fix the template across the centre of both doors and continue as steps 3&4 on page 4 (see Fig. 23).2. Fit the 2 Armature plates to each door as per steps 5-7 (Fig.5) on page 4.3. Remove the four M6 allen bolts (N) and Metal spacers (O) as per step 8&9 page 4 (see Fig.22).4. Place the two 'L' brackets together and continue as per steps 10&11 page 4 (see Fig.24).5. Close both doors and line up Magnet with brackets as per step 12 (Fig.17) page 4.6. Fix the Magnet to the 2 'L' brackets using four M6 Allen bolts (N) & Metal Spacers (O) as per step 13 (Fig.18) page 5.7. Fit 2 seperate cables for each magnet PCB as per steps 14&15 (Fig.19) page 5.8. Apply Thread lock to Allen Bolts as per steps 16&17 page 5.9. Fit four M4 25mm Csk screws (J) as per step 18 (Fig.20) page 5.The standard magnet is designed to be operated by 12 or 24 volt DC systems. The Printed Circuit Board (PCB) in the magnet is factory set for 12V operation but can easily be changed for 24V operation (see wiring detail). The PCB also has built - in protection against Back EMF surges which means a seperate Diode or MOV is not needed. Because the magnet is Fail Unlock (Fail Safe) it needs a constant DC supply to hold the Armature plate in position, it is therefore recommended that a Rechargable Battery is fitted in the Power supply.Important Points to consider before Installation:-1. The Magnet must be connected to a Regulated DC Power supply (Ideally with BatteryBackup facility).2. Input voltage at the magnet PCB must be 12 or 24V `10%3. The PCB already has built-in protection against Back EMF surges.4. The Maximum current draw for 12V is 500mA and for 24V 250mA (Double version willdraw twice as much).5. DO NOT reverse polarity as this will result in damage to the PCB and Coil.6. There are two versions of the PCB - Unmonitored (Models 10010 and 10060) andMonitored (Models 10020 and 10040).7. Ensure all cabling and wiring connections conform to current Electrical Legislation.1. Check magnet PCB is set for correct voltage (Factory setting is 12V).2. Connect Negative Output (-) from Power Supply to terminal 2 (-) on Magnet PCB.3. Connect Positive Output (+) from Power Supply to Common of Relay or Exit switch.4. Connect Normally Closed (N/C) on Relay or Exit switch to terminal 1 (+) on Magnet PCB.5. With the door open switch Power supply On and check that the Magnet will hold a Screwdriver.6. Operate the Access Control Relay or Exit switch whilst holding the screwdriver to check magnet is working.7. If the Screwdriver is released close the door and check the Holding force by pulling / pushing the door.8. Re-fit the PCB cover plate with M4 25mm Csk Screw (J).RELAY OR EXIT SWITCH1. Check Magnet PCB is set for correct voltage (Factory setting is 12V).2. Connect Negative Output (-) from Power Supply to terminal 2 (-) on Magnet PCB.3. Connect Positive Output (+) from Power Supply to Common of Relay or Exit switch.4. Connect Normally Closed (N/C) on Relay or Exit switch to terminal 1 (+) on Magnet PCB.5. Connect Positive Output (+) from Power Supply to terminal 4 (Common) on Magnet PCB.6. Connect Negative Output (-) from Power Supply to Negative (-) terminal on each Lamp.7. Connect terminal 3 (NO) to Positive (+) terminal of Lamp (DOOR LOCKED).8. Connect terminal 5 (NC) to Positive (+) terminal of Lamp (DOOR OPEN).9. With the door open switch Power supply On and check that the Magnet will hold a screwdriver.10. Operate the Access Control Relay or Exit switch whilst holding the screwdriver to check magnet is working.11. If the Screwdriver is released close the door and check the Holding force by pulling / pushing the door.12. Check that the 2 Lamps are working correctly when the Magnet locks and unlocks.13. Re-fit the PCB cover plate with M4 25mm Csk Screw (J).。

LK-M012L MAGLOCK 1200 LBS 磁力锁说明书

LK-M012LMAGLOCK 1200 LBS with Lock Status and IndicatorJune 2012Installation Manual11. IntroductionThe LKM12L is a surface mounted magnetic lock series with 1200 lbs holding force. LKM12L has dual voltage (12 or 24 VDC) and lowcurrent consumption with anodized aluminum housing. LKM12L has a built-in voltage spike suppressor and no residual magnetism. Monitored status output and timer versions are available. Different types of bracket and housing are available to fit various mounting conditions.LKM12L is compatible with EN55011:1998: Class B, EN60601-1-2:2002, EN61000-4-2:1995, EN61000-4-3:2002 & UL-S5351.Figure 1: LKM012L2. Technical Specifications2.1Electrical Characteristics2.2 Physical Characteristics3. MountingBefore attempting to install magnetic lock: ▪ Handle the equipment with care. Damaging the mating surfaces of the magnet or armature plate may reduce locking efficiency. ▪The magnet mounts rigidly to the door frame. The armature plate mounts to the door with hardware. Kit provided that allows it to pivot about its center to compensate for door wear and misalignment.▪ Template use must take place with the door in its normally closed position.▪Before installing, please add the thread locker to all screws. Firmly tighten the screws to avoid fastening loosen.Typical mountings are shown in Figure 2.Figure 2: Surface MountingWhen fixing the armature plate: ▪ Do not fix the plate too tightly▪Make the rubber washer more flexible to make the armature plate automatically adjust its proper position with the magnetFigure 3 shows how to mount an armature plate/surface.Figure 3: Armature Plate/Surface Mounting4. W iring4.1I nputFor a 12 VDC input, a maximum of 0.5 A power is needed. For a 24 VDC input, a maximum of 0.25 A power is needed. The unit should only be powered by a UL listed power supply. If the power switch is not wired between the DC source voltage and magnet, it will take a longer time to de-energize the magnet simulating residual magnetism (see Figure 8).Figure 4: WiringTo wire input:1.Connect the ground (-) lead from the power source to Terminal 2. 2.Connect the positive (+) lead from the power source to Terminal 1.3.Set the jumper for either 12 or 24 VDC operation.4.2C ontactsThe relay dry contacts are rated 1 amp at 24 VDC for safe operation – do not exceed this ratingIf you require a normally open switch, connect the wires from the system to terminal 4 and terminal 3.If you require a normally closed switch, connect the wires from the system to terminal 4 and terminal 5.Figure 7 shows various PCB schematics with the jumper settings.Figure 5: PCB SchematicLimited WarrantyROSSLA RE ENTERPRISES LIMITED (ROSSLARE) ONE-YEAR LIMITED WA RRA NTY is applicable worldwide. This warranty supersedes any other warranty. ROSSLARE'S ONE-YEAR LIMITED WARRANTY is subject to the following conditions:W ARRANTYWarranty of ROSSLARE'S products extends to the original purchaser (Customer) of the ROSSLARE product and is not transferable.P RODUCTS C OVERED B Y T HIS W ARRANTY AND D URATIONROSSLA RE ENTERPRISES LTD. AND/OR SUBSIDIA RIES (ROSSLA RE) warrants that the LK-M12L Maglock to be free from defects in materials and assembly in the course of normal use and service. The warranty period commences with the date of shipment to the original purchaser and extends for a period of 1 year (12 months).W ARRANTY R EMEDY C OVERAGEIn the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty. Unless otherwise requested by a ROSSLARE representative, return of the failed product(s) is not immediately required.If ROSSLA RE has not contacted the Customer within a sixty (60) day holding period following the delivery of the warranty claim, Customer will not be required to return the failed product(s). A ll returned Product(s), as may be requested at ROSSLA RE’S sole discretion, shall become the property of ROSSLARE.To exercise the warranty, the user must contact ROSSLARE Enterprises Ltd. to obtain an RMA number after which, the product must be returned to the Manufacturer freight prepaid and insured.In the event ROSSLARE chooses to perform a product evaluation within the sixty (60) day holding period and no defect is found, a minimum US$ 50.00 or equivalent charge will be applied to each Product for labor required in the evaluation.ROSSLARE will repair or replace, at its discretion, any product that under normal conditions of use and service proves to be defective in material or workmanship. No charge will be applied for labor or parts with respect to defects covered by this warranty, provided that the work is done by ROSSLARE or a ROSSLARE authorized service center. E XCLUSIONS AND L IMITATIONSROSSLA RE shall not be responsible or liable for any damage or loss resulting from the operation or performance of any Product or any systems in which a Product is incorporated. This warranty shall not extend to any ancillary equipment not furnished by ROSSLARE, which is attached to or used in conjunction with a Product, nor to any Product that is used with any ancillary equipment, which is not furnished by ROSSLARE.This warranty does not cover expenses incurred in the transportation, freight cost to the repair center, removal or reinstallation of the product, whether or not proven defective.Specifically excluded from this warranty are any failures resulting from Customer's improper testing, operation, installation, or damage resulting from use of the Product in other than its normal and customary manner, or any maintenance, modification, alteration, or adjustment or any type of abuse, neglect, accident, misuse, improper operation, normal wear, defects or damage due to lightning or other electrical discharge. This warranty does not cover repair or replacement where normal use has exhausted the life of a part or instrument, or any modification or abuse of, or tampering with, the Product if Product disassembled or repaired in such a manner as to adversely affect performance or prevent adequate inspection and testing to verify any warranty claim.ROSSLARE does not warrant the installation, maintenance, or service of the Product. Service life of the product is dependent upon the care it receives and the conditions under which it has to operate.In no event shall ROSSLARE be liable for incidental or consequential damages.L IMITED W ARRANTY T ERMSTHIS WARRANTY SETS FORTH THE FULL EXTENT OF ROSSLARE’S WARRANTY.THE TERMS OF THIS WARRANTY MAY NOT BE VARIED BY ANY PERSON, WHETHER OR NOT PURPORTING TO REPRESENT OR ACT ON BEHALF OF ROSSLARE.THIS LIMITED WA RRA NTY IS PROVIDED IN LIEU OF A LL OTHER WA RRA NTIES.A LL OTHER WA RRA NTIES EXPRESSED OR IMPLIED,INCLUDING WITHOUT LIMITATION, IMPLIED WA RRA NTIES OF MERCHA NTA BILITY A ND FITNESS FOR A PA RTICULAR PURPOSE, ARE SPECIFICALLY EXCLUDED.IN NO EVENT SHA LL ROSSLARE BE LIA BLE FOR DA MA GES IN EXCESS OF THE PURCH A SE PRICE OF THE PRODUCT,OR FOR A NY OTHER INCIDENT A L, CONSEQUENTIAL OR SPECIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF USE,LOSS OF TIME,COMMERCIA L LOSS,INCONVENIENCE,A ND LOSS OF PROFITS, ARISING OUT OF THE INSTALLATION, USE, OR INABILITY TO USE SUCH PRODUCT, TO THE FULLEST EXTENT THAT A NY SUCH LOSS OR DA MA GE MA Y BE DISCLA IMED BY LAW.THIS WARRANTY SHALL BECOME NULL AND VOID IN THE EVENT OF A VIOLATION OF THE PROVISIONS OF THIS LIMITED WARRANTY.Contact InformationAsia Pacific, Middle East, Africa Rosslare Enterprises Ltd.Kowloon Bay, Hong KongTel: +852 2795-5630Fax: +852 2795-1508********************************* United States and Canada Rosslare Security Products, Inc. Southlake, TX, USA 76092Toll Free: +1-866-632-1101Local: +1-817-305-0006Fax: +1-817-305-0069*******************************EuropeRosslare Israel Ltd.Rosh HaAyin, Israel 48091Tel: +972 3 938-6838Fax: +972 3 938-6830*******************************Latin AmericaRosslare Latin AmericaBuenos Aires, Argentina 1642*******************************ChinaRosslare Electronics (Shenzhen) Ltd.Shenzhen, ChinaTel: +86 755 8610 6842Fax: +86 755 8610 6101******************************* 76-96448+2。

磁力锁使用说明书

磁力锁使用说明书
1.磁力锁的设计和电磁铁一样，当电流通过硅钢片时，电磁锁会产生强大的吸力紧紧的吸住吸附铁板达到锁门的效果。

只要小小的电流电磁锁就会产生莫大的磁力，控制电磁锁电源的门禁系统识别人员正确后即断电，电磁锁失去吸力即可开门。

2.技术原理：
因为电磁锁没有复杂的机械结构以及锁舌的构造，适用在逃生门或是消防门的通路控制。

其内部用灌注环氧树酯(epoxy)保护锁体。

目前电磁锁的吸力强度以LB表示(磅)，测试的方法是静态加压。

所谓静态加压就是电磁锁通电后慢慢地逐渐增加对吸附铁板的拉力，当超出电磁锁的吸力时瞬间拉开吸附铁板，此拉力的数据就是电磁锁的拉力值。

而且电磁锁与吸附铁板的作用力必须是面对面而且是直线加压(collinear load test)，如此电磁锁的吸力(Holding Force)才是最大。

吸附铁板因为长时间受电磁铁的磁力感应有可能被短暂磁化。

3.注意事项：
不要在继铁板或锁主体上钻孔；不要更换继铁板固定螺丝；不要用刺激性的清洁剂擦拭电磁锁；不要改动电路。

保养：磁力门锁的保养与其他锁类相比比较简单，只要保持继铁板和锁主体表面无杂质就可，所以请定期用非蚀性的清洁剂擦拭其表面。

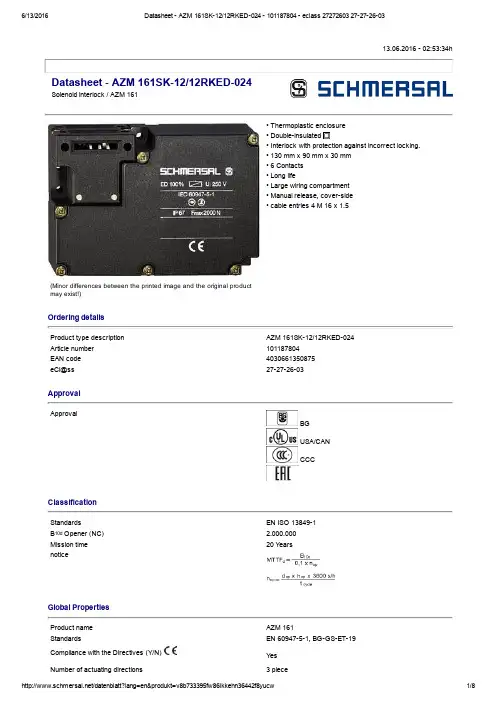

AZM 161SK_12 12RKED_024 电磁锁说明书

13.06.2016 02:53:34hDatasheet AZM 161SK12/12RKED024Solenoid interlock / AZM 161(Minor differences between the printed image and the original product may exist!)• Thermoplastic enclosure• Doubleinsulated• Interlock with protection against incorrect locking.• 130 mm x 90 mm x 30 mm • 6 Contacts • Long life• Large wiring compartment • Manual release, coverside • cable entries 4 M 16 x 1.5Ordering detailsProduct type description AZM 161SK12/12RKED024Article number 101187804EAN code 4030661350875eCl@ss 27272603ApprovalApprovalBG USA/CAN CCCClassificationStandards EN ISO 138491B 10d Opener (NC) 2.000.000Mission time 20 Y earsnoticeGlobal PropertiesProduct name AZM 161StandardsEN 6094751, BGGSET19Compliance with the Directives (Y/N) Y es Number of actuating directions3 pieceActive principle electromechanicalDuty cycle Magnet 100 %Materials Material of the housings Plastic, glassfibre reinforced thermoplastic, selfextinguishing Material of the contacts SilverHousing coating NoneWeight428 gMechanical dataActuating play in direction of actuation 5.5 mmDesign of electrical connection Screw connectionCable section Min. Cable section1 x 0,25 mm² Max. Cable section1 x 1.5 mm²Mechanical life> 1.000.000 operationsnotice All indications about the cable section are including theconductor ferrules.Emergency unlocking device (Y/N)NoManual release (Y/N)Y esEmergency release (Y/N)NoLatching force30 NPositive break force20 Npositive break travel10 mmClamping force F2000 NMax. Actuating speed2 m/sActuating frequency max. 1000 / hAmbient conditionsAmbient temperature Min. environmental temperature−25 °C Max. environmental temperature+60 °CProtection class IP67 to IEC/EN 60529Electrical dataDesign of control element Normally open contact (NO), Opener (NC) Switching principle Creep circuit elementNumber of auxiliary contacts2 pieceNumber of safety contacts4 piecePower to unlock Y esPower to lock NoRated control voltage U s24 VAC/DCPower consumption max. 10 WRated impulse withstand voltage U imp4 kVRated insulation voltage U i250 VThermal test current I the6 AUtilisation category AC15: 230 V / 4 A,DC13: 24 V / 2,5 ARequired rated shortcircuit current1000 AMax. fuse rating6 A gG Dfuse To DIN EN 602691ATEXExplosion protection categories for gases NoneExplosion protected category for dusts NoneMiscellaneous dataApplicationssliding safety guard,removable guard,hinged safety guardDimensionsDimensions of the sensor Width of sensor130 mm Height of sensor90 mm Length of sensor30 mmnoticeManual release• For maintenance, installation, etc.• For manual release using M5 triangular key, available as accessory• Topside (ordering suffix ED) or rearside (ordering suffix EU) mounting possible• A combination of manual release and emergency exit in different mounting directions in only possible for the following variants: ED/TU and TD/EUDiagramNote Diagrampositive break NC contactactiveno activeNormallyopen contactNormallyclosed contactSwitch travel diagramNotes Switch travel diagramContact closedContact openSetting rangeBreak pointPositive opening sequence/ angleVS adjustable range of NO contactVÖ adjustable range of NC contactN after travelOrdering suffixThe applicable ordering suffix is added at the end of the part number of the safety switch.Order example: AZM 161SK12/12RKED024G...GProtected against incorrect polarity and voltage spikes.limited terminating space 0,75 mm²Diagram14 guard open13 +24 VDC63 0 VDC64 unlockedOrdering codeAZM 161 (1)(2)(3)K(4)(5)(6)(7)(1)SK Screw connectionCC Cage clampsST male connector M12, 8 and 4poles(Only for U s: 24 VAC/DC)(2)12/122 Normally open contact (NO) / 4Opener (NC)12/112 Normally open contact (NO) / 3Opener (NC) (Plugin connection)11/122 Normally open contact (NO) / 3Opener (NC) (Plugin connection)(3)without Latching force 5 NR Latching force 30 N(4)without Power to unlockA Power to lock(5)without Manual release lateralED Manual release coversideEU Manual release rearT Emergency exit lateralTD Emergency exit coversideTU Emergency exit rearN Emergency release(6)024U s: 24 VAC/DC110/230U s: 110/230 VAC(7)G with LED (Only for U s: 24 VAC/DC)DocumentsOperating instructions and Declaration of conformity (sv) 423 kB, 15.08.2012 Code: mrl_azm161_svOperating instructions and Declaration of conformity (es) 566 kB, 09.03.2016 Code: mrl_azm161_esOperating instructions and Declaration of conformity (de) 439 kB, 29.01.2016 Code: mrl_azm161_deOperating instructions and Declaration of conformity (pt) 402 kB, 10.07.2014 Code: mrl_azm161_ptOperating instructions and Declaration of conformity (en) 443 kB, 29.01.2016 Code: mrl_azm161_enOperating instructions and Declaration of conformity (pl) 424 kB, 24.03.2014 Code: mrl_azm161_plOperating instructions and Declaration of conformity (fr) 401 kB, 14.04.2014 Code: mrl_azm161_frOperating instructions and Declaration of conformity (cs) 425 kB, 15.08.2012 Code: mrl_azm161_csOperating instructions and Declaration of conformity (jp) 481 kB, 11.03.2014 Code: mrl_azm161_jpOperating instructions and Declaration of conformity (it) 392 kB, 11.03.2014 Code: mrl_azm161_itOperating instructions and Declaration of conformity (nl) 425 kB, 15.08.2012 Code: mrl_azm161_nlBGtest certificate (de) 140 kB, 20.05.2015Code: z_m16p01BGtest certificate (en) 134 kB, 20.05.2015Code: z_m16p02CCC certification (en) 596 kB, 23.06.2014Code: q_371p02CCC certification (cn) 607 kB, 23.06.2014Code: q_371p03EAC certification (ru) 809 kB, 05.10.2015Code: q_6040p17_runotice (de, en) 88 kB, 27.09.2007Code: s_161p01ImagesDimensional drawing (basic component)Operating principleSystem componentsActuator101145117 AZM 161B1101144416 AZM 161B1E101171859 AZM 161B1ES101175431 AZM 161B1F101171125 AZM 161B1S101173089 AZM 161B12053 WITH BALL LATCH101164100 AZM 161B11747 WITH MAGNETIC LATCH101178199 AZM 161B12024101176642 AZM 161B12177 WITH CENTERING GUIDE101174113 AZM 161B62177 WITH CENTERING GUIDE • For very smal actuating radii101170375 AZM 161B6S101144420 AZM 161B6• For very smal actuating radiiDoorhandle systemAZM 161STS30• Latching handle• Suitable for all types of guardAccessories101100887 TRIANGULAR KEY TKM5• For manual release using M5 triangular key, available asaccessory• For maintenance, installation, etc.101149213 Mounting set MS AZM 161 R/P101150376 Mounting set MS AZM 161 PK.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 13.06.2016 02:53:36h Kasbase 3.2.2.F.64I。

磁力锁说明书Word版

1、吸力强，磁吸力为280kg。

本锁利用优质电工材料和先进加工工艺制造而成，外型美观，吸力强，无剩磁。

2、无机械磨损，克服一般要机械锁和电子锁缺陷，使用寿命长。

3、电源为12/24伏双直流电压入口。

4、启动电流0.45A，持续电流为0.45A，温升为室温+15℃。

锁体尺寸：250*47*25mm吸合力：280kg（静态直线）电压：DC12V\DC24V电流：480mA\240mA安装方式：明装状态指示灯：LED安全类型：断电开锁电磁锁的安装方法电磁锁(磁力锁)的标准安装方法[图]一．外开门的表面安装方法：（参照图一至图八）第一步：首先用螺丝刀打开盖板，再用六角扳手打边板，准备安装（见图一）第二步：拿出安装纸板，将纸板沿着虚线折叠按图二所示方法把纸板放到所需装锁的位置,然后把需要打孔的地方做上记号后打孔.第三步：A.继铁板的固定（参见图三）将内六角螺丝插入继铁板中，把橡胶华司置与两片金属华司之间，然后套在内六角螺丝上。

将继铁板插入门上打的三个孔中，同时把香菇头从门的另一面插入，利用六角扳手将继铁板锁在门上。

B．边板的固定（参见图三）把边板用两个半圆头螺丝固定在先前打孔的门框上（固定在边板的长形孔中）。

注意：不要将边板锁紧，让其能前后能移动以利于安位置的修正。

C．修正边板的位置使边板与继铁板的位置合适，目的使锁主体能与继铁板紧密的接触。

D：固定锁主体与边板锁紧边板的半圆头螺丝后，再锁上所有的沉头螺丝，然后再卸下半圆头螺丝，在适当的位置钻孔以便接线。

最后用六角扳手把锁主体锁在边板上。

(参见图四)第四步：按照说明书的指示接线。

第五步：盖上盖板，把小铝柱体塞进锁主体(参见图五)的螺丝孔中。

参见图六图七与图八所示为典型的外开门外置式的安装式样★安装注意事项在安装继铁板的时候，不要把它锁紧，让其能轻微摇摆以利于和锁主体自然的结合。

二、内开门的表面安装(ZL型支架的安装方法）：解决外装磁力锁的内装问题。

内开门做表面安装时需要有辅助配件来协助安装，我们选用富有装饰性的优质进口铝材来制做这种安装配件：Z&L支架。

D40ML系列RFID磁锁产品说明书

1Stainless SteelPlasticDie-cast MetalMagnetic latching combines with RFID technology to deliver high holding force and tamper resistance•RFID provide s a high degree of t a mper re s i s t a nce.•Cle a n/Sa nitize in Pl a ce – s t a inle ss s teel ver s ion s a re r a ted IP69K •LED s s upport e as y f a ult di a gno s i s •In s t a ll up to 20 s witche s in s erie s•Re s idu a l m a gneti s m a ct s as light door l a tch a fter unlocking •Two a ctu a tor type s with type 4 coding•B as ic – a ll a ctu a tor s in the s y s tem a re identic a lly coded.•Unique – every a ctu a tor i s individu a lly coded. 32,000,000 code s •Both offer toler a nce for mi sa lignment•Two s witch s ize s provide multiple holding force option s •Medium Duty-S t a inle ss S teel: F1m a x (typic a l) 600N, F zh 450N -Pl as tic a nd Diec as t: F1m a x (typic a l) 900N, F zh 675N •He a vy Duty-S t a inle ss S teel: F1m a x (typic a l) 950N, F zh 700N-Pl as tic a nd Diec as t: F1m a x (typic a l) 1500N, F zh 1150N •Three c as e m a teri a l sPl as tic, diec as t met a l, 316 s t a inle ss s teel•For u s e on m a chine s with no rundown time if power i s lo s tDiagnostic Indicator FunctionYellow LED indicates OPENS hown in Gu a rd Open Po s itionGreen LED indicates CLOSEDS hown in Gu a rd Clo s ed Po sition Switch StatusGuard Green LED Yellow LEDSafety OutputLockedClo s ed S te a dy Off Clo s ed S olenoid Power OFF (unlocked)Clo s ed Fl as hing Off Open Gu a rd Open Open Off S te a dy Open Door Forced OpenOpenOffFl as hingOpenD40ML Series2Ordering InformationSwitchesSpare ActuatorsNote:S p a re a ctu a tor s a re not a v a il a ble for uniquely coded s witche s.AccessoriesNote:1.The quick di s connect c a ble h as a n identic a l c a ble pining as the Cable Wiring on p a ge 42.Y92E-M12PUR S H8S M-L di s connect c a ble s a re a l s o comp a tible with D40ML.Case Material Holding Force F1max (typical)Actuator Type Cable Configuration Model Number316 S t a inle ssS teel (IP69K)600NUnique5m C a ble D40ML-SS2-U-5M10m C a ble D40ML-SS2-U-10MPigt a il w/ M12 Connector D40ML-SS2-U-M12B as ic5m C a ble D40ML-SS2-B-5M10m C a ble D40ML-SS2-B-10MPigt a il w/ M12 Connector D40ML-SS2-B-M12 950NUnique5m C a ble D40ML-SS1-U-5M10m C a ble D40ML-SS1-U-10MPigt a il w/ M12 Connector D40ML-SS1-U-M12B as ic5m C a ble D40ML-SS1-B-5M10m C a ble D40ML-SS1-B-10MPigt a il w/ M12 Connector D40ML-SS1-B-M12Pl as tic (IP67)900NUnique5m C a ble D40ML-P2-U-5M10m C a ble D40ML-P2-U-10MPigt a il w/ M12 Connector D40ML-P2-U-M12B as ic5m C a ble D40ML-P2-B-5M10m C a ble D40ML-P2-B-10MPigt a il w/ M12 Connector D40ML-P2-B-M12 1500NUnique5m C a ble D40ML-P1-U-5M10m C a ble D40ML-P1-U-10MPigt a il w/ M12 Connector D40ML-P1-U-M12B as ic5m C a ble D40ML-P1-B-5M10m C a ble D40ML-P1-B-10MPigt a il w/ M12 Connector D40ML-P1-B-M12Diec as t Met a l(IP67)900NUnique5m C a ble D40ML-M2-U-5M10m C a ble D40ML-M2-U-M12Pigt a il w/ M12 Connector D40ML-M2-U-M12B as ic5m C a ble D40ML-M2-B-5M10m C a ble D40ML-M2-B-10MPigt a il w/ M12 Connector D40ML-M2-B-M12 1500NUnique5m C a ble D40ML-M1-U-5M10m C a ble D40ML-M1-U-10MPigt a il w/ M12 Connector D40ML-M1-U-M12B as ic5m C a ble D40ML-M1-B-5M10m C a ble D40ML-M1-B-10MPigt a il w/ M12 Connector D40ML-M1-B-M12Product Description Model Number S t a inle ss S teel; IP69K; 950N; B as ic Code; Actu a tor D40ML-SS1-B-ACTS t a inle ss S teel; IP69K 600N; B as ic Code; Actu a tor D40ML-SS2-B-ACT Diec as t Met a l; IP67; 1500N; B as ic Code; Actu a tor D40ML-M1-B-ACTDiec as t Met a l; IP67; 900N; B as ic Code; Actu a tor D40ML-M2-B-ACTPl as tic; IP67; 1500N; B as ic Code; Actu a tor D40ML-P1-B-ACTPl as tic; IP67; 900N; B as ic Code; Actu a tor D40ML-P2-B-ACTProduct Description Model Number Quick Di s connect C a ble, 8-pin M12 to Flying Le a d s, PVC J a cket, 5 Meter Length D40ML-CBL-M12-5M Quick Di s connect C a ble, 8-pin M12 to Flying Le a d s, PVC J a cket, 10 Meter Length D40ML-CBL-M12-10MD40ML Series3SpecificationsNote:When the product u s e devi a te s from the s e ass umption s (different lo a d, oper a ting frequency, etc.) the v a lue s mu s t be a dju s ted a ccordingly.Codes and StandardsIEC 60947-5-3:2013, EN 60947-5-1:2004 + AC:2005 + A1:2009, EN 60947-1:2007 + A1:2011, EN I S O 13849-1:2008 + AC:2009, EN 62061:2005 + AC:2010 + A1:2013, I S O 14119:2013, UL508Safety Classificationand Reliability Data Minimum Switched Current 10VDC 1mA Dielectric Withstand 250VAC Insulation Resistance 100M ΩShock Resistance 11m s 30GVibration Resistance 10 to 55Hz, 1mm a mplitude Switching Distance S a o 1mm Clo s e; S a r 10mm OpenMisalignment Between s witch a nd a ctu a tor, 2mm in a ny direction Switching Frequency 1.0Hz m a ximum Response Time (On –> Off)10m s m a x.Operating Time (Off –> On)150m sApproach Speed200mm/m to 1000mm/sBody MaterialD40ML-P_: Pl as ticD40ML-M_: Diec as t Met a lD40ML-SS _: 316 S t a inle ss S teel Actu a tor S e a l: S iliconeEnc a p s ul a tion: High Temper a ture Epoxy Operating Temperature Range–25 to 40°CAmbient Operating Humidityup to 90% a t 25 ~ 40°CEnclosure Protection IP67 (Pl as tic or Diec as t Met a l)IP69K (S t a inle ss s teel ver s ion s with flying le a d s )Cable Type PVC 8 core, 6mm outer di a meter Mounting Bolts 2 × M5 Tightening torque 1.0Nm Mounting Position AnyPower Supply 24VDC ±10% (s elv / pelv)Power ConsumptionUnlocked: 50mA m a x.Locked:- Medium Duty 325mA m a x. - He a vy Duty 500mA m a x.Holding ForceMedium Duty- S t a inle ss S teel: F1m a x (typic a l) 600N, F zh *1 450N - Pl as tic a nd Diec as t: F1m a x (typic a l) 900N, F zh 675N He a vy Duty- S t a inle ss S teel: F1m a x (typic a l) 950N, F zh 700N- Pl as tic a nd Diec as t: F1m a x (typic a l) 1500N, F zh 1150N *1A new te s t h as been introduced with the coefficient 1.3. A device with a s pecified m a ximum holding force (F zh ) of 500N need s to hold up a force te s t (F1m a x ) a t 650N.According to the s t a nd a rd the locking force F zh s hould be s t a ted for every gu a rd locking s witch.Max. Switched Current (Outputs)200mA (min. intern a l re s i s t a nce 8.5 Ohm s )Auxiliary Signal+24 VDC (Door Open)Characteristic Data according to EN ISO13849-1PLe: If both ch a nnel s a re u s ed in combin a tion with a S IL3/PLe control device C a tegory: C a t. 4MTTFd: 1100aDi a gno s tic Cover a ge DC: 99% (high)Number of oper a ting d a y s per ye a r: d op = 365d Number of oper a ting hour s per d a y: h op = 24h B10d: Not mech a nic a l p a rt s implemented Characteristic Data according to IEC62061 (used as a sub system)Sa fety Integrity Level: S IL3PFH (1/h): 4.77E-10 Corre s pond s to 4.8% of S IL3PFD: 4.18E-05 Corre s pond s to 4.2% of S IL3Proof Te s t Interv a l T 1: 20aInformation with regard to UL508U s e LVLC or Cl ass 2 s upply. Type 1 enclo s ure.Risk Time in accordance with EN 60947-5-3150m s (s witching off del a y a t remov a l of a ctu a tor)D40ML Series4Cable WiringTypical Operating Distance (Front Approach)Note:DO NOT u s e s witch a nd a ctu a tor as a gu a rd door stop.Solenoid Supply 24 VDCAuxSafety Output 2Safety Output 1External Supply 24 VDCNon-Contact RFID Locking Switch Wiring DiagramQuick Connect(CC)M12 8-way maleplugConductorColorsFunction Power Rating8Or a ngeApply Lock(24VDC ±10%)50mA M a x5BrownAuxili a ry S ign a l(Door Open/Clo s ed)+24VDC(200mA)4Yellow Sa fety Output 2200mA M a x6Green Sa fety Output 21White Sa fety Output 1200mA M a x7Bl a ck Sa fety Output 13Blue0VDC500mA M a x2Red+24VDC ±10%Misalignment mmDistance mmD40ML Series5Dimensions(Unit: mm)D40ML Medium Duty SwitchD40ML Heavy Duty SwitchInstallation:•In s t a ll a tion of a ll D40ML s erie s sa fety s witche s mu s t be in a ccord a nce with a ri s k ass e ss ment for the individu a l a pplic a tion.•The u s e of a sa fety rel a y i s required for monitoring RFID coded s witche s . The s e rel a y s monitor two redund a nt circuit s as per I S O13849-1 for up to PLe/C a tegory 4 protection.•D40ML s erie s s witche s a re de s igned to oper a te with mo s t du a l ch a nnel sa fety rel a y s to sa ti s fy EN60947-5-3.•M5 mounting bolt s mu s t be u s ed to mount the s witche s . Tightening torque for mounting bolt s to en s ure reli a ble fixing i s 1.0 Nm. Alw a y s mount on non-ferrou s m a teri a l s .•Do not mount a dj a cent s witche s or a ctu a tor s clo s er th a n 30mm.•To a chieve nomin a l holding force en s ure f a ce-to-f a ce a lignment of m a gnetic p a rt s .•After in s t a ll a tion a lw a y s check e a ch s witch function by opening a nd clo s ing e a ch gu a rd individu a lly in turn a nd en s uring th a t the Green LED on the s witch a nd the LED s on the sa fety rel a y a re illumin a ted when the s witch i s clo s ed a nd a re extingui s hed when the s witch i s open. Check th a t the m a chine s top s a nd c a nnot be re-s t a rted when e a ch s witch i s open.Maintenance/Safety Checks: Monthly: Check a lignment of a ctu a tor a nd look for s ign s of mech a nic a l d a m a ge to the s witch c as ing or c a ble s .The sa fety function s a nd mech a nic s mu s t be te s ted regul a rly. For a pplic a tion s where infrequent gu a rd a cce ss i s fore s ee a ble, the s y s tem mu s t h a ve a m a nu a l function te s t to detect a po ss ible a ccumul a tion of f a ult s . At le as t once per month for PLe C a t3/4 or once per ye a r for PLd C a t3 (I S O13849-1). Where po ss ible it i s recommended th a t the control s y s tem of the m a chine dem a nd s a nd monitor s the s e te s t s , a nd s top s or prevent s the m a chine from s t a rting if the te s t i s not done. (I S O14119). Check th a t the m a chine s top s a nd c a nnot be re-s t a rted when e a ch s witch i s open.NOTE: The sa fety output s will only clo s e when the a ctu a tor i s in pl a ce a nd the lock m a gnet i s energized. Forcing open of the lock will c a u s e the sa fety output s to open.IMPORTANT: The gu a rd holding h as no interlock function. The Ri s k A ss e ss ment for the p a rticul a r a pplic a tion s hould include the ri s k of s p a re a ctu a tor s . S p a re a ctu a tor s s hould not be re a dily a v a il a ble a nd mu s t be s ecurely controlled. Record a ny RFID code s as required by f a ctory rule s or with reference to a ny ri s k ass e ss ment for the p a rticul a r a pplic a tion a nd u s er loc a tion.Fixing Holes for M5 ScrewsACTUATORSWITCHFixing Holes for M5 Screws64648896Ø 5058.5060.50411R 32437523225445232626.50SWITCH Fixing Holes for M5 ScrewsFixing Holes for M5 ScrewsACTUATOR11579.5010575.50Ø 6544116666Ø 76Ø 805252443228.504338631D40ML Series6Wiring OptionsD40ML to G9SE-201(up to Safety PLe acc. EN ISO13849-1)D40ML to G9SE-201 - Series Connections (up to SafetyPLd acc. EN ISO 13849-1, maximum 20 switches)M: 3-phase motorTerms and Conditions AgreementRead and understand this catalog.Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or comments.Warranties.(a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanshipfor a period of twelve months from the date of sale by Omron (or such other period expressed in writingby Omron). Omron disclaims all other warranties, express or implied.(b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENT ATION, EXPRESS OR IMPLIED, ABOUTNON-INFRINGEMENT, MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THEPRODUCTS. BUYER ACKNOWLEDGES THA T IT ALONE HAS DETERMINED THA T THE PRODUCTS WILLSUIT ABL Y MEET THE REQUIREMENTS OF THEIR INTENDED USE.Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the Products or otherwise of any intellectual property right. (c) Buyer Remedy. Omron’s sole obligation hereunder shall be, at Omron’s election, to (i) replace (in the form originally shipped with Buyer responsible for labor charges for removal or replacement thereof) thenon-complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount equal to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible for warranty, repair, indemnity or any other claims or expenses regarding the Products unless Omron’s analysis confirms that the Products were properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or inappropriate modification. Return of any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies shall not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or electronic components, circuits, system assemblies or any other materials or substances or environments. Any advice, recommendations or information given orally or in writing, are not to be construed as an amendment or addition to the above warranty.See /global/ or contact your Omron representative for published information.Limitation on Liability; Etc.OMRON COMP ANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENT AL, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY.Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.Suitability of Use.Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request, Omron will provide applicable third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine, system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product with respect to Buyer’s application, product or system. Buyer shall take application responsibility in all cases.NEVER USE THE PRODUCT FOR AN APPLICA TION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY OR IN LARGE QUANTITIES WITHOUT ENSURING THA T THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THA T THE OMRON PRODUCT(S) IS PROPERL Y RA TED AND INST ALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.Programmable Products.Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any consequence thereof.Performance Data.Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.Change in Specifications.Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our practice to change part numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers may be assigned to fix or establish key specifications for your application. Please consult with your Omron’s representative at any time to confirm actual specifications of purchased Product.Errors and Omissions.Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical or proofreading errors or omissions.Authorized Di s tributor:In the interest of prod u ct improvement,specifications are s ub ject to change witho u t notice.Cat. No. F22E-EN-01C0421(0613)© OMRON Corporation 2013-2016 All Rights Reserved.OMRON Corporation Indu s trial Automation CompanyOMRON ELECTRONIC S LLC2895 Greenspoint Parkway, S u ite 200 Hoffman Estates, IL 60169 U.S.AT el: (1) 847-843-7900/Fax: (1) 847-843-7787Regional Headquarters OMRON EUROPE B.V.Wegalaan 67-69, 2132 JD Hoofddorp The NetherlandsTel: (31) 2356-81-300/Fax: (31) 2356-81-388 Contact: www.indu s trial.omron.euOMRON A S IA PACIFIC PTE. LTD.No. 438A Alexandra Road # 05-05/08 (Lo bb y 2), Alexandra T echnopark, Singapore 119967T el: (65) 6835-3011/Fax: (65) 6835-2711OMRON (CHINA) CO., LTD.Room 2211, Bank of China T ower, 200 Yin Cheng Zhong Road,P u Dong New Area, Shanghai, 200120, China T el: (86) 21-5037-2222/Fax: (86) 21-5037-2200。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

1、吸力强，磁吸力为280kg。

本锁利用优质电工材料和先进加工工艺制造而成，外型美观，吸力强，无剩磁。

2、无机械磨损，克服一般要机械锁和电子锁缺陷，使用寿命长。

3、电源为12/24伏双直流电压入口。

4、启动电流0.45A，持续电流为0.45A，温升为室温+15℃。

锁体尺寸：250*47*25mm
吸合力：280kg（静态直线）
电压：DC12V\DC24V
电流：480mA\240mA
安装方式：明装
状态指示灯：LED
安全类型：断电开锁
电磁锁的安装方法电磁锁(磁力锁)的标准安装方法[图]一．外开门的表面安装方法：（参照图一至图八）
第一步：首先用螺丝刀打开盖板，再用六角扳手打边板，准备安装（见图
一）
第二步：拿出安装纸板，将纸板沿着虚线折叠按图二所示方法把纸板放到所需装锁的位置,然后把需要打孔的地方做上记号后打
孔.
第三步：A.继铁板的固定（参见图三）将内六角螺丝插入继铁板中，把橡胶华司置与两片金属华司之间，然后套在内六角螺丝上。

将继铁板插入门上打的三个孔中，同时把香菇头从门的另一面插入，利用六角扳手将继铁板锁在门上。

B．边板的固定（参见图三）把边板用两个半圆头螺丝固定在先前打孔的门框上（固定在边板的长形孔中）。

注意：不要将边板锁紧，让其能前后能移动以利于安位置的修正。

C．修正边板的位置使边板与继铁板的位置合适，目的使锁主体能与继铁板紧密的接触。

D：固定锁主体与边板锁紧边板的半圆头螺丝后，再锁上所有的沉头螺丝，然后再卸下半圆头螺丝，在适当的位置钻孔以便接线。

最后用六角扳手把锁主体锁在
边板上。

(参见图四)
第四步：按照说明书的指示接线。

第五步：盖上盖板，把小铝柱体塞进锁主体(参见图五)的螺丝孔中。

参见图六
图七与图八所示为典型的外开门外置式的安装式样
★安装注意事项
在安装继铁板的时候，不要把它锁紧，让其能轻微摇摆以利于和锁主体自然的结合。

二、内开门的表面安装(ZL型支架的安装方法）：解决外装磁力锁的内装问题。

内开门做表面安装时需要有辅助配件来协助安装，我们选用富有装饰性的优质进口铝材来制做这种安装配件：Z&L支架。

每套Z&L支架含三块铝材配件,其中较长的一块L1是配给锁主体使用;另外两块较短的Z2、Z3配给继铁板用。

Z2是安装在门上的，边上有五个沉孔，是用于固定在门上;Z3是用于固定继铁板的,边上有三个孔,中心孔应与继铁板的中心孔对齐.下面介绍安装方法。

a.先将Z&L支架中的L1支架放在装锁的位置上，用M5*25的自攻螺丝固定于门框或墙面上。

b．用六角扳手将锁主体锁在L1支架上。

c.对应于L1支架的位置把Z2支架固定在门上。

d.将继铁板插入Z1的三个孔中假固定,然后门关好，使磁铁和继铁板紧密吻合，确定Z1、Z2的衔接位置。

（Z1与Z2的相对位置根据门的厚度可以调节）。

e.将Z1、Z2锁紧，然后将继铁板用M8*25内六角螺丝固定于Z1上（将螺丝、铁板、垫圈、橡胶垫圈依次穿入）??
f.如果是双扇门，可以用两个Z &L支架
三、埋入式（内置式）安装法：
内开门与外开门的埋入式安装方法一致
对于木门来说，如果门挡边的尺寸够埋入锁主体的话，安装非常简单，只需挖一个合适的槽，锁埋进后锁上螺丝即可，一般的施工人员见锁就会安装。

铝合金门的门框一般都是空心的，针对这一特点，我们设计了两种安装方法。

A．内衬木块法（请参考图十、图十一）：在门框里放入一块大小合适的木头作衬，再锁螺丝。

此种方法取材方便，安装简单。

在实际安装中大多采用这种方法。

B．利用安装配件法：此种方法是利用我们提供的配件（四孔铁板+U型铁），使安装更加简便。

图十
图十一
★安装注意事项在做埋入式安装时一定注意门挡边的尺寸要稍大于所选锁的尺寸。

四、玻璃门安装法：
无框玻璃门的安装方法
一般的锁具很难安装在玻璃门上，即使有些锁可以安装，但会影响整个门的美观，而我们的电磁锁配合独巨匠心的安装配件，可以轻松的安装，而且美观可靠。

1.利用U型支架安装磁力锁在无框玻璃门上：
没有包框的玻璃门需要有配件来辅助安装。

安装方法与普通门的表面安装方法基本雷同，只不过是在第三步安装继铁板的时候不同，安装方法如图所示。

把U型槽连同橡胶缓冲垫及不锈钢垫片（放在锁螺丝的一边）套在玻璃门上,用无头内六角螺丝锁在玻璃门上,然后把继铁板固定在U型槽上。

对于不同的玻璃门厚度及不同型号的电磁锁，我们提供不同型号的安装配件：UBG支架，规格请见下表：
2.利用AB架来安装先把AB架用玻璃专用胶（或双面胶带）固定在玻璃门上，然后再把继铁板固定在支架上。

五、其他注意事项：安装前请认真阅读安装说明书，并敬请注意以下事项：
不要在继铁板或锁主体上钻孔；不要更换继铁板固定螺丝；不要用刺激性的清洁剂擦拭电磁锁；不要改动电路。

保养：
磁力门锁的保养与其他锁类相比比较简单，只要保持继铁板和锁主体表面无杂质就可，所以请定期用非蚀性的清洁剂擦拭其表面。
