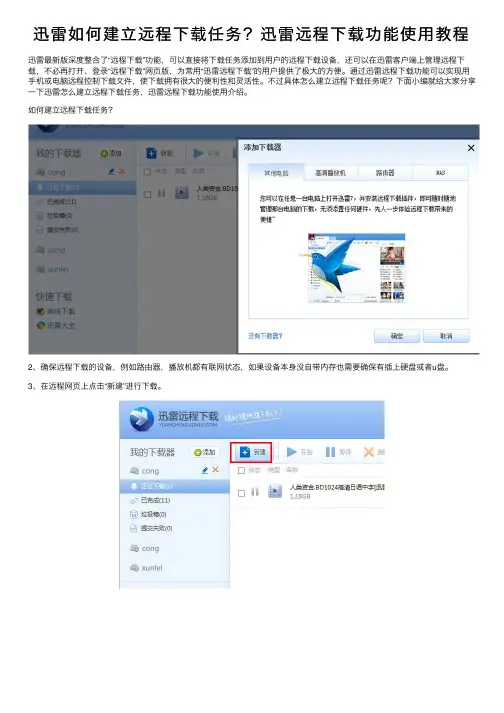

迅雷如何建立远程下载任务？迅雷远程下载功能使用教程
迅雷如何建⽴远程下载任务？迅雷远程下载功能使⽤教程迅雷最新版深度整合了“远程下载”功能，可以直接将下载任务添加到⽤户的远程下载设备，还可以在迅雷客户端上管理远程下
载，不必再打开、登录“远程下载”⽹页版，为常⽤“迅雷远程下载”的⽤户提供了极⼤的⽅便。
通过迅雷远程下载功能可以实现⽤⼿机或电脑远程控制下载⽂件，使下载拥有很⼤的便利性和灵活性。
不过具体怎么建⽴远程下载任务呢？下⾯⼩编就给⼤家分享⼀下迅雷怎么建⽴远程下载任务，迅雷远程下载功能使⽤介绍。
如何建⽴远程下载任务？
2、确保远程下载的设备，例如路由器，播放机都有联⽹状态，如果设备本⾝没⾃带内存也需要确保有插上硬盘或者u盘。
3、在远程⽹页上点击“新建”进⾏下载。
3、在⼿机上安装“迅雷影⾳”的软件，上⾯也可以进⾏创建任务到远程下载的设备上下载。
4、⾸先登录了迅雷帐号，然后会出现“远程下载”。
5、点击添加设备就可以进⾏绑定，但⼿机上⾯是不可以控制“迅雷7“上的远程下载插件的。
云端视频监控系统的搭建与配置指南
云端视频监控系统的搭建与配置指南在当今技术高度发达的社会中，云端视频监控系统成为了一种普遍采用的解决方案。
它不仅为企业、学校、住宅小区等场所提供了有效的安全防护手段，还为用户提供了更加便利的远程监控操作。
本文将为大家介绍云端视频监控系统的搭建和配置指南，帮助您快速建立起安全可靠的监控系统。
1. 硬件准备首先，搭建云端视频监控系统需要准备一些必要的硬件设备。
这些设备包括网络摄像头、硬盘录像机（DVR/NVR）、网络交换机和电脑服务器。
注意选择品牌信誉好、性能稳定的设备以保证系统的可靠性。
2. 网络规划在搭建云端视频监控系统之前，需要进行网络规划。
确保每个摄像头都有稳定可靠的网络连接，并且能够被访问到。
建议使用独立的网络段分配给视频监控设备，以避免网络拥堵或冲突。
同时，确保网络带宽能够满足监控数据的传输需求。
3. 安装和配置摄像头安装摄像头是搭建云端视频监控系统的第一步。
根据实际需求，选择合适位置进行摄像头的安装。
在安装摄像头之前，需要确保摄像头能够接收到稳定的电源供应，并且能够和网络交换机相连。
安装完成后，根据摄像头的型号和厂家提供的说明书进行相应的配置操作。
4. 连接和配置录像机接下来，将摄像头与硬盘录像机（DVR/NVR）进行连接。
确保摄像头和录像机之间的连接线路无故障，以保证视频信号的传输质量。
配置录像机的步骤包括设置录像时长、分辨率、视频质量等参数，并根据实际需求进行相应的调整。
5. 设置远程访问通过配置摄像头和录像机，已经可以在本地进行视频监控了。
但如果需要实现远程访问，就需要进行一些额外的设置。
通常情况下，需要为录像机和摄像头设置一个公网IP地址，并进行端口映射，以便用户能够通过互联网远程访问监控系统。
同时，也可以选择使用云平台提供的远程访问服务来方便地查看和管理监控设备。
6. 数据存储与管理对于大规模的云端视频监控系统，数据存储和管理是一个非常重要的环节。
要确保视频数据的安全可靠，可以考虑使用RAID存储技术，将数据分散存储在多个硬盘上，以防止单点故障。
不怕迅雷假死,下载就要连轴转
启动迅雷，接着运行RC，在其主界面工具栏上点击Add按钮，在弹出窗口中点击Select a running application按钮，在进程列表中选择Thunder.exe ，也就是迅雷的主程序。点击Select按钮，将其添加进来，其余设置保持默认，点击OK按钮，即可将迅雷添加到监控列表中。之后RC可以用动态地对迅雷的活动情况进行监控，一旦发现迅雷因为各种原因假死，就可以立即强制重启迅雷，让下载操作连续不断地进行。
为了提高监控效果，我们可以在Grace period X seconds栏中自定义该监控时间默认为60秒。
当RC唤醒假死的迅雷后，为了让迅雷继续顺利工作，需要在迅雷的“配置中心”界面左侧选择“我的下载-->常用配置”项，在右侧窗口中勾选“启动后自动开始未完成的任务”项，确保下载操作不间断地进行。
为了让RC更好地为你服务，还需要对其进行合理的配置，点击RC工具栏中的Settings按钮，在设置窗口勾选Run Roc when Windows starts项，可以让RC跟随系统自动运行。默认情况下，当RC检测到迅雷在60秒之内没有正常响应时，就会判断其已经处于假死状态，之后会对其执行重启操作。
揭秘：迅雷“病毒门”技术解析
今年7月27日，迅雷爆出病毒门，网友称发现一个位于C:\Windows\System32目录下、名为“INPEnhSvc.exe”、带有迅雷数字签名的文件有问题。
网络上的新闻虽然不少，但大多都是八卦和概念性的描述，本文是由国外的小伙伴写的一篇纯技术分析。
概述最近ESET杀毒软件检测到一款名为Win32/KanKan的恶意软件.它有一下3个重要特征:1. 尽管自身没有办公软件的功能,但是在注册表里注册了一个办公插件,目的纯粹是为了更长久的在系统中存活.2. 所有连接到受感染电脑的安卓手机都会被悄悄的安装多个APP.3. 这款恶意软件拥有迅雷网络技术有限公司的签名.详细分析恶意软件的签名信息如下:这个恶意软件是一个windows安装程序,文件名为INPEnhSetup.exe.开始运行的时候会连接 发送初始化消息.然后释放3个文件:INPEn.dll, INPEnhUD.exe和INPEnhSvc.exe.之后加载库文件INPEn.dll到内存,调用它的DllRegisterServer函数.最后安装程序又向域名发送安装完成消息.INPEn.dllINPEn.dll运行时会安装一个Word,Excel,PowerPoint的名为InputEnhance的插件.通过创建一个注册表项使得办公软件每次启动就会加载这个插件,从而达到隐蔽运行的目的.dll文件运行之后会读取/tools.ini这个文件.这个文件包含了多个参数.其中Tools和VID用base64编码过.Tools解码后如下:taskmgr.exe|tasklist.exe|procexp.exe|procmon.exe|devenv.exe|windbg.exe|file mon.exe|ollyice.exe|ollydbg.exe|processspy.exe|spyxx.exe|cv.exe|wireshark.exe 显然是检测这些工具是否运行,如果存在dll文件会停止运行,避免被发现.值得一提的这个列表里并只有分析工具,没有杀毒软件.看来作者的目的是为了防止软件被发现.dll文件运行之后还会通过访问,等域名来检测网络是否通畅.如果没有联网就周期性的检测网络连接.INPEnhUD.exe一旦网络连接建立,它就会执行INPEnhUD.exe.我们称这个文件为更新程序.它首先访问这个URL:/officeaddinupdate.xml.officeaddinupdate.xml当前的内容如下:这个xml文件包含一个url和md5 hash的列表.INPEnhUD.exe会下载没一个url里的文件,然后比对md5,如果通过就执行这个文件.当前xml里只有一个Uninstall.exe,现在该软件下载这个程序会把自己卸载掉.当下载完列表里的程序后,最后会执行第三个文件,INPEnhSvc.exe.INPEnhSvc.exeINPEnhSvc.exe是这3个文件架构的最核心.它获取一个包含7个命令的XML配置文件.7个命令可以分为下面两组:local commands: scanreg, scandesktop, scanfavoritesoutsourced commands: installpcapp, installphoneapp, setdesktopshortcut, addfavorites, setiestartpage整个程序的架构可以用下图表示:下面分析一下我们最感兴趣的”installphoneapp”命令.其实大多数命令都可以从它的名字看出他大概的作用.”installphoneapp”会下载一些安卓应用,然后安装到连接到该电脑的手机上.当我们开始调查的时候,这些安卓应用已经不能下载了.我们在中国的一些安全论坛里找到几个样本.下面是这些应用的截图：下图是ESET每天检测到的这个名为 Win32/kankan软件的安装数据：。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
环境：win7 64 + python3.4 + redis + crysadm 723源码
前言：本来我的云监工是安装在linux（centos）上的，可最近我的这个atom的nas小服务器经常死机，我也懒得弄，正巧想起来，windows也能配置云监工，趁着这股劲，把这个atom的nas小主机直接淘汰掉。
硬件选择：
CPU：i3 2120
主板：B75
内存：8G DDR3 1333
硬盘：32G SSD +3T 东芝仓库盘
网卡：Realtek8111E板载网卡X 1
Realtek8111E独立网卡X 2
说明一下：功耗、性能和体积
no1.功耗
很多人矫情，说，这种普通家用机的配置，功耗大，体积大，不适合做nas，好吧，亲，我之前用了个ATOM Z530的小主机，带了个160G本盘，实测待机功耗15W。
现在这套i3 2120的实测是32W，atom Z530的性能和i3 2120是两倍关系么，这么说，看官满意了么？
no2.体积
我看到很多人特别喜欢小机箱，呵呵，买件贼贵不说，坏了也不好换，散热也得好好解决，看咱，出去收二手大板机箱，10块钱一个，ATX电源台达全汉也是10块钱一个，里面空间大得很，扩展性能极佳。
我多插上去两个独立的realtek8111E的千兆网卡是用来跑RouterOS聚合网络用的，这个留在后篇继续介绍。
软件选择：
系统：win7 64位
环境：python3.4
说明一下：
为什么不选群晖啦？centos啦？一样，很多人也很矫情，就喜欢群晖，我就纳闷了，群晖有啥好，仿佛不用群晖就不能体现高大上一样，win能做的比群晖多得多，实在有实现不了的功能，Vmware走起啊，上了vmware，我看还有什么搞不定呢？
废话说了N多，装好后，开始折腾吧
第一步：下载并安装python3.4.4 X64官方下载地址：
https:///ftp/python/3.4.4/python-3.4.4rc1.amd64.msi安装的过程中注意选择
意思就是把python的命令添加进win的环境变量。
然后在命令提示符里输入python，按回车，出现如下界面，就是成功了
第二步：安装辅助程序pip flask requests redis
下载crysadm源码
地址如下：https:///s/1CJSX_KbqfhPizvcQdcYhxQ分享码：cr3b ，将其中一个叫做get-pip.py的文件复制到C:/Users/administartor/文件夹下
并在命令提示符中输入如下内容按回车：python get-pip.py 如图
最后会出现成功successfully
然后依次在命令提示符里执行如下命令：
pip install flask 按回车出现successfully后再输入
pip install redis 按回车出现successfully后再输入
pip install requests 按回车出现successfully后关闭命令提示符
第三步：redis数据库和源码的下载执行
redis 64位数据库可以在这里下载的到
https:///ServiceStack/redis-windows/master/downloads/redis-64.3.0.503.zip
将下载来的文件解压到D:/redis文件夹下，并执行redis-server.exe
出现这个界面，就是成功，不要关掉
将下载来的crysadm源码解压到D:/crysadm文件夹下
并新开一个命令提示符下执行如下命令
python D:/crysadm/crysadm/crysadm_helper.py
按回车之后不要关闭，再打开一个新的命令提示符窗口，执行如下命令python D:/crysadm/crysadm/crysadm.py
按回车之后不要关闭
然后在浏览器中输入：127.0.0.1:4000/install 按回车
就会出现云监工的管理员账号和密码了
登陆进去看看吧
其实这时候已经可以使用了，只是每次开机都需要启动三个程序，分别是redis，crysadm_helper.py和crysadm.py这样很不美观，也不方便，接下来，我要让它们每次开机隐藏运行
第四步：开机隐藏运行程序
关闭redis-server.exe、crysadm_helper.py和crysadm.py三个程序，执行crysadm文件夹中的start.bat 文件即可
如有兴趣，可以打开看一下这个批处理文件。
最后，右击批处理文件选择新建快捷方式将新建的快捷方式，直接拖入开始菜单》》所有程序》》启动处，那么下次开机，即可自运行这个三个程序，还不快点重启试一下去，如果执行批处理不能顺利打开云监工，而手动执行命令可以的话，一般就是这个批处理有错误，看官可以自己研究一下，没什么难度。
至此，这篇博文的主要内容就讲完了，
PS1：端口映射了，nginx的反向代理什么的，我在此不再赘述，只说一点，很多一键安装的linux脚本都做nginx反向代理，这个是要看实际情况的，如果你是跟我一样，内网建的云监工，需要DDNS（动态域
名解析）外网的话，nginx的反向代理可以不用做，因为在路由器上肯定做了端口映射：外网访问路由器的4000端口，映射到内网这个NAS的4000端口上。
这样的话其实端口映射本来就是一级代理了，再做反向代理的话，需要再多一个跳板，访问起来会慢很多，多此一举。
而如果你是直接在公网IP的主机上做云监工，那最好是弄上nginx的反向代理（不过我感觉这种环境太少了吧）。
PS2：如果忘了管理员密码怎么办？清空数据库重来呗，具体如下
关闭redis-server.exe，然后去D:/redis文件夹下，删除dump.rdb，再启动这三个程序，再访问
127.0.0.1:4000/install就可以再次生成管理员密码了
PS3：本人选用16年723源码，至于其他源码可以去如下地址自由选择下载
https:///search?p=2&q=crysadm&type=Repositories&utf8=%E2%9C%93
升级源码的时候看好文件结构，关闭所有三个程序，覆盖即可，不需要执行PS2清空数据库
这篇文章，20个金币值么？。
