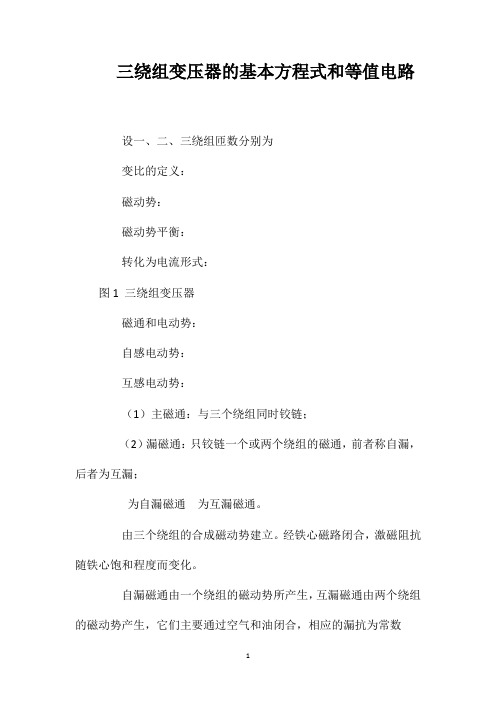

三绕组变压器three-columntransformerThrClnTrans双绕组变压器
三绕组变压器的基本方程式和等值电路
三绕组变压器的基本方程式和等值电路
设一、二、三绕组匝数分别为
变比的定义：
磁动势：
磁动势平衡：
转化为电流形式：
图1 三绕组变压器
磁通和电动势：
自感电动势：
互感电动势：
（1）主磁通：与三个绕组同时铰链；
（2）漏磁通：只铰链一个或两个绕组的磁通，前者称自漏，后者为互漏；
为自漏磁通为互漏磁通。
由三个绕组的合成磁动势建立。
经铁心磁路闭合，激磁阻抗随铁心饱和程度而变化。
自漏磁通由一个绕组的磁动势所产生，互漏磁通由两个绕组的磁动势产生，它们主要通过空气和油闭合，相应的漏抗为常数
按上图所示正方向
（1）
和为电流归算值，
电动势：
电压方程式为：
归算到一次侧后
若忽略激磁电流，则
将（1）-（2）并以代入得
（2）
再将（1）-（3）并以代入得
（3）
上两式中：一次绕组等效漏阻抗
二次绕组等效漏抗
三次绕组等效漏抗
可画出三绕组变压器简化等效电路如下图。
图2 三绕组变压器简化等效电路
由于忽略励磁电流，等效电路中的感抗都具有漏电抗性质，它们是不变的常数，但每一个感抗都由该绕组的自感以及三个绕组之
间的互感组合而成，所以在三绕组变压器中，两个二次绕组之间是相互影响的，任何一二次绕组端电压的变化不仅决定于本绕组负载电流的大小及功率因数，而且还与另一个二次绕组负载电流的大小及功率因数有关。
电气英文翻译
电气英文翻译2011-02-06三绕组变压器:three-columntransformerThrClnTrans双绕组变压器:double-columntransformerDblClmnTrans电容器:Capacitor并联电容器:shuntcapacitor电抗器:Reactor母线:Busbar输电线:TransmissionLine发电厂:powerplant断路器:Breaker刀闸(隔脱离关):Isolator分接头:tap电动机:motor有功:activepower无功:reactivepower电流:current容量:capacity 电压:voltage档位:tapposition有功损耗:reactiveloss无功损耗:activeloss功率因数:power-factor防护等级:IPcode重量(毛重):GROSSWT(净重):NETWT额定电压:ratedvoltage额定电流:ratedcurrent功率:power功角:power-angle电压等级:voltagegrade空载损耗:no-loadloss铁损:ironloss铜损:copperloss空载电流:no-loadcurrent阻抗:impedance正序阻抗:positivesequenceimpedance负序阻抗:negativesequenceimpedance零序阻抗:zerosequenceimpedance电阻:resistor电抗:reactance电导:conductance电纳:susceptance无功负载:reactiveload或QLoad有功负载:activeloadPLoad遥测:YC(telemetering)遥信:YX励磁电流(转子电流):magnetizingcurrent常用的电气专业英语词汇inductionmachine感应式电机horseshoemagnet马蹄形磁铁magneticfield磁场eddycurrent涡电流right-handrule右手定则left-handrule左手定则slip转差率inductionmotor感应电动机rotatingmagneticfield旋转磁场winding绕组stator定子rotor转子inducedcurrent感生电流time-phase时间相位excitingvoltage励磁电压solt槽lamination叠片laminatedcore叠片铁芯short-circuitingring短路环squirrelcage鼠笼rotorcore转子铁芯cast-aluminumrotor铸铝转子bronze青铜horsepower马力random-wound散绕insulation绝缘acmotor交流环电动机endring端环alloy合金coilwinding 线圈绕组form-wound模绕performancecharacteristic工作特性frequency频率revolutionsperminute转/分motoring电动机驱动generating发电per-unitvalue标么值breakdowntorque极限转矩breakawayforce起步阻力overhauling检查修理wind-drivengenerator风动发电机revolutionspersecond转/秒numberofpoles极数speed-torquecurve转速力矩特性曲线plugging反向制动synchronousspeed同步转速percentage百分数locked-rotortorque锁定转子转矩full-loadtorque满载转矩primemover原动机inrushcurrent涌流magnetizingreacance磁化电抗line-to-neutral线与中性点间的staorwinding定子绕组leakagereactance漏磁电抗no-load空载fullload满载Polyphase多相(的)iron-loss铁损compleximpedance复数阻抗rotorresistance转子电阻leakageflux漏磁通locked-rotor锁定转子choppercircuit斩波电路separatelyexcited他励compounded复励dcmotor 直流电动机demachine直流电机speedregulation速率调节shunt并励series 串励armaturecircuit电枢电路opticalfiber光纤interoffice局间的waveguide波导波导管bandwidth带宽lightemittingdiode发光二极管silica 硅石二氧化硅regeneration再生,后反馈放大coaxial共轴的,同轴的high-performance高性能的carrier载波mature成熟的SingleSideBand(SSB)单边带couplingcapacitor结合电容propagate传导传播modulator调制器demodulator解调器linetrap限波器shunt分路器AmplitudeModulation(AM 调幅FrequencyShiftKeying(FSK)移频键控tuner调协器attenuate衰减incident入射的two-wayconfiguration二线制generatorvoltage发电机电压dcgenerator直流发电机polyphaserectifier多相整流器boost增压timeconstant时间常数forwardtransferfunction正向通报函数errorsignal 误差信号regulator调节器stabilizingtransformer稳定变压器timedelay延时directaxistransienttimeconstant直轴瞬变时间常数transientresponse 瞬态响应solidstate固体buck赔偿operationalcalculus算符演算gain增益pole极点feedbacksignal反馈信号dynamicresponse动态响应voltagecontrolsystem电压节制体系mismatch掉配errordetector误差检测器excitationsystem励磁体系fieldcurrent励磁电流transistor晶体管high-gain高增益boost-buck升压去磁feedbacksystem反馈体系feedbackloop反馈回路automaticVoltageregulator(AVR)自动电压调解器referenceVoltage基准电压magneticamplifier磁放大器amplidyne微场扩流发电机self-exciting自励的limiter限幅器manualcontrol手动节制blockdiagram方框图linearzone线性区potentialtransformer电压互感器stabilizationnetwork稳定网络stabilizer稳定器air-gapflux气隙磁通saturationeffect饱以及效应saturationcurve饱以及曲线fluxlinkage磁链perunitvalue标么值shuntfield并励磁场magneticcircuit磁路load-saturationcurve负载饱以及曲线air-gapline气隙磁化线polyphaserectifier多相整流器circuitcomponents电路元件circuitparameters电路参数electricaldevice电气设备electricenergy电能primarycell原生干电池energyconverter电能转换器conductor导体heatingappliance电热器direct-current直流timeinvariant时不变的self-inductor自感mutual-inductor互感thedielectric电媒质storagebattery 蓄干电池e.m.f=electromotiveforce电动势Loopsystem环网体系Demagnetization退磁,去磁Distributionsystem配电体系Relaypanel继电器屏Tripcircuit跳闸电路Tertiarywinding第三绕组Switchboard配电盘,开关屏Eddycurrent涡电流Instrumenttransducer测量互感器Copperloss铜损Oil-impregnatedpaper油浸纸绝缘Ironloss铁损Bareconductor裸导线Leakageflux漏磁通Reclosing重合闸Autotransformer自耦变压器Distributiondispatchcenter配电调度中间Zerosequencecurrent零序电流Pulverizer磨煤机Series(shunt)compensation串(并)联赔偿Drum汽包,炉筒Restriking电弧重燃Superheater过热器Automaticoscillograph自动录波仪Peak-load峰荷Tidalcurrent潮流Primegridsubstation主网变电站Tripcoil 跳闸线圈Reactivepower`无功功率Synchronouscondenser同步调相机Activepower有功功率Mainandtransferbusbar单母线带旁路Shuntreactor并联电抗器Feeder馈电线Blackout断电、停电Skineffect集肤效应Extra-highvoltage(EHV)超高压Potentialstress电位应力(电场强度)Ultra-highvoltage(UHV)特高压Capacitorbank电容器组Domesticload平易近用电crusher碎煤机Reservecapacity备用容量pulverizer磨煤机Fossil-firedpowerplant火电厂baghouse集尘室Combustionturbine燃气轮船上的发动机Stationary(moving)blade固定(可动)叶片Right-of-way线路走廊Shaft 转轴Rectifier整流器Kinetic(potential)energy动(势)能Inductive(Capacitive)电感的(电容的)Pumpedstoragepowerstation抽水蓄能电站Reactance(impedance)电抗(阻抗)Synchronouscondenser同步调相机Reactor电抗器Light(boiling)-waterreactor轻(沸)水反应堆Reactive电抗的,无功的Stator(rotor)定(转)子Phasedisplacement(shift)相移Armature 电枢Surge冲击,过电压Salient-pole凸极Retainingring护环Slipring滑环Carbonbrush炭刷Arcsuppressioncoil消弧线圈Short-circuitratio短路比Primary(backup)relaying主(后备)继电保护Induction感应Phaseshifter移相器Autotransformer自藕变压器Powerlinecarrier(PLC)电力线载波(器)Bushing套管Linetrap线路限波器Turn(turnratio)匝(匝比,变比)Uninterruptiblepowersupply不间断电源Powerfactor功率因数Spotpowerprice实时电价Tap分接头Time-of-use(tariff)分时(电价)Recoveryvoltage恢复电压XLPE(CrossLinkedPolyethylene)交联聚乙烯(电缆)Arcreignition电弧重燃Rms(rootmeansquare)均方根值Operationmechanism操动机构RF(radiofrequency)射频Pneumatic(hydraulic)气动(液压)Rpm(revolutionperminute)转/分Nameplate铭牌LAN(localareanetwork)局域网Independentpoleoperation分相操作LED(lightemittingdiode)发光二极管Malfunction掉灵Single(dual,ring)bus单(双,环形)母线Shieldwire避雷线IC(integratedcircuit)集成电路Creepdistance爬电距离FFT(fastFouriertransform)快速傅立叶变换Siliconrubber硅橡胶Telemeter 遥测Compositeinsulator合成绝缘子Loadshedding甩负荷Converter(inverter)换流器(逆变器)Lateral支线Bustiebreaker母联断路器Power-flowcurrent工频续流Protectiverelaying继电保护sparkover放电Transferswitching倒闸操作Siliconcarbide碳化硅Outgoing(incoming)line 出(进)线Zincoxide氧化锌PhaseLead(lag)相位超前(滞后)Withstandtest耐压试验Staticvarcompensation(SVC)静止无功赔偿Dispatcher调度员FlexibleACtransmissionsystem(FACTS)灵活交流输电体系Supervisorycontrolanddataacquisition(SCADA)监控与数据采集EMC(electromagneticcompatibility)电磁兼容ISO(internationalstandardizationorganization)国际标准化组织GIS(gasinsulatedsubstation,geographicinformationsystem)气体绝缘变电站,地理信息体系IEC(internationalElectrotechnicalCommission)国际电工(技术)委员会IEEE(InstituteofElectricalandElectronicEngineers)电气与电子工程师学会(美)IEE(InstitutionofElectricalEngineers)电气工程师学会(英)scale刻度,量程calibrate校准rated额定的terminal接线端子fuse保险丝,熔丝humidity湿度resonance谐振,共振moisture潮湿,湿气analytical解析的operationamplifier运算放大器numerical数字的amplitudemodulation(AM)调幅frequency-domain频域frequencymodulation(FM)调频time-domain时域binary二进制operationamplifier运算放大器octal八进制activefilter有源滤波器decimal十进制passivefilter无源滤波器hexadecimal十六进制generator 发电机gasinsulatedsubstationGIS气体绝缘变电站turbogenerator汽轮发电机neutralpoint中性点hydrogenerator水轮发电机movingcontact动触头hydraulicturbine水轮船上的发动机fixedcontact静触头steamturbine汽轮船上的发动机arc-extinguishingchamber灭弧室dynamo直流发电机straycapacitance杂散电容motor电动机strayinductance杂散电感stator 定子spheregap球隙rotor转子bushingtapgroundingwire套管末屏接地线powertransformer电力变压器electrostaticvoltmeter静电电压表variabletransformer调压变压器ammeter电流表tapedtransformer多级变压器groundingcapacitance对地电容stepup(down)transformer升(降)压变压器voltagedivider分压器circuitbreakerCB断路器surgeimpedance波阻抗deadtankoilcircuitbreaker多油断路器Scheringbridge西林电桥livetankoilcircuitbreaker少油断路器Rogowskicoil罗可夫斯基线圈vacuumcircuitbreaker真空断路器oscilloscope示波器sulphurhexafluoridebreakerSF6断路器peakvoltmeter峰值电压表potentialtransformerPT电压互感器conductor导线currenttransformerCT 电流互感器cascadetransformer串级变压器disconnector隔脱离关couplingcapacitor耦合电容earthingswitch接地开关testobject被试品synchronousgenerator同步发电机detectionimpedance检测阻抗asynchronousmachine异步电机substation变电站Insulator绝缘子hydropowerstation水动力发电站lightningarrester避雷器thermalpowerstation火力发电站metaloxidearresterMOA氧化锌避雷器nuclearpowerstation核电站busbar母线oil-filledpowercable充油电力电缆overheadline架空线mixeddivider(阻容)混合分压器transmissionline传输线XLPEcable交链聚乙烯电缆(coaxial)cable(同轴)电缆relay继电器ironcore铁芯tunedcircuit调协电路winding绕组suspensioninsulator悬式绝缘子bushing套管porcelaininsulator瓷陶绝缘子front(tail)resistance波头(尾)电阻glassinsulator玻璃绝缘子inverterstation换流站flashcounter雷电统计器charging(damping)resistor充电(阻尼)电阻steel-reinforcedaluminumconductor钢芯铝绞线tank箱体pointplanegap针板间隙earth(ground)wire接地线excitingwinding激磁绕组gradingring均压环triggerelectrode触发电极highvoltageengineering高电压工程glowdischarge辉光放电harmonic谐波highvoltagetestingtechnology高电压试验技术Powerelectronics电力电子Automaticcontrol自动节制Principlesofelectriccircuits电路原理Digitalsignalprocessing数字信号处理powersystem电力体系impulsecurrent冲击电流powernetwork电力网络impulseflashover冲击闪络insulation绝缘inhomogenousfield不均匀场overvoltage过电压insulationcoordination绝缘配合aging老化internaldischarge内部放电alternatingcurrent交流电lightningstroke雷电波ACtransmissionsystem交流输电体系lightningovervoltage雷电过电压arcdischarge电弧放电lossangle(媒质)损耗角attachmentcoefficient附着系数magneticfield磁场attenuationfactor衰减系数meanfreepath平均自由行程anode(cathode)阳极(阴极)meanmolecularvelocity平均分子速率breakdown(电)击穿negativeions负离子bubblebreakdown气泡儿击穿non-destructivetesting非破坏性试验cathoderayoscilloscope阴极射线示波器non-uniformfield不均匀场cavity空穴,腔partialdischarge局部放电corona电晕peakreversevoltage反向峰值电压compositeinsulation组合绝缘photoelectricemission光电发射criticalbreakdownvoltage临界击穿电压photon光量子Discharge放电phase-to-phasevoltage线电压Dielectric电媒质,绝缘体polarityeffect极性效应dielectricconstant媒质常数powercapacitor电力电容dielectricloss媒质损耗quasi-uniformfield稍不均匀场directcurrent直流电radiointerference无线干扰dividerratio分压器分压比ratingofequipment设备额定值grounding接地routingtesting常规试验electricfield电场residualcapacitance残余电容electrochemicaldeterioration电化学腐化shielding屏蔽electronavalanche电子崩shortcircuittesting短路试验electronegativegas电负性气体spacecharge空间电荷epoxyresin环氧树脂streamerbreakdown流注击穿expulsiongap灭弧间隙surfacebreakdown外貌击穿fieldstrength场强sustaineddischarge自持放电fieldstress电场力switchingovervoltage操作过电压fielddistortion场畸变thermalbreakdown热击穿fieldgradient场梯度treeing树梢放电fieldemission场致发射uniformfield均匀场flashover闪络wavefront(tail)波头(尾)gaseousinsulation气体绝缘withstandvoltage耐受电压Primemover原动机Powerfactor功率因数Torque力矩Distributionautomationsystem配电网自动化体系Servomechanism伺服体系Automaticmeterreading自动抄表Boiler锅炉Armature电枢Internalcombustionengine内燃机Brush电刷Deenergize断电Commutator换向器Undergroundcable地下电缆Counteremf 反电势历史上的今天:电气专业英语一览英文全称缩写中文【A-G】2011-02-06。

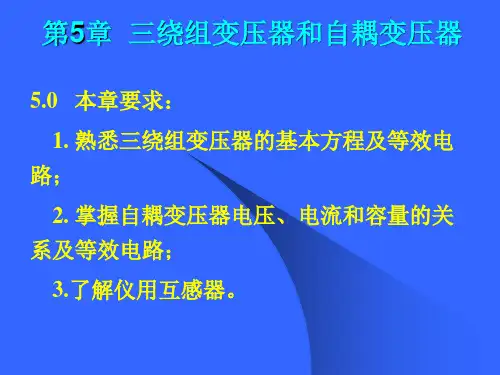

三绕组变压器及其他变压器--第五章
Z
/ 2
R2/
jX
/ 2
Z3/
R3/
jX
/ 3
X1பைடு நூலகம்
( L1
M1/2
M1/3
M
/ 23
)
X
/ 2
(L/2
M1/2
M
/ 23
M1/3 )
X
/ 3
(L/3
M1/3
M
/ 23
M1/2 )
注意：三绕组变压器中的电抗都是等效电抗，不 是漏抗，但它们具有漏抗的性质，即都为常数。
R1=1/2(Rk12+Rk13-Rk23') X1=1/2(Xk12+Xk13-Xk23') R2'=1/2(Rk12+Rk23'-Rk13) X2'=1/2(Xk12+Xk23'-Xk13) R3'=1/2(Rk13+Rk23'-Rk12) X3'=1/2(Xk13+Xk23'-Xk12)
1．变比ka ka=U1／U2=Nab／Ncb=N1/N2
2 磁势平衡方程式为：
I1(N1 N2 ) IN2 I0 N1
为了分析方便起见，略去I0[很小]。
I1N1 I1N2 I1N2 I2 N2 0
得
I1N1 I2 N2 0
由上式知：
1） I1和 I2 反相位 2）因为 I I1 I2 ，可知：I 与I2 同相位
（一）电压互感器
1．电压互感器的运行情况相当于2次侧开路的变压器， 副边额定电压设计为100V，其负载为阻抗较大的测 量仪表。
2．副边电流产生的压降和励磁电流的存在是电压互感 器误差之源。
电力系统英文单词精编版
电力系统英文单词精编版MQS system office room 【MQS16H-TTMS2A-MQSS8Q8-MQSH16898】电力系统powersystem发电机generator励磁excitation励磁器excitor电压voltage电流current升压变压器step-uptransformer母线bus变压器transformer空载损耗no-loadloss铁损ironloss铜损copperloss空载电流no-loadcurrent有功损耗activeloss无功损耗reactiveloss输电系统powertransmissionsystem 高压侧highside输电线transmissionline高压highvoltage低压lowvoltage中压middlevoltage功角稳定anglestability稳定stability电压稳定voltagestability暂态稳定transientstability 电厂powerplant能量输送powertransfer交流AC直流DC电网powersystem落点droppoint开关站switchstation调节regulation高抗highvoltageshuntreactor 并列的apposable裕度margin故障fault三相故障threephasefault分接头tap切机generatortriping高顶值highlimitedvalue 静态static(state)动态dynamic(state)机端电压控制AVR电抗reactance电阻resistance功角powerangle有功（功率）activepower 电容器Capacitor电抗器Reactor断路器Breaker电动机motor功率因数power-factor定子stator阻抗impedance功角power-angle电压等级voltagegrade有功负载:activeloadPLoad 无功负载reactiveload档位tapposition电阻resistor电抗reactance电导conductance电纳susceptance上限upperlimit下限lowerlimit正序阻抗positivesequenceimpedance 负序阻抗negativesequenceimpedance 零序阻抗zerosequenceimpedance无功（功率）reactivepower功率因数powerfactor无功电流reactivecurrent斜率slope额定rating变比ratio参考值referencevalue电压互感器PT分接头tap仿真分析simulationanalysis下降率drooprate传递函数transferfunction框图blockdiagram受端receive-side同步synchronization保护断路器circuitbreaker摇摆swing阻尼damping无刷直流电机BruslessDCmotor刀闸(隔离开关)Isolator机端generatorterminal变电站transformersubstation永磁同步电机Permanent-magnetSynchronismMotor异步电机AsynchronousMotor三绕组变压器three-columntransformerThrClnTrans 双绕组变压器double-columntransformerDblClmnTrans 固定串联电容补偿fixedseriescapacitorcompensation 双回同杆并架double-circuitlinesonthesametower单机无穷大系统onemachine-infinitybussystem励磁电流Magnetizingcurrent补偿度degreeofcompensation电磁场:Electromagneticfields失去同步lossofsynchronization装机容量installedcapacity无功补偿reactivepowercompensation故障切除时间faultclearingtime极限切除时间criticalclearingtime强行励磁reinforcedexcitation并联电容器shuntcapacitor<下降特性droopcharacteristics线路补偿器LDC(linedropcompensation)电机学ElectricalMachinery自动控制理论AutomaticControlTheory电磁场ElectromagneticField微机原理PrincipleofMicrocomputer电工学Electrotechnics电路原理Principleofcircuits电机学ElectricalMachinery电力系统稳态分析Steady-StateAnalysisofPowerSystem电力系统暂态分析Transient-StateAnalysisofPowerSystem电力系统继电保护原理PrincipleofElectricalSystem'sRelayProtection电力系统元件保护原理ProtectionPrincipleofPowerSystem'sElement 电力系统内部过电压PastVoltagewithinPowersystem模拟电子技术基础BasisofAnalogueElectronicTechnique数字电子技术DigitalElectricalTechnique电路原理实验电气工程讲座Lecturesonelectricalpowerproduction电力电子基础Basicfundamentalsofpowerelectronics高电压工程Highvoltageengineering电子专题实践Topicsonexperimentalprojectofelectronics电气工程概论Introductiontoelectricalengineering电子电机集成系统Electronicmachinesystem电力传动与控制ElectricalDriveandControl电力系统继电保护PowerSystemRelayingProtection主变压器maintransformer升压变压器step-uptransformer降压变压器step-downtransformeroperatingtransformer备用变压器standbytransformer公用变压器commontransformer三相变压器three-phasetransformer单相变压器single-phasetransformer带负荷调压变压器on-loadregulatingtransformer 变压器铁芯transformercore变压器线圈transformercoil变压器绕组transformerwinding变压器油箱transformeroiltanktransformercasing变压器风扇transformerfan变压器油枕transformeroilconservator(∽drum 变压器额定电压transformerretedvoltage变压器额定电流transformerretedcurrent变压器调压范围transformervoltageregulationrage 配电设备powerdistributionequipmentSF6断路器SF6circuitbreaker开关switch按钮button隔离开关isolator,disconnector 真空开关vacuumswitch刀闸开关knife-switch接地刀闸earthingknife-switch 电气设备electricalequipment 变流器currentconverter电流互感器currenttransformer电压互感器voltagetransformer电源powersource交流电源ACpowersource直流电源DCpowersource 工作电源operatingsource 备用电源Standbysource 强电strongcurrent 弱电weakcurrent继电器relay信号继电器signalrelay电流继电器currentrelay电压继电器voltagerelay跳闸继电器trippingrelay合闸继电器closingrelay中间继电器intermediaterelay时间继电器timerelay零序电压继电器zero-sequencevoltagerelay 差动继电器differentialrelay闭锁装置lockingdevice遥控telecontrol遥信telesignalisation遥测telemetering遥调teleregulationbreaker,circuitbreaker少油断路器mini-oilbreaker,oil-mini-mumbreaker 高频滤波器high-frequencyfilter组合滤波器combinedfilter常开触点normallyopenedcontaact常闭触点normallyclosedcontaact并联电容parallelcapacitance保护接地protectiveearthing熔断器cutout,fusiblecutout电缆cabletrippingpulse合闸脉冲closingpulse一次电压primaryvoltage二次电压secondaryvoltage并联电容器parallelcapacitor无功补偿器reactivepowercompensationdevice 消弧线圈arc-suppressingcoil母线Bus,busbar三角接法deltaconnection星形接法Wyeconnectionschematicdiagram一次系统图primarysystemdiagram二次系统图secondarysystemdiagram两相短路two-phaseshortcircuit三相短路three-phaseshortcircuit单相接地短路single-phasegroundshortcircuit 短路电流计算calculationofshortcircuitcurrent 自动重合闸automaticreclosing高频保护high-freqencyprotection距离保护distanceprotectiontransversedifferentialprotection 纵差保护longitudinaldifferentialprotection 线路保护lineprotection过电压保护over-voltageprotection母差保护busdifferentialprotection瓦斯保护Buchholtzprotection变压器保护transformerprotection电动机保护motorprotection远方控制remotecontrol用电量powerconsumption载波carrier故障fault选择性selectivity速动性speed灵敏性sensitivity可靠性reliability电磁型继电器electromagnetic无时限电流速断保护instantaneouslyover-currentprotection 跳闸线圈tripcoil工作线圈operatingcoil制动线圈retraintcoil主保护mainprotection后备保护back-upprotection定时限过电流保护definitetimeover-currentprotection 三段式电流保护thecurrentprotectionwiththreestages 反时限过电流保护inversetimeover-currentprotection 方向性电流保护thedirectionalcurrentprotection零序电流保护zero-sequencecurrentprotection阻抗impedance微机保护MicroprocessorProtection。

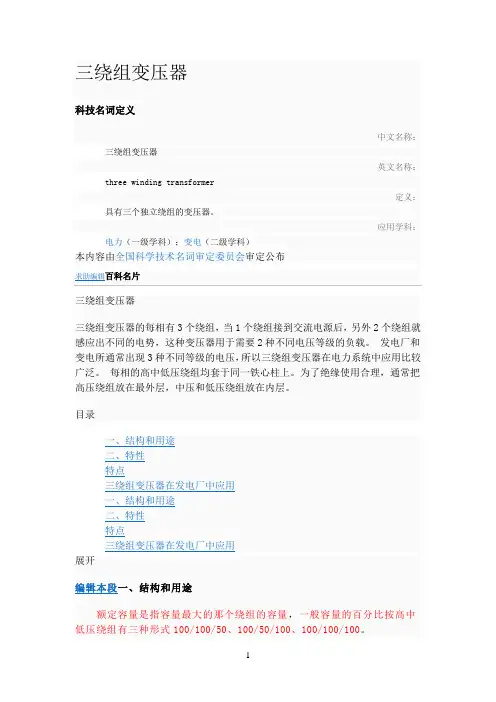

三绕组变压器
