e403-50b中继设备操作文档一、编程开关指令1、开编程* 1xxxx1#，：xxxx 为4位数的编程开关密码。
修改频率亚音等必须开编程，接受过此指令后，控制板始终处于可编程状态，断电重启不影响状态，直到接受到关编程指令。
2、关编程* 1xxxx0# ，：xxxx 为4位数的编程开关密码接受过此指令后，控制板不接受编程，只接受开编程指令。
3、以下指令控制板必须在可编程状态才工作：转发开关指令：开转发* 2xxxx1# ：xxxx 为4位数的转发开关密码中转台正常转发关转发* 2xxxx0# ：xxxx 为4位数的转发开关密码中转台不转发，相当于关闭中转台，断电重启不影响此开关状态。
二、频率修改指令不受掉电影响。
发射频率* 3xxxxxxx# ：xxxxxxx 为7位数频率值，例439.600MHz为4396000。
接收频率* 5xxxxxxx# ：xxxxxxx 为7位数频率值，例439.012.5MHz 为4390125。
三、亚音修改指令不受掉电影响。
发射亚音* 4xxxx# ：xxxx为4位发射亚音频率值，例88.5Hz 为0885。
接收亚音* 6xxxx# ：xxxx为4位接收亚音频率值，例123Hz 为1230。
四、亚音转发延时修改指令* 7xxxx# ：xxxx为4位发延时值，1个数值约为0.08秒。
例0010 为0.8秒，这条指令完成后，亚音板将保存由双音频板设置的亚音数据，亚音板不与双音频板连接，还会工作在双音频板设置的频率，且不受掉电影响，如果不用这条指令，亚音板与双音频板连接时工作在双音频设置的频率，亚音板不与双音频板连接时，亚音板工作于原来自己保存的频率（详见亚音板的设置方法)。
五、密码修改指令修改编程开关密码指令：* 1xxxxyyyy0# xxxx等于yyyy相当于输2次避免错误。
例：设置编程开关密码为9188 指令为*1918891880#。
六、修改转发开关密码指令* 2xxxxyyyy1# xxxx等于yyyy相当于输2次避免错误。
达美通DAS小型基站集中器说明文档说明书
D O C H O N -60257.05 • 12152020 • D M CProduct Features• Speci cally designed for LMR and Public Safety Applications • No need of “Front End BDA” or “POI”, reduced infrastructure cost • Channelized• Programmable uplink squelch (per channel and time slot) for reduced UL noise contribution• Software programmable channel selective or band selective operation, suitable for highly congested RF environments • Centralized operation, single point of access • AGC per channel and time slot• Supports Over The Air (OTA) operation • NFPA Compliant• Preserves BTS Rx sensitivity• Works with Enterprise DAS Remotes• Signal Booster functionality, TO MOBILE RF Port available • Country of Origin: USA • 3-year warranty• IFC & NFPA compliance; UL2524 2nd Edition Listing Applications• For P25 Ph1, P25 Ph2, DMR, TETRA, TETRAPOL, C2000, NXDN and Conventional Systems• Indoor: tunnels, buildings, subways, airports, among others• Outdoor: stadiums, canyons, dense urban areas, remote rural townsSpeci cations ValueFiber Optic Single mode WDM Yes Optical wavelengths 1310 / 1550 nMOperational bands136 - 174 MHz & 450 - 512 MHzNumber of channel lters 32 UL - 32 DL + 2 Bandwidth adjustable per bandAvailable channel lter BW 150 KHz, 100 KHz, 75 KHz, , 62.5 KHz, 50 KHz, 37.5 KHz, 25 KHz & 12.5 KHz Group delayChannel Selective 150KHz, 11.5μSChannel Selective 100KHz, 13.5μS Channel Selective 75KHz, 16.0μS Channel Selective 62.5KHz, 18.0μS Channel Selective 50KHz, 21.0μS Channel Selective 37.5KHz, 25.5μS Channel Selective 25KHz, 35.0μSChannel Selective 12.5KHz, 61.5μSor Band selective: 3.5 to 6.5μS, depending on BWASupported Fiber Loss 5 dBo max Optical return loss >45dB RF Input/Output Impedance 50ΩMax Operational DL Input Power -35dBmDL manual attenuator 20dB in 1dB steps Maximum UL output power* +24 dBm per band UL IM and spurious generation< -13dBm UL manual attenuator20dB in 1dB stepsRemote UnitMaster UnitOverall Gain (Master + Remote)* 80dB RF connectors N(f )Optical connectors FC / APC Number of optical ports4Noise gure <9dBPower Supply 110VAC 60Hz & +24/-48VDC Power consumption 100WHousing IP67 / NEMA4X Environmental EN 300 019 4.1Temperature range -22º to +131º F • -30º to +55º C Humidity <95% non condensing Dimension and weight30x24x12 in • 35 kgrMTBF >50,000 hoursSignal Booster Speci cations ValueRF Ports To Base & To Mobile Operational bands VHF + UHF Number of band pass (TO MOBILES Port) One per band Bandwidth (TO MOBILES Port)Full band Composite Output Power, DL (TO MOBILES Port)*VHF: 24 dBmUHF: 30 dBm Overall G ain* 80 dBControl and Alarms ValueAlarms report Via Master UnitLocal: USB (POWER STATUS, MU STATUS, RM STATUS)Master Unit Con guration Local: USBNormative ValueStandards ITU T G 652 EN60825-1FCCFCC, CFR 47, Part 15, Subpart B, Class A digital devicesETSI EN301489-1; EN301489-18 EN60950-1; TS 101 789-1D O C H O N -60257.05 • 12152020 • D M C* Value valid for non duplexed units. This value can change depending on the ltering insertion loss of the duplexer.THE FUTUREIS WHATWE MAKE ITHoneywell Business Solutions 715 Peachtree Street NE Atlanta, GA HON-60257.05 • 12152020©2020 by Honeywell International Inc. All rights reserved.Unauthorized use of this document is strictly prohibited.This document is not intended to be used for installation purposes. We try to keep our product information up-to-date and accurate. We cannot cover all specificapplications or anticipate all requirements. All specifications are subject to change without notice.Country of origin: U.S.A.D O C H O N -60257.05 • 12152020 • D M C。
MMDVM中继板推荐的外接电台说明书
2333
IP 编辑 禁止 帖子 清理
Model RX TX Notes DR-1X WORK WORK TX/RX audio is excellent, DMR/D-Star Tested (W2GLD) FT-7900 WORK WORK Check/fine tune frequency for DMR use. TX will sag with temperature, set it 2-300 Hz above. (LA1PHA/LA1FTA) FT-7800 WORK WORK Check/fine tune frequency for DMR use. TX will sag with temperature, set it 2-300 Hz above. (LA1PHA/LA1FTA) FT-8800 WORK WORK FT-100D WORK (CT1HDC) FT-8900 WORK WORK (DMR CT1JIB) FT-817 WORK WORK RX also looks to work (PD0ZRY) FT-857 WORK WORK DMR/DSTAR works very well as DMO mode, BER stable around 1-2% ( IW9HFS ) FTM100/DE WORK WORK PinOut MMDVM-->MINIDIN 10PIN : 1=DIN6, 2=DIN4, 3=DIN2, 5=DIN1, 6=DIN3 - IZ0RIN FT-1907R/E WORK WORK Works great on TX, works perfect on RX. You must open the transceiver and use the discriminator audio for tx/rx. 0% stable BER both ways. Although transceiver suffers from overheating if used for TX as well(in case of hotspot), due to lack of a blower. For further info contact me via email.(5B4AMD)
Moxa EDS-508A 系列 8 埠網管型乙太網路交換器 說明書说明书
EDS-508A 系列8埠網管型乙太網路交換器特色與優點•支援Turbo Ring 和Turbo Chain （對於250台交換器，復原時間<20ms ），STP/RSTP/MSTP ，實現網路備援•支援TACACS+、SNMPv3、IEEE 802.1X 、HTTPS 和SSH ，強化網路安全•透過網頁瀏覽器、CLI 、Telnet ／序列控制埠、Windows 工具程式和ABC-01輕鬆管理網路•支援MXstudio ，輕鬆進行視覺化工業網路管理認證簡介EDS-508A 獨立8埠管理乙太網路交換器搭載先進的Turbo Ring 及Turbo Chain 技術（復原時間<20ms ）、RSTP/STP ，以及MSTP ，可提升工業乙太網路的可靠性和可用性。
此外還提供介於-40至75°C 的寬操作溫度範圍的型號，此交換器支援進階管理與安全功能，因此EDS-508A 交換器適用於任何嚴峻工業環境。
附加特色與優點•命令列介面（CLI ）快速設定主要網管功能•DHCP Option 82適用於以不同原則指派IP 位址•支援EtherNet/IP 和Modbus TCP 通訊協定，以進行裝置管理和監控•相容於PROFINET 通訊協定，可進行透明資料傳輸•發生例外狀況時透過電子郵件和繼電器輸出自動發出警告•IGMP snooping 和GMRP ，用於篩選多點傳送流量•可基於連接埠實現VLAN 、IEEE 802.1Q VLAN 以及GVRP ，以簡化網路規劃•QoS （IEEE 802.1p/1Q 和TOS/DiffServ ）提高可靠性•網路埠端口聚合功能提供最佳頻寬使用率•RMON 提供主動且有效率的網路監控•SNMPv1/v2c/v3，適用不同層級的網路管理•頻寬管理可防止無法預測的網路狀態•鎖定連接埠功能可根據MAC 位址封鎖未經授權的存取規格Input/Output InterfaceAlarm Contact Channels 2,Relay output with current carrying capacity of 1A @24VDC Digital Input Channels 2Digital Inputs+13to +30V for state 1-30to +3V for state 0Max.input current:8mA ButtonsReset buttonEthernet Interface10/100BaseT(X)Ports(RJ45connector)EDS-508A Series:8EDS-508A-MM/SS Series:6All models support:Auto negotiation speedFull/Half duplex modeAuto MDI/MDI-X connection100BaseFX Ports(multi-mode SC connector)EDS-508A-MM-SC Series:2100BaseFX Ports(multi-mode ST connector)EDS-508A-MM-ST Series:2100BaseFX Ports(single-mode SC connector)EDS-508A-SS-SC Series:2100BaseFX Ports,Single-Mode SC Connector,80km EDS-508A-SS-SC-80Series:2Standards IEEE802.3for10BaseTIEEE802.3u for100BaseT(X)and100BaseFXIEEE802.1X for authenticationIEEE802.1D-2004for Spanning Tree ProtocolIEEE802.1w for Rapid Spanning Tree ProtocolIEEE802.1s for Multiple Spanning Tree ProtocolIEEE802.1Q for VLAN TaggingIEEE802.1p for Class of ServiceIEEE802.3x for flow controlIEEE802.3ad for Port Trunk with LACPOptical Fiber800Typical Distance4km5km40km80kmWave-lengthTypical(nm)130013101550TX Range(nm)1260to13601280to13401530to1570 RX Range(nm)1100to16001100to16001100to1600Optical PowerTX Range(dBm)-10to-200to-50to-5 RX Range(dBm)-3to-32-3to-34-3to-34 Link Budget(dB)122929 Dispersion Penalty(dB)311Note:When connecting a single-mode fiber transceiver,we recommend using anattenuator to prevent damage caused by excessive optical power.Note:Compute the“typical distance”of a specific fiber transceiver as follows:Linkbudget(dB)>dispersion penalty(dB)+total link loss(dB).Ethernet Software FeaturesFilter802.1Q VLAN,Port-based VLAN,IGMP v1/v2,GVRP,GMRPIndustrial Protocols EtherNet/IP,Modbus TCPManagement IPv4/IPv6,SNMPv1/v2c/v3,LLDP,Port Mirror,Back Pressure Flow Control,BOOTP,DDM,DHCP Option66/67/82,DHCP Server/Client,Fiber check,Flow control,RARP,RMON,SMTP,SNMP Inform,Syslog,Telnet,TFTPMIB MIB-II,Bridge MIB,Ethernet-like MIB,P-BRIDGE MIB,Q-BRIDGE MIB,RMON MIBGroups1,2,3,9,RSTP MIBRedundancy Protocols STP,MSTP,RSTP,LACP,Link Aggregation,Turbo Chain,Turbo Ring v1/v2Security HTTPS/SSL,TACACS+,Port Lock,RADIUS,SSHTime Management NTP Server/Client,SNTP,IEEE1588v2PTP(software-based)Switch PropertiesIGMP Groups256MAC Table Size8KMax.No.of VLANs64Packet Buffer Size1MbitsPriority Queues4VLAN ID Range VID1to4094LED InterfaceLED Indicators PWR1,PWR2,FAULT,10/100M(TP port),100M(fiber port),MSTR/HEAD,CPLR/TAIL Serial InterfaceConsole Port RS-232(TxD,RxD,GND),8-pin RJ45(115200,n,8,1)DIP Switch ConfigurationEthernet Interface Turbo Ring,Master,Coupler,ReservePower ParametersConnection2removable6-contact terminal block(s)Input Voltage12/24/48VDC,Redundant dual inputsOperating Voltage9.6to60VDCInput Current EDS-508A Series:0.22A@24VDCEDS-508A-MM/SS Series:0.30A@24VDCOverload Current Protection SupportedReverse Polarity Protection SupportedPhysical CharacteristicsHousing MetalIP Rating IP30Dimensions80.2x135x105mm(3.16x5.31x4.13in)Weight1040g(2.3lb)Installation DIN-rail mounting,Wall mounting(with optional kit)Environmental LimitsOperating Temperature Standard Models:-10to60°C(14to140°F)Wide Temp.Models:-40to75°C(-40to167°F)Storage Temperature(package included)-40to85°C(-40to185°F)Ambient Relative Humidity5to95%(non-condensing)Standards and CertificationsSafety EN60950-1,UL60950-1,CSA C22.2No.60950-1,UL508 Hazardous Locations ATEX,Class I Division2EMC EN55032/24EMI CISPR32,FCC Part15B Class AEMS IEC61000-4-2ESD:Contact:6kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:20V/mIEC61000-4-4EFT:Power:2kV;Signal:1kVIEC61000-4-5Surge:Power:2kV;Signal:2kVIEC61000-4-6CS:10VIEC61000-4-8PFMFShock IEC60068-2-27Vibration IEC60068-2-6Freefall IEC60068-2-31MTBFTime1,043,909hrsStandards Telcordia(Bellcore),GBWarrantyWarranty Period5yearsDetails See /tw/warrantyPackage ContentsDevice1x EDS-508A Series switchCable1x DB9female to RJ4510-pinInstallation Kit4x cap,plastic,for RJ45port2x cap,plastic,for SC fiber port(-SC models)2x cap,plastic,for ST fiber port(-ST models)Documentation1x quick installation guide1x warranty card1x product certificates of quality inspection,Simplified Chinese1x product notice,Simplified Chinese尺寸訂購資訊Model Name 10/100BaseT(X)Ports,RJ45Connector100BaseFX PortsMulti-Mode,SCConnector100BaseFX PortsMulti-Mode,STConnector100BaseFX PortsSingle-Mode,SCConnector100BaseFX PortsSingle-Mode,SCConnector,80kmOperating Temp.EDS-508A8––––-10to60°CEDS-508A-T8––––-40to75°C EDS-508A-MM-SC62–––-10to60°C EDS-508A-MM-SC-T62–––-40to75°C EDS-508A-MM-ST6–2––-10to60°CEDS-508A-MM-ST-T6–2––-40to75°C EDS-508A-SS-SC6––2–-10to60°C EDS-508A-SS-SC-T6––2–-40to75°CEDS-508A-SS-SC-806–––2-10to60°CEDS-508A-SS-SC-80-T6–––2-40to75°C 配件（選購）Storage KitsABC-01Configuration backup and restoration tool for managed Ethernet switches and AWK Series wireless APs/bridges/clients,0to60°C operating temperaturePower SuppliesDR-120-24120W/2.5A DIN-rail24VDC power supply with universal88to132VAC or176to264VAC input byswitch,or248to370VDC input,-10to60°C operating temperatureDR-452445W/2A DIN-rail24VDC power supply with universal85to264VAC or120to370VDC input,-10to50°Coperating temperatureDR-75-2475W/3.2A DIN-rail24VDC power supply with universal85to264VAC or120to370VDC input,-10to60°C operating temperatureMDR-40-24DIN-rail24VDC power supply with40W/1.7A,85to264VAC,or120to370VDC input,-20to70°Coperating temperatureMDR-60-24DIN-rail24VDC power supply with60W/2.5A,85to264VAC,or120to370VDC input,-20to70°Coperating temperatureWall-Mounting KitsWK-46Wall-mounting kit,2plates,8screws,46.5x66.8x1mmRack-Mounting KitsRK-4U19-inch rack-mounting kitSoftwareMXview-50Industrial network management software with a license for50nodes(by IP address)MXview-100Industrial network management software with a license for100nodes(by IP address)MXview-250Industrial network management software with a license for250nodes(by IP address)MXview-500Industrial network management software with a license for500nodes(by IP address)MXview-1000Industrial network management software with a license for1000nodes(by IP address)MXview-2000Industrial network management software with a license for2000nodes(by IP address)MXview Upgrade-50License expansion of MXview industrial network management software by50nodes(by IP address)©Moxa Inc.版權所有.2019年9月10日更新。
E403-50参数

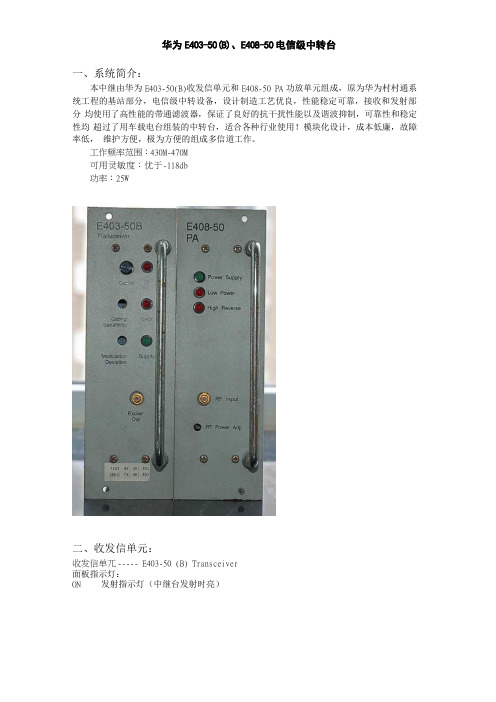

一、系统简介：本中继由华为E403-50(B)收发信单元和E408-50 PA功放单元组成，原为华为村村通系统工程的基站部分，电信级中转设备，设计制造工艺优良，性能稳定可靠，接收和发射部分均使用了高性能的带通滤波器，保证了良好的抗干扰性能以及谐波抑制，可靠性和稳定性均超过了用车载电台组装的中转台，适合各种行业使用！模块化设计，成本低廉，故障率低，维护方便，极为方便的组成多信道工作。
