D300智能温度显示控制仪说明书深圳市泰士特科技有限公司一、概述D300系列智能温度显示控制仪是在引进国外先进技术, 针对水电行业测温的特殊性, 自主研发的新型温度仪表。
仪表的精度性、抗干扰性、智能化、稳定性、可靠性等均达国际先进水平, 完全能够替代进口温度控制仪。
二、应用范围水电厂温度监测特殊设计, 包括瓦温、油槽油温、冷却水温、冷却油温、定子温度、空冷器温度、封闭母线温度、主变油温等需要接保护及非接保护的现场温度显示及控制。
三、特点1、采用微机芯片, 仪表智能化, 可直接在盘面上进行参数设置、仪表校验。
2、控制、输出采用光电隔离, 克服了控制对象对本机的干扰, 增强了稳定性。
3、具有自动校零系统, 克服了仪表随环境温度变化而造成的温度零点漂移。
4、有自动复位功能、复位时继电器输出状态保持不变。
5、量程、继电器的动作方式, 由前面板按钮组态设定。
6、双屏显示, 显示测量值和控制目标值。
7、Ⅰ( 温度升高) 、Ⅱ( 温度过高事故) 报警继电器输出。
8、4~20mA 模拟量输出, 电压输出可选。
9、铂电阻及热电偶信号输入。
10、显示控制仪具备断线闭锁功能。
传感器断线, 断线故障Ⅲ报警继电器输出, Ⅰ、Ⅱ继电器输出闭锁( 自保持) , 有效防止误停机, 用于机组事故停机保护。
11、显示控制仪具备梯度闭锁功能。
有效防止误停机, 用于机组事故停机保护。
四、主要技术指标1、输入信号: 2 或3 线制铂电阻、热电偶信号, 内置补偿功能, 校准精度: < 0.25%。
2、RTD 输入: 传感器断线及反极性保护, 3 线制接线最大允许线路电阻: 80Ω; 传感器电流: < 0.5 mA, 校准精度: < 0.2 %。
3、线性误差: < 0.2 %。
4、温度漂移: < 0.01 % / K。
5、主报警继电器输出: 2 个, 传感器故障报警继电器: 1 个。
6、接点容量: 220 V AC, 3 A。
易温度Easytemp TMR31、TMR35紧凑型温度计说明书

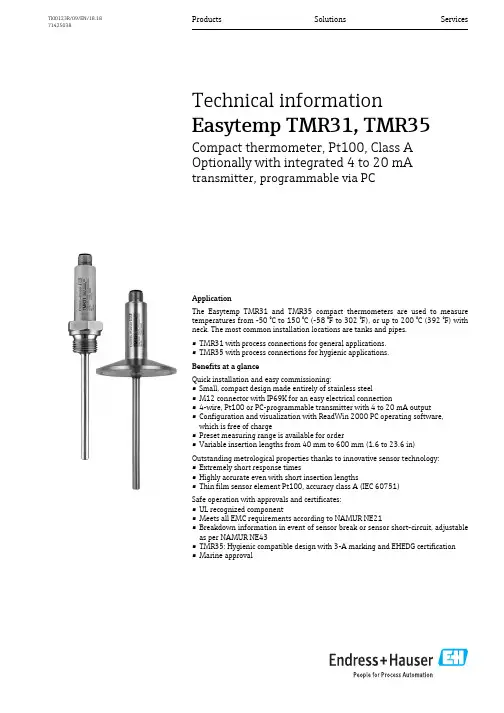

Products Solutions Services TI00123R/09/EN/18.1871425038Technical informationEasytemp TMR31, TMR35Compact thermometer, Pt100, Class AOptionally with integrated 4 to 20 mAtransmitter, programmable via PCApplicationThe Easytemp TMR31 and TMR35 compact thermometers are used to measuretemperatures from -50 °C to 150 °C (-58 °F to 302 °F), or up to 200 °C (392 °F) withneck. The most common installation locations are tanks and pipes.•TMR31 with process connections for general applications.•TMR35 with process connections for hygienic applications.Benefits at a glanceQuick installation and easy commissioning:•Small, compact design made entirely of stainless steel•M12 connector with IP69K for an easy electrical connection•4-wire, Pt100 or PC-programmable transmitter with 4 to 20 mA output•Configuration and visualization with ReadWin 2000 PC operating software,which is free of charge•Preset measuring range is available for order•Variable insertion lengths from 40 mm to 600 mm (1.6 to 23.6 in)Outstanding metrological properties thanks to innovative sensor technology:•Extremely short response times•Highly accurate even with short insertion lengths•Thin film sensor element Pt100, accuracy class A (IEC 60751)Safe operation with approvals and certificates:•UL recognized component•Meets all EMC requirements according to NAMUR NE21•Breakdown information in event of sensor break or sensor short-circuit, adjustableas per NAMUR NE43•TMR35: Hygienic compatible design with 3-A marking and EHEDG certification•Marine approvalTMR31, TMR352Endress+HauserFunction and system designMeasuring principle Electronic recording and conversion of Pt100 input signals in industrial temperature measurement.Measuring systemThe compact thermometer uses a Pt100 (Class A) sensor element for measurement. The device is available with a Pt100 4-wire connection or, optionally, with an analog, temperature-linear 4 to 20mA output signal. A built-in transmitter in the device converts the Pt100 input signal into the 4 to 20mA signal and can be programmed using a PC via the M12 connector. The compact thermometer has different process connections for general (TMR31) and hygienic applications (TMR35).The Easytemp TMR31, TMR35 has a new kind of thin film sensor element that is soldered directly into the sensor tip. This innovative sensor design ensures ideal heat transfer from the process to the sensor element. This means that extremely fast response times and high levels of accuracy can be achieved even with short insertion lengths.Multi Channel Recorder Ecograph TMulti-channel recorder Ecograph T in 144 x 144 mm (5.7 x 5.7 in) panel-mounted housing for the electronic detection, display, recording, analysis, remote transmission and archiving of analog and digital input signals. Data recording system on CompactFlash card, multi-colored LCD display, 120 mm (4.72 in) screen size. Configuration and measured value display via interfaces (USB, Ethernet, RS232/485) and ReadWin 2000 PC operating software.Active barrier RN221 NActive barrier with power supply for the safe separation of 4 to 20 mA standard signal circuits with optional intrinsically safe input. The current applied by the transmitter of the compact thermometer in the input circuit (4 to 20 mA) is transmitted linearly to the output.Surge arrester HAW562Protects consumer installations or measuring devices as well as signal lines and components against overvoltage which is induced by lightning striking in the distance or through switching operations. The HAW562 module acts as an overvoltage protection system in terminal block systems to protect signal lines and components and is installed on a module carrier (HAW560).Ecograph TTMR31, TMR35Endress+Hauser 3InputMeasuring principle Temperature (temperature-linear transmission behavior)Measuring rangeOutputOutput signal•Standard: Pt100, Class A, 4-wire •Optional: 4 to 20 mA or 20 to 4 mASignal on alarmSignal on alarm as per NAMUR NE43•Underranging: Linear drop to 3.8 mA •Overranging: Linear rise to 20.5 mA •Sensor break; sensor short-circuit:≤ 3.6 mA or ≥ 21.0 mA (at settings ≥ 21.0 mA, 21.5 mA output is guaranteed)Maximum load(U power supply - 10 V) / 0.023 A (current output)Min. current consumption ≤ 3.5 mA Current limit ≤ 23 mA Switch-on delay2 sPower supplyElectrical connection cables must comply with 3-A sanitary standard, must be smooth, corrosion resistant and cleanable.Electrical connectionA: with electronics, M12 plug, 4-pinPin 1: power supply 10 to 35 V DC; current output 4 to 20 mA (cable connection, wire color brown = BN)Pin 2: connection of PC configuration cable - shortened pin (cable connection, wire color white = WH)Pin 3: power supply 0 V DC; current output 4 to 20 mA (cable connection, wire color blue = BU)Pin 4: connection of PC configuration cable - shortened pin (cable connection, wire color black = BK)B: without electronics, Pt100, 4-wire connectionSupply voltageU b = 10 to 35 V DCTMR31, TMR354Endress+HauserResidual ripplePermitted residual ripple U ss ≤ 3 V at U b ≥ 13 V, f max. = 1 kHzPerformance characteristicsResponse time ≤ 3 s with transmitterReference operating conditions•Matching temperature (ice bath) 0 °C (32 °F) for Pt100 sensor •Ambient temperature 25 °C ± 5 °C (77 °F ± 9 °F) for transmitter Maximum measured errorElectronics0.1 K (0.18 °F) or 0.08%. % relates to the set span. The larger value applies.Sensor (Pt100) for version without transmitter•Tolerance class A as per IEC 60751, operating temperature range -50 to 200 °C (-58 to 392 °F) with neck•Maximum measured error in °C = 0.15 + 0.002 ⋅ ∣T ∣∣T ∣ = Numerical value of the temperature in °C without regard to the leading sign.Total deviation of electronics + sensor •Operating temperature range:-50 to 150 °C (-58 to 302 °F) without neck -50 to 200 °C (-58 to 392 °F) with neck •0.25 K + 0.002 ⋅∣T ∣Long-term stability of electronics≤ 0.1 K (0.18 °F)/year or ≤ 0.05%/yearData under reference conditions. % relates to the set span. The larger value applies.Influence of ambienttemperature (temperature drift)•Pt100 resistance thermometer:T d = ±(15 ppm/K * (full scale value of measuring range + 200) + 50 ppm/K * set measuring range)* ∆T∆T= deviation of ambient temperature from the reference operating condition.Influence of load± 0.02%/100 ΩSpecifications refer to the full scale value of the measuring range.Transmitter response time 1 sSensor response timeMeasured as per IEC 60751, in water flowing at 0.4 m/s (1.3 ft/s)Influence of supply voltage≤ ± 0.01%/V deviation from 24 VSpecifications in percent refer to the full scale value of the measuring range.Self-heating Negligible small Sensor current≤ 0.6 mATMR31, TMR35Endress+Hauser 5Installation conditionsOrientationNo restrictions. However, self-draining in the process must be guaranteed. If there is an opening to detect leaks at the process connection, this opening must be at the lowest possible point.Installation instructionsMounting locationThe insertion length of the compact thermometer can have a substantial influence on the accuracy. If the insertion length is insufficient, heat dissipation via the process connection and the container wall can cause measurement errors. To minimize errors caused by heat dissipation, a minimum insertion length of L min = 40 mm (1.6 in) is recommended.The matches for the process connections as well as the gaskets are not included in the scope of delivery of this assembly. Welding adapter for process connections with associated O-ring sets are available as accessories, 15.TMR31 - general applicationsPipe installation of the compact thermometer:A: On angle bracketsB: In smaller pipes, inclinedTMR31, TMR356Endress+HauserProcedure in case of seal failure indicated by leak detection port:•Disassembling of the thermometer, validated cleaning procedure of thread and sealing ring groove •Replacement of the seal or sealing ring •CIP after re-assemblyIn the case of weld-in connections, exercise the necessary degree of care when performing the welding work on the process side:•Suitable weld material.•Flush welding or with welding radius > 3.2 mm.•Absence of pits, folds, crevices.•Ground and polished surface (R a ≤ 0.76 μm).As a general rule, the thermometers should be installed in such a way that does not adversely affect their cleanability (3-A requirements must be adhered to). The required flush-mounting can be achieved by the connection Varivent ®, Liquiphant (+ weld-in adapter).Environment conditionsAmbient temperature limits -40 to +85 °C (-40 to 185 °F)Storage temperature -40 to +85 °C (-40 to 185 °F)Altitude Up to 2000 m (6600 ft) above mean sea level Climate class As per IEC 60654-1, Class CDegree of protectionIP66/67 with coupling and connecting cable (not evaluated by UL) → 15IP69K with cordset (not evaluated by UL) → 15Shock resistance 4g / 2 to 150 Hz as per DIN EN60068-2-6Vibration resistance Refer to ’Shock resistance ’Electromagnetic compatibility (EMC)EMC to all relevant requirements of the IEC/EN 61326- series and NAMUR NE21. For details see declaration of conformity.All EMC measurements were performed with a turn down (TD) = 2:1. Maximum fluctuations during EMC- tests: < 1 % of measuring span.Interference immunity to IEC/EN 61326 - series, requirements for industrial areas Interference emission to IEC/EN 61326 - series, electrical equipment Class B.Condensation PermittedElectrical safety•Protection class III•Overvoltage category II •Pollution degree 2 IIITMR31, TMR35Endress+Hauser 7Process conditionsProcess temperature limitsThe electronics of the TMR31 and TMR35 must be protected from temperatures above 85 °C (185 °F)by a neck of appropriate length. TMR31 and TMR35 compact thermometers without electronics (Pt100, 4-wire) do not require a neck.•-50 to 150 °C (-58 to 302 °F) without neck •-50 to 200 °C (-58 to 392 °F) with neck•-50 to 200 °C (-58 to 392 °F) without electronicsRestrictions depending on process connection and ambient temperature:•For installation with adjustable insertion length (welding boss with sealing taper, Order No.51004751; collar welding boss Order No. 51004752; compression fitting with sealing taper, Order No. 51004753) provide a neck with an appropriate length.•For TMR31 with process connection:Process pressure limitsMaximum permitted process pressure depending on the insertion length. It is limited further by the process connection in question. Follow the designs of process connection in section "Mechanical construction" and section "Accessories".Maximum permitted process pressure L Insertion length p Process pressureThe diagram takes into consideration not only the overpressure but also the pressure load caused by the flow, whereby a safety factor of 1.9 has been specified for operation with flow. The maximum permitted static operating pressure is lower at greater insertion lenghts due to the increased bending load caused by the flow. The calculation assumes the maximum permitted medium velocity for the respective insertion length (see diagram below).TMR31, TMR358Endress+HauserPermitted flow velocity depending on the insertion lengthPermitted flow velocity L Insertion length, during flow v Flow velocityA Medium water at T = 50 °C (122 °F)BMedium superheated steam at T = 200 °C (392 °F)The permitted flow velocity is the minimum from resonance velocity (resonance distance 80%) and load or buckling caused by flow, which would lead to failure of the thermometer tube or to exceedance of the safety factor (1.9). Calculation was performed for the specified limit operating conditions of 200 °C (392 °F) and ≤ 100 bar (1450 psi) process pressure.TMR31, TMR35Endress+Hauser9Mechanical constructionTMR31 design, dimensionsTMR31 - dimensions in mm (in)L = Insertion length L variable from 40 to 600 mm (1.6 to 23.6 in)⌀D = Diameter D = 6 mm (0.25 in)⌀H = Sleeve diameter 18 mm (0.71 in)TMR31, TMR3510Endress+HauserTMR35 - dimensions in mm (in)L = Insertion length L variable from 40 to 600 mm (1.6 in to 23.6 in)⌀H = Sleeve diameter 18 mm (0.71 in)WeightMaterial•Transmitter housing: SS 304•Parts in contact with process and process connection: SS 316L, R a ≤ 0.76 μm (30 μin). Optionally for TMR35 R a ≤ 0.38 μm (15 μin), electro-polished.TMR35 design, dimensionsL = Insertion length LAll dimensions in mm (in). ArrayThread according to ISO 228(for Liquiphant weld-inadapter)TMR35 design, dimensions thermowellsA0018305TMR35 thermowells - All dimensions in mm (in)1) Permitted flow velocity = 40 m/s (131 ft/s)Human interfaceDisplay elements No display elements are present directly on the device.The measured value and other displays can be called up using the ReadWin 2000 PC software.Operating elements No operating elements are present directly on the display. The temperature transmitter is configuredby remote operation, without an additional power supply using the ReadWin 2000 PC software.Remote operation ConfigurationConfiguration kit TXU10-BA with PC operating program (ReadWin 2000).InterfacePC interface: TTL/USB connecting cable with plug connector.Configurable parametersMeasurement dimension (°C/°F), Measuring range, fail-safe mode, output signal (4 to 20 mA / 20 to4 mA), filter, offset, tag name (8 characters), output simulation.Certificates and approvalsCE-Mark The measuring system meets the legal requirements of the applicable EC guidelines. These are listedin the corresponding EC Declaration of Conformity together with the standards applied.Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.Hygiene standard EHEDG certification TYPE EL CLASS I. Permitted process connections in accordance with EHEDG, see"Process connections" section → 11•3-A authorization no. 1144, 3-A sanitary standard. Permitted process connections in accordancewith 3-A, see also "Process connections" section•3-A marked process connections → 11•Product contact surfaces are FDA-compliant. For the enclosures lies no FDA-Conformity form thePCM beforeMarine approval For further details on the available "Type Approval Certificiates" (DNVGL, BV, etc.), please contact yournearest Endress+Hauser sales organisation. All relevant data for marine approval can be found inseparate "Type Approval Certificiates". If required, please request copies from us or yourEndress+Hauser sales organisation.Other standards and guidelines •IEC 60751: Industrial platinum resistance thermometers•IEC 60529: Degree of protection provided by housing (IP code)•IEC 61010-1: Safety requirements for electrical equipment for measurement,control and laboratory use•IEC/EN 61326 Series: Electromagnetic compatibility (EMC requirements)•NAMUR: Standards working group for measurement and control technology in the chemical industryUL UL recognized component (see /database - search for Keyword "E225237")The UL applies only for the compact thermometers TMR31, TMR35 with electronics and4 to 20 mA output signal.Ordering informationDetailed ordering information is available from the following sources:•In the Product Configurator on the Endress+Hauser website:→Select your country → Products → Select measuring technology, software or components → Select the product (picklists: measurement method, product family etc.) → Device support (right-hand column): Configure the selected product → The Product Configurator for the selected product opens.•From your Endress+Hauser Sales Center:Product Configurator - the tool for individual product configuration:•Up-to-the-minute configuration data•Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language• Automatic verification of exclusion criteria• Automatic creation of the order code and its breakdown in PDF or Excel output format• Ability to order directly in the Endress+Hauser Online ShopAccessoriesVarious accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website:.All dimensions in mm (in).EN10204-3.1 = Material certificate (melt analysis)Welding boss with sealing taper for TMR31Collar welding boss for TMR31Collar welding boss moveable with sealing taper, washer and pressure screw G½",material of wetted parts: 316L, PEEKmax. process pressure: 10 bar (145 psi)Order number with pressure screw: 51004751 Order number without pressure screw: 510047521) pressure screw, 303/3042) washer, 303/3043) sealing taper, PEEK4) collar welding boss, 316LMaterial of parts in contact with process: 316L Order number: 51004752Coupling for TMR31Welding boss with sealing taper (metal-metal) for TMR35Process adapter D45Clamping ring, movable, different process connections, e.g. G½", G¾", G1", NPT½" coupling and parts in contact with process: 316L Order number: TA50-HBWelding boss for G½" threadSeal, metal-metal,Material of parts in contact with process: 316L/ 1.4435Max. process pressure 16 bar (232 psi)Order no. 71424800With 3-A symbolEHEDG certi f icationWeld-in pipe + thermowell TT411CouplingConnecting cable (pre-assembled)CordsetConfiguration kitCoupling M12x1 for simple user installableassembly of the connecting cable; elbowed;connection to M12x1 housing connectorIP67, PG7Order number: 51006327(0.79)(1.61)14.8(0.58)PVC cable, 4 x 0.34 mm2 (22 AWG) with M12x1coupling; elbowed; screw plug;length 5 m (16.4 ft); IP67Order number: 51005148Core colours:- 1 = BN brown- 2 = WH white- 3 = BU blue- 4 = BK blackPVC cable, 4 x 0.34 mm2 (22 AWG) with M12x1coupling nut from stainless steel; straight femaleconnector type; screw plug;length 5 m (16.4 ft); IP69KOrder number: 71217708Core colours:- 1 = BN brown- 2 = WH white- 3 = BU blue- 4 = BK black•Configuration kit for PC-programmabletransmitters - ReadWin 2000 setup programand interface cable (4 pin plug) for PCs withUSB port; with adapter for compactthermometers with M12x1 thread;Order code: TXU10-BA•ReadWin 2000 can be downloaded free ofcharge directly from the internet at thefollowing address: /readwinService-specific accessories System componentsDocumentationOperating manual "Easytemp TMR31, TMR35" (BA00215R/09)TMR31, TMR35 。
雅能巾安全气温数计 DT301-302型号手册说明书

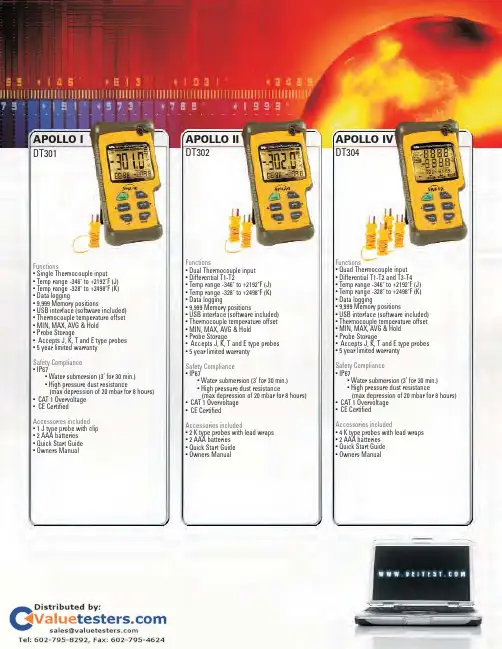

APOLLO IDT301Functions• Single Thermocouple input• Temp range -346˚ to +2192˚F (J)• Temp range -328˚ to +2498˚F (K)• Data logging• 9,999 Memory positions• USB interface (software included)• Thermocouple temperature offset• MIN, MAX, AVG & Hold• Probe Storage•Accepts J, K, T and E type probes• 5 year limited warrantySafety Compliance• IP67• Water submersion (3’ for 30 min.)• High pressure dust resistance(max depression of 20 mbar for 8 hours)•CAT 1 Overvoltage•CE CertifiedAccessories included• 1 J type probe with clip• 2 AAA batteries• Quick Start Guide• Owners Manual APOLLO IIDT302Functions• Dual Thermocouple input• Differential T1-T2• Temp range -346˚ to +2192˚F (J)• Temp range -328˚ to +2498˚F (K)• Data logging• 9,999 Memory positions• USB interface (software included)• Thermocouple temperature offset• MIN, MAX, AVG & Hold• Probe Storage•Accepts J, K, T and E type probes• 5 year limited warrantySafety Compliance• IP67• Water submersion (3’ for 30 min.)• High pressure dust resistance(max depression of 20 mbar for 8 hours)•CAT 1 Overvoltage•CE CertifiedAccessories included• 2 K type probes with lead wraps• 2 AAA batteries• Quick Start Guide• Owners ManualAPOLLO IVDT304Functions• Quad Thermocouple input• Differential T1-T2 and T3-T4• Temp range -346˚ to +2192˚F (J)• Temp range -328˚ to +2498˚F (K)• Data logging• 9,999 Memory positions• USB interface (software included)• Thermocouple temperature offset• MIN, MAX, AVG & Hold• Probe Storage•Accepts J, K, T and E type probes• 5 year limited warrantySafety Compliance• IP67• Water submersion (3’ for 30 min.)• High pressure dust resistance(max depression of 20 mbar for 8 hours)•CAT 1 Overvoltage•CE CertifiedAccessories included• 4 K type probes with lead wraps• 2 AAA batteries• Quick Start Guide• Owners ManualDimension 7.20” (H) x 3.70” (W) x 1.70” (D) Weight Approx. 16.2 ozBattery2 x LR03 (AAA) type 1.5V Certification CESafetyIEC 1010-1 (2001), UL 3111-1 (6, 1994),EN 61010-1 (2001), CSA C22.2 No. 1010.1 (1992)CAT IOver Voltage (Installation) CATEGORY I, Pollution Degree 2 per IEC 1010-1ComplianceIEC 60529: IP67 (Ingress Protection rating)Water Immersion (3’ up to 30 min)No ingress of dust (20mBar up to 8 hrs.)Accuracy is specified for ambient temperatures between 64˚F (18˚C)and 82˚F (28˚C) for a period of 1 year. The above specifications do not include thermocouple error.CalibrationThe Apollo Digital Thermometer’s annual calibration, starting one year after purchase, is recommended to ensure that the thermometer performs to its accuracy specifications.To calibrate the thermometer, contact your nearest UEi distributor or UEi Service Center at 1-800-547-5740.Copyright © 2008 UEi. APOLLO Digital Thermometers™ is a trademark of UEi. All Rights Reserved. Specifications are subject to change without notice.L310 PARA110.30k 0508DISTRIBUTED BY :USA 1-800-547-5740 • Fax: (503) 643-6322•Email:****************CANADA 1-877-475-0648 • Vancouver Fax: (604) 278-8299Toronto Fax: (905) 238-5117 EUROPE +44 1707 375550 • Fax: +44 1707 393277PLEASERECYCLEAPOLLO SPECIFICATIONSMeasurement RangeJ-Type: -346˚ to +2192˚F (-210˚ to +1200˚C)K-Type: -328˚ to +2498˚F (-200˚ to +1370˚C)T-Type: -418˚ to +752˚F (-250˚ to +400˚C)E-Type: -238˚ to +1832˚F (-150˚ to +1000˚C)Display Resolution0.1˚F/˚C < 1000˚1.0˚F/˚C ≥ 1000˚AccuracyJ, K, T, and E-Type; ±[0.1% +1.0˚F (0.5˚C)][Below -148˚F (-100˚C): add 0.2% of reading for J, K, and E-Type; and 0.1% of reading for T-Type]Temperature 0.01% of reading 0.1˚F per ˚F(+0.05˚C per ˚C) Coefficientfor <+64˚F (+18˚C) or +82˚F (+28˚C)[Below -148˚F (-100˚C): add 0.05% of reading for J, K, and E-type; and 0.1% of reading for T-type]Real TimeAbout 1 second per dayClock ToleranceMaximum Differential 1V (maximum voltage difference between Common Mode any pair of inputs)VoltageTemperature ScaleITS-90 (International Temperature Scale of 1990)Applicable Standards N.I.S.T. Monograph 175 revised to ITS-90。
TOPTES炉温跟踪仪(1)
分析软件
1．分析软件与数据下载界面相同
2．计算任何温度点以上保持时间
3．显示各通道测试过程的曲线
4．根据工艺要求分析各项参数
5．分析软件可插入现场测试照片
6．图标化操作界面，形象直观
(以上为部分功能介绍)
二、配置清单
序号
名称
数量
序号
名称
数量
1
仪器包装箱
1
7
高温手套
1
2
测温仪主机
0.1℃
连续测试
一次最大存储4次
最大内部温度
85.0℃
内存容量
8M230,400数据点
启动方式
按键启动、延时启动、温度启动
传感器
K型热电偶
仪器特点
1．可连续测试，数据1次下载
2．USB端口，适用所有电脑
3．数据下载时，仪器自行充电
4．标准电压校准，精度可靠
5．仪器断电，数据不会丢失
6．各种指示灯，明确仪器状态

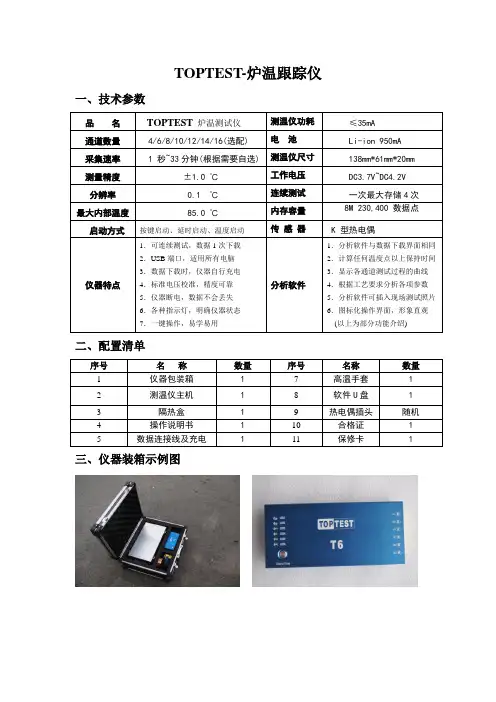

TOPTEST-炉温跟踪仪
一、技术参数
品名
TOPTEST炉温测试仪
测温仪功耗
≤35mA
通道数量
4/6/8/10/12/14/16(选配)
电池
Li-ion 950mA
采集速率
1秒~33分钟(根据需要自选)
测温仪尺寸
138mm*61mm*20mm
测量精度
±1.0℃
工作电压
DC3.7V~DC4.2V
分辨率
1
8
软件U盘
1
3
隔热盒
1
9
热电偶插头
随机
4
操作说明书
1
10
台湾泰仕TES1310温度表
台湾泰仕TES1310温度表图片由青岛聚创环保网站提供一、台湾泰仕TES1310温度表简要介绍测量范围 -50℃ -1300℃; -50℉ -1999℉感应器 K 型热电偶输入单(1310), 双 (1320) 分辨率 -50℃～199.9℃...0.1℃ -50℉～199.9℉...0.1℉ (其它1℃/1℉)二、台湾泰仕TES1310温度表详细介绍分辨率之选择0.1°/1.0°∙单一/双组不同测试信号∙读值锁定功能测量范围-50℃ -1300℃; -50℉ -1999℉感应器K 型热电偶输入单(1310), 双 (1320)分辨率-50℃～199.9℃...0.1℃-50℉～199.9℉...0.1℉(其它1℃/1℉)准确度50℃to199.9℃...0.2% rdg + 1℃-50℉to199.9℉...0.2% rdg + 1℉-50℃to1000℃... 0.3% rdg + 1℃-50℉to1999℉. ..0.3% rdg + 2℉1000℃ to 1300℃..0.5% rdg + 1℃(apply to mainframe only at 23℃±5℃)功能H 数据锁定 & 显示℃/℉切换选择0.1°/1°分辨率选择T1 或 T2 输入选择T1 - T2: T1-T2 的温度差3-1/2液晶显示超出范围指示: 1------ 低电池指示: BT输入保护热电偶最大输入电压: 60V DC or 24 Vrms AC 取样率:每秒 2.5次.操作温度0℃～50℃(32℉～122℉), 0～90% R.H. (0～35℃)电源one 9V battery尺寸135mm(L)x72mm(W)x31mm(H)重量157g附件电池,使用说明书* 可选温度探头Model Range(Type K(CA) THERMOCOUPLE)TP-K01 Bead -50℃ to 200℃/-58℉ to 392℉General PurposeTP-K02 Immersion -50℃ to 1000℃/-58℉ to 1832℉Liquid or gels.TP-K03 Surface -50℃ to 750℃/-58℉ to 1382℉。
