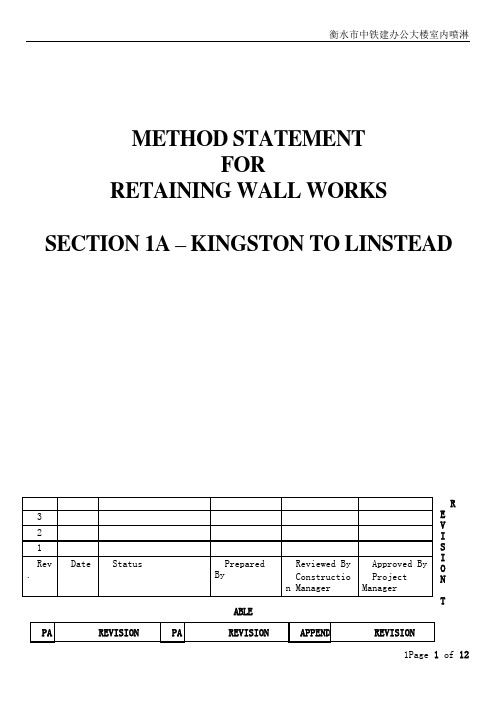

衡重式、仰斜式挡土墙施工方案-英文版
METHOD STATEMENTFORRETAINING WALL WORKS SECTION 1A – KINGSTON TO LINSTEADEVISIONTABLESECTIONCONTENTSTITLE PAGE1SCOPE OF METHOD STATEMENT4 2SCOPE OF WORKS5 3EQUIPMENT AND MATERIALS53.1Equipment5 3.3Materials6 4REFERENCE DOCUMENTS64.1Specifications6 4.2 Design Report6 4.3Design Drawing7 4.4Inspection and Test Plan7 5CONSTRUCTION AND OPERATION SEQUENCE75.1-5Operations Sequence7-126ACCEPTANCE REQUIREMENTS13 6.1Visually Testing and Acceptable Tolerance13 6.2Test Frequency13 7ENVIRONMENT AND SAFETY14 APPENDIX A - ENVIRONMENTAL RISK ASSESSMENTAPPENDIX B - SAFETY RISK ASSESSMENTAPPENDIX1 SCOPE OF METHOD STATEMENTThe types of retaining wall includes：Inclined Embankment Retaining Wall --4606.0m³/100m of C20 rubble concrete, Inclined Embankment shoulder Retaining Wall-- 1723.1m³/80m of C20 rubble concrete and balance weight retaining wall--14625.9m³/905m of C20 rubble concrete：Table 1-Embankment Retaining Wall2 SCOPE OF WORKSThe construction procedure is shown as below：Page 4 of 192.1 Construction preparation2.2 Measurement lofting2.3 Excavation of the foundation pit2.4 Bearing capacity testing of foundation2.5 Formwork2.6 Installation of drain pipe2.7 Concrete pouring (placing rubble stone)2.8 Removal of formwork2.9 Concrete curing3 EQUIPMENT AND MATERIAL3.1 Equipment3.2 Material3.2.1 C20 rubble concrete 20955m³3.2.2 Φ50mm PVC pipe 8074.3m3.2.3 Rubble stone 5238m³3.2.4 2cm Board3.2.5 Pre-burying Rebar of Barrier4 REFERENCE DOCUMENTS4.1 Specification《Guide Specifications for Highway Construction, 9th Edition》807 section retaining wall and 808 section concrete structurePage 5 of 194.2 Design Reporti) Preliminary Geological Investigation Report-Outline Design Volume 0 ii) Environmental Management and Monitoring（EMMP）:CHEC-EMMP-S3-001iii) Method Statement Erosion Control/Sediment Mangement（DocumentNo.EC-SM002）iiii) Quality Plan CHEC-NSH-QP-0002-Diiiii) Calculation Sheet for Retaining Walls(to be developed)4.3 Design DrawingsDrawings may be updated; in such case the recent revision will be used. ROWGeneral Layout—Referrence No. S1-3-28Sub-Grade Cross Sections—Refernce No. S1-3-28Retaining Wall Details—Reference No. S1-3-284.4 Inspection and Test PlanInspection and Test Plan for Retaining Wall Works(to be developed)5 CONSTRUCTION AND OPERTION SEQUENCE5.1 Construction Preparation5.1.1Drawing examination and original landscape retest, if anyincorrect drawing or site inconsistency with design is found, make a timely report and arrange review.5.1.2Makeshift road construction，preparation of material stackingfield and material preparation,Construct a temporary construction access, furnish material stacking yard and spare materials.5.2 Survey and Staking-out5.2.1Carry out survey and staking-out, and identify the line ofexcavation boundary.5.2.2Dispose all weeds, rubbish and other obstruction within thescope of retaining wall; dig drainage ditch around foundation trench, and eliminate surface water.5.2.3Make good drainage arrangement before base excavation, duringwhich keep drainage in a good condition, ensuring that water hazard is prevented during construction.Page 6 of 19Page 7 of 195.3 Excavation of Trench Foundation5.3.1Based on the site geological condition, the excavation of foundation trench shall be carried out in section by excavator and hydraulic hammer. When mechanical excavation reaches to 10cm above the designed foundation elevation, restart the survey and staking-out. And then the excavation of foundationshall be excavated and cleaned manually to ensure that the foundation complies with the design and specification requirements (bearing capacity of retaining wall foundation shall comply with the following requirements: 1. For the sandy soil and sand clay, the bearing capacity shall not be less than 250KPa. 2.For the softy rock, the bearing capacity shall not be less than 350KPa. 3. For the tough rock, the bearing capacity shall not be less than 500KPa. )5.3.2Pay close attention to slope stability during excavation. If there is any crack on the top surface soil of the pit edge, reliable support shall be provided immediately.5.3.3The slope rate offoundation trenchis determined by site geological condition and excavation depth, and there should be tilted with slope on foundation bottom, within the range of 0.2:1(slope rate can be properly lowered if rock layer and excavation depth is not deep), but the detailed condition shall be determined by drawing. Foundation excavation dimension is as following:Drawing B2 refers to the width of retaining wall foundation bottom, 1：n is representing excavation slope rate of foundation pit, and n is determined according to geological condition; gravel soil: n=0.75, yellow (clay) soil: n=0.5, rock n=0.3.5.3.4When foundation pit excavation reaches to the designed elevation specified in the drawing, bearing capacity test should be conducted for foundation bottom. If it does not satisfies the design requirement, a foundation treatment plan shall be proposed in accordance withactualdrilling (digging) and soil testing data, and submitted to CHEC Project for review, and revised accordingly as per his/her instruction. Without prior approval from CHEC Project, concrete casting or masonry work is not allowed for excavated foundation pit.5.4 Foundation Wall Casting5.4.1Conduct survey and staking-out shall be based on drawing, andthen identify foundation dimension.5.4.2 Formwork Erection1) The steel formwork shall beadopted, and the formwork with partsmissing or broken is prohibited using.2) Make sure the design, shape, dimension and mutual location ofconcrete structure and each part of components shall be correct.3) The formwork shall possess sufficient strength, rigidity andstability tostand the gravity and lateral pressure of newly-cast concrete as well as various possible loads arising during construction.4) There shall be no cement slurry leakage between formwork joints;contact surface between formwork and concrete shall be clean, and afterwards releasing agent shall be applied, which shall not affect the performance of formwork. The formwork shall be cleaned up and stored as per requirement after dismantling.5) The formwork adopts 50 rack pipes as horizontal band and verticalband, both spacing 50cm, the flank of formwork is fixed to the slope of foundation trench with adjustable top support, with support space 90cm.First assemble formwork in pieces, then assemble in section according to the location of settlement joint, after each section assembly, adjust formwork straight degree with lines on the four sides, fix it only after meeting the quality requirements. In order to ensure the internal width of formwork, wood support, having the same thickness with the wall, is set inside the formwork as internal support, a row of bolts penetrating the wall is set at the upper, middle, bottom, and one support is added to the upper of formwork for anchoring.5.4.3 Concrete Casting1) The following preparation shall be made before casting concrete:Prior to concrete cast, fix formwork, level and tighten joints, clean debris, and discharge ponding water.2)The slump degree of concrete sent to site shall be tested from timeto time, for those not meeting the requirements shall be returned to the batching plant for reprocess, and adding water randomly is prohibited.3) The concrete shall be cast in layer, with thickness not exceeding1m, and the construction joint shall bot be randomly leaved.Page 8 of 194)Concrete placement shall be conducted continuously. When it stopsdue to certain reasons, the interval shall be less than selling time or reshaping time of previous layer concrete.When dumping concrete from higher location, the following requirements shall be satisfied in order to prevent concrete separation: the height shall be controlled within 2m; if the height is over 2m, a conduit or chute shall be put into use.During concrete cast, concrete shall be vibrated from time to time to make it uniformly dense, and vibration is recommended to be carried out vertically by immersion vibrator. Fast insertion and slow withdraw shall execute during vibration. Seamless vibration and non-defects on the concrete surface are recommended.The rubble placed into concrete in the rubble concrete retaining wall shall satisfy the following requirements:（1）Rubble intensity level shall not be less than 30Mpa.（2）Maximum size for rubble stone shall not be more than 1/4 of its depth of the layer, and the minimum size of the rubble stone shall not be less than 15cm.（3）Rubble shall be washed clean before placing.（4）Rubble shall be placed evenly and securely, net distance between rubble shall not be less than 15cm, not less than 25cm between rubble and formwork.（5）The top surface of uppermost rubble shall be covered by concrete layer, with thickness not less than 25cm.（6）Rubble shall be placed manually, and special attention must be paid to rubble so as not to damage formwork and PVC pipe.（7）The volume of rubble shall not exceed 25% of the total volume of rubble concrete.8) After concrete cast completion; cover it with geotechnical fabric for curing, whose duration will not be less than 7 days.5.4.4 Construction Joints Treatment1）Stalagmite shall be placed at each construction joint, to enhance concrete adhesion capacity.2）Artificialchiseling shall be carried out at the smooth spot of construction joint, chiseling area greater than 80% of the total area.5.5 Wall Backfilling and Weep Hole and Settlement Joint Arrangement5.5.1 Clay shall be used for backfilling under the outlet of each layer, 15cm deep for each layer and 30cm high in all, and then tamped manually. OnePage 9 of 19layer of 30cm natural gravel filter layer is filled into retaining wall back, the content of natural gravel ＜5%.5.5.2 When intensity of wall concrete reach more than 70% of the designed intensity, backfilling for retaining wall back shall be conducted to ensure the quality of wall.5.5.3 Wall backfilling shall be conducted and tamped in layer by 15cm. For the part which can’t be tamped by roller, artificial electric tamping compaction is recommended.5.5.4 For the wall above ground, outlet shall be set alternately each 2m. The outlet en trance’s location shall be strictly controlled to ensure that their location is accurate, in straight lines. Φ50mm PVC pipe shall be embedded into the outlet and extended to 10cm deep of wall back, and geo-textile shall be used for packing at the end’s 20cm point. The bottom of outlet shall be 30cm higher than the ground, and permeable geo-textile shall be applied to the inlet. At the same time, control water slope of the outlet at 4% during construction, ensuring smooth drainage of the outlet.5.5.5 One settlement joint shall be provided at each 10-15m interval, with 2cm wide gap. And the gap shall be filled by asphalt oakum, 15cm deep.5.5.6 The material shall be compacted after the excavation of retaining wall completed, and which surface shall be covered by M7.5，thickness 30cm and width 3m rubble stone.6 QUALITY TESTING STANDARD6.1 Visually Testing and Acceptable Tolerance《Guide Specifications for Highway Construction, 9th Edition》DIVISION 700 MATERIAL REQUIREMENTS《Guide Specifications for Highway Construction, 9th Edition》 SECTION 801 EXCAVATION AND BACKFILL FOR MAJOR STRUCTURES《Guide Specifications for Highway Construction, 9th Edition》 SECTION 808 CONCRETE STRUCTURES《Guide Specifications for Highway Construction, 9th Edition》SECTION 809 REINFORCING STEEL6.2 Testing Frequency《Guide Specifications for Highway Construction, 9th Edition》DIVISION 700MATERIAL REQUIREMENTS《Guide Specifications for Highway Construction, 9th Edition》SECTION 801 EXCAVATION AND BACKFILL FOR MAJOR STRUCTURES《Guide Specifications for Highway Construction, 9th Edition》SECTION 808 CONCRETE STRUCTURESPage 10 of 19衡水市中铁建办公大楼室内喷淋《Guide Specifications for Highway Construction, 9th Edition》SECTION 809 REINFORCING STEEL《Inspection Test Plans》（ITP）Attached listconcrete retaining wallinspection item7 ENVIRONMENT AND SAFETYPage 11 of 19衡水市中铁建办公大楼室内喷淋APPENDIX AENVIRONMENTAL RISK ASSESSMENTPage 12 of 19衡水市中铁建办公大楼室内喷淋APPENDIX CSAFETY RISK ASSESSMENTPage 14 of 19。
混凝土搅拌站的设备
觉拌站的规格型号-搅拌站有可分为单机站和双机站，顾名-思义，单机站即每个搅拌站有一个搅拌-主机，双机站有两 搅拌主机，每个搅-拌主机对应一个出料口，所以双机搅拌-站是单机搅拌站生产能力的2倍，双机-搅拌站命名方式是 HZS*,比如-2HZS25指搅拌能力为2*25=50立方米-小时的双机搅拌站。
HZS240混凝士搅拌站-HZS240混凝土搅拌站采用模块化结构-运输、安装、调试快捷方便；计量精确-满足 种高性能混凝土要求。HZS240-混凝土搅拌站采用技术领先的双计算机-同步控制、高性能的硬件配置确保控制稳定可靠，使设备操作方便安全，在-配料机计量准确的情况下能够生产优质-高效的混凝土，受到客户的一致好评和泛青睐。
二、混疑土搅拌站组成-混凝土搅拌垃站主要由搅拌主机、物料称量-系统、物料输送系统、物料贮存系统和控-制系统 5大系统和其他附属设施组成。
1.搅拌主机-搅拌主机按其搅拌方式分为强制式搅拌和自落-式搅拌。-强制式搅拌机是目前国内外搅拌站使用的主流 -它可以搅拌流动性、半干硬性和干硬性等多种混-凝土。-自落式搅拌主机主要搅拌流动性混凝土，目前在-搅拌站中 少使用-强制式搅拌机按结构形式分为主轴行星搅拌机、-单卧轴搅拌机和双卧轴搅拌机。而其中尤以双卧-轴强制式搅 机的综合使用性能最好
4.物料贮存系统-混凝土可用的物料贮存方式基本相同。-骨料露天堆放（也有城市大型商品混凝-土搅拌站用封闭料 ；-粉料用全封闭钢结构筒仓贮存；-外加剂用钢结构容器贮存。
2HZS240混凝土搅拌站配置
XINCHUANG
计量平台 weighing platform 济 南 新 创 1X2
XINCHUANG
4
卸料斗
济 南 新 创 1X2
Discharging bin
XINCHUANG
斗体 bin body
济 南 新 创 1X2
XINCHUANG
5
骨料中间储料
1X2
斗 aggregate 骨料储料斗 aggregate storage 济 南 新 创 1X2
XINCHUANG Engineering Machinery Co.,Ltd
Address: Wuyingshan Hill Road Tianqiao District
共4 页
第 3页
新创机械
建设世界
济南新创工程机械有限公司
支架 frame
济 南 新 创 1X2
XINCHUANG
1 匹冷暖空调 AC
ZHENGZHOU
传感器 load cell
RUIMA
1X2
7
主机系统（仕高
济 南 新 创 1X2
玛）
XINCHUANG
Mixer（SICOMA） MAO4000 强制式双卧轴主机 仕高玛
1X2
MAO4000 horizontal forced SICOMA
shafts mixer
减速机 reducer 2X75kw
输 送 胶 带 conveying belt 济南
（B=1200）
JINAN
滚筒、纠偏托辊总成
济南新创
expansion cylinder, Position XINCHUANG correcting rollers assembly
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
HZS240Concrete Batching Plant
Technical Manual
HZS240混凝土搅拌站配置说明
济南新创工程机械有限公司
一、产品说明
HZS240混凝土搅拌站，配套MAO4000(仕高玛）混凝土搅拌机，采用皮带机上料方式，理论生产率为240m3/h，可搅拌各种类型的混凝土，适用于中等规模以上的建筑施工、水电、公路、港口、机场、桥梁等工程建设及中型混凝土预制品生产厂。
HZS240concrete batching plant,equipped with MAO4000（SICOMA）twin shafts mixer and belt type aggregates charging system,has rated output240m3/h compacted concrete.It can mix various kinds of concrete and suitable for medium size construction sites,power stations,irrigation, highways,airfields,bridges,and medium size factories producing concrete prefabricated parts.
该设备由配料系统、计量系统、搅拌系统、电气控制系统、气路控制系统等组成。
标准配置情况下，可实现四种骨料、两种粉料、一种液体添加剂、水的自动计量及搅拌。
骨料由使用装载机装入骨料仓，粉料由螺旋输送机从粉料仓送入计量秤，水和液体外加剂均由水泵送入计量秤，计量均采用电子秤。
The plant is composed of batching system,weighing system,mixing system,electrical control system,pneumatic control system and etc.Four aggregates,two powders,one liquid additive and water can be automatically scaled and mixed by the plant.Aggregates were loaded to aggregate bin by front loader.Powder is conveyed from silo into weighing scale by screw conveyor.Water and liquid additive are pumped to the scales.All the weighing systems are electronic scales.
整套设备的运行和计量采用微机控制，可实现生产过程的全自动控制、生产管理及报表打印。
The plant is fully automatic controlled by computer with production management and data printing software.
二、主要技术参数Main technical specification
理论生产率240m3/h Rated output:240m3/h
配套主机MAO4000Mixer:MAO4000（SICOMA）
整机功率260kW(不含螺旋和粉料仓)
Total power260kW(not including the silos and screw conveyors)
整机质量140t(不包括水泥仓及螺旋机)
Total weight140t(not including the silos and screw conveyors)
1、骨料配料系统Aggregate batching system
1.1、骨料储料仓Aggregate bins
储料仓容量Aggregate bin volume:4×35m3
上料高度 2.8m（按基础图自建上料坡道）
Feeding height:2.8m(with feeding ramp according to foundation drawing)
1.2、平皮带机Belt conveyor
输送量Capacity700t/h
皮带宽度belt width1200mm
皮带速度belt speed 1.25m/s
功率power7.5kW
1.3、斜皮带机Inclination belt conveyor
输送量capacity700t/h
皮带宽度belt width1200mm
皮带速度belt speed18°和25°皮带为2m/s，45°皮带为1.6m/s 功率power55kW
2、供水系统Water supply system
供水水泵water supply pump功率power7.5kW
流量flow130m3/h
卸水水泵Water discharging pump功率power7.5kW
流量flow100m3/h
3、供外加剂系统Additives system
外加剂储料仓容积Additives tank volume6m3
外加剂泵Additives pump功率power 1.1kW
流量:flow12.5m3/h
4、搅拌系统Mixing system
搅拌主机:Mixer MAO3000（SICOMA）
电机功率:Motor power2×75kW
骨料最大粒径(卵石/碎石)：Aggregate Max.Dia(pebble/crushed)80/60mm
5、计量系统Weighing system
5.1、骨料计量Aggregate scale
最大称量值Max weighing capacity4X4500kg
计量精度Weighing accuracy±2%
5.2、水泥称量Cement scale
最大称量值Max weighing capacity2000kg
计量精度Weighing accuracy±1%
5.3、粉煤灰计量Fly ash scale
最大称量值Max weighing capacity800kg
计量精度Weighing accuracy±1%
5.4、水计量Water scale
最大称量值Max weighing capacity800kg
计量精度Weighing accuracy±1%
5.5、外加剂Additives scale
最大称量值Max weighing capacity50kg
计量精度Weighing accuracy±1%
6.、气路系统Pneumatic control system
空压机Air compressor额定压力：pressure1Mpa
功率：power2X7.5kW
排量：flow 1.6m3/min
7、除尘系统Filter system
轴流风机Axial flow fan功率：power0.55kW
排量：capacity1200m3/h
8、电气系统Electrical system
8.1、系统采用交流380V、50Hz三相四（五）线制供电，供电变压器容量应不小于250kVA；
电气系统包括：强电控制系统、微机控制系统和监控系统三部分。
Adopt AC380V,50Hz three phases five(four)wires power resource,the capacity of the transformer should be more than250kVA.
8.2、微机工作条件Working conditions
工作电源:Working power resource AC220V±10%50Hz
环境温度:Temperature0℃～+40℃
相对湿度:Moisture<85%RH
8.3、控制方式Control mode
手动控制Manual control
自动控制：微机控制Automatic control:computer control
整个生产流程理论生产周期：60s The working circle：60s
9、粉料储存及供给系统Powder material storage and conveying system
9.1、配套水泥仓SNC100Cement silo(特殊订货Order separately)
9.2、配套水泥（粉煤灰）螺旋输送机Ф323X11m
Cement(fly ash)screw conveyor:Φ323X11m（特殊定货Order separately）。
