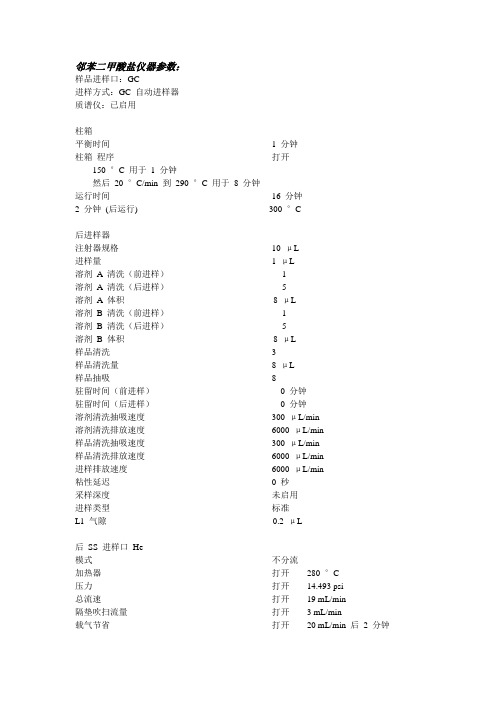

邻苯二甲酸盐仪器参数：样品进样口：GC进样方式：GC 自动进样器质谱仪：已启用柱箱平衡时间 1 分钟柱箱程序打开150 °C 用于1 分钟然后20 °C/min 到290 °C 用于8 分钟运行时间16 分钟2 分钟(后运行) 300 °C后进样器注射器规格10 μL进样量 1 μL溶剂A 清洗（前进样） 1溶剂A 清洗（后进样） 5溶剂A 体积8 μL溶剂B 清洗（前进样） 1溶剂B 清洗（后进样） 5溶剂B 体积8 μL样品清洗 3样品清洗量8 μL样品抽吸8驻留时间（前进样）0 分钟驻留时间（后进样）0 分钟溶剂清洗抽吸速度300 μL/min溶剂清洗排放速度6000 μL/min样品清洗抽吸速度300 μL/min样品清洗排放速度6000 μL/min进样排放速度6000 μL/min粘性延迟0 秒采样深度未启用进样类型标准L1 气隙0.2 μL后SS 进样口He模式不分流加热器打开280 °C压力打开14.493 psi总流速打开19 mL/min隔垫吹扫流量打开 3 mL/min载气节省打开20 mL/min 后2 分钟分流出口的吹扫流量15 mL/min 在0.95 分钟辅助加热区2 {MSD 传输线}加热器打开温度程序打开290 °C 用于0 分钟运行时间16 分钟色谱柱#1HP-5MS 5% Phenyl Methyl Silox: 1183.71898HP-5MS 5% Phenyl Methyl Silox325 °C: 30 m x 250 μm x 0.25 μm进样: 后SS 进样口He出样: 真空（初始值）150 °C压力12.861 psi流速 1 mL/min平均速率38.702 cm/sec滞留时间 1.2919 分钟流速程序打开1 mL/min 用于0 分钟运行时间16 分钟2 分钟(后运行) 0.57353 mL/min色谱柱#2DB-5ms: 1246.62396DB-5ms325 °C: 30 m x 250 μm x 0.25 μm进样: 前SS 进样口N2出样: 前检测器FID（初始值）150 °C压力7.9374 psi流速0.40917 mL/min平均速率15.355 cm/sec滞留时间 3.2562 分钟压力程序关闭7.9374 psi 用于0 分钟运行时间16 分钟MS 采集参数一般信息------- -----------调谐文件: atune.u采集模式: 全扫描/选择离子检测MS 信息-- -----------溶剂延迟: 4.00 分钟EMV 模式: 相对的相对电压: 0结果EM 电压: 1388[全扫描参数]低质量数: 40.0高质量数: 450.0阈值: 150样品号: 1 A/D 样品 2[选择离子检测参数]组1组ID : 1分辨率: 高绘图1 离子: 149.00离子/在组中驻留( 质量数，驻留) ( 质量数，驻留) ( 质量数，驻留)(149.00，50) (150.00，50) (223.00，50)组2组ID : 2分辨率: 高组开始时间: 7.20绘图1 离子: 149.00离子/在组中驻留( 质量数，驻留) ( 质量数，驻留) ( 质量数，驻留)( 91.00，30) (149.00，30) (150.00，30)(206.00，30) (251.00，30)组3组ID : 3分辨率: 低组开始时间: 8.60绘图1 离子: 149.00离子/在组中驻留( 质量数，驻留) ( 质量数，驻留) ( 质量数，驻留)(149.00，50) (167.00，50) (279.00，50)组4组ID : 4分辨率: 高组开始时间: 9.50绘图1 离子: 293.00离子/在组中驻留( 质量数，驻留) ( 质量数，驻留) ( 质量数，驻留)(127.00，20) (141.00，20) (149.00，20)(150.00，20) (279.00，30) (293.00，30)(307.00，30)[MS 区域]离子源: 230 C 最大值250 CMS 四极杆: 150 C 最大值200 CMS 采集参数结束SN 的调谐参数: US10112015-----------------------------跟踪离子检测已关闭。
安捷伦在线色谱工作站使用说明书
It works as hard as you do.Agilent 6890N NetworkGC• Rugged and reliable for unsurpassed uptime• Advanced EPC ensures precision and accuracy of results• Retention Time Locking for consistent results• Accomplish more with fast GC capabilites2Acccomplish more with networking abilities •Lets you share business and scientific data easily within a laboratory and across sites for fast and informed decision making.•Incorporates local area network (LAN) technology as a standard feature, which makes it easy to link communication and control of multiple analytical instruments. With networking, you can work smarter,faster, and more economically.Wide selection of inletsSplit/splitless (S/SL) capillary Packed purged injection port Cool on-column (COC)Cool on-column with solvent vapor exit (COC-SVE)Programmable temperature vaporizing (PTV)Volatiles interface (VI)•T emperature-programmable pre-column**Agilent 7694E headspace sampler Purge and trapGas and liquid sampling valves Deans Switch for 2D GC Ambient air sampler and preconcentrator**Thermal desorber**Pyrolyzer**HP-5MS)•Midpolarity (HP-35, HP-35MS, DB-35, DB-35MS, DB-17, DB-17MS, HP-50+)•High-polarity PEG (HP-Wax, HP INNOWax, DB-Wax, HP-FFAP)•PLOT (MoleSieve, PLOT Q, GS-GasPro, HP-PLOT Al 2O 3, HP-PLOT MoleSieve)•Application-specific columns (DB-VRX, DB-Dioxin, DB-ALCl and ALC2)*The 6890N network gas chromatograph is ready for attaching the Agilent 7683 series automatic liquid sampler.**Available through Agilent Channel Partners.***For a complete list of Agilent columns and supplies, visit our Shopping Village on the World Wide Web at /chemWe have one thing in mind:hard work.Laboratories worldwide are looking for a GC solution that delivers reliability, performance, and reproducible results. And nothing produces these benefits like the Agilent 6890N Network GC. By integrating leading-edge technologies with an emphasis on quality manufacturing processes, the 6890N will bring a work ethic to your laboratory that’s matched only by your own.6890N N e t w o r k G C :I t w o r k s a s h a r d a s y o u d o .* Available through Agilent Channel Partners.6890N Network GC: It works as hard as you do. 3More Productive than Any Other ECDThe Agilent 6890N micro-electron capture detector gives you greater throughput, less rework, reduced susceptibility to contamination, and expanded detection limits compared with any other electron capture detector. This detector offers the best sensitivity and linearity in the world. You do not have to concentrate extremely dilute samples and you do not have to dilute concentrated samples to get within the sample calibration range. Furthermore, this rugged, completely redesigned detector,which is optimized for capillary chromatography, lets you perform fast GC.Decreased Calibration TimeYou can manually enter existing calibration data and make a run with just one standard peak.The system can normalize the calibration table for you, allowing you to cutcalibration time and avoid re-running your calibration standards.Increased Laboratory EfficiencyClock-time programming allows you to set up runs for unattended operation whenever you want. The system can be ready to work when you get to your laboratory.Pre-run and post-run commands automatically prepare the system for the next sample.An instrument that understandsan honest day’s work.From operator interaction and sample input to separation, data acquisition, and analysis, the Agilent 6890N network GC system is Micro-Electron Capture Detector6890N N e t w o r k G C :I t w o r k s a s h a r d a s y o u d o .4High Sample ThroughputThe 6890N network GC system is already set up for the Agilent 7683 automatic liquid sampler,enabling fast and easy installation.Single or dual injectors, equipped with either an 8-sample turret or a 100-vial sample tray, allow unattended operation. Using the 11-vial transfer turret with the tray and the solvent saving mode,you have enough solvent to run unattended eight times longer than before.100-vial sample tray8-sample turret for use without trayEfficient Data HandlingThe Agilent ChemStation for the 6890N network GC system lets you display, calibrate, and report data from up to four signals—without having to synchronize separate runs and merge results.This isparticularly efficient when you need to set up and report complex analyses.Agilent’s Cerity Networked Data System for Chemical QA/QC givesyou exactly what you need for your particular laboratory environment. Use-specific applications model your everyday tasks,making every step more efficient. Cerity NDS also connects you with your company’s intranet and the Internet for pulling in what you need to work efficiently or sending out results to your customers, fast.Automatic Liquid Sampler6890N Network GC:It works as hard as you do.511-vial transfer turret for use with trayMinimal ReworkThe Agilent 6890N network GC system is the only GC system that automatically selects the optimum pressure-control mode for split and splitless analyses. Forward-pressure control is best for splitless injections. Along with a large inlet liner volume and pressure-pulse operation,this mode reduces discrimination, sample degradation, and sample loss caused by liner overload while maximizing sensitivity.For split injections, the system automatically selects back-pressure control for linear split ratios over the entire usable split-ratio range and over wide column flow and pressure ranges. This reduces sample preparation and increases reproducibility and accuracy.Automatic switching between forward-and back-pressure modes yields optimal results in less time and with less effort.6890N N e t w o r k G C :I t w o r k s a s h a r d a s y o u d o .6The Agilent 6890N works as hard to meet regulatory requirements as it does to meet the needs of your lab. That’s why Agilent designed into the GC ChemStation a variety of features to answer the strict regulatory, certification, and quality control requirements of your industry. Agilent’s expert staff of engineers will work for you too— our installation qualification and operational qualification/performance verification services can help ensure your lab is in complete compliance.A Record of All EventsBoth the Agilent Cerity Networked Data System and Agilent ChemStation Plus family ease the burden of meeting regulatory and quality requirements.Both software programs, for example,record all system events during an analysis. This includes any anomalies or deviations from method setpoints.System Performance ControlA system suitability table lets you easily set range limits on critical parameters toestablish and verify system performance.Results that meet regulations—and your expectations.Good Laboratory PracticeAssured Method SecurityYour original method, including all GC parameters and data files, can be stored in a single protected,uneditable format for assured integrity. Furthermore,your methods and data are protected by a keyboard lock and multilevel security.6890N Network GC:It works as hard as you do.7You want to keep your cost-per-analysis down— but not at the cost of unreliable results. That’s why Agilent designed the 6890N to do much of the work for you. It’s easy to operate, with minimal time required for training, prep and data handling.You’ll save time by entering all GC parameters electronically. Once set, they remain precisely the same for accurate and reproducible results you can count on, every time, with every operator, and with minimal rework.Unsurpassed Reproducibility Full electronic pneumatics control (EPC) makes it fast and easy to set all pressures and flows.Our fourth-generation EPC keeps these setpoints constant from run to run,providing excellent retention time reproducibility.Simplified ControlThe 6890N keyboard simplifies parameter entry and system control.The keyboard displays four parameters of your choice,giving you instant access to system information— for fast,effective diagnostics and troubleshooting. All parameters can be stored and recalled at the touch of a button.Retention Time (min)Run Peak 1Peak 218.3778.63228.3778.63238.3778.63348.3778.63258.3768.63268.3748.63078.3758.63188.3758.63198.3748.630108.3748.630118.3758.631128.3768.632138.3768.632148.3768.632158.3768.632Average 8.3768.632Standard0.001 0.001DeviationMethod setup that’s fast,results that stay true.Fourth-Generation Pneumatics Control6890N N e t w o r k G C :I t w o r k s a s h a r d a s y o u d o .8Different Detector, Different Location,Different Operator—Same ResultsRetention Time Locking (RTL) software is a powerful productivity tool that lets you reproduce exactly the same results on multiple Agilent GCs with EPC—configuration to configuration, location to location,operator to operator. This revolutionary technology allows retention times to be reproduced between Modularity to Meet Changing Needs Modular design of system components lets change or upgrade GC MSD Method Locked to FID Method Mixture of 25 PesticidesRetention Time Locking with GC and GC/MSD ChemStation6890N Network GC:It works as hard as you do.96890N N e t w o r k G C :I t w o r k s a s h a r d a s y o u d o .Sampling FlexibilityThe Agilent automatic liquid sampler lets you mimic manual injection. At the same time, you get the convenience of automated injection. Other benefits include improvedprecision and accuracy (with the industry’s fastest injection speed) and the ability to sample individual layers in a vial for automated micro-liquid/liquid extraction and ambientheadspace analysis.No Sample ConcentrationThe system’s automatic liquid sampler offers large-volume injection, eliminating sampleconcentration steps. Using the programmable temperature vaporizing inlet or cool on-column inlet, you can inject up to 50 µL in a single injection.If you are using a programmable temperature vaporizing inlet, you can inject up to 500 µL, with multiple injections. This gives you highly sensitive quantitation—especially useful for mass selectivedetection and atomic emission detection.With enhanced technologies, the 6890N works harder than ever to increase your lab’s performance. Both injection and headspace sampling are automated, which means less manual work and even more precise results. You’ll enjoy quicker turnaround time, lower cost per analysis, and less waste.Small-Volume SamplingMultiphase Sampling Ambient HeadspaceSamplingT ake the work outof manual sample prep.Large-Volume Injection10No Sample PreparationHeadspace sampling can eliminate sample preparation byintroducing volatile components automatically—from virtually any matrix—directly into the GC. A low-volume, highly inert volatiles interface is optimized for headspace-GC analysis, preventingsample loss or degradation. Agilent headspace instrument control is fully integrated into the Agilent GC ChemStation software.Reduced DerivatizationA cool on-column inlet offers a gentle environment for thermally labile compounds. This minimizes the need for derivatization and improves the accuracy of sample characterization.6890N Network GC:It works as hard as you do.116.00 6.00 8.00 0.00 2.00 4.00 6.00 8.006.00 6.00 8.00 0.00 2.00 4.00 6.00 8.002334Standard GCFast GC HP-INNOWax 60m x 0.32mm x 0.5µmHP-INNOWax 25m x 0.2mm x 0.313µmStyrene5 7.510 12.5 15 17.5 200.5 1 1.5 2 2.5minminThe Agilent 6890N network GC system lets youReal GC—T en Times FasterThe Agilent 6890N network GC system provides everything you need for fast GC. This includes fast automatic injection, split/splitless inlets,0.1-mm capillary columns, high-speed detectors, fast data handling, and method translation software. You get real chromatography, accurately and consistently, two or five or even ten times faster than standard GC.And you can switch back to standard GC with ease.Waste no time,results come in minutes.6890N N e t w o r k G C :I t w o r k s a s h a r d a s y o u d o .12Easy Translation to Fast GCFree method translation software lets you transfer currentmethods to faster methods in minutes.You can see the impact of parameter changes on analysis speed—before you run a sample.At the same time, the software identifies any potential method or instrument constraints so that you know what will work before investing significant time and money.6890N Network GC:It works as hard as you do.132D GC Made EasySetup and operation of 2D GC is made reliable and easy to use by combining Micro-fluidic and EPC technologies. This unique software tool minimizes operator effort by automatically calculating restrictions and pressures. The reproducibility ofretention times of the 6890N GC results in improved accuracy and reliability. 2D GC is available pre-configured by Agilent, as a standard option, or as an accessory for existing 6890N GC systems.2D GC Using Micro-Fluidic T echnologyAgilent’s patented Micro-fluidic technology greatly improves the performance of 2D GC. Internal volumes are optimized tomaximize separation efficiency and eliminate peak tailing. Each device is deactivated to produce superior results even for trace analysis of chemically active compounds. A new fitting and ferrule design simplifies column installation and eliminates leakage even with repeated oven temperature programming to final temperatures over 400 C.Agilent Columns and Supplies— The Perfect FitFor greater confidence in your GC results,you can optimize your total system with quality Agilent columns and supplies—the perfect fit for the Agilent 6890N network GC system. A wide range of GC columns,supplies, kits, and accessories is designed,manufactured, and tested to rigorous Agilent specifications, under a quality system registered to ISO 9001. Why risk compromising your analytical results with anything less than genuine Agilent consumables?Backed by Agilent SupportYou can also ensure the best performance from your 6890N by relying on a variety of Agilent-brand services. Whether you need assistance in hardware or software installation, performance checks, or on-going technical support, Agilent can help maintain reliable operations over the life ofyour instrument.Created for endurance—now and for years to come.6890N N e t w o r k G C :I t w o r k s a s h a r d a s y o u d o .14The Agilent 6890N network GC system incorporates the lessons learned from 40 years of producing the world’s best-selling and most reliable GCs. In fact, labs turn to Agilent because they know the instruments will perform accurately and consistently over extended periods— and when they do replace or upgrade a system, they regularly return to Agilent.You can be sure your Agilent instrument will prove to be a workhorse for your lab, too. Each 6890N network GC system ships with a Declaration of Conformity that certifies it has passed stringent safety tests, ensuring the instrument will meet Agilent’s performance specifications. We back it all up with our Agilent Value Promise that guarantees you’ll have at least 10 years use from your 6890N (see back panel for details). Now that’s a hard-working promise.Special Service BundlesAgilent offers special service bundles that are designed to meet the needs of your laboratory. Essential services include:• T elephone support to resolve hardware problems• At-your-site instrument service plus consumables used for repairs • Off-site instrument repair service • Annual preventative maintenanceAgilent customer service centers are located worldwide. With Agilent support, you can reduce operational costs, increase laboratory productivity, and lighten the load of regulatory compliance.Agilent has a series of convenient 6890 system GC Web-based training modules. You can learn at your desk—with minimal disruption to work schedules—or wherever you can connect to the Internet. e-Learning gives you focused instruction in instrument theory, operation, routine maintenance, as well as common problems and solutions.You can view module descriptions, try a demo, register, and purchasemodules by visiting /chem/elearning.GC e-Learning On-Demand and Live Course Titles and DescriptionsSee how Agilent trainingcan work for you.6890N Network GC:It works as hard as you do.15Product Number Course TitleDescriptionR1691A6890 GC Split Inlet Mode OperationThis module teaches you the basic theory and operation of the 6890 GC split/splitless capillary inlet when operating in the split mode.R1692A 6890 GC Splitless Inlet Mode OperationThis module teaches you the basic theory and operation of the 6890 GC split/splitless capillary inlet when operating in the splitless mode.R1693A 6890 GC Purged Packed Inlet OperationThis module teaches you the basic theory and operation of the 6890 GC purged packed inlet.R1694A Capillary Columns Theory and OperationThis self-paced e-Learning module teaches you the basic theory and operation of capillary columns.R1695A 6890 GC Keyboard OperationThis self-paced e-Learning module teaches you the basic operation of the 6890 GC keyboard. It is designed to help you to understand all of the keys to gain the maximum benefit from your GC.R1696A 6890 GC FID Theory and Operation This module teaches you the basic theory and operation of the FID.R1697A 6890 GC ECD Theory and Operation This module teaches you the basic theory and operation of the ECD.R1698A 6890 GC TCD Theory and Operation This module teaches you the basic theory and operation of the TCD.R1699A GC Automatic Liquid Sampler OperationThis module teaches you the basic operation of the Agilent automatic liquid sampler system (ALS). It is designed to help you gain the maximum productivity from the ALS.R1700A Logical GC TroubleshootingThis module teaches logical steps in troubleshooting GC system problems.These steps are designed to identify the source of the problem quickly and prevent the troubleshooting task from becoming overwhelming.Find out more todayFor more information about how you can benefit from the Agilent 6890N Network GC system, Agilent’s support services, or Agilent training courses, visit us online or call toll free:/chem1-800-227-9770 (in the U.S. and Canada)Outside the U.S. and Canada, please call your local AgilentT echnologies analytical sales office or authorized AgilentT echnologies distributor.Information, descriptions, and specifications in this publicationare subject to change without notice.© Agilent T echnologies, Inc. 2004Printed in the USAJune 2, 20045989-0973EN A Sizable PromiseFor nearly two decades, Agilent T echnologies has been improving the way laboratories get results, perform their processes, and enhance their businesses. And the Agilent 6890N Network GC is no exception. With exemplary performance and outstanding ease-of-use packed into its compact frame, the 6890 will help improve the efficiency and productivity of your lab.The Agilent Value Promise–10 years of guaranteed valueIn addition to continually evolving products, we offer something else unique to the industry-our 10-year value guarantee. The Agilent Value Promise guarantees you at least 10 years of instrument use from your date of purchase, or we will credit you with the residual value of that system toward an upgraded model. Not only does Agilent ensure a safe purchase now, we help ensure your investment is as valuable to you in the long run.Information at your fingertipsStay up-to-date on the 6890N Network GC and other Agilent products. Register at /chem to receive exclusive benefits, such as:• Personalized email notifications that reflect your selected interests• Access to how-to videos, chromatogram libraries,application notes, and more• Free firmware and software updates• Fast enrollment for e-Seminars and other training。
安捷伦 HP-FFAP
安捷伦 HP-FFAP毛细管柱(G35)（货号：19091F-105,19095F-121,19095F-123）•产品名称：安捷伦 HP-FFAP毛细管柱(G35)（货号：19091F-105,19095F-121,19095F-123）•英文名称：HP-FFAP•型号规格：安捷伦 HP-FFAP•品牌：安捷伦/Agilent Technologies详细信息产品特点:HP-FFAP色谱柱设计主要用于分析有机酸、游离脂肪酸或者需要测定酸性杂质的样品。
用酸改性的固定相得到了惰性极佳的色谱柱，适应于分析溶解于水中的酸。
高达C24的游离脂肪酸都可以直接分析，而无须进行费事费力的衍生化。
HP-FFAP色谱柱不要求事先处理（几次酸进样）,故可快速得到准确的结果。
• 硝基对苯二酸改性的聚乙二醇• 强极性• 温度范围从60º 到240/250ºC（对0.53 mm 柱为230/240ºC）• 为分析挥发性脂肪酸和酚类而设计• 取代OV-351• 键合交联• 可用溶剂清洗• 基本相当于USP 固定相G35我们不推荐用水或甲醇冲洗HP-FFAP GC 气相色谱柱。
相似的固定相：Stabilwax-DA, DB-FFAP, Nukol, 007-FFAP, BP21, CP-WAX 58 (FFAP) CB, AT-1000, OV-351, CP-FFAP-CB产品应用:适用范围：有机酸，醇，醛，酮，丙烯酸酯.HP-FFAP 柱的色谱图食品、调味品和香精香料• 酒精饮料标样工业化学品• 丙烯酸酯类• 乙氧基乙醇订货信息:HP-FFAP内径(mm) 长度(m) 膜厚(μm) 温度范围(ºC) 部件号PEG 色谱柱特点优点DB-WAX • 最低操作温度下限• 分析低沸点分析物• 与Carbowax 20M 最相似柱• 将旧方法转化为键合相色谱柱方法DB-WaxFF • 有0.10mm内径柱• 用于高通量的快速GC 分析• 惰性强• 扩宽分析物的相容性• 化学相容性宽• 高性能通用色谱柱• 在升高温度时流失最低• MS 使用的最佳选择• 惰性强• 扩宽分析物的相容性• 非键合• 不能用溶剂清洗。
GC法分析药物
检测对象目的色谱柱极其类型柱极性流速进样量检测器①复方南星止痛膏建立复方南星止痛膏的顶空气相指纹图谱，全面评价其质量。
安捷伦HP-5MS(30 m×0．25mm，0．25um)1mL·min¯1,载气为氮气分流比：5：1FID检测器②凉粉草挥发油对凉粉草挥发油中的化学成分进行分析。
DP-5MS毛细管气相色谱柱(30 m X0.25mmX0.25um,美国J&W公司)，挥发油提取器。
载气为高纯He 气(99．99％以上)，恒线速度模式，流速36.5cm／sec；1．0u L 计算机NIST2005标准谱库检索③红花油软胶囊建立测定红花油软胶囊中一亚麻酸含量的方法。
DB-Wax(30m×0．32mm×0.25um)毛细管柱载气为氮气，平均线速35cm／sec外标法定量。
进样lum。
FID检测器④两色金鸡菊对两色金鸡菊中的脂肪酸类化学成分进行分析测定。
FFAP(30m×0．32mm×0.5um)载气：氦气，流速：1.0mL·min¯12．0ưL FID检测器⑤聚酯纤维对聚酯纤维鉴定中裂解气相色谱质谱(PyGC-MS)技术的应用进行了探讨。
不锈钢的毛细管柱0．25毫米×30米×0．25分米载气为钠；流量是1毫升／分钟FID检测器⑥聚乳酸(PLA)纤维和3种聚酯纤维采用热裂解气相色谱-质谱联用技术（Py／GC-MS）建立了聚乳酸（PLA）纤维和3种聚酯纤维的鉴别方法。
DB-17MS40mX0.250mmX0.25um载气：氦气；恒流模式，流速0.8mL／min分流进样，分流比100：1采用NIST05谱库进行检索⑦二苯甲胺成品气相色谱法测定二苯甲胺成品中二苯甲酮和二苯甲醇含量的方法。
FL-1701毛细管柱(30 m×0．32 mmx0．50um)分流比50：11．0 uL FID检测器⑧苏合香考察苏合香不同提取方法的化学成分畀同. HP-INNOWax(19091N-133)，30 m×0．25 mmx0．25um)载气：高纯氦气；载气流量：1．0ml·min¯11uL G1033A，D0100N1ST98标准质谱检索库⑨杏香兔耳风提取物建立测定杏香兔耳风提取物中大孔吸附树脂残留物的测定方法。
辛夷论文
天然添加物辛夷在卷烟滤嘴中的降害研究李晓姚二民王震靳志富本研究将天然中草药辛夷预处理后，添加在卷烟滤嘴中，制成含辛夷的复合滤嘴卷烟（80目1mm辛夷），将这些卷烟通过吸烟机抽吸，然后用GC-MS联用分析仪对其主流烟气成分进行分析，以探究辛夷在卷烟滤嘴中的降害作用。
将其与空白样对比，结果表明：辛夷复合滤嘴卷烟对烟碱、总粒相物、焦油量有降低作用，降低率为8.14% 、2.62%和2.25%；对降低烟气中的一些有害成分，特别是酚类物质的截留效果比较明显，可以起到降害的作用。
关键词：中式卷烟/辛夷/复合虑嘴/降焦减害The study of harm reduction of the natural additives magnolia in the cigarette filtersKey words: Chinese cigarette / Magnolia / composite filter /Decline burnt reduce to harm 中草药是中华民族的瑰宝，将烟草与中医药相结合，也应是“中式卷烟”最具中国特色的风格之一。
我国烟草业完全可以利用中草药这一得天独厚的资源优势，探索研究中草药在卷烟中的应用，发挥和提高中草药的减毒作用和疗效功能，减少乃至消除吸烟对人体的危害【1】【2】。
辛夷又名紫玉兰、望春花，属木兰科木兰属落叶乔木，其花蕾入药称辛夷，有收缩鼻粘膜血管的作用，能保护鼻粘膜，并促进粘膜分泌物的吸收，减轻炎症，有散风寒、通鼻窍之功效［3］；将天然添加物辛夷的功效与卷烟进行有效对接，开发一种新型的卷烟滤材—辛夷复合滤嘴。
通过对其进行系统研究，在保持卷烟的特有吸味和感官品质的同时，重点减少烟气中的有害成分，符合“中式卷烟”的降害发展【4】。
1 材料、设备与方法1.1 试验材料辛夷(河南南召县提供)；红旗渠卷烟（硬盒，4.5元/盒，河南中烟工业公司提供）；载气：高纯度的氮气（浓度大于99%）；辅助气体：空气，氢气（高纯），用于氢火焰检测器；二氯甲烷(CH2Cl2)：CH2Cl2含量不小于99.5%（天津市科密欧化学试剂开发中心）；内标物：正十七烷（0.2006mg/ml）；一次性注射器：5ml/支。
气相色谱色谱柱的选择及分类
气相色谱色谱柱的选择及分类1.1 固定相的选择当面对一个未知物时，先试用现有GC柱，如果该柱分离不理想，根据你对样品的了解，基本原则是分析物与固定相有相似化学性质时才会相互作用。
这说明对样品越了解，越容易找到合适的固定相。
非极性分子——通常仅由C和H组成并且无偶极矩，直联（正烷）是常见的非极性化合物的例子。
极性分子——主要由C和H组成同时也有其他原子，如：N、O、P、S或卤素。
样品包括有醇类、胺类、硫醇类、酮类、有机卤化物等。
可极化物质——主要由C和H组成同时包含不饱和键。
通常有：炔和芳香族化合物。
如果你的样品是具有相似的化学性质的非极性组分的混合物，比如大多数石油馏分中的烃，你可以试用OV-1毛细管色谱柱，它按沸点顺序分离。
如果你怀疑有芳族化合物，试着用有苯基的SE-52或SE-54柱。
极性或可极化组分样品能够在中极性和/或可极化固定相色谱柱上进行分析，如有苯基或类似基团固定相，比如OV-17或OV-225柱。
如果需要更高极性，可以选用聚乙二醇（PEG）固定相，即通常所说的WAX固定相。
1.2膜厚选择薄膜比厚膜洗脱组分快、峰分离好、温度低。
一般而言，色谱柱的膜厚为0.25到0.5μm。
对于流出达300℃的大多数样品（包括蜡、甘油三脂、甾族化合物等）能够很好的分析。
对于更高的洗脱温度，可以用0.1μm的液膜。
而厚液膜对于低沸点化合物有利，对于流出温度在100℃～200℃之间的物质，用1～1.5μm的液膜效果较好。
超厚膜（3～5μm）用于分析气体、溶剂和可吹扫出来的物质，以增加样品组分与固定相的相互作用。
另一个选择厚膜的原因是当用大口径柱时保持分离度和保留时间。
由于这个原因，大口径柱都只有厚膜。
厚膜的流失较大，温度极限必须随膜厚度增加而下降。
1.3长度选择一般情况，15m柱用于快速筛选简单混合物或分子量极高的化合物。
30m柱是最普遍的柱长。
超长柱（50、60或100m、150m）用于非常复杂的样品。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
安捷伦 HP-FFAP毛细管柱(G35)（货号：19091F-105,19095F-121,19095F-123）
•产品名称：安捷伦 HP-FFAP毛细管柱(G35)（货号：19091F-
105,19095F-121,19095F-123）
•英文名称：HP-FFAP
•型号规格：安捷伦 HP-FFAP
•品牌：安捷伦/Agilent Technologies
详细信息
产品特点:
HP-FFAP色谱柱设计主要用于分析有机酸、游离脂肪酸或者需要测定酸性杂质
的样品。
用酸改性的固定相得到了惰性极佳的色谱柱，适应于分析溶解于水中
的酸。
高达C24的游离脂肪酸都可以直接分析，而无须进行费事费力的衍生化。
HP-FFAP色谱柱不要求事先处理（几次酸进样）,故可快速得到准确的结果。
• 硝基对苯二酸改性的聚乙二醇
• 强极性
• 温度范围从60º 到240/250ºC（对0.53 mm 柱为230/240ºC）
• 为分析挥发性脂肪酸和酚类而设计
• 取代OV-351
• 键合交联
• 可用溶剂清洗
• 基本相当于USP 固定相G35
我们不推荐用水或甲醇冲洗HP-FFAP GC 气相色谱柱。
相似的固定相：Stabilwax-DA, DB-FFAP, Nukol, 007-FFAP, BP21, CP-WAX 58 (FFAP) CB, AT-1000, OV-351, CP-FFAP-CB
产品应用:
适用范围：有机酸，醇，醛，酮，丙烯酸酯.
HP-FFAP 柱的色谱图
食品、调味品和香精香料
• 酒精饮料标样
工业化学品
• 丙烯酸酯类
• 乙氧基乙醇
订货信息:
HP-FFAP
内径(mm) 长度(m) 膜厚(μm) 温度范围(ºC) 部件号
PEG 色谱柱特点优点
DB-WAX • 最低操作温度下限• 分析低沸点分析物
• 与Carbowax 20M 最相似柱• 将旧方法转化为键合相色谱柱方法DB-WaxFF • 有0.10mm内径柱• 用于高通量的快速GC 分析
• 惰性强• 扩宽分析物的相容性
• 化学相容性宽• 高性能通用色谱柱
• 在升高温度时流失最低• MS 使用的最佳选择
• 惰性强• 扩宽分析物的相容性
• 非键合• 不能用溶剂清洗。
