变电站综合自动化数据采集及传输系统设计英文翻译
PCI网卡和短窗Morlet复小波在继电保护和监控系统中的应用摘要: 使用可编程通信接口（PCl）网卡和短窗Morlet复小波算法与数字保护技术、测试和控制技术、多总线技术和电功率监视技术结合，一个新的全分布式的继电保护和监控系统得以发展。
PCI 网卡硬件的设计方法与其驱动器和监控程序的发展过程一起被描述。
一种有差异过滤器与短窗Morlet复小波测量算法被用于计算基本的振幅与电流电压信号协调成分。
其计算的结果不受频率变化的影响, 每一保护和监控装置采取统一的硬件平台和系统设计，而后复杂性被减少，并且系统的维持性被改进。
网络测试、动力学模拟及在此域的测试结果表明这个体系能对各种变压器，线路，电容器和发动机的各种错误做出精确响应，并且它也有较高的测量精度和有利的控制能力。
关键字：PCI总线, 网络装置总线，Morlet复小波，微机控制器，继电保护和监控系统1．介绍随着电力系统的发展，继电保护装置不仅应能保证电气装备操作的安全性和电力系统的瞬时稳定性，也应该考虑当电力网被相互连接用于防止密集的联锁线路和在明显故障后系统塌陷时，也应该考虑所有的保护装置的调统和配合。
那么数字保护技术、测试和控制、总线和电力监视与完全分发的结构被结合构成一个继电保护和监控系统。
它是一个综合的自动化分站以替代数字中心控制设备的新的理想计划。
与常规的ISA和STD总线相比，PCI总线有较高的传送速度( 132M频带宽度)的优点，支持突然中止和发挥功用、切断共享和较大的地址空间。
PCI总线已替代ISA和STD总线，已经成为计算机总线的标准。
区域总线有许多种类，网络装置是基于CAN技术的一种区域总线并且已经成为国际标准、欧洲标准和中国的标准。
它采取短消息框架并且有非摧毁总线仲裁技术和有利的故障鉴别和抗干扰的能力。
它能构成一个多主的多余系统并且能支持分布控制和实时控制。
它还是一个开放的、低价格和高效率控制网络，这对电力系统是适宜的。
在继电保护和监控系统中，电压、电流、功率和其它电参数中是需要获取的。
完波傅里叶重积分算法是计算基本和协调元件振幅经典的算法。
但是，当电力网的频率被改变，这种算法有很大的误差。
然而，短窗Morlet复小波有更好的连续特性和稳定性，它的计算结果少受频率频繁改变的影响。
因而，PCI网络装置卡和短窗Morlet复小波的应用能改进分站和电力系统自动化的水平。
PCI网络装置卡的驱动器和用户监督程序是体系主节点设计的主要任务。
驱动程序被微机驱动器编辑，用户监督程序被Visual C+ -- 6.0 MFC编辑。
2. 系统的全部项目根据IEC与TC-57的标准，分站的设备可划分为分站层，分发控制设备层和生产过程层。
基于这个标准，本文所描述的分发的继电保护和监控系统的图形块在图表一中显示。
分站层包括主层，备用层和PCI网卡。
主层和备用主层是构成一个多主的多余系统以及改进体系的稳定性和抗干扰的能力的主节点。
主节点是对当地监测、控制和信号传送的关键设备。
它能监控所有的保护和监控装置并且与远方的发出和控制中心进行交流。
分布式的控制设备层包括保护和监控单元(从属节点), 它能实现保护、测量的功能并且控制变压器、线路、电容器和发动机的操作功能。
它也能实现与主节点通信的功能。
分站层通过网络总线与分布式的控制设备层连接着。
这个体系是一个新的全分发式的继电保护和监控系统。
其应用能简化分站自动系统的结构并且减少系统的价格。
3.系统主节点的设计主节点主要功能包括:(1)与从属节点进行通信，同时实现和远程控制、远程测量、远程通信和与所有的从属节点的远程管理。
(2)图表显示、报告印刷、数据处理、转换操作和参量设置。
转换操作和参量设置只有在口令被证实之后才能做。
(3) 基于电力系统网络的稳定性，每一从属节点的调和合作才得以实现。
(4)与远方的发出和控制中心进行交流并且通过远方的发出和控制中心进行管理和控制。
主节点和从属节点间的主要交流内容包括:(1)经过初始化之后，主节点对每一个从属节点进行询问和寻址（对从属节点寻址)(2)主节点设置时间与从属节点同步(时间广播)(3)在制定第一步和第二个步之后，从每一个从属节点按顺序收集使用者的基准(远程测量，远程通信和按顺序记录事故，收集充足的基准)(4)主节点根据要求传送遥控命令(行动类型和行动时间)或者远方管理基准(放置每一个保护和监控单元的参数)。
(5)上面的通信过程可能被主节点或者从属节点的事件所中断，主节点的事件可能被传送或者被基准要求所需要。
使从属节点所需的事件大多数随远方通信改变。
主节点的设计主要包括PCI网卡的设计以及其微机驱动器和监控程序的发展。
其微机驱动器和监控程序的发展是工作的重点和难点。
3.1 PCI网卡的硬件设计PCI网卡被用于连接个人电脑和网络总线的底部装置网。
现在设计PCI卡有两种方法：1.采取一般的接口芯片，诸如S5933、PCI9052或者PIX9054； 2.采取微型控制器和CPLD/FPGA 以构建PCI总线接口。
第一种方法很少涉及PCI总线操作并仅仅需要处理当地总线接口，它是较简单的并且在设计中能节约时间。
第二种方法根据其卡定制一些功能及其设计更灵活。
但是，它必须遵守PCI总线的标准。
设计的难度越大，其设计的周期就越长。
本文采取第一种方法，即采取PCI9052来构成PCI总线接口。
其硬件方块图在图片2中显示。
PCI9052是DLX生产的PCI总线接口芯片具有很高的性能，并且能被使于低价格的接头中。
在这张PCI网卡中，其主要功能是提供PCI总线和网络总线之间的转换桥梁。
SJA1000被用来作为CAN控制器和地址/数据再利用方式被采取去连接PCI9052。
与非重复使用方式相比较，这方式能节省费用并且能改进卡的操作速度，PCA82C250被采用作为CAN收发机以实现TTL和总线水平之间的转化。
93C546被采用作为连续的EEPROM，并且PCI9052就是通过它来下载配置信息。
这两个付余的网络通信通道在设计中被采用。
主节点能选择相应的渠道，可方便地被转换。
进而卡的可靠性得以提高，电力供应隔离和图片电隔离技术被采用，以减少波动的影响和由错误造成的危害。
3.2 PCI网卡的软件开发为了安全，自从Windows2000以来的微软操作系统保护大多数进入硬件的相关信息。
在ring3层的用户应用程序不能直接进入硬件，并且中断服务不能特殊地被提供。
硬件仅能通过在ring0层运行的设备驱动器进入,设备的驱动程序应该实现硬件功能,而且应提供特殊的API功能资料库,以构建适应自身硬件驱动方式的用户应用计划。
最终的用户功能必须实现其驱动器程序。
进而，发展驱动器程序是PCI网卡软件的首要任务。
微机驱动器是由美国人的KRF技术提供开发的成套元件的驱动程序。
一般的设备驱动程序如Windrvr.vxd和Windrvr.sys都是其主要的功能模组。
他们包括一个码发生器-微机驱动器Wizard，一个微机驱动器利用两个公共程序pci_scan.exe和pci_dump.exe的成套装置。
驱动程序与微机驱动器发展起来可以移植到Windows95、98、NT、2000和XP [ 7 ]中。
因此，本文采用微机驱动器作为驱动程序的发展工具。
周期征询方式简单地访问硬件，但是它不能适应需要实时的情况，因此它能仅仅是助手方式而已。
这种卡的驱动程序采用的驱动方式是由硬件中断引导的，它能满足适时的要求，并且能使用户监督程序有较大的灵活性。
PCI网卡的驱动程序的发展过程:(1) 建造特殊的应用程序接口功能库。
首先，在驱动路径中建一个驱动程序，驱动路径能识别PCI网卡的配置空间，自动在93CS46中建立，同时它允许用户在其输入输出口空间或者记忆空间做读写测试。
其次，访问者(中断控制/状态访问者)应该设计这种设备以分配中断数字到它那，用以监控中断情况。
PCI9052的输入输出地址作为访问者在驱动路径中被跟踪并且当编辑中断信息时与中断响应建立关系。
当响应时访问者写入0，在xxx_IntEnable ( )功能主体中，驱动路径能自动地隶属于一群传输需求码，它能使中断水平变低。
在中断在中断等待函数中被捕捉之后，在访问中断处理过程中，微机驱动器能清楚地意识到被PCI 网卡造成的硬件中断。
此时，中断能确切地被响应。
在上述构形之后，微机路径能根据被使用者选择的程序语言(例如VC )创造特殊的应用程序接口函数库。
函数库能实现中断处理、存储器直接存取传送、输入-输出操作、存储器绘图及突然中断和方便地发挥作用。
(2) 建造PCI网卡的驱动程序是基于被中断引导的方式。
为了实现PCI网卡的实时数字通信，被中断引导的方式和被直接读写输入输出口空间帮助的方式被采取。
这种卡的中断服务程序的主要功能是处理网络总线的交流任务。
来自PCI网卡的中断包括：接受中断、溢出中断和误差中断。
一旦误差中断发生，网络控制器将处于重新设置的状态，而主节点不能与从属节点交流，它必须在用户中断服务程序中重新设置工作状态。
溢出中断处理必须与接受中断处理和网络控制状态访问者的溢出字节相结合，这是一个循环的过程。
接受中断是自然中断，它从接受缓冲装置阅读基准并且释放接受缓冲装置。
卡的中断服务程序的流量图在图3中显示。
使用微机驱动器的设备驱动程序的发展具有较短的发展周期、高性能、便携式和易分配等优点。
用户监督程序的发展是PCI网卡的软件开发的重要任务并且继电保护和监控系统发展的关键。
网络持续使用物质层的CAN协议和数据连接层标准。
然而，它限制不同的消息格式、总线仲裁机制、故障诊断及它本身的方法和应用层标准。
基于领悟网络协议，Visual C+ 6.0多功能控制被用来编辑这个体系的监控程序。
它包括六种模件：初始化模件、体系监控模件、数据管理模件、体系构形模件、控制模件和帮助模件。
初始化模件的主要任务是根据由体系构形模件和一些体系规则所设置的通信参量来构成PCI网卡的寄存器，那么PCI网卡能根据规则处于工作或者关闭状态下。
体系监控模件为实时提供好的接口和检查定量的历史趋势。
数据管理模件根据指定的形式(例如DPF形式)来阅读数据。
体系构形模件构成运算子参量，通信参量，监督种类和检验方式的灵活性、控制模件实现主节点的可选择性的控制策略。
帮助模件提供帮助性的必要信息。
来自网络总线的PCI网卡接受各种各样的数据，它们被捕捉到用户中断服务程序并且在盘文件中以DBF 格式保存。
用户监督程序能阅读盘文件并获取监控数据。
如果使从属节点需要被控制或选中，微机特殊的应用程序接口函数被用来写PCI网卡的输入/输出口。
本文中的监控程序用可取的图片操作接口，人机相互作用环境和高数据通信能力，能完成所有的任务配备令人满意的可取的控制策略。
4.体系从属节点的设计为了减少分站自动体系的复杂性并且改进继电保护和监控系统的持续能力，每一保护和监控装置采用统一的硬件层和系统设计。
监控与数据采集系统-电力系统专业英语
d. Indications with memory capable of storing single or multiple changes of status that occur between scans. e. Control without indication of a device. Examples are tap-changing transformers (tap position is brought to the master by telemetering means) and raise-lower control of generator load. f. Set-point control to provide a set-point reference to a controller located at a remote. (3) Data acquisition including recording or displaying: a. Analog quantities. Examples are AC watts, vars, volts and amperes. b. Kilowatt-hour data from digital pulses. c. Digital data such as levels that are digitalized by external devices and read digitally by the SCADA equipment.
因为“微机”的定语很长，若保持被动语气，主语和宾语距离太远，句 子结构不紧凑。
Translation Skill
被动句的翻译
3、译为无主句
对it ……ed that……结构，可以译为无主句 It must be realized that high transmission voltage results in the increased cost of transformers. 必须认识到，高的输电电压不会引起变压器成本的提高。 其他情况： whenever work is being done, energy is being converted from one form into another. 凡做功，都是把能量从一种形式转换成另一种形式。
分析变电站归纳自动化体系怎么安全运转中英文
分析变电站归纳自动化体系怎么安全运转中英文Analysis of substation automation system how to safe operation of induction变电站归纳自动化体系对变电站内的设备进行一致的监控、办理，与电网调度自动化体系进行实时信息沟通、信息同享，前进了电网的安全安稳水平，确保了变电站的经济运转。
变电站归纳自动化体系的安全运转直接决议了变电站的安全和安稳。
Substation automation system of substation induces the consistent monitoring, management, real-time information communication, information sharing and power grid dispatching automation system, forward security security level of power grid, to ensure that the economic operation of transformer substation. Safe operation of substation automation system induces direct decision of the substation safety and security.一、变电站归纳自动化的长处有：考试大论坛A substation automation, inductive strengths: the Forum1、操控和调理由核算机完结，削减了劳作强度，避免了误操作。
1, control and adjustment by the accounting machine end, reduced labor strength, avoid misoperation.2、简化了二次接线，全体规划紧凑，削减了占地面积，下降变电站建造投资。
变电站综合自动化名词
变电站综合自动化名词系统：通过执行规定功能来实现某一给定目标的一些相互关联单元的组合。
自动：在一个限定任务内自行动作(无需操作人员)。
自动化：采用自动装置改进设备以减少人的干预。
控制：在系统中，为某一特定目的而执行的操作。
在变电站中控制包括：断路器、隔离开关的操作，变压器分接头的调节、保护定值修改，特殊控制。
监控：通过对系统或设备进行连续或定期的监测来核实功能是否被正确执行，并使它们的工作状况适应于变化的运行要求。
自动控制：无需人去直接或间接操作执行装置的控制方式。
自动控制装置：由一个或多个继电器或逻辑元件组合在一起，预定完成某项规定自动化功能的设备。
自动切换装置：在变电站中按照规定的程序预定起动操作断路器和或隔离开关的自动控制装置。
信息：人们根据表示数据所用的约定而赋于数据的意义。
信息容量：调度中心、主站或子站可处理的各种远动信息的总和。
状态信息：双态或多态运行设备所处状态的信息。
监视信息：将子站设备的状态或状变传送到主站的信息。
事件信息：有关运行设备状态变化的监视信息。
遥信信息：指发电厂、变电站中主要的断路器和隔离开关的位置状态信号，重要继电保护与自动装置的动作信号，以及一些运行状态信号等。
遥控信息：指通过远程指令遥控发电厂或变电站中的各级电压回路的断路器、投切补偿装置、调节主变压器分头、自动装置的投入和退出、发电机的开停等。
通信：在信息源和受信者之间交换信息。
串行通信：两台设备之间(或称点对点之间)通过单一通道串行传输信息的一种方式。
并行通信：两台设备之间(或称点对点之间)通过多个通道并行传输信息的一种方式。
光纤通信：在光导纤维中传送信息的一种有线通信方式。
告警：当发生某些不正常状态，需提醒人们注意而使用的信息。
总告警：全部单独告警汇总成的告警。
成组告警：若干单独告警汇总成的告警。
遥测：指运用通信技术传输所测变量之值。
遥信：指对状态信息的远程监视。
遥控：指具有两个确定状态的运行设备进行的远程操作。

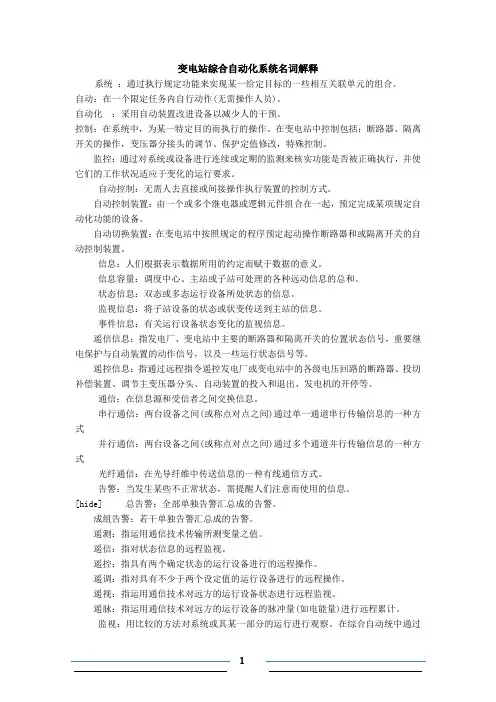

变电站综合自动化系统名词解释
