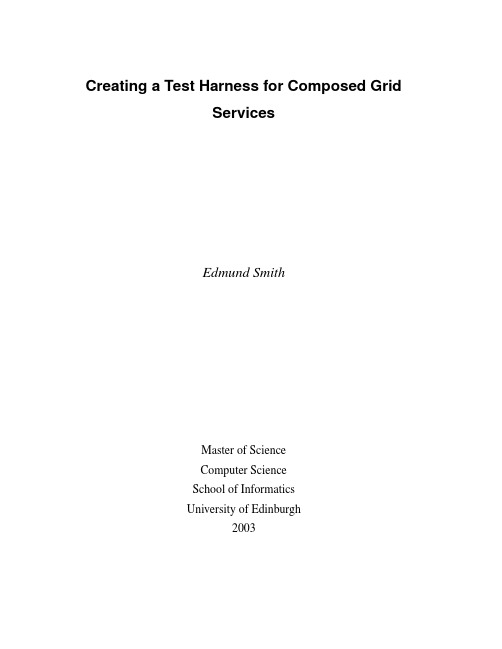

Chapter 1 Introduction
This dissertation documents the creation of a test harness for OGSI services. The grid is currently an active area of both corporate and academic research. Many of the larger computing corporations are investing heavily in grid technology in the hope that it will usher in a new age of utility computing, in which processing power is made available from processing providers in an analagous way to the manner in which electricity is provided today (this is one of the reasons it has been called grid computing).
Google开源激光SLAM算法论文原文
As-built floor plans are useful for a variety of applications. Manual surveys to collect this data for building management tasks typically combine computed-aided design (CAD) with laser tape measures. These methods are slow and, by employing human preconceptions of buildings as collections of straight lines, do not always accurately describe the true nature of the space. Using SLAM, it is possible to swiftly and accurately survey buildings of sizes and complexities that would take orders of magnitude longer to survey manually.
1All authors are at Google.
loop closure detection. Some methods focus on improving on the computational cost by matching on extracted features from the laser scans [4]. Other approaches for loop closure detection include histogram-based matching [6], feature detection in scan data,and using machine learning [7].
FortiSwitch数据中心交换机数据表说明书
FortiSwitch Data Center switches deliver a Secure,Simple, Scalable Ethernet solution with outstandingthroughput, resiliency and scalability. Virtualizationand cloud computing have created dense high-bandwidthEthernet networking requirements. FortiSwitch DataCenter switches meet these challenges by providing ahigh performance 10 GE, 40 GE or 100 GE capableswitching platform, with a low Total Cost of Ownership.Ideal for Top of Rack server or firewall aggregationapplications, as well as SD-Branch network core deployments, these switches are purpose-built to meet the needs of today’s bandwidth intensive environments.FortiSwitch™ Data Center SeriesStandalone ModeThe FortiSwitch has a native GUI and CLI interface. All configuration and switch administration can be accomplished through either of theseinterfaces. Available ReSTful API’s offer additional configuration and management options.FortiLink ModeFortiLink is an innovative proprietary management protocol that allows our FortiGate Security Appliance to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management cost as network security and access layer functions are enabled and managed through a single console.3FortiSwitch 1024D — frontFortiSwitch 1048D — frontFortiSwitch 1048D — backFortiSwitch 3032D — frontFortiSwitch 3032D — backFortiSwitch 1048E — frontFortiSwitch 1048E — backFortiSwitch 1024D — backFortiSwitch 3032E — frontFortiSwitch 3032E — backLAG support for FortiLink Connection YesActive-Active Split LAG from FortiGate to FortiSwitches for Advanced Redundancy YesFORTISWITCH 1024D FORTISWITCH 1048D FORTISWITCH 1048E FORTISWITCH 3032D FORTISWITCH 3032E Layer 2Jumbo Frames Yes Yes Yes Yes YesAuto-negotiation for port speed and duplex Yes Yes Yes Yes YesIEEE 802.1D MAC Bridging/STP Yes Yes Yes Yes YesIEEE 802.1w Rapid Spanning Tree Protocol (RSTP)Yes Yes Yes Yes YesIEEE 802.1s Multiple Spanning Tree Protocol (MSTP)Yes Yes Yes Yes YesSTP Root Guard Yes Yes Yes Yes YesEdge Port / Port Fast Yes Yes Yes Yes YesIEEE 802.1Q VLAN Tagging Yes Yes Yes Yes Yes* Fortinet Warranty Policy: /doc/legal/EULA.pdfFortiSwitch 1024DFortiSwitch 1048DFortiSwitch 1048E7FortiSwitch 3032D* Fortinet Warranty Policy: /doc/legal/EULA.pdfFortiSwitch 3032EGLOBAL HEADQUARTERS Fortinet Inc.899 KIFER ROAD Sunnyvale, CA 94086United StatesTel: +/salesEMEA SALES OFFICE 905 rue Albert Einstein 06560 Valbonne FranceTel: +33.4.8987.0500APAC SALES OFFICE 8 Temasek Boulevard#12-01 Suntec Tower Three Singapore 038988Tel: +65.6395.2788LATIN AMERICA SALES OFFICE Sawgrass Lakes Center13450 W. Sunrise Blvd., Suite 430 Sunrise, FL 33323United StatesTel: +1.954.368.9990Copyright© 2019 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product will perform according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or development, and circumstances may change such that any forward-looking statements herein are not accurate. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable.FST -PROD-DS-SW4 FS-DC-DAT-R18-201903FortiSwitch ™ Data Center SeriesORDER INFORMATIONFS-SW-LIC-3000SW License for FS-3000 Series Switches to activate Advanced Features.* When managing a FortiSwitch with a FortiGate via FortiGate Cloud, no additional license is necessary.For details of Transceiver modules, see the Fortinet Transceivers datasheet.。
基于gpu的分组密码并行破解方法分析
三、ＧＰＵ有着良好的可编程性，支持如Ｃ语言等多种高级语言编程，对大规 模的数据流并行处理方面具有明显的优势［１３］。ＮＶＩＤＩＡ在２００７年推出了ＣＵＤＡ 并行计算技术，将ＧＰＵ通用计算（ＧＰＧＰＵ）从图形硬件流水线和高级绘制语言中解
蔓Ｅ戈学甄士学位论文
放出来，没有图形学编程经验的开发人员也可以在单任务多数据模式下完成高性 能计算，从而使ＧＰＧＰＵ开发的门槛大大降低［１４３【１５］。
ｓｉｇｎｉｆｉｃａｎｔ ｉｍｐｒｏｖｅｍｅｎｔ ｏｎ ｄｅａｌｉｎｇ ｗｉｔｈ ｔｈｅ ｄａｔａ—ｉｎｔｅｎｓｉｖｅ ｉｓｓｕｅｓ Ｉｎ ｔｈｉｓ ａｒｔｉｃｌｅ。ｗｅ ｍａｉｎｌｙ ｄｉＳＣＵＳＳ ｔｈｅ ＧＰＵ ａｒｃｈｉｔｅｃｔｕｒｅ＊ｉｔｈ ａ
ｄｅｔａｉｌｅｄ ａｎａｌｙｓｉｓ ｏｆ ｔｈｅ ｐｒｏｇｒａｍｍｉｎｇ ｍｏｄｅｌ ｏｆ ＣＵＤＡ ａｎｄ ｉｔｓ ｉｍｐｌｅｍｅｎｔａｔｉｏｎ ｍｅｃｈａｎｉｓｍｓ ｆｏｒ ｐａｒａＩｌｅｌ ｃｏｍｐｕｔｉｎｇ Ｔｈｅｎ ｗｅ ｐｒｏｐｏｓｅ ａ ｎｅｗ ｇｅｎｅｒａｌ ｄａｔａ ｐａｒａｌｌｅｌ ｆｒａｍｅｗｏｒｋ ｂａｓｅｄ ｏｎ ｔｈｅ ｅｘｉｓｔｉｎｇ ｂｒｕｔｅ ｆｏｒｃｅ ａｔｔａｃｋ ａｌｇｏｒｉｔｈｍｓ ｏｆ ｂｌｏｃｋ ｃｉｐｈｅｒ，ｗｈｉｃｈ ｉ ｓ ｏｆｆ］ｏａｄｉｎｇ ｔｈｅ ｐａｒｔ ｏｆ ｈｕｇｅ ｃａｌｃｕｌａｔｉｏｎｓ ｆｏｒ ｃｒａｃｋｉｎｇ ｆｒｏｍ ＣＰＵ ｔｏ ＧＰＵ，ｉｎ ｏｒｄｅｒ ｔｏ ｉｍｐｒｏｖｅ ｔｈｅ ｃｏｍｐｕｔｉｎｇ ｔｈｒｏｕｇｈｐｕｔ．
ParallelComputingToolbox：并行计算工具箱
Parallel computing with MATLAB. You can use Parallel Computing Toolbox to run applications on a multicore desktop with local workers available in the toolbox, take advantage of GPUs, and scale up to a cluster (with MATLAB Distributed Computing Server).Programming Parallel ApplicationsParallel Computing Toolbox provides several high-level programming constructs that let you convert your applications to take advantage of computers equipped with multicore processors and GPUs. Constructs such as parallel for-loops(parfor)and special array types for distributed processing and for GPU computing simplify parallel code development by abstracting away the complexity of managing computations and data between your MATLAB session and the computing resource you are using.You can run the same application on a variety of computing resources without reprogramming it. The parallel constructs function in the same way, regardless of the resource on which your application runs—a multicore desktop (using the toolbox) or on a larger resource such as a computer cluster (using toolbox with MATLAB Distributed Computing Server).Using Built-In Parallel Algorithms in Other MathWorks ProductsKey functions in several MathWorks products have built-in parallel algorithms. In the presence of Parallel Computing Toolbox, these functions can distribute computations across available parallel computing resources, allowing you to speed up not just your MATLAB and Simulink based analysis or simulation tasks but also code generation for large Simulink models. You do not have to write any parallel code to take advantage of thesefunctions.Using built-in parallel algorithms in MathWorks products. Built-in parallel algorithms can speed up MATLAB and Simulink computations as well as code generation from Simulink models.Speeding Up Task-Parallel ApplicationsYou can speed up some applications by organizing them into independent tasks(units of work) and executing multiple tasks concurrently. This class of task-parallel applications includes simulations for design optimization, BER testing, Monte Carlo simulations, and repetitive analysis on a large number of data files.The toolbox offers parfor, a parallel for-loop construct that can automatically distribute independent tasks to multiple MATLAB workers(MATLAB computational engines running independently of your desktop MATLAB session). This construct automatically detects the presence of workers and reverts to serial behavior if none are present. You can also set up task execution using other methods, such as manipulating task objects in thetoolbox.Using parallel for-loops for a task-parallel application. You can use parallel for-loops in MATLAB scripts and functions and execute them both interactively and offline.Speeding Up MATLAB Computations with GPUsParallel Computing Toolbox provides GPUArray, a special array type with several associated functions that lets you perform computations on CUDA-enabled NVIDIA GPUs directly from MATLAB. Functions include fft, element-wise operations, and several linear algebra operations such as lu and mldivide, also known as the backslash operator (\). The toolbox also provides a mechanism that lets you use your existing CUDA-based GPU kernels directly from MATLAB.Learn more about GPU computing with MATLAB.GPU computing with MATLAB. Using GPUArrays and GPU-enabled MATLAB functions help speed up MATLAB operations without low-level CUDA programming.Scaling Up to Clusters, Grids, and Clouds Using MATLAB Distributed Computing ServerParallel Computing Toolbox provides the ability to run MATLAB workers locally on your multicore desktop to execute your parallel applications allowing you to fully use the computational power of your desktop. Using the toolbox in conjunction with MATLAB Distributed Computing Server, you can run your applications on large scale computing resources such as computer clusters or grid and cloud computing resourcesRunning a gene regulation model on a cluster using MATLAB Distributed Computing Server. The server enables applications developed using Parallel Computing Toolbox to harness computer clusters for large problems.Listening to the World’s Oceans: Searching for Marine Mammals by Detecting andClassifying Terabytes of Bioacoustic Data in Clouds of Noise51:32This session describes how Cornell University Bioacoustics Research Program datascientists use MATLAB®to develop high-performance computing software to processand analyze terabytes of acoustic data.Implementing Data-Parallel Applications using the Toolbox and MATLAB Distributed Computing ServerDistributed arrays in Parallel Computing Toolbox are special arrays that hold several times the amount of data that your desktop computer’s memory (RAM) can hold. Distributed arrays apportion the data across several MATLAB worker processes running on a computer cluster (using MATLAB Distributed Computing Server). As a result, with distributed arrays you can overcome the memory limits of your desktop computer and solve problems that require manipulating very large matrices.With over 150 functions available for working with distributed arrays, you can interact with these arrays as you would with MATLAB arrays and manipulate data available remotely on workers without low-level MPI programming. Available functions include linear algebra routines based on ScaLAPACK, such as mldivide, also known as the backslash operator (\),lu and chol, and functions for moving distributed data to and fromMAT-files.For fine-grained control over your parallelization scheme, the toolbox provides the single program multiple data (spmd)construct and several message-passing routines based on an MPI standard library (MPICH2). The spmd construct lets you designate sections of your code to run concurrently across workers participating in a parallel computation. During program execution,spmd automatically transfers data and code used within its body to the workers and, once the execution is complete, brings results back to the MATLAB client session. Message-passing functions for send, receive, broadcast, barrier, and probe operations are available.Programming with distributed arrays. Distributed arrays and parallel algorithms let you create data-parallel MATLAB programs with minimal changes to your code and without programming in MPI.Product Details, Examples, and System Requirements/products/parallel-computingTrial Software/trialrequestSales/contactsalesTechnical Support/support Running Parallel Applications Interactively and as Batch JobsYou can execute parallel applications interactively and in batch using Parallel Computing Toolbox. Using the parpool command, you can connect your MATLAB session to a pool of MATLAB workers that can run either locally on your desktop (using the toolbox) or on a computer cluster (using MATLAB Distributed Computing Server ) to setup a dedicated interactive parallel execution environment. You can execute parallel applications from the MATLAB prompt on these workers and retrieve results immediately as computations finish, just as you would in any MATLAB session.Running applications interactively is suitable when execution time is relatively short. When your applications need to run for a long time, you can use the toolbox to set them up to run as batch jobs. This enables you to free your MATLAB session for other activities while you execute large MATLAB and Simulink applications.While your application executes in batch, you can shut down your MATLAB session and retrieve results later. The toolbox provides several mechanisms to manage offline execution of parallel programs, such as the batch function and job and task objects. Both the batch function and the job and task objects can be used tooffload the execution of serial MATLAB and Simulink applications from a desktop MATLAB session.Running parallel applications interactively and as batch jobs. You can run applications on your workstation using twelve workers available with the toolbox, or on a computer cluster using more workers available with MATLAB Distributed Computing Server.ResourcesOnline User Community /matlabcentral Training Services /training Third-Party Products and Services /connections Worldwide Contacts /contact。
电子信息工程专业专业英语三千字翻译
Unit3 computer architecture and microprocessors3--1 Computer Architecture1) Computer architecture , in computer science , is a general term referring to the structure of all or part of computer system . The term also covers the design of system software , such as the operating system (the program that controls the computer) , as well as referring to the combination of hardware and basic software that links the machines on a computer network . Computer architecture refers to an entire structure and to the details needed to make it functional . Thus , computer architecture covers computer systems , microprocessors , circuits , and system programs . Typically the term does not refer to application programs , such as spreadsheets or word processing , which are required to perform a task but not to make the system run .2)1.Design Elements3) In designing a computer system , architects consider five major elements that make up the system's hardware : the arithmetic /logic unit , control unit , memory , input , and output . The arithmetic /logic unit performs arithmetic and compares numerical values . The control unit directs the operation of the computer by taking the user instructions andtransforming them into electrical signals that the computer 's circuitry can understand . The combination of the arithmetic /logic unit and the control unit is called the central processing unit (CPU) . The memory stores instructions and data . The input input and output sections allow the computer to receive and send data , respectively .4) Different hardware architectures are required because of the specialized needs of systems and users . One user may need a system to display graphics extremely fast , while another system may have to be optimized for searching a database or conserving battery power in a laptop computer .5) In addition to the hardware design , the architects must consider what software programs will operate the system . Software , such as programming languages and operating systems , makes the details of the hardware architecture invisible to the user . For example , computers that use the C programming language or a UNIT operating system may appear the same from the user's viewpoint , although they use different hardware architectures .6)2.Processing Architecture7) When a computer carries out an instruction , it proceeds through five steps . First ,the control unit retrieves theinstruction from memory , for example , an instruction to add two numbers . Second , the control unit decodes the instruction into electronic signals that control the computer . Third , the control unit fetches the data (the two numbers) . Fourth , the arithmetic/logic unit performs the specific operation ( the addition of the two numbers ) . Fifth , the control unit saves the result ( the sum of the two numbers ) .8) Early computers used only simple instructions because the cost of electronic capable of carrying out complex instructions was high . As this cost decreased in the 1960s , more complicated instructions became possible . Complex instructions ( single instructions that specify multiple operations ) can save time because they make it unnecessary for the computer to retrieve additional instructions . For example , if seven operations are combined in one instruction , then six of the steps that fetch instructions are eliminated and the computer spends less time processing that operation . Computers that combine several instructions into a single operation are called complex instruction set computers ( CISC ) .9) However , most programs do not often use complexinstructions , but consist mostly of simple instructions . When these simple instructions are run on CISC architectures , they slow down processing because each instruction--whether simple or complex --takes longer to decode in a CISC design . An alternative strategy is to return to designs that use only simple , single--operation instruction sets and make the most frequently used operations faster in order to increase overall performance . Computers that follow this design are called reduced instruction set computers ( RISC ) .10) RISC designs are especially fast at the numerical computations required in science , graphics , and engineering applications . CISC designs are commonly used for non-numerical computations because they provide special instruction sets for handling character data , such as text in a word processing program . Specialized CISC architectures , called digital signal processors , exist to accelerate processing of digitized audio and video signals .11)3.Open and Closed Architectures12) The CPU of a computer is connected to memory and to the outside world by means of either an open or a closed architecture . An open architecture can be expanded after the system has been built , usually by adding extra circuitry ,such as a new microprocessor computer chip connected to the main system . The specifications of the circuitry are made public , allowing other companies to manufacture these expansion products .13) Closed architectures are usually employed in specialized computers that will not require expansion , for example , computers that control microwave ovens . Some computer manufacturers have used closed architectures so that their customers can purchase expansion circuitry only from them . This allows the manufacture to charge more and reduces the options for the consumer .14)work Architecture15) Computers communicate with other computers via networks . The simplest network is a direct connection between two computers . However , computers can also be connected over large networks , allowing users to exchange data , communicate via electronic mail , and share resources such as printers .16) Computers can be connected in several ways . In a ring configuration , data are transmitted along the ring and each computer in the ring examines this data to determine if it is the intended recipient . If the data are not intended fora particular computer , the computer passes the data to the next computer in the ring . This process is repeated until the data arrive at their intended destination . A ring network allows multiple messages to be carried simultaneously , but since each message is checked by each computer , data transmission is slowed .17) In a bus configuration , computers are connected througha single set of wires , called a bus . One computer sends data to another by broadcasting the address of the receive and the data over the bus . All the computers in the network look at the address simultaneously , and the intended recipient accepts the data . A bus network , unlike a ring network , allows data to be sent directly from one computer to another . However , only one computer at a time can transmit data . The others must wait to send their messages .18) In a star configuration , computers are linked to a central computer called a hub . A computer sends the address of the receiver and the data to the hub , which then links the sending and receiving computers directly . A star network allows multiple messages to be sent simultaneously , but it is more costly because it uses an additional computer , the hub , to direct the data .19)5.Recent Advances20) One problem in computer architecture is caused by the difference between the speed of the CPU and the speed at which memory supplies instructions and data . Modern CPUs can process instructions in 3 nanoseconds ( 3 billionths of a second ) . A typical memory access , however , takes 100 nanoseconds and each instruction may require multiple accesses . To compensate for this disparity , new computer chips have been designed that contain small memories , called caches , located near the CPU . Because of their proximity to the CPU and their small size , caches can supply instructions and data faster than normal memory . Cache memory stores the most frequently used instructions and data and can greatly increase efficiency .21) Although a large cache memory can hold more data , it also becomes slower .To compensate , computer architects employ designs with multiple caches . The design places the smallest and fastest cache nearest the CPU and locates a second large and slower cache farther away . This arrangement allows the CPU to operate on the most frequently accessed instructions and data at top speed and to slow down only slightly when accessing the secondary cache . Using separatecaches for instructions and data also allows the CPU to retrieve an instruction and data simultaneously .22) Anther strategy to increase speed and efficiency is the use of multiple arithmetic/logic units for simultaneous operations , called super scalar execution . In this design , instructions are acquired in groups . The control unit examines each group to see if it contains instructions that can be performed together . Some designs execute as many as six operations simultaneously . It is rare , however , to have this many instructions run together ,so on average the CPU does not achieve a six-fold increase in performance . 23) Multiple computers are sometimes combined into single systems called parallel processors . When a machine has more than one thousand arithmetic/logic units , it is said to be massively parallel . Such machines are used primarily for numerically intensive scientific and engineering computation .Parallel machines containing as many as sixteen thousand computers have been constructed .3-3 VLIW Microprocessors24) When Transmeta Corp. revealed its new Crusoe of processors last month ,experts weren’t surprised to learn that the chips are based on Very Long Instruction Word(VLIW)technology .VLIW has become the prevailing philosophy of microprocessor design , eclipsing older approaches such as RISC and complex instruction set computing(CISC) .25) All microprocessor designs seek better performance within the limitations of their contemporary technology. In the 70s of 20th century ,for example ,memory was measured in kilobytes and very expensive .CISC was the dominant approach because it conserved memory .26) In the CISC architecture . there can be hundreds of program instructions-simple commands that tell the system to add numbers, store values and display results. If all instructions were the same length , the simple ones would waste memory .Simple instructions require as little as 8 bits of storage space , while the most complex consume 120 bits .27) Variable-length instructions are more difficult for a chip to process, though, and the longer CISC instructions are especially complex. nonetheless ,to maintain software compatibility, modern chips such as Intel’s Pentium III and Advanced Micro Devices Inc.’s Athlon must still work with all troublesome CISC instructions that were designed in the 1980s , even though their original advantage-memory conservation-isn’t as important .28) In the 1980s , RAM chips got bigger and bigger in capacity while their prices dropped . The emphasis in CPU design shifted to relatively simple , fixed-length instructions , always 32 bits long .Although this wastes some memory by making programs bigger ,the instructions are easier and faster to execute .29) The simplicity of RISC also makes it easier to design superscalar processors-chips that can execute more than one instruction at a time .This is called instruction-level parallelism. Almost all modern RISC and CISC processors are superscalar. But achieving this capability introduced significant new levels of design complexity.30) VLIW chips can cost less , burn less power and achieve significantly higher performance than comparable RISC and CISC chips But there are always trade-offs. One is code expansion-programs grow larger , requiring more memory. Far more important , though , is that compilers must get smarter .A poor VLIW complier will have a much greater negative impact on performance than would a poor RISC or CISC compiler .31) VLIW isn’t a magic bullet , but it’s the new wave in microprocessor design .Within a few years , it’s certain that at least some of your software will be running on VLIW chips .单元3 电脑体系和微处理器3-1 电脑体系电脑体系，在电脑科技中，是一个依据整个或部分电脑结构的通用术语，这个术语也包含软件系统的设计，例如这个操作系统（控制电脑的程序），以及依据这个在电脑网络中连接主机的硬件和基本的软件的结合体。
SYNOPSIS 数字实现库文档说明书
DATASHEETOverview Accurate library characterization is the foundation of successful digital implementation. Synthesis, place-and-route, verification and signoff tools rely on precise model libraries to accurately represent the timing, noise and power performance of digital and memory designs. Cell library characterization complexity has dramatically increased as libraries migrate to more advanced process nodes. Low-power design further complicates the characterization process by introducing complex cells such as multi-bit flip-flops, level shifters and retention logic, which must be accurately characterized to ensure effective digital implementation across multiple power domains. In addition, process variability, aging, reliability and electro-migration on these nodes requires fast and accurate characterization to model and validate the effects. This increased requirements to generate, model and validate data is also responsible for an increased demand on compute for characterization.Introduction The PrimeLib solution includes a comprehensive array of library characterization and QA capabilities that are tuned to produce PrimeTime ® signoff quality libraries with maximum throughput on available compute resources. PrimeLib’s innovative technologies utilize embedded gold reference SPICE engines to provide a characterization speed up of advanced Liberty™ models used by PrimeTime static timing analysis (STA) to accurately account for effects seen in ultra-low voltage FinFET processes that impact timing. This includes PrimeTime parametric on-chip variation (POCV), advanced waveform propagation (AWP) and electromigration (EM) analysis. PrimeLib is cloud-ready, and with its optimized scaling technology delivers an accelerated throughput on cloud or an on-premise cluster.Figure 1: Platform-level integration of PrimeLib with HSPICE and PrimeTime ensures signoff-quality librariesAccurate andcomprehensivelibrary characterizationfor successful digitalimplementationPrimeLib: Unified Library Characterization and ValidationKey Features and Benefits• SmartScaling based multi-PVT characterization to instantly generate libraries and reduce significantly the overall characterization required for multiple PVT corners• Single captive license bundles everything required for cell library characterization, QA and simulator• Simple multi-core licensing enables easy adaptation to constantly changing characterization workload requirements• Embedded gold reference SPICE engines for best accuracy and Integrated signoff library validation tuned to produce PrimeTime sign-off quality libraries• Innovative technologies provide high characterization throughput• ML-based high-sigma char w/ HSPICE® AVA• Faster LVF runtime using new ML models and key technologies• Cell reliability characterization to capture impacts of device model degradation over time (aging) and electro-migration (EM)• ML-based augmented sensitivity database to enable faster time-to-market for an updated PDK• Comprehensive QA features for library validation and SPICE correlation• Unified GUI for library database management system, job processing, and monitoring, compare and validate libraries—one GUI to visualize it all• Library characterization environment encryption support enables IP providers to deliver re-characterization kitsFigure 2: PrimeLib input and outputsPrimeLib Statistical CharacterizationPrimeLib provides comprehensive solution for fast & accurate process variation characterization and generation of PrimeTime compliant Liberty variation format (LVF), advanced on-chip variation (AOCV), parametric on-chip variation (POCV) models. PrimeLib offers range of solutions to reduce the overall time for LVF library characterization. Flexible characterization flows are supported to produce accurate libraries. Traditional sensitivity-based approach (SBA) generates accurate LVF data for regular voltage corners where delay/slew/constraint follow a Gaussian distribution. However, at ultra-low voltages, relationship between parameter perturbation and results become non-linear. Variation responses at ultra-low voltage corners display skewed behavior. Machine learning-based algorithms enable accurate modeling of non-Gaussian distribution at ultra-low voltage corners. For golden accuracy reference, PrimeLib provides a Monte Carlo capability which uses the build-in MC feature of the simulator.Figure 3: PrimeLib Machine Learning and Monte Carlo responseKey Features• Dynamic selection of algorithms (ML/SBA) based on variation trend. The effect of process variation becomes smaller at higher voltages and faster corners. Compute intensive methods (ML) are not necessary at higher voltages. This technology automatically determines whether sensitivity-based approach (SBA) method can be used without compromising accuracy. • Advanced ML algorithms to produce accurate LVF models for near threshold or sub-Vt corners• Physical implementation of a single large transistor can be extracted as multiple transistors. This increase in transistor count slows down the computation of the cell sensitivity to process variation. Advanced algorithms are supported to improve LVF characterization turn-around time for cells having fingered devices.• Pre-analysis flow to filter-out insignificant statistical parameters based on the transistor-level IRV analysis results• Enhanced algorithm for robust and accurate arc binning• Delay measurement-based approach instead of bisection approach to speedup LVF constraints characterization runtimesFigure 4: Characterization methods using Monte Carlo and Sensitivity Based AnalysisHigh Sigma CharacterizationHigh sigma characterization can be used to ensure robust std cells components at lower process nodes and for automotive applications. PrimeLib tool supports fast and accurate High Sigma Monte Carlo simulation in the 3-5.75 sigma range with HSPICE AVA. Simulators use advanced techniques in ML to reduce the number of simulations by several orders of magnitude compared to traditional MC for high sigma analysis.SmartScaling Based Multi-PVT CharacterizationSmartScaling for multi PVT characterization reduces the overall requirement to characterize full libraries across different PVTsand significantly improves the overaall turnaround time. SmartScaling solution produces instant zero-cost intermediate libraries using SmartScaling database at selected corners based on anchor PVTs. Multi-Dimensional scaling (across voltage, process& temperature) feature uses the SmartScaling engine to generate accurate signoff quality libraries with timing/CCST/CCSN/power/LVF data.PrimeTime Signoff Quality LibrariesAdvanced process node standard cell libraries require accurate timing and noise models to ensure confident static timing analysis signoff—especially for mobile IC and IoT applications operating at ultra-low voltages. To meet the accuracy needs for advanced node characterization, PrimeLib model generation has been tightly calibrated with PrimeTime and HSPICE® models to provide the best correlation and accuracy results.Integrated Signoff Library ValidationSuccessful IC design requires high-quality libraries. PrimeLib provides a comprehensive set of capabilities for quality assurance to verify the consistency, accuracy and completeness of the libraries. These capabilities include consistency checks across views within a library with easy to visualize HTML reports and heat maps, GUI-based library-to-library comparison capabilities, as well as advanced SPICE based correlation capabilities for timing, noise, constraints and power.Simple Multi-Core LicensingPrimeLib’s unique licensing approach easily adjusts to varying workload profiles thereby eliminating the burden on characterization teams to predict future workload requirements and having to operate within the constraints associated with traditionally cumbersome licensing methods. Dedicated SPICE availability for characterization teams is another added benefit.High Characterization Throughput: Optimized for Cloud or ClusterPrimeLib provides high throughput on a wide range of computing environments with its many performance-focused features. This includes netlist optimization, automatic function recognition with vector generation, vector optimization and efficient utilization of compute resources on cloud or in cluster. Library characterization is a disk-intensive and highly distributed process. PrimeLib is optimized for NFS traffic and disk usage and scales linearly to provide fastest and efficient throughput based on available resources. PrimeLib’s enhanced license checkout mechanism reduces the overhead on license servers that can be caused byhighly distributed processes.Figure 5: Parallel CharacterizationCell Reliability CharacterizationAdvances in process technology are increasing the impact of Electro-Migration (EM) on the performance and reliability of designs. Similarly, the stress and degradation in the performance of transistors with continued usage over a period of time is another growing reliability concern.Hence, cell reliability characterization is an important capability that PrimeLib has to offer given the pressing need of long running applications such as the automotive industry.EM characterization in PrimeLib is supported for avg, rms and peak current types. Aging characterization is supported for MOSRA, TMI and OMI aging models for both BTI and HCI effects. Both these characterization flows are based on the basic characterization flow making them easy to setup and use.Library Characterization Environment Encryption SupportIP providers have to deliver re-characterization kits to their customers, without opening up their characterization methodology IP. This is where the library characterization environment encryption support of PrimeLib is useful.Simulator SupportPrimeLib offers support for our existing FineSim and HSPICE simulators as well as for the next generation PrimeSimsimulator products.The embedded as well as the standalone simulator invocations are captive in nature—so you don’t have to worry about checking out any additional simulator license keys. The PrimeLib-Core license tokens are all you need to invoke any of these simulators.©2021 Synopsys, Inc. All rights reserved. Synopsys is a trademark of Synopsys, Inc. in the United States and other countries. A list of Synopsys trademarks isavailable at /copyright.html . All other names mentioned herein are trademarks or registered trademarks of their respective owners.。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
A CACHE-BASED DATA INTENSIVE DISTRIBUTED COMPUTING ARCHITECTURE FOR “GRID” APPLICATIONS
Brian Tierney, William Johnston, Jason LeeLawrence Berkeley National Laboratory, Berkeley, CA 94720
AbstractModern scientific computing involves organizing, moving, visualizing, andanalyzing massive amounts of data from around the world, as well asemploying large-scale computation. The distributed systems that solve large-scale problems will always involve aggregating and scheduling manyresources. Data must be located and staged, cache and network capacity mustbe available at the same time as computing capacity, etc. Every aspect of sucha system is dynamic: locating and scheduling resources, adapting runningapplication systems to availability and congestion in the middleware andinfrastructure, responding to human interaction, etc. The technologies, themiddleware services, and the architectures that are used to build useful high-speed, wide area distributed systems, constitute the field of data intensivecomputing, and are sometimes referred to as the “Data Grid”. This paperexplores the use of a network data cache in a Data Grid environment.
1.INTRODUCTIONHigh-speed data streams resulting from the operation of on-line instruments and imaging systems are astaple of modern scientific, health care, and intelligence environments. The advent of high-speednetworks is providing the potential for new approaches to the collection, organization, storage, analysis,visualization, and distribution of the large-data-objects that result from such data streams. The resultwill be to make both the data and its analysis much more readily available.
For example, high energy physics experiments generate high rates and massive volumes of datathat must be processed and archived in real time. This data must also be accessible to large scientificcollaborations — typically hundreds of investigators at dozens of institutions around the world. In this paper we will describe how “Computational Grid” environments can be used to help withthese types of applications, and give a specific example of a high energy physics applications in thisenvironment. We describe how a high-speed application-level network data cache is a particularlyimportant component in a data intensive grid architecture, and describe our implementation of such acache.
2.DATA INTENSIVE GRIDSThe integration of the various technological approaches being used to address the problem of integrateduse of dispersed resources is frequently called a “grid,” or a computational grid — a name arising byanalogy with the grid that supplies ubiquitous access to electric power. See, e.g., [9]. Basic grid servicesare those that locate, allocate, coordinate, utilize, and provide for human interaction with the variousresources that actually perform useful functions.
Grids are built from collections of primarily independent services. The essential aspect of gridservices is that they are uniformly available throughout the distributed environment of the grid.Services may be grouped into integrated sets of services, sometimes called “middleware.” Current gridtools include Globus [8], Legion [15], SRB [2], and workbench systems like Habanero [10] andWebFlow [1]. Recently the term “Data Grid” has come into use to describe middleware and services fordata intensive Grid applications [3], and several data grid research projects have be started [5][[17]. From the application’s point of view, the Grid is a collection of middleware services that provideapplications with a uniform view of distributed resource components and the mechanisms forassembling them into systems. From the middleware systems points of view, the Grid is a standardizedset of basic services providing scheduling, resource discovery, global data directories, security,communication services, etc. However, from the Grid implementor’s point of view, these services resultfrom and must interact with a heterogeneous set of capabilities, and frequently involve “drilling” downthrough the various layers of the computing and communications infrastructure.
2.1Architecture for Data Intensive EnvironmentsOur model is to use a high-speed data storage cache as a common element for all of the sources andsinks of data involved in high-performance data systems. We use the term “cache” to mean storage thatis faster than typical local disk, and temporary in nature. This cache-based approach provides standardinterfaces to a large, application-oriented, distributed, on-line, transient storage system. In a wide-areaGrid environment, the caches must be specifically designed to achieve maximum throughput over high-speed networks.
