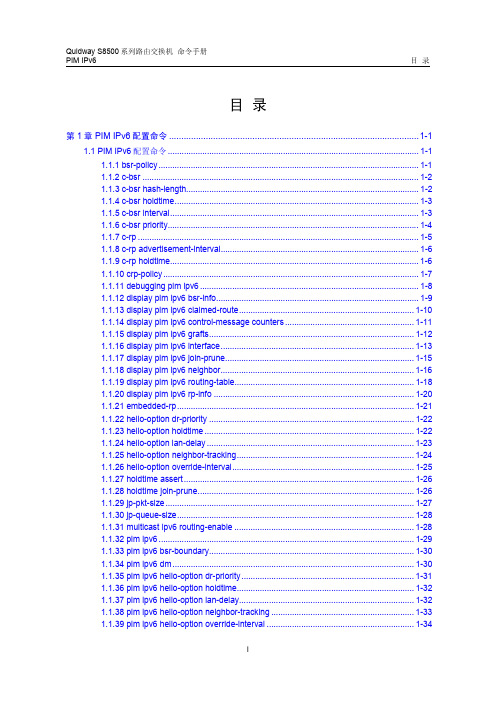

s8500命令手册(V2.00)4-6 PIM IPv6命令
目录第1章 PIM IPv6配置命令......................................................................................................1-11.1 PIM IPv6配置命令.............................................................................................................1-11.1.1 bsr-policy.................................................................................................................1-11.1.2 c-bsr........................................................................................................................1-21.1.3 c-bsr hash-length.....................................................................................................1-21.1.4 c-bsr holdtime..........................................................................................................1-31.1.5 c-bsr interval............................................................................................................1-31.1.6 c-bsr priority.............................................................................................................1-41.1.7 c-rp..........................................................................................................................1-51.1.8 c-rp advertisement-interval......................................................................................1-61.1.9 c-rp holdtime............................................................................................................1-61.1.10 crp-policy...............................................................................................................1-71.1.11 debugging pim ipv6...............................................................................................1-81.1.12 display pim ipv6 bsr-info........................................................................................1-91.1.13 display pim ipv6 claimed-route............................................................................1-101.1.14 display pim ipv6 control-message counters........................................................1-111.1.15 display pim ipv6 grafts.........................................................................................1-121.1.16 display pim ipv6 interface....................................................................................1-131.1.17 display pim ipv6 join-prune..................................................................................1-151.1.18 display pim ipv6 neighbor....................................................................................1-161.1.19 display pim ipv6 routing-table..............................................................................1-181.1.20 display pim ipv6 rp-info.......................................................................................1-201.1.21 embedded-rp.......................................................................................................1-211.1.22 hello-option dr-priority.........................................................................................1-221.1.23 hello-option holdtime...........................................................................................1-221.1.24 hello-option lan-delay..........................................................................................1-231.1.25 hello-option neighbor-tracking.............................................................................1-241.1.26 hello-option override-interval...............................................................................1-251.1.27 holdtime assert....................................................................................................1-261.1.28 holdtime join-prune..............................................................................................1-261.1.29 jp-pkt-size............................................................................................................1-271.1.30 jp-queue-size.......................................................................................................1-281.1.31 multicast ipv6 routing-enable..............................................................................1-281.1.32 pim ipv6...............................................................................................................1-291.1.33 pim ipv6 bsr-boundary.........................................................................................1-301.1.34 pim ipv6 dm.........................................................................................................1-301.1.35 pim ipv6 hello-option dr-priority...........................................................................1-311.1.36 pim ipv6 hello-option holdtime.............................................................................1-321.1.37 pim ipv6 hello-option lan-delay............................................................................1-321.1.38 pim ipv6 hello-option neighbor-tracking..............................................................1-331.1.39 pim ipv6 hello-option override-interval................................................................1-341.1.40 pim ipv6 holdtime assert.....................................................................................1-35 1.1.41 pim ipv6 holdtime join-prune...............................................................................1-35 1.1.42 pim ipv6 require-genid.........................................................................................1-36 1.1.43 pim ipv6 sm.........................................................................................................1-37 1.1.44 pim ipv6 state-refresh-capable............................................................................1-38 1.1.45 pim ipv6 timer graft-retry.....................................................................................1-38 1.1.46 pim ipv6 timer hello.............................................................................................1-39 1.1.47 pim ipv6 timer join-prune.....................................................................................1-40 1.1.48 pim ipv6 triggered-hello-delay.............................................................................1-41 1.1.49 probe-interval......................................................................................................1-41 1.1.50 register-header-checksum..................................................................................1-42 1.1.51 register-policy......................................................................................................1-42 1.1.52 register-suppression-timeout...............................................................................1-43 1.1.53 reset pim ipv6 control-message counters...........................................................1-44 1.1.54 source-lifetime.....................................................................................................1-45 1.1.55 source-policy.......................................................................................................1-45 1.1.56 spt-switch-threshold infinity.................................................................................1-46 1.1.57 ssm-policy...........................................................................................................1-48 1.1.58 state-refresh-interval...........................................................................................1-48 1.1.59 state-refresh-rate-limit.........................................................................................1-49 1.1.60 state-refresh-ttl....................................................................................................1-50 1.1.61 static-rp................................................................................................................1-50 1.1.62 timer hello............................................................................................................1-51 1.1.63 timer join-prune...................................................................................................1-52第1章 PIM IPv6配置命令说明：本文所涉及的路由器代表了一般意义下的路由器或运行了路由协议的85系列路由交换机。
s8500命令手册（V2.00）3-2BGP命令
s8500命令手册（V2.00）3-2BGP命令预览说明:预览图片所展示的格式为文档的源格式展示,下载源文件没有水印,内容可编辑和复制目录第1章BGP配置命令.............................................................................................................1-11.1 BGP配置命令....................................................................................................................1-11.1.1 aggregate........................................................................................................... .....1-11.1.2 balance................................................................................................................ ....1-21.1.3 bestroute as-path-neglect.......................................................................................1-31.1.4 bestroute compare-med..........................................................................................1-31.1.5 bestroute med-confederation..................................................................................1-41.1.6 bgp....................................................................................................................... ...1-51.1.7 compare-different-as-med.......................................................................................1-51.1.8 confederation id.......................................................................................................1-61.1.9 confederationnonstandard.....................................................................................1-71.1.10 confederation peer-as...........................................................................................1-71.1.11 dampening......................................................................................................... ....1-81.1.12 debugging bgp.......................................................................................................1-91.1.13 default ipv4-unicast.............................................................................................1-111.1.14 default local-preference.......................................................................................1-111.1.15 default med..........................................................................................................1-121.1.16 default-route imported.........................................................................................1-131.1.17 display bgp group................................................................................................1-131.1.18 display bgp network............................................................................................1-151.1.19 display bgp paths................................................................................................1-161.1.20 display bgp peer..................................................................................................1-171.1.21 display bgp routing-table.....................................................................................1-191.1.22 display bgp routing-table as-path-acl..................................................................1-201.1.23 display bgp routing-table cidr..............................................................................1-211.1.24 display bgp routing-table community..................................................................1-221.1.25 display bgp routing-table community-list.............................................................1-231.1.26 display bgp routing-table dampened...................................................................1-231.1.27 display bgp routing-table dampening parameter.................................................1-241.1.28 display bgp routing-table different-origin-as........................................................1-251.1.29 display bgp routing-table flap-info.......................................................................1-261.1.30 display bgp routing-table peer.............................................................................1-271.1.31 display bgp routing-table regular-expression......................................................1-281.1.32 display bgp routing-table statistic........................................................................1-291.1.33 ebgp-interface-sensitive......................................................................................1-291.1.34 filter-policy export................................................................................................1-301.1.35 filter-policy import................................................................................................1-311.1.36 group................................................................................................................... 1-311.1.37 import-route.........................................................................................................1-321.1.38 ip as-path-acl.......................................................................................................1-331.1.39 ipv4-family...........................................................................................................1-331.1.40 l2vpn-family.........................................................................................................1-34 1.1.41 log-peer-change..................................................................................................1-35 1.1.42 network............................................................................................................... .1-35 1.1.43 peer advertise-community...................................................................................1-36 1.1.44 peer advertise-ext-community.............................................................................1-37 1.1.45 peer allow-as-loop...............................................................................................1-38 1.1.46 peer as-number...................................................................................................1-38 1.1.47 peer as-path-acl..................................................................................................1-39 1.1.48 peer capability-advertise.....................................................................................1-40 1.1.49 peer connect-interface........................................................................................1-41 1.1.50 peer default-route-advertise................................................................................1-41 1.1.51 peer description...................................................................................................1-42 1.1.52 peer ebgp-max-hop.............................................................................................1-43 1.1.53 peer enable.........................................................................................................1-43 1.1.54 peer fake-as........................................................................................................1-441.1.55 peer filter-policy...................................................................................................1-45 1.1.56 peer group...........................................................................................................1-46 1.1.57 peer ignore..........................................................................................................1-46 1.1.58 peer ip-prefix.......................................................................................................1-47 1.1.59 peer keep-all-routes............................................................................................1-48 1.1.60 peer log-change..................................................................................................1-48 1.1.61 peer next-hop-local.............................................................................................1-49 1.1.62 peer password.....................................................................................................1-49 1.1.63 peer preferred-value............................................................................................1-50 1.1.64 peer public-as-only..............................................................................................1-51 1.1.65 peer reflect-client.................................................................................................1-521.1.66 peer route-limit....................................................................................................1-521.1.67 peer route-policy.................................................................................................1-531.1.68 peer route-update-interval...................................................................................1-54 1.1.69 peer substitute-as................................................................................................1-55 1.1.70 peer timer............................................................................................................1-55 1.1.71 preference.......................................................................................................... .1-56 1.1.72 reflect between-clients........................................................................................1-57 1.1.73 reflector cluster-id................................................................................................1-57 1.1.74 refresh bgp..........................................................................................................1-58 1.1.75 reset bgp.............................................................................................................1-59 1.1.76 reset bgp dampening..........................................................................................1-60 1.1.77 reset bgp flap-info...............................................................................................1-60 1.1.78 reset bgp ipv4 all.................................................................................................1-61 1.1.79 reset bgp l2vpn....................................................................................................1-61 1.1.80 reset bgp vpn-instance........................................................................................1-62 1.1.81 reset bgp vpnv4...................................................................................................1-63 1.1.82 router-id...............................................................................................................1-63 1.1.83 summary automatic.............................................................................................1-64 1.1.84 synchronization................................................................................................ ...1-65 1.1.85 timer.................................................................................................................... 1-65第1章 BGP配置命令1.1 BGP配置命令说明：BGP中有关用来定义路由策略的命令，请参见下一章“路由策略”，这里没有列出。
s8500路由交换机 操作手册(V2.00)8-12 系统基本配置
系统基本配置目录目录第1章系统基本配置..............................................................................................................1-11.1 系统基本配置.....................................................................................................................1-11.1.1 进入或退出系统视图................................................................................................1-11.1.2 切换命令行接口的语言模式.....................................................................................1-11.1.3 设置设备名称...........................................................................................................1-11.1.4 设置系统时间...........................................................................................................1-21.1.5 设置欢迎信息...........................................................................................................1-21.1.6 为命令行指定快捷键................................................................................................1-21.1.7 配置用户级别和命令级别.........................................................................................1-41.1.8 显示系统的配置信息和运行信息..............................................................................1-51.1.9 显示系统运行的统计信息.........................................................................................1-61.2 命令行特性.........................................................................................................................1-71.2.1 命令行在线帮助.......................................................................................................1-71.2.2 命令行显示特性.......................................................................................................1-81.2.3 命令行历史命令.......................................................................................................1-81.2.4 命令行错误信息.......................................................................................................1-91.2.5 命令行编辑特性.......................................................................................................1-9第1章系统基本配置1.1 系统基本配置1.1.1 进入或退出系统视图当用户登录到设备后，即进入用户视图，此时屏幕显示的提示符是：<Quidway>。
s8500路由交换机 操作手册(V2.00)8-16 PoE配置
PoE 目录目录第1章 PoE配置.....................................................................................................................1-11.1 PoE简介............................................................................................................................1-11.1.1 概述.........................................................................................................................1-11.1.2 PoE基本概念..........................................................................................................1-11.1.3 PoE供电管理..........................................................................................................1-21.1.4 协议规范..................................................................................................................1-31.2 PoE配置任务简介..............................................................................................................1-41.3 配置PoE端口....................................................................................................................1-41.4 配置PSE............................................................................................................................1-61.5 配置PoE设备....................................................................................................................1-81.6 配置PoE电源监控属性....................................................................................................1-101.7 配置PoE配置文件...........................................................................................................1-121.7.1 PoE显示和维护.....................................................................................................1-141.8 PoE典型配置举例............................................................................................................1-151.9 常见配置错误举例............................................................................................................1-171.9.1 配置端口优先级为critical不成功...........................................................................1-171.9.2 应用PoE配置文件到端口不成功..........................................................................1-171.9.3 参数合法的情况下输入交流电欠压告警阈值配置不成功........................................1-17第1章 PoE配置1.1 PoE简介1.1.1 概述PoE（Power over Ethernet，以太网供电），是指设备通过以太网端口，对外接设备，如IP Phone、WLAN AP、Network Camera等，进行远程供电。
s8500路由交换机 操作手册(V2.00)4-9 MLD Snooping配置
MLD Snooping 目录目录第1章 MLD Snooping配置....................................................................................................1-11.1 MLD Snooping协议简介....................................................................................................1-11.1.1 MLD Snooping原理................................................................................................1-11.1.2 MLD Snooping基本概念.........................................................................................1-21.1.3 MLD Snooping工作机制.........................................................................................1-31.2 MLD Snooping配置任务简介.............................................................................................1-41.3 配置MLD Snooping基本功能............................................................................................1-51.3.1 配置准备..................................................................................................................1-51.3.2 启动MLD Snooping................................................................................................1-61.3.3 配置端口老化定时器................................................................................................1-61.4 配置端口功能.....................................................................................................................1-71.4.1 配置准备..................................................................................................................1-71.4.2 配置静态端口...........................................................................................................1-71.4.3 配置模拟主机加入....................................................................................................1-81.4.4 配置端口快速离开....................................................................................................1-91.4.5 配置MLD成员关系报告报文抑制..........................................................................1-101.5 配置MLD相关功能..........................................................................................................1-101.5.1 配置准备................................................................................................................1-101.5.2 启动MLD查询器...................................................................................................1-111.5.3 配置MLD定时器...................................................................................................1-111.5.4 配置MLD查询报文源IPv6地址............................................................................1-131.5.5 全局配置丢弃未知IPv6组播数据报文...................................................................1-131.6 配置端口的IPv6组播组策略............................................................................................1-131.6.1 配置准备................................................................................................................1-131.6.2 配置IPv6组播组过滤器.........................................................................................1-141.6.3 配置端口通过的IPv6组播组最大数量...................................................................1-151.6.4 配置IPv6组播组替换............................................................................................1-151.7 MLD Snooping显示和维护..............................................................................................1-161.8 MLD Snooping典型配置举例...........................................................................................1-171.8.1 模拟主机加入配置举例..........................................................................................1-171.8.2 静态路由器端口配置举例.......................................................................................1-191.9 常见配置错误举例............................................................................................................1-201.9.1 交换机不能实现二层组播.......................................................................................1-201.9.2 配置的IPv6组播组策略不生效..............................................................................1-21第1章 MLD Snooping配置说明：本文所涉及的路由器和路由器图标，代表了一般意义下的路由器或运行了路由协议的85系列路由交换机。
s8500命令手册(V2.00)8-16 PoE命令
PoE 目录目录第1章 PoE配置命令..............................................................................................................1-11.1 PoE配置命令.....................................................................................................................1-11.1.1 apply poe-profile......................................................................................................1-11.1.2 apply poe-profile interface.......................................................................................1-11.1.3 display poe device...................................................................................................1-31.1.4 display poe interface...............................................................................................1-31.1.5 display poe interface power....................................................................................1-71.1.6 display poe power-usage........................................................................................1-81.1.7 display poe pse.......................................................................................................1-91.1.8 display poe pse interface......................................................................................1-111.1.9 display poe pse interface power............................................................................1-121.1.10 display poe-power...............................................................................................1-131.1.11 display poe-power ac-input state........................................................................1-151.1.12 display poe-power alarm.....................................................................................1-161.1.13 display poe-power dc-output state......................................................................1-171.1.14 display poe-power dc-output value.....................................................................1-181.1.15 display poe-power status....................................................................................1-191.1.16 display poe-power supervision-module...............................................................1-201.1.17 display poe-power switch state...........................................................................1-211.1.18 display poe-profile...............................................................................................1-221.1.19 display poe-profile interface................................................................................1-241.1.20 poe enable...........................................................................................................1-251.1.21 poe enable pse....................................................................................................1-261.1.22 poe legacy enable pse........................................................................................1-271.1.23 poe max-power....................................................................................................1-271.1.24 poe max-power pse.............................................................................................1-281.1.25 poe mode............................................................................................................1-291.1.26 poe pd-description...............................................................................................1-291.1.27 poe pd-policy priority...........................................................................................1-301.1.28 poe power max-value..........................................................................................1-311.1.29 poe priority...........................................................................................................1-321.1.30 poe priority pse....................................................................................................1-331.1.31 poe pse-policy priority.........................................................................................1-331.1.32 poe utilization-threshold......................................................................................1-341.1.33 poe-power input-threshold..................................................................................1-351.1.34 poe-power output-threshold................................................................................1-361.1.35 poe-profile...........................................................................................................1-36第1章 PoE配置命令1.1 PoE配置命令1.1.1 apply poe-profile【命令】apply poe-profile { index index| name profile-name}undo apply poe-profile { index index| name profile-name}【视图】以太网端口视图【参数】index index：PoE配置文件的索引。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
目录
目录
第 1 章 Password Control 配置命令 ........................................................................................1-1 1.1 Password Control 配置命令 ............................................................................................... 1-1 1.1.1 display password-control......................................................................................... 1-1 1.1.2 display password-control blacklist........................................................................... 1-2 1.1.3 password ................................................................................................................. 1-3 1.1.4 password-control aging ........................................................................................... 1-3 1.1.5 password-control alert-before-expire ...................................................................... 1-4 1.1.6 password-control authentication-timeout ................................................................ 1-5 1.1.7 password-control composition................................................................................. 1-6 1.1.8 password-control enable ......................................................................................... 1-7 1.1.9 password-control history ......................................................................................... 1-8 1.1.10 password-control length ........................................................................................ 1-9 1.1.11 password-control login-attempt ............................................................................. 1-9 1.1.12 password-control super aging ............................................................................. 1-10 1.1.13 password-control super composition .................................................................. 1-11 1.1.14 password-control super length ............................................................................ 1-12 1.1.15 reset password-control blacklist .......................................................................... 1-12 1.1.16 reset password-control history-record................................................................. 1-13
【举例】 # 用交互式方式给本地用户设置密码。
<Sysname> system-view [Sysname] local-user test [Sysname-luser-test] password Password:***** Confirm :***** Updating user(s) information, please wait....
【命令】 password
【视图】 本地用户视图
【参数】 无
【描述】 password 命令用来以交互式方式设置本地用户密码。 需要注意以下几点： z 密码可以包含的字符为：[A～Z]、[a～z]、[0～9]以及 32 个特殊字符（空格 ~`!@#$%^&*()_+-={}|[]\:”;’<>,./）。 z 以交互式方式设置本地用户密码时，密码必须符合密码管理的相关配置。
Username: test
IP: 192.168.44.1
Login failed times: 1
Lock flag: unlock
Total 1 blacklist item(s) matched. 1 listed.
表1-2 password control blacklist 命令显示信息描述表
最小密码长度功能
Password composition
组合密码功能
1-1
Quidway S8500 系列路由交换机 命令手册 Password Control
字段 Password history Password alert before expire Password authentication-timeout Password attempt time(s)
Password attempt time(s):
2 times
Password attempt-failed action: Lock for 120 minute(s)
表1-1 password control 命令显示信息描述表
字段
描述
Password aging
密码老化功能
Password length
【命令】 display password-control blacklist [ user-name name | ip ip-address ]
【视图】 任意视图
【参数】 user-name name：显示黑名单中指定用户名的用户信息。 ip ip-address：显示黑名单中指定 IP 地址的用户信息。
z 在系统视图下配置该命令为全局配置，在本地用户视图下配置该命令为本地用 户配置。
z 如果给本地用户设定了密码管理参数，则以给本地用户设定的密码管理参数为 准。如果没有给本地用户设定密码管理参数，则以全局配置为准。
z 本地用户的密码管理参数没有默认配置，只有全局配置有默认配置。
【举例】 # 设定全局的密码老化时间为 80 天。
第 1 章 Password Control 配置命令
【参数】 aging-time：密码的老化时间。缺省值为 90 天。
【描述】 password-control aging 命令用来配置密码的老化时间。undo password-control aging 命令用来恢复密码的老化时间为缺省值。 需要注意以下几点：
# 显示全局密码管理的信息。
<Sysname> display password-control
Global password settings for all users:
Password aging:
Enable(30 day(s))
Password length:
Enable(10 character(s))
【命令】 display password-control [ super ]
【视图】 任意视图
【参数】 super：显示 super 密码的管理信息。
【描述】 display password-control 命令用来显示密码管理的信息。 不带 super 参数时，将显示全局密码管理的信息。
【举例】
【描述】
display password-control blacklist 命令用来显示用户认证失败后，被加入黑名单 中的用户信息。 不带 user-name 和 ip 参数时，将显示黑名单中的所有用户信息。
【举例】
# 显示用户尝试失败后，被加入黑名单中的用户信息。
<Sysname> display password-control blacklist
Password attempt-failed action
第 1 章 Password Control 配置命令
描述 密码历史功能 密码老化提醒功能 认证超时功能 登录失败尝试次数功能 登录失败尝试次数达到设定次数后的锁定行 为功能
