广拓v5张力主机说明书
G5脉冲主机使用说明
图3-1 G5双防区脉冲主机Leabharlann 板图示3.2 指示灯的显示说明
面板各指示灯显示代表的主机工作状态如下表：
第5页
共 24 页
中国最大的电子围栏供应商
不同状态下指示灯的显示情况 指示灯 Power (电源指 状态 关机 开机 绿灯亮 断路 绿灯亮 /短路 220V电源 绿灯亮 掉电 注： “220V电源掉电”为主机用蓄电池供电状态（单防区和六线制无FenceⅡ项） 绿灯亮 红灯灭 红灯灭 红灯亮 绿灯灭 绿灯灭 绿灯亮 红灯亮 红灯亮 绿灯亮 红灯灭 闪1次后 红灯灭 闪1次后 红灯灭 式亮 式亮 红灯灭 式亮 高压模 式亮 低压模 示灯) 绿灯亮 Ok (系统指 示灯) 绿灯灭 FenceⅠ (围栏报 警灯) 红灯灭 FenceⅡ (围栏报 警灯) 红灯灭 Energizer （故障报 警灯） 红灯灭 High (高压指 示灯) 绿灯灭 高压模 Low (高压指 示灯) 绿灯灭 低压模
中国最大的电子围栏供应商
亲爱的用户，欢迎您选用广拓电子围栏。谨此感谢！ 为了使您更方便使用，请仔细阅读说明书，并按照说明书步骤操作，同时 特别注意说明书中所有的警告和注意事项。请妥善保存此说明书。 由于产品的改进，您所得到的电子围栏产品可能与说明书中图示不完全一 致，请以实际产品为准，谨此致歉。
●本产品工作时内部带有高压，为避免电击伤害请勿私自拆装； ●产品输出端和前端有 5000V～10000V 高压，在产品工作状态 下，切勿触摸； ●切勿在雷电期间安装电子围栏； ●切勿将脉冲主机直接安装于潮湿场所。
部设有避雷装置，接地电阻应＜10Ω，接地桩埋入深度应≥2.5m。主机接地 和避雷器接地间距应＞10m。安装外部避雷器时，前端围栏的顶部第一根线连 接到避雷器上，避雷器的末端与接地桩相连。 （接地桩深度在 2.5m 以上，用 ） 16 mm2～25mm2 的铜导线连接。 3.6 脉冲主机安装及接线注意事项

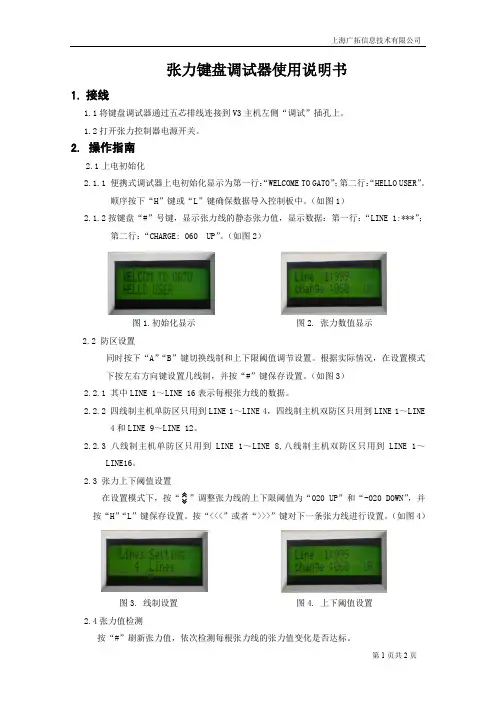

张力键盘调试器使用说明书
张力键盘调试器使用说明书1.接线1.1将键盘调试器通过五芯排线连接到V3主机左侧“调试”插孔上。
1.2打开张力控制器电源开关。
2. 操作指南2.1上电初始化2.1.1 便携式调试器上电初始化显示为第一行：“WELCOME TO GATO”；第二行：“HELLO USER”。
顺序按下“H”键或“L”键确保数据导入控制板中。
（如图1）2.1.2按键盘“#”号键，显示张力线的静态张力值，显示数据：第一行：“LINE 1:***”；第二行：“CHARGE: 060 UP”。
（如图2）图1.初始化显示图2. 张力数值显示2.2 防区设置同时按下“A”“B”键切换线制和上下限阈值调节设置。
根据实际情况，在设置模式下按左右方向键设置几线制，并按“#”键保存设置。
（如图3）2.2.1 其中LINE 1～LINE 16表示每根张力线的数据。
2.2.2 四线制主机单防区只用到LINE 1～LINE 4，四线制主机双防区只用到LINE 1～LINE4和LINE 9～LINE 12。
2.2.3八线制主机单防区只用到LINE 1～LINE 8,八线制主机双防区只用到LINE 1～LINE16。
2.3 张力上下阈值设置在设置模式下，按“”调整张力线的上下限阈值为“020 UP”和“-020 DOWN”，并按“H”“L”键保存设置。
按“<<<”或者“>>>”键对下一条张力线进行设置。
（如图4）图3. 线制设置图4. 上下阈值设置2.4张力值检测按“#”刷新张力值，依次检测每根张力线的张力值变化是否达标。
3.设置完成设置完毕后，关闭张力控制器电源，拆除键盘调试器，重新上电即可（控制器电源重新启动）。
张力电子围栏键使用说明书
张力电子围栏键使用说明书尊敬的用户，您好！欢迎使用秦关科技张力电子围栏系统控制键盘。
十分感谢您的支持！为了更方便的使用本产品，请您在使用前仔细阅读说明书，并按照说明书步骤操作，请注意说明书中提到的安全注意事项。
并请妥善保管本说明书，谢谢！安全注意事项使用本产品时需要注意的安全事项：1、在安装和使用本产品之前，应先对操作人员进行培训。
2、请勿把控制键盘直接安装于潮湿的场所。
3、如出现异常情况，应先切断电源，并通知专业人员。
切勿自行拆修，否则后果自负。
4、用户不得自行打开主机维修，否则我司不予保修。
5、本产品的使用者，必须具有电器安全及触电解救知识。
6、安装使用前必须阅读此说明书，熟悉本产品的正确使用方法并规范操作。
目录一、张力系统控制键盘接口与特性 (1)1.1、产品设计依据 (1)1.2 、产品功能及特性 (1)1.3、产品技术参数 (1)1.4、控制键盘接线端子 (1)二、张力系统控制键盘操作说明 (1)三、张力系统控制键盘菜单设置 (2)3.1、菜单操作按键说明 (2)3.2、进入和退出主菜单 (2)3.3、菜单功能介绍 (2)一、张力系统控制键盘接口与特性1.1、产品设计依据根据中华人民共和国公共安全行业标准GA/T1032-2013《张力式电子围栏通用技术要求》文件，设计开发控制键盘。
1.2、产品功能及特性1、通过RS485总线与围栏主机实时通信，可管理和控制1-255个张力电子围栏防区；2、可以对防区布防、撤防、消警快捷键操作，也可增加密码权限来管理布防、撤防、消警；3、多点控制能力，同一系统中最多用5个控制器键盘；4、可设置定时自动布、撤防控制；5、键盘监控状态可以显示各防区实时张力值；6、键盘监测到防区运行异常，立即启动蜂鸣器报警或者外接报警器报警反应，并通过液晶显示屏提示报警防区、报警类型等；7、报警类型有：触网、松弛、断线、主机防拆、主机离线、模块防拆、离线等；8、报警防区号、报警类型、报警时间等历史信息存储和查询功能；9、DC12V、常开、常闭信号报警联动信号输出；10、最多可以支持存放8条报警记录。
广拓张力电子围栏使用说明书
产品标准：GA/T 1032—2013第1页 共12页第3页 共12页第5页 共12页第6页 共12页第4页 共12页第2页 共12页一、张力式电子围栏概述本系列张力探测电子围栏是广拓最新推出的一款安防产品。
他不仅具有阻挡、威慑和报警等功能，更是在集成控制方面有了质的飞跃：可通过键盘远程控制张力控制器的开和关、调整张力报警阈值，并可通过键盘连接红外、门禁等报警设备，实现电子地图、视频监控、打印机等多系统的实时联动，组成一个完整的报警系统。
张力控制器是一种崭新的智能型周界阻挡安防报警产品。
1.1系统功能:● 张力线拉紧报警：当张力线受拉力变化量超过拉紧报警阈值，且持续时间达到或超过设定值时发出报警信号；● 张力线剪断报警：当张力线上的静态张力过小时发出剪断报警，● 张力线松弛报警：当张力线受拉力变化量超过松弛报警阈值时，系统发出松驰报警信号；● 断电报警：系统交流断电时输出断电报警信号；● 防拆报警：当主机或控制杆外壳被打开时，系统会发出防拆报警信号；● 自检功能：主机上电有自检和自诊断能力；● 状态指示：系统界面能准确显示主机的运行状态、报警状态（入侵、松弛、断线、防拆、失电和设备故障）、通讯状态等；● 备用电源：系统可配备12V 7AH 蓄电池，保证停电时可持续工作24小时1.2 系统特点:● 智能显示：具备液晶显示，能实时显示每根张力线的静态张力值、松弛报警和拉紧报警阈值；● 参数设置：设置系统参数（型号、线制、松弛阈值、拉紧阈值）操作简洁方便；● 实时调节：可根据环境温度变化自动调节静态张力阈值，每十分钟检测更新一次；● 多种报警功能：如围栏入侵报警、围栏断线报警、围栏松弛报警、主机掉电报警、主机防拆报警、前端探测杆防拆报警等。
● 远程控制：可通过键盘远程操作，最多控制60个防区。
● 围栏线制多样化：本张力控制器可做单防区也可做双防区，前端围栏分别可接4线、5线、6线；1.3系统参数：亲爱的用户，欢迎您选用广拓张力电子围栏。
张力机的操作使用
张力机的操作使用1.张力机使用1.1.张力机固定1.1.1.主机固定1)尽量将张力机放置在施工线路方向上；2)抽出后支腿销将后支腿放到合适的位置，插入支腿销；3)操作前支腿控制手柄将张力机前支腿固定；注：参照第四章将张力机起动后再完成该步操作。
4)在地锚挂钩处用拉线将张力机固定，并适当调整拉线张力；5)将导线或钢丝绳通过导向滚轮将导线或钢丝绳缠绕在张力轮上，并固定好导向轮架。
1.1.2.导线盘支架固定1)在张力机后方约10米处按所示方向顺张力机导向滚轮放置导线盘支架；2)在线盘支架后方处打入角钢桩，将线盘支架锚固；3)将线盘轴安装在导线盘上，用定位卡子将线盘和线盘轴固定，用吊车将线盘装在支架上，用液压千斤顶调整线盘高度；4)安装尾架动力头，将卡盘卡在线盘支架臂上，插入定位销，并将其上的液压油管按图4所示接管位置连接（快速接头）。
注：连接时应彻底清洗接头处灰尘杂物，谨防进入液压回路造成损坏。
1.2.张力机起动1.2.1.张力机固定后，按下电源开关，插入起动钥匙，顺时针扳动一个位置，对各仪表进行检查，风扇停止指示灯、总刹车接合指示灯、机油压力过低报警灯、充电指示灯亮，其余灯灭；1.2.2.将控制箱内所有手柄置于起始位置，其中：发动机油门控制手柄置于最小位置；主泵操作手柄置于中位；散热回路压力调节阀、尾架压力调节阀、张力轮1张力调节阀、张力轮2张力调节阀均减至最小；风扇工作选择开关均置于关位；1.2.3.再顺时针转动起动钥匙，发动机起动后，调节转速，检查各仪表工作是否正常，除机油压力报警灯和充电指示灯亮外，其余灯灭；检查图补油回路压力表，读数不小于2Mpa；1.2.4.以上均正常时，张力机起动成功。
1.3.张力机操作1.3.1.张力工况时的操作1.3.1.1.具体操作程序1)并轮旋钮应置于关位；2)将牵引工作选择开关置于中位；3)按下总刹车按钮，再分别按张力轮1及张力轮2刹车控制按钮，刹车接合指示红灯灭，刹车开启指示绿灯亮，此时张力轮1、2刹车均打开；4)观察尾架压力表，调节尾绳张力调节阀，一般此压力值在5Mpa左右；5)放线开始，通过相应张力远程调压阀对1、2轮张力分别进行调节，达到要求为止；1.3.1.2.张力预置1)确认主制动器处于制动状态；2)发动柴油机；3)将张力调节阀调至较小位置；4)正确设置牵引选择开关的位置；5)适当增大柴油机油门；6)扳动主泵排量手柄至其满排量的大约1／3位置；7)按照张力表上张力读数的指示，调节张力调节阀使表针指向所需预置的张力值；8)用张力调节阀根部的螺帽锁定目前的调节位置（可根据实际情况采用或不采用）；9)主泵排量手柄回复至中位。
