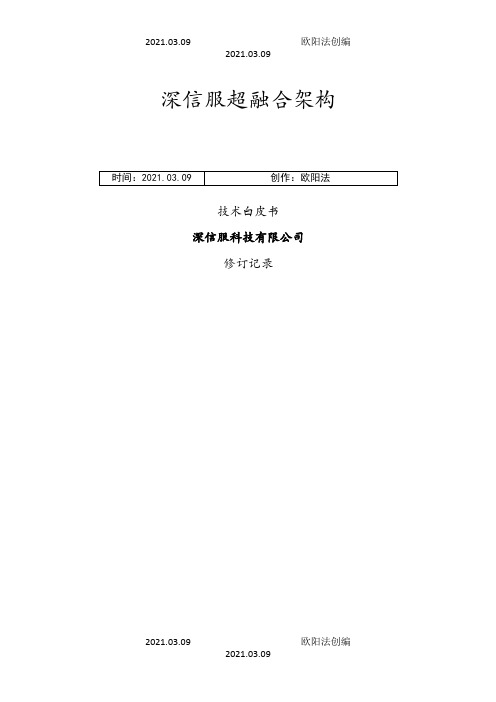

超融合技术白皮书之欧阳法创编

深信服超融合架构技术白皮书深信服科技有限公司修订记录第1章、前言错误!未定义书签。

1.1IT时代的变革41.2白皮书总览5第2章、深信服超融合技术架构错误!未定义书签。

1.1超融合架构概述51.1.1超融合架构的定义51.2深信服超融合架构组成模块51.2.1.1系统总体架构61.2.1.2aSV计算虚拟化平台61.2.1.2.1概述61.2.1.2.2aSV技术原理71.2.1.2.2.1aSV的Hypervisor架构81.2.1.2.2.2Hypervisor虚拟化实现101.2.1.2.3aSV的技术特性151.2.1.2.3.1内存NUMA技术151.2.1.2.3.2SR-IOV161.2.1.2.3.3Faik-raid161.2.1.2.3.4虚拟机生命周期管理171.2.1.2.3.5虚拟交换机181.2.1.2.3.6动态资源调度181.2.1.2.4aSV的特色技术191.2.1.2.4.1快虚191.2.1.2.4.2虚拟机热迁移191.2.1.2.4.3虚拟磁盘加密201.2.1.2.4.4虚拟机的HA201.2.1.2.4.5多USB映射211.2.1.3aSAN存储虚拟化221.2.1.3.1存储虚拟化概述221.2.1.3.1.1虚拟后对存储带来的挑战221.2.1.3.1.2分布式存储技术的发展221.2.1.3.1.3深信服aSAN概述221.2.1.3.2aSAN技术原理231.2.1.3.2.1主机管理231.2.1.3.2.2文件副本231.2.1.3.2.3磁盘管理241.2.1.3.2.4SSD读缓存原理261.2.1.3.2.5SSD写缓存原理311.2.1.3.2.6磁盘故障处理机制351.2.1.3.3深信服aSAN功能特性441.2.1.3.3.1存储精简配置441.2.1.3.3.2aSAN私网链路聚合451.2.1.3.3.3数据一致性检查451.2.1.4aNet网络虚拟化461.2.1.4.1网络虚拟化概述461.2.1.4.2aNET网络虚拟化技术原理461.2.1.4.2.1SDN461.2.1.4.2.2NFV471.2.1.4.2.3aNet底层的实现471.2.1.4.3功能特性501.2.1.4.3.1aSW分布式虚拟交换机501.2.1.4.3.2aRouter501.2.1.4.3.3vAF501.2.1.4.3.4vAD511.2.1.4.4深信服aNet的特色技术511.2.1.4.4.1网络探测功能511.2.1.4.4.2全网流量可视521.2.1.4.4.3所画即所得业务逻辑拓扑521.2.2深信服超融合架构产品介绍521.2.2.1产品概述521.2.2.2产品定位52第3章、深信服超融合架构带来的核心价值错误!未定义书签。

ARRIS CAS虚拟化技术白皮书说明书

CAS VirtualizationARRIS Global ServicesARRIS Conditional Access System (CAS) is introducing support for operation of DAC, CASMR, CAST, Advisor and other CAS applications in a Virtual Machine (VM) environment to support hardware/operating system independence, high availability/redundancy, and disaster recovery.ARRIS Global Services is prepared to help you make this transition to Virtualization by offering these services: • Network Discovery and Readiness Planning • Software/ Hardware Procurement • Readiness Plan Implementation • Migration ProcessSERVICE OVERVIEW:WHY VIRTUALIZE?Virtualization enables these essential features for assuring CAS System business continuity and data integrity:• Hardware IndependenceEnables running CAS applications on ARRIS qualified hardware or VMware-supported hardware with comparable performance.• High Availability / RedundancyProvides CAS redundancy/failover, optimizes uptime and data integrity with automated restore and recovery. • Disaster RecoverySupports business-specified recovery time objectives (RTO), recovery point objective (RPO), automated failover testing, and planned migrations. Automated and manual failover is supported.CAS Virtualization ARRIS Global ServicesHORIZONTAL IMAGE ARRIS Global Services ensures your transition to virtualized CAS environment is done with minimal impact to your operations and customer population, allowing you to enjoy the advantages of hardware independence, high availability, hardware consolidation and disaster recovery. Our expert assistance allows you to workthrough the migration to a virtualized environment more quickly while allowing your own staff to focus on day to day operations.Network Discovery and Readiness Plan Creation•Collect critical data points on network •Review data collected•Assess existing architecture, backup/recovery process •Develop Network Plan and architecture •Create BOM, Services List, Action list•Develop proposal for High Availability, Disaster Recovery •Deliver Proposal and Readiness PlanSoftware/ Hardware Procurement•ARRIS procures hardware and software through industry leading 3rd party vendor partners (VMware®, HP®) to support end-to-end virtualization requirements. Virtualization Readiness Implementation •Basic Service•Validate network is ready for virtualization•Install new equipment (server/SAN) and software •Create Virtual Machine for CAS installation •Custom Service•Implement network changes•Implement other changes from the action list •Collect critical data points on network Migration Process•Load DAC software on previously created Virtual Machine •Execute the migration process•Validate the installation and system functionality •Release to productionSERVICE DESCRIPTION©ARRIS Enterprises, Inc. 2014 All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from ARRIS Enterprises, Inc. (“ARRIS”). ARRIS reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of ARRIS to provide notification of such revision or change. ARRIS and the ARRIS logo are all trademarks of ARRIS Enterprises, Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and the names of their products. ARRIS disclaims proprietary interest in the marks and names of others. VMware, vCenter, and vSphere are registered trademarks of VMware. HP, Store Virtual are registered trademarks of Hewlett-Packard.365-095-27333 x.1 11/2014IMPLEMENTATION EXAMPLEDAC6000 High Availability with Disaster Recovery Phase 1 - Site Preparation•Upgrade CAS hardware to support current software •Replace KLS and other HE components as needed•Upgrade DAC software to current release in native mode •Upgrade software from native to VM with HA •Upgrade to Disaster Recovery•Upgrade CSS/RADD software to current release – nativePhase 2- CAS Application – Native Mode •Upgrade CAS and install SAN servers •Install HP®StoreVirtual® on SAN servers •Upgrade PC to run VMware® vSphere®•Upgrade DAC software to current release – nativePhase 3 - High Availability•Implement N+1 backup DACs per site •Match the current configuration•Install VMware® vCenter® on the CAS hardware •Upgrade DAC apps from native mode to VM mode•Set up VMs so that all fail over to the backup CAS serverPhase 4 – Disaster Recovery•Implement/configure cold backup CAS/KLSs • Uses HP® StoreVirtual® snapshot feature • Uses SANs installed for backup DACs•Confirm remote cold KLS3000 is online/in sync with DAC •Implement failover mechanismORDERING INFORMATIONPart NumberDescription596226-001-00 CAS Virtualization Network Discovery and Readiness Plan Creation 596227-001-00 CAS Virtualization Readiness Implementation476666-043-00CAS Virtualization Migration ProcessNote: Specifications are subject to change without notice.。

青鸟环宇VPN系列产品-技术白皮书v1

青鸟环宇VPN系列产品技术白皮书北大青鸟环宇科技股份XX2002年5月目录第一章企业网络系统信息安全问题11.1企业（政府）网络系统典型架构及其安全现状11.2企业网络面临的威胁及安全需求31.3网络安全基本技术与VPN技术61.4IPS EC网络安全体系81.5用SJW10IPXX机构建VPN系统10第二章青鸟环宇VPN设备SJW10 IPXX机122.1SJW10IPXX机技术说明122.1.1 硬件平台及主要功能122.1.2 软件系统及网络位置132.1.3 功能指标及配置说明152.2SJW10IP安全包技术说明192.2.1 概述192.2.2 系统总体结构202.2.3 功能特点202.3SJW10安全管理中心212.3.1 概述212.3.2 密钥管理方案24第三章典型应用案例253.1某省银行应用SJW10构建安全金融业务网253.2某市银行应用SJW10构建安全银证联网系统273.3某省环保局应用SJW10在I NTERNET上构建安全数字环保网络28第一章企业网络系统信息安全问题1.1企业（政府）网络系统典型架构及其安全现状随着我国通信基础设施建设的飞速发展和互连网络技术的日趋完善，各行各业及政府各部门纷纷借助公共网络基础设施将分散在不同地域的相对封闭的信息系统联成一个整体，以加快信息的流动速度，提高企业的综合竞争力，提升政府办公的工作效率。

就目前大部分网络应用而言，典型的企业（政府）网络结构一般都由一个总部（网络中心）、若干分支机构、数量不等的合作伙伴及移动远程（拨号）用户所组成。

除远程用户外，其余各部分均为规模不等的局域网络系统。

其中总部局域网络是整个网络系统的核心，为企业（政府）各类中心服务器所在地，同时也是网络管理中心。

各部分之间的联接方式多种多样，包括远程拨号、专线、Internet等。

从互联方式来看，则可分为三种模式：通过拨号远程访问企业网络，拨号又可分为通过网络拨入访问服务器和拨入网络服务提供商（如：ISP）两种方式；远程分支机构局域网通过专线或公共网络和总部局域网络连接；合作伙伴（客户、供应商）局域网通过专线或公共网络和总部局域网连接；该典型结构如下页图1.1所示。

OcestorN集群NAS存储系统产品技术白皮书V

保留一切权利。

非经本公司书面许可，任何单位和个人不得擅自摘抄、复制本文档内容的部分或全部，并不得以任何形式传播。

商标声明和其他华为商标均为华为技术有限公司的商标。

本文档提及的其他所有商标或注册商标，由各自的所有人拥有。

除非合同另有约定，华为公司对本文档内容不做任何明示或默示的声明或保证。

由于产品版本升级或其他原因，本文档内容会不定期进行更新。

除非另有约定，本文档仅作为使用指导，本文档中的所有陈述、信息和建议不构成任何明示或暗示的担保。

华为技术有限公司为客户提供全方位的技术支持，用户可与就近的华为办事处联系，也可直接与公司总部联系。

华为技术有限公司地址：深圳市龙岗区坂田华为总部办公楼邮编：518129网址：客户服务电0 18话：客户服务传1真：客户服务邮箱：目录图目录图 1 产品逻辑结构图 (6)图 2 FileStore 软件及应用架构示意图 (7)图 3 N8500集群NAS存储系统关系图 (9)图 4 SAN、NAS一体化典型组网 (10)图 5 使用NBU客户端备份方式组网 (11)图 6 使用NDMP备份组网 (11)图 7 数据通道全互联技术 (14)图 8 通信通道全互联技术 (14)图 9 全局存储空间管理技术 (16)图 10 高效的集群锁技术 (17)图 11 对称式元数据处理技术 (17)图 12 全局名字空间技术 (18)图 13 集群多节点并发访问技术 (18)图 14 主文件系统及其快照文件集 (20)图 15 新生成快照 (20)图 16 主文件系统数据更新 (21)图 17 对快照进行数据更新 (22)图 18 N8500多卷文件系统示意图 (23)图 19 N8500远程复制技术实现步骤 (27)图 20 N8500远程复制技术实现机制 (28)图29 配额管理逻辑架构 (30)图30 配额管理执行方式 (31)1 概述传统NAS系统存在扩展性差、可靠性差等缺陷。

opc ua 白皮书

opc ua 白皮书OPC UA (OLE for Process Control Unified Architecture) 是一种工业自动化领域中常用的通信协议。

它提供了一种标准的、可靠的、高效的和安全的方法，用于连接、监控和控制各种工业设备和系统。

在白皮书中，我们将详细介绍OPC UA 的背景、目的、工作原理、应用场景和优势。

通过深入了解OPC UA，您将能够更好地理解其如何在工业自动化领域中发挥作用，并更好地应用它来提高您的设备和系统的性能和可靠性。

一、背景和目的随着工业自动化技术的不断发展，设备和系统之间的通信和数据交换变得越来越重要。

为了解决不同设备和系统之间的互操作性问题，OPC 基金会制定了一种统一的通信协议，即OPC UA。

OPC UA 的目的是提供一种标准的、可靠的、高效的和安全的方法，用于连接、监控和控制各种工业设备和系统。

它提供了一种通用的通信框架，使得不同的设备和系统能够以一致的方式进行通信，从而简化了工业自动化系统的集成和实施。

二、工作原理OPC UA 是一种基于发布/订阅模型的通信协议。

它使用SOAP 和XML 对数据进行封装和传输，并支持多种传输协议，如TCP/IP、HTTP 和HTTPS。

在OPC UA 系统中，每个设备和系统都有一个OPC UA 服务器，用于发布其数据和状态。

客户端可以通过OPC UA 客户端与服务器进行通信，以获取或设置数据。

通过这种方式，不同的设备和系统可以相互通信，形成一个统一的工业自动化系统。

三、应用场景OPC UA 可以应用于各种工业自动化场景，如：1. 设备集成：将不同厂商的设备和系统集成到一个统一的系统中，实现设备之间的互操作性和数据共享。

2. 数据监控：实时监控设备和系统的状态和数据，实现预警和故障排除。

3. 远程控制：通过OPC UA 客户端远程控制设备和系统，实现远程操控和自动化控制。

4. 数据挖掘：通过OPC UA 获取设备和系统的历史数据，进行数据分析和挖掘，优化设备和系统的性能。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

Ethernet over RPR技术白皮书华为技术有限公司Huawei Technologies Co., Ltd.目录1Ethernet Over RPR的需求 (1)2Ethernet Over RPR技术基本原理介绍 (1)2.1RPR概述 (1)2.2RPR的基本原理 (2)2.3Ethernet Over RPR基本原理 (3)2.4Ethernet Over RPR地址学习 (4)3RPR关键技术 (6)3.1网络保护－故障自愈 (6)3.2拓扑发现 (8)3.3队列技术 (8)3.4公平算法 (10)3.5RPR相交环 (12)4Ethernet Over RPR技术的优势 (16)5典型组网应用 (17)5.1双子卡RPR组网 (17)5.2RPR相交环典型组网 (17)5.3城域业务平台典型组网 (18)6RPR标准化情况 (19)附录A 参考资料 (20)附录B 缩略语 (20)1 Ethernet Over RPR的需求随着电信业务的IP化，NGN、宽带接入、专线等越来越多的业务采用IP网络进行承载，以太网技术作为一种高速、廉价的技术，越来越成为城域网的主要技术。

以太网交换机组网模式主要以星型和环型组网为主，星型组网由于没有保护路径，可靠性差，无法满足电信级业务如NGN业务的要求。

环网技术是一种在电信网络用到比较普遍的技术，能够很好的解决保护倒换的问题，目前应用比较多的以太环网主要以生成树协议(STP)技术为主，但是基于STP的环网技术存在以下问题：1) 收敛速度慢，一般在秒级以上，不满足电信级业务50ms保护倒换的要求；2) 环网技术通常会带来跳数的增加，带来额外的时延和时延抖动，难以满足NGN业务的要求，而基于STP的环网技术没有考虑时延和时延抖动的规避措施；3) 环网作为一个共享带宽的网络，环上节点共享环的带宽资源，必然存在资源的竞争，有可能出现离汇聚节点越远的节点得到的带宽越少，资源的使用不公平，导致环上各个节点上环带宽无法预测，服务质量难以保证；4) 环上任何一个节点的上环业务需要经过环上所有的节点转发，需要环上所有的节点进行相关的配置，比如VLAN信息的配置，否则业务不通，导致在环上添加节点时有可能影响其他节点的业务，升级扩容比较困难；2 Ethernet Over RPR技术基本原理介绍2.1 RPR概述RPR是一种基于分组的环网技术，采用互逆双环拓扑结构，环上的每段光路工作在同一速率上。

RPR的两个环被分别称为0环（Ringlet0）和1环（Ringlet1）。

图1RPR环网构成RPR 0环的数据传送方向为顺时针方向，1环的数据传送方向为逆时针方向。

每个RPR节点(station)都采用了一个以太网中用到的48位MAC地址作为地址标识，从RPR节点设备链路层来看，这两对收发的物理光接口只是一个链路层接口；两个相邻RPR节点之间链路称为段(span)，多个连续的段和其上的节点构成域(domain)。

与传统的分组网络结构相比，RPR技术充分考虑了QoS、可用性、可管理性，使IP网络达到电信级的要求。

2.2 RPR的基本原理节点与环配合，采用分组数据交换，完成各种数据操作。

常用的基本数据操作包括：上环(insert)：节点设备把从其它接口转发过来的帧插入到RPR环的数据流中；下环(copy)：节点设备从RPR环的数据流中接收数据，交给节点上层作相应处理；过环(transit)：将途经本节点的数据流继续转发到下一个节点；剔除(strip)：使途经本节点的数据不再往下转发。

对于过环的数据操作，过环数据流不需要设备上层处理，这样一来，设备处理性能大大提高。

这种数据分组交换体系很容易支撑各种高速链路接口。

对于单播、组播、广播流量，各节点分别采用这些基本数据操作及其组合来予以实现。

下面是单播的实现示意图：图2 单播业务上环/下环/过环在源节点处，采用上环操作，使数据承载到0环或1环中。

目的节点执行数据下环和数据剔除操作。

而中间节点只执行数据过环操作。

对于组播和广播流量，由于有多个目的节点，所以采用的数据传送机制与单播有所不同。

下面是广播业务的一种实现方式：图3 组播业务上环/下环/过环这种方式为0环广播。

其他方式还包括1环广播、双环循环广播等。

2.3 Ethernet Over RPR基本原理Ethernet Over RPR（简称EoRPR）是在RPR链路层上直接承载以太网帧的一种以太网传送技术，华为Ethernet Over RPR符合IEEE 802.17定义的扩展帧规范。

EoRPR的封装格式如下图说明： IP/MPLS Core EoRPR 帧格式示意图RPR PE DSLAMAMGCE LSWDA SA802.1Q DAT ADA SA 802.1Q DA SA802.1Q DA SA TTL 基数基本控制字扩展控制字RPR 扩展头以太网头HEC 图4 EoRPR 帧格式以太网帧封装在RPR 数据帧内，上环时将Ethernet 帧封装在RPR 数据帧内部，在环上进行转发，下环时，剥掉RPR 帧头，用Ethernet 帧进行转发；广播帧在环上绕一圈以后，回到源节点，源节点判断RPR 的SA 为本机的RPR MAC ，将广播帧剥离，不在环上继续转发，有效解决了环网的广播问题。

2.4 Ethernet Over RPR 地址学习如图5所示，转发流程如下所示：图5 EoRPR 转发流程从逻辑上把设备分为两部分：一部分为以太网本地交换部分，简称以太网侧，另一部分为EoRPR处理部分，简称为RPR侧。

从以太网侧收到帧，先根据以太网目的MAC地址查到上哪一个RPR环，在EoRPR部分再根据用户MAC地址查到目的RPR MAC地址和RPR的跳数，在封装RPR帧头以后发送到RPR接口。

从RPR接口接收EoRPR数据帧时，设备会自动学习到以太网源MAC和源RPR节点的RPR MAC地址。

所以，在一个RPR节点中存在两张MAC表，一个是以太网侧的MAC表，用于记录用户MAC地址与以太网出端口的关系，另一个是RPR侧MAC表，用于记录用户MAC与RPR目的节点的关系。

下面详细说明EoRPR在上环、下环、过环节点的MAC地址学习过程：按照图6所示：当用户侧第一个以太网帧从设备3上RPR环1时，在设备3的以太网侧MAC表中学习到用户的源MAC地址A1，如下所示：以太网MAC 用户VLAN 出端口A1 2 Ethernet端口1在设备3的RPR侧的MAC表中不记录本地用户A1的MAC表。

用户第一个帧上环后，穿过设备4到达设备1节点，在设备1的RPR侧的MAC表中学习到用户的源MAC地址A1，如下所示：以太网MAC 用户VLAN 目的RPR节点的MAC 目的RPR节点的跳数A1 2 RPR环1的节点设备3(R1-MAC3)2在设备1的以太网侧的MAC表中学习到用户的源MAC地址A1，如下所示：以太网MAC 用户VLAN 出端口A1 2 RPR环1上环端口在两个相切环的组网情况下，EoRPR环上各节点学习到的MAC地址如下图6所示：图6EoRPR 用户MAC地址学习示意图当一台设备接入多个RPR环时，在以太网侧的MAC中需要学习到用户MAC与哪个RPR 环的上环端口的对应关系。

在EoRPR组网中，过环节点的以太网侧MAC表不学习其它节点之间流量的用户MAC地址，这样减少了过环节点的以太网侧MAC表消耗，消除了过环节点受到MAC地址扫描攻击的风险。

3 RPR关键技术3.1 网络保护－故障自愈RPR采用了SDH的环形结构，同时也继承了一个特大特点，就是故障自愈能力非常强，能够实现50ms时间内的故障保护切换。

下面是链路故障时的保护情况，在故障链路两端的节点内部把0环和1环连接在一起，重新形成一个新的环网。

图7 网络保护－故障自愈对于环上正在传送的数据流量，存在两种保护方式：绕回(wrapping)保护方式和抄近(steering,也有称为源路由的)保护方式。

这里以下图为例加以说明：图8WRAPPING和STEERING保护方式图8左图是故障前的正常数据流，A节点到D节点，走0环，路径为A－B－C－D；图8中图为故障后绕回保护方式，故障发生后，在故障链路两端的节点上通过光路环回，数据路径也在此环回，总的路径为A－B－A－F－E－D－C－D；图8右图为故障后抄近保护方式，从A节点到D节点的数据流量改抄近道，走另外一个环(这里是1环)到达目的节点，路径为A－F－E－D。

绕回方式的优点是故障切换的恢复时间非常短(50ms以内)，只可能丢失极少量的帧，不会造成业务中断的情况，问题是占用带宽较多。

抄近方式避免了带宽的浪费，但是由于需要重新收敛，恢复时间较长，可能会造成一些业务的中断。

部分厂家同时支持绕回和抄近这两种方式，并且结合这两种方式各自的优点，取长补短，配合应用，采取先用绕回方式，后转用抄近方式的保护流程。

当RPR链路故障出现时，立即启动绕回方式进行保护，不中断业务；当各节点的各种状态数据(拓扑信息等)重新收敛并稳定下来后，切换到抄近方式，以便节省带宽。

这样可以到达最佳的保护和利用效果。

3.2 拓扑发现RPR支持拓扑自动发现。

在保护消息或拓扑发现消息帧中包含拓扑信息，这些拓扑信息在环网上广播。

可能的拓扑结构包括全环回结构和链状结构(当部分链路故障时)。

拓扑自动发现对于链路故障时的保护有帮助，同时也给网络扩展提供很好的支持，能够支持节点级别的即插即用，即在环网上新增一个节点或者删除一个节点时，都不需要手工配置数据。

3.3 队列技术RPR在对于过环的流量进行转发处理时，有两种队列转发模式：存储转发模式和直通模式。

存储转发模式实现起来简单通用，而直通模式则能够进一步提高效率。

存储转发模式是基础，必须要要求支持。

即便是采用直通模式的时候，仍然有可能用到存储转发模式，例如直通队列被临时阻塞，就需要转入存储转发模式。

RPR节点具有上环缓存队列和过环缓存队列。

RPR节点具有3个上环缓存队列：A队列、B队列和C队列，分别对应A、B、C三个数据业务等级，提供不同的队列调度优先级。

RPR把要上载的流量分为三个等级：级别A、级别B和级别C。

级别A用于低时延/严格抖动的高优先级流量，提供最低的端到端延时、抖动，具有承诺信息速率定义(CIR)；级别B用于承诺信息速率(CIR)和突发信息速率(EIR)的中等优先级流量，其中对于CIR必须保证一定的带宽，以及端到端的延时和抖动，而对于EIR则不需保证；级别C用于尽力传送的低优先级普通流量，没有带宽定义。

参照下面两图，RPR环路MAC的每个业务通路（对于每个环）可以有一个过环队列，也可以有两个过环队列－PTQ(主过环队列)和STQ(次过环队列)。
