潜水泵使用说明书
BQS型水泵说明书(煤矿用)
九、 运输、贮存
…………………………………………… ………………………10
十、 “三包”条件 …………………………………………………………………… 10
十一、受 控 零 部 件 明 细 表 … … … … … … … … … … … … … … … … … … … … … … … … … … . 11
2，在配电系统中应配置过热或过电流保护装置，必要时应配接漏电保护器 3，泵外配接的启动保护和矿用移动式软电缆，必须是具有煤安标志资
质的产品，接线时严禁带电作业以防触电 4，电泵应按相序标识的规定连接，电泵转向必须与转向标志一致。四芯电 缆黑色为地线，必须可靠接地。使用前，应检查定子绕组对机壳的绝缘电阻不低 于 100MΩ 5,电泵使用场所应设“严禁进入、防止触电”的警示牌，电泵运行时严 禁移动电泵。 6，确认转向正确后，方能启动运行。 7，电泵运行时发生下列情况应立即停机检查，排除故障方可运行。
三、技术特性
主要技术参数
主要技术参数表
型号
额定
额 定
流量 扬
m3/h 程 m
潜水泵使用说明书

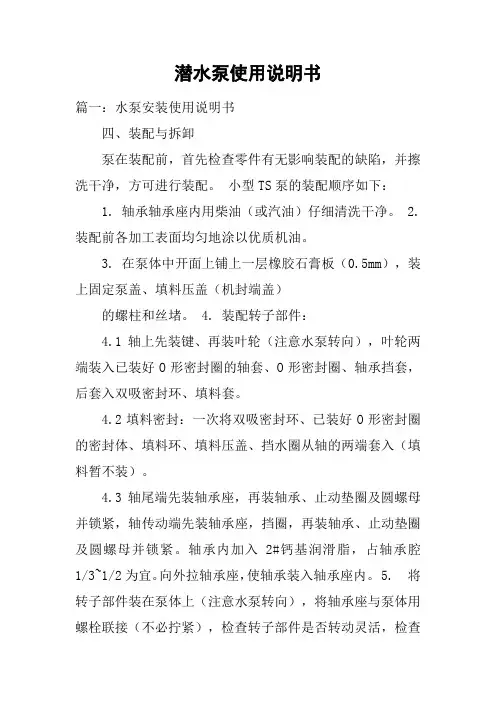

潜水泵使用说明书篇一：水泵安装使用说明书四、装配与拆卸泵在装配前，首先检查零件有无影响装配的缺陷，并擦洗干净，方可进行装配。
小型TS泵的装配顺序如下：1. 轴承轴承座内用柴油（或汽油）仔细清洗干净。
2. 装配前各加工表面均匀地涂以优质机油。
3. 在泵体中开面上铺上一层橡胶石膏板（0.5mm），装上固定泵盖、填料压盖（机封端盖）的螺柱和丝堵。
4. 装配转子部件：4.1轴上先装键、再装叶轮（注意水泵转向），叶轮两端装入已装好O形密封圈的轴套、O形密封圈、轴承挡套，后套入双吸密封环、填料套。
4.2填料密封：一次将双吸密封环、已装好O形密封圈的密封体、填料环、填料压盖、挡水圈从轴的两端套入（填料暂不装）。
4.3轴尾端先装轴承座，再装轴承、止动垫圈及圆螺母并锁紧，轴传动端先装轴承座，挡圈，再装轴承、止动垫圈及圆螺母并锁紧。
轴承内加入2#钙基润滑脂，占轴承腔1/3~1/2为宜。
向外拉轴承座，使轴承装入轴承座内。
5. 将转子部件装在泵体上（注意水泵转向），将轴承座与泵体用螺栓联接（不必拧紧），检查转子部件是否转动灵活，检查叶轮两端密封环位的跳动，允差0.1mm，检查密封环与叶轮间的间隙，检查轴承伸处得圆跳动，允差0.05mm，合格后，密封体O形密封圈部位涂抹封胶，盖上泵盖，装上螺尾锥销，拧紧螺母。
6. 将轴承座与泵体、泵盖用螺栓联接并锁紧。
7. 装填料：在填料环前装两根填料，压入填料环后再装三根填料，各填料接口处错开90度，填料环对准水封水管接口，将填料压盖（机封端盖）固定在密封体上。
8. 配制排气管路部件，装油嘴、放气塞等附件，最后装上键，顺键压入联轴器。
9. 装配完成后，用手转动泵轴，没有擦碰现象，转动比较轻滑均匀即可。
10. 对于带底座的泵，则要清洗泵体的支撑面，水泵脚板和电机脚板的平面，并把水泵和电机安放在底座上去，先调节泵轴水平，找平后，适当上紧螺母，以防走动，然后装上电机，在水平欠妥的脚上垫上垫板。
潜水排污泵使用说明书

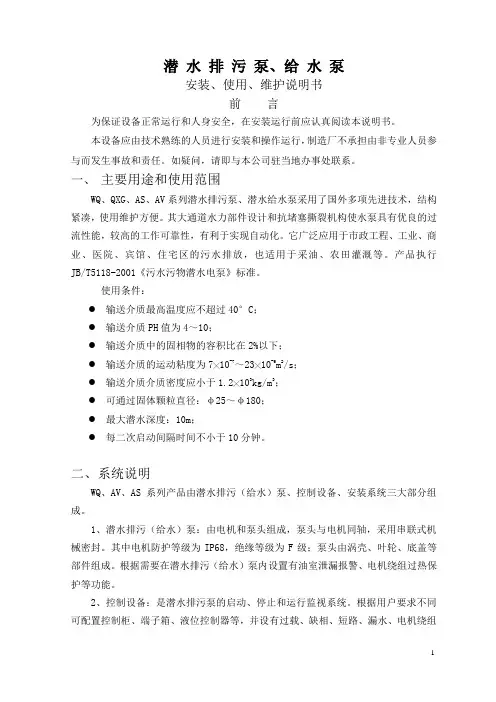

潜水排污泵、给水泵安装、使用、维护说明书前言为保证设备正常运行和人身安全，在安装运行前应认真阅读本说明书。
本设备应由技术熟练的人员进行安装和操作运行，制造厂不承担由非专业人员参与而发生事故和责任。
如疑问，请即与本公司驻当地办事处联系。
一、主要用途和使用范围WQ、QXG、AS、AV系列潜水排污泵、潜水给水泵采用了国外多项先进技术，结构紧凑，使用维护方便。
其大通道水力部件设计和抗堵塞撕裂机构使水泵具有优良的过流性能，较高的工作可靠性，有利于实现自动化。
它广泛应用于市政工程、工业、商业、医院、宾馆、住宅区的污水排放，也适用于采油、农田灌溉等。
产品执行JB/T5118-2001《污水污物潜水电泵》标准。
使用条件：●输送介质最高温度应不超过40°C；●输送介质PH值为4～10；●输送介质中的固相物的容积比在2%以下；●输送介质的运动粘度为7╳10-7～23╳10-6m2/s；●输送介质介质密度应小于1.2╳103kg/m3；●可通过固体颗粒直径：φ25～φ180；●最大潜水深度：10m；●每二次启动间隔时间不小于10分钟。
二、系统说明WQ、AV、AS系列产品由潜水排污（给水）泵、控制设备、安装系统三大部分组成。
1、潜水排污（给水）泵：由电机和泵头组成，泵头与电机同轴，采用串联式机械密封。
其中电机防护等级为IP68，绝缘等级为F级；泵头由涡壳、叶轮、底盖等部件组成。
根据需要在潜水排污（给水）泵内设置有油室泄漏报警、电机绕组过热保护等功能。
2、控制设备：是潜水排污泵的启动、停止和运行监视系统。
根据用户要求不同可配置控制柜、端子箱、液位控制器等，并设有过载、缺相、短路、漏水、电机绕组超温等保护功能。
详见控制设备的随机文件。
3、安装系统：根据工况条件不同，安装方式有固定湿式安装、固定干式安装、移动式安装。
三、特点●独特的电缆密封设计－水密电缆，排除了电缆进水的隐患；●完美的电机冷却设计－水套冷却系统，通过高低压水管实行自流循环冷却（中型泵）；●转子和叶轮进行动平衡检测，确保运行平稳。
桑德佩珀潜水泵手册说明书

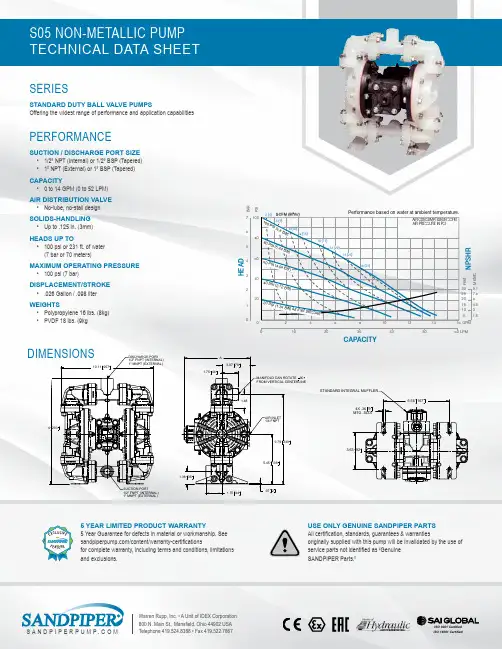

S A N D P I P E R P U M P.C O MWarren Rupp, Inc. • A Unit of IDEX Corporation 800 N. Main St., Mansfield, Ohio 44902 USA Telephone 419.524.8388 • Fax 419.522.78675 YEAR LIMITED PRODUCT WARRANTY5 Year Guarantee for defects in material or workmanship. See /content/warranty-certificationsfor complete warranty, including terms and conditions, limitations and E ONLY GENUINE SANDPIPER PARTS All certification, standards, guarantees & warrantiesoriginally supplied with this pump will be invalidated by the use of service parts not identified as “Genuine SANDPIPER Parts.”SUCTION / DISCHARGE PORT SIZE • 1/2” NPT (Internal) or 1/2” BSP (Tapered)• 1” NPT (External) or 1” BSP (Tapered)CAPACITY• 0 to 14 GPM (0 to 52 LPM)AIR DISTRIBUTION VALVE • No-lube, no-stall design SOLIDS-HANDLING • Up to .125 in. (3mm)HEADS UP TO• 100 psi or 231 ft. of water (7 bar or 70 meters)MAXIMUM OPERATING PRESSURE • 100 psi (7 bar)DISPLACEMENT/STROKE • .026 Gallon / .098 liter WEIGHTS• Polypropylene 16 lbs. (8kg)• PVDF 18 lbs. (9kgDIMENSIONSS05 NON-METALLIC PUMPTECHNICAL DATA SHEETPERFORMANCEISO 9001 Certified I SO 14001 CertifiedII IISTANDARD DUTY BALL VALVE PUMPSOffering the widest range of performance and application capabilitiesSERIES11.5429310.11257A.0725.451389.792491.38353.07781.75441.481.75446.56167SUCTION PORT1/2" FNPT (INTERNAL)1" MNPT (EXTERNAL)DISCHARGE PORT 1/2" FNPT (INTERNAL)1" MNPT (EXTERNAL)MANIFOLD CAN ROTATE 90FROM VERTICAL CENTERLINEINTEGRAL MUFFLERAIR INLET 1/4 FNPT3.63926.561674X .369SUCTION PORT1/2" FNPT (INTERNAL)1" MNPT (EXTERNAL)STANDARD INTEGRAL MUFFLERMTG. SLOTPerformance based on water at ambient temperature.468101214162CAPACITYGPM LPM100806040201020304050600B RP IH E A D12345670302025101559.167.634.51.5N P S H RF e e tM e t e r s AIR CONSUMPTION IN SCFM AIR PRESSURE IN PSI2 (4)4 (7)6 (10)8 (14)16 (27)Air I n le tP re s s ure14 (24)12 (20)10 (17)100 PS I (6.8 B a r )80P S I (5.44 Ba r )60 PS I (4.08 B ar)40 P SI(2.72B a r )20 P SI (1.36B a r )S A N D P I P E R P U M P.C O MWarren Rupp, Inc. • A Unit of IDEX Corporation 800 N. Main St., Mansfield, Ohio 44902 USA Telephone 419.524.8388 • Fax 419.522.7867S XX X X X X X X X X X XXModel #: S __ ____ __ __ __ __ __ __ __ __ __ ____(fill in frompump nameplate)Your Model #: Pump Pump Check Design Wetted Diaphragm/ Check Valve Non-Wetted Porting Pump Pump KitConfig. Size Valve Level Material Check Valve Seat Material Options Style Options OptionsMaterial Profile:Operating Temperatures:Max.Min.CONDUCTIVE ACETAL: Tough, impact resistant, ductile. Good abrasion resistance and low friction surface. Generally inert, with good chemical resistance except for strong acids and oxidizing agents.190°F 88°C-20°F -29°CEPDM: Shows very good water and chemical resistance. Has poor resistance to oils and solvents, but is fair in ketones and alcohols.280°F 138°C -40°F -40°C F KM (FLUOROCARBON): Shows good resistance to a wide range of oils and solvents; especially all aliphatic, aromatic and halogenated hydrocarbons, acids, animal and vegetable oils. Hot water or hot aqueous solutions (over 70°F(21°C)) will attack FKM.350°F 177°C-40°F -40°CHYTREL ®: Good on acids, bases, amines and glycols at room temperatures only.220°F 104°C -20°F -29°C NEOPRENE: All purpose. Resistance to vegetable oils. Gener-ally not affected by moderate chemicals, fats, greases and many oils and solvents. Generally attacked by strong oxidizing acids, ketones, esters and nitro hydrocarbons and chlorinated aromatic hydrocarbons.200°F 93°C-10°F -23°CNITRILE: General purpose, oil-resistant. Shows good solvent, oil, water and hydraulic fluid resistance. Should not be used with highly polar solvents like acetone and MEK, ozone, chlorinated hydrocarbons and nitro hydrocarbons.190°F 88°C -10°F -23°CNYLON: 6/6 High strength and toughness over a wide tem-perature range. Moderate to good resistance to fuels, oils and chemicals.180°F 82°C 32°F 0°CPOLYPROPYLENE: A thermoplastic polymer. Moderate tensile and flex strength. Resists stong acids and alkali. Attacked by chlorine, fuming nitric acid and other strong oxidizing agents.180°F 82°C 32°F 0°C PVDF: (Polyvinylidene Fluoride) A durable fluoroplastic with excellent chemical resistance. Excellent for UV applications. High tensile strength and impact resistance.250°F 121°C 0°F -18°C SANTOPRENE ®: Injection molded thermoplastic elastomer with no fabric layer. Long mechanical flex life. Excellent abrasion resistance.275°F 135°C -40°F -40°C UHMW PE: A thermoplastic that is highly resistant to a broad range of chemicals. Exhibits outstanding abrasion and impact resistance, along with environmental stress-cracking resistance.180°F 82°C -35°F -37°C URETHANE: Shows good resistance to abrasives. Has poor resistance to most solvents and oils.150°F 66°C 32°F 0°C VIRGIN PTFE: (PFA/TFE) Chemically inert, virtually impervious. Very few chemicals are known to chemically react with PTFE; molten alkali metals, turbulent liquid or gaseous fluorine and a few fluoro-chemicals such as chlorine trifluoride or oxygen difluoride which readily liberate free fluorine at elevated temperatures.220°F 104°C-35°F -37°CMaximum and Minimum Temperatures are the limits for which these materials can be operated. Temperatures coupled with pressure affect the longevity of diaphragm pump components. Maximum life should not be expected at the extreme limits of the temperature ranges.Metals:ALLOY C: Equal to ASTM494 CW-12M-1 specification for nickel and nickel alloy.STAINLESS STEEL: Equal to or exceeding ASTM specification A743 CF-8M for corro-sion resistant iron chromium, iron chromium nickel and nickel based alloy castings for general applications. Commonly referred to as 316 Stainless Steel in the pump industry.CAUTION! Operating temperature limitations are as follows:EXPLANATION OF PUMP NOMENCLATUREPUMP BRANDS SANDPIPER ®PUMP SIZE 05 1/2”CHECK VALVE TYPE B Soilid Ball DESIGN LEVEL 2 Design Level WETTED MATERIAL K PVDF N NylonP PolypropyleneC Conductive Polypropylene V Conductive PVDFDIAPHRAGM/CHECK VALVE MATERIALS 1 Santoprene/Santoprene 2 Virgin PTFE/Santoprene Backup/Virgin PTFE B Nitrile/NitrileU Polyurethane/Polyurethane Z One-Piece Bonded/PTFE CHECK VALVE SEAT S Stainless Steel T Virgin PTFEMATERIALSNON-WETTED MATERIAL OPTIONSP Polypropylene1 Polypropylene w/PTFE Coated HardwareC Conductive Polypropylene PORTING OPTIONS N NPT ThreadsB BSP (Tapered) Threads 1 Dual Porting (NPT) 2 Top Dual Porting (NPT) 3 Bottom Dual Porting (NPT) 4 Dual Porting (BSP Tapered) 5 Top Dual Porting (BSP Tapered) 6 Bottom Dual Porting (BSP Tapered)PUMP STYLE S Standard I Inline Porting NPT Threads PUMP OPTIONS 0 None6 Metal Muffler KIT OPTIONS 00. NoneP0. 10.30VDC Pulse Output Kit P1. Intrinsically-Safe 5.30VDC, 110/120VAC 220/240 VAC Pulse Output KitP2. 110/120 or 220/240VAC Pulse Output KitE0. Solenoid Kit with 24VDC Coil E1. Solenoid Kit with 24VDC Explosion-Proof CoilE2. Solenoid Kit with 24VAC/12VDC Coil E3. Solenoid Kit with 12VDC Explosion-Proof CoilE4. Solenoid Kit with 110VAC Coil E5. Solenoid Kit with 110VAC Explosion-Proof CoilE6. Solenoid Kit with 220VAC Coil E7. Solenoid Kit with 220VAC Explosion-Proof CoilE8. Solenoid Kit with 110VAC, 50 Hz Explosion-Proof CoilE9. Solenoid Kit with 230VAC, 50 Hz Explosion-Proof Coil SP . Stroke Indicator PinsA1. Solenoid Kit with 12 VDC ATEX Compliant CoilA2. Solenoid Kit with 24 VDC ATEX Compliant CoilA3. Solenoid Kit with 110/120 VAC 50/60 Hz ATEX Compliant Coil A4. Solenoid Kit with 220/240 VAC 50/60 Hz ATEX Compliant CoilNOTE: See service manual for ATEX details.SP_DS_TemplateDataSheet_0817II 2II 2。
潜水泵说明书

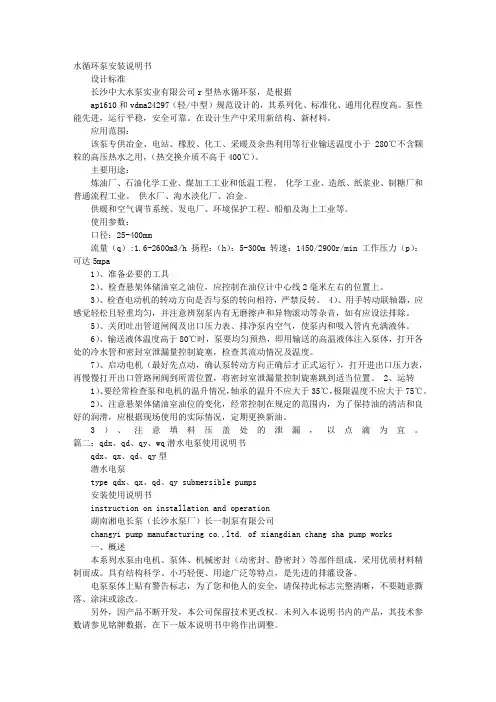

水循环泵安装说明书设计标准长沙中大水泵实业有限公司r型热水循环泵，是根据ap1610和vdma24297（轻/中型）规范设计的，其系列化、标准化、通用化程度高。
泵性能先进，运行平稳，安全可靠。
在设计生产中采用新结构、新材料。
应用范围：该泵专供冶金、电站、橡胶、化工、采暖及余热利用等行业输送温度小于280℃不含颗粒的高压热水之用，（热交换介质不高于400℃）。
主要用途：炼油厂、石油化学工业、煤加工工业和低温工程。
化学工业、造纸、纸浆业、制糖厂和普通流程工业。
供水厂、海水淡化厂、冶金。
供暖和空气调节系统、发电厂、环境保护工程、船舶及海上工业等。
使用参数：口径：25-400mm流量（q）:1.6-2600m3/h 扬程：（h）：5-300m 转速：1450/2900r/min 工作压力（p）：可达5mpa 1）、准备必要的工具2）、检查悬架体储油室之油位，应控制在油位计中心线2毫米左右的位置上。
3）、检查电动机的转动方向是否与泵的转向相符，严禁反转。
4）、用手转动联轴器，应感觉轻松且轻重均匀，并注意辨别泵内有无磨擦声和异物滚动等杂音，如有应设法排除。
5）、关闭吐出管道闸阀及出口压力表、排净泵内空气，使泵内和吸入管内充满液体。
6）、输送液体温度高于80℃时，泵要均匀预热，即用输送的高温液体注入泵体，打开各处的冷水管和密封室泄漏量控制旋塞，检查其流动情况及温度。
7）、启动电机（最好先点动，确认泵转动方向正确后才正式运行），打开进出口压力表，再慢慢打开出口管路闸阀到所需位置，将密封室泄漏量控制旋塞跳到适当位置。
2、运转1）、要经常检查泵和电机的温升情况，轴承的温升不应大于35℃，极限温度不应大于75℃。
2）、注意悬架体储油室油位的变化，经常控制在规定的范围内，为了保持油的清洁和良好的润滑，应根据现场使用的实际情况，定期更换新油。
3）、注意填料压盖处的泄漏，以点滴为宜。
篇二：qdx、qd、qy、wq潜水电泵使用说明书qdx、qx、qd、qy型潜水电泵type qdx、qx、qd、qy submersible pumps 安装使用说明书instruction on installation and operation 湖南湘电长泵（长沙水泵厂）长一制泵有限公司changyi pump manufacturing co.,ltd. of xiangdian chang sha pump works一、概述本系列水泵由电机、泵体、机械密封（动密封、静密封）等部件组成，采用优质材料精制而成。
隔爆型排沙潜水泵使用说明书1
每台电泵开箱后有下列随机文件： 1、 装箱单； 2、 产品合格证； 3、 使用维修说明书； 4、 保修卡。
八、易损件明细表
序号 1 2 3 4
配件名称 涡壳 叶轮
机械密封 橡胶垫片
材质 QT600-3 QT600-3 动、静环为碳化硅 丁晴橡胶
备注 / / / /
9
九、安标受控零（元）部件明细表
电泵型号
3
一、 概 述
编写依据 GB/T9969-2008《工业产品使用说明书总则》。 BQS 系列矿用隔爆型排水排沙潜水泵（以下简称电泵），是为解决低流量、高扬程（低比 转速）泵不能排沙的难题，空气中含有甲烷或煤尘爆炸危险场所排水的需要，我公司开发研制 的具有防爆且高效、节能的新产品。 我公司产品执行标准 MT/T671-2005；GB3836-2010。 该电泵是泵与电动机组合一体，泵位于电动机下部的排水设备，具有体积小、重量轻、 排水效果最佳的特点，广泛使用煤矿立井、斜井及井底散煤泥地点自动化排水。 （一）电泵的使用条件 1、 电源： 用于频率为 50Hz 的三相交流电源，额定电压为 660、1140V，允许变动范围±5% 2、 电泵在下列使用条件下，能连续正常运行。 （1） 水温不高于 40℃； （2） 介质中固体颗粒含量体积比不超过 2%； （3） 水中酸碱度 pH 值 6.5～10。 （4） 水泵潜入水下深度不超过 5m。 3、 周围环境 应用于空气中含有甲烷或煤尘爆炸危险的煤矿井下排水，防爆标志：ExdⅠ；防爆型式为 隔爆型“d”
埃斯特尔（Esther）潜水泵产品描述书说明书
P R O D U C TD E S C R I P T I O NDewatering submersible sump pumps with a choice of single or three phase models.A P P L I C AT I O N S•Sump emptying•Septic water disposal •Water transfer•Pumping of neutral, non-aggressive factory waste waterO P E R AT I N G L I M I T S F E AT U R E S & B E N E F I T SCorrosion resistant 304 stainless steel shaft, motor shell and fasteners•Long service life•Attractive, lasting appearance Open impeller, centrifugal design •Able to pump soft solids in suspension•Less susceptible to blockage •Capable of higher heads /pressure Double mechanical shaft seal in oil bath with hard faced silicon carbide / ceramic seal on pump side•Added motor protection •Long service life Sand slinger lip seal •Added protection •Long service lifeAutomatic resetting thermal overload•Protected against overloading D75A model fitted with automatic float switch with a present float length•Safe unattended operation Stainless steel inlet strainer fitted •For a firm and stablepositioning during installation and operation•To restrict pumping of solids which may damage or block the pump HO7RNF oil resistant leads with bare wire lead ends•Easy to connect to power supply terminations •Long life in dirty waterCapacities to 1250lpmHeads to20m Max. submergence 25m Max. operating temperature 50o C Max. soft solids10mm dia.Suitable FluidsClean or “grey water” of neutral pH containing up to 10% small soft solids or 1% fine solids. Some wear should be expected while pumpinghard solids in suspension.SUMP PUMPS60Hz and/or 316SS models available.M AT E R I A L S O F C O N S T R U C T I O NPA R TM AT E R I A LImpellerPump casing OutletShaft seal pump sidemotor sideShaft seal elastomer Pump shaft OringsMotor shell Handle FastenersFloat & power supply leadsCast iron Cast iron Cast ironSilicon carbide/ceramic Carbon/ceramic Mechanical seals in captive oil bath with oil sealNitrile rubber 304 stainless steel Nitrile rubber 304 stainless steel 304 stainless steel 304 stainless steel HO7RN-F oil resistantE L E C T R I C A L D ATAI N S TA L L AT I O N & P R I M I N GSpeedInsulation class IP ratingElectrical lead Use a rope to position and retrieve the pump. Do not lower or retrieve the pump using the power lead as this may damage the cable entry seals, causing water leaks and unsafe operation.Don’t use this product for recirculating or filtering swimming pools, spas, etc. While these pumps are built to high safety standards, they are not approved for installations where people will be in the water while they are operating.Don’t pump abrasive materials. Sand and grit in the water being pumped will accelerate wear, causing shortened pump life.Keep your pump clean, particularly in situations where lint, hair or fibrous materials may get bound around the pump shaft. Regular inspection and cleaning will extend pump life.Make room for the float switch to operate. Automatic models have a float switch to turn them on when the water level rises and turn them off again when it has been pumped down to the safe operating level of the pump. If the float switch is not free to rise and fall, correct pump operation may not be possible.Don’t run your pump dry. Non-automatic models must be switched off manually or by way of an external float/level switch when the water level is reduced to the top of the pump housing.00510152025050010001500l/min ft m g/min110220330FLOWTOTAL HEAD1020304050607080D I M E N S I O N SDavey Products Pty LtdMember of the GUD Holdings Ltd GroupABN 18 066 327 517Head Office and Manufacturing 6 Lakeview Drive,Scoresby, Australia 3179Ph:+61 3 9730 9222Fax:+61 3 9753 4100Website:.au Customer Service Centre Ph:1300 367 866Fax:1300 369 119E-mail:***************.au Interstate OfficesSydney - Brisbane - Adelaide Perth - TownsvilleInternational 6 Lakeview Drive,Scoresby, Australia 3179Ph:+61 3 9730 9121Fax:+61 3 9753 4248E-mail:****************.au GermanyKantstrasse 47,04275 Leipzig Ph:+49 341 301 0412Fax:+49 341 301 0413E-mail:**********************New Zealand 2 Rothwell Avenue,North Harbour, Auckland 1330Ph:+64 9 914 3680Fax:+64 9 914 3685Website: E-mail:****************.nz USADavey Pumps Inc.1005 N. Commons Drive Aurora, Illinois 60504Ph:+1 630 898 6976Fax:+1 630 851 7744Website: E-mail:******************This literature is not a complete guide to product usage. Further information is available from your Davey dealer, Davey Customer Service Centre and from the relevant product Installation and Operating Instructions. This data sheet must be read in conjunction with the relevant product Installation and Operating Instructions and all applicable statutory requirements. Product specifications may change without notice.® Davey is a registered trademark of Davey Products Pty Ltd. © Davey Products Pty Ltd 2000.DPM140-1/3K/0205/GPW supersedes DPM140/3K/0802/GPWSupply voltage 50Hz - Phase Output power Full load current Locked rotor current StartingSupply voltage 50Hz - Phase Output power Full load current Locked rotor current Starting。
越朗直流潜水泵使用说明书
越朗直流潜水泵使用说明书第一章：产品介绍1.1产品概述1.2产品规格-电压：直流24V-功率：200W-流量：最大6000L/h-扬程：最大18m第二章：安全注意事项2.1使用环境-应在室内或者干燥通风的地方使用。
-不得将潜水泵浸泡在水中以外的液体中。
2.2电源要求-请务必使用标准的直流24V电源供电。
-请勿将电源线连接到非标准电源上，以免损坏产品。
2.3操作规范-请勿将手伸入潜水泵的进水口或者出水口，以免造成伤害。
-请勿将潜水泵长时间运转，以免造成过热现象。
-请勿将重物放置在潜水泵上，以免损坏产品。
3.1安装前准备-在安装前，请确保已关闭电源，以免触电。
-请清理潜水泵周围的杂物，确保安全操作。
-请将出水口连接好，防止漏水。
3.2安装潜水泵-将潜水泵完全放入需要供水的水池中，确保潜水泵完全浸入水中。
-请检查潜水泵的进水口是否与水池中的水接触。
-确保潜水泵不被其他物体阻挡，以免影响使用效果。
第四章：产品使用4.1开机前检查-确保电源连接正确，电源线不受损。
-检查进水口和出水口是否连接牢固，无泄漏现象。
4.2开机操作-打开电源，电源指示灯亮起，表明潜水泵已成功开机。
-请确保潜水泵在供水时不与其他水泵同时工作，以免超过额定负荷。
4.3关机操作-关闭电源，电源指示灯熄灭，表明潜水泵已成功关机。
-请注意关机后应及时清理潜水泵，避免积存水分。
5.1定期清理-潜水泵使用一段时间后，可能会积存一些杂物或者水垢，请定期拆解潜水泵进行清理。
5.2注意事项-清理潜水泵时，务必先断开电源，确保安全操作。
-清理时，请用清水擦拭潜水泵的外壳，避免使用酸碱类或者腐蚀性清洁剂。
第六章：故障排除6.1电源故障-检查电源线是否损坏，如果损坏请更换电源线。
6.2泵体不工作-检查是否有杂物堵塞泵体，如果有，请清理泵体。
