美国ResQmax抛投器KIT401产品简介
ResQmax
林--工（⒈⒌⒐⒌⒐⒐⒍⒌⒉⒍⒏）
产地：美国(美国的国际救生设备公司Rescue Solutions International，Inc）
最大距离：根据压强，绳重，以及发射的方式，该锚钩绳子的射程可达122米以上；
安全强度：
1）该锚钩的安全装置一直处于开启状态，当插入发射器以后，安全装置自动重新启动；2）该发射装置的推锁装置便于操作，并可在不见光的情况下安全使用；
3）该装置的减压脉冲防护板，可以避免由外部高温产生的不安全气压造成的损害；
最强性能：多功能发射。
本公司获得专利的喷嘴，可与不同型号的发射装置配套使用，以满足各种危急状况下不同的需要；
操作简单：ResQmax 锚钩的填充系统尾端均带有一个快挂，以便于快速而安全的连接发射器以及压缩气源。
新一代（ResQmax）救援绳索抛投器，以高压空气为动力，可将绳索或自动充气救生圈或锚钩快速、安全、准确的发射至目标。
根据用途的不同，可分为水用、陆用、水陆两用等配置.
◆工作压力：3000psi/207 bar
◆应用范围：消防救援、急流救援、工业安全、海岸钻井、快速反应部队等
◆基本配置：发射器、气瓶、绳索、充气管、救生圈（水用）等
【详细说明】
充气方式
给射弹瓶充气需要合适的气源，至少有能力达到实际所需压力，标准压力3000psi/207Bar. 给瓶体充气需要充气管，充气管包括压力阀、减压螺钉、连接管。
首先，用合适的配件将连接管一端连接到压缩空气气源，接着，检查气瓶的阀门扳手是否在开的位置，当阀门扳手和空气流向平行时为开，图8a阀门为开的状态。
当与空气流向垂直为关
新一代救援绳索抛投器，以高压空气为动力，可将绳索或自动充气救生圈或锚钩快速、安全、准确的发射至目标。
根据用途的不同，可分为水用、陆用、水陆两用等配置.
◆工作压力：3000psi/207 bar
◆应用范围：消防救援、急流救援、工业安全、海岸钻井、快速反应部队等
◆基本配置：发射枪、气瓶、绳索、充气管、救生圈（水用）等
该战术锚钩发射器为新一代产品，使用压缩空气为动力，可以在海上环境，陆地位置或者海上与陆地上几种情况下，配置包括：
一根绳子
一个抓升钩和攀登绳
一个抓升钩和攀登梯。
除了装入压缩空气外，还要完全装配好其它部分。
为了熟悉这套设备的操作，提高人员能力，需要进行足够的训练。
在操作前，请仔细阅读说明书。
该战术锚钩发射器应用如下：
配置绳子建立信号线或载重线；
配置船到船的绳；
配置船到海岸的绳；
系泊缆的修复；
配置围油栏；
配置抓钩和攀登绳；
配置抓钩和攀登梯；
该锚钩发射器的发射范围依赖如下：
所用绳子的类型；
发射物体或附件的类型；
配置的压缩空气的时间。
发射器每次只能发射一个射弹，从而避免发射事故的发生，当插入射弹后，听到“咔”的一声，证明射弹被安全插入。
在射弹的每个喷嘴处安装有减压装置，目的是避免射弹内产生不安全的压力，不论是否发射，如果射弹被暴露在很热的环境，例如火中，如果射弹内空气压力超过安全值，减压阀将破裂释放压力。
破裂后减压阀将不能再使用，必须更换。
减压阀安装到发射机上，只要设备受压，减压阀就处于激活状态。
常用型号：
ResQmax气动抛投器SQS-230
RESQMAX气动抛投器KIT401
RESQMAX气动抛绳器RSQ452
RESQMAX气动抛绳器KIT441
美国RESQMAX救生抛投器KIT410
美国RESQMAX救生抛投器KIT412
RESQMAX气动抛绳器KOR-B-300
ResQmax抛投器154251-46
抛投器简介：
抛投器是一种用于事故现场远距离抛投绳索或救生器材的一种救援设备。
作为新一代的投射设备，ResQmax采用“空气弹射”技术，以高压空气为动力，可将绳索、自动充气救生圈或其他设备快速安全准确地发射至目标点，最大射程140米。
ResQmax 发射器的枪体采用聚碳酸酯，抗冲击能力强，并具有快速发射多弹的能力。
根据弹体压力的不同，射程从75米到140米不等。
绳索长度一般为100米（可定制150米），安装十分便捷。
安全机制完善，卸压阀能防止由于过热产生的不稳定压力。
ResQmax 美国救生抛投器以高压空气为动力，可将绳索或自动充气救生圈快速安全, 准确地发射至目标。
与不同的物件搭配使用可实现不同的功能。
现今应用较为广泛的发射枪，包括水用和陆用两种。
救援发射枪可以应用于消防救援、急流救援、冰上救援、船只之间、船岸之间的绳索连接，以及发射锚钩等用途。
ResQmax锚钩的填充系统尾端均带有一个快挂，以便于快速而安全的连接发射器以及压缩气源。
美国救生抛投器安全强度：
1）该锚钩的安全装置一直处于开启状态，当插入发射器以后，安全装置自动重新启动；2）该发射装置的推锁装置便于操作，并可在不见光的情况下安全使用；
3）该装置的减压脉冲防护板，可以避免由外部高温产生的不安全气压造成的损害；
最强性能：多功能发射。
本公司获得专利的喷嘴，可与不同型号的发射装置配套使用，以满足各种危急状况下不同的需要；
美国原装进口救生抛投器基本参数：
1. 水陆两用,用于远距离抛投救生绳、救生圈。
2. 气瓶气动喷射，由发射机械装置、发射气瓶总成、充气装置、保护装置、快速自动充气救生装置附件等组成。
3.陆用时：绳长150m、3mm直径陆用绳1条，水平发射距离100m。
水用时：绳长92m、6mm直径水用绳1条，水平发射距离60m（带救生圈），救生圈掉入水中自动充气浮起。
攀缘时：绳长50m、7mm直径水用绳1条,水平发射距离45m（带锚钩）
4. 具体配置：发射器1个、弹头（发射管），1根拉力为230公斤150米绳索及绳箱、1根拉力为1000公斤92米绳索及绳箱、充气装置、回收式救生圈,1个锚钩，1个发射瓶、发射瓶陆用保护套、携带包、专用工具一套、易损件、防锈剂。
# ResQmax抛绳器美国救生抛投器气动救生抛投器
双环优势推荐：
1.威世VISHAY
2.罗斯蒙特Rosemount
3.瑞典SUNFAB；
4.哈威HAWE，K60N系列；
5.威格士PVH系列；
6.美国猫牌CAT PUMPS；
7.沃马WOMA高压清洗泵及配件；
8.美国派克PARKER(F11/F12 F1/F2 取力器)；
9.瑞典天马TEMA接头；
10.美国UFM流量开关；
11.德瑞克Derrick筛网；
12.美国穆格MOOG D系列（优势不大）；
13.马祖奇泵，英国诺冠norgren
14.VIGIL防滑贴，防滑垫；
15.英格索兰Ingersoll Rand 启动马达（优势不大）；
16.德国斯贝克SPECK（优势不大）；
17.克拉克CLARK，德科瑞美DELCO-REMY；
18.Pidion通讯器
19.CR油封（SKF油封），National油封，安科焊丝等。
另外，公司代理：美国DMIC,哈威HAWE，威伯科WABCO，曼牌MANN，意大利欧禹OFMB。
美国施乐辉关节镜体以及器械中文说明书
美国施乐辉关节镜体以及器械中文说明书 Document number【SA80SAB-SAA9SYT-SAATC-SA6UT-SA18】美国施乐辉关节镜体说明书生产者名称：美国施乐辉公司关节镜制作材料：镜身为医用不锈钢，镜头为蓝宝石镜头，中间为柱状晶体。
使用范围：在膝关节，肩关节，髋关节，肘关节等关节的关节镜手术中使用。
产品性能：分辨率≥mm(L=20mm)3622型关节镜体：口径：外径4mm视向角：30°视场角：115°工作长度：160mm3623型关节镜体：口径：外径4mm视向角：70°视场角：115°工作长度：160mm关节镜体清洗1.把镜子浸泡在含酶的中性溶液中。
2.用刷子擦净所有缝隙中看得见得残留碎屑，注意不要刮伤任何光学表面。
3.用含酶的中性的清洗液的网垫擦净光学表面。
4.然后用温水冲洗。
5.光学表面用含异丙醇的网垫擦净。
然后用蒸馏水漂洗。
6.或者用含丙酮的网垫擦洗光学表面。
然后用蒸馏水漂洗。
关节镜体的消毒方法方法：100% 环氧乙烷温度：131 +/-5华氏度（等于55摄氏度+/-3度）湿度： 35-70%用量：736 mg/l时间：60 分钟服务哲学仅由 Smith & Nephew授权的服务中心提供修理和调整服务如果需要服务，在退还仪器之前，联系您的经Smith & Nephew授权的客户服务代理人，向他询问您的返还授权号（RA），而且授权代理人也可以解释可行的归还服务和维修的程序。
需要服务的项目必须仔细包装好，以邮寄的方式（邮资已付）归还给Smith & Nephew，您的授权代理人会给您提供另外的指导。
注: 如果归还的产品已经由未授权的第三方维修车间和/或用未经Smith & Nephew公司同意的消毒方法消毒和/或和其他的机械设施接触后损伤，可能会额外收取成本费，不管是否出现在保修期内。
施乐辉关节镜手动器械说明书生产者名称：美国施乐辉公司手动器械制作材料：医用精钢制造。
美国ResQmax气动抛投器使用说明书
美国ResQmax气动抛投器使用说明书北京斯达恒通科技有限公司----------------------------------------------中国*北京产品名称：美国ResQmax气动抛投器产品品牌：斯达恒通产品描述：美国ResQmax气动抛投器气动抛投枪以高压空气为动力，可以将绳索、攀缘锚钩和绳梯等快速而准确地发射至目标。
应用于反恐营救、消防救援及快速反应部队等。
技术特点：利用高压气体作为动力源，抛射钛合金锚钩作为悬挂固定点，抛射收好在绳箱里的绳索或绳梯，随着锚钩抛射到瞄准点，达到攀爬、翻越建筑物及障碍物目的，从而实现反恐演练、反劫机、安全救助转移及训练等任务；耐用合成纤维制造，用气压推动发射，系统可循环再用，投射力度3000psi/207 bar。
产品描述：英国CW-Ⅲ隔墙听系统立体声隔墙听是采用KM或者KB/KD系列传感器的立体声放大设备，此设备可以接收和录制模拟声音信号（人声，脚步，其他声响），由于采用反射性地噪音放大设备，所以本机可以使非常微小的声音得以探测。
隔墙听音系统音质清晰、操作简单、已广泛运用于英国及世界警方、安全等部门；其功效得到警方专业人士的一致认可，是英国警方极力推崇的侦察器材之一；该系统隔天花板监听效果最佳，外置的传感器和音频放大器相连接，该放大器在左声道右声道上配有独立的音量控制，同时也提供外接录音的功能；提供准确敏感清晰度极高的听音效果，是同类产品的佼佼者，它可通过建筑物如：墙、屋顶、地板听音，如在扣留人质的场所，该立体声隔墙听音设备可作为特种部队的快速监听设备，同时也是军警部队，刑侦，技侦部门的侦查与反侦察的必备产品。
产品特点：●冲击传感器传输的震动经过极低噪音放大器，即使非常微弱的声音信号也能听见。
●阈值频率，放大值和麦克风可以独立选择，保证最优监听●放大器的增益可以通过增益控制进行无极选择●凭借控制麦克风，通道1或通道2，或者二者同时监听●经过NF输出，两个频道可以被同时录音。

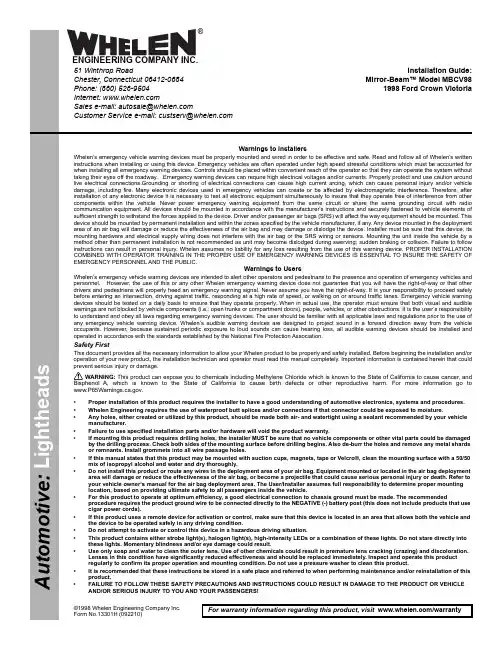

Whelen Engineering 以太球形蜂ilty物品售术觅鸡说明书
