ALTERA公司CPLD_和_FPGA_选型列表
Altera_FPGA_配置模式

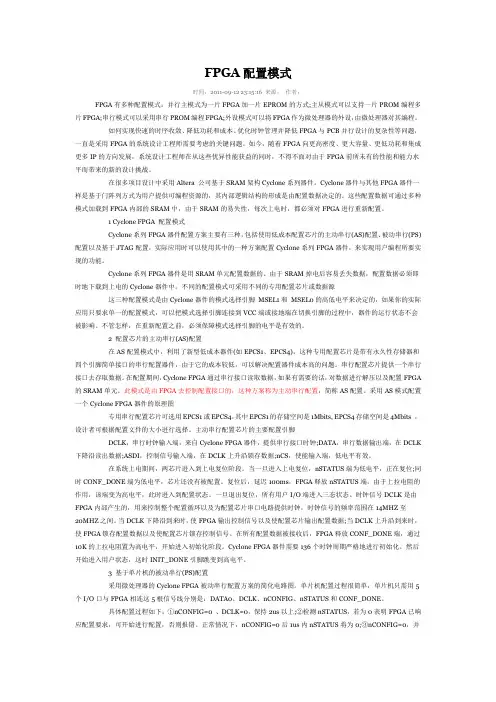

FPGA配置模式时间：2011-09-12 23:15:16 来源：作者：FPGA有多种配置模式：并行主模式为一片FPGA加一片EPROM的方式;主从模式可以支持一片PROM编程多片FPGA;串行模式可以采用串行PROM编程FPGA;外设模式可以将FPGA作为微处理器的外设，由微处理器对其编程。
如何实现快速的时序收敛、降低功耗和成本、优化时钟管理并降低FPGA与PCB并行设计的复杂性等问题，一直是采用FPGA的系统设计工程师需要考虑的关键问题。
如今，随着FPGA向更高密度、更大容量、更低功耗和集成更多IP的方向发展，系统设计工程师在从这些优异性能获益的同时，不得不面对由于FPGA前所未有的性能和能力水平而带来的新的设计挑战。
在很多项目设计中采用Altera 公司基于SRAM架构Cyclone系列器件。
Cyclone器件与其他FPGA器件一样是基于门阵列方式为用户提供可编程资源的，其内部逻辑结构的形成是由配置数据决定的。
这些配置数据可通过多种模式加载到FPGA内部的SRAM中，由于SRAM的易失性，每次上电时，都必须对FPGA进行重新配置。
1 Cyclone FPGA 配置模式Cyclone系列FPGA器件配置方案主要有三种，包括使用低成本配置芯片的主动串行(AS)配置、被动串行(PS)配置以及基于JTAG配置，实际应用时可以使用其中的一种方案配置Cyclone系列FPGA器件，来实现用户编程所要实现的功能。
Cyclone系列FPGA器件是用SRAM单元配置数据的。
由于SRAM掉电后容易丢失数据，配置数据必须即时地下载到上电的Cyclone器件中。
不同的配置模式可采用不同的专用配置芯片或数据源这三种配置模式是由Cyclone器件的模式选择引脚MSEL1和MSEL0的高低电平来决定的，如果你的实际应用只要求单一的配置模式，可以把模式选择引脚连接到VCC端或接地端在切换引脚的过程中，器件的运行状态不会被影响。
第三章 Altera的 CPLDFPGA
Altera的CPLD/FPGA器件系列 Altera的CPLD/FPGA器件 Altera的CPLD/FPGA的配臵
Altera是著名的PLD器件生产厂 商，Altera的PLD器件具有高性能、 高集成度和高性价比的优点，并且 Altera提供了全面的开发工具和丰 富的IP核、宏功能库等，因此 Altera的产品得到了广泛应用。
… 1 6个扩展乘积项
共享扩展项
去P IA
MAX7000器件的宏单元可以单独地配臵成 时序逻辑或组合逻辑工作方式。每个宏单元 由逻辑阵列、乘积项选择矩阵和可编程寄存 器等三个功能块组成。 MAX7000器件的宏单元中的逻辑阵列用来 实现组合逻辑，它为每个宏单元提供五个乘 积项。乘积项选择矩阵把这些乘积项分配到 “或”门和“异或”门作为基本逻辑输入,以 实现组合逻辑功能；或者把这些乘积项作为 宏单元中寄存器的辅助输入来实现清除、预 臵、时钟和时钟使能等控制功能。
APEX系列
APEX20K系列器件是第一个具有多核结构，支持可编程单芯片系统（ SOPC）的PLD器件系列 。这种多核结构集成了乘积项、查找表和嵌入式存储器块（ EAB）。乘积项结构适用于实现复 杂组合逻辑；使用查找表逻辑能实现增强型寄存器功能；查找表结构能有效实现数据通道、增 强型寄存器、数学运算及数字信号处理器等设计；嵌入式系统块（ ESB）能实现多种存储功能 ，包括FIFO、双端口RAM及内容可寻址存储器（CAM）。 APEX20K系列器件的配臵通常是在系统上电时，通过存储一个 Altera串行PROM中的配臵数据 或者由系统控制器提供的配臵数据来完成。Altera提供ISP串行数据配臵芯片，如EPC1、EPC2 、EPC16；APEX20K具有优化的接口，允许微处理器串行或并行，同步或异步对其进行配臵，微 处理器将APEX20K作为存储器对待，重新配臵也很容易。APEX20K器件被配臵后，可以通过重新 复位器件、加载新数据的方法实现在线可配臵。 APEX20KE器件属于超级APEX20K器件，它支持先进的I/O标准和内容可寻址存储器（CAM）， 并具有更多的全局时钟数、增强的“时钟锁定”时钟电路等附加特性。APEX20KE在APEX20K器 件基础上扩展到150万门。 APEXII器件结构与APEX20K器件结构一样，它集成了高速差分I/O，支持使用True-LVDS接口 。在True-LVDS接口中的并串转换、串并转换和CDS电路支持LVDS、LVPECL、HyperTransport和 PCML I/O标准。在一般用户I/O的Flexible-LVDS引脚提供附加的差分支持，增加了整个器件的 带宽，这种电路再加上增强型IOE及对大量I/O标准的支持，使得APEXII器件能满足高速接口的 需要。APEXII其间还具有其他的高性能特征，如双向双端口RAM、CAM、普通的PLL和大量的全 局时钟。
