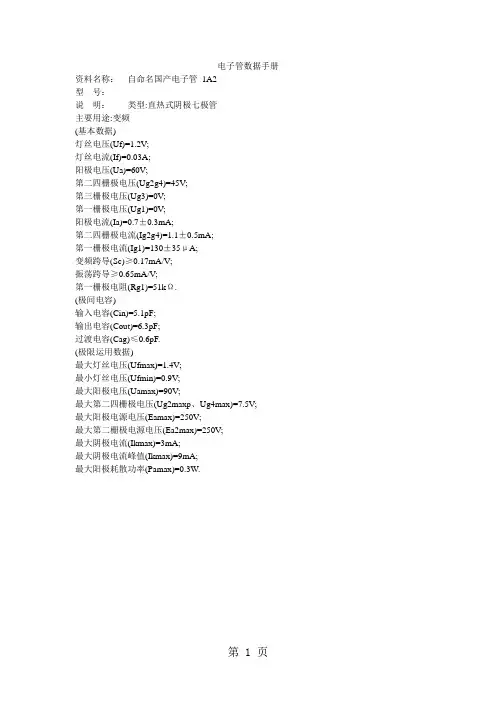

电子管数据手册资料名称：自命名国产电子管1A2型号：说明：类型:直热式阴极七极管主要用途:变频(基本数据)灯丝电压(Uf)=1.2V;灯丝电流(If)=0.03A;阳极电压(Ua)=60V;第二四栅极电压(Ug2g4)=45V;第三栅极电压(Ug3)=0V;第一栅极电压(Ug1)=0V;阳极电流(Ia)=0.7±0.3mA;第二四栅极电流(Ig2g4)=1.1±0.5mA;第一栅极电流(Ig1)=130±35μA;变频跨导(Sc)≥0.17mA/V;振荡跨导≥0.65mA/V;第一栅极电阻(Rg1)=51kΩ.(极间电容)输入电容(Cin)=5.1pF;输出电容(Cout)=6.3pF;过渡电容(Cag)≤0.6pF.(极限运用数据)最大灯丝电压(Ufmax)=1.4V;最小灯丝电压(Ufmin)=0.9V;最大阳极电压(Uamax)=90V;最大第二四栅极电压(Ug2maxp、Ug4max)=7.5V;最大阳极电源电压(Eamax)=250V;最大第二栅极电源电压(Ea2max)=250V;最大阴极电流(Ikmax)=3mA;最大阴极电流峰值(Ikmax)=9mA;最大阳极耗散功率(Pamax)=0.3W.型号：说明：类型:直热式阴极二极-五极管主要用途:检波和低频电压放大(基本数据)灯丝电压(Uf)=1.2V;灯丝电流(If)=0.03A;阳极电压(Ua)=60V;阳极电流(Ia)=0.9±0.4mA;第一栅极电压(Ug1)=0V;第二栅极电压(Ug2)=45V;第二栅极电流(Ig2)≤0.35mA;跨导(S)=0.2~0.55mA;内阻(Ri)=1MΩ.(极间电容)输入电容(Cin)=1.85pF;输出电容(Cout)=2.1pF;过渡电容(Cag)=0.27pF.(极限运用数据)最大灯丝电压(Ufmax)=1.4V;最小灯丝电压(Ufmin)=0.9V;最大阳极电压(Uamax)=90V;最大第二栅极电压(Ug2max)=75V;最大阳极电源电压(Eamax)=250V;最大第二栅极电源电压(Ea2max)=250V;最大阴极电流(Ikmax)=2mA;最大阳极耗散功率(Pamax)=0.15W.型号：说明：类型:直热式阴极遥截止五极管主要用途:高频电压放大(基本数据)灯丝电压(Uf)=1.2V;灯丝电流(If)=0.03A;阳极电压(Ua)=60V;阳极电流(Ia)=1.35±0.5mA;第一栅极电压(Ug1)=0V;第二栅极电压(Ug2)=45V;第二栅极电流(Ig2)=0.35+0.15mA;跨导(S)=0.25~0.7mA;内阻(Ri)=1.5MΩ.(极间电容)输入电容(Cin)=3pF;输出电容(Cout)=4.9pF;过渡电容(Cag)≤0.01pF.(极限运用数据)最大灯丝电压(Ufmax)=1.4V;最小灯丝电压(Ufmin)=0.9V;最大阳极电压(Uamax)=90V;最大第二栅极电压(Ug2max)=75V;最大阳极电源电压(Eamax)=250V;最大第二栅极电源电压(Ea2max)=250V;最大阴极电流(Ikmax)=3.5mA;最大阳极耗散功率(Pamax)=0.3W.型号：说明：类型:旁热式阴极二极管主要用途:用于110o电视机行扫描逆程脉冲电压的整流(基本数据)灯丝电压(Uf)=1.4V;灯丝电流(If)=0.5±0.055A;阳极电压(Ua)=100V;阳极电流(Ia)≥8mA.(极间电容)阳极与阴极间电容(Cak)=1.55pF.(极限运用数据)最大灯丝电压(Ufmax)=1.54V;最小灯丝电压(Ufmin)=1.26V;最大整流电流(Ikmax)=0.5mA;最大反向电压峰值①(Upmax)=22kV;最大滤波电容(Cmax)=2000pF.注:①最大占空比=22%,最大脉宽=18μs时.型号：说明：类型:直热式阴极高压整流二极管主要用途:在电视机接收中作行扫描逆程电压整流(基本数据)灯丝电压(Uf)=0.7V;灯丝电流(If)=0.2A;阳极交流电压(Ua~)=100V;阳极电流(Ia)≥2mA;行扫描频率(fH)≥16kHz.(极限运用数据)最大灯丝电压(Ufmax)=0.77V;最小灯丝电压(Ufmin)=0.63V;最大反向电压峰值(Upmax)=8kV;最大整流电流(Ikmax)=3mA;最大阳极耗散功率(Pamax)=0.6W.型号：说明：类型:直热式阴极高压脉冲整流二极管主要用途:在专用无线电设备中作高频脉冲整流用(基本数据)灯丝电压(Uf)=1.25V;灯丝电流(If)=0.2±0.04A;阳极反向电压峰值(Up)≥30kV;阴极放射电流①(Ia)≥4mA;注:①Ua=100V时.(极间电容)阳极与阴极间电容(Cak)=1.2±0.5pF.(极限运用数据)最大灯丝电压(Ufmax)=1.4V;最小灯丝电压(Ufmin)=1.1V;最大反向电压峰值(Upmax)=30kV;最大整流电流(Ikmax)=2mA;最大脉冲频率(fmax)=300kHz.型号：说明：类型:直热式阴极二极管主要用途:电视机接收中作行扫描逆程脉冲电压整流用(基本数据)灯丝电压(Uf)=1.2V;灯丝电流(If)=0.2A;阳极电压(Ua)=100V;阳极电流(Ia)≥4mA.(极间电容)阳极与阴极间电容(Cak)=1pF.(极限运用数据)最大灯丝电压(Ufmax)=1.32V;最小灯丝电压(Ufmin)=1.08V;最大整流电流(Ikmax)=300μA;最大反向电压峰值(Upmax)=20kV;最小行扫描频率(fmin)=12kHz.型号：说明：类型:旁热式阴极二极管主要用途:在分米波段作检波用(基本数据)灯丝电压(Uf)=2.3V;灯丝电流(If)=0.2±0.05A;阳极电压(Ua)=5V;阳极电流(Ia)≥1.6mA.(极间电容)阳极与阴极间电容(Cak)=0.1~0.4pF.(极限运用数据)最大灯丝电压(Ufmax)=2.4V;最小灯丝电压(Ufmin)=2.2V;最大整流电流(Ikmax)=0.1mA;最大反向电压峰值(Upmax)=100V;最大阳极耗散功率(Pamax)=0.01W;最大阴极和灯丝间电压(Ufkmax)=±25V; 最高工作频率(fmax)=3GHz.型号：说明：类型:直热式阴极锐截止五极管主要用途:高频电压放大(基本数据)灯丝电压(Uf)=2.2V;灯丝电流(If)=0.06A;阳极电压(Ua)=90V;阳极电流(Ia)=1.9±0.6mA;第一栅极电压(Ug1)=0V;第二栅极电压(Ug2)=45V;第二栅极电流(Ig2)≤0.8mA;第三栅极电压(Ug3)=0V;跨导(S)=1.25±0.25mA/V.(极间电容)输入电容(Cin)≤4.5pF;输出电容(Cout)≤6.0pF;过渡电容(Cag)≤0.015pF;阳极与阴极间电容(Cak)≤0.03pF.(极限运用数据)最大灯丝电压(Ufmax)=2.5V;最小灯丝电压(Ufmin)=1.8V;最大阳极电压(Uamax)=90V;最大第二栅极电压(Ug2maxp)=90V;最大阴极电流(Ikmax)=5mA;最大阳极耗散功率(Pamax)=0.5W.最大第二栅极耗散功率(Pg2max)=0.13W.型号：说明：类型:直热式阴极锐截止五极管主要用途:小功率放大及高频振荡(基本数据)灯丝电压(Uf)=2.2V;灯丝电流(If)=0.057A;阳极电压(Ua)=120V;阳极电流(Ia)=1.9±0.6mA;第一栅极电压(Ug1)=0V;第二栅极电压(Ug2)=45V;第二栅极电流(Ig2)≤0.5mA;第三栅极电压(Ug3)=0V;跨导(S)=1.25±0.25mA/V;内阻(Ri)≥0.7MΩ.(极间电容)输入电容(Cin)≤5.3pF;输出电容(Cout)≤4.9pF;阳极与阴极间电容(Cak)≤0.01pF.(极限运用数据)最大灯丝电压(Ufmax)=2.4V;最小灯丝电压(Ufmin)=2.0V;最大阳极电压(Uamax)=200V;最大第二栅极电压(Ug2max)=120V;最大阴极电流(Ikmax)=5mA;最大阳极耗散功率(Pamax)=1.0W;最大第二栅极耗散功率(Pg2max)=0.3W.???型号：说明：类型:直热式阴极五极管主要用途:低频功率放大(基本数据)灯丝电压(Uf)=1.2/2.4V;灯丝电流(If)=0.06/0.03A;阳极电压(Ua)=60V;阳极电流(Ia)=3.5±1.2mA;第一栅极电压(Ug1)=﹣3.5V;第二栅极电压(Ug2)=60V;第二栅极电流(Ig2)≤1.2mA;跨导(S)≥0.9mA/V;输出功率(PO)=50mW;非线性失真度系数(THD)≤10%.(极间电容)输入电容(Cin)=3.7pF;输出电容(Cout)=3.8pF;过渡电容(Cag)=0.4pF.(极限运用数据)最大灯丝电压(Ufmax)=1.4V/2.8V;最小灯丝电压(Ufmin)=0.9/1.8V;最大阳极电压(Uamax)=90V;最大第二栅极电压(Ug2maxp)=90V;最大阳极电源电压(Eamax)=250V;最大第二栅极电源电压(Ea2max)=250V; 最大阴极电流(Ikmax)=7mA;最大阴极电流峰值(Ikmax)=10mA;最大阳极耗散功率(Pamax)=0.4W.型号：说明：类型:直热式阴极束射四极管主要用途:功率输出(基本数据)灯丝电压(Uf)=1.4/2.8V;灯丝电流(If)=0.2/0.1A;阳极电压(Ua)=135V;阳极电流(Ia)=16±4mA;第一栅极电压(Ug1)=﹣7.5V;第二栅极电压(Ug2)=90V;第二栅极电流(Ig2)≤3.1mA;输出功率(PO)≥0.15W;非线性失真度系数(THD)≤10%.(极间电容)输入电容(Cin)=4.8pF;输出电容(Cout)=4.2pF;过渡电容(Cag)≤0.34pF.(极限运用数据)最大灯丝电压(Ufmax)=1.54/3.08V;最小灯丝电压(Ufmin)=1.26/2.52V;最大阳极电压(Uamax)=150V;最大第二栅极电压(Ug2maxp)=135V;最大阴极电流(Ikmax)=23mA;最大阳极耗散功率(Pamax)=2.0W;最大第二栅极耗散功率(Pg2max)=0.5W.?????型号：说明：类型:直热式阴极五极管主要用途:功率放大(基本数据)灯丝电压(Uf)=2.2V;灯丝电流(If)=0.1A;阳极电压(Ua)=120V;阳极电流(Ia)=7.6±2.2mA;第一栅极电压(Ug1)=﹣5V;第二栅极电压(Ug2)=90V;第二栅极电流(Ig2)≤3.5mA;第三栅极电压(Ug3)=0V;跨导(S)≥1.7mA/V.(极间电容)输入电容(Cin)≤4.5pF;输出电容(Cout)≤7pF;过渡电容(Cag)≤0.03pF;阳极与阴极间电容(Cak)≤0.05pF.(极限运用数据)最大灯丝电压(Ufmax)=2.5V;最小灯丝电压(Ufmin)=1.8V;最大阳极电压(Uamax)=200V;最大第二栅极电压(Ug2maxp)=130V;最大阴极电流(Ikmax)=15mA;最大阳极耗散功率(Pamax)=1W;最大第二栅极耗散功率(Pg2max)=0.35W.型号：说明：类型:直热式阴极五极管主要用途:小功率发射(基本数据)灯丝电压(Uf)=2.2V;灯丝电流(If)=0.11A;阳极电压(Ua)=120V;阳极电流(Ia)≥2.7mA;第一栅极电压(Ug1)=0V;第二栅极电压(Ug2)=45V;第二栅极电流(Ig2)≤1.2mA;第三栅极电压(Ug3)=0V;跨导(S)≥1.5mA/V.(极间电容)输入电容(Cin)=4.85pF;输出电容(Cout)=2pF;阳极与阴极间电容(Cak)≤0.01pF.(极限运用数据)最大灯丝电压(Ufmax)=2.4V;最小灯丝电压(Ufmin)=2.0V;最大阳极电压(Uamax)=200V;最大第二栅极电压(Ug2maxp)=120V;最大阴极电流(Ikmax)=5mA;最大阳极耗散功率(Pamax)=1W;最大第二栅极耗散功率(Pg2max)=0.3W.型号：说明：类型:直热式阴极五极管主要用途:功率放大及高频振荡(基本数据)灯丝电压(Uf)=2.2V;灯丝电流(If)=0.12A;阳极电压(Ua)=160V;阳极电流(Ia)=10mA;第一栅极电压(Ug1)=﹣5.5±1.7V;第二栅极电压(Ug2)=120V;第二栅极电流(Ig2)≤2.0mA;第三栅极电压(Ug3)=0V;跨导(S)=2.05±0.25mA/V;输出功率(PO)=1.2W.(极间电容)输入电容(Cin)=4.3pF;输出电容(Cout)=5.6pF;过渡电容(Cag)=0.055pF;阳极与阴极间电容(Cak)=0.03pF.(极限运用数据)最大灯丝电压(Ufmax)=2.4V;最小灯丝电压(Ufmin)=2.0V;最大阳极电压(Uamax)=200V;最大第二栅极电压(Ug2maxp)=150V;最大阴极电流(Ikmax)=20mA;最大阳极耗散功率(Pamax)=2.0W;最大第二栅极耗散功率(Pg2max)=0.7W; 最高工作频率(fmax)=120MHz.型号：说明：类型:旁热式阴极高压整流二极管主要用途:高压整流(基本数据)灯丝电压(Uf)=2.5V;灯丝电流(If)=1.75±0.2A;平均整流电流(Icp)≥6.8mA;变压器次级线圈交流电压有效值(Urms)=4500V;滤波电容①(C)=0.06μF.注:①当选用大于此值的滤波电容时必须加入充电限流电阻,以免滤波电容充电峰值电流超出上述规定.(极限运用数据)最大灯丝电压(Ufmax)=2.75V;最小灯丝电压(Ufmin)=2.25V;最大阳极交流电压有效值(Urms)=4500V;最大反向电压峰值(Upmax)=12.5kV;最大整流电流(Ikmax)=7.5mA.型号：说明：类型:旁热式阴极锐截止五极管主要用途:小功率放大及高频振荡(基本数据)灯丝电压(Uf)=4.2V;灯丝电流(If)=0.225A;阳极电压(Ua)=150V;阳极电流(Ia)=1.4~3.1mA;第一栅极电压(Ug1)=﹣2.3V;第二栅极电压(Ug2)=75V;第二栅极电流(Ig2)=0.2~0.9mA;第三栅极电压(Ug3)=0V;跨导(S)=1.2~2.1mA/V;内阻(Ri)≥1MΩ;输出功率(PO)≥0.5W.(极间电容)输入电容(Cin)=4.0pF;输出电容(Cout)=4.2pF;过渡电容(Cag)≤0.007pF.(极限运用数据)最大灯丝电压(Ufmax)=4.8V;最小灯丝电压(Ufmin)=3.6V;最大阳极电压(Uamax)=250V;最大第二栅极电压(Ug2maxp)=225V;最大灯丝与阴极间电压(Ufkmax)=100V;最大阴极电流(Ikmax)=11mA;最大阳极耗散功率(Pamax)=2W;最大第二栅极耗散功率(Pg2max)=0.7W.型号：说明：类型:直热式阴极五极管主要用途:振荡及功率放大(基本数据)灯丝电压(Uf)=4.2V;灯丝电流(If)=0.325A;阳极电压(Ua)=150V;阳极电流(Ia)=60±20mA;第一栅极电压(Ug1)=﹣3.5V;第二栅极电压(Ug2)=150V;第二栅极电流(Ig2)≤6.5mA;第三栅极电压(Ug3)=0V;跨导(S)=6±1.5mA/V;输出功率(PO)≥4.2W.(极间电容)输入电容(Cin)=8.5pF;输出电容(Cout)=9.4pF;过渡电容(Cag)≤0.1pF.(极限运用数据)最大灯丝电压(Ufmax)=4.7V;最小灯丝电压(Ufmin)=3.9V;最大阳极电压(Uamax)=250V;最大第二栅极电压(Ug2maxp)=250V; 最大阴极电流(Ikmax)=50mA;最大阳极耗散功率(Pamax)=7.5W;最大第二栅极耗散功率(Pg2max)=1.5W.型号：说明：类型:直热式阴极双阳极整流二极管主要用途:小功率全波整流(基本数据)灯丝电压(Uf)=5V;灯丝电流(If)=2±0.4A;平均整流电流(Icp)=125mA;变压器次级线圈交流电压有效值①(Urms)=2x500V; 变压器次级线圈交流电压有效值②(Urms)=2x350V; 滤波电容(C)=4μF;滤波电感(L)=10H.注:①滤波电路为电感输入时;②滤波电路为电容输入时.(极限运用数据)最大灯丝电压(Ufmax)=5.5V;最小灯丝电压(Ufmin)=4.5V;最大整流电流(Ikmax)=125mA;最大反向电压峰值(Upmax)=1.4kV.型号：说明：类型:直热式阴极双阳极整流二极管主要用途:小功率全波整流(基本数据)灯丝电压(Uf)=5V;灯丝电流(If)=2±0.2A;平均整流电流(Icp)=125mA;变压器次级线圈交流电压有效值(Urms)=2x400V; 滤波电容(C)=4μF.(极限运用数据)最大灯丝电压(Ufmax)=5.5V;最小灯丝电压(Ufmin)=4.5V;最大整流电流(Ikmax)=125mA;最大反向电压峰值(Upmax)=1.4kV.型号：说明：类型:直热式阴极双阳极整流二极管主要用途:小功率全波整流(基本数据)灯丝电压(Uf)=5V;灯丝电流(If)=3±0.3A;平均整流电流(Icp)≥230mA;变压器次级线圈交流电压有效值(Urms)=2x500V; 滤波电容(C)=4μF.(极限运用数据)最大灯丝电压(Ufmax)=5.5V;最小灯丝电压(Ufmin)=4.5V;最大整流电流(Ikmax)=250mA;最大反向电压峰值(Upmax)=1550V.型号：说明：类型:直热式阴极双阳极整流二极管主要用途:小功率全波整流(基本数据)灯丝电压(Uf)=5V;灯丝电流(If)=1.8~2.2A;平均整流电流(Icp)≥122mA;变压器次级线圈交流电压有效值(Urms)=2x500V; 滤波电容(C)=4μF.(极限运用数据)最大灯丝电压(Ufmax)=5.5V;最小灯丝电压(Ufmin)=4.5V;最大整流电流(Ikmax)=125mA;最大反向电压峰值(Upmax)=1350V.型号：说明：类型:旁热式阴极双阳极整流二极管主要用途:全波整流(基本数据)灯丝电压(Uf)=5V;灯丝电流(If)=5±0.75A;平均整流电流(Icp)≥400mA;变压器次级线圈交流电压有效值(Urms)=2x500V; 滤波电容(C)=4μF.(极限运用数据)最大灯丝电压(Ufmax)=5.5V;最小灯丝电压(Ufmin)=4.5V;最大整流电流(Ikmax)=420mA;最大反向电压峰值(Upmax)=1700V;最大阳极耗散功率(Pamax)=30W.型号：说明：类型:旁热式阴极双阳极整流二极管主要用途:全波整流(基本数据)灯丝电压(Uf)=5V;灯丝电流(If)=3±0.3A;平均整流电流(Icp)≥190mA;变压器次级线圈交流电压有效值(Urms)=2x500V; 滤波电容(C)=4μF.(极限运用数据)最大灯丝电压(Ufmax)=5.5V;最小灯丝电压(Ufmin)=4.5V;最大整流电流(Ikmax)=205mA;最大反向电压峰值(Upmax)=1700V;最大阳极耗散功率(Pamax)=12W.型号：说明：类型:旁热式阴极七极管主要用途:变频(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3A;阳极电压(Ua)=250V;阳极电流(Ia)=3±1mA;第二四栅极电压(Ug2g4)=100V;第三栅极电压(Ug3)=﹣1.5V;第二四栅极电流(Ig2g4)=7.0±2.1mA;第一栅极电阻(Rg1)=20kΩ;变频跨导(Sc)≥0.3mA/V;振荡跨导≥4.5mA/V.(极间电容)输入电容(Cin)≤8.8pF;输出电容(Cout)≤10.1pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=330V;最大第二四栅极电压(Ug2g4max)=110V;最大第三栅极电压(Ug3max)=﹣50V;最大第一栅极电流(Ig1max)=0.5mA;最大阴极电流(Ikmax)=14mA;最大灯丝与阴极间电压(Ufkmax)=100V;最大阳极耗散功率(Pamax)=1.1W;最大第二四栅极耗散功率(Pg2g4max)=1.1W.型号：说明：类型:旁热式阴极七极变频管主要用途:变频(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3±0.025A;阳极电压(Ua)=250V;阳极电流(Ia)=3.5±1mA;第二四栅极电压(Ug2g4)=100V;第三栅极电压(Ug3)=0V;第一栅极电流(Ig1)=0.51±0.13mA;第二四栅极电流(Ig2g4)=9±2.5mA;变频跨导(Sc)=0.45±0.15mA/V;振荡跨导=4.7±1.2mA/V.(极间电容)输入电容(Cin)=11±3pF;输出电容(Cout)=11±3pF;过渡电容(Cag)=0.7pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=330V;最大第二四栅极电压(Ug2g4max)=110V;最大第一栅极电流(Ig1max)=0.5mA;最大阴极电流(Ikmax)=15.5mA;最大灯丝与阴极间电压(Ufkmax)=100V;最大阳极耗散功率(Pamax)=1.1W;最大第二四栅极耗散功率(Pg2g4max)=1.1W.型号：说明：类型:旁热式阴极双二极-五极管主要用途:作高频和低频电压放大、检波和自动音量控制(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3±0.025A;(双二极管部分)平均整流电流(Icp)≥220μA;(五极管部分)阳极电压(Ua)=250V;阳极电流(Ia)=7.3~13mA;第一栅极电压(Ug1)=﹣3V;第二栅极电压(Ug2)=125V;第二栅极电流(Ig2)=2.45+1.05mA;跨导(S)=1.32~1.6mA/V.(极间电容)输入电容(Cin)=3.9~4.15pF;输出电容(Cout)=11±2pF;过渡电容(Cag)≤0.008pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=27.5V;最大第二栅极电压(Ug2maxp)=140V;最大每只二极管整流电流(Ikmax)=1mA;最大阳极耗散功率(Pamax)=4W;最大第二栅极耗散功率(Pg2max)=0.3W;最大灯丝与阴极间电压(Ufkmax)=100V.型号：说明：类型:旁热式阴极三极管主要用途:高频电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.15A;阳极电压(Ua)=250V;阳极电流(Ia)=6.1±2.5mA;栅极电压(Ug)=﹣7V;跨导(S)=2.65±0.65mA/V;内阻(Ri)=8.4~14.8kΩ.(极间电容)输入电容(Cin)=0.95~1.8pF;输出电容(Cout)=0.75~1.45pF;过渡电容(Cag)=1.0~1.8pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=275V;最大灯丝与阴极间电压(Ufkmax)=﹣90V; 最大阳极耗散功率(Pamax)=1.8W.型号：说明：类型:旁热式阴极三极管主要用途:高频电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3A;阳极电压(Ua)=150V;阳极电流(Ia)=16±4mA;阴极电阻(Rk)=100Ω;跨导(S)=19.5±4.5mA/V;放大系数(μ)=50±15.(极间电容)输入电容(Cin)=5.5pF;输出电容(Cout)=0.85pF;过渡电容(Cag)≤2.4pF;灯丝与阴极间电容(Cfk)=7pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=160V;最大灯丝与阴极间电压(Ufkmax)=+100V(-160V); 最大阳极耗散功率(Pamax)=3W;最大阴极电流(Ikmax)=35mA;最大栅极电阻(Rgmax)=1MΩ.型号：说明：类型:旁热式阴极三极管主要用途:宽频带高频电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3A;阳极电压(Ua)=150V;阳极电流(Ia)=16±4mA;阴极电阻(Rk)=100Ω;跨导(S)=19.5±4.5mA/V;放大系数(μ)=50±15.(极间电容)输入电容(Cin)≤13.3pF;输出电容(Cout)≤0.17pF;过渡电容(Cag)≤3.75pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=160V;最大灯丝与阴极间电压(Ufkmax)=±100V; 最大阳极耗散功率(Pamax)=3W;最大阴极电流(Ikmax)=35mA;最大栅极电阻(Rgmax)=1MΩ.?????�型号：说明：类型:旁热式阴极三极管主要用途:作分米和厘米波段的小功率振荡(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.7±0.07A;阳极电压(Ua)=250V;阳极电流(Ia)=8~23A;跨导(S)=5±1.5mA/V;放大系数(μ)=40±10.(极间电容)输入电容(Cin)=1.9~2.8pF;输出电容(Cout)≤0.05pF;过渡电容(Cag)=1.15~1.5pF.(极限运用数据)最大灯丝电压(Ufmax)=6.6V;最小灯丝电压(Ufmin)=6.0V;最大阳极电压(Uamax)=300V;最大灯丝与阴极间电压(Ufkmax)=±100V; 最大阳极耗散功率(Pamax)=6.5W;最高振荡频率(fmax)=3370MHz.型号：说明：类型:旁热式阴极三极管主要用途:检波和低频电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3±0.025A;阳极电压(Ua)=﹣8V;阳极电流(Ia)=8±3mA;跨导(S)=2.2±0.5mA/V;内阻(Ri)=9kΩ;放大系数(μ)=20±2.(极间电容)输入电容(Cin)=3.8±0.9pF;输出电容(Cout)=7.4~13.4pF;过渡电容(Cag)=2±0.6pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=350V;最大灯丝与阴极间电压(Ufkmax)=100V; 最大阳极耗散功率(Pamax)=2.75W.型号：说明：类型:旁热式阴极三极管主要用途:低频电压放大及高频振荡(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.2A;阳极电压(Ua)=120V;阳极电流(Ia)=9.0±2.7mA;阴极电阻(Rk)=220Ω;跨导(S)=4~6.3mA/V;放大系数(μ)=25.(极间电容)输入电容(Cin)=2.5pF;输出电容(Cout)=2.5pF;过渡电容(Cag)≤1.58pF;灯丝与阴极间电容(Cfk)≤7pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=250V;最大灯丝与阴极间电压(Ufkmax)=150V; 最大阳极耗散功率(Pamax)=1.4W;最大栅极电阻(Rgmax)=1MΩ;最高频率(fmax)=500MHz.??型号：说明：类型:旁热式阴极三极管主要用途:低频电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.2A;阳极电压(Ua)=250V;阳极电流(Ia)=4.5±0.9mA;阴极电阻(Rk)=400Ω;跨导(S)=4±0.9mA/V;放大系数(μ)=65.(极间电容)输入电容(Cin)=2.5pF;输出电容(Cout)=2.65pF;过渡电容(Cag)≤1.0pF;灯丝与阴极间电容(Cfk)≤7pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=300V;最大灯丝与阴极间电压(Ufkmax)=±150V; 最大阳极耗散功率(Pamax)=1.45W;最大阴极电流(Ikmax)=7mA;最大栅极电阻(Rgmax)=1MΩ.型号：说明：类型:旁热式阴极三极管主要用途:高频脉冲振荡(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3±0.025A;阳极电压(Ua)=300V;阳极电流(Ia)=8~14.5mA;跨导(S)=3±0.6mA/V;放大系数(μ)=20±2.(极间电容)输入电容(Cin)=2.2±0.4pF;输出电容(Cout)=0.65±0.15pF;过渡电容(Cag)=3.6±0.72pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=500V;最大灯丝与阴极间电压(Ufkmax)=±100V; 最大阳极耗散功率(Pamax)=3.6W.�?型号：说明：类型:旁热式阴极三极管主要用途:超高频振荡(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.17A;阳极电压(Ua)=120V;阳极电流(Ia)=20mA;跨导(S)=4.5mA/V;放大系数(μ)=16.(极间电容)输入电容(Cin)=1.8±0.4pF;输出电容(Cout)=0.7±0.3pF;过渡电容(Cag)=1.6±0.3pF;灯丝与阴极间电容(Cfk)=2.5pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=275V;最大灯丝与阴极间电压(Ufkmax)=±100V; 最大阳极耗散功率(Pamax)=3.5W;最大栅极电阻(Rgmax)=1MΩ.型号：说明：类型:旁热式阴极三极管主要用途:在栅地电路中作低噪超高频放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.17mA;阳极电压(Ua)=160V;阳极电流(Ia)=12±3mA;跨导(S)=13±3mA/V;放大系数(μ)=65.(极间电容)输入电容(Cin)=3.7±0.5pF;输出电容(Cout)=1.5±0.5pF;过渡电容(Cag)=0.08±0.02pF.(极限运用数据)最大灯丝电压(Ufmax)=7.0V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=175V;最大灯丝与阴极间电压(Ufkmax)=100V; 最大阳极耗散功率(Pamax)=2W;最大栅极电阻(Rgmax)=1MΩ.型号：说明：类型:旁热式阴极高跨导、低噪声三极管主要用途:宽频带电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3A;阳极电压(Ua)=150V;阳极电流(Ia)=24mA;阴极电阻(Rk)=60Ω;跨导(S)=24mA/V.(极间电容)输入电容(Cin)=10pF;输出电容(Cout)=1pF;过渡电容(Cag)=3pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电流(Iamax)=30mA;最大灯丝与阴极间电压(Ufkmax)=150V;最大阳极耗散功率(Pamax)=4W.?????型号：说明：类型:旁热式阴极大功率三极管主要用途:稳压器调整管、OTL功放(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=1±0.07A;阳极电压(Ua)=110V;栅极电压(Ug)=﹣7V;阳极电流(Ia)=105±25mA;阴极电阻(Rk)=130Ω;跨导(S)=7.5±1.5mA/V;内阻(Ri)=300Ω.(极间电容)输入电容(Cin)=6.5pF;输出电容(Cout)=2.5pF;过渡电容(Cag)=8.0pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极耗散功率(Pamax)=11W;最大栅极电阻(Rgmax)=0.5MΩ;最大阳极电压①(Uamax)Pa≤7W时350V,Pa≤11W时200V;最大灯丝与阴极间电压(Ufkmax)=±250V;最大栅极电压(Ugmax)=﹣1.5V.注:①指管子在冷态时插入500V.(推荐甲类功放参数)阳极电压(Ua)=190V; 栅极电压(Ug)=﹣67V;阳极电流(Ia)=45mA;阴极自给偏压电阻(Rk)=1.5kΩ;最大阳极耗散功率(Pamax)=8.5W;负载阻抗(ZL)=1.25kΩ;输出功率(PO)=7W;非线性失真度(THD)=0.75%(1W),7%(7W).型号：说明：类型:旁热式阴极三极管主要用途:电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.22A;阳极电压(Ua)=50V;阳极电流(Ia)=40±10mA;跨导(S)=20±6mA/V;放大系数(μ)>13.(极间电容)输入电容(Cin)=4.1±1.0pF;输出电容(Cout)≤1.5pF;过渡电容(Cag)=3.8±1.0pF;灯丝与阴极间电容(Cfk)≤5.5pF.(极限运用数据)最大灯丝电压(Ufmax)=7.0V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=100V;最大灯丝与阴极间电压(Ufkmax)=±200V; 最大阳极耗散功率(Pamax)=2.5W;最大阴极电流(Ikmax)=50mA;最大栅极电阻(Rgmax)=1MΩ.型号：说明：类型:旁热式阴极遥截止三极管主要用途:电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.165A;阳极电压(Ua)=200V;阳极电流(Ia)=3.0±1.3mA;阴极电阻(Rk)=280Ω;跨导(S)=3.5±1.3mA/V;放大系数(μ)=70~140.(极间电容)输入电容(Cin)=3.0±0.7pF;输出电容(Cout)=0.65±0.35pF;过渡电容(Cag)≤1.2pF;灯丝与阴极间电容(Cfk)≤6.0pF.(极限运用数据)最大灯丝电压(Ufmax)=7.0V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=250V;最大灯丝与阴极间电压(Ufkmax)=150V;最大阳极耗散功率(Pamax)=4.5W;最大阴极电流(Ikmax)=10mA;最大栅极电阻(Rgmax)=2MΩ.型号：说明：类型:旁热式阴极三极管主要用途:作分米波振荡(基本数据)灯丝电压(Uf)=12.6V;灯丝电流(If)=0.09A;阳极电压(Ua)=100V;阳极电流(Ia)=30.2±12.5mA;跨导(S)=2.2~4.2mA/V;放大系数(μ)=8~17;输出功率①(PO)≥275mA.注:①Ua=130V;f≥7.5x108Hz时.(极间电容)输入电容(Cin)=1.55±0.55pF;输出电容(Cout)=0.65±0.15pF;过渡电容(Cag)=1.15±0.25pF.(极限运用数据)最大灯丝电压(Ufmax)=14.5V;最小灯丝电压(Ufmin)=10.8V;最大阳极电压(Uamax)=300V;最大栅极电压(Ugmax)=50V;最小栅极电压(Ugmin)=﹣250V;最大阳极耗散功率(Pamax)=5W;最大栅极耗散功率(Pgmax)=0.25W;最小输出功率(POmin)=275mW;最大阴极电流峰值(Ikmax)=200mA;最大灯丝与阴极间电压(Ufkmax)=100V.型号：说明：类型:旁热式阴极调谐指示管主要用途:调谐指示(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3A;荧光屏电压(UL)=250V;阳极电压(Ua)=100V;栅极电压(Ug)=0~﹣15V;阳极电阻(Ra)=0.5MΩ;栅极电阻(Rg)=0.1MΩ;荧光屏扇形指示角(θL)=5o~55o.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大荧光屏电压(ULmax)=250V;最大阳极电压(Uamax)=250V;最大阳极耗散功率(Pamax)=0.2W;最大栅极电阻(Rgmax)=3MΩ.型号：说明：类型:旁热式阴极调谐指示管主要用途:调谐指示(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3±0.03A;阳极电流①(Ia)=2±0.5mA;栅极截止电压②(Ugj)=﹣10±5V;阳极电源电压(Ea)=250V;荧光屏电压(UL)=250V;荧光屏电流①(IL)=1mA;跨导(S)≥0.5mA/V;阳极内阻(Ri)=100kΩ;栅极电阻(Rg)=3MΩ;放大系数(μ)≥20.注:①Ug=0V时;②荧光屏光带闭合时.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大荧光屏电压(ULmax)=250V;最小荧光屏电压(ULmin)=200V;最大阳极电源电压(Eamax)=250V;最大阳极耗散功率(Pamax)=0.5W;最大栅极电阻(Rgmax)=3MΩ;最大灯丝与阴极间电压(Ufmax)=±100V.型号：说明：类型:旁热式阴极调谐指示管主要用途:调谐指示(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.3±0.025A;阳极电压(Ua)=250V;荧光屏电压(UL)=250V;栅极电压(Ug)=﹣4V;阳极电流(Ia)=5.3±1.9mA;荧光屏电流(IL)≤5mA;跨导(S)=1.2±0.4mA/V;放大系数(μ)=24±2;荧光屏扇形阴影闭合时栅极电压(UgL)=﹣7.5±2V. (极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大阳极电压(Uamax)=250V;最大荧光屏电压(ULmax)=250V;最大灯丝与阴极间电压(Ufmax)=100V.型号：说明：类型:旁热式阴极三极-五极管主要用途:变频或高频电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.417A;(三极管部分)阳极电压(Ua)=100V;阳极电流(Ia)=13±5mA;栅极电压(Ug)=﹣2V;跨导(S)=5±1.5mA/V;放大系数(μ)=20;(五极管部分)阳极电压(Ua)=170V;阳极电流(Ia)=6~15mA;第二栅极电压(Ug2)=170V;第二栅极电流(Ig2)≤4.5mA;跨导(S)=6.2±2.2mA/V;内阻(Ri)=0.4MΩ.(极间电容)(三极管部分)输入电容(Cin)=2.5pF;输出电容(Cout)=0.3pF;过渡电容(Cag)=1.45pF;(五极管部分)输入电容(Cin)=5.5pF;输出电容(Cout)=3.4pF;过渡电容(Cag)≤0.025pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大灯丝与阴极间电压(Ufkmax)=100V; (三极管部分)最大阳极电压(Uamax)=250V; 最大阴极电流(Ikmax)=14mA;最大阳极耗散功率(Pamax)=1.5W;最大栅极电阻(Rgmax)=0.5MΩ;(五极管部分)最大阳极电压(Uamax)=250V; 最大第二栅极电压(Ug2maxp)=175V;最大阴极电流(Ikmax)=14mA;最大阳极耗散功率(Pamax)=2.5W;最大第二栅极耗散功率(Pg2max)=0.7W;最大第一栅极电阻(Rgmax)=1MΩ.型号：说明：类型:旁热式阴极三极-五极管主要用途:振荡、混频及高频电压放大(基本数据)灯丝电压(Uf)=6.3V;灯丝电流(If)=0.45±0.05A;(三极管部分)阳极电压(Ua)=150V;阳极电流(Ia)=13±5mA;阴极电阻(Rk)=56Ω;跨导(S)=8.5mA/V;内阻(Ri)=5kΩ;放大系数(μ)=40;(五极管部分)阳极电压(Ua)=250V;阳极电流(Ia)=10±3mA;第二栅极电压(Ug2)=110V;第二栅极电流(Ig2)≤5.5mA;阴极电阻(Rk)=68Ω;跨导(S)=5.2mA/V;内阻(Ri)=400kΩ.(极间电容)(三极管部分)输入电容(Cin)=2.5pF;输出电容(Cout)=0.4pF;过渡电容(Cag)=1.8pF;(五极管部分)输入电容(Cin)=5pF;输出电容(Cout)=2.6pF;过渡电容(Cag)=0.01pF.(极限运用数据)最大灯丝电压(Ufmax)=6.9V;最小灯丝电压(Ufmin)=5.7V;最大灯丝与阴极间电压(Ufkmax)=±90V; (三极管部分)最大阳极电压(Uamax)=300V; 最大栅极电压(Ugmax)=0V;最大阴极电流(Ikmax)=20mA;最大阳极耗散功率(Pamax)=2.7W;最大栅极电阻(Rgmax)=1MΩ;(五极管部分)最大阳极电压(Uamax)=300V; 最大第一栅极偏压(Ug1max)=0V;最大第二栅极电压(Ug2maxp)=300V;最大阴极电流(Ikmax)=20mA;最大阳极耗散功率(Pamax)=2.8W;最大第二栅极耗散功率(Pg2max)=0.5W.。
电子管代换及说明资料
电子管代换及说明常用电压放大级即前级放大胆管代换表6N1ECC85,6AQ8,6H1л6N412AX7,ECC83,E83CC,7729,CV4004,B759,CV4926N10 12AU7,ECC82,E82CC,7316,CV4003,5814,B749,61896N11 6DJ8,E88CC,ECC88,6922,ECC189,6J5,6H11N,7308,El88CC6N8P 6SN7,B65,5692,33S30,CV1988,6H8C,6HM,6F8G,16336H8C 6HM,6F8G,1633,9002,6C8G6J8P 6SJ7,6267,EF86,12AT7ECC81,CV4024,6201,B739,A2900,2025,ECC80156N9P 6SL7,5691,33S29,VT2296F2ECF82,6U86N26H2л电子管代换及说明可以直接代用12AU7的型号有：ECC82，E82CC，ECC802S，B329，CV491，CV4003，CV8155，M8136，5814，6189，7730，6067，7730。
可以直接代用12AX7的管子有：ECC83，ECC803S，B339，E283CC，M8137，CV492，CV4004，CV8156，6057,7729。
7025，5751，7058，6N4。
前级管的选择：12AX7：品牌一：AMPEREX 『橙字』『地球嘜』品牌二：RCA 5751 『红字』『黑屏』『方环胆』『三云母』三：『黃字』『三雲母』『黑屏』『方環』『閃電嘜』SYLVANIA 5157。
12AU7：品牌一：AMPEREX『地球嘜』品牌二：MULLARD ecc826922：品牌一：西门子 CCA品牌二：AMPEREX 7308PHILIPS电子管大家族“买Philips电子管？不是真的吧，他们好像只是生产灯泡和光管，其音响用电子管的质素想必好不到哪里吧！”，“Philips电子管？他们根本没有生产音响用电子管，全部都是买别人家的出品回来印牌发售，又谈何Philips电子管的音色呢？”“Amperex电子管？Amperex只是一个商标，并无自己的出品，好像其吹喇叭系列电子管，都是买Philips电子管来印牌发售的”。
IXYS Corporation 电子管数据手册说明书

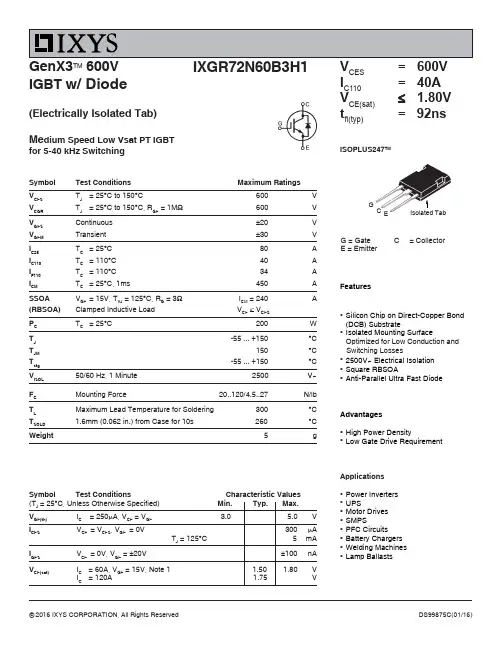

Symbol Test Conditions Characteristic Values(TJ= 25︒C, Unless Otherwise Specified) Min. Typ. Max.VGE(th) IC= 250μA, VCE= VGE3.0 5.0 VI CES VCE= VCES, VGE= 0V 300 μA TJ= 125︒C 5 mAI GES VCE= 0V, VGE= ±20V ±100 nAVCE(sat) IC= 60A, VGE= 15V, Note 1 1.50 1.80 V IC= 120A 1.75 VSymbol Test Conditions Maximum RatingsVCES TJ= 25︒C to 150︒C 600VVCGR TJ= 25︒C to 150︒C, RGE= 1MΩ 600VVGESContinuous±20VVGEMTransient±30VI C25TC= 25︒C80AIC110TC= 110︒C40AIF110TC= 110︒C34AI CM TC= 25︒C, 1ms450ASSOA VGE = 15V, TVJ= 125︒C, RG= 3ΩICM= 240A(RBSOA)Clamped Inductive Load VCE ≤ VCESPC TC= 25︒C200WTJ-55 ... +150︒CTJM150︒CTstg-55 ... +150︒CVISOL50/60 Hz, 1 Minute 2500V~FCMounting Force20..120/4.5..27N/lbTLMaximum Lead Temperature for Soldering300°CTSOLD1.6mm (0.062 in.) from Case for 10s 260 °C Weight5 g VCES= 600V IC110= 40A VCE(sat)≤ 1.80V tfi(typ)= 92nsIXGR72N60B3H1GenX3TM600VIGBT w/ Diode(Electrically Isolated Tab)Me dium Speed Low Vsat PT IGBTfor 5-40 kHz Switching ISOPLUS247TMGCEG = Gate C = CollectorE = EmitterIsolated TabFeatures●Silicon Chip on Direct-Copper Bond(DCB) Substrate●Isolated Mounting SurfaceOptimized for Low Conduction andSwitching Losses●2500V~ Electrical Isolation●Square RBSOA●Anti-Parallel Ultra Fast DiodeAdvantages●High Power Density●Low Gate Drive RequirementApplications●Power Inverters●UPS●Motor Drives●SMPS●PFC Circuits●Battery Chargers●Welding Machines●Lamp BallastsIXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.Reverse Diode (FRED)(Symbol Test ConditionsCharacteristic Values (T J = 25︒C, Unless Otherwise Specified) Min. Typ. Max.V F I F = 60A, V GE = 0V, Note 12.45 V T J = 150°C 1.40 1.80 VI RM I F = 60A, V GE = 0V, T J = 100°C 8.3A-di F /dt = 200A/μs, V R = 300V t rr I F = 60A, -di/dt = 200A/μs, V R = 300V, T J = 100°C 140nsR thJC0.80°C/WNotes:1. Pulse test, t ≤ 300μs, duty cycle, d ≤ 2%.2. Switching times & energy losses may increase for higher V CE (Clamp), T J or R G .1 - Gate2 - Collector3 - EmitterEAA21 2 3E1D1D2QR Dc 3x b3x e2x b2b4D3A1LWL1IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.Fig. 21 Forward Current IF vs. VFFig. 22 Typ. Reverse RecoveryCharge Qrr。
