永磁电机转矩常数的深度
永磁电机转矩常数深度分析
Abstract —The torque con stan t, together with the back-EMF co n sta n t, was origi n ally used i n perma n e n t mag n et DC commutator motors (PMDC motors) to couple the electric circuit equation s with mechan ical equation s. But it is still an open question whether the con cept of the torque con stan t an d the back-EMF con stan t can be applied to brushless DC (BLDC) motors an d perman en t magn et (PM) AC machin es. This paper presen ts an in -depth study of the two con stan ts un der various real conditions in PM machines. The torque constant at various load con dition s is computed usin g tran sien t 2D fin ite elemen t an alysis (FEA). It is shown that the torque con stan t is n ot a constant for BLDC motors and PM AC machines.Index Terms —Back-EMF constant, brushless DC motors, DC commutator machi n es, fi n ite eleme n t a n alysis, perma n e n t magnets, synchronous machines, torque constant.I. I NTRODUCTIONHE torque constant is defined as the ratio of the torquedelivered by a motor to the current supplied to it, and the back-EMF constant is the ratio of voltage generated in the winding to the speed of the rotor. In PMDC motors, they are almost constant at various load conditions. The torque constant and back-EMF constant couple the electric circuit equations with mechanical equations, and are widely used in motor control.It is of great interest to see whether the concept of the torque constant and the back-EMF constant can be applied to BLDC motors and PM AC motors. Some effort have been made in this regard [1][2]. Reference [2] indicates that an ideal BLDC motor (also called a square-wave motor), under the condition that the line-to-line back EMF waveform is trapezoidal and that the winding current waveform is ideally square, is electrically identical to a PMDC motor. The author also applies the concept of the torque constant and the back-EMF constant to sine-wave PM AC motors under the assumption that the internal power-factor angle between the back EMF and the current is fixed to zero.However, in real cases, the winding current waveform is far from the ideal square-wave in BLDC motors due to current freewheeling. And, in PM synchronous motors, the internal power-factor angle is normally not zero because the torque angle is automatically adjusted according to the changeThe authors are with Ansoft Corporation, Pittsburgh, PA 15219 USA(phone: 412-261-3200; e-mail: dlin@, ping@,zol@). in load. To this end, this paper presents an in-depth study of the torque constant and the back-EMF constant for BLDC motors and PM AC motors. The suitability of the use of the two constants in PM motors is discussed considering the following: current freewheeling, arbitrary back-EMF waveforms, salient pole, variable pulse width and trigger angle, and internal power factor angle.II. R EVIEW OF THE T ORQUE C ONSTANT IN PMDC M OTORS In PMDC motors, the electric circuit equation isb a s V I R E V ++=(1)where V s is the applied DC voltage source, E is the back EMF, V bis the voltage drop of one-pair brushes, I is the input DCcurrent, and R a is the armature resistance. Equation (1) can be coupled with load mechanical equations by introducing⎩⎨⎧==I k T k E T mmE ω (2)where ωm is the angular velocity in mechanical rad/s, T m is theelectromagnetic (air-gap) torque in Nm, k E is the back-EMF constant in Vs/rad, and k T is the torque constant in Nm/A. The torque constant and the back-EMF constant have the following properties:i. k T = k E in the metric unit system; ii. k T and k E are constant; iii. k T and k E are measurable.Property (i) is obvious from the fact that the electric power (EI ) is equal to the mechanical power (T m ωm ) during power conversion.Property (ii) follows since: (1) PMDC motors have large air gaps due to surface mounted magnets, thus the saturation change caused by the armature reaction is negligible; (2) the brush position is mechanically fixed during operation even if it is adjustable; (3) the current in each coil completes commutating within the angle of the brush width, and the commutating duration is independent of the rotor speed; and (4) there is no reluctance torque even if the armature reaction is not aligned with the q-axis.Based on property (ii), the back-EMF constant k E can be measured at no-load condition operating in generator mode. The torque constant k T can be obtained directly from k E , orcan be measured at load operation. It is straightforward to predict the performance of PMDC motors from (1) and (2) in motor control. In-Depth Study of the Torque Constant forPermanent Magnet MachinesD. Lin, P. Zhou and Z. J. CendesT©2008 IEEE.III. T ORQUE C ONSTANT IN BLDC M OTORSEven though the torque constant and the back-EMF constant in BLDC motors are defined in the same way as those in PMDC motors as shown in (2), there are some essential differences regarding the torque constant and the back-EMF constant between BLDC motors and PMDC motors. For the sake of easy discussion, take a Y-connected three phase winding with bridge-type inverter as an example, as shown in Fig. 1. The trigger pulse width for each branch is 120 electrical degrees in turn and the inverter has 6 repeatableoperating states with the state period of 60 electrical degrees.Fig. 1. Y-connected three-phase windings with the bridge-type inverterA . Voltage equation (1) is no longer applicable The voltage equation (1) is no longer applicable in BLDCmotors due to the inductance voltage drop. In PMDC motors, the inductance induced voltage caused by the current commutating will not contribute to the voltage drop across the brush terminals. However, in BLDC motors, the inductance voltage drop becomes comparable with the resistance voltage drop.B. k T and k E are no longer constantIn BLDC motors, E used in (2) is the average back EMF across the DC link, and its value will vary with the current freewheeling duration. In Fig. 1, assume at the previous operating state, the source voltage V s is applied to winding terminals AC via branches 1 and 2, and at the current operating state, V s is applied to winding terminals BC viabranches 3 and 2. When branch 1 is off, the phase-A currentfreewheels through branch 4, which makes winding A to connect in parallel with winding C. If the voltage drop acrossthe conducting transistor in branch 2 is the same as that acrossthe freewheeling diode in branch 4, the average back EMFduring the current operating state is])(21[10∫∫++=sf f T T BC T BC BA s dt e dt e e T E(3) where, e BC and e BA are instantaneous line-to-line inducedvoltages, T s is the state period in second (corresponding to 60electric degrees), and T f is the current freewheeling duration,as shown in Fig. 2. It is obvious from (3) that the average backEMF varies with the current freewheeling duration, andtherefore k Eis not constant for various operations.Fig. 2. Rectified back EMF from trapezoidal line-to-line induced voltagesFor the circuit of Fig. 1, as long as T f < T s , the freewheeling currents always reduce the input DC current and increase the delivered torque, and therefore, k T varies with the current freewheeling duration which in turn varies with the rotor speed.Another case in which k T is not constant is, in interior permanent magnet (IPM) motors, the reluctance torque component also contributes to the air-gap torque due to the salient-pole effects, and the reluctance torque component is not linearly proportional to the DC current. Furthermore, the trigger angle and the pulse width of the controlling signals in BLDC motors are usually controllable. This is also a casewhere k T is not constant.Fig. 3 shows the variation of k T with the speed of a typical surface mounted BLDC motor with fixed trigger angle andpulse width.Fig. 3. Variation of k T with the rotor speed C . k T is no longer equal to k EIn BLDC motors, the back EMF across DC link normally includes ripples associated with arbitrary line-to-line back-EMF waveforms. The ripples become considerable due to thecurrent freewheeling even though the line-to-line induced voltage may have a flat waveform in 60 electric degrees by aspecial design (see the solid lines inside T s in Fig. 2). Theinput current also contains significant ripples because thefreewheeling current is in nature of “generator” current. Byexamining the power conversion, one gets∫⋅⋅=s T s m m dt i e T T 01ω(4)∫⋅∆⋅∆+=sT sdt i e T EI 01where, ∆e and ∆i are the ripples of the DC back EMF and theinput current, respectively. From (4), one concludes that atload conditions k T ≠ k E because T m ωm ≠ EI .D . kE is no longer measurable By measuring the air-gap torque (which is obtained from the load torque and the mechanical loss) and the DC component of the input current at load operation, k T can be determined. However, k E is no longer measurable at load conditions for BLDC motors. It cannot be measured by driving the motor as a generator and rectifying the line voltage with a rectifier as described in [2] because k E at load conditions is different from that at the no-load condition. Also it cannot directly be obtained from k T because k E ≠ k T at load conditions.IV. T ORQUE C ONSTANT IN PM AC M OTORSThe torque constant in PM AC motors can be defined as the ratio of the torque to the peak value of the input AC phasecurrents I peak , and the back-EMF constant is the ratio of thepeak value of the induced phase voltages E peak to the speed of the rotor, as expressed below [2] ⎩⎨⎧==peakT m mE peak I k T k E ω. (5) Most PM AC motors operate as synchronous motors. In PM synchronous motors, the internal power factor angle ϕ i , the angle between the back EMF phasor and the current phasor, is automatically adjusted based on the mechanical load and is normally not zero. In these cases, the delivered mechanical power is E peak peak T m m k E I k T /⋅=ωi rms rms i E T E mI mk k ϕϕcos cos 2⋅= (6) where I rms and E rms denote RMS values of sine-wave phasecurrent and back EMF, and m is the number of phases. For thepower conversion, the mechanical power must be equal to theelectric power, that ism m T ωi rms rms E mI ϕcos =. (7) As a resulti E T k mk ϕcos 2=. (8)One concludes from (8) that k T is not constant for PM synchronous motors even though K E may be constant when the saturation effects can be ignored. It varies with the internal power angle which in turn varies with the mechanical load.Equation (8) is derived under the assumption that the spatial harmonics of the air-gap magnetic fields produced bythe permanent magnets and the phase currents are ignored. Inorder to show the effects of the spatial field harmonics on thetorque constant, a three-phase 4-pole PM synchronousmachine, as show as in Fig. 4, is analyzed using 2D transientfinite element method (FEM). To focus on observing thevariation of the torque constant with the internal power factorangle, the change in saturation caused by armature currents isignored, and thus linear materials are used for all components.Fig. 4. The one-pole geometry layout of the three-phase 4-pole PM synchronousmachine Three-phase windings are applied with DC currents as follows⎪⎩⎪⎨⎧−=−==IAm I IAm I IAmI CB A *5.0*5.0 (9) where IAm is set to be 0 and 1A via parametric analysis. Therotor speed is set to be 1500rpm, and the rotor initial position is set to such a position that the phase-A winding has positive maximum induced voltage at time = 0. The computed torques at IAm = 0 and 1A are shown in Fig. 5. It can be seen from Fig. 5 that the torque at IAm = 1A consists of two components: one is the component producedby the phase currents, and the other is the cogging torque component which is produced by the permanent magnets at 0phase currents. Because linear materials are used, the torque component produced by the phase currents can be directlyderived from the result of the torque at IAm = 1A minus thetorque at IAm = 0, as shown in Fig. 6. By definition, the curvein Fig. 6 shows the torque constant because the torque isproduced by unit phase currents. One notes that the torqueconstant is not a constant as had been anticipated and istherefore not suitable for use with PM AC machines.Fig. 5. Torques at different phase currents varying with the internal power factor angle ϕ i (time=20ms corresponds to ϕ i =360 electric degrees)Fig. 6. Torque produced by unit phase current varying with the internal power factor angle ϕ i (time=20ms corresponds to ϕ i =360 electric degrees)V. C ONCLUSIONThe torque constant and the back-EMF constant which were originally used in PMDC motors are generally not suitable for BLDC motors and PM synchronous motor analysis. Detailed computations of both constants with real motors reveal that they are no longer constant but, instead, vary significantly with load conditions.R EFERENCES[1]Electro-Craft Handbook, Fifth Edition, August 1980, ISBN 0-960-1914-0-2.[2]J.R. Hendershot Jr, and T. J. E. Miller, Design of Brushless PermanentMagnet Motors, Magna Physics Publishing and Clarendon Press, Oxford, 1994.Din gshen g Lin received his B.S. and M.S. degrees in Electrical Engineering from Shanghai University, Shanghai, China, in 1982 and 1987, respectively. He is currently a Senior Research and Development Engineer at Ansoft Corporation, Pittsburgh, PA. Before he joined Ansoft in 1999, he was an Associate Professor of electrical engineering at Shanghai University. His research interests include design and optimization techniques of electrical machines and electromagnetic field computation. He received the third prize of the Chinese National Award of Science and Technology, in 1987, and two second prizes of the Shanghai City Award of Science and Technology, in 1986 and 1989.Ping Zhou received his M.S. degree from Shanghai University, China in 1987 and his Ph.D. degree from Memorial University of Newfoundland, Canada in 1994. He was with Shanghai University as a lecturer after his undergraduate study in the same university in 1977. He was a Visiting Scholar of Memory University of Newfoundland from 1989 to 1991. Since 1994, he jointed Ansoft Corporation in the R&D department. Currently, he is the manager of Electromechanical R&D group at Ansoft. His research interests include finite element numerical field computation, circuit coupling, multi-physics coupling and electrical machine modeling.Zoltan Cendes is Founder and Chairman of Ansoft Corporation, Pittsburgh, PA, and is an Adjunct Professor at Carnegie Mellon University, Pittsburgh, PA. In addition to his role at Ansoft, Dr. Cendes has served as a Professor of Electrical and Computer Engineering at Carnegie Mellon University, as an Associate Professor of Electrical Engineering at McGill University, Montreal, Canada, and as an Engineer with the Corporate Research and Development Center of the General Electric Company in Schenectady, NY. Dr. Cendes received his M.S. and Ph.D. degrees in Electrical Engineering from McGill University and his B.S.E. degree from the University of Michigan.。
电机转矩系数
电机转矩系数1. 介绍电机转矩系数是描述电机性能的重要参数之一。
它反映了电机在给定工作条件下产生的转矩大小与输入电流之间的关系。
电机转矩系数越大，表示电机的输出转矩相对较大，具有较好的负载能力和动力性能。
在工业和家用电器领域，电机转矩系数的优劣直接影响到设备的效率和稳定性。
2. 电机转矩系数的计算电机转矩系数可以通过以下公式计算：K t=T I其中，Kt表示电机转矩系数，T表示电机的输出转矩，I表示输入电流。
根据这个公式，我们可以看出电机转矩系数是通过将电机的输出转矩除以输入电流来得到的。
3. 影响电机转矩系数的因素电机转矩系数受到多种因素的影响，主要包括以下几个方面：3.1 磁通磁通是电机转矩的产生者，磁通的大小与电机的磁场强度和磁路特性有关。
当电机的磁场强度增大或磁路特性改变时，磁通的大小也会随之改变，从而影响电机的转矩系数。
3.2 动态特性电机的动态特性包括惯性、动态响应能力等。
电机的惯性越大，转矩系数越小；反之，惯性越小，转矩系数越大。
此外，电机的动态响应能力也会影响转矩系数的大小，响应能力越强，转矩系数越大。
3.3 电流与电压电机的输入电流与电压也会对其转矩系数产生影响。
一般来说，输入电流越大，电机的转矩系数也越大。
而对于输入电压，如果电压过高或过低，都会对电机的转矩系数产生不利影响。
3.4 磁阻势能电机的磁阻势能是指电机通过改变磁场强度来改变转矩的能力。
磁阻势能越大，电机的转矩系数也越大。
4. 提高电机转矩系数的方法为了提高电机的转矩系数，可以采取以下几个方法：4.1 优化磁路设计通过优化电机的磁路设计，可以增加电机的磁通密度，从而提高转矩系数。
4.2 优化磁场控制通过优化电机的磁场控制方式，使得磁场强度更加均匀，从而提高转矩系数。
4.3 优化电机的结构通过优化电机的结构设计，可以减小电机的惯性，提高转矩系数。
4.4 提高电机的输入电流与电压通过增加电机的输入电流与电压，可以提高电机的转矩系数。
永磁电机齿槽转矩及其计算方法探究
永磁电机齿槽转矩及其计算方法探究随着环保意识和节能理念的普及，永磁电机作为一种高效、可靠、节能的电机，被广泛应用于工业和民用领域。
永磁电机不仅拥有优良的速度控制性能和负载响应性能，还能在补偿系统和传动系统中发挥非常重要的作用。
但是，在永磁电机的性能设计和有效应用中，齿槽转矩的计算是至关重要的。
一、永磁电机的齿槽转矩齿槽转矩是永磁电机的一种特殊转矩，是由于永磁体和锯齿型铁芯之间的相互作用所引起的。
在同步运行电机中，锯齿型铁芯中的齿槽产生磁场，而永磁体中的磁场被磁通链裹着，如果有些磁通链与锯齿型铁芯中的齿槽产生剪切，则会发生永磁体的转动。
这个现象就是齿槽转矩。
二、齿槽转矩计算方法1、永磁电机的齿槽转矩计算可以通过齿槽系数来实现。
齿槽系数是指永磁电机中锯齿型铁芯的齿槽数目与角度之比。
齿槽系数越大，齿槽转矩就越大。
可以通过调整永磁电机的齿槽系数提高转矩的质量和性能。
2、永磁电机的齿槽转矩还可以通过计算磁场分布来估算。
磁场分布是模拟器得到的理论计算值，可以提供永磁电机转矩的数值。
通常情况下，计算磁场分布需要使用有限元分析方法，因此需要使用各种软件进行计算。
3、另外一种方法是使用电机参数来计算永磁电机的齿槽转矩。
这种方式根据公式：T=K×Bp×Imax×A；其中，T是电机的齿槽转矩，K是系数，Bp是永磁体磁场密度，Imax是电机的电流峰值，A是永磁体和铁芯之间的面积。
这种方法可以快速计算永磁电机的齿槽转矩，但是需要知道有关永磁体参数和电路参数。
三、永磁电机齿槽转矩的影响因素1、永磁体的磁场强度和形状。
永磁体的磁场密度和形状对齿槽转矩的大小和效果有很大影响。
磁场强度越大，齿槽转矩越大。
2、永磁体和铁芯之间的面积。
面积越大，齿槽转矩越大。
3、电流峰值大小。
电流峰值越大，齿槽转矩越大。
四、结论永磁电机齿槽转矩的计算是永磁电机性能设计的一个重要步骤。
齿槽转矩的大小直接影响永磁电机的转矩质量和性能。

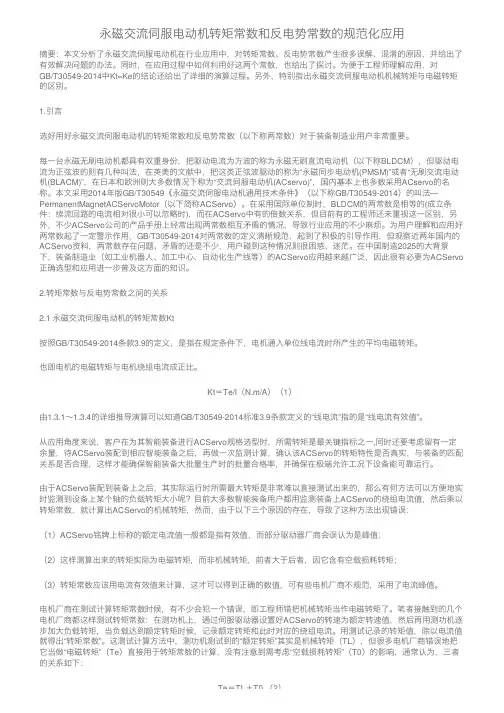

永磁交流伺服电动机转矩常数和反电势常数的规范化应用
永磁交流伺服电动机转矩常数和反电势常数的规范化应⽤摘要：本⽂分析了永磁交流伺服电动机在⾏业应⽤中，对转矩常数、反电势常数产⽣很多误解、混淆的原因，并给出了有效解决问题的办法。
同时，在应⽤过程中如何利⽤好这两个常数，也给出了探讨。
为便于⼯程师理解应⽤，对GB/T30549-2014中Kt=Ke的结论还给出了详细的演算过程。
另外，特别指出永磁交流伺服电动机机械转矩与电磁转矩的区别。
1.引⾔选好⽤好永磁交流伺服电动机的转矩常数和反电势常数（以下称两常数）对于装备制造业⽤户⾮常重要。
每⼀台永磁⽆刷电动机都具有双重⾝份，把驱动电流为⽅波的称为永磁⽆刷直流电动机（以下称BLDCM），但驱动电流为正弦波的则有⼏种叫法，在英美的⽂献中，把这类正弦波驱动的称为“永磁同步电动机(PMSM)”或者“⽆刷交流电动机(BLACM)”，在⽇本和欧洲则⼤多数情况下称为“交流伺服电动机(ACservo)”，国内基本上也多数采⽤ACservo的名称。
本⽂采⽤2014年版GB/T30549《永磁交流伺服电动机通⽤技术条件》（以下称GB/T30549-2014）的叫法—PermanentMagnetACServoMotor（以下简称ACServo）。
在采⽤国际单位制时，BLDCM的两常数是相等的(成⽴条件：续流回路的电流相对很⼩可以忽略时)，⽽在ACServo中有的倍数关系，但⽬前有的⼯程师还未重视这⼀区别，另外，不少ACServo公司的产品⼿册上经常出现两常数相互⽭盾的情况，导致⾏业应⽤的不少⿇烦。
为⽤户理解和应⽤好两常数起了⼀定警⽰作⽤，GB/T30549-2014对两常数的定义清晰规范，起到了积极的引导作⽤，但观察近两年国内的ACServo资料，两常数存在问题、⽭盾的还是不少，⽤户碰到这种情况则很困惑、迷茫。
在中国制造2025的⼤背景下，装备制造业（如⼯业机器⼈、加⼯中⼼、⾃动化⽣产线等）的ACServo应⽤越来越⼴泛，因此很有必要为ACServo 正确选型和应⽤进⼀步普及这⽅⾯的知识。
