600磅调节拖车小车产品说明书

600磅调节拖车小车产品说明书

600 LB. ADJUSTABLE TRAILER DOLLYOWNER’S MANUALWARNING:Carefully read and understand all ASSEMBLY AND OPERATIONINSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.10152015PATENT#7,845,670This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification. We strongly recommend that this product not be modified and/or used for any application other than that for which it was designed. If you have any questions relative to a particular application, DO NOT use the product until you have first contacted us to determine if it can, or should, be performed on the product.For technical questions, please call 218-943-6296..TECHNICAL SPECIFICATIONSGENERAL SAFETY RULESWARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury.CAUTION: Do not allow persons to operate or assemble this adjustable trailer dolly until they have read this manual and have developed a thorough understanding of how the adjustable trailer dolly works.WARNING:The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.SAVE THESE INSTRUCTIONSWORK AREA•Keep work area clean, free of clutter, and well-lit.Cluttered and dark work areas can cause accidents.•Keep children and bystanders away while operating an adjustable trailer dolly.•Be alert of your surroundings. Using an adjustable trailer dolly in confined work areas may put you in dangerous situations.PERSONAL SAFETY•Stay alert, watch what you are doing, and use common sense when using an adjustable trailer dolly. Do not use an adjustable trailer dolly while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating an adjustable trailer dolly may result in serious personal injury.•Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.•Use safety apparel and equipment. Use approved safety goggles or safety glasses with side shields or, when needed, a face shield. Also use non-skid, safety shoes and gloves whenappropriate.TRAILER DOLLY USE AND CARE•Do not modify the adjustable trailer dolly in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the equipment. There are specificapplications for which the adjustable trailer dolly was designed.•Always check for damaged or worn-out parts before using the adjustable trailer dolly.Broken parts will affect the adjustable trailer dolly operation. Replace or repair damaged or worn parts immediately.•Do not exceed the adjustable trailer dolly load capacity.•Distribute the load evenly. Uneven loads may cause the adjustable trailer dolly to tip, resulting in personal injury to the operator or others.•Use the adjustable trailer dolly on flat and level surfaces capable of supporting the adjustable trailer dolly and its maximum load. Pulling or pushing a load on a slanted or uneven surface can result in loss of control.•Store idle adjustable trailer dolly. When adjustable trailer dolly is not in use, store it in a secure place out of the reach of children. Inspect it for good working condition prior to storage and before re-use.ASSEMBLYSee parts diagram for reference during assembly1. Attach the Link Bracket (#2) to the T-Bar Handle (#1) using four Bolts (#3), four Flat Washers(#4), and four Lock Washers (#5). Put the washers on the bolt before screwing into the holes.2. Attach the Link Bracket (#2) to the Axle Assembly (#16) in the bottom hole using one Bolt(#18), one Washer (#9), and one Nut (#10).3. Attach the upper end of the Brace (#7) and V Support (#6) to the Link Bracket (#2) using oneBolt (#8), one Washer (#9), and one Nut (#10).4. Attach the lower end of the V Support (#6) to the Link Bracket (#2) using one Bolt (#8), oneWasher (#9), and one Nut (#10).5. Attach the lower end of the Brace (#7) to the Axle Assembly (#16) using one Bolt (#13), oneWasher (#9), and one Nut (#10).6. Install the two Flat Free Tires (#17) on both ends of the Axle Assembly (#16) using two HexNuts (#19) and two Split Pins (#20).7. Install the Coupler Ball (#11) onto the Adjustable Tube (#12). Insert the Adjustable Tube (#12)into the Axle Assembly (#16) and secure it with the Pin (#15) and the R Pin (#14).8. Check and tighten all bolts as needed.9. Adjust the Adjustable Tube to the proper height for your trailer. Make sure the pin is securedthrough the Adjustable Tube and the welded tube on the frame. Place the R Pin into the hole of the Pin to secure the Pin.OPERATION1. The designed load limit is 600 lbs. for the adjustable trailer dolly alone, not including loadsupported by trailer wheels. Do not exceed the rated capacity.2. Always keep arms, feet, legs, etc. out from under the trailer tongue while hitching, unhitching,or moving the trailer. Children should always be kept at a safe distance.3. Always make sure any loaded trailer is blocked properly while the adjustable trailer dolly isbeing moved into place.4. Make sure the trailer tongue is securely connected to the adjustable trailer dolly coupler ballbefore attempting to unblock and move the trailer.5. Take precautions to prevent uncontrolled movement of the trailer once it is connected to theadjustable trailer dolly. Remember, the slope of a roadbed surface is difficult to judge, and the pull of gravity can result in a dangerously out-of-control trailer.6. If the adjustable trailer dolly is being connected to a trailer that is being stored over a lengthyperiod of time, make sure both the trailer and the adjustable trailer dolly are blocked properly.7. Keep the adjustable trailer dolly clean and free of road dirt. Inspect the adjustable trailer dollybefore each use to make sure all parts are securely in place and are in working order.Periodically lubricate moving parts.WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN LOSS OF LOAD, PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.DIAGRAM & PARTS LIST.For replacement parts and/or technical questions, please call 218-943-6296. WARRANTY: One-year limited parts warranty.Distributed by:TG PO Box 203 Miltona, MN 56354。

卸料小车操作说明

卸料小车操作说明

自动小车操作说明以及注意事项
一、功能说明
①本小车可实现本地运行和远程运行转换功能。

②主控制箱为本小车上安装的控制箱,仅为检修调试或通讯中断时使用,转换开关必须时刻置于本地状态。

③副控制箱为墙上控制箱,也即为岗位人员操作箱;卸料小车副控制箱开关置为本地状态可实现手动运行;副控制箱开关置为远程状态即可实现PLC自动运行。

二、现场操作步骤
●操作人员必须对卸料小车主控箱本地/远程转换开关进行检查,确
保转换开关置于远程状态;如检修或通讯失灵时将主控箱开关置于本地状态;在面板上进行操作,如左行/停止/右行、左下料/右下料或紧急停止
●开机以前操作人员必须检查下料口,确保下料口下方下料在正常
位置
●副控箱:如要操作请打到“本地”;看变频“备妥”是否亮灯。

●以上条件均具备的情况下,方可呼叫,按下位置编号按钮小车,
小车自动判断左行/右行,到位时小车自动停止并抱闸。

●小车就位后,在启动皮带,按“启动”皮带运行,按”停止“皮
带停止
●操作人员必须时常检查小车运行情况发现紧急情况时如要停车,
拍下主控箱上的“急停”按钮即可停止所以操作。

拍下小车上的
急停按钮则停止小车上的所以操作。

停机后:操作人员必须将主控制箱转换开关置为检修或拍下急停,防止误操作。

三、流程示意图
四、简单故障排除。

使用说明书(自装卸转运车)

使用说明书(自装卸转运车)

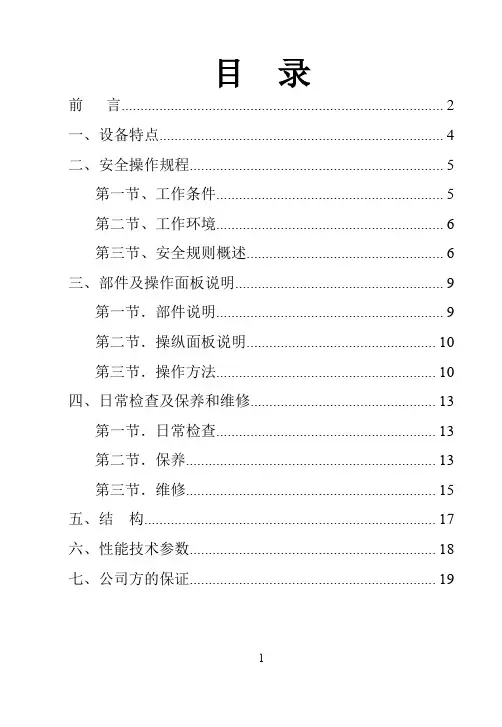

目录前言 (2)一、设备特点 (4)二、安全操作规程 (5)第一节、工作条件 (5)第二节、工作环境 (6)第三节、安全规则概述 (6)三、部件及操作面板说明 (9)第一节.部件说明 (9)第二节.操纵面板说明 (10)第三节.操作方法 (10)四、日常检查及保养和维修 (13)第一节.日常检查 (13)第二节.保养 (13)第三节.维修 (15)五、结构 (17)六、性能技术参数 (18)七、公司方的保证 (19)1前言首先,感谢您使用河南中力新能源环卫设备制造有限公司的产品。

使您的汽车和设备获得最佳的效益,是您我共同追求的目标,但这很大程度上取决于您对车辆和设备的熟悉程度和全面仔细的保养。

按照使用说明书正确的操作和使用,将充分发挥产品的特点,提高作业效率,延长产品寿命;与此相反,违反使用说明书的操作和使用,将会导致故障和事故。

在您使用本公司产品时,务请仔细阅读本说明书。

另外,本使用说明书主要介绍了该车型的改装部分主要技术性能及使用、维修和保养。

您在使用过程中如有建议请及时反馈给我公司,使我们能及时为您服务,也使我们能不断提高产品质量。

由于垃圾转运车的结构将随我公司对产品的进一步改进而不断完善,因此我公司将保留对此使用说明书的修改权,如有问题,请向我公司技术服务部联系。

有关我公司产品的“三包”问题,请与我公司的售后服务部联系。

河南中力新能源环卫设备制造有限公司2015年42本文采用的符号的说明:警告:………………如不遵守将会导致人员受伤事故;注意:………………如不遵守将会导致车辆、设备损坏事故;提示:………………如了解此项将会使操纵更方便。

3一、设备特点1、垃圾装卸方式:将挂桶提升装置托板放下,将垃圾桶推至挂桶装置上,通过操作设备的,可将垃圾桶内垃圾倒入垃圾箱内。

2、厢体与底盘结合方式:通过底盘上的举升油缸将厢体推离底盘和由厢体的自重使之降落的方式来实现垃圾的倾倒和厢体复位,而不需其他任何起吊设备。

一种物流轨道式搬运小车的设计说明书

一种物流轨道式搬运小车的设计说明书

目录目录 (1)前言 (3)第一章绪论 (4)1.1 物流仓储行业发展现状 (4)1.2 AGV小车发展现状 (5)第二章方案设计 (8)第三章模块设计与选型计算 (12)3.1 顶升平移模块 (12)3.2 Z轴升降模块 (23)3.3 X轴平移模块 (30)第四章装配维护 (35)4.1 装配准备 (35)4.2 顶升平移模块的装配 (35)4.3 Z轴升降模块的装配 (35)4.4 X轴平移模块的装配 (36)4.5 轴承的装配 (36)4.6 同步轮同步带的装配 (36)总结 (37)致谢 (39)前言本毕业设计是在当前世界大范围内的自动化大潮的背景下基于我国日益发展越来越快的物流行业的自动化所提出的。

在设计的前期通过到实际使用现场去调研使用的实际情况和需求、通过书籍网络等的渠道查阅相关的资料以及向从事自动化行业的相关人员了解实际情况来一步步的对物流行业的自动化的需求和使用方面进行了了解和分析。

根据调研到的一家公司的实际使用需求作为本设计的设计场景,即在实际使用中产品的尺寸,运输储存的要求等进行设计参数的制定以及针对这些参数进行了方案的设计;然后根据所制定的方案采用逆向构造的方式来进行整体的结构设计,即从最终要实现的运输存放功能以及产品的各种参数作为设计的起点,反向推导设计出各个结构、各个模块,以及对各个结构的标准件进行计算选型。

最后,对所设计的零部件和使用的标准件进行了装配,得到最后整体的模型。

在这个过程中,本设计的核心要点有两个:第一个是基于实际使用现场进行了设计的向导,使得最终的设计更加符合实际生产使用的要求,可以直接对接到实际应用当中,而不是一般的道听途说的进行设计,使得设计纸上谈兵、夸夸其谈;第二个就是采用了逆向构造的思维方式进行设计,这种设计方法更具指向性和目的性,使得设计更加贴合与使用场景和需求,而不是按照虚拟的参数进行设计,从而避免了在设计过程中因为某部分设计过量或不足而造成的多次重复的修改以及再次过程中所造成的时间的浪费。

托运车的产品说明书

托运车的产品说明书

MATERIAL HANDLINGToter tilt trucks are perfect for moving large, heavy waste to its final disposal area. Powder-coated frames reduce corrosion, prevent flaking, and ensure long service life.Part Description Capacity/Volume Dimensions (L x W x H)Wheels Load RatingUT005Utility Duty1/2 Cubic Y ard54.13" x 32.25" x 36.25" 1-3/4" x 12" / 5"400 lbs. / 181.4 kgUT105Standard Duty1/2 Cubic Y ard64.38" x 32.25” x 38.38" 2" x 12" / 5"825 lbs. / 374.2 kgUT205Heavy Duty1/2 Cubic Y ard54.25" x 33.50" x 36.25"3" x 12" / 5"1,200 lbs. / 544.3 kgUT175Standard Duty3/4 Cubic Y ard64.75" x 30.00" x 38.38" 2" x 12" / 5"825 lbs. / 374.2 kgUT010Utility Duty 1 Cubic Y ard73.00" x 32.50" x 44.00"2" x 12" / 5"825 lbs. / 374.2 kgUT110Standard Duty 1 Cubic Y ard73.00" x 32.50" x 44.00"3" x 12" / 5"1,200 lbs. / 544.3 kgUT210Heavy Duty 1 Cubic Y ard73.00" x 32.50" x 44.00"3" x 12" / 5"2,000 lbs. / 907.2 kgUT115Standard Duty1-1/2 Cubic Y ards79.75" x 40.00" x 48.00"3" x 12" / 5"1,200 lbs. / 544.3 kgUT215Heavy Duty1-1/2 Cubic Y ards79.75" x 40.00" x 48.00" 3" x 12" / 5"2,000 lbs. / 907.2 kgPart Description Dimensions (L x W x H)LT105Removable Split Lid for 1/2 Cu. Y d. Tilt Truck51.75" x 34.00" x 7.00"LT110Removable Split Lid for 1 Cu. Y d. Tilt Truck71.25" x 33.75" x 7.50"LT115Removable Split Lid for 1-1/2 Cu. Y d. Tilt Truck78.25" x 41.00" x 7.75"Lid OptionsTilt trucks are compatible with T oter's Universal Lifter.TILT TRUCKS•Rugged Rim® technology helps reduce crackingand breakage.•Link up to 5 carts to e ciently move loads.Towable Tilt TrucksPart Description Capacity/Volume Dimensions (L x W x H)Wheels Load RatingUTT05Heavy Duty1/2 Cubic Y ard54.30" x 32.30" x 37.00" 3" x 12" / 5"1200 lbs. / 544.3 kg UTT10Heavy Duty 1 Cubic Y ard73.00" x 32.50” x 44.00" 3" x 12" / 5"2000 lbs. / 907.2 kg UTT15standard Duty1-1/2 Cubic Y ard80.30" x 40.00" x 48.00"3" x 12" / 5"1,200 lbs. / 544.3 kgPROTOT079-022016CUBE TRUCKSLid Options(AMC20)Toter’s cube trucks are great for collecting and transporting waste. Rugged Rim ® technology and durable rotational molded construction means they’re built to last. Recessed gripping areas make them easy to maneuver the heaviest loads.PartDescriptionSizeDimensions (L x W x H)Load RatingMMC08Heavy-Duty Manual Cube Truck (Manual Unloading)8 Cubic Feet36.25" x 25.5" x 28.0"300 lbs. / 136.1 kgMMC12Heavy-Duty Manual Cube Truck (Manual Unloading)12 Cubic Feet 44.00" x 30.38" x 35.50"400 lbs. / 181.4 kgMMC16Heavy-Duty Manual Cube Truck (Manual Unloading)16 Cubic Feet 44.00" x 30.38" x 35.50" 500 lbs. / 226.8 kgMMC20Heavy-Duty Manual Cube Truck (Manual Unloading)20 Cubic Feet 49.25" x 32.50" x 36.50"800 lbs. / 362.9 kgAMC20Heavy-Duty Cube Truck With Forklift Pockets(Automated or Manual Unloading)20 Cubic Feet49.25" x 32.50" x 38.75"800 lbs. / 362.9 kgPartDescriptionDimensions (L x W x H)LMC08Removable Split Lid Fits All 8 Cubic Feet Cube Trucks 37.25" x 27.00" x 6.50"LMC12Removable Split Lid Fits All 12 Cubic Feet Cube Trucks 41.75" x 28.75" x 6.50"LMC16Removable Split Lid Fits All 16 Cubic Feet Cube Trucks45.00" x 31.75" x 7.00"•Load ratings up to 800 lbs.•Equipped with standard forklift pockets (AMC only).•Powder-coated frames reduce corrosion, prevent flaking,and ensure long service life.•Removable split lids available.•Sizes: 8, 12, 16, and 20 cubic feet.•Compatible with Universal Lifters (AMC only).Toter heavy-duty mobile trucks are perfect for moving large, heavy waste. Constructed with durable plastic, they’re lighter than steel models. Powder-coated frames reduce corrosion, prevent flaking, and ensure long service life.PartDescriptionCapacity/VolumeDimensions (L x W x H)Wheels/CastersLoad RatingAM110Universal Mobile Truck1 Cubic Y ard58.00" x 33.00" x 44.75"5", 1 Directional Lock,3 Swivel; Corner Placement 1,000 lbs. / 453.6 kgAMT10Universal Mobile Truck with Pintle Hook T ow Assembly 1 Cubic Y ard 58.00” x 33.00” x 45.75”5”, 1 Directional Lock,3 Swivel; Corner Placement 1,000 lbs. / 453.6 kgAM120Universal Mobile Truck2 Cubic Y ard 68.00" x 54.00" x 51.75"5”, 1 Directional Lock,3 Swivel; Corner Placement 2,300 lbs. / 1043.3 kgAMT20T owable Universal Mobile Truck 2 Cubic Y ard 68.00" x 54.00" x 52.75"5”, 1 Directional Lock,3 Swivel; Corner Placement 2,300 lbs. / 1043.3 kgAMA20Rapid Speed Mobile Truck (T owable up to 25 mph) 2 Cubic Y ard 68.25" x 54.00" x 62.75"5”, 1 Directional Lock,3 Swivel; Corner Placement 1,500 lbs. / 680.4 kgFLM20Mobile Truck with Attached Lid2 Cubic Y ards 75.50” x 44.25” x 52.00” 5” X 2”, 1 Directional Lock,3 Swivel; Corner Placement 2,300 lbs. / 1043.3 kgFLT20Mobile Truck with Attached Lid and Pintle Hook T ow Assembly2 Cubic Y ards 78.25” x 44.25” x 52.50” 6”, 2 Directional Lock,2 Swivel; Corner Placement1,000 lbs. / 453.6 kgFLA20Rapid Speed Mobile Truck with Attached Lid(T owable up to 25 mph)2 Cubic Y ards76.25” x 44.25” x 63.25” 4.75 x 16” Pneumatic Wheels 1,000 lbs. / 453.6 kgFLA30Rapid Speed Mobile Truck with Attached Lid(T owable up to 25 mph)3 Cubic Y ards75.75" x 50.75" x 76.00"16” Pneumatic Wheels 1,500 lbs. / 680.4 kgPartDescriptionDimensions (L x W x H)LT105Removable Split Lid for 1/2 Cu. Yd. Mobile Truck 51.75" x 34.00 x 7.00"LT110Removable Split Lid for 1 Cu. Yd. Mobile Truck 71.25" x 33.75" x 7.50"LT115Removable Split Lid for 1-1/2 Cu. Yd. Mobile Truck78.25" x 41.00" x 7.75"LidsSpecialFeaturesHeavy-duty frameis built to last.Rapid Speed mobile truckhas rugged high-speed tires.Optional towbars available.Multiple trucks can be hitched together.Equipped with standardforklift pockets.Drain plug for simpleclean-out.Rapid Speed model has durable frame design withpivoting pneumatic wheels for tight turns.FLM20AMT10FLA20MOBILE TRUCKS********************* 062021。

皮带机卸料小车说明书

皮带机卸料小车说明书

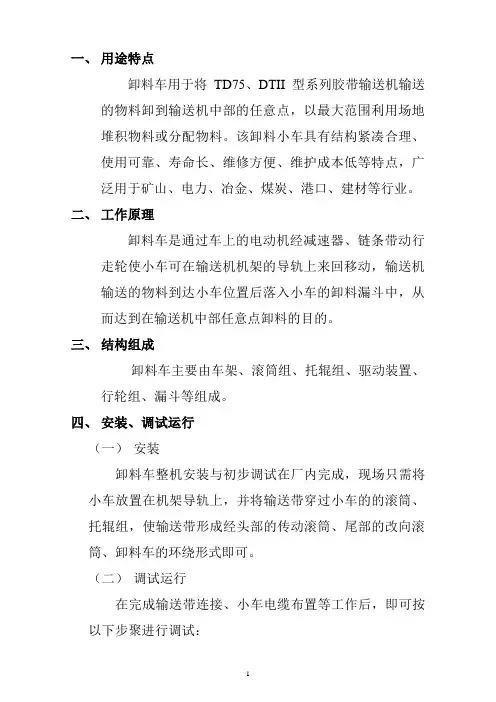

一、用途特点卸料车用于将TD75、DTII型系列胶带输送机输送的物料卸到输送机中部的任意点,以最大范围利用场地堆积物料或分配物料。

该卸料小车具有结构紧凑合理、使用可靠、寿命长、维修方便、维护成本低等特点,广泛用于矿山、电力、冶金、煤炭、港口、建材等行业。

二、工作原理卸料车是通过车上的电动机经减速器、链条带动行走轮使小车可在输送机机架的导轨上来回移动,输送机输送的物料到达小车位置后落入小车的卸料漏斗中,从而达到在输送机中部任意点卸料的目的。

三、结构组成卸料车主要由车架、滚筒组、托辊组、驱动装置、行轮组、漏斗等组成。

四、安装、调试运行(一)安装卸料车整机安装与初步调试在厂内完成,现场只需将小车放置在机架导轨上,并将输送带穿过小车的的滚筒、托辊组,使输送带形成经头部的传动滚筒、尾部的改向滚筒、卸料车的环绕形式即可。

(二)调试运行在完成输送带连接、小车电缆布置等工作后,即可按以下步聚进行调试:(1)开机前要检查减速器是否已加润滑油,周围是否存在小车行走时会碰撞的障碍物,确认无误后才可开机。

(2)第一次开机时应以点动的方式进行,以检查小车的制动器是否调整合适。

(3)小车在机架导轨上行走第一遍时,应采用点动方式进行,一来可防止与可能存在的障碍物发生过度碰撞,二来可以在小车行走的同时检查导轨与小车行走轮间的配合情况以及小车各部件运行状况。

(4)以上操作确认正常后,小车可进行在导轨上达到任意点的测试,测试主要是观察小车行走的灵活、可靠性,行走轮与导轨配合情况,输送机机身的刚度情况等,然后根据测试情况进行必要的调整。

(5)经以上调试合格后,小车即可投入使用。

五、操作规程与维护1、应指定专人进行操作、维护。

2、要注意安全,开机前应观察小车周围无人后方可开机。

3、每天停机后要检查一遍设备,清理并排除影响设备正常工作及寿命的不利因素,如散落在设备上的灰尘、石料,清理导轨周边的散落等。

4、要定期检查设备各部件间连接紧固件是否松动并及时拧紧,定期给轴承加润滑脂,给传动链条加润滑油。

卸料小车操作说明

卸料小车操作说明

卸料小车操作说明操作说明:卸料小车1.介绍1.1 概述卸料小车是用于将货物从运输工具上卸下的设备。

它具有自动卸货功能,通过控制系统来实现卸货操作。

本文档旨在提供有关卸料小车的操作说明,以确保安全和高效地进行卸货工作。

1.2 目标读者本文档适用于卸料小车的操作人员和相关工作人员。

1.3 相关文件[请在此处列出相关文件名称和编号]2.操作准备2.1 确保安全在操作卸料小车之前,必须确保以下安全条件:●确保工作区域没有明显的障碍物;●检查小车及其部件的状态是否正常;●确保所有安全保护装置正常运行;●确保操作人员已经接受过必要的培训。

2.2 检查货物在卸货之前,需要进行以下检查:●确保货物的尺寸和重量在卸料小车的额定范围内;●检查货物的包装是否完好,以防止货物破裂或泄漏;●确定货物的卸货位置和目标地点。

2.3 准备卸货点●清理卸货点,确保没有杂物或障碍物;●标识卸货点,以便操作人员准确地将货物卸下。

3.操作步骤3.1 启动卸料小车系统●打开电源开关,并确保显示屏正常工作;●检查系统状态指示灯,(红色为故障,绿色为正常);●启动卸货系统。

3.2 选择卸货模式●根据实际需求,选择合适的卸货模式:自动模式或手动模式。

3.3 加载货物●将货物放置在卸料小车上,并根据需要使用固定设备进行固定。

3.4 设置卸货参数●在系统界面上设置卸货参数,包括卸货速度、卸货高度等。

3.5 执行卸货操作●根据系统指示,操作人员执行卸货操作;●保持警惕,确保卸货过程中的安全。

3.6 完成卸货●当货物卸下后,确认卸货完成;●清理卸货点,并清除相关标识。

4.操作注意事项4.1 安全操作●操作人员应始终遵循安全操作规程,包括戴着安全帽、穿着防护服、佩戴防护手套等;●禁止在卸货过程中站在卸料小车下方。

4.2 故障处理●若发生故障,请立即停止卸货操作,并联系维修人员进行排除。

4.3 维护保养●按照维护保养计划定期对卸料小车进行检查和维护;●对润滑部件进行定期润滑。

Yanmar K21 2.1L 基础 Powershift 1速度 座椅型 1.5 吨 货运车说明书

Yanmar K21 2.1L 基础 Powershift 1速度 座椅型 1.5 吨 货运车说明书

1 500 -2 000 KGH1.5-2.0XTS DIESEL AND LPG FORKLIFT TRUCKSHYSTERHYSTERH1.5XT H1.5XT Yanmar 2.6L K21 2.1L Basic Powershift Basic Powershift1 speed 1 speed Drum Brakes Drum Brakes DieselLPG/Dual fuel Seated Seated 1.5 1.5 500 500 410 410 1410 1410 2765 2790 2675 2700 3710 545 3680 495 1255 1510 1215 1460 Automatic AutomaticSE SE 6.0-9 6.0-9 21x8-9 21x8-9 5.0-8 5.0-82x 2 2x 2 915 1000 915 1000 905 9056 10 6 10 1995 1995 145 145 3035 3035 4105 4105 2160 2160 970 970 295 295 3200 3200 2280 22801070 1190 1070 1190 35 100 920 35 100 920II II 920 920 110 110 120 120 3565 3565 3365 3365 1960 1960 1845 1845 390 390 24024017.018.0 18.0 19.0 17.018.0 18.0 19.0 0.68 0.71 0.63 0.68 0.500.52 0.50 0.52 17.519.2 36 24 37 24 Hydraulic Hydraulic Yanmar/4TNE92 GCT/K 2129 31 2050 2250143 1400 144 1600 4 2659 4 2065 2.31.52.3 12 9212 55181181 62 59 23.5 23.5 52.0- 81 82 Hook Hook1.1 Manufacturer 1.2 Manufacturer’s type designation Engine / transmissionBrake Type1.3 Drive: electric (battery or mains), diesel, petrol, LPG1.4 Operator type: hand, pedestrian, standing, seated, order-picker 1.5 Rated capacity / rated load Q (t)1.6 Load centre distancec (mm)1.8 Load distance, centre of drive axle to fork x (mm)1.9 Wheelbasey (mm)2.1 Service weight (standard/dual tread) kg 2.2 Axle loading, laden front / rear kg 2.3 Axle loading, unladen front / rearkg8.1 Type of drive unit 3.1 Tyres: L = pneumatic, V = solid, SE = Pneumatic Shape Solid 3.2 Tyre size, front (standard tread)3.2.1 Tyre size, front (dual tread) 3.3 Tyre size, rear3.5 Number of wheels, front/rear (x = driven) 3.6 Tread, front (standard/dual tread) b 10 (mm)3.7 Tread, rearb 11 (mm)4.1 Tilt of mast / fork carriage forward / backward a /b (°)4.2 Height, mast lowered h 1 (mm)4.3 Free lift ¶ h 2 (mm)4.4 Lift ¶ h 3 (mm)4.5 Height, mast extended è h 4 (mm)4.7 Height of overhead guard (cabin) h 6 (mm)4.8 Seat height relating to SIP/stand height ¢ h 7 (mm)4.12 Coupling height h 10 (mm)4.19 Overall length l 1 (mm)4.20 Length to face of forks l 2 (mm)4.21 Overall width b 1/b 2 (mm)4.22 Fork dimensions DIN ISO 2331 s/e/l (mm)4.23 Fork carriage ISO 2328, class/type A, B4.24 Fork carriage width l b 3 (mm)4.31 Ground clearance, laden, below mast m 1 (mm)4.32 Ground clearance, centre of wheelbase m 2 (mm)4.34.1 Aisle width for pallets 1000 × 1200 crossways u A st (mm)4.34.2 Aisle width for pallets 800 × 1200 lengthways u A st (mm)4.35 Turning radius W a (mm)4.41 90° intersecting aisle (with pallet L = 1000mm x W = 1200mm) (mm) 4.42 Step height (from ground to running board) (mm) 4.43 Step height (between intermediate steps and floor) (mm)5.1 Travel speed, laden/unladen km/h 5.1.1 Travel speed, laden/unladen, backwards km/h 5.2 Lift speed, laden/unladen m/s5.3 Lowering speed, laden/unladen m/s 5.5 Drawbar pull, laden kN 5.7 Gradeability, laden/unladen †† %5.10 Service brake D I S T I N G U I S H I N G M A R K SW E I G H T ST Y R E S & C H A S S I S D I M E N S I O N SP E R F O R M A N C E D A T AP E R F O R M A N C E D A T A A D D I T I O N A L D A T AEQUIPMENT AND WEIGHT:Weights (line 2.1) are based on the following specifications: Complete truck with 3035mm TOF 2-stage limited free lift mast, with standard hook type carriage, 920mm forks with manual hydraulics, overhead guard and standard pneumatic shaped solid drive and steer tyres.D R I VE /L IF T M E C H A N I S M7.1 Engine manufacturer/type 7.2 Engine power according to ISO 1585 kW 7.3 Rated speed min–1 7.3.1 Torque at 1/min Nm/min–1 7.4 Number of cylinders/displacement (-)/cm 3 7.5 Fuel consumption according to MIL 268C cycle l/h or kg/h 7.10Battery voltage/nominal capacity S (V)/(Ah) 10.1 Operating pressure for attachments bar 10.2 Oil volume for attachments ³ l/min 10.3 Hydraulic oil tank, capacity l 10.4 Fuel tank, capacity l 10.7 Sound pressure level at the driver’s seat < J dB (A)10.8 Towing coupling, type DINHYSTER HYSTERH1.8XT H1.8XT Yanmar 2.6L K21 2.1L Basic Powershift Basic Powershift1 speed 1 speed Drum Brakes Drum Brakes DieselLPG/Dual fuel Seated Seated 1.75 1.75 500 500 410 410 1410 1410 3000 3000 2920 2920 4090 660 4060 610 1215 1785 1185 1735 Automatic Automatic SE SE 21x8-9 21x8-9 21x8-9 21x8-9 18x7-8 18x7-82x 2 2x 2 915 1000 915 1000 9309306 10 6 10 1995 1995 145 145 3035 3035 4105 4105 2160 2160 970 970 295 295 3240 3240 2320 2320 1135 1190 1135 1190 35 100 920 35 100 920 II II 920 920 110 110 120 120 3605 3605 3405 3405 1995 1995 1895 1895 390 390 240 240 17.0 18.5 18.0 19.517.0 18.5 18.0 19.50.67 0.71 0.62 0.680.50 0.52 0.50 0.5217.4 19.132 22 33 22Hydraulic Hydraulic Yanmar/4TNE92GCT/K 21 29 31 2050 2250143 1400 144 1600 4 2659 4 2065 2.4 1.6 2.4 12 9212 55181 181 62 59 23.5 23.5 52.0- 81 82 Hook Hook 2.12.22.31.11.21.31.41.51.61.81.93.13.23.2.13.33.53.63.75.15.1.15.25.35.55.75.107.17.27.37.3.17.47.57.108.110.110.210.310.410.710.8DISTINGUISHING MARKS WEIGHTS TYRES & CHASSISDIMENSIONS PERFORMANCE DATAPERFORMANCE DATA ADDITIONAL DATANOTE:Specifications are affected by the condition of the vehicle and how it is equipped, as well as the nature and condition of the operating area. Inform your dealer of the nature and condition of the intended operating area when purchasing your Hyster T ruck. ¶ Top of forksè Add 32mm with load backrest ­­¢ Full suspension seat in depressedpositionl Without load backrest, add 32mm with load backrestuStacking aisle width (lines 4.34 & 4.34.1 & 4.34.2) are based on the VDI standard calculation as shown on illustration. The British Industrial Truck Association recommends the addition of 100 mm to the total clearance (dimension a) for extra operating margin at the rear of the truck††at 4.8km/h. Gradeability figures are provided for comparison of tractive performance, but are not intended to endorse the operation of the vehicle on the stated inclines. Follow instructions in the operating manual regarding operation on inclines.SBattery ampere hour (Ah) nominal capacity ratings are estimated.³ VariableJ L PAZ , Measured according to the testcycles and based on the weighting values contained in EN12053MAST TABLES:v without load backrest s with load backrestDRIVE/LIFT MECHANISMNOTICECare must be exercised when handling elevatedloads. When the carriage and/or load is elevated, truck stability is reduced. It is important that the mast tilt in either direction is kept to a minimum when loads are elevated.Operators must be trained and must read, understand and follow the instructions contained in the Operating Manual.All values are nominal values and they are subject to tolerances. For further information, please contact the manufacturer.Hyster products are subject to change without notice.Lift trucks illustrated may feature optional equipment. Values may vary with alternative configurations.S afety:This truck conforms to the current EU requirements.4.14.24.34.44.54.74.84.124.194.204.214.224.234.244.314.324.34.14.34.24.354.414.424.43EQUIPMENT AND WEIGHT:Weights (line 2.1) are based on the following specifications: Complete truck with 3040mm TOF 2-stage limited free lift mast, with standard hook type carriage, 920mm forks with manual hydraulics, overhead guard and standard pneumatic shaped solid drive and steer tyres.HYSTERHYSTERH2.0XTS H2.0XTS Yanmar 2.6L K21 2.1L Basic Powershift Basic Powershift1 speed 1 speed Drum Brakes Drum Brakes DieselLPG/Dual fuel Seated Seated 2.0 2.0 500 500 415 415 1410 1410 3220 3220 3140 3140 4505 715 4475 665 1210 2010 1180 1960 Automatic AutomaticSE SE 21x8-9 21x8-9 21x8-9 21x8-9 18x7-8 18x7-8 2x 22x 2 915 1000 915 1000 9309306 10 6 101995 1995 150 150 **** **** 4105 4105 2160 2160 970 970 295 295 3275 3275 2355 2355 1035 1190 1035 1190 40 122 920 40 122 920 II II 920 920 110 110 120 120 3640 3640 3440 3440 2030 2030 1920 1920 390 390 240 24017.018.5 18.0 19.5 17.018.5 18.0 19.5 0.660.71 0.62 0.68 0.500.52 0.50 0.52 17.519.2 29 20 30 20 Hydraulic Hydraulic Yanmar/4TNE92 GCT/K 2129 31 2050 2250143 1400 144 1600 4 2659 4 2065 2.51.72.6 12 9212 5518181 62 59 23.5 23.5 52.0- 81 82 Hook Hook1.1 Manufacturer 1.2 Manufacturer’s type designation Engine / transmissionBrake Type1.3 Drive: electric (battery or mains), diesel, petrol, LPG1.4 Operator type: hand, pedestrian, standing, seated, order-picker 1.5 Rated capacity / rated load Q (t)1.6 Load centre distancec (mm)1.8 Load distance, centre of drive axle to fork x (mm)1.9 Wheelbasey (mm)2.1 Service weight (standard/dual tread) kg 2.2 Axle loading, laden front / rear kg 2.3 Axle loading, unladen front / rearkg8.1 Type of drive unit 3.1 Tyres: L = pneumatic, V = solid, SE = Pneumatic Shape Solid 3.2 Tyre size, front (standard tread)3.2.1 Tyre size, front (dual tread) 3.3 Tyre size, rear3.5 Number of wheels, front/rear (x = driven) 3.6 Tread, front (standard/dual tread) b 10 (mm)3.7 Tread, rearb 11 (mm)4.1 Tilt of mast / fork carriage forward / backward a /b (°)4.2 Height, mast lowered h 1 (mm)4.3 Free lift ¶ h 2 (mm)4.4 Lift ¶ h 3 (mm)4.5 Height, mast extended è h 4 (mm)4.7 Height of overhead guard (cabin) h 6 (mm)4.8 Seat height relating to SIP/stand height ¢ h 7 (mm)4.12 Coupling height h 10 (mm)4.19 Overall length l 1 (mm)4.20 Length to face of forks l 2 (mm)4.21 Overall width b 1/b 2 (mm)4.22 Fork dimensions DIN ISO 2331 s/e/l (mm)4.23 Fork carriage ISO 2328, class/type A, B4.24 Fork carriage width l b 3 (mm)4.31 Ground clearance, laden, below mast m 1 (mm)4.32 Ground clearance, centre of wheelbase m 2 (mm)4.34.1 Aisle width for pallets 1000 × 1200 crossways u A st (mm)4.34.2 Aisle width for pallets 800 × 1200 lengthways u A st (mm)4.35 Turning radius W a (mm)4.41 90° intersecting aisle (with pallet L = 1000mm x W = 1200mm) (mm) 4.42 Step height (from ground to running board) (mm) 4.43 Step height (between intermediate steps and floor) (mm)5.1 Travel speed, laden/unladen km/h 5.1.1 Travel speed, laden/unladen, backwards km/h 5.2 Lift speed, laden/unladen m/s 5.3 Lowering speed, laden/unladen m/s 5.5 Drawbar pull, laden kN 5.7 Gradeability, laden/unladen †† %5.10 Service brake D I S T I N G U I S H I N G M A R K SW E I G H T ST Y R E S & C H A S S I S D I M E N S I O N SP E R F O R M A N C E D A T AP E R F O R M A N C E D A T A A D D I T I O N A L D A T AD R I VE /L IF T M E C H A N I S M7.1 Engine manufacturer/type 7.2 Engine power according to ISO 1585 kW 7.3 Rated speed min–1 7.3.1 Torque at 1/min Nm/min–1 7.4 Number of cylinders/displacement (-)/cm 3 7.5 Fuel consumption according to MIL 268C cycle l/h or kg/h 7.10Battery voltage/nominal capacity S (V)/(Ah) 10.1 Operating pressure for attachments bar 10.2 Oil volume for attachments ³ l/min 10.3 Hydraulic oil tank, capacity l 10.4 Fuel tank, capacity l 10.7 Sound pressure level at the driver’s seat < J dB (A)10.8 Towing coupling, type DIN5l l b b b xWa100mm a 2100mma 2Asth h h h sQcαll y l h h h m m βb x40003500300025002000150010005000250500750100012501500H1.5XTH1.8XT H2.0XTS 4000350030002500200015001000500250500750100012501500H1.5XTH1.8XT H2.0XTS RATED CAPACITIESTRUCK DIMENSIONS= Centre of gravity of unladen truck Ast = W a + x + l 6 + a (see lines 4.34.1 & 4.34.2) a = Minimum operating clearance(VDI standard = 200 mm BITA recommendation = 300 mm)l 6= Load lengthLoad centreDistance from front of forks to centre of gravity of load.Rated loadBased on vertical masts up to 3035 mmLoad centre (mm)Standard CarriageIntegral Sideshift CarriageLoad centre (mm)R a t e d l o a d (k g )R a t e d l o a d (k g )2-StageFull Free Lift2-StageFull Free Lift 2-StageLimited Free Lift2-StageLimited Free Lift3-Stage Full Free Lift3-Stage Full Free LiftMaximum fork height (mm)Maximum fork height (mm)MASTMASTWith ISS & FPWith ISS & FPH2.0XT H2.5XT H2.0XT H2.5XT H3.0XT H3.0XTH2.0XT H2.5XT H2.0XT H2.5XT H3.0XT H3.0XTMaximum Fork Height (mm)Maximum Fork Height (mm)Without SideshiftWithout SideshiftWith ISS & FP With ISS & FP Without SideshiftWithout Sideshift3035 1500 1750 1500 1750 3040 2000 2000 3335 1500 1750 1500 1750 3340 2000 2000 3735 1500 1750 1500 1750 3740 2000 2000 4035 1500 1750 1500 1750 4040 2000 2000 4835 1410 1660 1410 1660 4840 1880 1880 3035 1460 1690 1400 1630 3040 1930 1850 3335 1450 1690 1400 1620 3340 1920 1850 4035 1440 1670 1380 1610 4040 1910 1840 4835 1340 1560 1290 1500 4840 1790 1720 5035 1290 1520 1250 1470 5040 1750 1680 4375 1500 1680 1500 1680 4380 1930 1930 4527 1470 1660 1470 1660 4532 1900 1900 4825 1410 1590 1410 1590 4832 1840 1840 5125 1360 1520 1360 1520 5130 1720 1720 6025 1090 1270 1110 1270 6030 1200 12004375 1440 1610 1380 1540 4380 1840 1770 4527 1410 1590 1360 1520 4532 1810 1750 4825 1340 1520 1290 1450 4832 1750 1680 5125 1290 1450 1220 1410 5130 1680 1610 6025 1070 1220 1020 1180 6030 1220 12203025 1500 1750 1500 1750 3030 2000 2000 3325 1500 1750 1500 1750 3330 2000 2000 3025 1450 1680 1390 1620 3030 1920 1850 3325 1450 1680 1390 1610 3330 1910 1840STANDARD FEATURES & OPTIONSSTANDARD EQUIPMENTComplete truck equipped with:n2-Stage limited free lift (LFL) mast with lift height of 3035mm n Hook-type carriage with 1070mm high load backrest (LBR)n920mm long forksn Y anmar 2.6L Diesel or GCT K21 LPG / Dual fueln Powershift Single Speed Transmissionn Directional control levern Single inch / brake pedaln Shift Lever: Left hand on columnn C omfort full suspension seatn Pneumatic shaped solid tyresn 2 cowl mounted hydraulic leversn Standard integrated dash display+ Monochrome LCD panel– Real time clock– Hour meter– Fasten seatbelt– F uel level with low fuel warning buzzer (Diesel fuel only) + Service Indicators– Service required– Coolant temperature with high temp warning buzzer– Alternator with warning buzzer– Transmission oil temperature with warning buzzer– Engine oil pressure with low pressure warning buzzer– Glow lamp (Diesel fuel engine only)– Error messagen Key starting with anti-restart functionn Steering Wheel with Spinner Knobn Synchronous Steeringn Electric Hornn Infinitely adjustable steering columnn Rubber floor matn High air intaken Counterweight exhaustn Black seat beltn Serpentine radiatorn Hyster Stability Mechanism™ (HSM)n Swing down LPG tank bracket (H1.8-2.0XTS)Cabinn O ver Head Guard (OHG) with rain gutter and cup holdern 82 dB(A) standard noise level for LPG/Dual fuelengine optionn 81 dB(A) standard noise level for Diesel engine optionn 12 months / 2000 hours manufacturer’s warrantyn Operator’s manual OPTIONAL EQUIPMENTMastsn 2-Stage limited free lift (LFL) masts with up to 5040mm lift heightn 2-Stage full free lift (FFL) masts with up to 4130mm lift height n 3-Stage full free lift (FFL) masts with up to 6030mm lift heightCarriagesn Integral side shift (ISS) carriageHydraulic Valve and Leversn 3-function cowl mounted hydraulic levers with or without interlock for clampingn 4-function cowl mounted hydraulic levers with or without interlock for clampingForksn Fork lengths are available from 1070mm to 2120mmControlsn M onotrol™ PedalDash Displayn Speedometer with speed alarm and warning buzzern Traction speed limiter (H1.5XT Diesel)n Audible reverse alarmLightsn L ight Kit consisting of: 2 Front Halogen Work Light, Brake / Tail / Back-Up Lights with Turn Signals and reverse alarmn L ED Front Work Lightn L ED Rear Combination Lightn R ear Work Light - Reverse Operatedn R ear Work Light - Switch OperatedEnvironmentaln Vertical exhaustn 2-way catalytic mufflern Spark arrestor mufflern High capacity radiatorn Anti Clog Radiator with Lint Screenn Tilt Cylinder Bootsn High mount pre-cleanerOthern H ydraulic cut-out seat interlock (prevents travel when operator seatbelt is not used)n Lexan Overhead Guard Covern Rear Drive Handle with Horn Buttonn 2 rear vision mirrorswww.hyster.eu*********************/HysterEurope@HysterEurope/HysterEuropeSTRONG PARTNERS. TOUGH TRUCKS.TMFOR DEMANDING OPERATIONS, EVERYWHERE.Hyster supplies a complete range of warehouse equipment, IC and electric counterbalanced trucks, container handlers and reach stackers. Hyster is committed to being much more than a lift truck supplier.Our aim is to offer a complete partnership capable ofresponding to the full spectrum of material handling issues: Whether you need professional consultancy on your fleet management, fully qualified service support, or reliable parts supply, you can depend on Hyster.Our network of highly trained dealers provides expert,responsive local support. They can offer cost-effective finance packages and introduce effectively managed maintenance programmes to ensure that you get the best possible value. Our business is dealing with your material handling needs so you can focus on the success of your business today and in the future.HYSTER-YALE UK LIMITED trading as Hyster Europe. Registered Address: Centennial House, Building 4.5, Frimley Business Park, Frimley, Surrey GU16 7SG, United Kingdom.Registered in England and Wales. Company Registration Number: 02636775. HYSTER,and FORTENS are registered trademarks in the European Union and certain other jurisdictions.MONOTROL ® is a registered trademark, and DURAMATCH and are trademarks in the United States and in certain other jurisdictions.Printed in The Netherlands. Part number: 3990866 Rev. 01-10/17-TLCHYSTER EUROPECentennial House, Frimley Business Park, Frimley, Surrey, GU16 7SG, England.Tel: +44 (0) 1276 538500。

  1. 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。

物料运输车使用维护说明书洛阳卡瑞起重设备有限公司目录前言 (2)概述 (3)安装调试 (5)试车 (7)使用 (7)日常维护及故障分析 (11)易损件 (14)附注 (15)前言非常感谢使用“洛阳卡瑞起重设备有限公司”的物料运输车。

本安装说明书,主要叙述了物料运输车的安装部分及正常维护、保养。

在安装前,谨请认真阅读本安装说明书及随机安装图纸,同时,请您在熟读本产品安全注意事项和要求的基础上进行安装。

注意·安装电动物料运输车必须是具有专业资质的安装单位。

·请将此安装说明书在安装时交安装单位。

·安装说明书中的示图,是代表图例,与到货的产品可能有所不同,请以随机图纸为准。

危险·请电气工程人员进行接线作业。

·急停及安全装置安装完后,请务必检查动作是否有效。

·严禁无操作证作业。

·绝对不允许自行改造电动物料运输车的任何部位。

1.概述电动物料运输车是一种有轨运行的物料输送系统,适用于室内。

由操作者通过设置的遥控器来控制整台车的运作,完成物料在不同位置之间的输送。

电动物料运输车是与相关圆柱容器配套使用,因此本产品是一种用途比较单一的物料输送车。

产品外形如下图物料输送车主要有大车、小车、转运车、物料支架、起升机构、悬臂梁机构、运行机构、液压机构、电气设备等9部分组成。

各部分的结构特点如下:1)大车、小车及转运车:大车由主梁和端梁构成,小车由端梁和小车架构成,转运车由端梁和横梁构成。

大车主梁采用标准型材H型钢;小车架是由型钢组焊而成;转运车横梁由板材焊接而成;大小车端梁都是由矩形管制作。

大车主.端梁,小车端梁及小车架,转运车端梁及横梁均是通过高强度螺栓连接在一起。

2)物料支架:物料支架主要是用来支撑料桶,支架上的弯板弧度是根据料桶直径的大小而定,因此物料支架的使用是有约束条件的。

物料支架上橡胶垫的设置满足了物料桶吊装时缓冲的要求,同时对物料桶也有一定的防滑作用。

由于不同规格的物料桶其直径有所不同,橡胶垫也可在一定的挤压变形来适应直径不大的变化。

3)起升机构:起升机构使用同步一出四电动液压千斤顶,其中使用了负载敏感节流阀使四个液压缸的误差小于5mm。

在减小整车外行尺寸的同时也保证了四个液压缸的同步性。

4)旋臂梁机构:旋臂梁是在大车定位后,旋臂梁搭接在料仓内轨道梁(或转运车端梁)和大车主梁上,使小车能够进入料仓(或转运车),完成料桶支架和料桶的卸载。

旋臂梁的源动力是液压马达减速器。

5)运行机构:大车运行机构采用分别驱动装置。

采用分别驱动,省去了中间传动轴,因此自重轻,部件的分组性好,安装和维修方便。

小车及转运车运行机构采用四驱,有效地解决了车轮的打滑问题,很好得提供了车轮的同步性。

6)液压机构:液压机构是起升机构和旋臂梁机构的源动力。

液压机构工作中有一个同步一出四电动液压千斤顶,一个同步一出四手动液压千斤顶和两个液压马达减速器。

设置手动液压千斤顶的目的是为了保证在电动出现故障时起升机构仍能使用。

液压机构的使用和操作具体见液压机构使用说明书。

7)电气设备:本产品为遥控器操作的形式。

电机采用德国SEW“三合一”电机,制动方式为电磁制动,并配备手动释放装置,电机各项性能参数均符合国际标准,详见有关发货资料。

物料运输小车的摆杆机构,起升机构,运行机构,液压机构均设置有开关安全保护装置。

小车的供电方式为拖链供电,大车及转运车为安全滑线供电,从而有效保证了系统供电的稳定性和可靠性。

控制柜主要元器件采用国外知名品牌,如西门子、施耐德。

2.安装调试a)停放电动物料运输车的地点,应保证地面结实,并要使桥架放平,避免产生变形。

b)物料运输车安装前应对运行轨道进行测量,测量其跨度及误差、标高及误差、接头间隙及偏差等。

若测量值超过国家相关规范,则应对轨道进行相应调整,以使其达到国家规范要求,否则轨道安装问题也可导致物料运输车不能正常使用。

公差的国家标准如下:(1)轨道跨度公差±3mm(2)轨道标高公差±5mm(两轨道平行度)(3)轨道接头公差1-2mm(接头距离)(4)轨道弯曲公差:±3mm(5)轨道倾斜度:1/1000L—1/2000Lmm(L为轨道长度)c)按下图所示将主、端梁用高强度螺栓副连接起来,每个螺栓副包括1条螺栓、1个螺母、2个平垫。

应注意此处螺栓为专用螺栓,必须用力矩扳手达到规定的力矩。

主梁同横梁连接方式如图2所示,连接面在组装前应清理毛刺、油污及锈蚀。

d)物料运输车大车部分放在轨道上后,再把小车部分放在主梁的轨道上待小车部分调整完毕后才能把物料支架放置在小车上面。

e)物料运输车的供电系统放置于车体上方,由C型轨、电缆滑车及扁电缆构成,确保供电系统能够随物料车平稳移动,安全供电。

f)物料运输车的电源导电架焊接在主梁边缘,确保能可靠的为物料车供电。

g)液压站安装:液压站放置在由槽钢焊接而成的支架上,支架与大车主梁支架螺栓连接。

液压油管用安装接头安装在液压站上,用安装夹在大车上固定好,油管不能有打结现象。

图 2h)控制柜安装:控制柜安装在液压站对侧的支架上,以螺栓固定,保证其稳定性。

i)拖链安装:拖链的一端固定在两根主梁间的拖链支架上,另一端固定在小车上,液压油管、小车电源线及部分控制电缆装在拖链里,安装完成后应在拖链外部边缘焊接若干支撑杆,防止拖链在运行过程中因为自重滑落至地面与其他部件引起干涉,损坏拖链,并确保拖链在小车运行过程中不会与小车有干涉,能顺利进出料仓并装卸容器。

j)运行电机安装:本产品运行电动机为交流笼式电动机,采用电磁制动,其制动器采用由加速线圈BS和保持线圈TS组成的双线圈系统。

当电动机接通电源时,加速线圈在高起动电流下接通,随后保持线圈接通。

这样当制动器释放时,响应时间相当短,制动盘动作相当迅速,电机几乎是在没有任何制动摩擦下起动的。

制动器如在使用过程中需要调整,请参看电机使用说明书,但必须保证两侧电机制动一致。

3.试车:a)电动物料运输车安装就位后,应按照图纸进行电气部分的接线,控制柜、大小车及转运车运行电机、限位开关、大车电源、小车电源、转运车电源、液压机构等。

b)应按照液压机构的使用说明书为液压站加注液压油。

c)接线完毕后,检查整车电路,确保无误后通电。

d)接通电动物料运输车的电源(在控制柜里)。

e)按照遥控器上标明的运动方向测试接线是否正确(要求点动)。

f)如各个方向正确无误,则需进行长距离运转试验,包括上升、下降、旋臂放、旋臂收、前进、后退、左行、右行。

g)限位调试。

h)不得超过电动物料运输车铭牌上所规定的载重量。

i)本电动物料运输车不适用于在有火危险,爆炸危险的介质中和相对湿度大于85%,充满腐蚀气体场所工作,以及用来搬运熔化金属和有毒易燃易爆物品。

4.使用a)当物料车电源接通以后,在遥控器上按下启动按键,主接触器吸合,各机构通电,大小车变频器准备工作,触摸屏正常显示。

b)在触摸屏的开始界面上点击“进入”键,会进入主菜单界面。

在主菜单界面上有“系统选择”和“限位状态指示”两个选择菜单,点击“系统选择”可以进入系统选择界面,在系统选择界面中分别有对应的各个仓位的按键,当需要装料时,按下相应的仓位按键,此时仓位指示灯亮,仓位选择完成。

按下“返回”键,回到主菜单,点击“自动选择”键,自动指示灯亮,在确认“手动选择”处于关闭位置后,点击“运行开关”键,当运行指示灯亮起后,大车便自动以高速前往所选择的仓位,同时操作台上大车运行指示灯亮。

当大车接近所料仓选时,大车开始减速以中速运行,在到达指定区域后,大车低速对位,在对位完成后,大车运行指示灯灭,大车定位指示灯亮,提示定位完成,可进行下一步动作。

在大车定位完成后,操作者应点击“运行开关”键,使之弹起,防止误操作大车运行。

c)大车定位完成后,根据小车上有无料桶时进行操作;此时可操作料桶上升或下降动作。

d)在操作料桶上升时,料桶升指示灯亮,料桶上升电磁阀通电,升降油缸动作,在料桶升至指定高度后,限位开关动作,料筒升指示灯灭,电磁阀断电,升降油缸停止上升,此时可操作旋臂梁机构。

e)按下过轨左放或过轨右放后,悬臂放下电磁阀通电,悬臂液压电机动作,在旋臂旋转至预定位置后,限位开关输出信号,指示灯灭,电磁阀断电,悬臂液压电机停止动作,这时旋臂梁旋转到位,可进行小车的操作。

f)按下小车左行(右行)按键后,小车运行指示灯亮,小车左行(右行)移动到仓内。

在小车行进到指定位置后,左仓限位开关(右仓限位开关)输出信号,小车定位指示灯亮,小车运行到位,停止前进,此时可进行料桶的操作。

根据有无料桶时进行料筒升降操作。

g)按下料桶下降按键,料桶降指示灯亮,料筒下降电磁阀通电,升降油缸下降。

当放下料桶至指定位置时,限位开关输出信号,升降油缸停止下降,料桶降指示灯灭,此时可操作小车回到大车上。

h)在小车运行回到大车上以后,在预定位置,光电开关输出信号,小车停止前进,指示灯亮,可进行旋臂梁的收回。

i)在进行旋臂梁收回时,悬臂收回电磁阀通电,当旋臂旋转到预定位置后,限位开关输出信号,指示灯灭,悬臂收回电磁阀断电,此时可操作大车运行去其他仓位或者返回至起点位置。

j)当需运行至其他仓位时,先按下主菜单上的“仓位取消”键,取消上一次所选择仓位,然后进行仓位选择步骤,然后重复上面的步骤。

当需要返回起点时,先按下主菜单上得“仓位取消”键,取消上一次所选择仓位,然后按下“返回起点”键,大车便自动回到所设的起点位置。

k)主菜单上的“限位状态指示”键,在点击后进入就能查看当前情况下,整车上的所有限位及感应开关的状态,当出现故障时可查看限位状态,看其是否满足运行条件,是否需要更换。

l)在触摸屏的开始界面上除了“进入”,还有“讯响器”、“位置状态”、“整车状态查看”等键。

当大车运行时,如果现场有其他工作人员,按下“讯响器”键,这时就会发出警告铃声,提醒其他人注意避让,安全运行。

按下“位置状态键”键,就能进入位置显示界面,其上有分别有实际位置、目标位置和距离三个数字框,可分别显示当前大车所在位置、所选取仓位的位置和大车与所选仓位之间的距离值,便于操作人员检查大车停止位置是否与所选仓位一致。

按下“整车状态查看”键,进入整车运行状态界面,当在操作任何机构动作时,都可以查看其是否有相对应的动作。

如果操作无动作时,如果触摸屏上对应指示灯亮,则表示PLC 系统有输出,此时检查电源或者控制回路。

m)物料运输车使用激光测距仪进行大车的测距及定位,激光测距仪利用对面的墙壁及反光纸进行测距。

在大车运行过程中应避免其指示光源受到人为干扰,影响测距的传输值,操作人员在操作过程中应注意观察,提醒现场其他工作人员远离光源反射区域。

(注意:为了保证定位的精确度,激光测距仪的镜头及反光纸应保持干净,工作人员要时常清理其表面的灰尘和其它杂质,保持清洁)。
